RUNBAITOO 6-Inch Oval Red LED Trailer Tail Lights (2-Pack) — 10 SMD, Dual-Brightness, Waterproof

RUNBAITOO 6-inch oval red LED trailer tail lights are a sealed, 2-piece set with 10 SMD LEDs each that provide separate high-brightness brake/turn output and lower-intensity tail illumination for 12V vehicle systems.

These compact surface-mount lamps combine a durable ABS housing with a polycarbonate lens and ultrasonic welds to keep water, dust, and vibration out. They’re designed for hardwired installation on trailers, trucks, RVs, boats, buses, and farm equipment where reliable rear signaling is essential. Each lamp includes three-wire wiring for ground, brake/high, and tail/low circuits plus self-tapping screws for fast surface mounting.

How do these lights deliver bright brake and turn signals yet dim tail light output?

Each unit contains 10 SMD LEDs arranged to produce two distinct intensity levels. When the brake or turn circuit is activated, the red LEDs run at higher power for maximum visibility; the tail circuit powers the same LEDs at a lower level for steady running light.

• Dual-brightness operation: high for brake/turn, low for tail.
• 10 SMD LEDs per lamp for even, wide-angle illumination.
• Works on standard 12V vehicle electrical systems.

What wiring and mounting steps are required for installation?

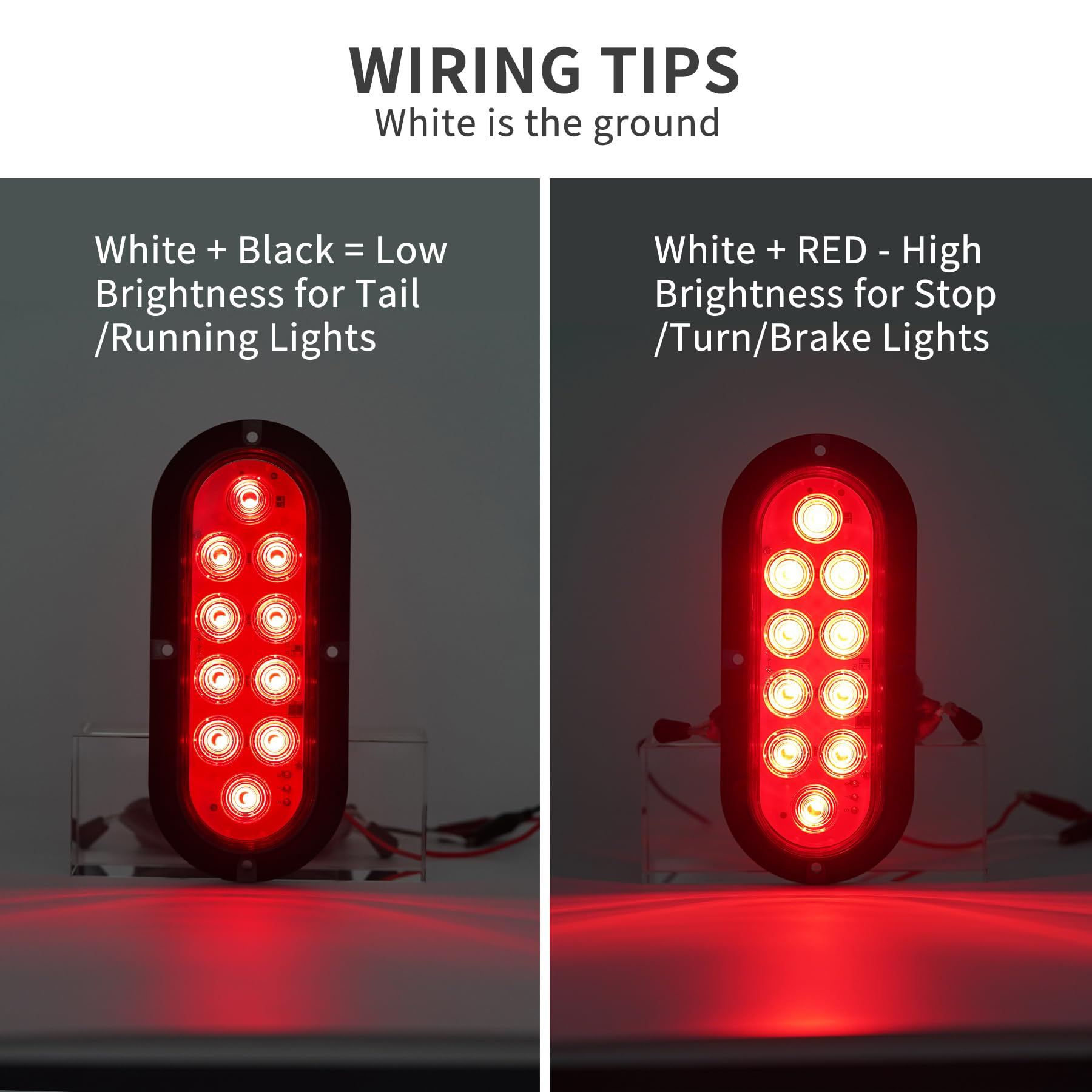

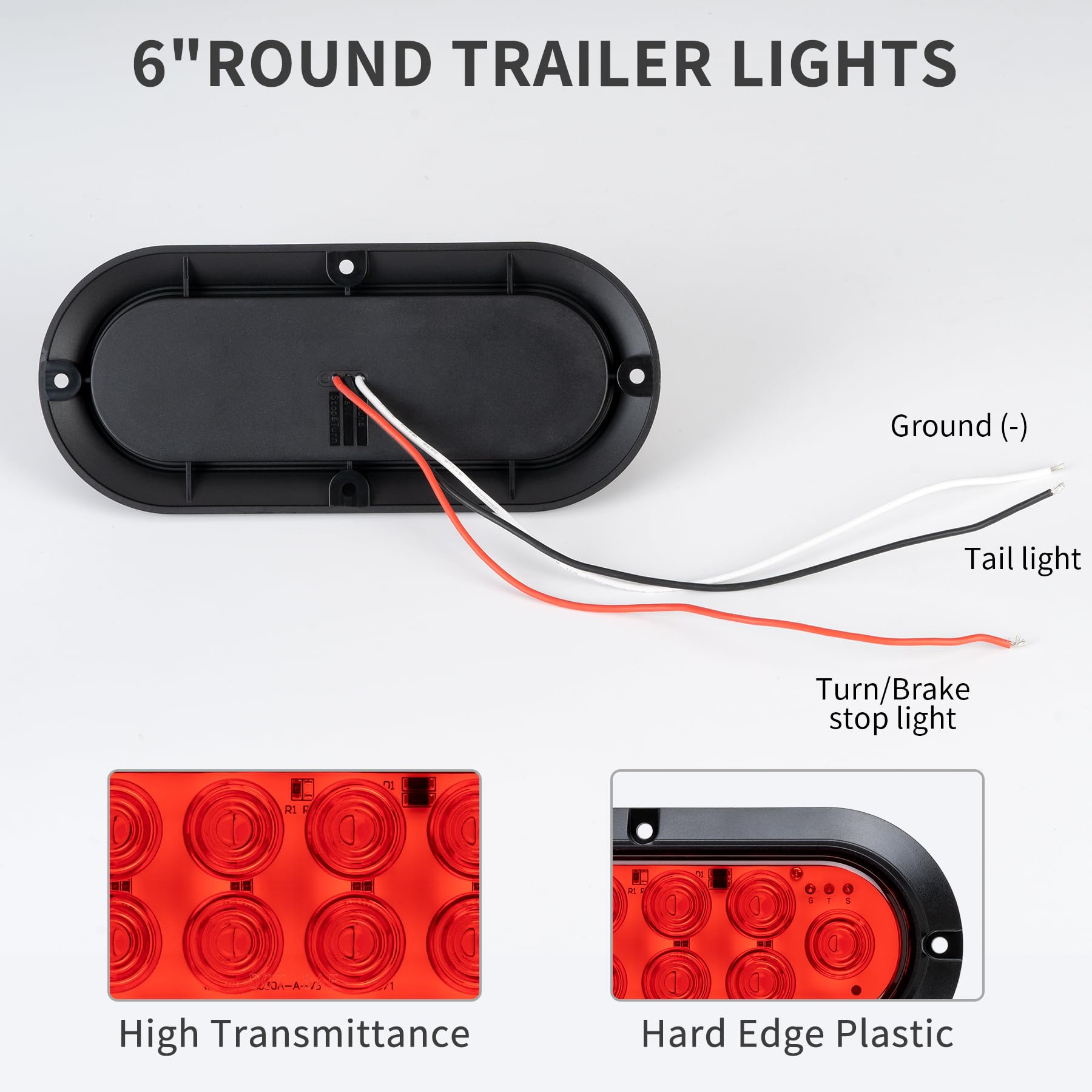

These are hardwired surface-mount lights, not plug-and-play pigtails. You’ll connect three wires—white to ground, red to brake/high, and black to tail/low—then secure each lamp with the supplied self-tapping screws into a drilled surface.

• White = ground; Red = brake/high brightness; Black = tail/low brightness.

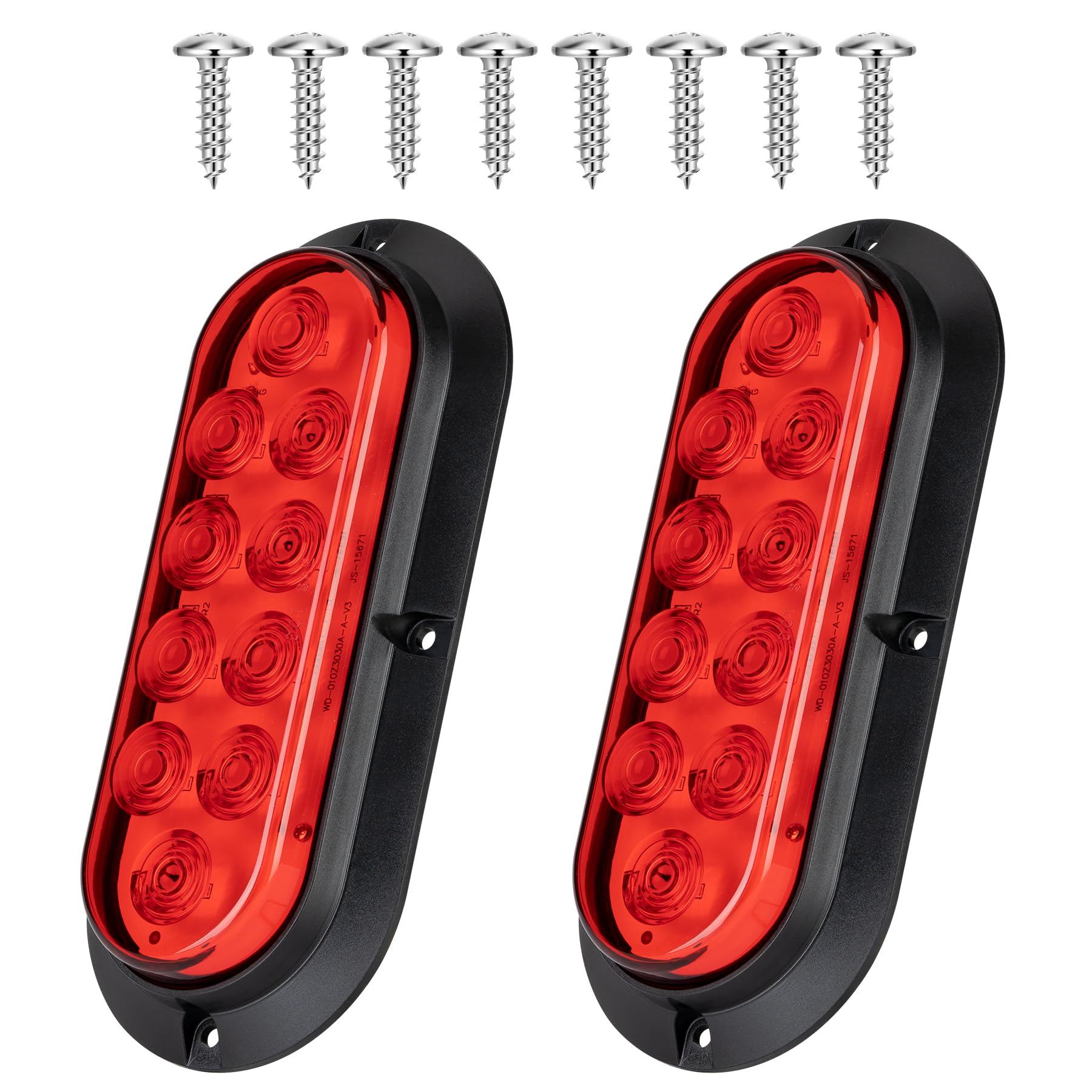

• Includes 8 self-tapping screws for two lights; drill and driver required.
• Designed for surface-mount on metal or composite rear panels.

Are these tail lights durable enough for harsh weather and rough roads?

Yes. The housing uses impact-resistant ABS and a clear PC lens; seams are ultrasonically welded to create a waterproof, dustproof, and vibration-resistant assembly suitable for outdoor vehicle use. They’re engineered to withstand rain, mud, and typical road shocks.

• ABS housing with PC lens for impact resistance.
• Ultrasonic weld seal prevents water and dust ingress.
• Shock-proof design for trailer and commercial vehicle use.

What vehicle types and wiring systems are these compatible with?

These 12V lights suit a wide range of vehicles: utility trailers, boat trailers, travel trailers, trucks, buses, RVs, and agricultural equipment. They’re intended for systems that separate brake/turn and tail functions via dedicated circuits.

• Compatible with 12V electrical systems on trailers and trucks.
• Works with RVs, buses, boats (trailers), and farm machinery.
• Not supplied with plug adapters—hardwired installation required.

Who is this for: RUNBAITOO 6-inch oval red LED tail lights are best for vehicle owners and fleet managers who need compact, weatherproof rear signaling with clear dual-brightness capability. Choose this 2-pack if you want durable surface-mount lamps with simple three-wire hookups and included screws for mounting on trailers, trucks, RVs, buses, or agricultural and utility equipment.
