Runleader digital tachometer hour meter RL-HM032A — 0–20,000 RPM, IP65 waterproof, dual service timers

The Runleader RL-HM032A is a compact digital tachometer and hour meter that tracks engine RPM, running hours, and maintenance intervals with a waterproof, battery-backed build.

Designed for small engines, generators, lawn equipment and marine motors, this all-in-one gauge combines a tachometer with a multi-function hours gauge and service timers. It records maximum RPM, supports eight ignition patterns for broad engine compatibility, and offers both green and red backlighting to show normal and alert states. Installation is simple with stick-on or screw mounting and a single-wire signal hookup.

How does the RL-HM032A report running time and maintenance intervals?

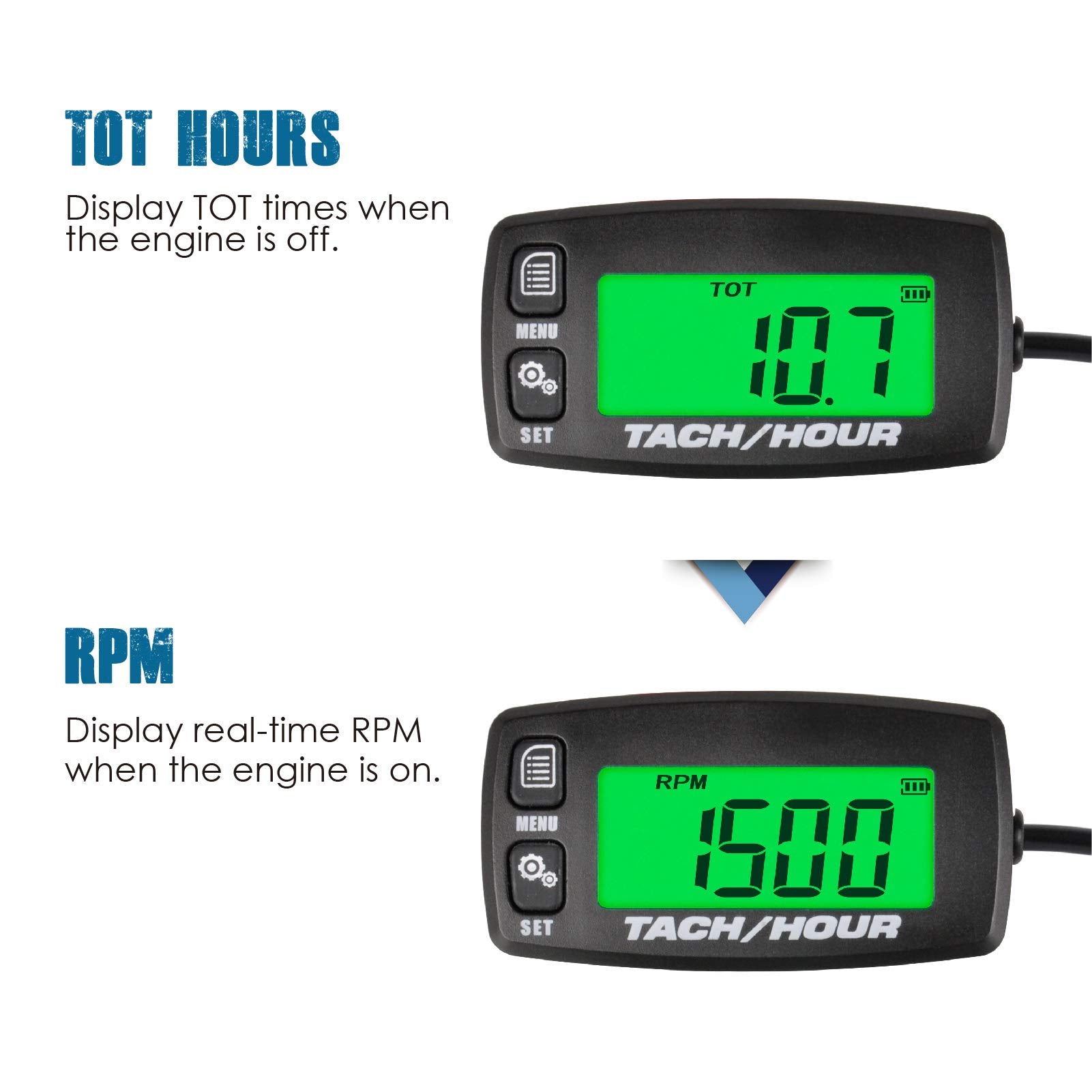

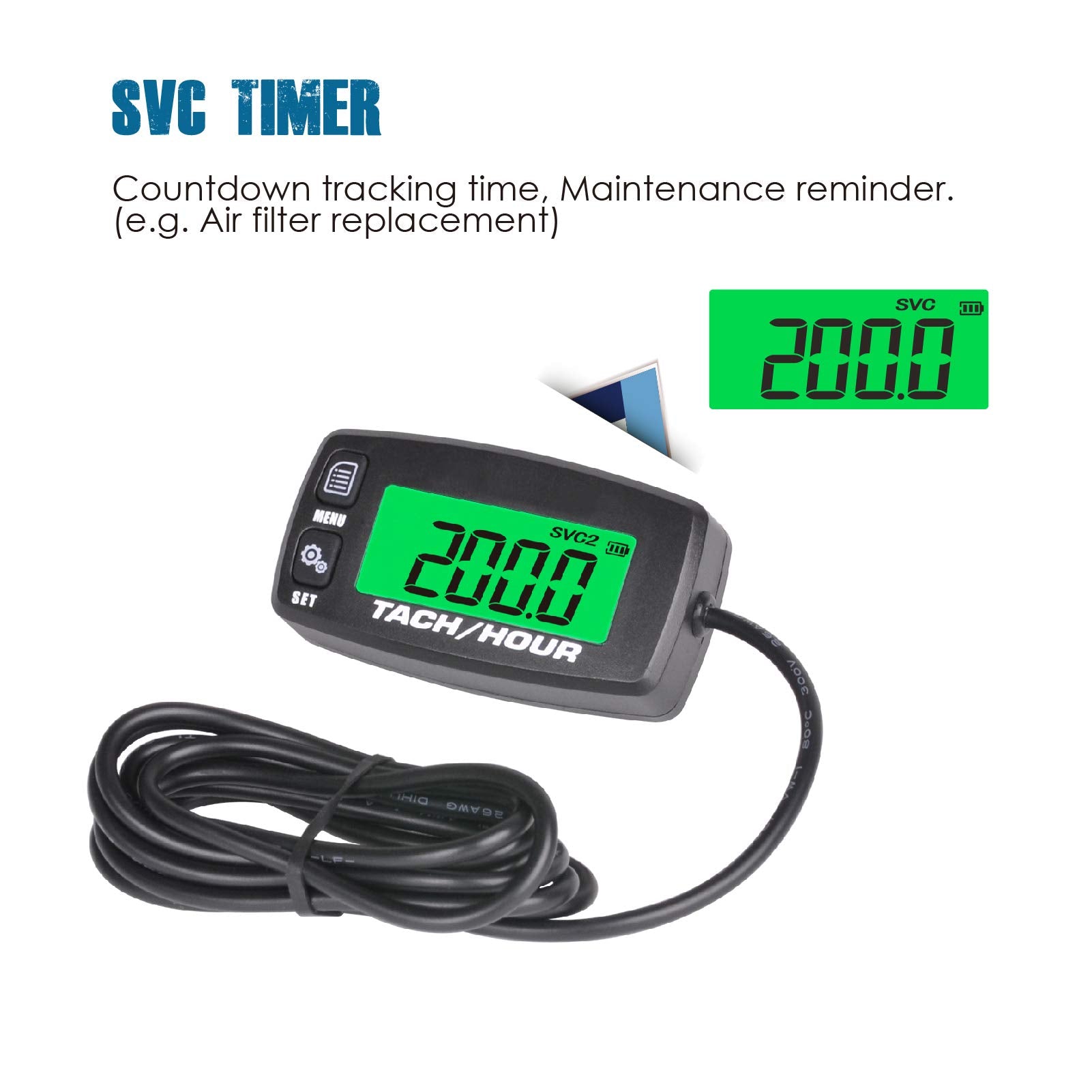

The RL-HM032A maintains a total hours reading (TOT) plus a job timer for measuring single tasks and two programmable service interval timers (SVC and SVC2). These allow you to monitor overall engine use and plan routine maintenance like oil or filter changes.

• Total running hours (TOT) display for lifetime tracking

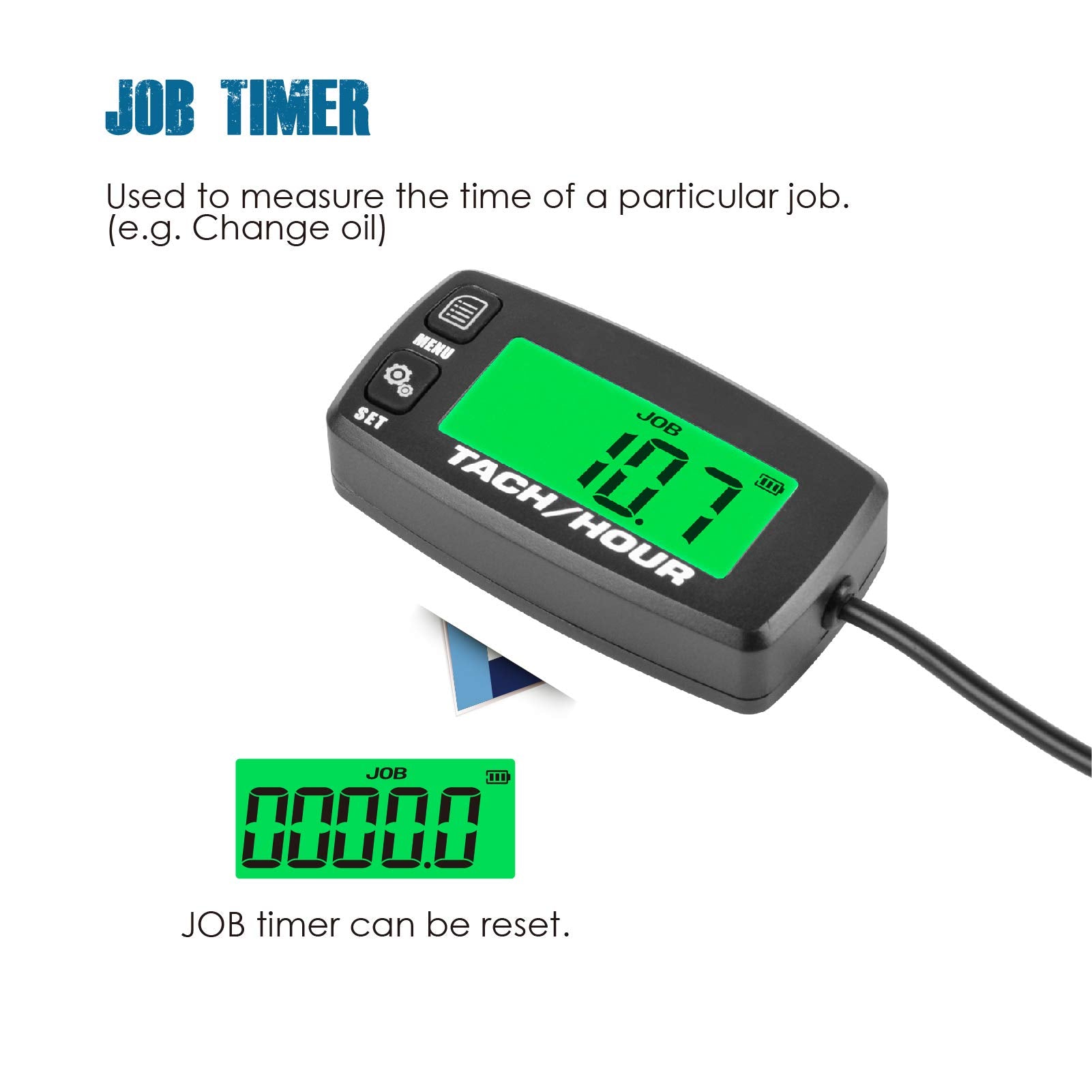

• Job timer to log time spent on specific operations

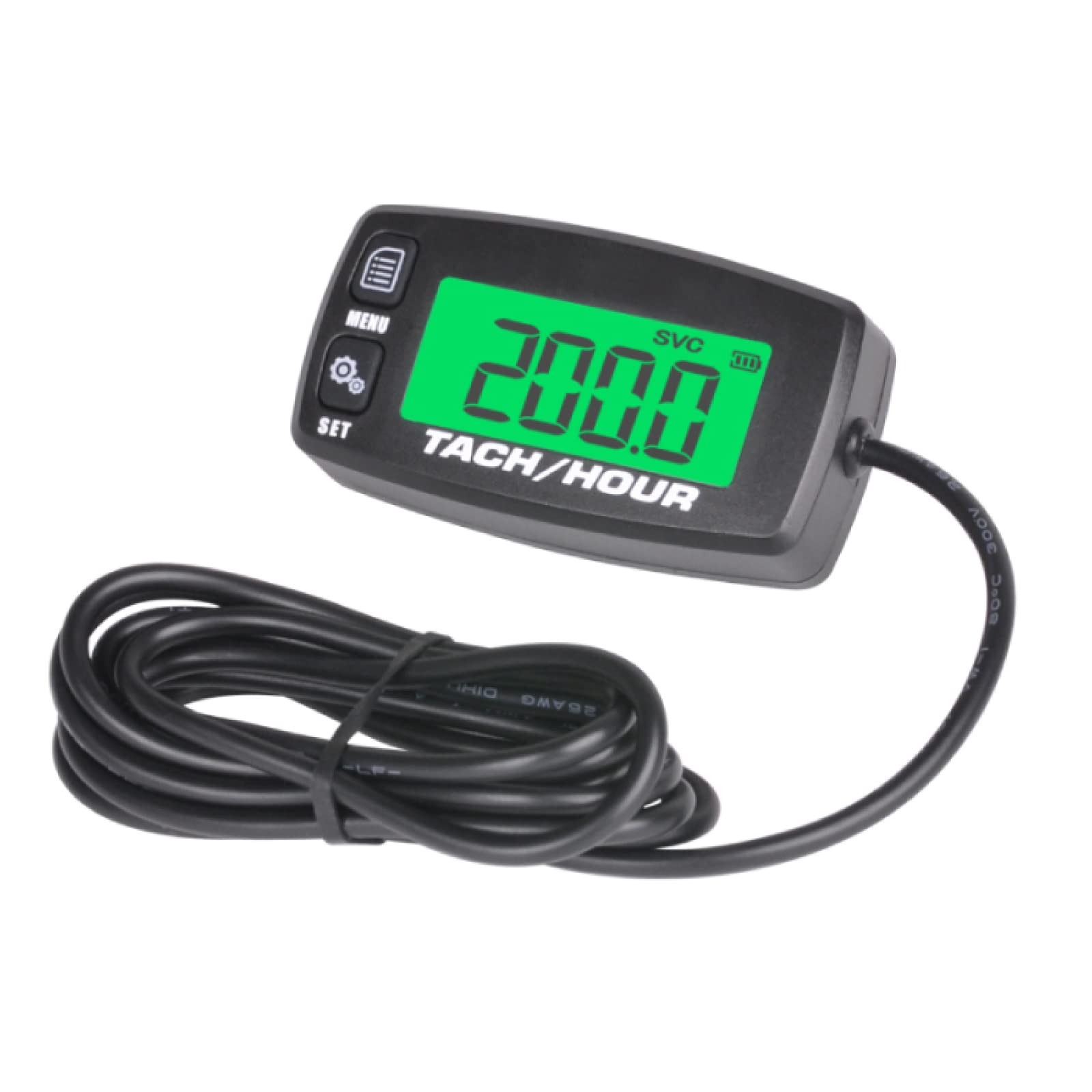

• Two service interval timers for scheduled maintenance reminders
• User data retained after power loss or battery change

What RPM features and alerts does it provide?

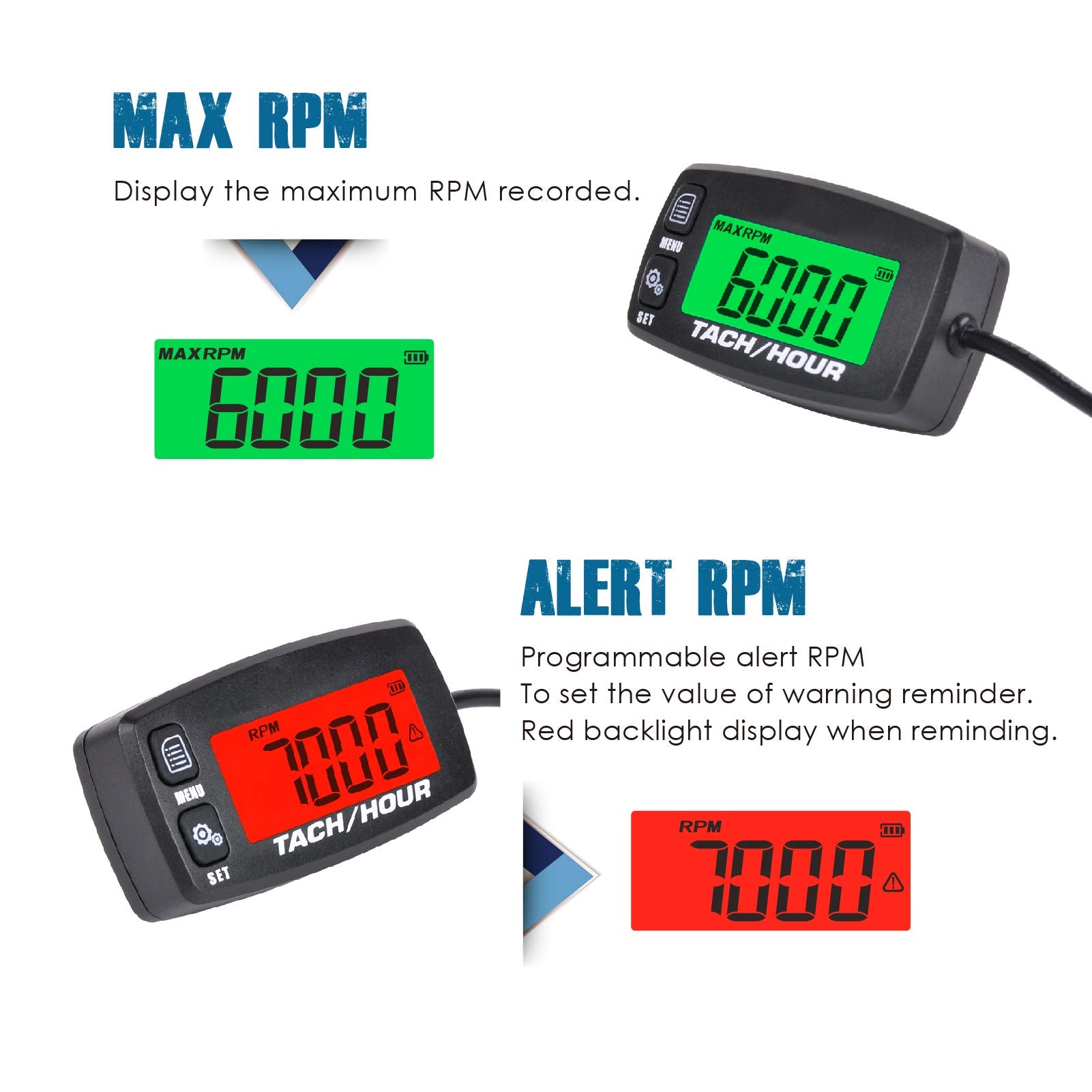

The unit measures RPM from 0 up to 20,000 and saves the highest recorded engine speed for review. You can set an RPM warning threshold that switches the display to red backlight when exceeded, helping you avoid overrevving.

• RPM range: 0–20,000 RPM with max-RPM recall
• Adjustable RPM alert that triggers red backlight

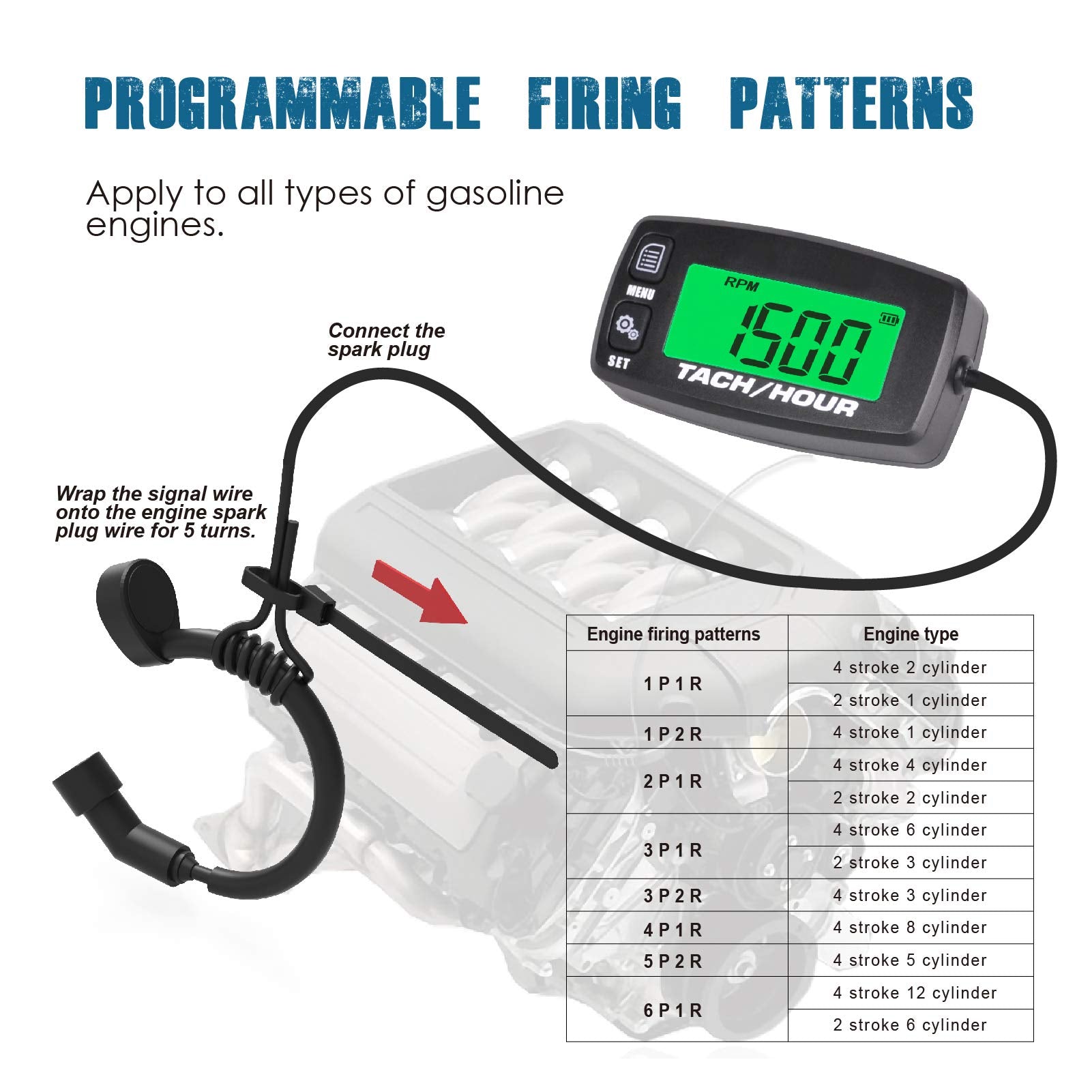

• Eight ignition/firing pattern options for compatibility
• Simple one-wire engine signal detection

How easy is the RL-HM032A to install and maintain?

Installation requires either adhesive mounting or a screw mount at a convenient location and a single wire to pick up the engine signal. The sensor lead is about 68.8 inches and can be shortened or extended as needed; the internal CR2032 battery is replaceable, and settings persist through battery changes.

• Stick-on or screw mounting options for flexible placement
• One-wire hookup simplifies installation
• Sensor wire length ≈ 68.8 inches, modifiable on site

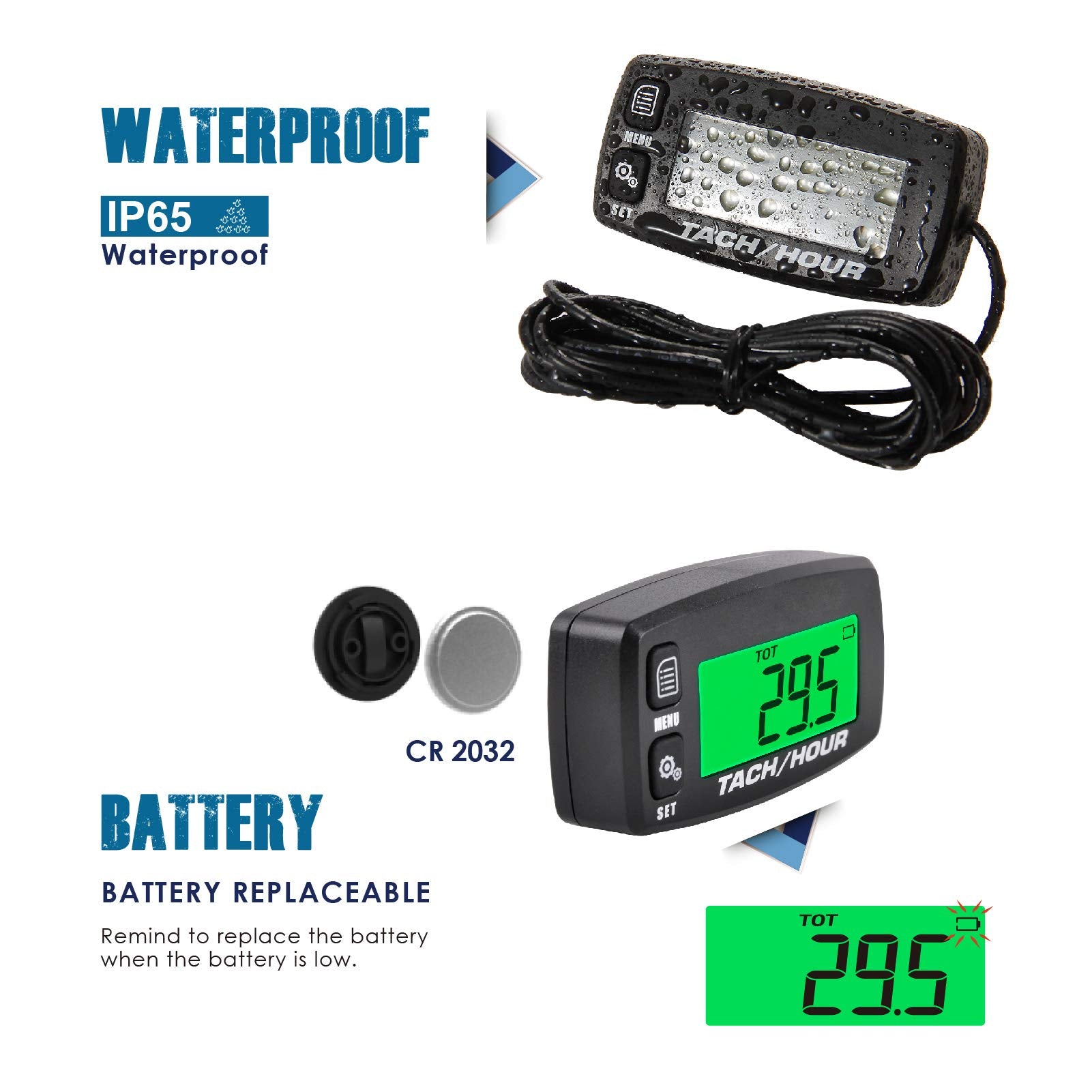

• Replaceable CR2032 battery with data retention

What environmental and display options does it offer?

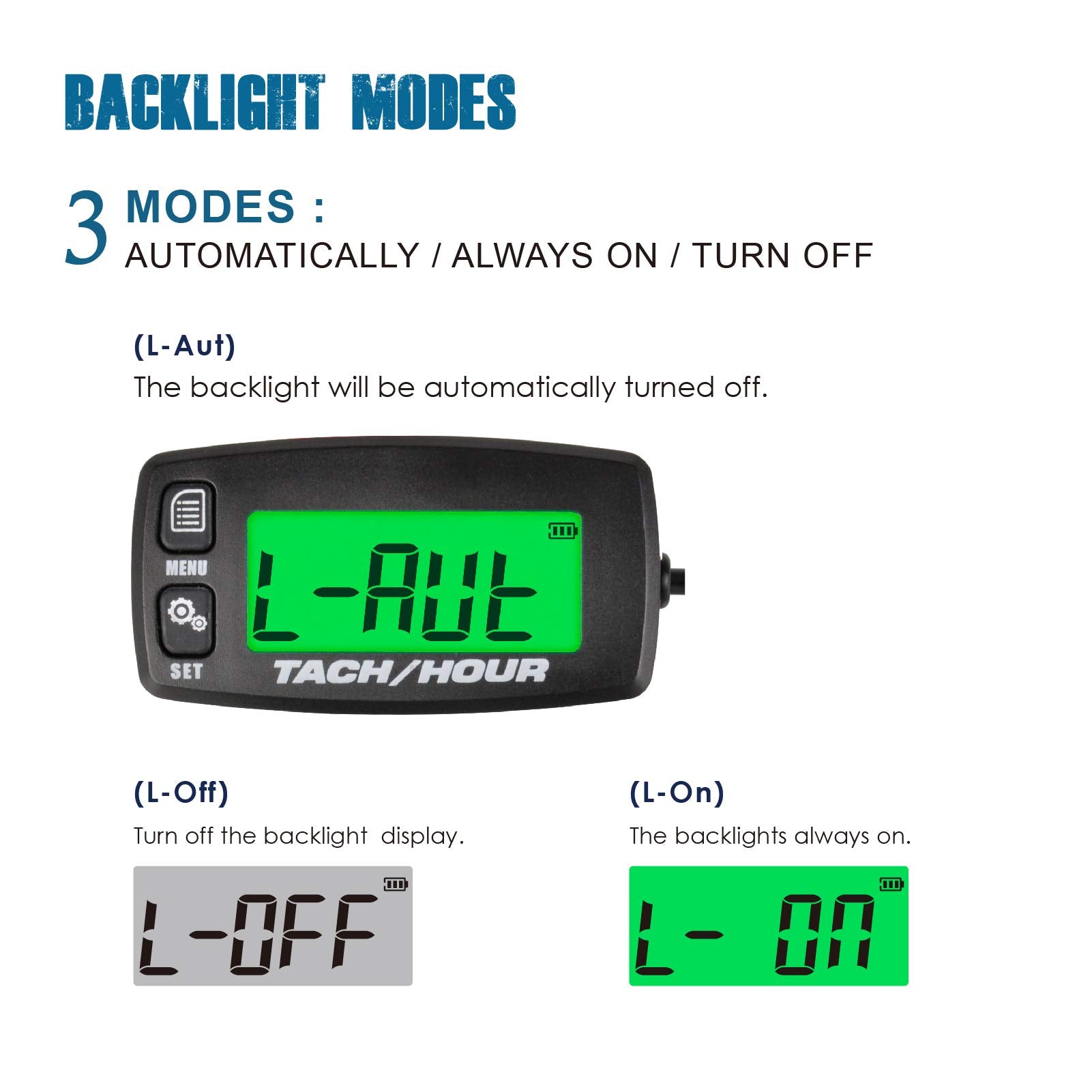

The display supports green and red backlight modes: green can be set to always-on, off, or automatic, while the red backlight signals RPM warnings. The housing carries an IP65 rating for dust and water resistance, making it suitable for exposed equipment environments.

• Green backlight modes: always-on, off, or automatic
• Red backlight for RPM warning visibility
• IP65-rated housing for protection against dust and water spray
• Durable construction for outdoor and workshop use

Who is this for: The Runleader RL-HM032A fits owners and technicians who need a compact, reliable tachometer and hour meter for small engines, including lawn and garden equipment, portable generators, motorcycles, ATVs and marine outboards. It’s aimed at users who want simple installation, clear visual alerts, and the ability to schedule routine maintenance without complex wiring or bulky instrumentation.
