RV Designer Gas Prop Door Support 20-inch, 10 lb — RV Door Strut Replacement, Direct-Fit

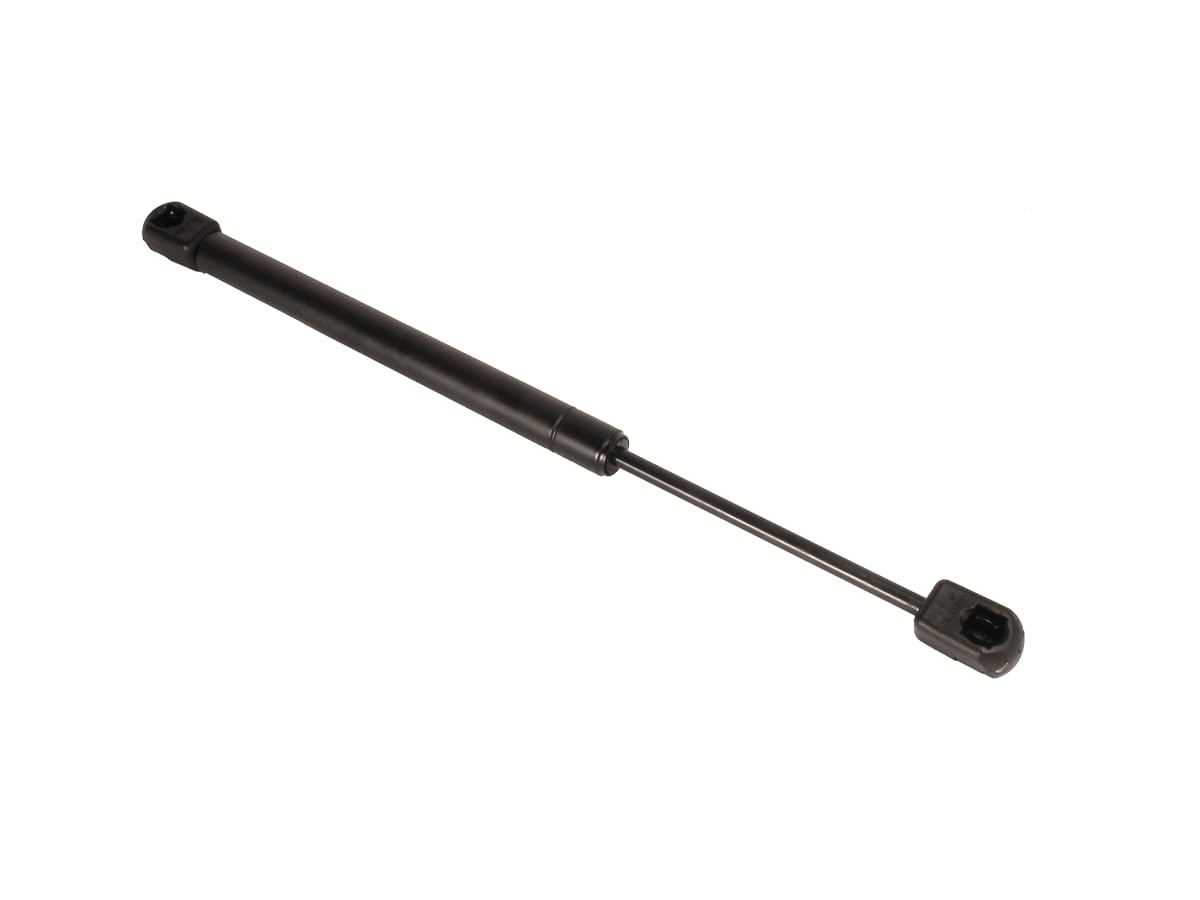

RV Designer G21 is a 20-inch gas prop door support that delivers a 10 lb holding force for RV entry doors, sold as one unit per pack.

When an RV door feels loose, sags, or doesn’t stay open, the gas prop (also called a gas strut or gas spring) is often the culprit. The RV Designer G21 is engineered as a direct-fit replacement for many RV entry doors: it offers a 20" extended length and roughly 10 pounds of push/pull force to hold doors steady during use. Selecting the correct length and force helps restore smooth operation and keeps door alignment consistent.

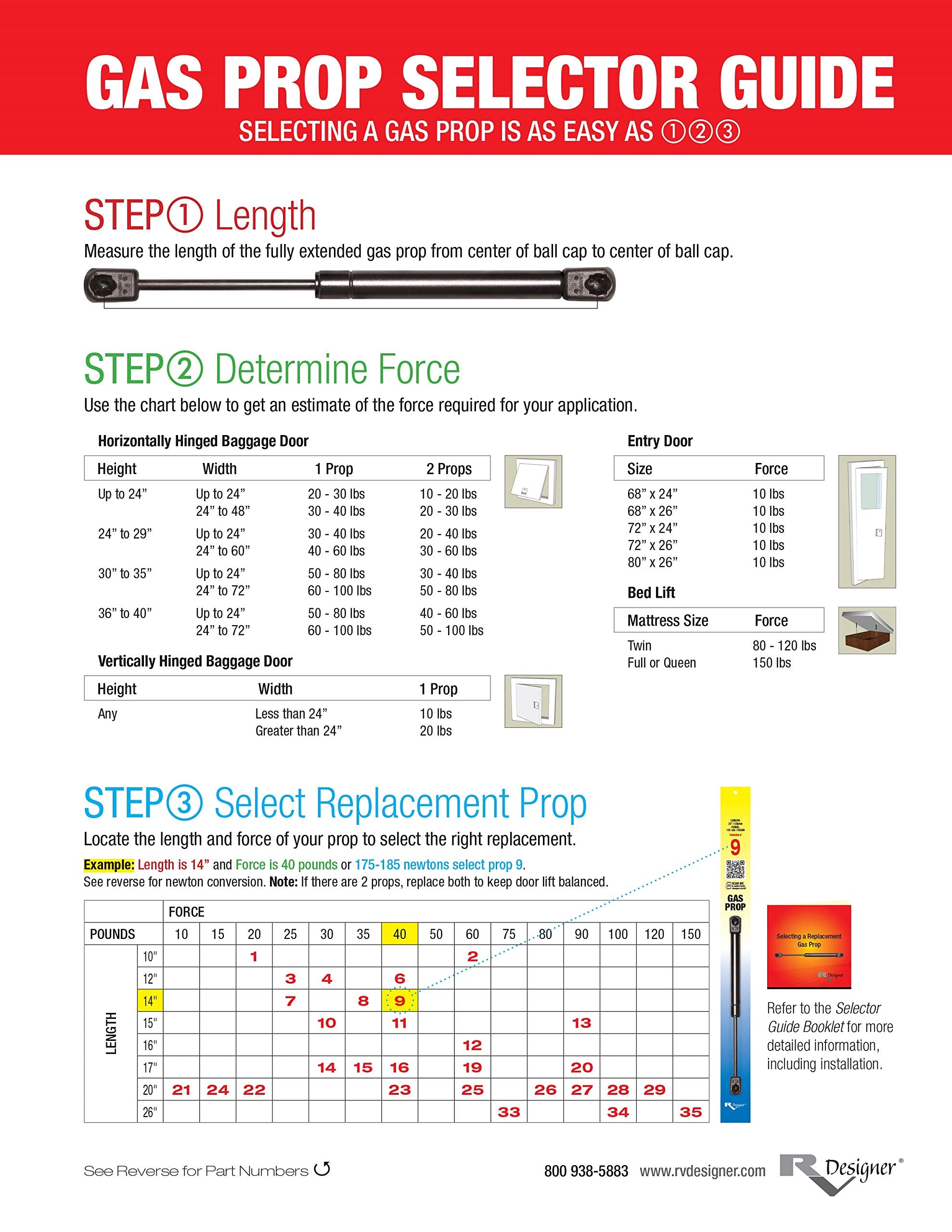

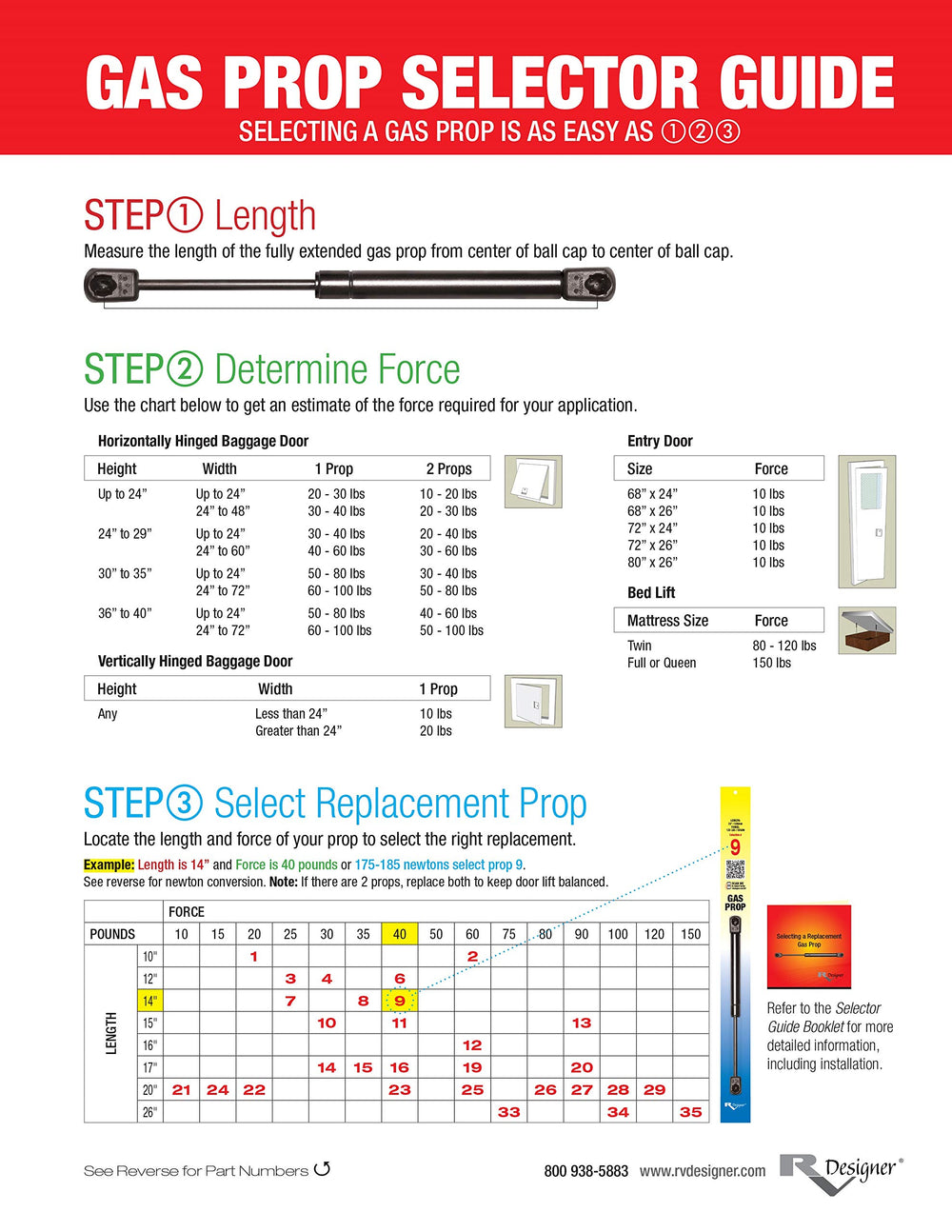

How do I know this gas prop will fit my RV door?

Measure the installed prop when fully extended and compare forces if possible; replacement works best when length and rated force closely match the original. The G21 provides a 20" extended length and a nominal 10 lb force, a common size for many RV entry applications.

• Measure from center-to-center of mounting points with the prop extended.
• Confirm the original prop’s rated force or match similar door feel.
• Check mounting style (ball-stud, eyelet) to ensure hardware compatibility.

What benefits will I see after replacing my old door prop with this model?

Replacing a worn gas prop restores door stability, reduces slamming, and makes opening/closing smoother. The consistent 10 lb force helps the door remain open at normal operating angles without drifting.

• Stops gradual door droop by restoring original support force.
• Reduces stress on hinges and latch hardware.
• Provides predictable opening behavior for safe entry and exit.

Can I replace only one prop if my door uses two?

While a single replacement will work, matching both props is recommended for balanced support. Installing two identical props keeps the door level and prevents uneven wear on hinges or one-sided loading.

• Replace both props when two are used to maintain even lifting force.
• If only one is available, install the new prop on the heavier or sagging side first.
• Verify both mounting points and hardware condition during replacement.

How do I install the G21 gas prop safely and correctly?

Installation is straightforward for basic mounting systems, but follow safe procedures and support the door during the swap. Use the correct mounting hardware and tighten fittings to manufacturer torque guidelines.

• Support the door to prevent sudden movement when removing the old prop.
• Observe correct orientation: gas rod typically faces the door when closed.
• Use matching ball-studs or brackets if required for a secure fit.

Who this is for: RV Designer G21 is ideal for RV owners, mobile-home renovators, and maintenance technicians who need a dependable, mid-strength gas prop for entry doors. It’s suited to anyone replacing a worn or failed gas strut who can match a 20" extended length and about 10 lb force. If your door originally used two props, plan to replace both for optimal balance; if you’re unsure about mounts or force, measure the existing part or consult a technician before purchase.
