RVBOATPAT 120A Battery Quick Disconnect Flush-Mount Connector Kit — 2/4/6 AWG, Silver-Plated Copper

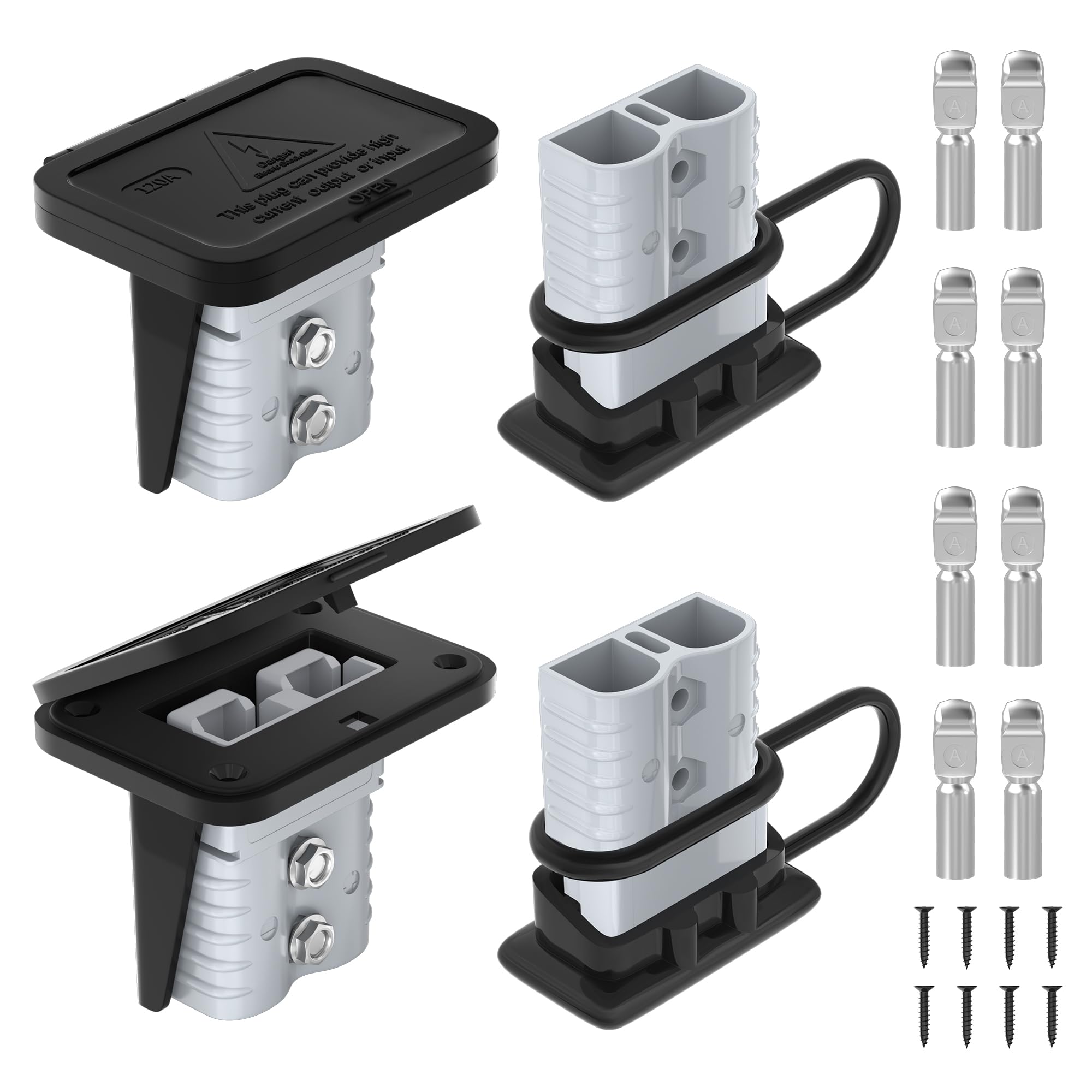

This kit provides everything needed to install a durable, flush-mounted quick-disconnect system for battery leads. Built from flame-retardant PC plastic and copper silver-plated terminals, the connectors are engineered for high conductivity, corrosion resistance, and clean, repeatable connections. The package includes housings, mounting panels, protective covers and screws sized for 2/4/6 gauge cable so you can set up secure power takeoffs or service disconnects in dashboards, panels, and instrument enclosures.

How does the RVBOATPAT 120A quick disconnect simplify maintenance and service?

These connectors let you separate battery circuits quickly without tools, reducing downtime during maintenance, storage, or component replacement. The flush-mounted plate keeps the connection neat and protected while the plug and housing make repeated connect/disconnect operations straightforward and low-risk.

• Tool-free disconnection speeds up battery servicing and cleaning
• Flush mount bracket protects the connector from accidental knocks
• Protect covers prevent debris and moisture ingress when not in use
• Includes screws and fixings for straightforward panel installation

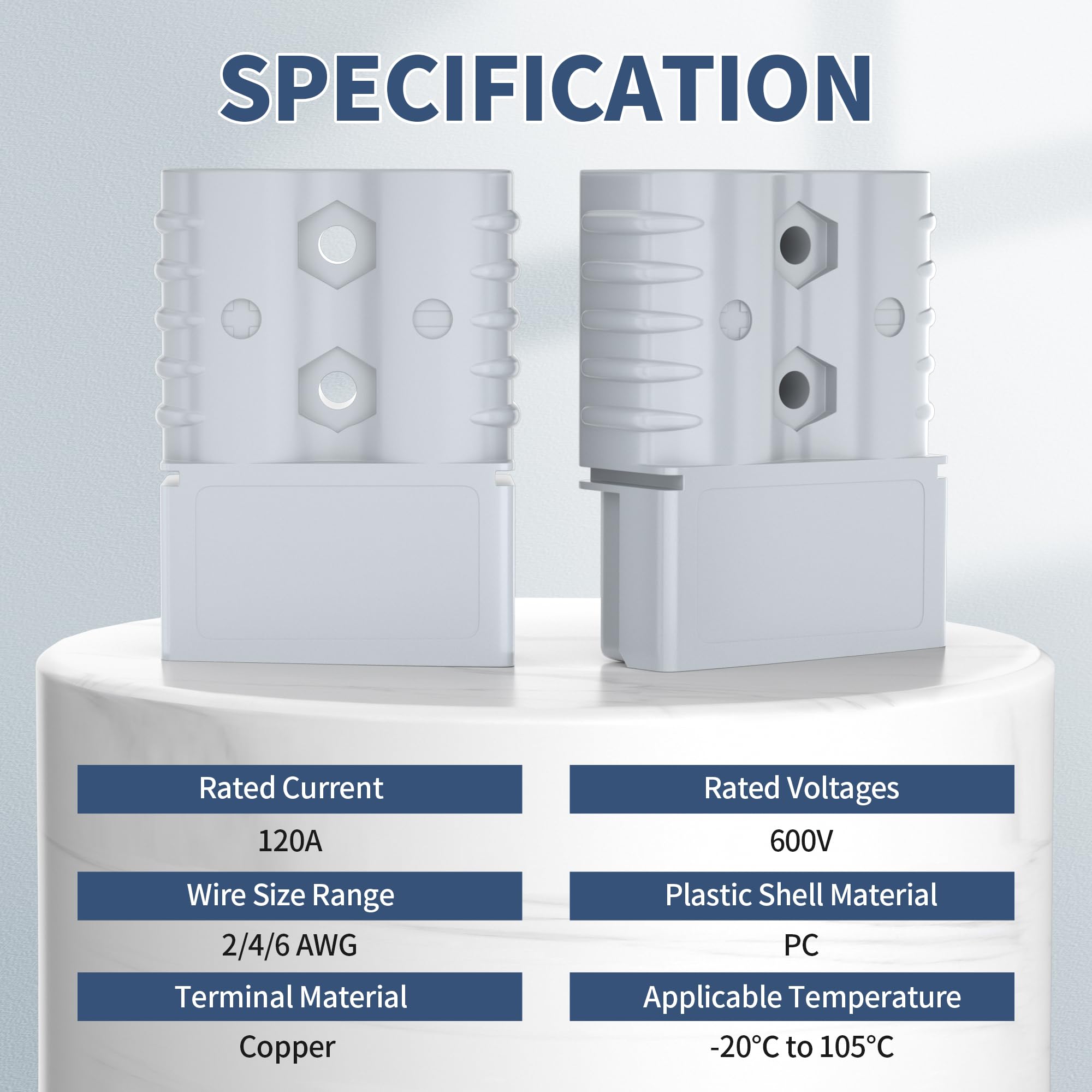

What wiring sizes and electrical specs does this connector support?

The RVBOATPAT connector is specified for up to 120 amps and accommodates 2, 4, and 6 AWG cable, making it suitable for high-current accessories like winches, auxiliary batteries, and onboard chargers. The terminals are rated for up to 600V, though in vehicle and marine systems you’ll typically operate at 12V–48V DC.

• Rated current: 120 A
• Compatible cable gauges: 2, 4, 6 AWG
• Voltage rating: up to 600 V (component rating)
• Copper silver-plated pins ensure low-resistance contact

How durable and safe is the construction for marine and outdoor use?

The housings are molded from flame-retardant PC material to resist heat and reduce fire risk, while the terminal pins are copper with silver plating to improve conductivity and corrosion resistance. Though designed for robust environments like trailers and boats, correct sealing and periodic inspection are recommended in corrosive or saltwater settings.

• Flame-retardant PC housing resists heat and impact
• Silver-plated copper terminals reduce oxidation and voltage drop
• Protective covers included to keep contacts clean when unused
• Flush-mount plate minimizes exposure and accidental snagging

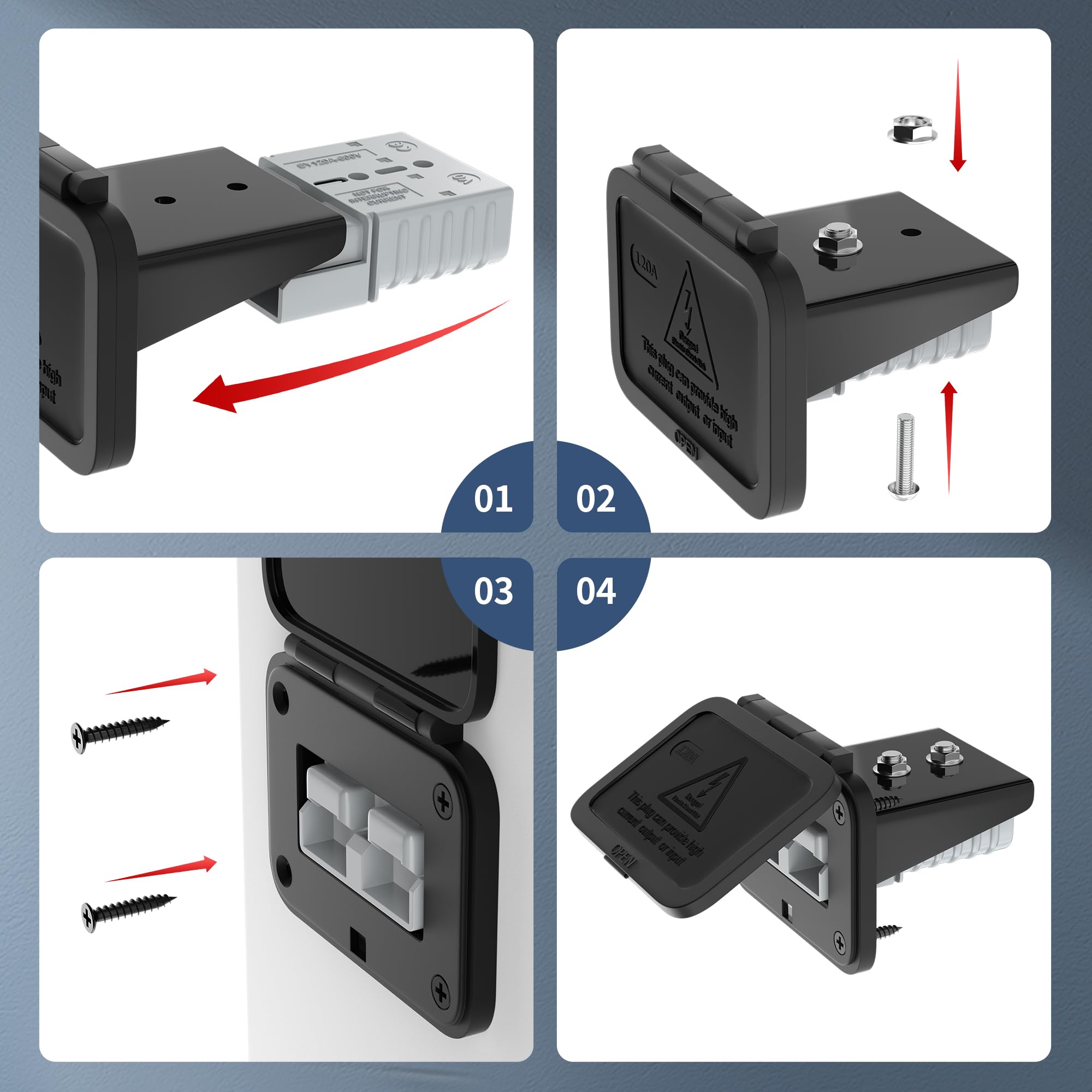

How do I install the flush-mount connector in a panel or dashboard?

Installation is straightforward for anyone familiar with basic wiring and panel-cutting. Mark and cut the panel opening to match the mounting bracket, secure the flush plate with the included fix screws, crimp or solder the terminals onto the battery cables, and insert the mating housings into the panel assembly.

• Cut panel opening to bracket size, position flush plate
• Crimp or solder terminals to 2/4/6 AWG cable for best contact
• Fasten mounting screws and test connection under light load first
• Use included protective covers to seal unused sockets

Who is this for? The RVBOATPAT 120A quick disconnect kit fits owners and technicians who need a reliable, compact way to add or remove high-current connections: RV and boat owners, off-road and trailer users fitting winches or auxiliary systems, and fleet maintenance staff installing serviceable battery hookups. It’s ideal where a tidy, recessed panel appearance and heavy-duty electrical performance are both required — just follow standard wiring practices and local electrical codes when installing.
