Sound Troubleshooting 12V Automotive Relay Tester with Puller — LED Pass/Fail & Auto Pin Detection

The Sound Troubleshooting handheld 12V relay tester is a compact, battery-powered tool that checks most automotive relays quickly and indicates pass/fail with green and red LEDs.

This portable relay tester is designed for technicians, hobbyists, and DIY vehicle owners who need a straightforward way to verify relay operation without complex wiring. It runs from a 12V car battery (11–15V range), automatically detects relay pin arrangements, exercises the relay several times, and reports results with simple LED feedback. A included relay puller and alligator battery clips make it ready for roadside diagnostics or garage work.

How does the tester check a relay?

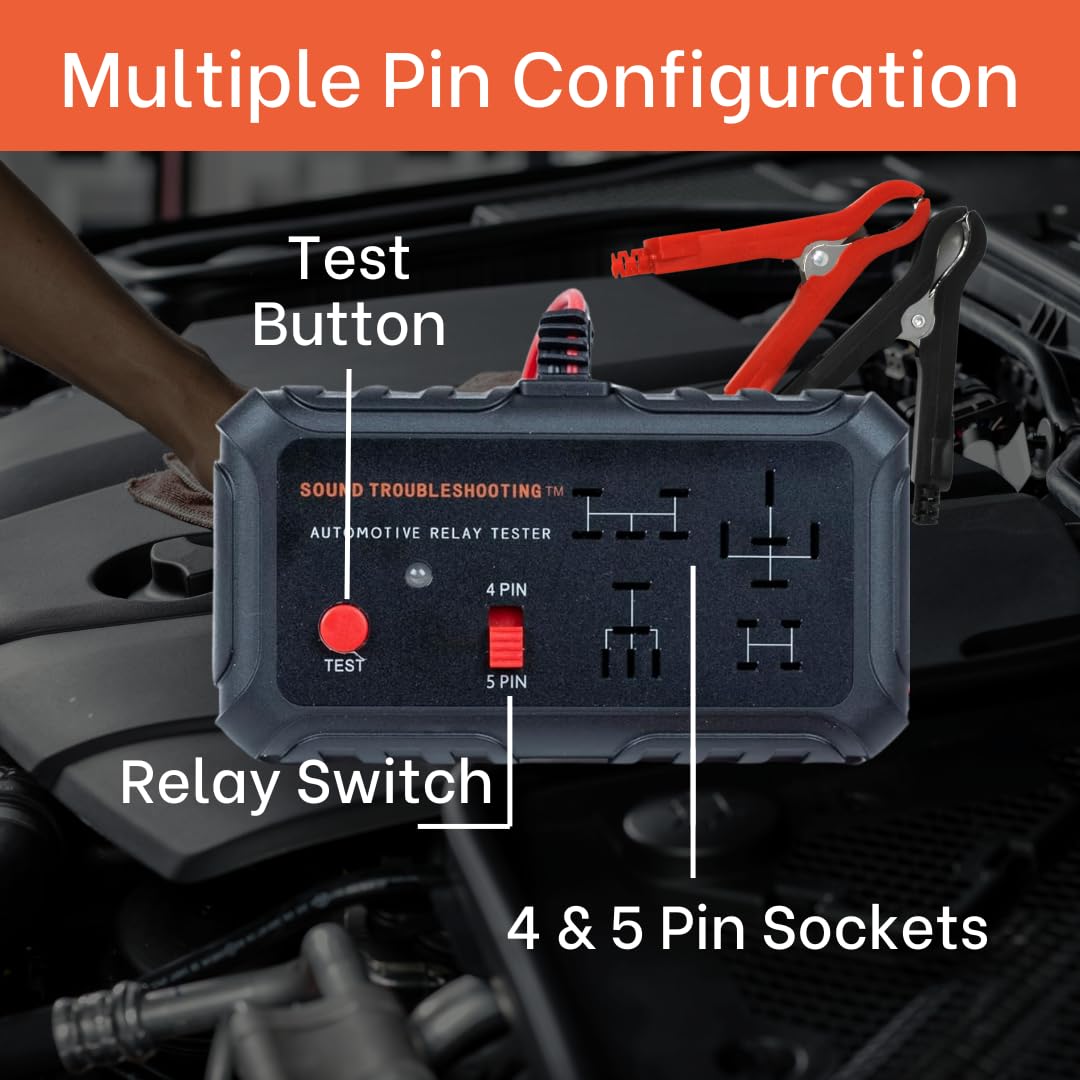

After clipping the tester’s red and black alligator clips to the battery, choose the correct socket and set the 4-pin/5-pin switch to match the relay. Pressing Test makes the unit cycle the relay multiple times while monitoring contact closure, release timing, and consistency. The built-in circuit evaluates coil and switching behavior and then lights green for normal or red for abnormal.

• Automatic pin-position detection for correct socket mapping
• Cycles relay repeatedly to confirm repeatable operation
• Monitors release time and contact consistency during each cycle

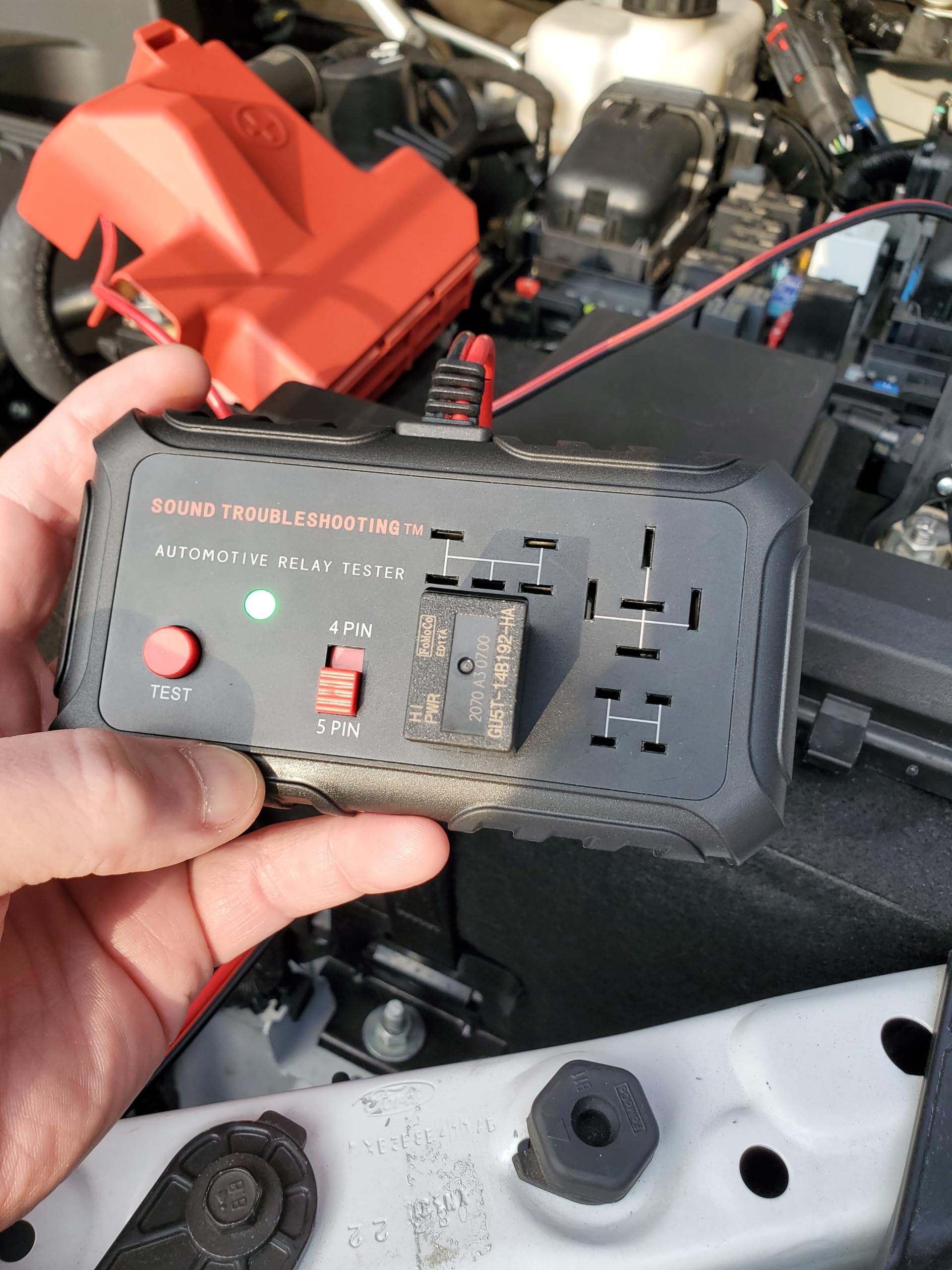

• Clear LED result: green = good, red = faulty

Which relays and vehicles will it work with?

This tester supports most common general-purpose automotive relays with coil resistance above about 20 ohms and is intended for 12V vehicle electrical systems. It is not compatible with every relay type—some manufacturers use proprietary or nonstandard BMW relay designs that the unit doesn’t support. Ensure battery voltage is between 11V and 15V for accurate testing.

• Compatible with standard 4-pin and 5-pin automotive relays
• Best for relays with coil resistance above ~20 ohms
• Requires vehicle 12V battery within 11–15V range
• Not intended for all BMW-specific relay models

How do I use it safely on the vehicle?

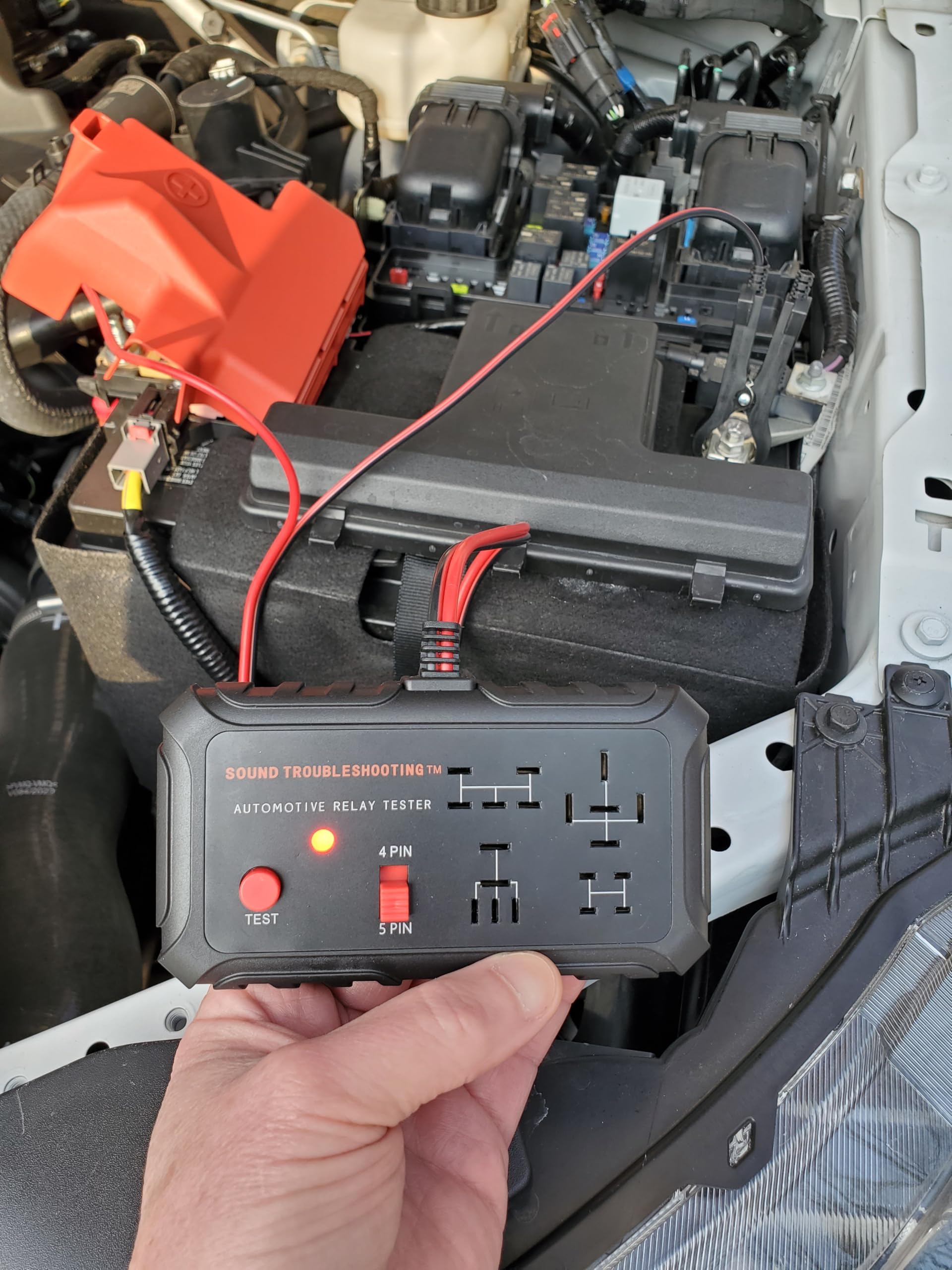

Attach the black clip to the battery negative and the red clip to the positive; a red LED indicates the tester is powered and ready. Select the proper socket, insert the relay, switch pin-count as needed, then press Test; avoid live engine repairs while testing and keep clothing and tools clear of moving parts. The unit is handheld and insulated, but standard electrical safety precautions should be observed.

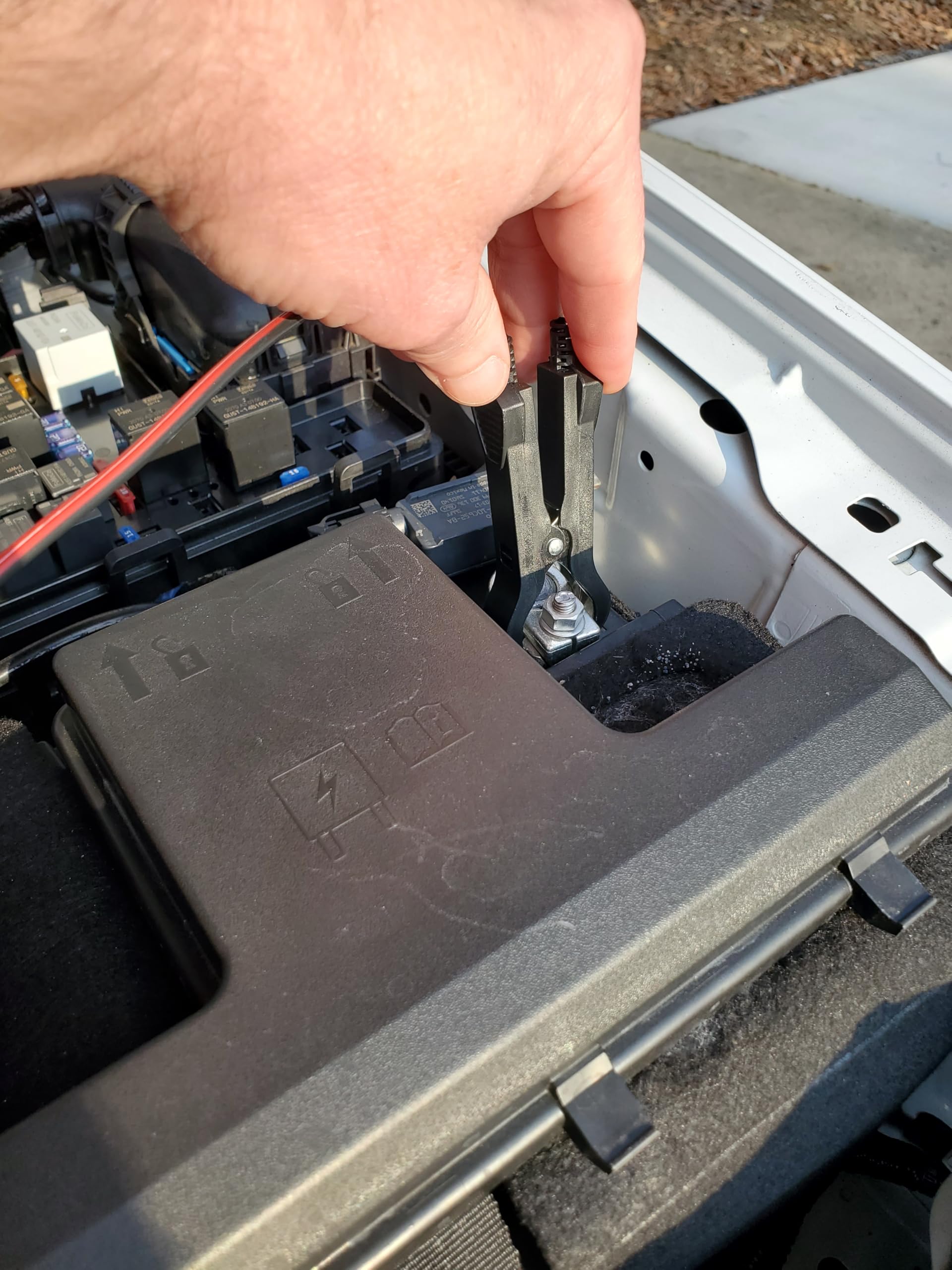

• Clip black to negative, red to positive before starting
• Confirm correct socket and 4/5-pin selector position
• Press Test and observe LED result—no extra wiring needed
• Keep hands and tools away from belts and moving engine parts

What comes in the kit and how portable is it?

The package includes the Sound Troubleshooting relay tester, a relay puller tool for easy removal, and battery clips with alligator connectors so you can test relays on the car or at your bench. The tester’s compact form factor fits in a toolbox or glovebox for on-the-go troubleshooting and quick diagnostics wherever you need them.

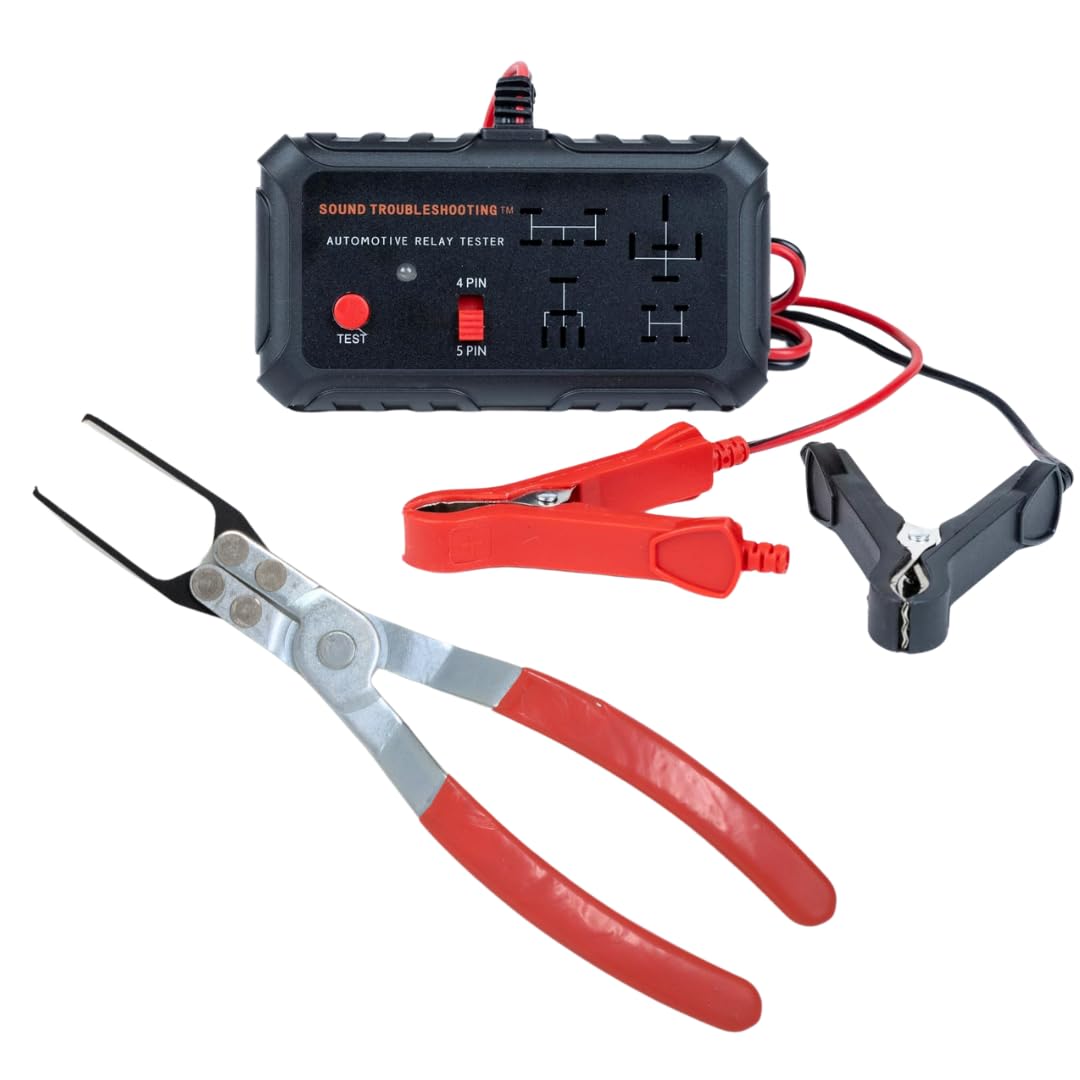

• Handheld relay tester with built-in sockets and selector

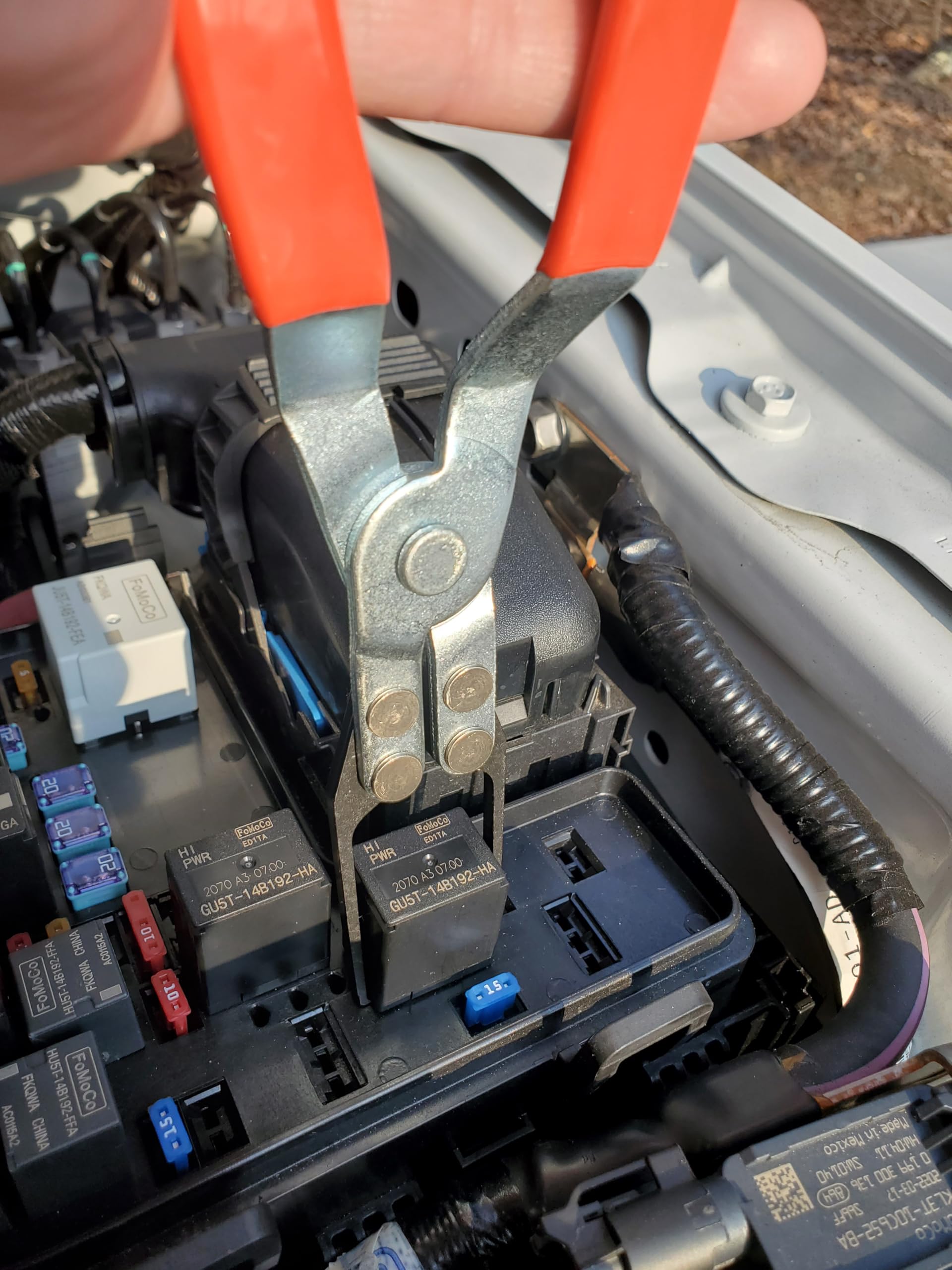

• Relay puller tool for safe extraction of stuck relays
• Battery clips with durable alligator connectors included
• Small footprint—simple to store and carry for roadside checks

Who is this for: The Sound Troubleshooting 12V Relay Tester is aimed at automotive technicians, fleet maintenance personnel, electricians who service vehicles, and DIY car owners who want a fast, reliable way to verify relay function. If you regularly diagnose electrical faults, need a portable tester for multiple vehicles, or want a straightforward pass/fail indicator without setting up complex test rigs, this kit provides the essentials for clear relay diagnostics.
