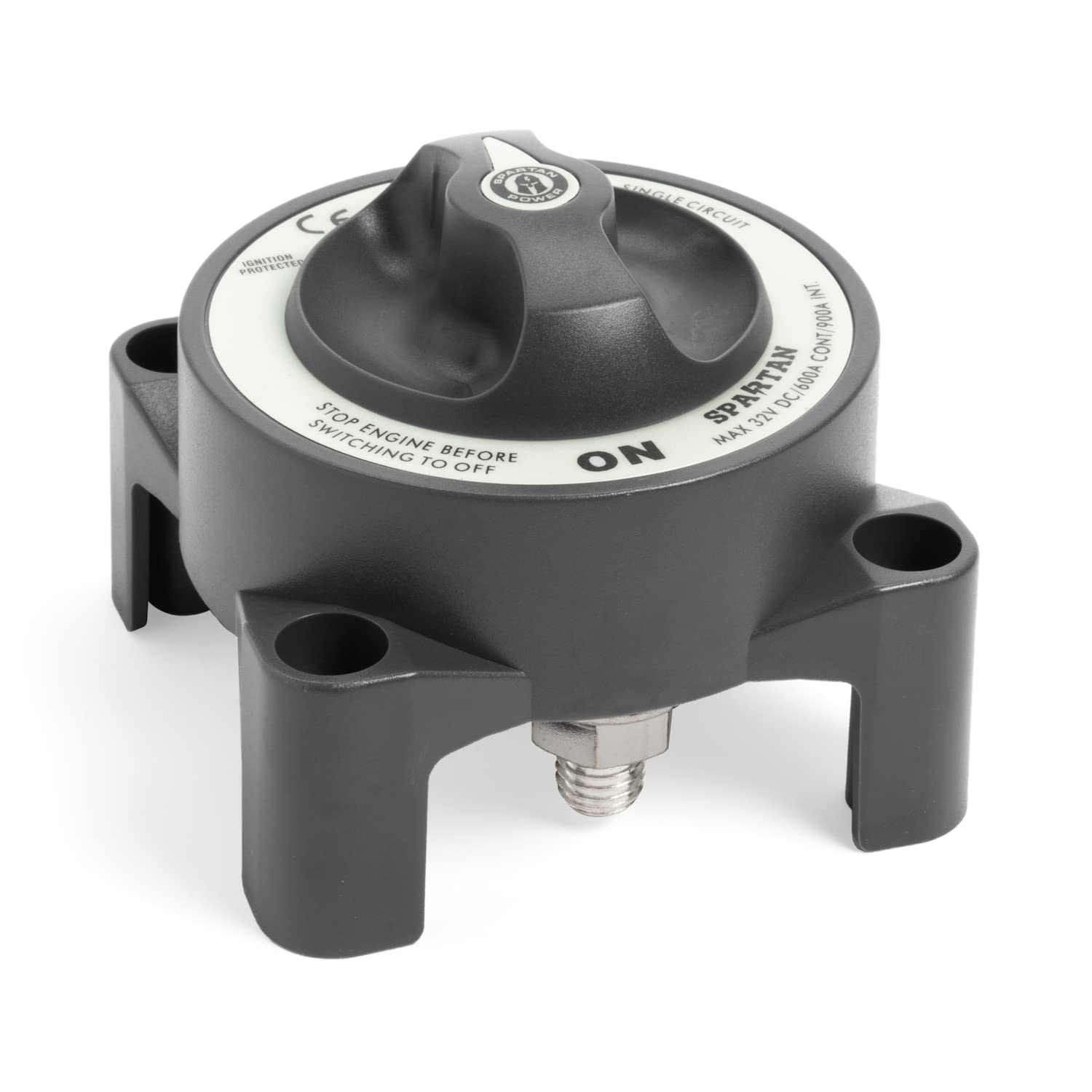

Spartan Power 600A Heavy Duty Battery Cutoff Switch - Single Circuit, Ignition Protected, IP66

Spartan Power 600A Heavy Duty ON/OFF Battery Switch is a single-circuit battery isolator built for high-current marine and vehicle electrical systems, offering ignition protection, IP66 sealing, and both surface or rear-panel mounting.

This heavy-duty battery switch is designed to manage a single battery feeding a single load group with robust continuous and crank ratings. It provides reliable power isolation for boats, RVs, work vehicles, and backup systems while meeting marine safety standards. Engineered to accept large battery cables and survive harsh environments, the switch simplifies wiring, improves safety, and withstands heavy-duty use.

How does this switch handle high starting currents?

The Spartan Power 600A switch is built to tolerate intense cranking loads and sustained current draw without degradation. Its ratings cover continuous and short-term crank demands so it can protect circuits and maintain connection under strain.

• Continuous rating: 600A for ongoing loads
• Crank rating: 1750A for 30 seconds for heavy starts
• Intermediate rating: 900A for 5 minutes for extended high-load events
• Maximum operating voltage: 32V to suit 12V and 24V systems

Is the switch safe for marine gasoline-engine installations?

Yes — the switch is ignition protected and complies with key marine safety standards, so it’s suitable for installation aboard gasoline-powered boats. It also resists water ingress and meets relevant regulatory requirements for safe marine electrical equipment.

• Ignition protected to prevent sparks near fuel vapors
• Meets ISO 8846 and ABYC requirements
• IP66 waterproof rating for protection against powerful water jets and dust
• Durable materials and construction for marine environments

What mounting and wiring options does it offer?

The switch’s case is designed to be flexible in installation: it supports either surface mounting or rear-panel mounting to fit different panels and compartments. Spartan includes mounting screws and a large terminal area that accepts heavy-gauge cables for straightforward connections.

• Mounting: surface or rear-panel mounting options
• Includes screws for faster installation

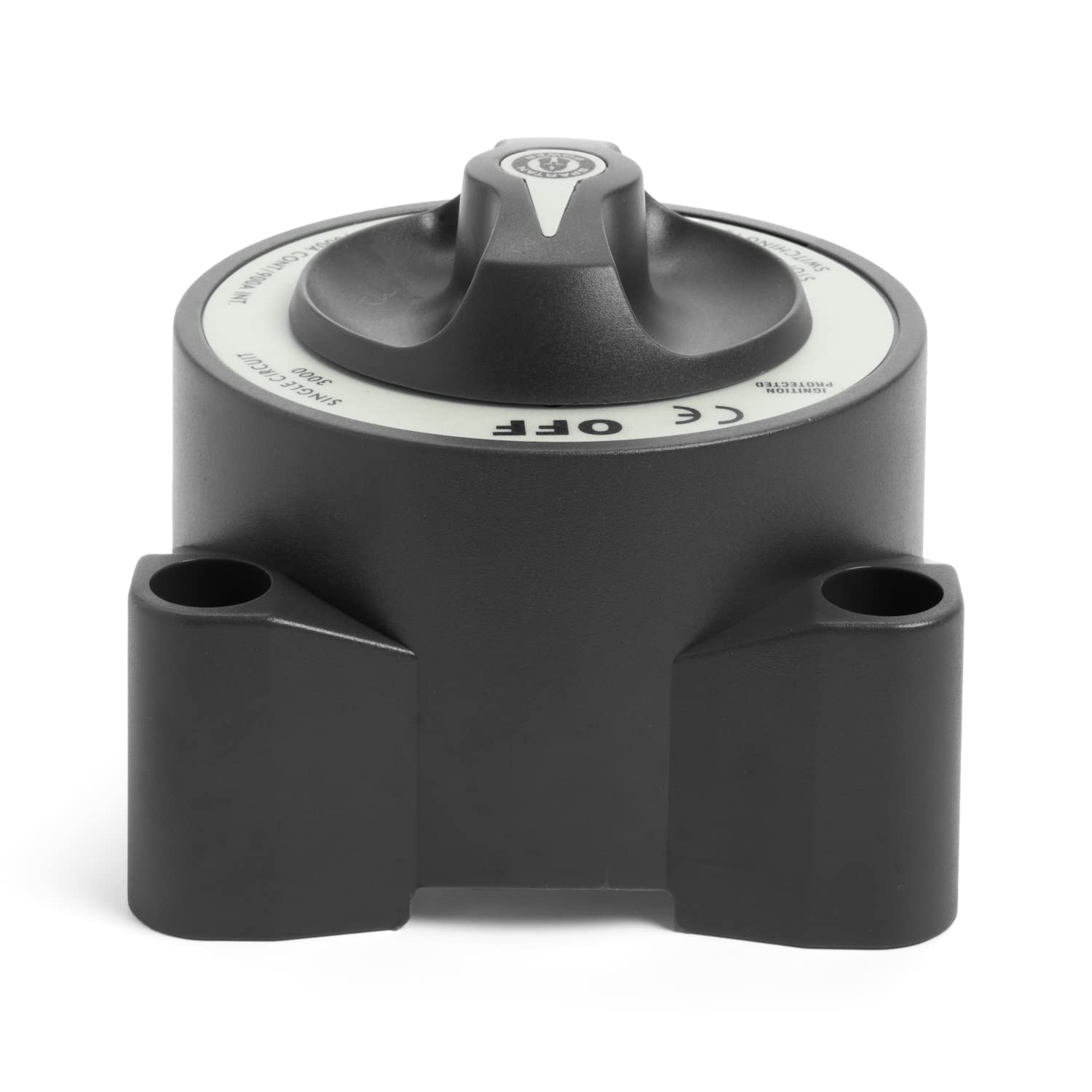

• Accepts two 4/0 AWG (95 mm²) battery cables for high-current connections

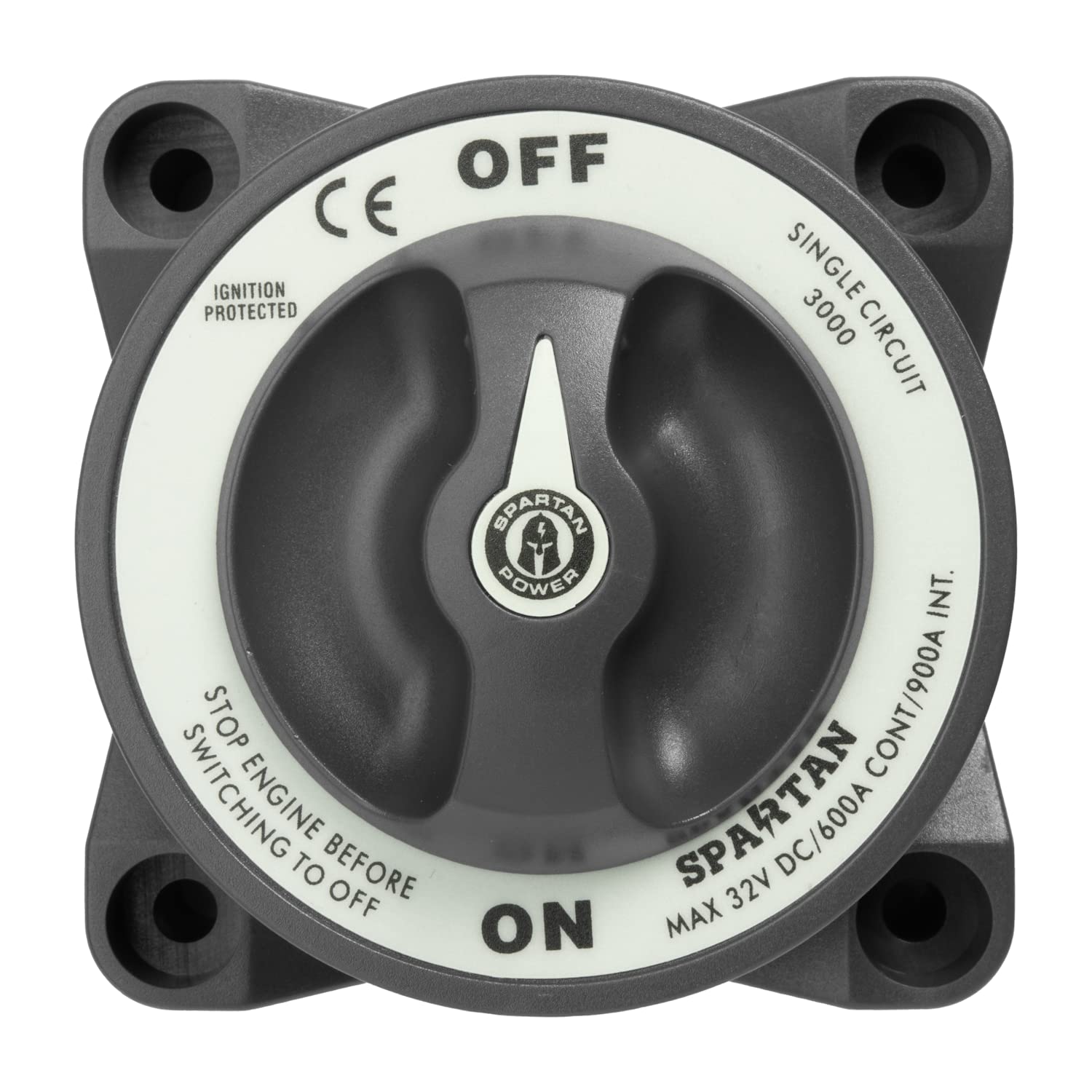

• Clear single-circuit ON/OFF operation for simple system control

How durable is this switch in outdoor and mobile settings?

Built for heavy-duty use, the switch withstands vibration, moisture, and dust typical of marine and mobile applications. Sealing and protective design extend service life while maintaining a reliable connection under repeated use.

• IP66 sealing to protect against water jets and dust
• Rugged housing resists corrosion and impact

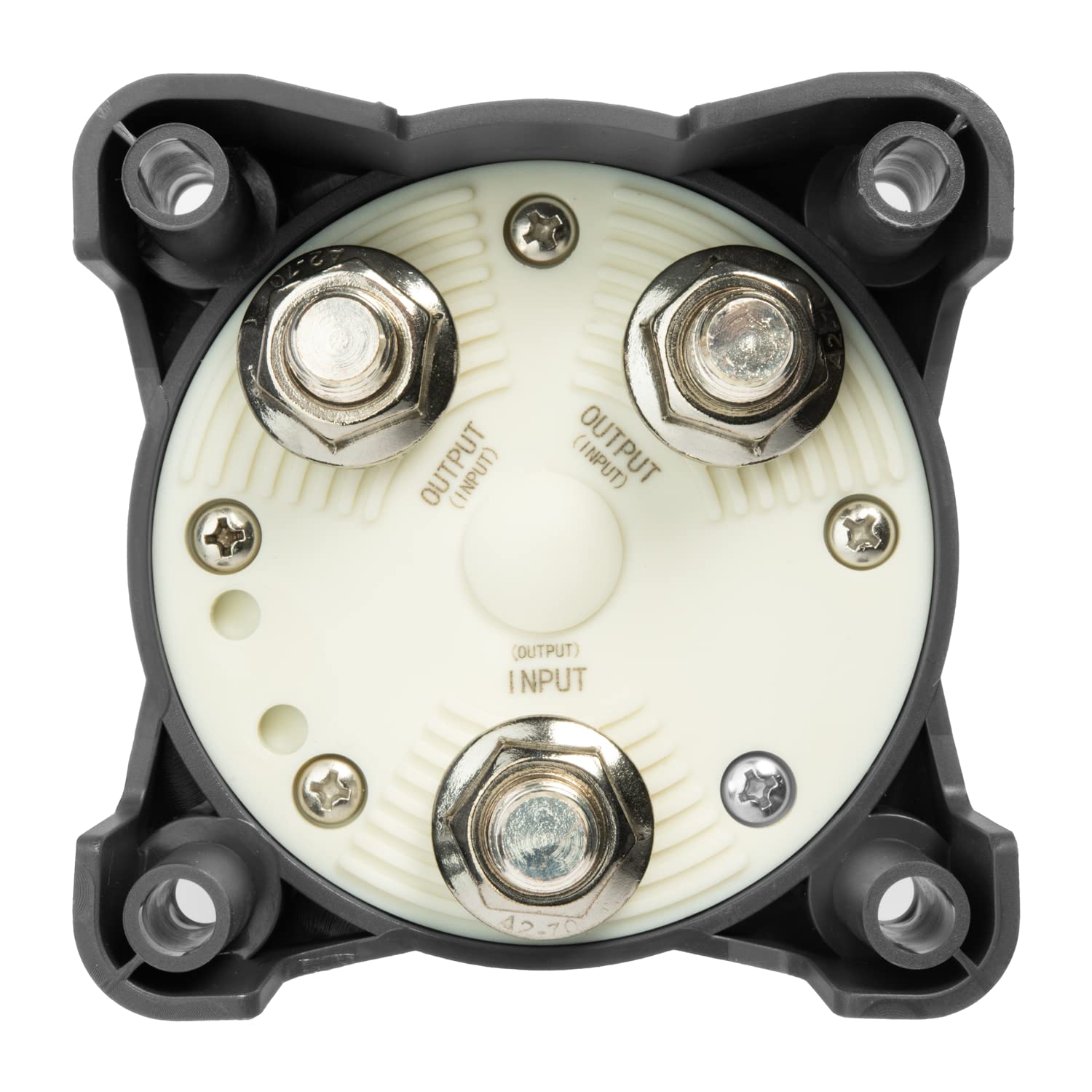

• Large terminals reduce heat build-up under heavy load
• Designed for frequent switching and long-term durability

Who is this for: The Spartan Power 600A ON/OFF battery switch is aimed at boat owners, RVers, fleet and work-vehicle operators, and anyone who needs a single-circuit, high-current isolator. If your system uses large battery cables (4/0 AWG), requires ignition protection, or operates in wet, dusty, or vibration-prone environments, this switch delivers the ratings and mounting flexibility to simplify wiring and improve safety.
