SPELAB CP4 Disaster Prevention Kit for Ford 6.7L 2011–2025 Super Duty — 9µm Spin‑On Filter & Bypass Valve

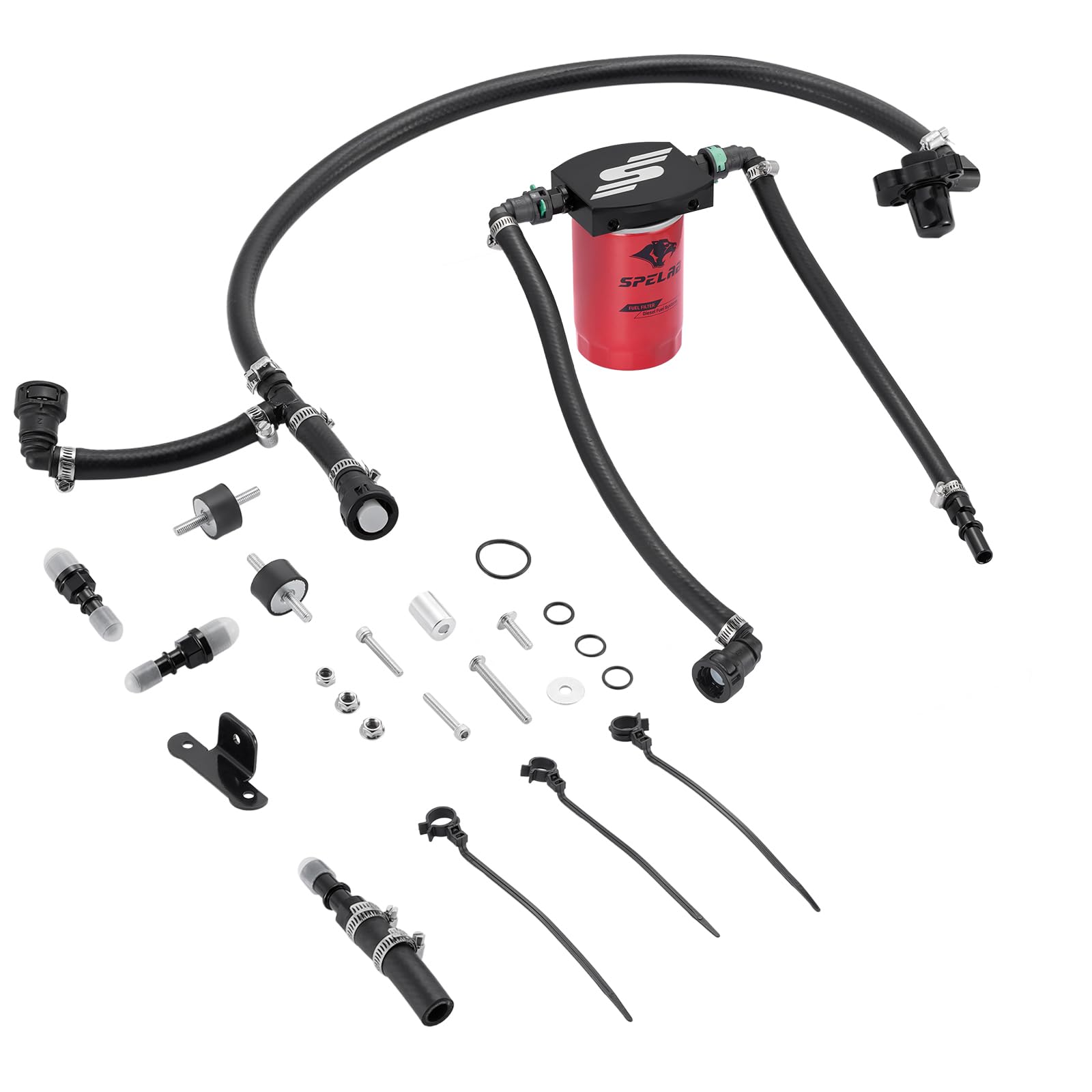

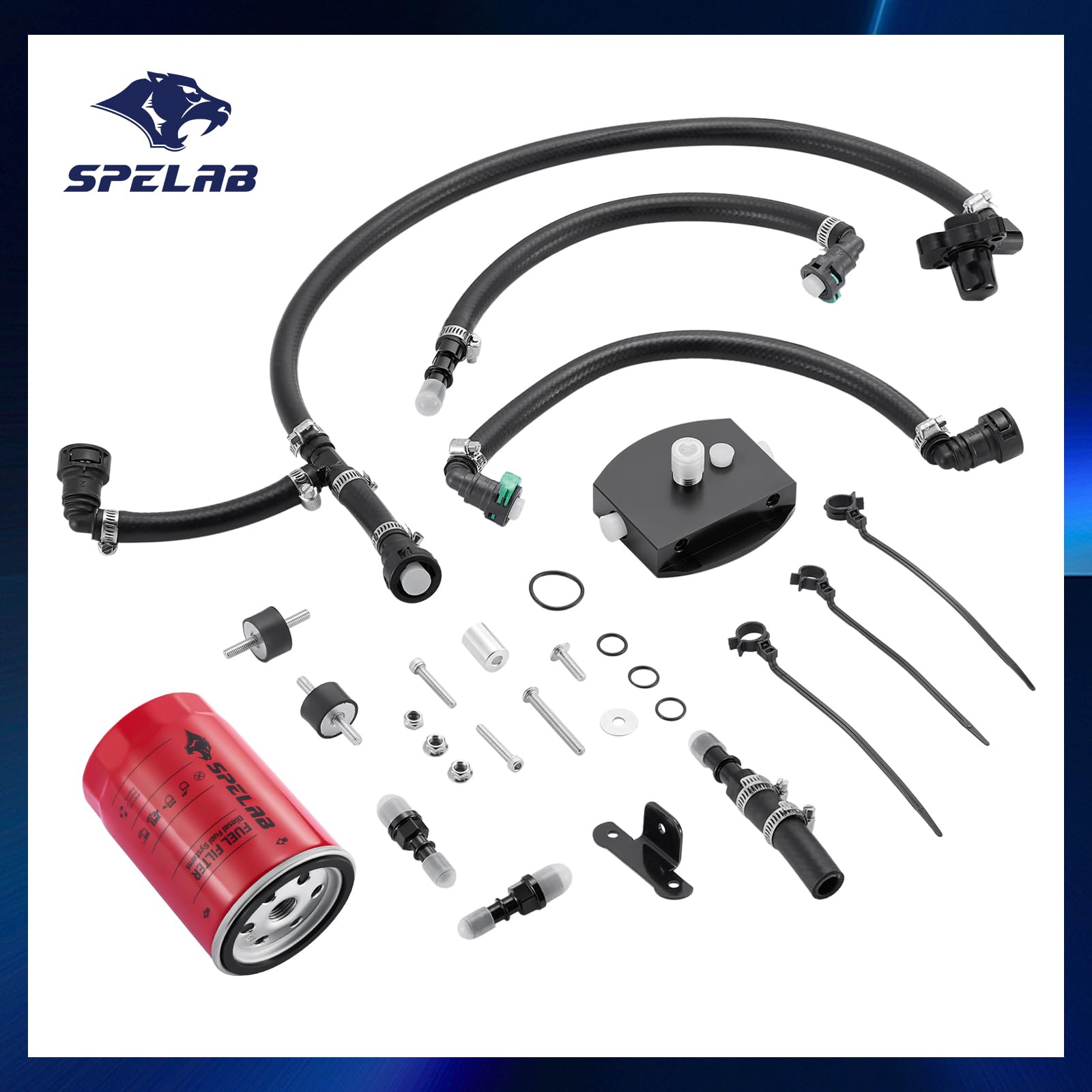

SPELAB CP4 Disaster Prevention Kit is a complete fuel-system bypass and filtration assembly engineered to protect Ford 6.7L Powerstroke Super Duty trucks from CP4 pump failures and contaminated diesel.

This kit was developed specifically for Ford Super Duty models with the 6.7L Powerstroke (2011–2025) to give owners a proactive, robust way to isolate and filter fuel when a high-pressure CP4 pump problem arises. Instead of leaving injectors and rails exposed to metal shavings and debris generated by failing pumps, the SPELAB system reroutes fuel through a replaceable 9-micron filter and durable bypass valve, reducing the risk of downstream component damage and costly repairs.

How does the SPELAB kit protect my truck’s fuel system?

The kit intercepts harmful particles and prevents contaminated fuel from reaching injectors, rails, and the fuel tank. Its bypass design and high-efficiency filter capture the majority of metal and dirt before they circulate through the high-pressure system.

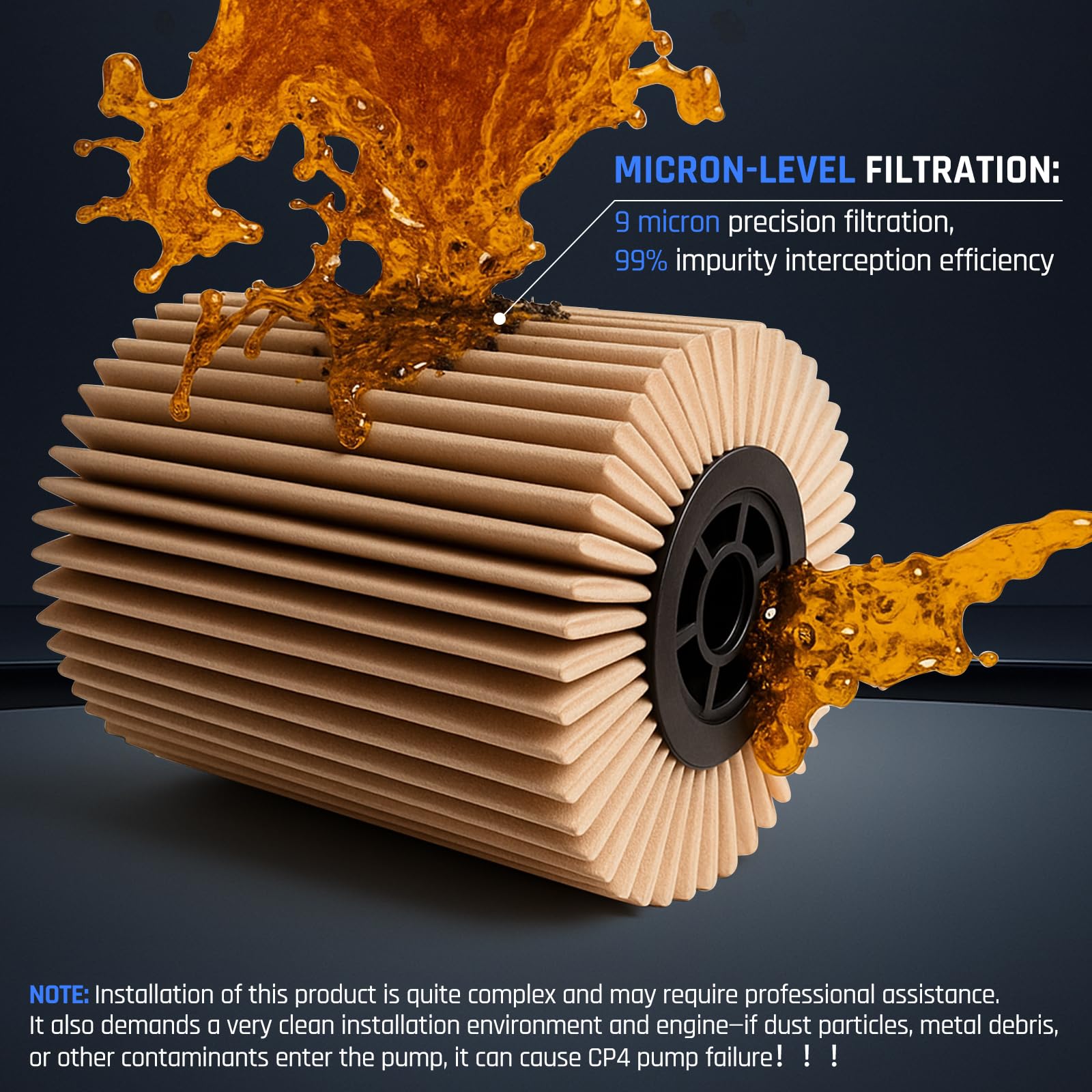

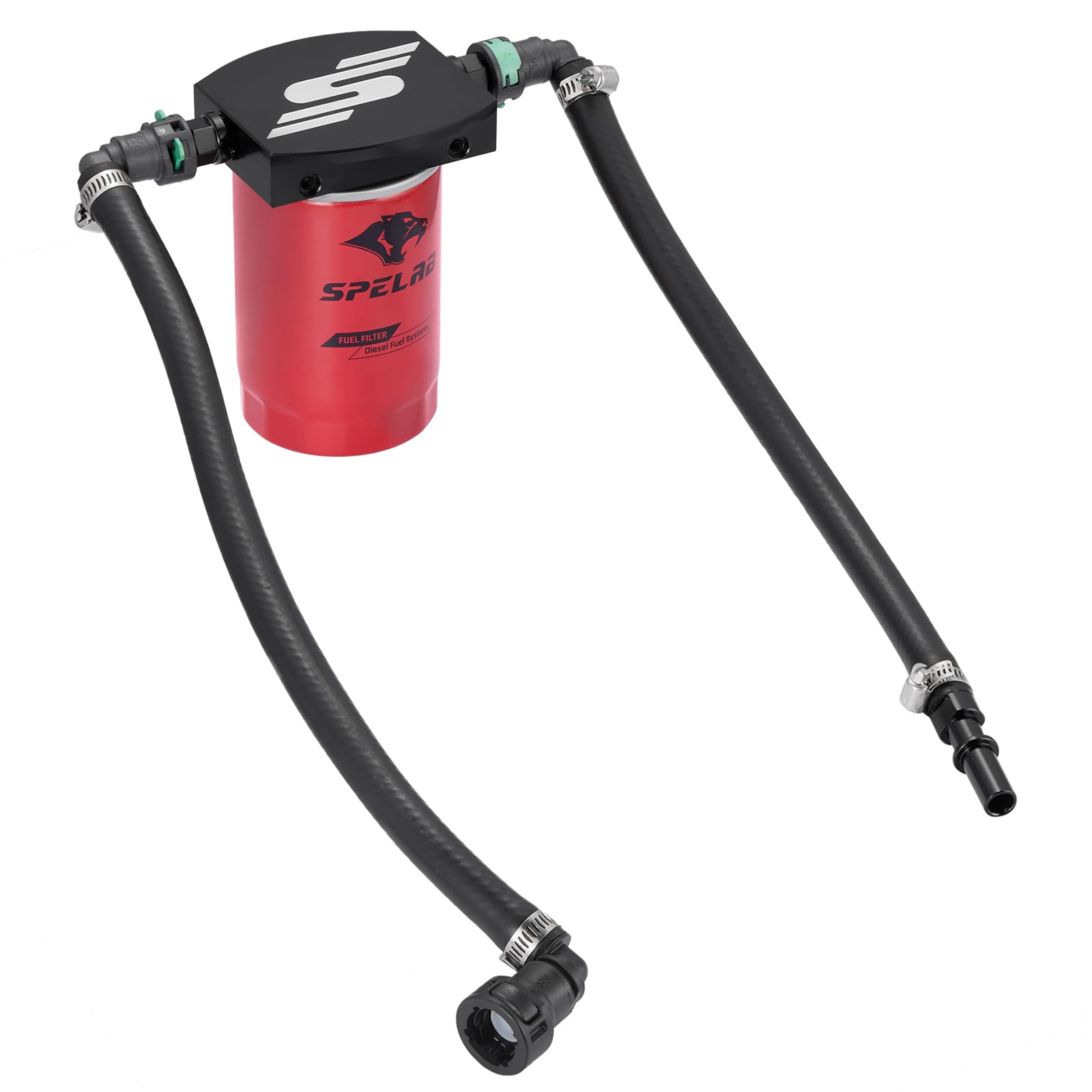

• 9-micron replaceable spin-on filter captures up to 99% of contaminants

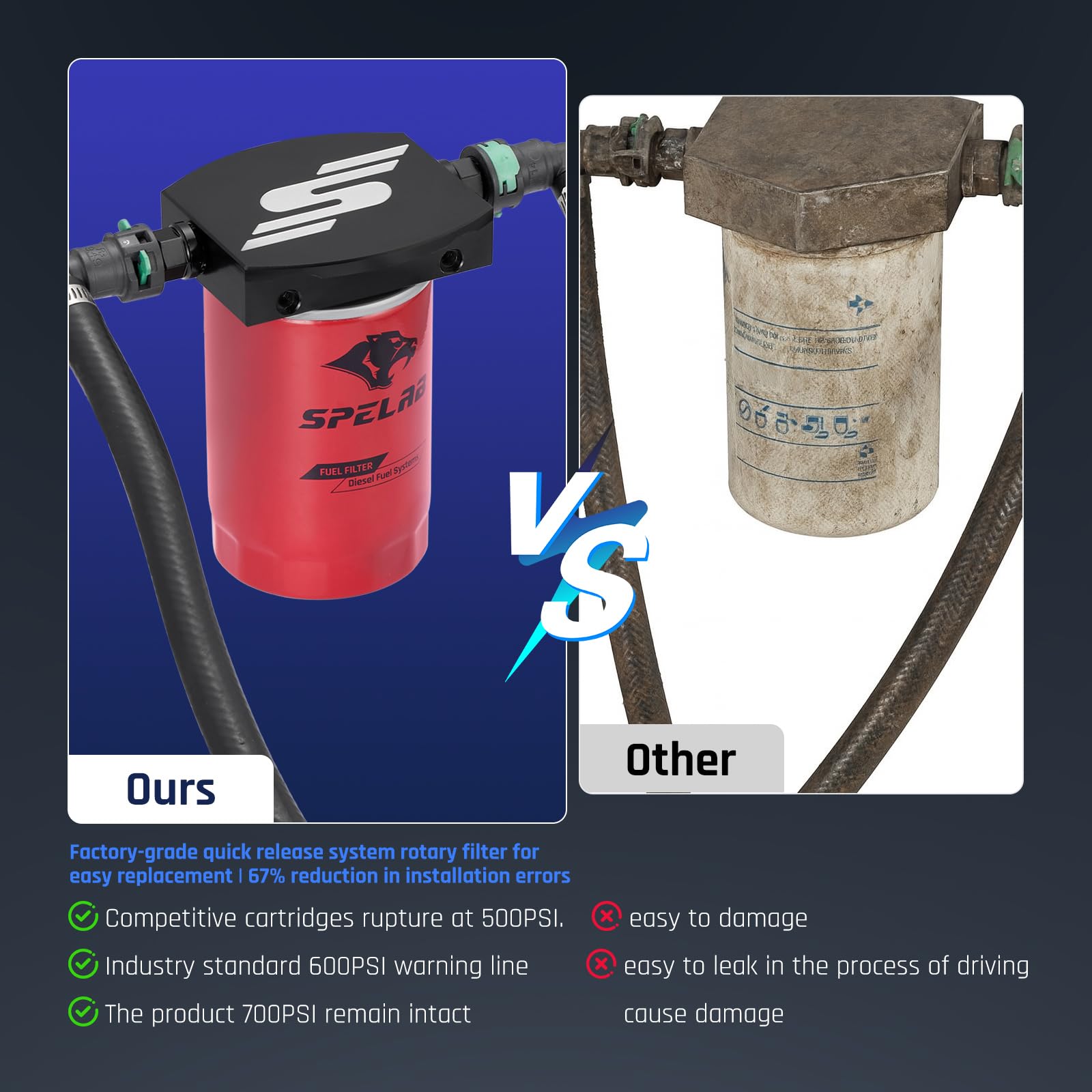

• Threadless metal ball-seal bypass block prevents shaving generation during installation
• High-pressure rating (350 PSI working / 700 PSI burst) for reliability under load

Will installation affect factory fuel lines or require special tools?

Installation is designed to be vehicle-friendly with quick-connect fuel lines that avoid cutting factory hoses. The kit eliminates many typical installation risks and shortens fitment time, though basic mechanical skills and standard hand tools are still recommended.

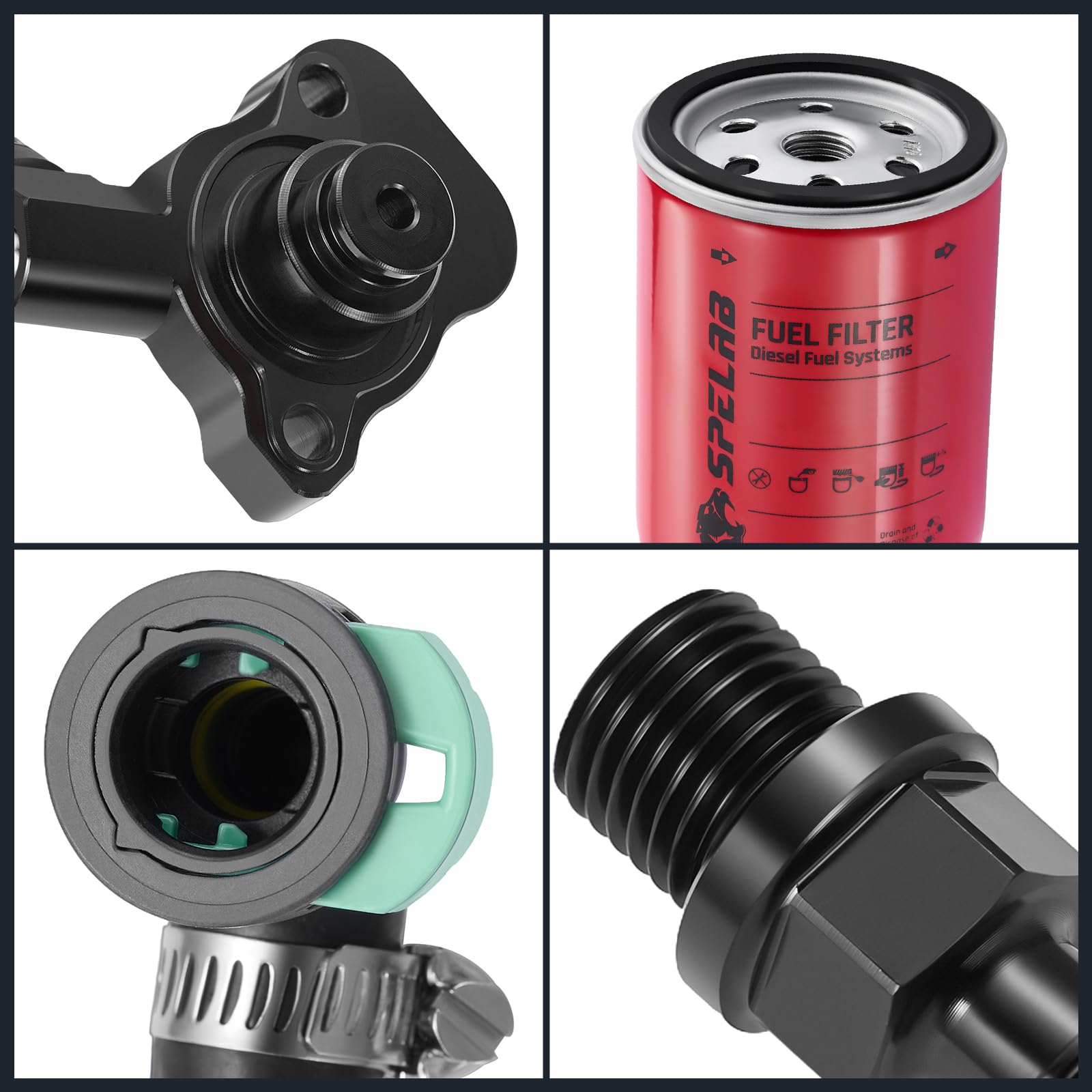

• Quick-connect fittings remove the need to modify factory lines
• Spin-on filter design simplifies future service and replacements
• Threadless connections reduce metal shaving and contamination during fitment

Can this kit handle real-world driving conditions and high RPM use?

SPELAB built this system with durable, corrosion-resistant materials to withstand heavy-duty operation. It holds steady performance at elevated engine speeds and under demanding loads so it won’t be the weak link on the road or at the jobsite.

• Wear-resistant construction stands up to harsh environments
• Stable performance above 3000 RPM for towing and heavy loads
• High burst pressure rating for added safety margin

What maintenance does the disaster prevention kit require?

Maintenance focuses on periodic filter replacement and basic inspection of fittings. The spin-on element and quick-connect plumbing make routine upkeep straightforward and minimize downtime.

• Replace the 9-micron filter according to operating conditions or after contamination events
• Inspect quick-connect fittings for secure seating and any signs of wear
• Keep the bypass block and seals clean to maintain optimal flow and protection

Who is this for: The SPELAB CP4 Disaster Prevention Kit is aimed at owners and fleet managers of Ford F-250, F-350, F-450, and F-550 Super Duty trucks with the 6.7L Powerstroke (model years 2011–2025) who want a practical, engine-compatible way to reduce the risk of CP4-related damage. It’s particularly useful for vehicles used in towing, construction, agriculture, or any heavy-duty application where exposure to particulate contamination or extended high-RPM operation increases the stakes of a pump failure. SPELAB also provides customer support to assist with installation and post-install questions, helping ensure the kit works as intended in real-world conditions.
