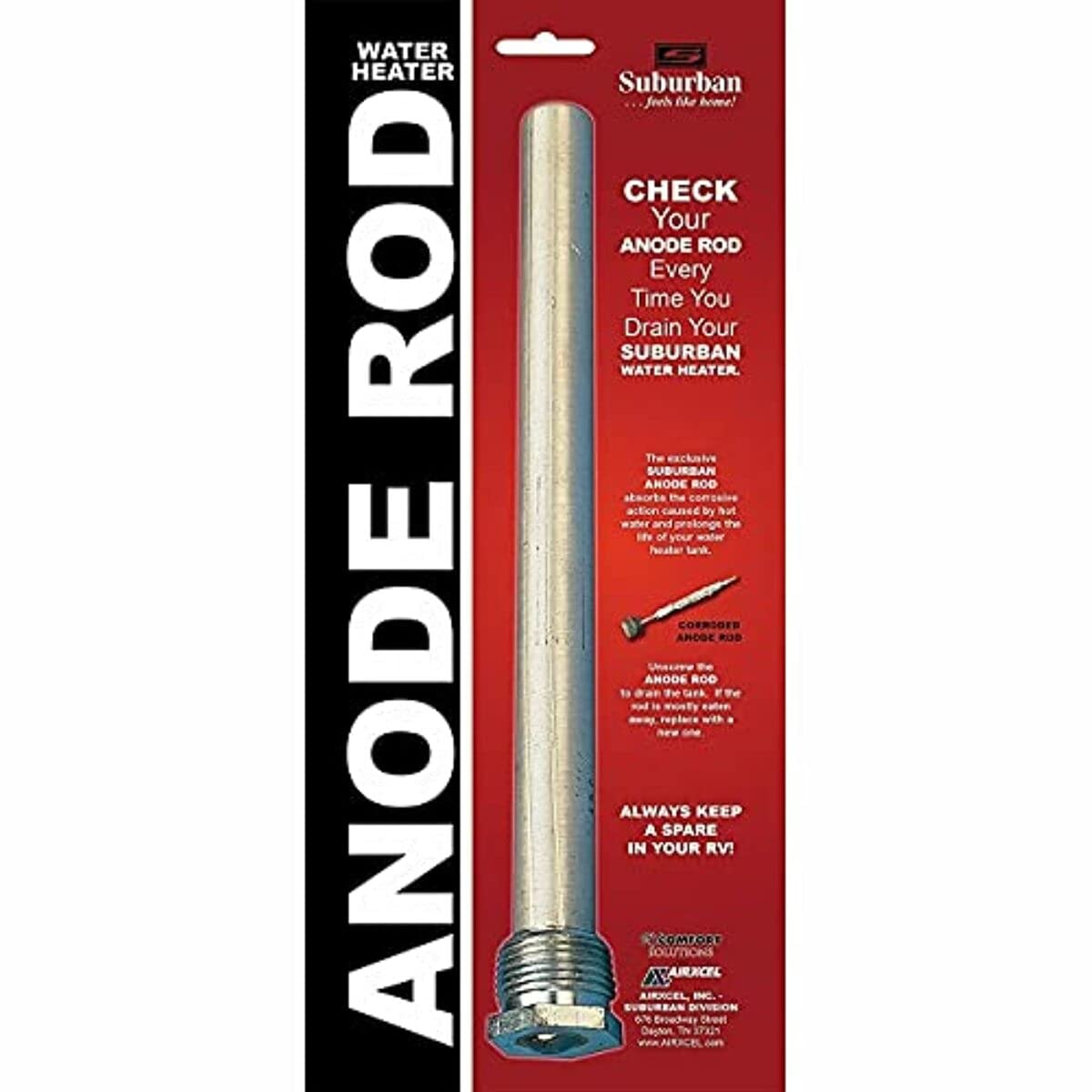

Suburban Aluminium Anode Rod for RV Water Heaters, 9" Model 233516 with Stainless-Core

Suburban's 9" aluminum anode rod (model 233516) is a replaceable corrosion sacrificial rod designed to protect porcelain-lined RV water heater tanks and extend their usable life.

When your RV's water heater is exposed to mineral-rich or soft water, internal corrosion can shorten the tank's service life. The Suburban aluminum anode rod provides a controlled point of corrosion so the rod deteriorates before the steel tank does. Built with an aluminum exterior and a commercial-grade stainless-steel core, this OEM-fit rod is sized and threaded for direct installation into compatible Suburban porcelain-lined tanks, offering a straightforward maintenance upgrade to help avoid premature tank replacement.

How does the anode rod protect my RV water heater?

The anode rod works by becoming the preferred metal surface for corrosive reactions in the tank—sacrificing itself so the steel walls remain intact. It reduces pitting and rust formation on the tank lining, which helps preserve hot water capacity and prevents leaks over time.

• Sacrificial aluminum surface corrodes instead of the tank metal.
• Stainless-steel core adds strength for longer service life.
• Compatible thread and length for direct replacement in Suburban tanks.
• Best used in high-pH or soft-water environments where aluminum performs well.

How do I install the Suburban 233516 anode rod?

Installation is straightforward for most RV owners with basic tools: drain enough water to access the anode port, unthread the old rod, and screw in the new Suburban unit. Tighten to a snug fit and refill the tank, following manufacturer safety steps for pressure relief and gas/electric isolation.

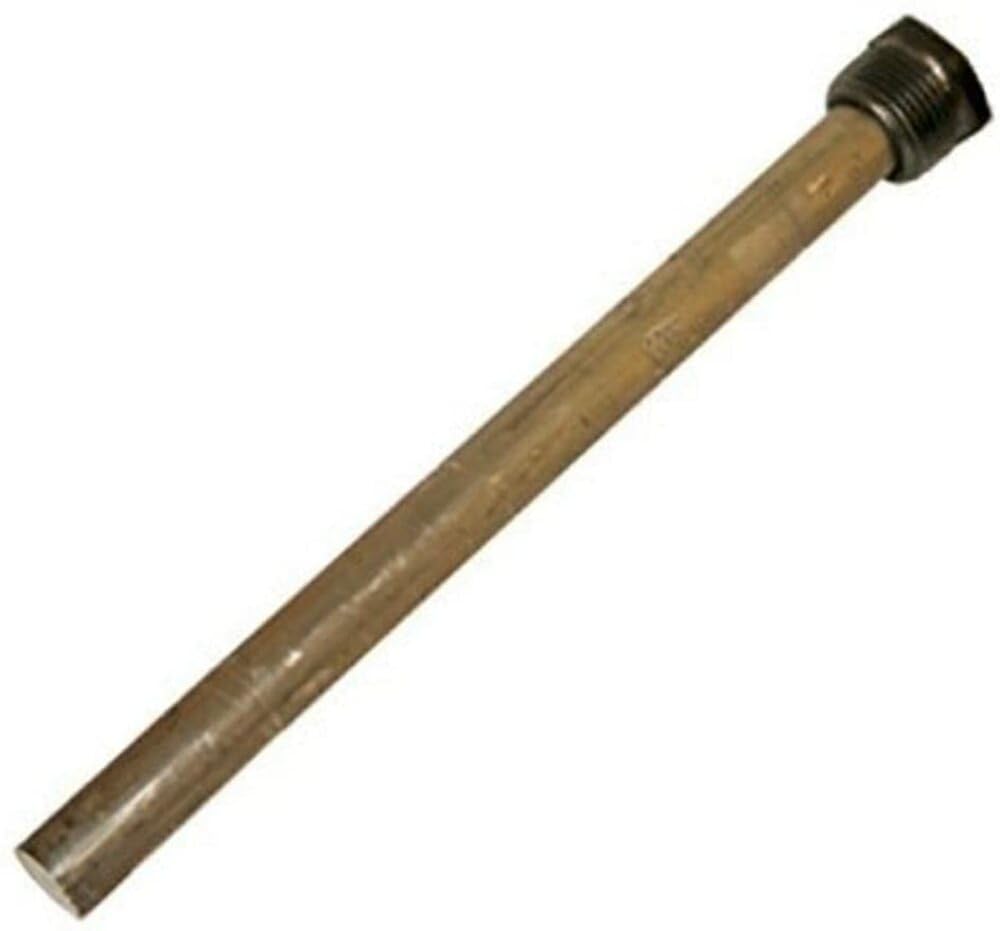

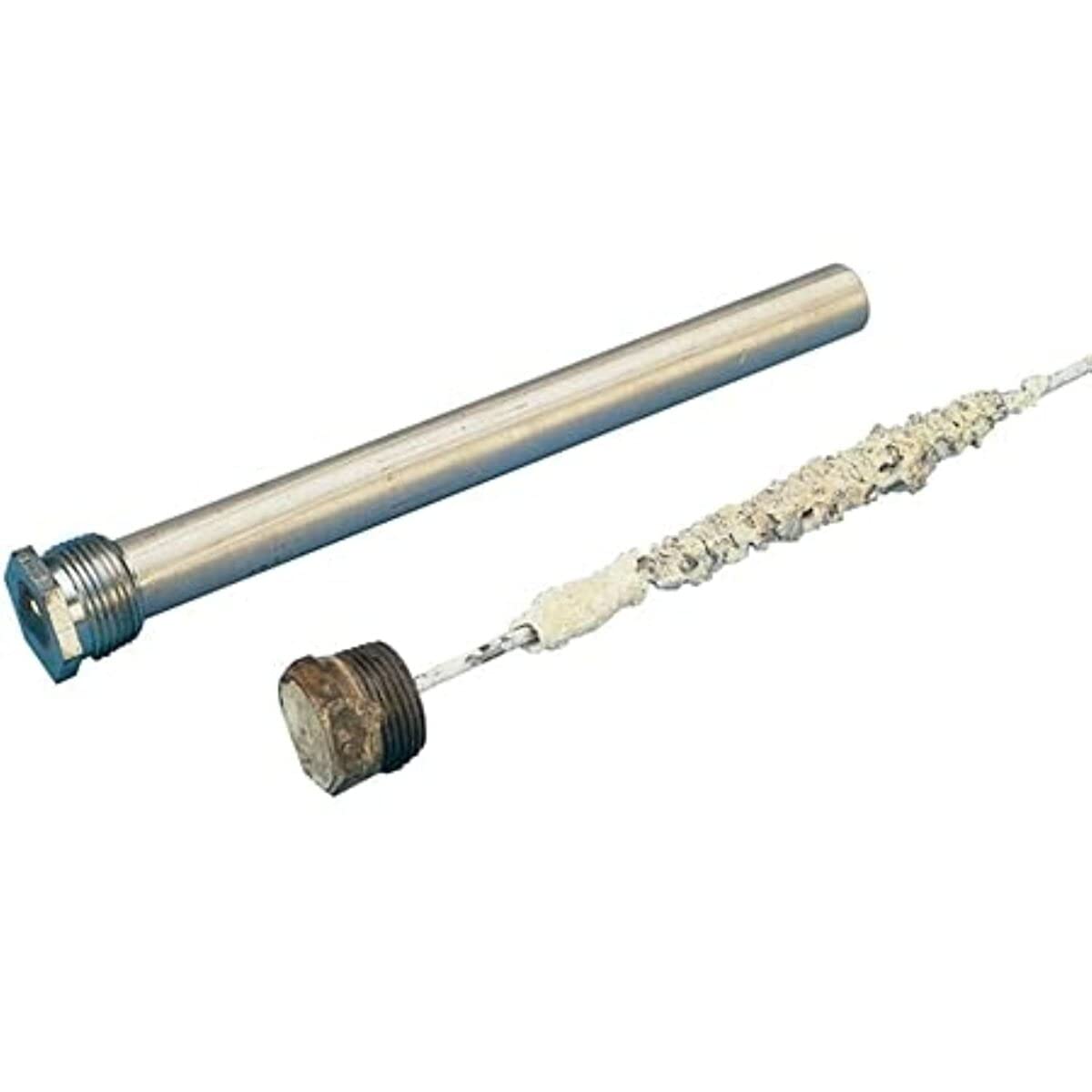

• Specifications: 9" length, 3/4" thread size for Suburban porcelain-lined tanks.
• Requires partial tank drain to relieve pressure before removal.
• No special adhesives or sealants—use a proper thread sealant if recommended.
• Can be changed during routine winterization or annual service checks.

When should I replace the anode rod and what environment suits aluminum best?

Check the rod annually and replace it when more than 50% is consumed or if the aluminum is heavily corroded. Aluminum rods are particularly effective in soft water or high-pH conditions where magnesium rods wear faster and aluminum provides a cost-effective sacrificial option.

• Inspect yearly during tank maintenance or when water quality changes occur.
• Replace sooner in aggressive water conditions or if heavy sediment is present.
• Recommended for soft water and high-pH situations rather than extremely acidic water.
• Using a stainless-core aluminum rod combines sacrificial action with structural strength.

Who is this for?

The Suburban Aluminum Anode Rod 233516 is intended for RV owners, technicians, and fleet managers who use Suburban porcelain-lined water heaters and want a simple maintenance item that helps delay tank failure. It's ideal if you seek an OEM-compatible replacement designed for easy installation, especially when your RV operates where water chemistry favors aluminum anodes. If you prioritize straightforward upkeep, cost-effective tank protection, and maintaining hot-water reliability on the road, this anode rod is a practical addition to your maintenance toolkit.
