SURIEEN R134A Valve Core Removal Tool Kit — Red/Blue Quick Couplers, 20 Replacement Cores, Brass/Stainless Build

The SURIEEN R134A Valve Core Removal Tool Kit is a compact, dual-pressure quick coupler set designed to remove and install Schrader valve cores on R134A automotive AC systems safely and efficiently.

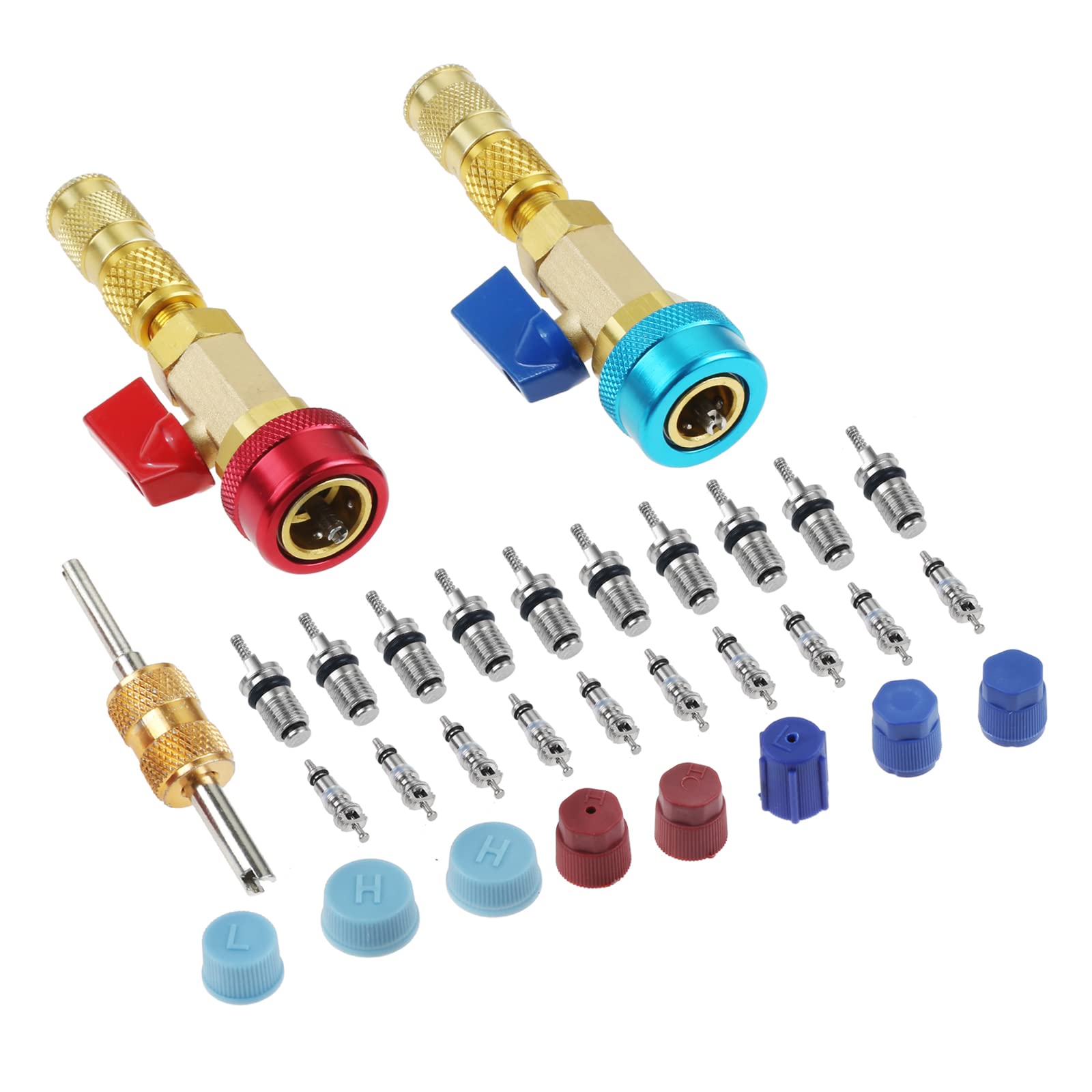

This kit brings together two pressure-specific quick couplers (red for high side, blue for low side), a dedicated valve-core remover, replacement valve cores, service caps, and durable hardware built for regular HVAC and auto air conditioning maintenance. Constructed from brass, stainless steel, and aluminum alloy parts, the set aims to minimize refrigerant loss during service and to speed up common valve-core tasks for technicians and DIYers alike.

How does the SURIEEN kit prevent refrigerant loss during valve work?

The tools include ball-valve closures and sealed couplers that let you isolate the service port while pulling or installing a core. That design reduces uncontrolled R134A escape and helps maintain system charge when possible.

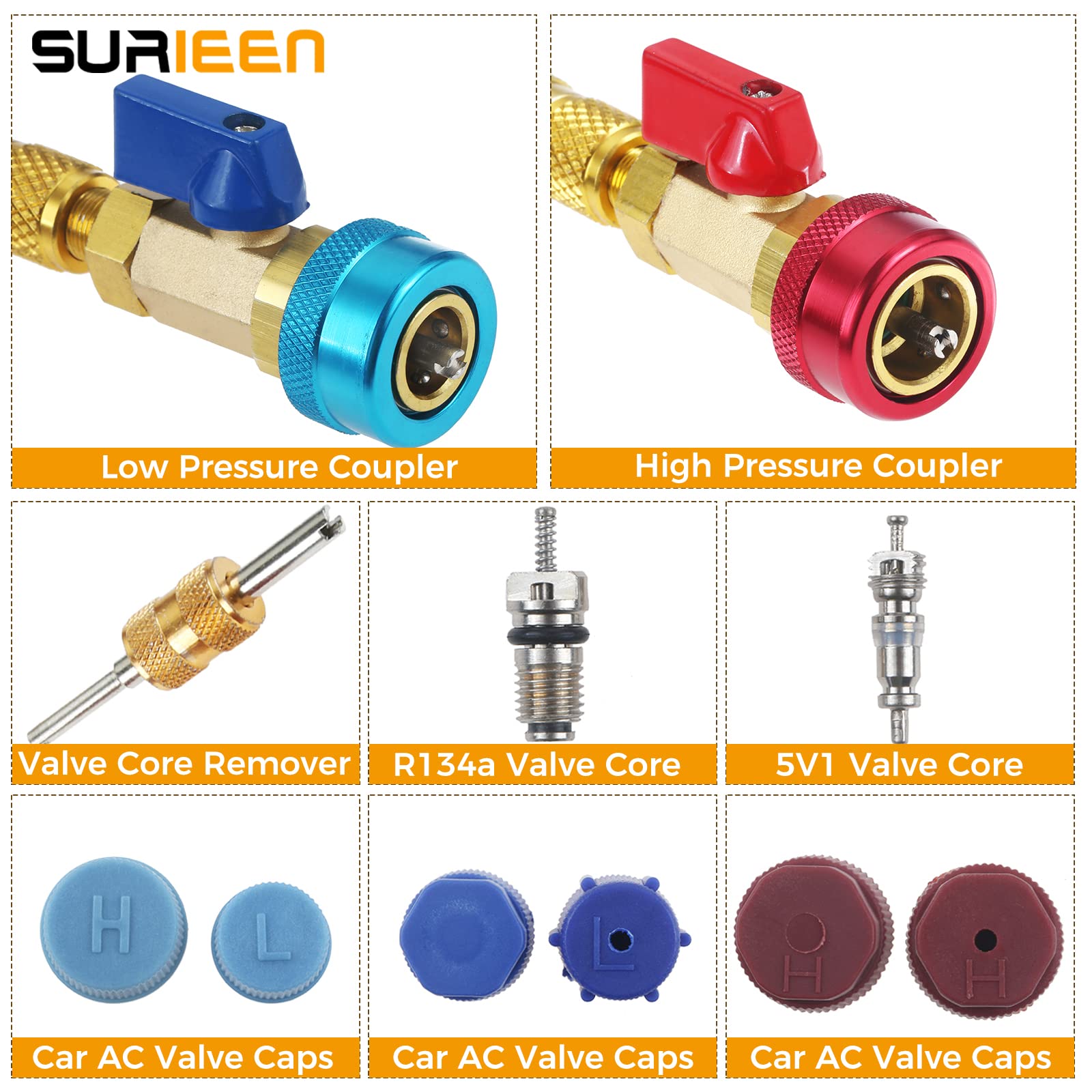

• Red high-pressure coupler with inner Schrader valve to seal during core extraction.
• Blue low-pressure coupler sized for low-side ports with similar sealing function.
• On-tool ball valve lets you close the line quickly if needed.
• Threaded removal rod and gasketed contact reduce pressure bleedback.

Which valve cores and vehicle ports will this tool fit?

The set contains multiple replacement cores (R134A and 5V1 types) and adjustable couplers that cover most common automotive AC Schrader valves with head diameters below 2.5mm. It is intended for typical passenger cars and HVAC service ports; a few vehicle models use different valve designs and may be incompatible.

• Includes 10 R134A valve cores and 10 5V1 valve cores for replacements.

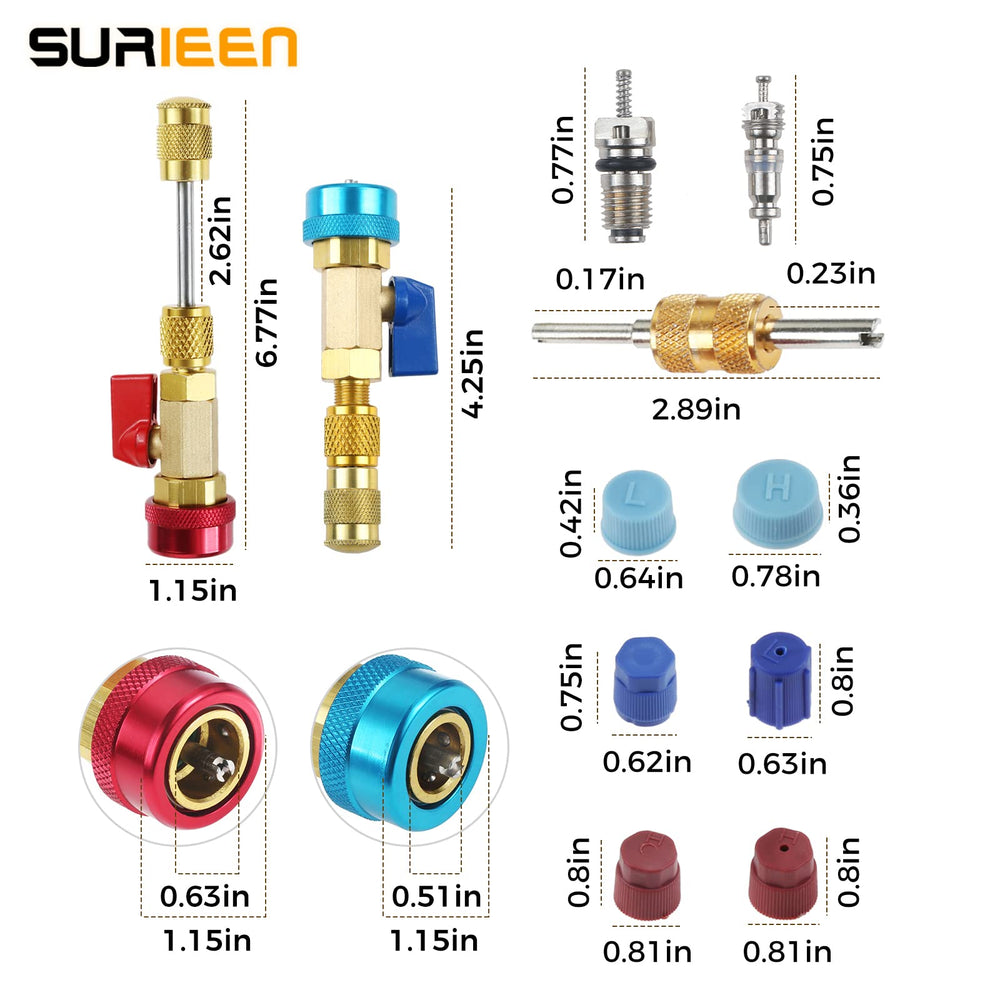

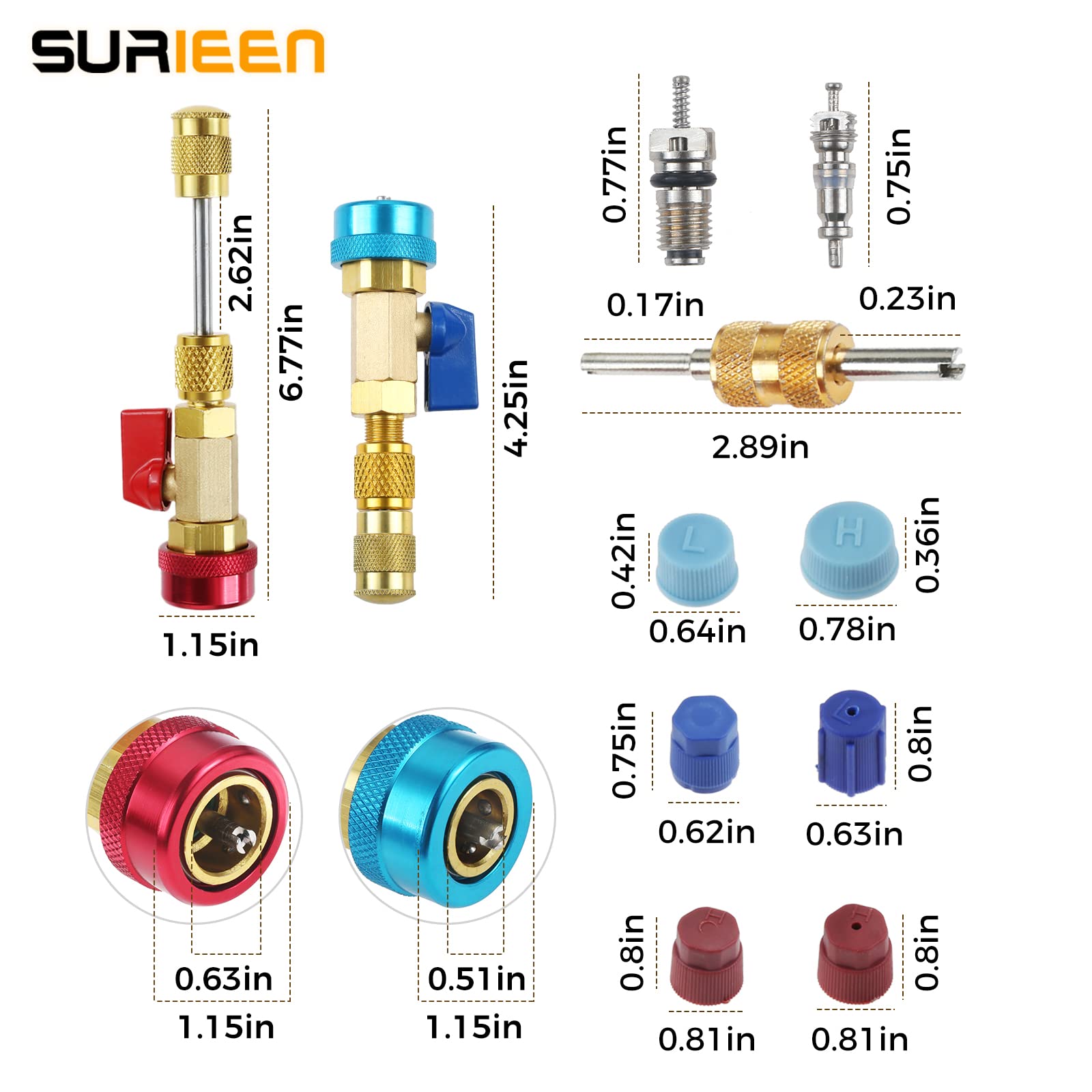

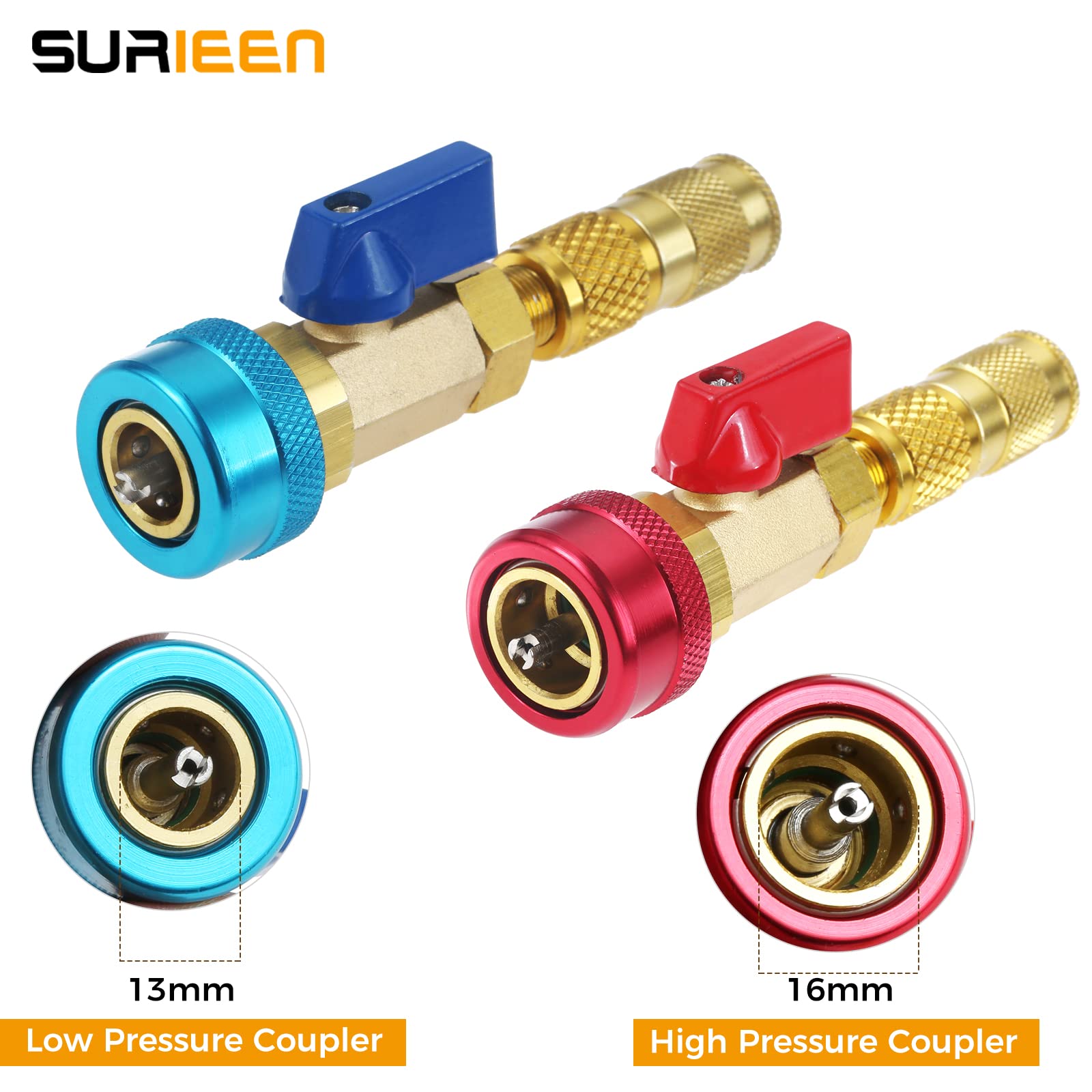

• Red coupler inner diameter: 16mm (high pressure).
• Blue coupler inner diameter: 13mm (low pressure).
• Not compatible with some specific vehicles (examples: certain Ford, GM, Toyota, Mini Cooper models).

How do you operate the quick remover and ensure the core stays attached?

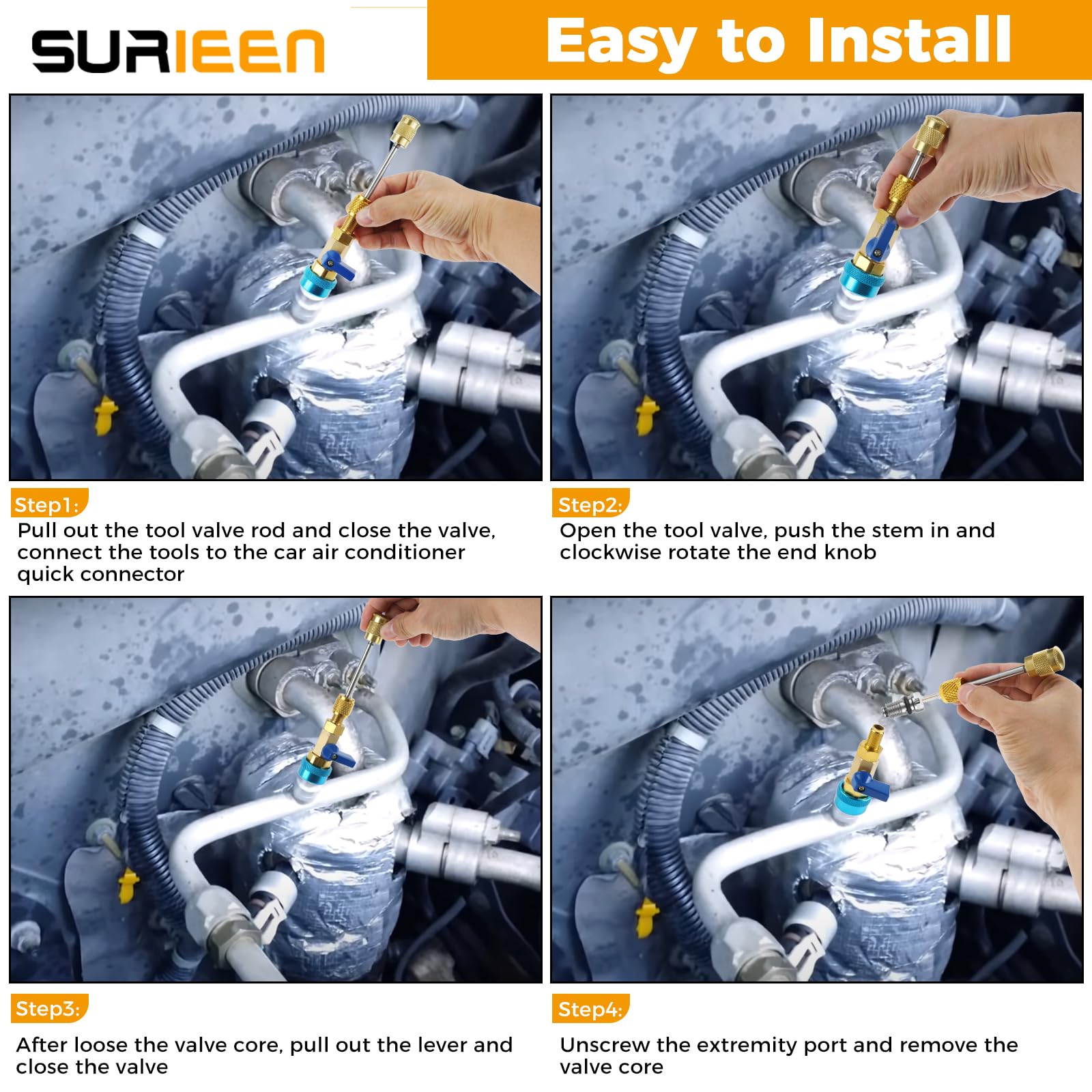

Operation is straightforward: attach the appropriate coupler, engage the removal rod to capture the core, then close the ball valve before disengaging to avoid loss. For improved retention, the manufacturer recommends a light grease dab or adhesive on the removal rod tip to help the Schrader valve adhere while you extract it.

• No extra tools required to remove/install cores once coupler is seated.
• If clearance prevents immediate valve shutoff, back the tool out slightly until the schrader valve closes.
• Use a small amount of grease or tack on the removal rod for a more reliable grip.
• Stainless steel rod and aluminum handle for good grip and corrosion resistance.

What materials are used and how durable is the set?

The kit combines brass main bodies, a stainless-steel valve rod, and anodized aluminum couplers to balance corrosion resistance and mechanical strength. Those materials are common in HVAC tools and are chosen to withstand repeated engagement with service ports and refrigerant exposure.

• Brass valve bodies for wear resistance and reliable sealing.
• Stainless-steel removal rod for stiffness and longevity.
• Anodized red and blue aluminum for high/low side identification and hand grip.
• Included service port caps to protect ports when not in use.

Who is this for? The SURIEEN R134A Valve Core Removal Tool Kit is suitable for automotive technicians, HVAC service professionals, and knowledgeable DIYers who perform routine air-conditioning maintenance or valve servicing. If you need a compact, mixed-pressure set with spare cores and port protection, this kit covers common tasks — but double-check vehicle compatibility lists for certain Ford, GM, Toyota, and Mini models before purchase.
