Switch-Pros 8-Switch Programmable Power Panel SP-9100 — Concealed Bezel, RGB Backlight & Bluetooth Control

The Switch-Pros SP-9100 is an 8-switch, programmable vehicle power system with a concealed mounting bezel, four 35A and four 18A solid-state outputs, and full RGB backlighting and Bluetooth app control.

Designed for off-road, marine, fleet, and custom-vehicle installs, the SP-9100 combines a low-profile bezel-style switch panel with a waterproof, solid-state power module. The system centralizes eight high-current circuits, offers flexible trigger and dimming options, and removes the need for external relays or fuse boxes. Use the free Android/iOS app to pick exact backlight colors, monitor battery voltage, and program each switch for momentary, latch, strobe, or master behaviors.

How does the SP-9100 manage high-current accessories safely?

The SP-9100 separates the user-facing switch pad from the heavy-current power module so that high loads are handled by the solid-state module instead of the panel. It supports four 35A and four 18A outputs with an aggregate 125A maximum rating and color-coded wiring for straightforward connections.

• Four 35A circuits for high-draw accessories (lights, winches, compressors)
• Four 18A circuits for lower-draw devices (accessories, small lights)
• Waterproof, solid-state power module reduces mechanical failures
• No bulky relays or external fuse assemblies required

How can I customize switch behavior and lighting for my vehicle?

Each of the eight switches is user-programmable for modes including On/Off, momentary, ignition- or battery-triggered activation, and strobe/flash patterns. RGB backlighting is adjustable via the free app to match factory dash lighting or a custom scheme, and lighting outputs can be dimmed between 100% and 10%.

• Program switches as latch, momentary, trigger-activated, or strobe
• Unlimited RGB colors using the app color picker for exact dash matching
• Dimming control for lighting outputs and dimming during strobe/flash
• User-selectable legends and orange LED indicators for clarity

What installation and control features make the SP-9100 convenient?

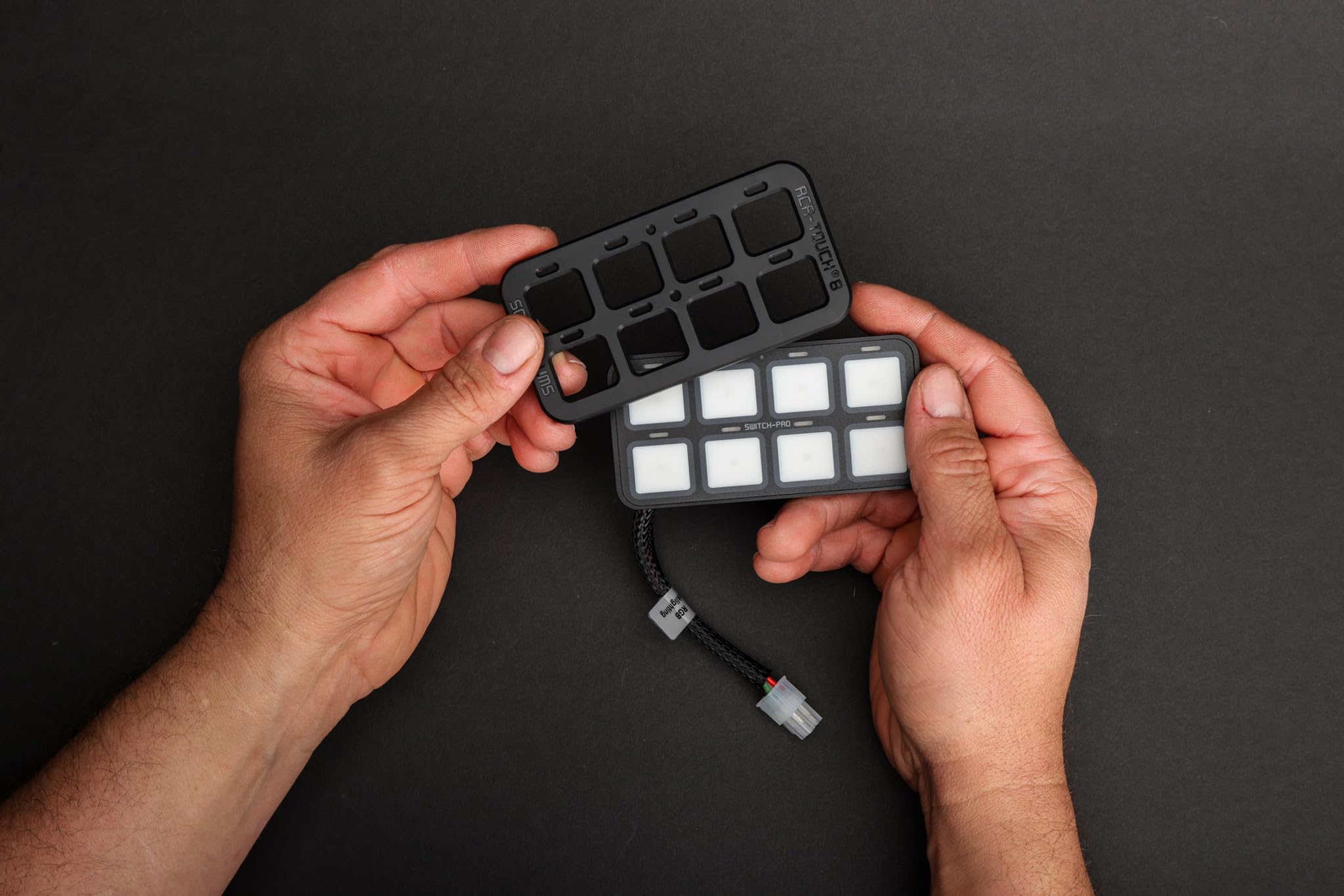

The bezel-style panel mounts cleanly with concealed hardware and measures 4" x 2" x 0.375" to fit common dash cutouts. The power module is compact and waterproof, and the system supports daisy-chaining up to three panels to one module. Built-in Bluetooth lets you program and monitor settings from your phone.

• Low-profile bezel panel with concealed mounting screws for a factory look
• Power module dimensions: 6" x 3" x 0.5" (excl. connectors), waterproof sealed design
• Daisy-chain up to three panels to a single power module for expanded setups
• Built-in Bluetooth and free iOS/Android app with battery voltage readout

Which practical features help with everyday use and troubleshooting?

The SP-9100 includes LED input status indicators to simplify diagnostics, a sleep mode to reduce parasitic draw, and external trigger inputs that can activate multiple outputs. A memory function and master mode provide one-touch control to restore or shut down configured outputs quickly.

• Two external trigger inputs, each capable of activating up to four outputs
• Memory function remembers previous states after power cycle or start-up
• Sleep mode minimizes battery drain when parked for extended periods
• Time delay off available for precise shutdown timing on any circuit

Who is this for: The Switch-Pros SP-9100 is ideal for vehicle owners who need a clean, integrated switching solution with high-current capability—off-road rigs, work trucks, emergency vehicles, and marine craft that require reliable, programmable control of lighting and accessories without bulky relay boxes. It's best for installers or DIYers who want professional-looking results, app-based customization, and a waterproof, solid-state power system.
