Szdystar LED Driving Light Bar Wiring Harness Kit 400W 12AWG DC12V — Remote Switch & 40A Relay

The Szdystar 400W LED Driving Light Bar Remote Control Wiring Harness Kit is a pre-assembled, heavy-duty DC12V power and control solution designed to safely run a single LED light bar (or multiple lights wired in parallel) up to 400W with remote switching and inline protection.

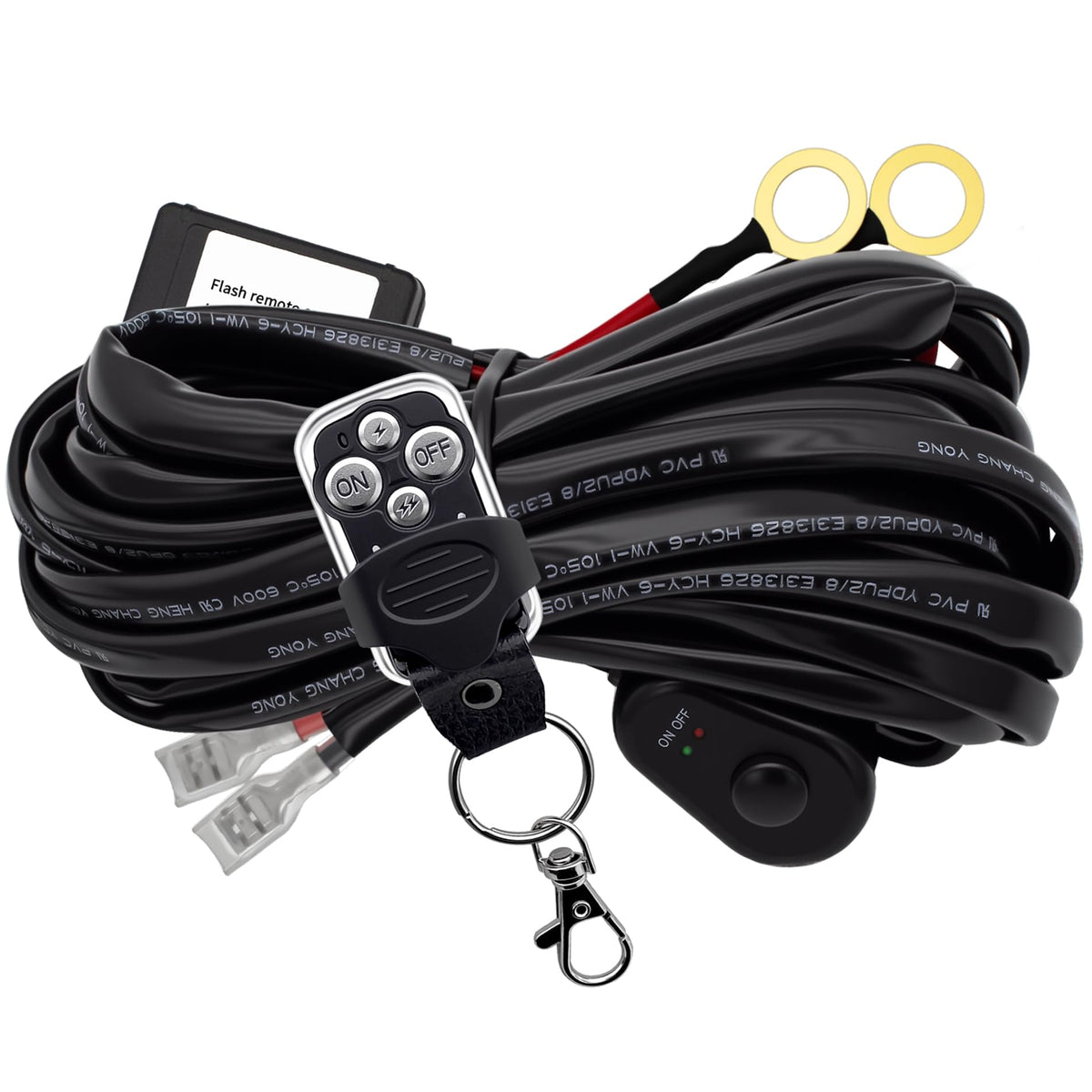

This wiring harness delivers a straightforward way to add or replace auxiliary lighting on trucks, SUVs, ATVs, and utility vehicles. It uses thick 12 AWG copper conductors and a sealed universal plug so you can connect most standard LED off-road light bars without splicing factory wiring. The kit includes a mountable adhesive remote switch, a 40A automotive relay, a blade fuse, and roughly 11.5 feet (3.5 meters) of cable for flexible routing through engine bays and behind bumpers.

How does this harness keep my lighting installation safe?

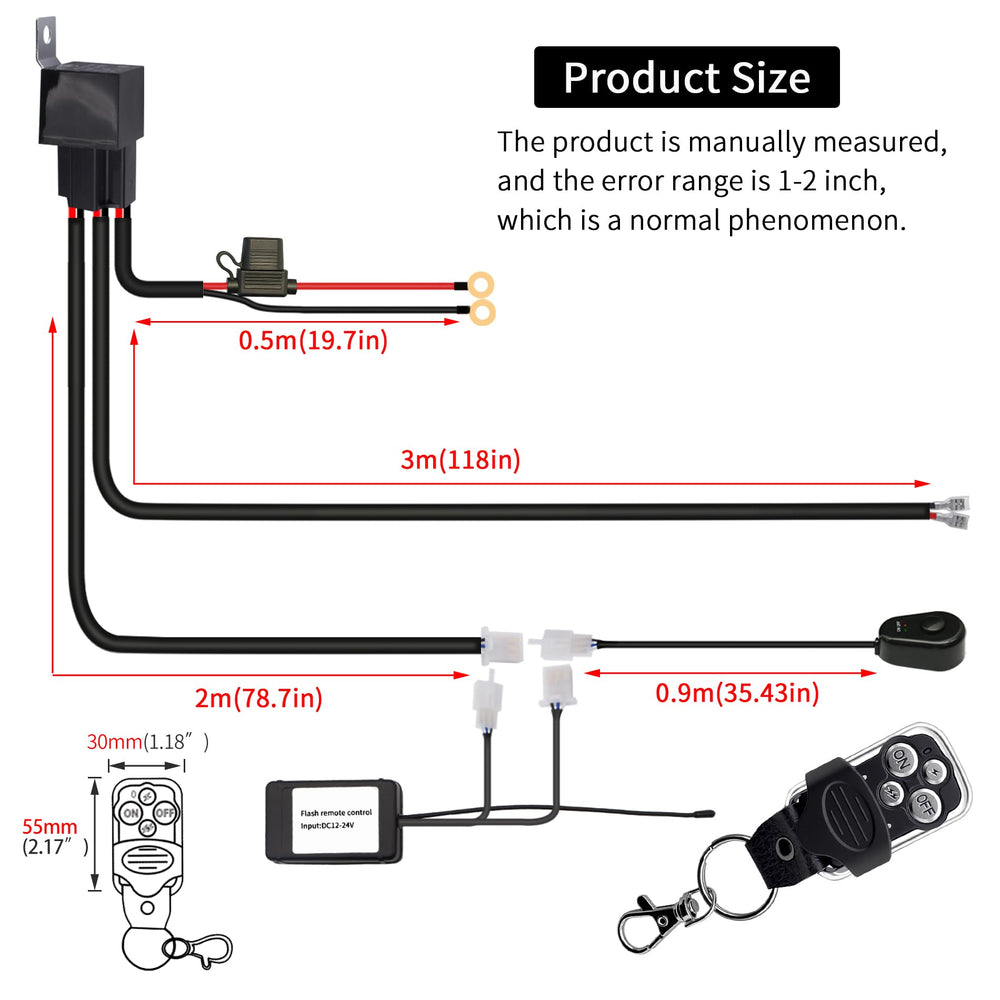

The harness incorporates electrical safeguards designed for robust field use without complex wiring. A 40A relay prevents heavy current from passing through the dashboard switch, and a blade fuse protects the circuit against overloads. PVC insulation and corrosion-resistant terminals help the system survive harsh conditions.

• 40A automotive relay to handle high current loads safely
• Blade fuse for immediate overload protection
• Pure copper conductors and PVC insulation for low voltage drop and durability
• Corrosion-resistant terminals and waterproof plug for reliable outdoor use

What vehicles and light bars will this kit work with?

Designed primarily for DC12V systems, the harness supports most single-row and dual-row LED driving light bars up to 400W. It also accepts halogen and HID fixtures when those lights operate on 12 volts. Vehicles on DC24V systems can use the harness if you swap the included relay for a DC24V relay.

• Compatible with DC12V LED light bars, fogs, work lights, and pods
• Supports up to 400W total—best for single light bars or parallel-wired setups under that limit
• For DC24V vehicles, replace relay with DC24V model (relay not included)
• Universal waterproof plug fits most aftermarket light bars

How easy is installation and remote operation?

The harness comes mostly pre-assembled for a plug-and-play experience where feasible; still, we recommend professional installation if you are not comfortable with vehicle electrical systems. The compact remote control switch mounts with adhesive on any flat surface and offers a reliable wireless range up to 100 feet (30 meters) for convenient operation from outside the vehicle.

• Pre-assembled wiring reduces installation time and wire splicing
• Mountable adhesive remote switch with robust plastic housing
• Up to 100 ft (30 m) remote range for off-vehicle control
• 11.5 ft (3.5 m) harness length for flexible routing through engine bay

What material and performance specs should I expect long-term?

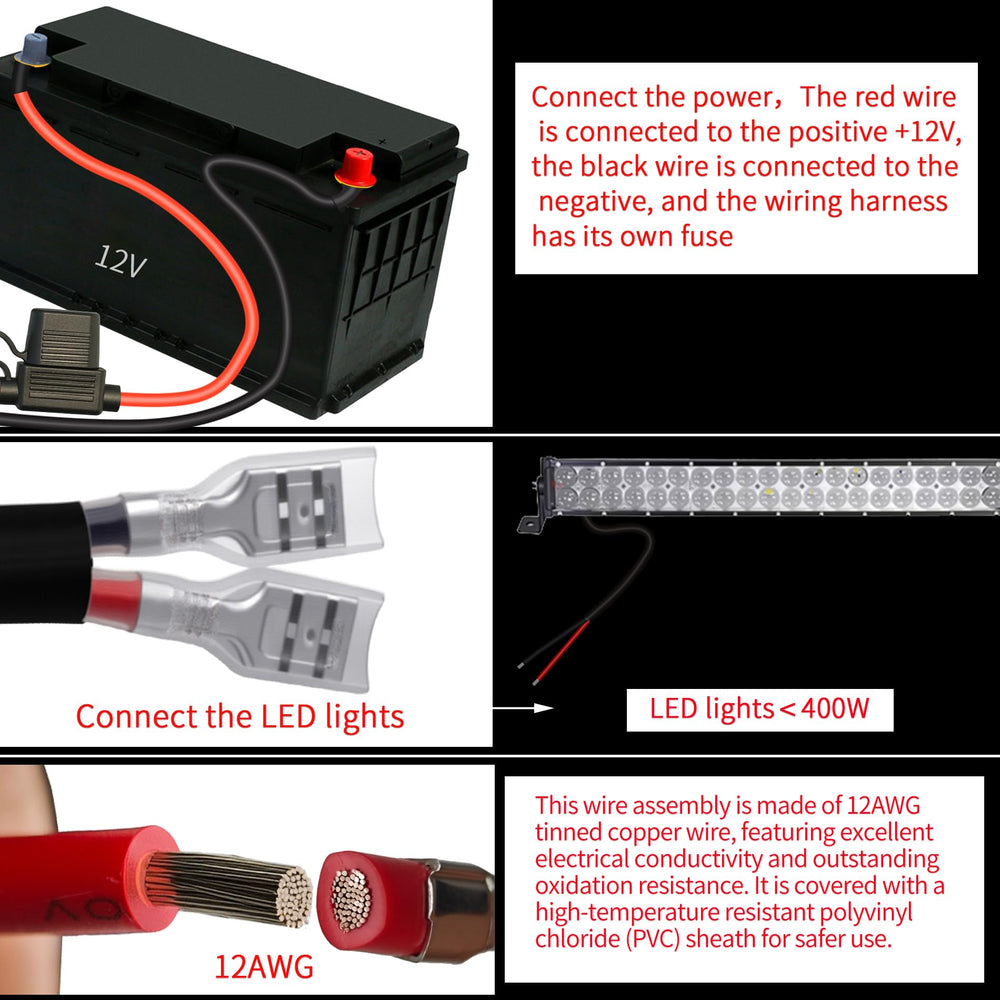

This harness uses heavy-duty 12 AWG copper core wiring to minimize voltage drop and maximize current capacity for high-output lights. Components are selected for durability: PVC and silicon-infused wire insulation, corrosion-resistant metal terminals, and a temperature rating up to 185°F (85°C) for demanding operating conditions.

• 12 AWG copper core wire for efficient power delivery
• Rated for continuous operation up to 185°F (85°C)
• Durable PVC insulation and sealed connectors for weather resistance
• Included blade fuse and relay for long-term circuit protection

Who this is for: Car, truck, ATV, and off-road owners who want a reliable, pre-built wiring solution to power aftermarket LED driving light bars without extensive wiring modifications. This kit is suited to DIYers with basic electrical skills and to professional installers seeking a quality, ready-made harness for 12V auxiliary lighting projects. If your vehicle uses a 24V system, plan to source a compatible 24V relay before installation. Always confirm local laws on auxiliary lighting use and consider professional installation for best results.
