Szdystar LED Off-Road Light Bar Remote Control Kit — 12–24V IP67 Remote On/Off & Strobe

Szdystar's remote ON/OFF and strobe control kit lets you operate LED off‑road light bars wirelessly and switch between multiple flash modes up to about 30 meters away.

This compact control box and dash switch pair provides a professional, weather‑resistant way to add remote switching and strobe functionality to LED driving lights. Built from ABS and quality PVC, copper and metal contacts, the module supports 12–24V DC systems, is rated IP67 for water resistance, and includes thermal protection for safer operation. The kit ships with the control box (with connectors) and a switch; wiring harness sold separately and installation by a trained technician is recommended.

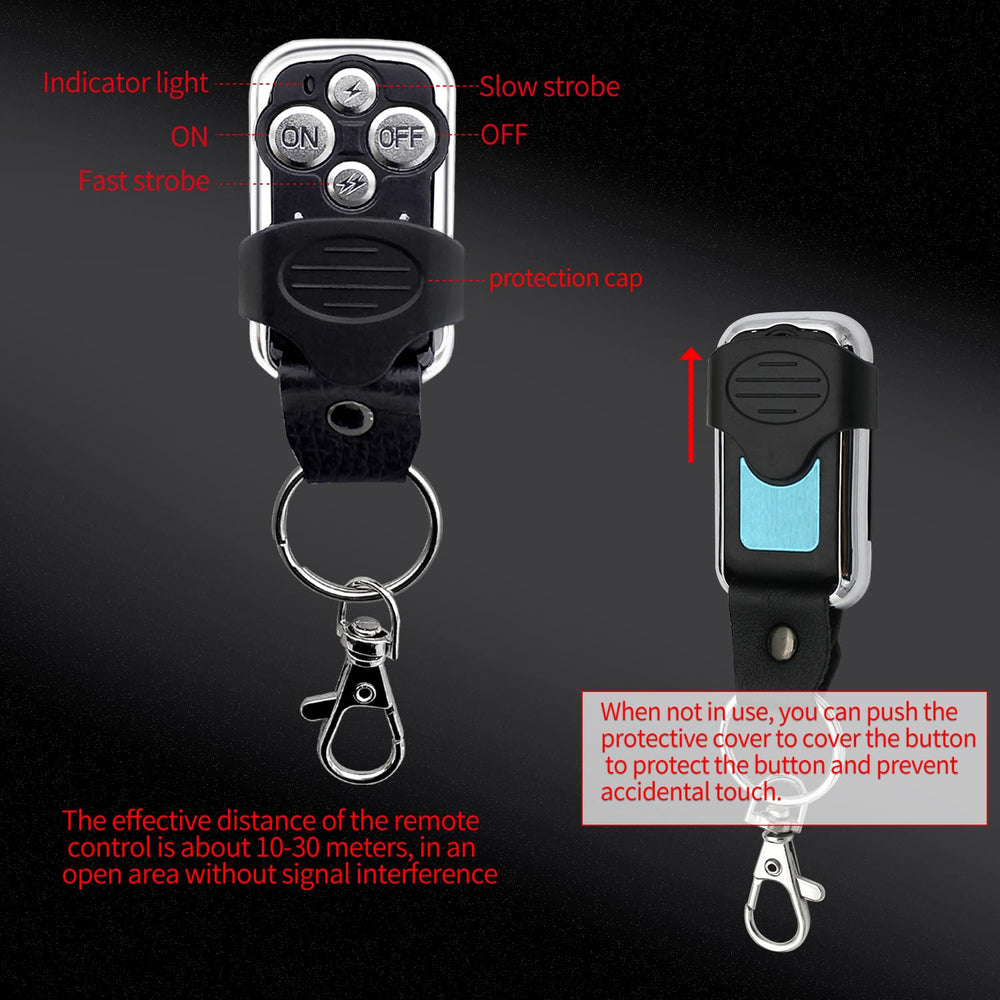

How does the remote control work and what range can I expect?

The supplied remote switch communicates with the control box to toggle power and cycle through strobe patterns. Typical effective distance is within approximately 30 meters in open areas; walls or vehicle structures can reduce that range. Always test the remote after mounting to confirm reliable reception from the driver position.

• Remote control range: about 30 meters in unobstructed conditions
• Six selectable modes available from the remote
• Simple on/off switching plus strobe/flash functions
• Wireless convenience for ATV, UTV, 4x4, boat or utility vehicles

What electrical and environmental specifications should I know before installing?

This control kit is designed for 12–24V DC systems and includes high‑temperature protection to limit risk from overload or heat. The enclosure meets IP67 standards for dust and water resistance and is rated to operate between -30°C and +80°C. The control box requires connection through an appropriate relay wiring harness; it must not be wired directly to the lamp output.

• Operating voltage: 12–24V DC

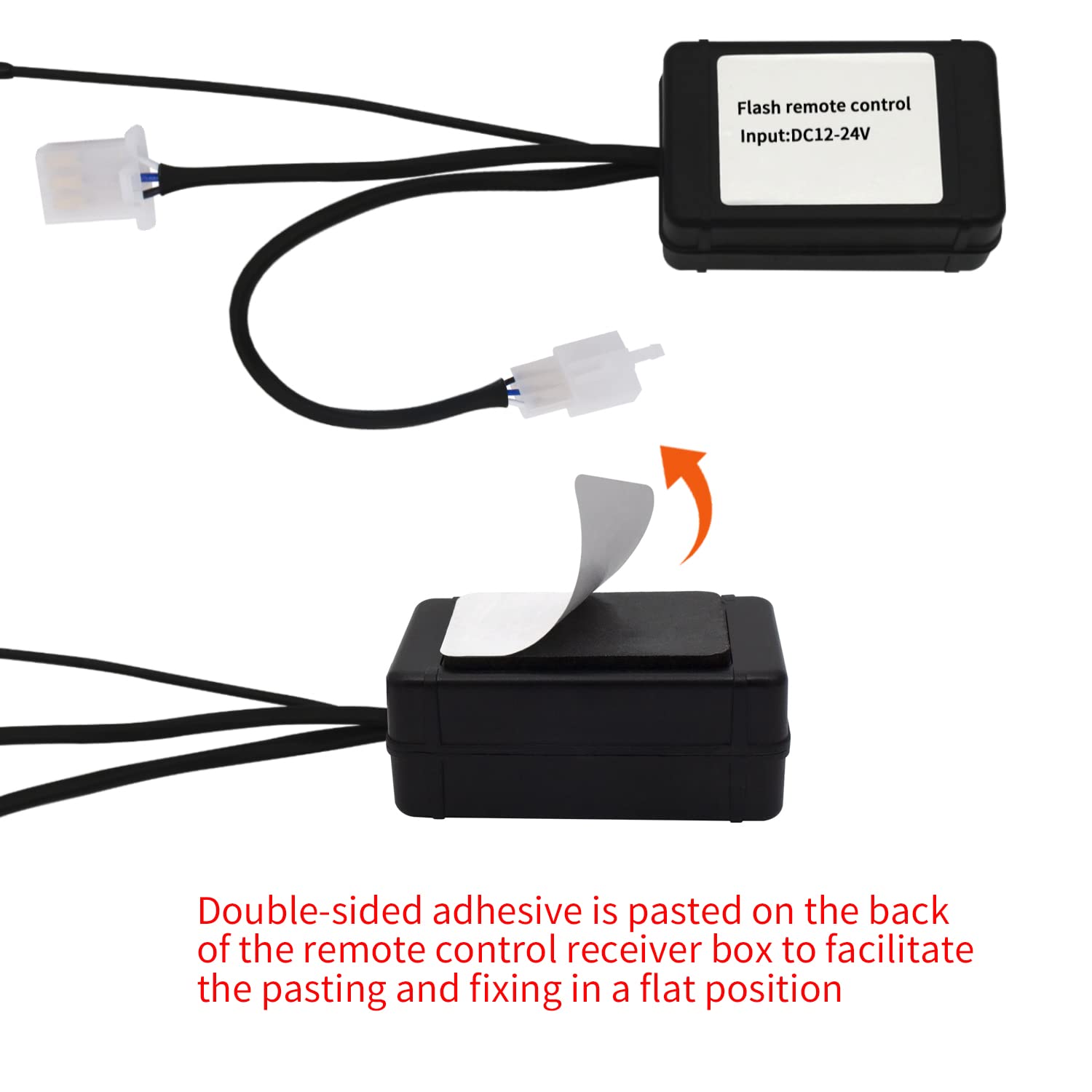

• Waterproof rating: IP67 for wet environments
• Operating temperature range: -30°C to +80°C
• Includes over‑temperature protection and robust internal components

How is the kit installed and what components are included?

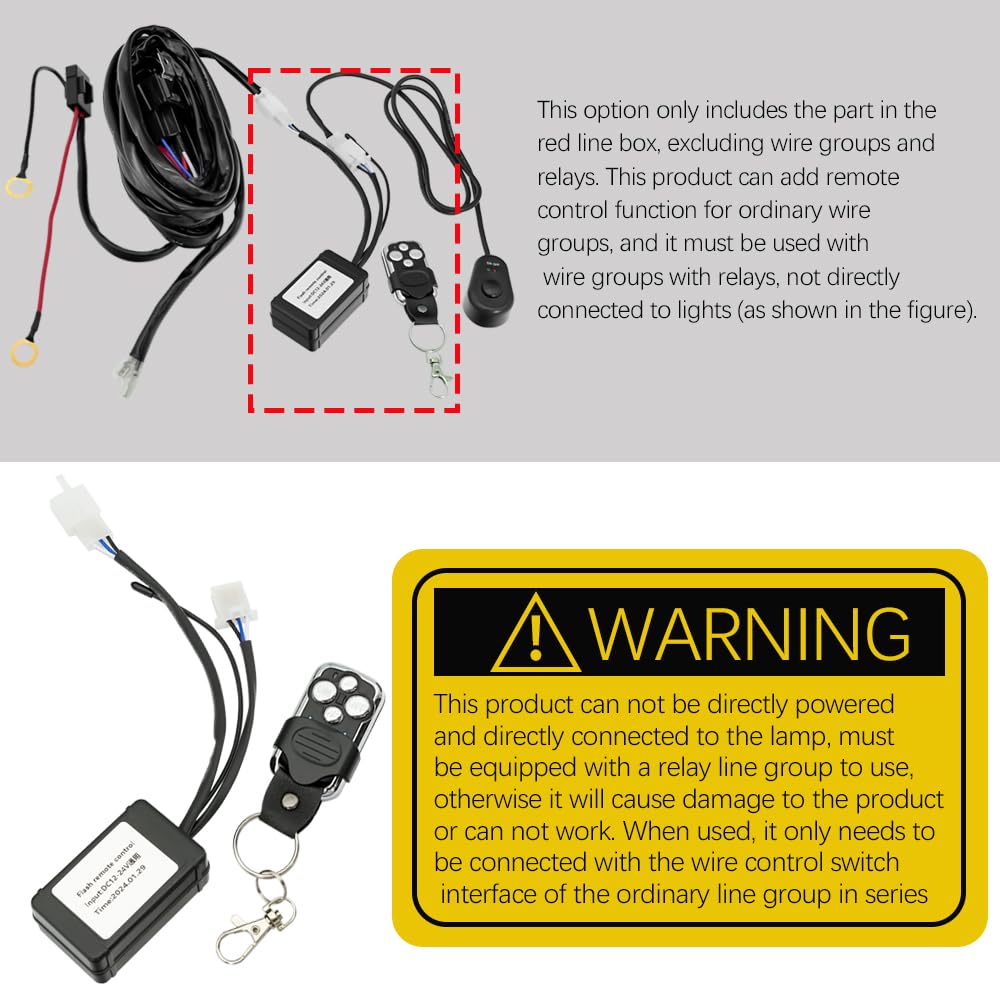

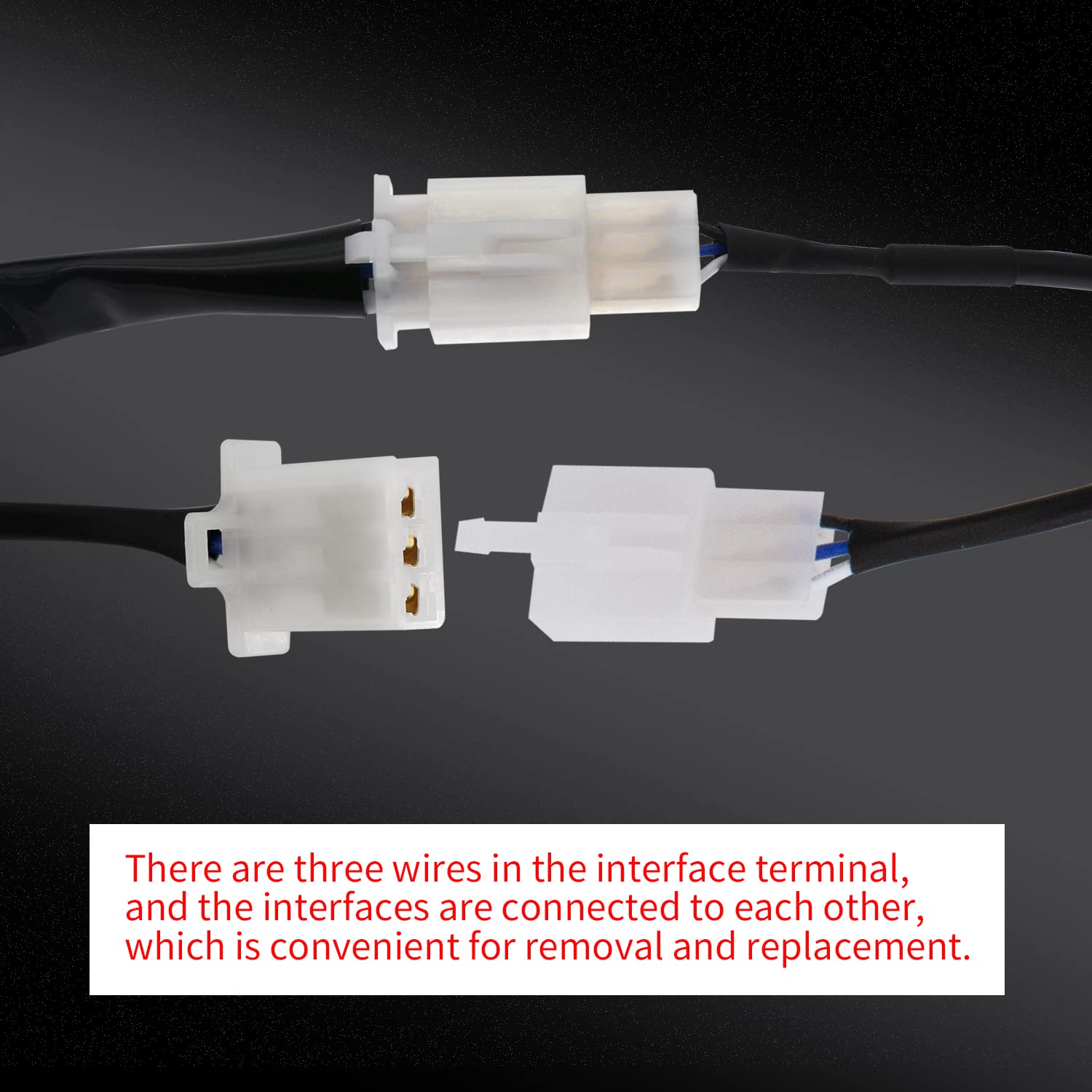

The package contains one control box with connectors and one dashboard switch; the wiring harness is not included. The control box plugs into a compatible harness using a 3‑pin connector or can be hard‑wired into an existing relay harness by a qualified installer. Follow local regulations and use a relay group as specified to prevent damage.

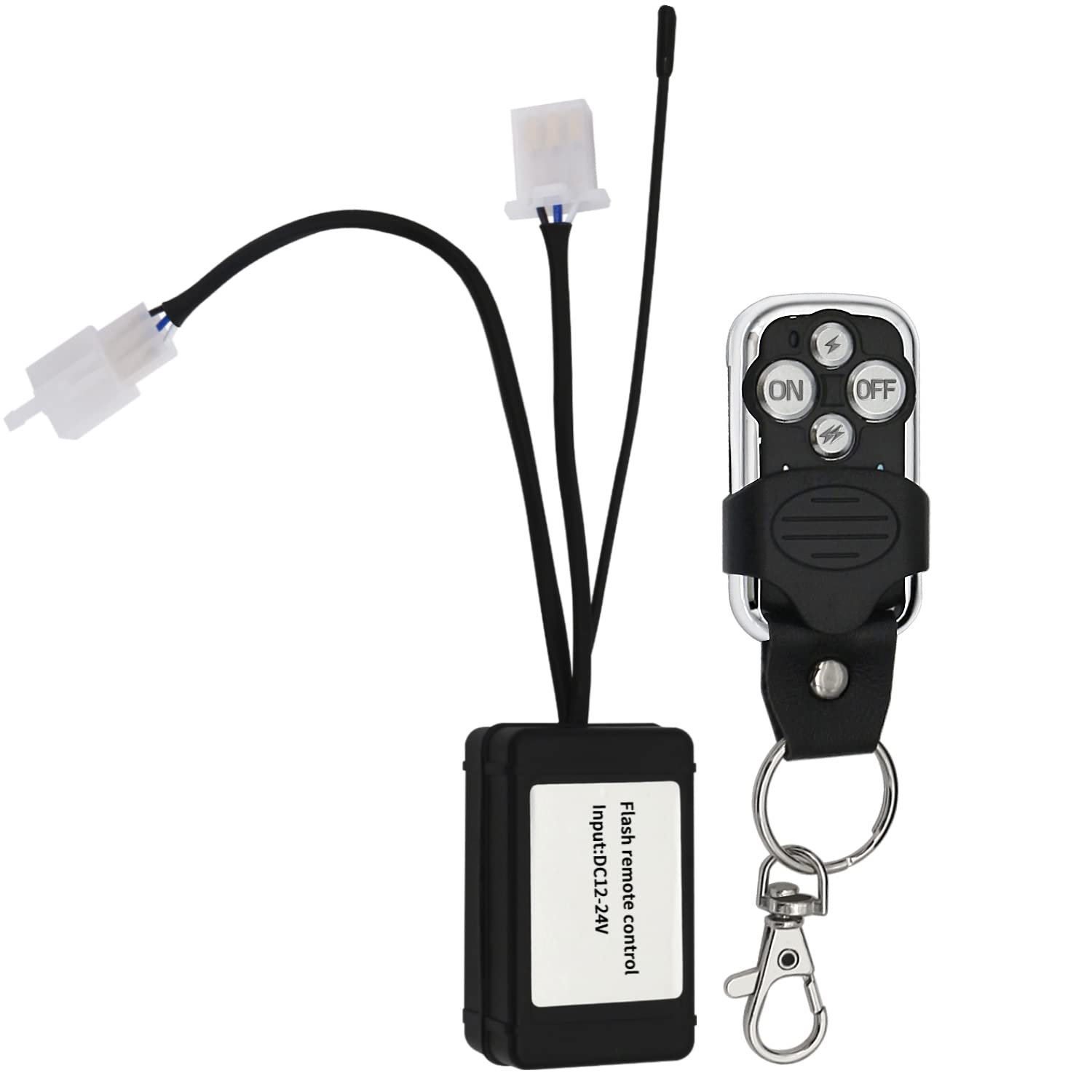

• Included: 1 control box with connectors, 1 handle/rocker switch
• Not included: main wiring harness or lamp connections
• Installation: plug‑and‑play with a matching harness or professional hard‑wiring
• Important: must be used with a relay line group, not connected directly to the lamp

What safety and compatibility notes should I follow?

Use a wiring harness rated for your vehicle's voltage and current and let a professional complete the wiring if you are not experienced. The product contains a sliding protective cover and durable switch materials, but improper wiring can cause damage. Check and comply with your local laws before using strobe or flash modes on public roads.

• Match wiring gauge to operating voltage and lamp current
• Installation advised for professionals or under professional guidance
• Observe local regulations for strobe/flashing light use
• Manufacturer provides after‑sales support for product issues

Who is this for: This Szdystar control kit is intended for off‑road enthusiasts, fleet technicians, and installers who want a compact, weatherproof remote switching solution for auxiliary LED light bars on vehicles such as UTVs, ATVs, 4x4s, golf carts and boats. It suits users who already have or plan to install a compatible relay wiring harness and need a durable ON/OFF plus multi‑mode strobe controller built for harsh outdoor environments.
