TAINECTC 12V 140A Remote Battery Disconnect Switch with LED Voltage Display — 24V Ready, Auto-Disconnect Protection

TAINECTC Remote Battery Disconnect Switch is a 12V/24V, 140A-rated kill switch with LED voltage display and remote/manual control to prevent battery drain and simplify vehicle storage.

Designed for cars, boats, RVs, trailers and a wide range of 8V–30V lead-acid batteries, this TAINECTC battery disconnect switch combines a visible LED voltage readout with latching-relay reliability and intelligent protection logic. It lets you isolate the negative battery connection remotely or manually, preventing parasitic drain during long storage, reducing self-discharge for classic vehicles, and adding a simple theft-deterrent. The unit is engineered for easy installation with adjustable mounting shims and slotted connection tabs to fit multiple battery tray orientations.

How does the TAINECTC switch protect my battery without constant supervision?

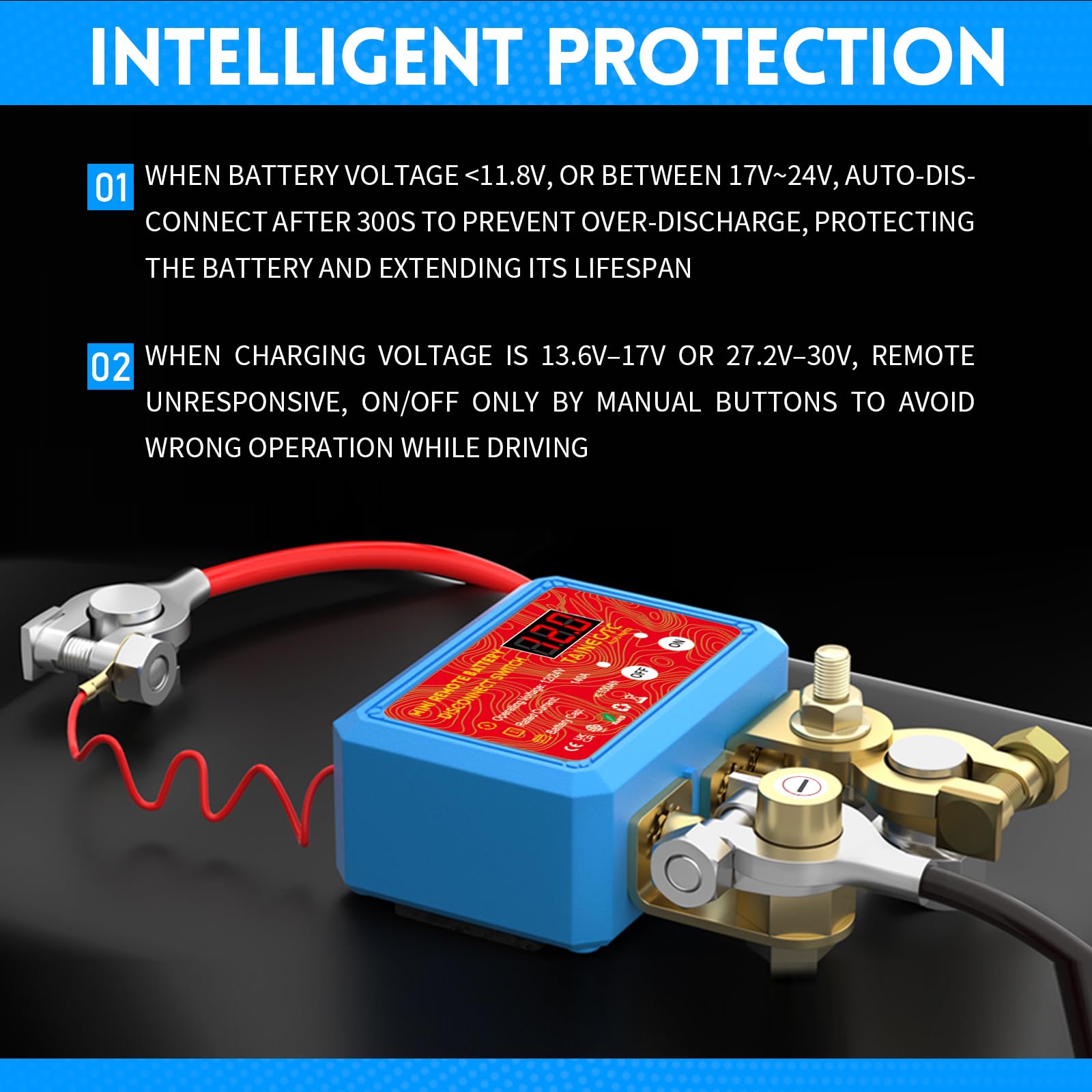

The switch monitors voltage and automatically disconnects to avoid deep discharge and over-voltage conditions. It uses preset thresholds and timed responses so the battery isn’t left in a damaging state when voltage falls or spikes occur, while still allowing safe charging periods.

• Auto-disconnect if battery voltage drops below 11.8V to prevent over-discharge.
• Auto-disconnect for voltages between 17V–24V after 300 seconds to guard against abnormal supplies.
• Manual-only control when charging voltages are detected (13.6–17V or 27.2–30V) to avoid accidental toggles while driving.
• Ultra-low standby current thanks to latching relay design for minimal battery drain when switched off.

What are the key installation and fit considerations?

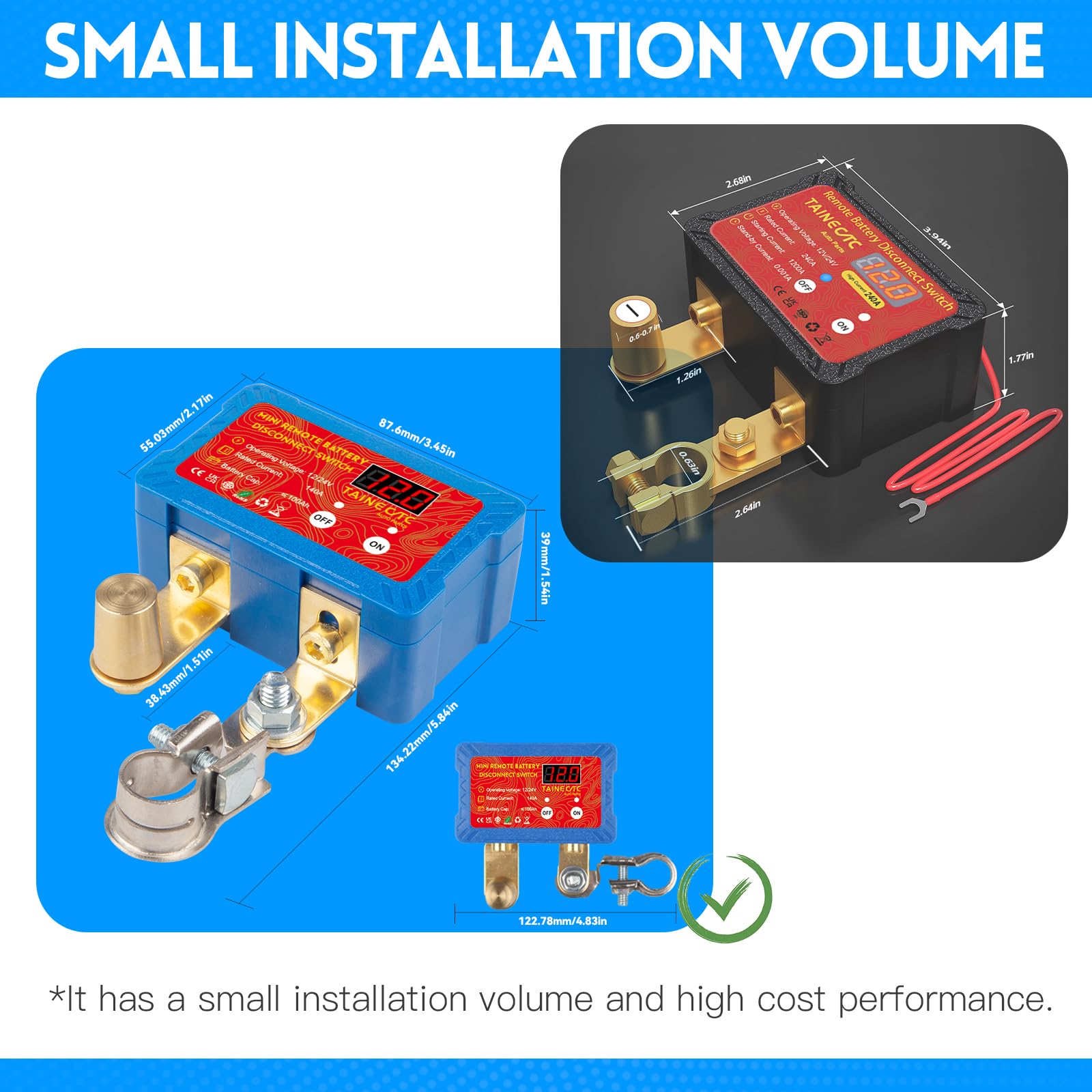

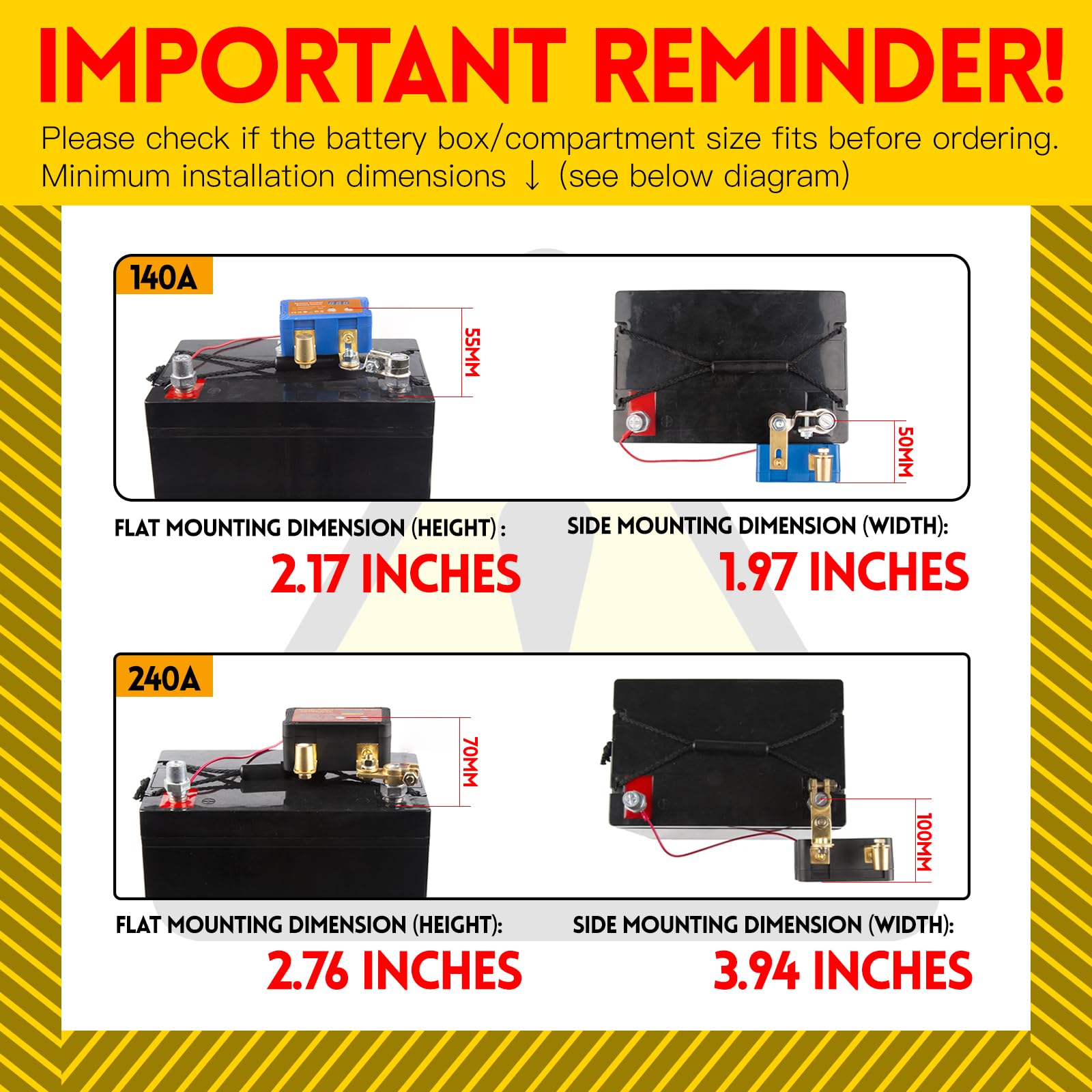

Installation targets the battery negative terminal and accommodates a variety of battery tray layouts. The housing includes transfer shims for side-mounting and slotted tabs for vertical height adjustment, making it adaptable for space-constrained engine bays and different terminal orientations.

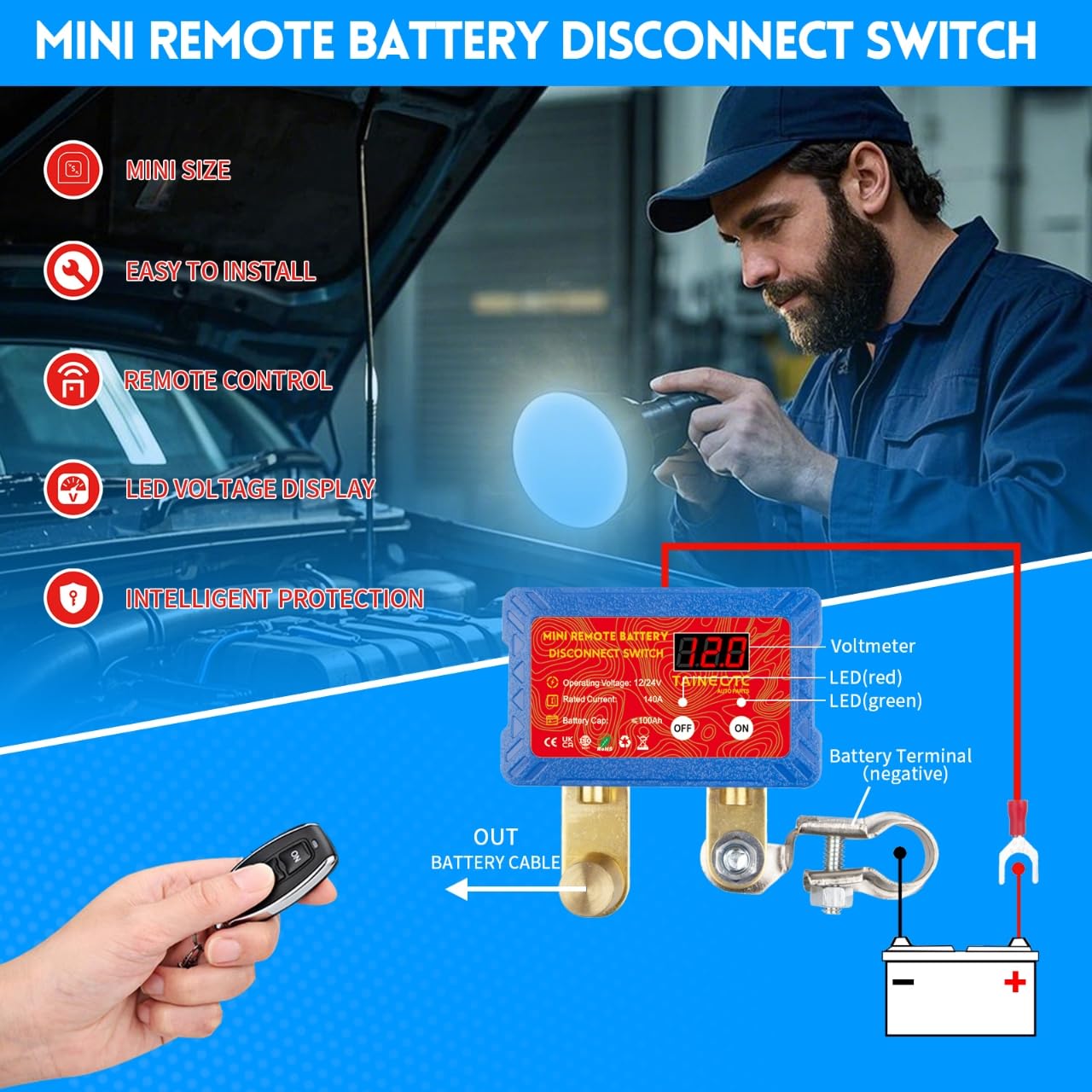

• Connects to the negative terminal — common and safe for most vehicles using lead-acid batteries.

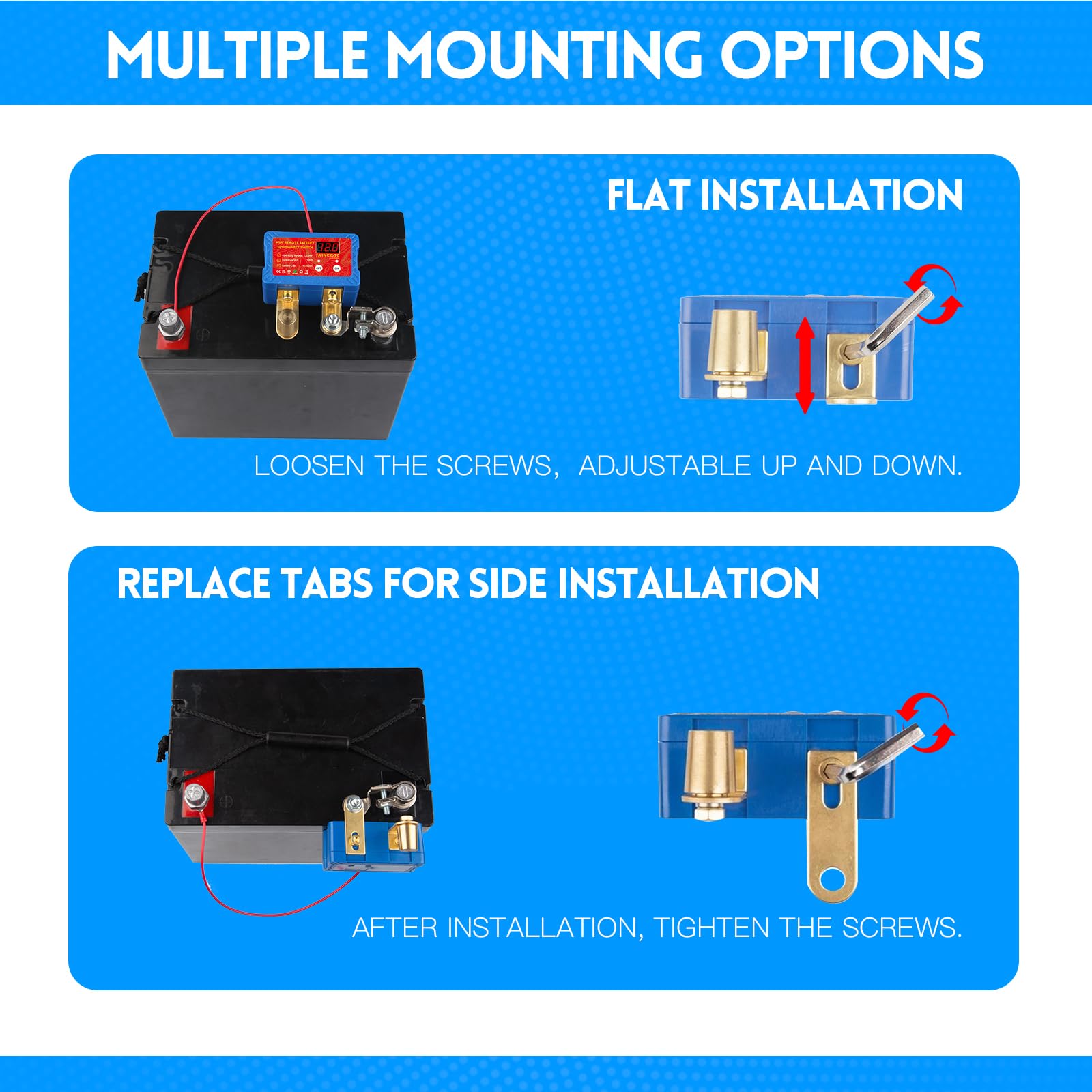

• Transfer shims allow side-mounting when flat mounting isn’t possible.
• Slotted connection tabs enable precise vertical positioning during installation.

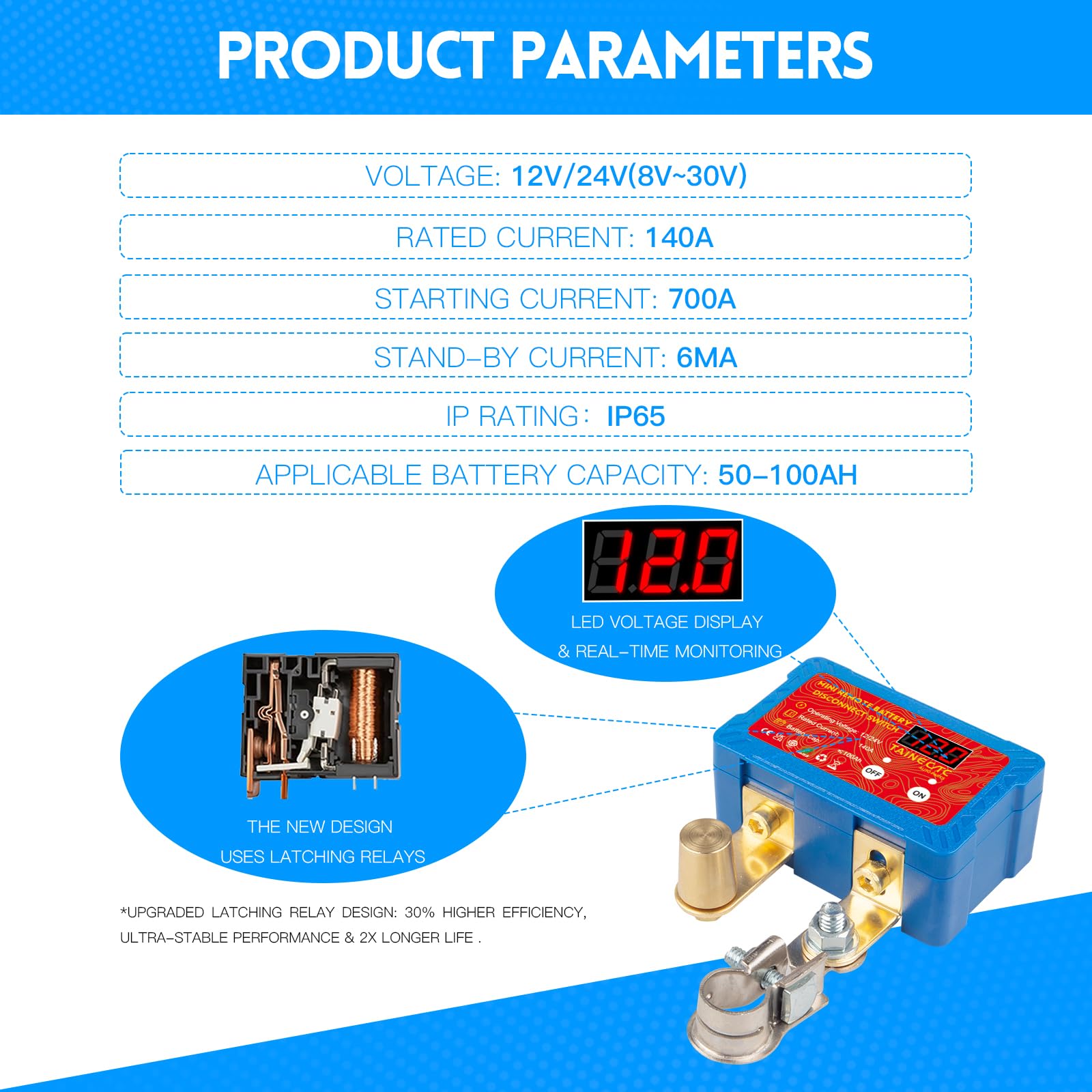

• Rated for 140A continuous, compatible with 50–100Ah lead-acid batteries (8V–30V systems).

Which vehicles and batteries are suitable for this disconnect switch?

TAINECTC built this switch for conventional lead-acid battery systems across many vehicle types, from daily drivers to recreational equipment. It is not compatible with lithium or valve-regulated sealed battery chemistries—confirm your battery type before purchase.

• Suitable: cars, trucks, boats, RVs, trailers, tractors, ATVs, UTVs, forklifts and motorcycles with 8V–30V lead-acid batteries.
• Not suitable: lithium batteries and valve-regulated sealed batteries.
• Works best with 50–100Ah capacity batteries and systems within the rated voltage range.
• 140A rating handles common starter and accessory draw for medium-duty applications.

How does the remote and manual control work in everyday use?

The switch supports remote operation for quick on/off control when storing a vehicle or disconnecting power from a distance, while manual buttons give direct control during maintenance or when charging. LED voltage feedback helps you make informed decisions about battery condition before toggling power.

• Remote killswitch capability lets you cut power without opening the hood.
• Manual on/off buttons override remote during certain charging voltages for safety.

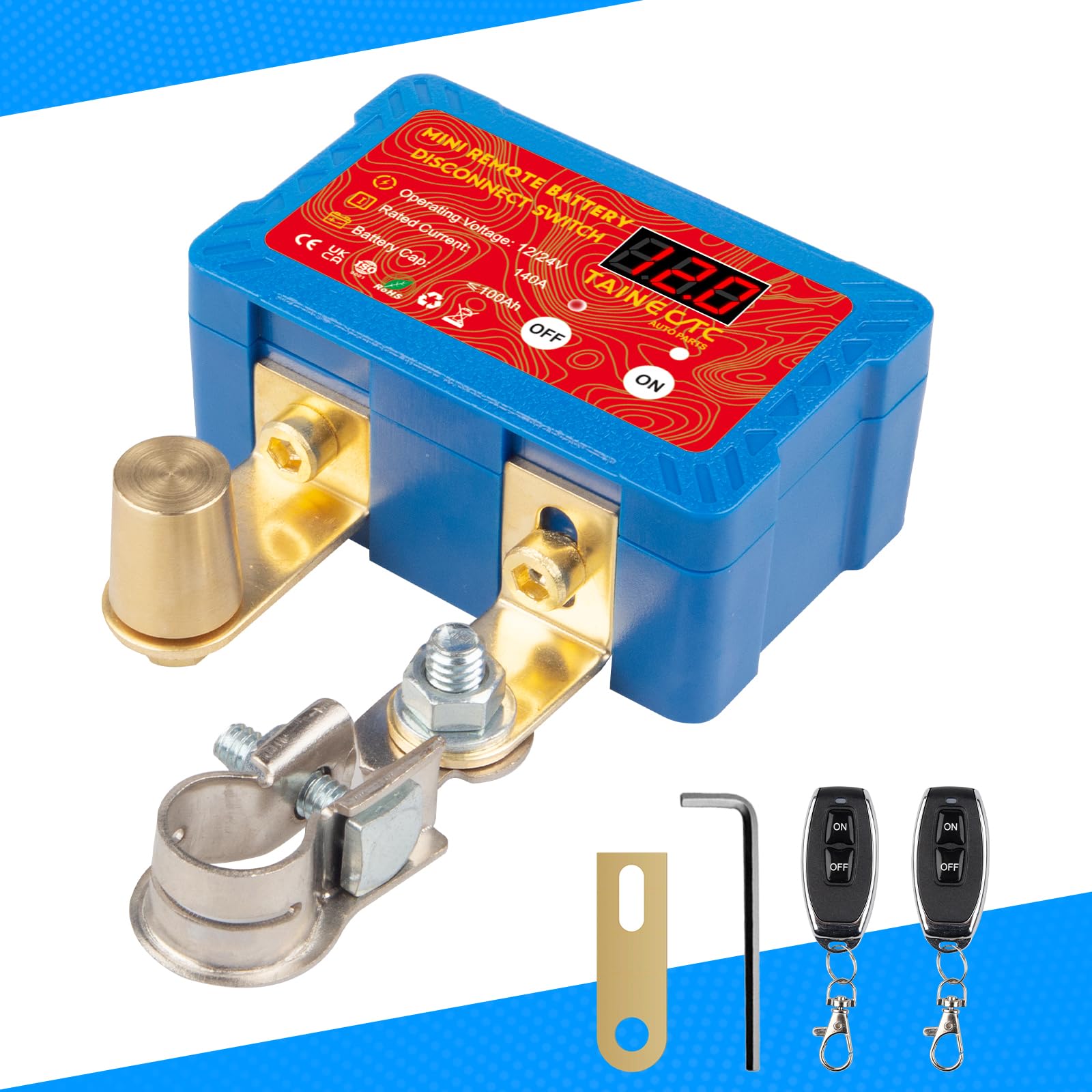

• LED voltage display provides instant battery state information at a glance.
• Latching relay minimizes standby drain so the switch itself won’t deplete the battery.

Who is this for? The TAINECTC Remote Battery Disconnect Switch is aimed at vehicle owners who store equipment, maintain classic cars, manage fleet vehicles, or want a straightforward anti-drain/anti-theft solution for lead-acid battery systems. It’s best for users needing an easy-to-install, visible-voltage, remotely operable disconnect rated for moderate current loads, and who do not use lithium or valve-regulated batteries.
