TCHENPART Valve Spring Compressor Tool for GM LS-Series 4.8–6.2L — On-Engine Air Holding Hose

TCHENPART Upgrade 67605 Valve Spring Compressor is a dedicated engine tool that compresses and removes valve springs and lets you pressurize cylinders via a holding hose for LS-series V8 engines.

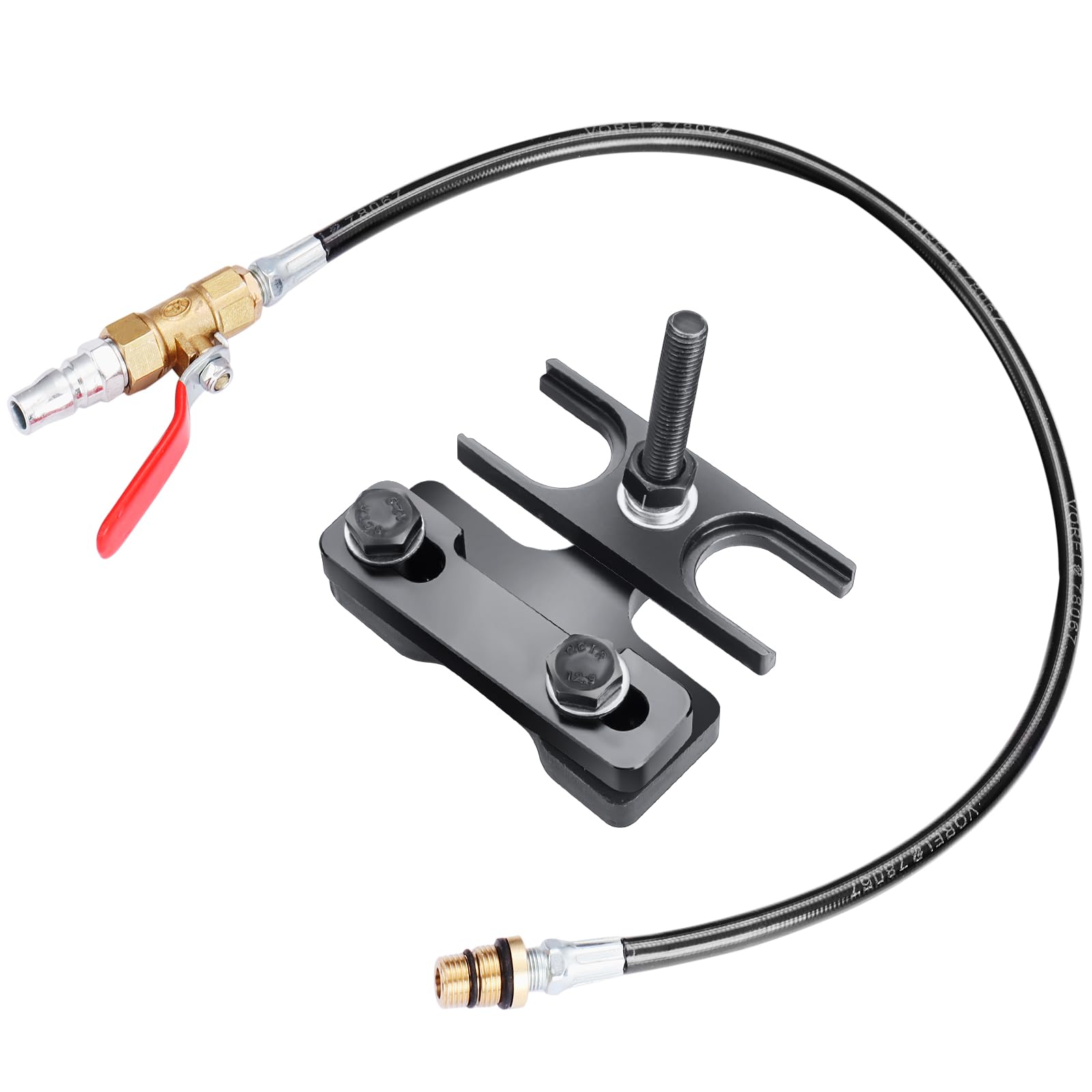

This compact kit is engineered for on-engine valve service on GM LS-family engines (4.8L–6.2L) and combines a mechanical spring compressor with an air valve holding hose so you can keep valves seated while changing springs or seals. The tool threads into the spark plug hole, uses cylinder air pressure to keep the valve closed, and mechanically compresses the retainer — a workflow designed to save time and reduce the need for head removal.

How does this tool make replacing valve springs easier?

The compressor clamps onto the valve spring retainer while the cylinder is pressurized, allowing one person to safely compress and remove retainers without removing the cylinder head. The design keeps the spring under control and reduces the risk of dropped parts.

• Threaded adapter installs through the spark plug hole for on-engine use
• Mechanical lever/compression assembly holds and compresses the spring
• Pressure holds the valve in place so seals and keepers can be accessed
• Saves time versus head removal or multi-person setups

Which engines and vehicles will this kit fit?

This kit is built to work with GM LS-series V8 engines in the 4.8L–6.2L range, covering common variants like LS1, LS2, LS3, LS6 and LSX. It’s compatible with many GM models, but it does not fit LT1 Gen-V engines — verify your engine code before purchasing.

• Compatible: 4.8L, 5.3L, 5.7L, 6.0L, 6.2L LS1/LS2/LS3/LS6/LSX engines
• Common vehicle fits: Silverado, Camaro, Corvette, Tahoe, Suburban, Sierra
• Also fits Pontiac Firebird/Trans Am, G8, GTO, Cadillac CTS-V, GMC trucks
• Not compatible with LT1 Gen-V engines—double-check before use

What is the correct procedure to use the air valve holding hose safely?

Set the cylinder to top dead center (TDC) for the cylinder being serviced, thread the adapter into the spark plug hole, and apply compressed air to keep the valve seated. Maintain steady, appropriate air pressure and always wear eye protection while compressing or removing springs.

• Place piston at TDC for the target cylinder before pressurizing
• Thread adapter into spark plug hole and connect compressed air
• Keep consistent cylinder pressure while compressing the spring
• Use safety glasses and light lubrication on tool threads for smooth operation

What materials, maintenance tips, and warranty details should I know?

The tool is constructed to withstand workshop conditions; light lubrication on threaded parts extends life and improves function. The manufacturer offers unconditional replacement or refund if you are not fully satisfied, plus customer support for usage questions.

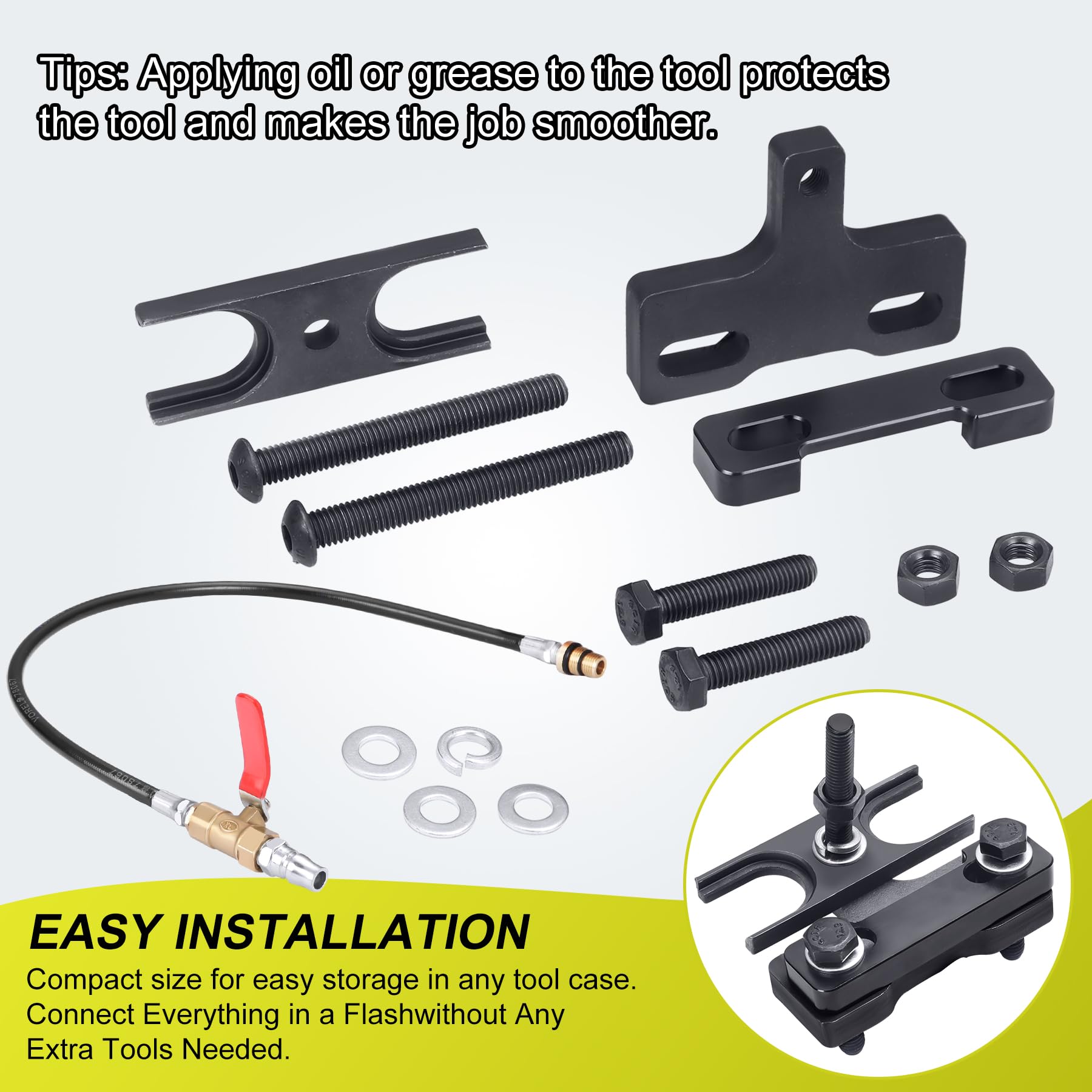

• Apply oil or grease to tool threads to reduce wear and ease installation
• Inspect compressing surfaces and hose connections before each use
• Store clean and dry to prevent corrosion and prolong service life
• Manufacturer support: replacement or refund if not 100% satisfied

Who is this for: This TCHENPART kit is aimed at professional mechanics and experienced DIYers working on GM LS-series V8 engines who want a cost-effective way to change valve springs, retainers, or valve stem seals without removing cylinder heads. If you need reliable on-engine compression and a holding hose to pressurize cylinders during valve service — and your engine is within the compatible LS range — this tool offers a practical, time-saving solution.
