THIKPO Fuel Injector Tester & Cleaner Kit — Universal 8-Adapter Pulse Generator, LCD, Dual-Output (12V)

This compact kit combines an adjustable pulse generator, eight cleaning adapters, and dual-output leads so you can test injectors off-engine or run a controlled cleaning cycle. Designed for gasoline engines with electronic fuel injection (EFI) and gasoline direct injection (GDI), the tool helps you pinpoint problems such as clogged nozzles, leaks, poor spray patterns, or stuck injectors without relying on expensive shop time. It requires a 12V DC supply and a separate cleaning solvent (not included).

How does the THIKPO tester identify injector problems?

The device simulates injector pulses and measures response so you can observe whether an injector opens and closes correctly. Its LCD shows the selected pulse mode while the kit’s output terminals let you run one or two injectors simultaneously for side-by-side comparison.

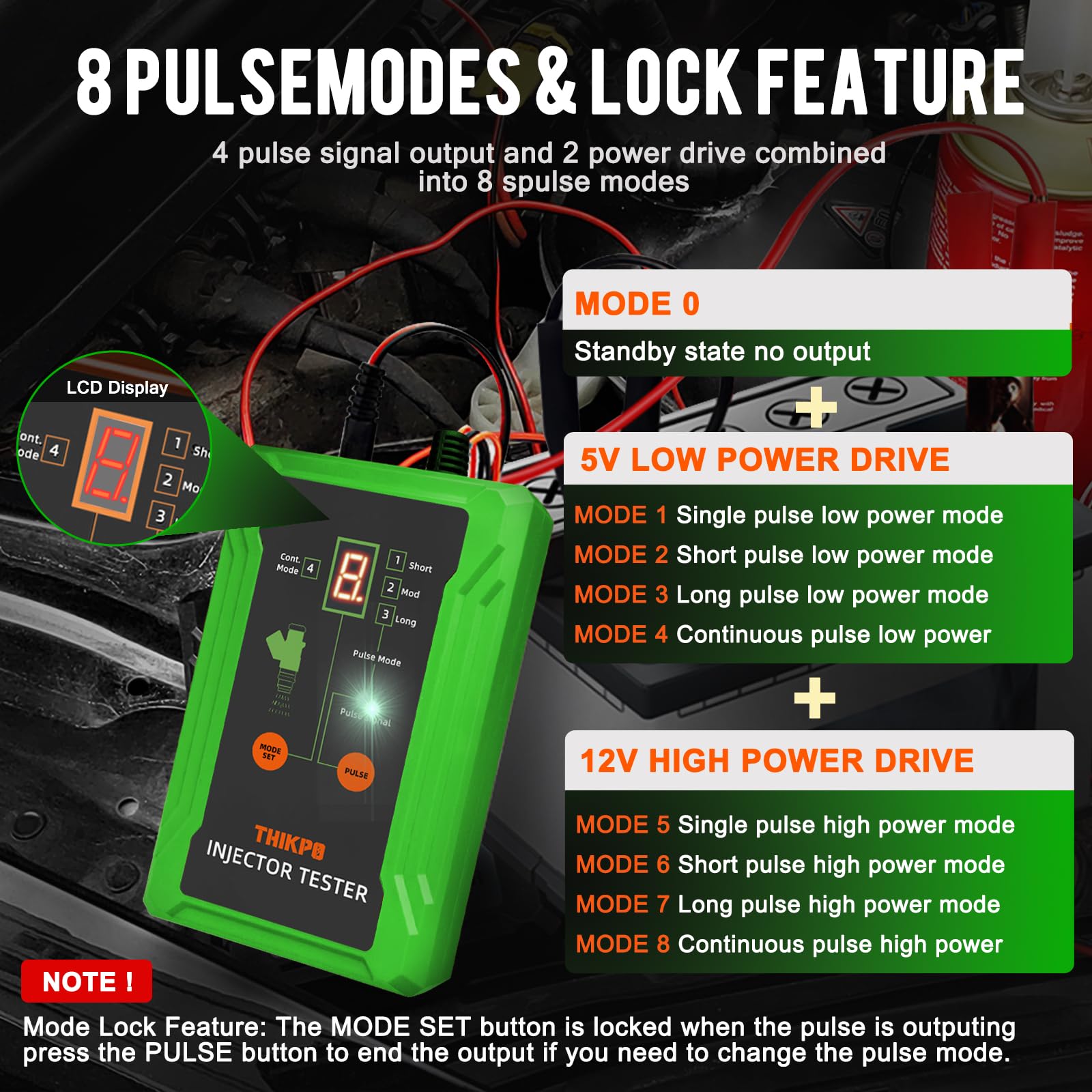

• Eight pulse modes (short/medium/long/continuous) with high/low voltage options (12V/5V).
• Two pairs of output terminals for dual or single injector testing.
• LCD indicator that displays active mode and alerts for output faults.
• Reverse-polarity and short-circuit protection to safeguard the tool.

Can this kit actually clean clogged injectors, and what do I need?

The kit’s adapters create a sealed path to deliver cleaning solvent through the injector while the pulse generator cycles it, loosening deposits and restoring spray patterns in many cases. You must supply a compatible 12V power source and an approved injector cleaner solution; the kit includes a range of adapter sizes to fit most injector shapes.

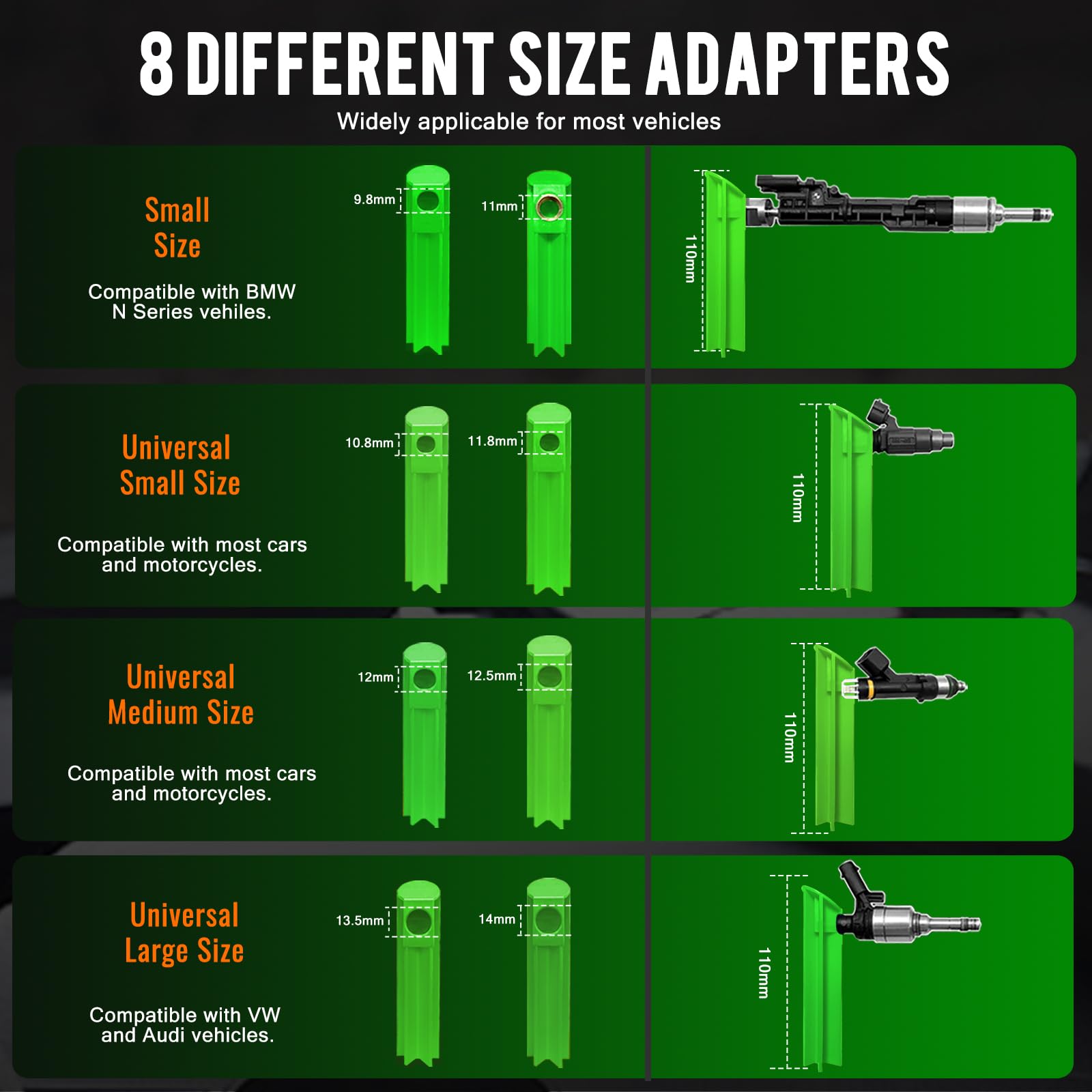

• Eight-size adapters cover most 12V EFI and GDI injectors, plus two specialized BMW/Audi fittings.
• Works with standard fuel pressure testers when operated off-engine for controlled flushing.
• Recommended: use in normal ambient temperatures for best performance.
• Cleaner fluid and 12V DC supply are required but not included in the kit.

What safety and compatibility features should I know about?

The THIKPO kit includes multiple protections and clear power requirements to prevent damage and misuse. It is explicitly for gasoline engines with electronic injectors and is not suitable for diesel mechanical injectors.

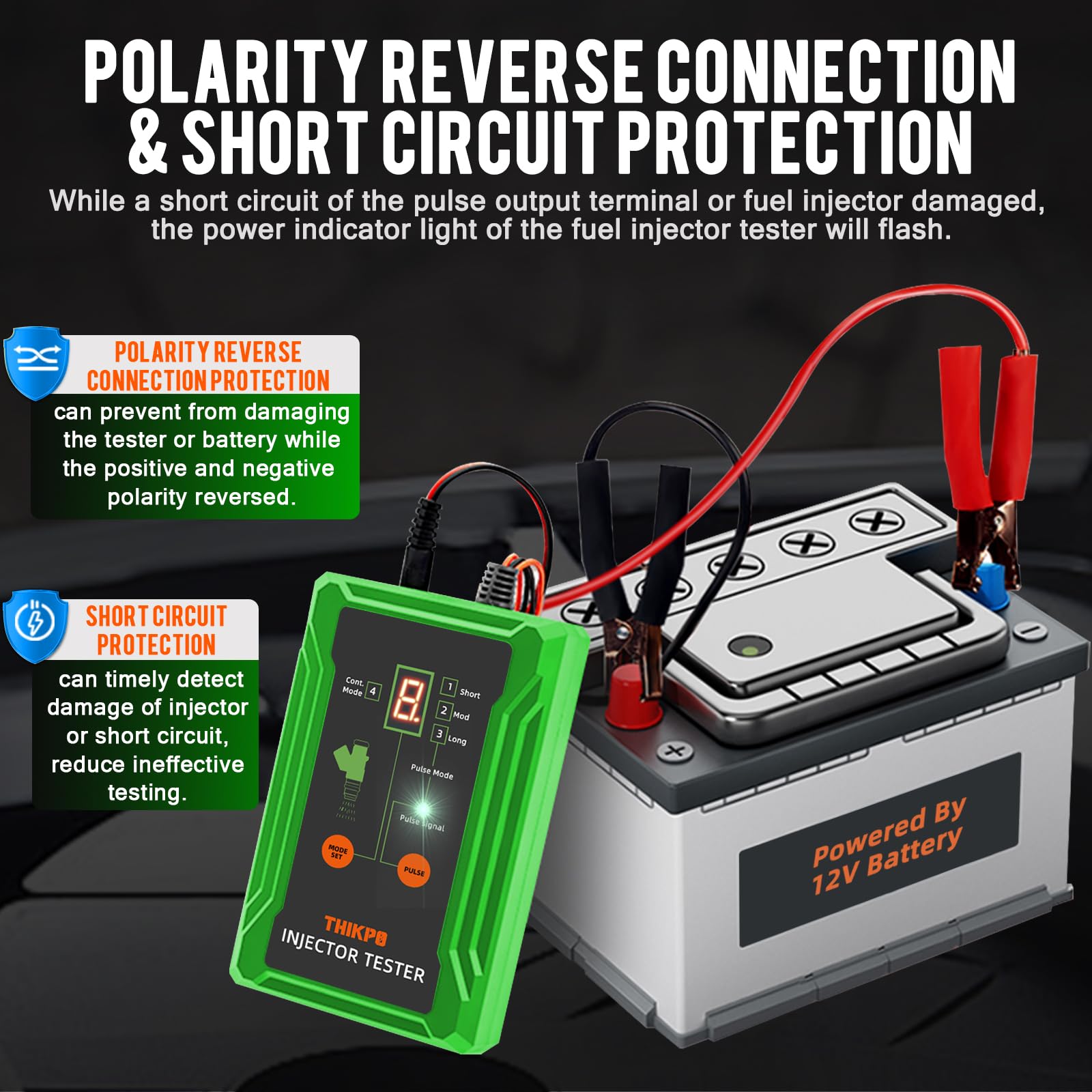

• Polarity reverse connection protection and output short-circuit detection with indicator flash warnings.
• Powered by a 12V vehicle battery or an external 12V DC adapter (≥1.5A recommended).
• Silica-gel insulated leads handle a wide temperature range while keeping flexibility.
• Not intended for diesel engines or mechanical injector systems.

How easy is it to use for DIY mechanics?

The kit is built for at-home technicians who are comfortable working off-engine and following safety steps like disconnecting fuel systems and using appropriate solvents. Its long power cord and multiple adapters simplify set-up, while the variety of pulse modes helps match test conditions to the injector type.

• 40-inch power cord and 20-inch test leads improve reach when working on-bench or in the vehicle.

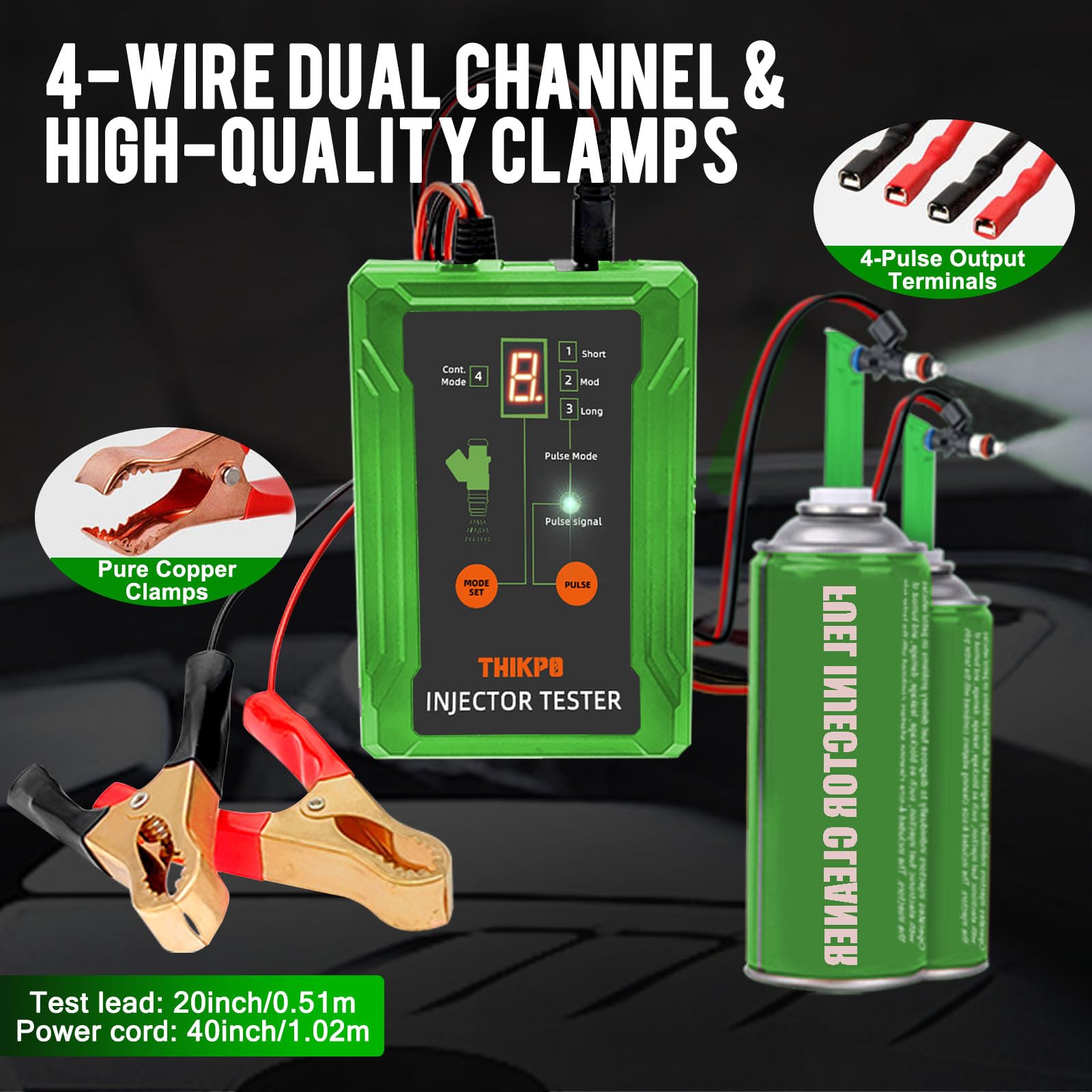

• Two output pairs let you test two injectors at once or isolate a single injector for focused diagnostics.

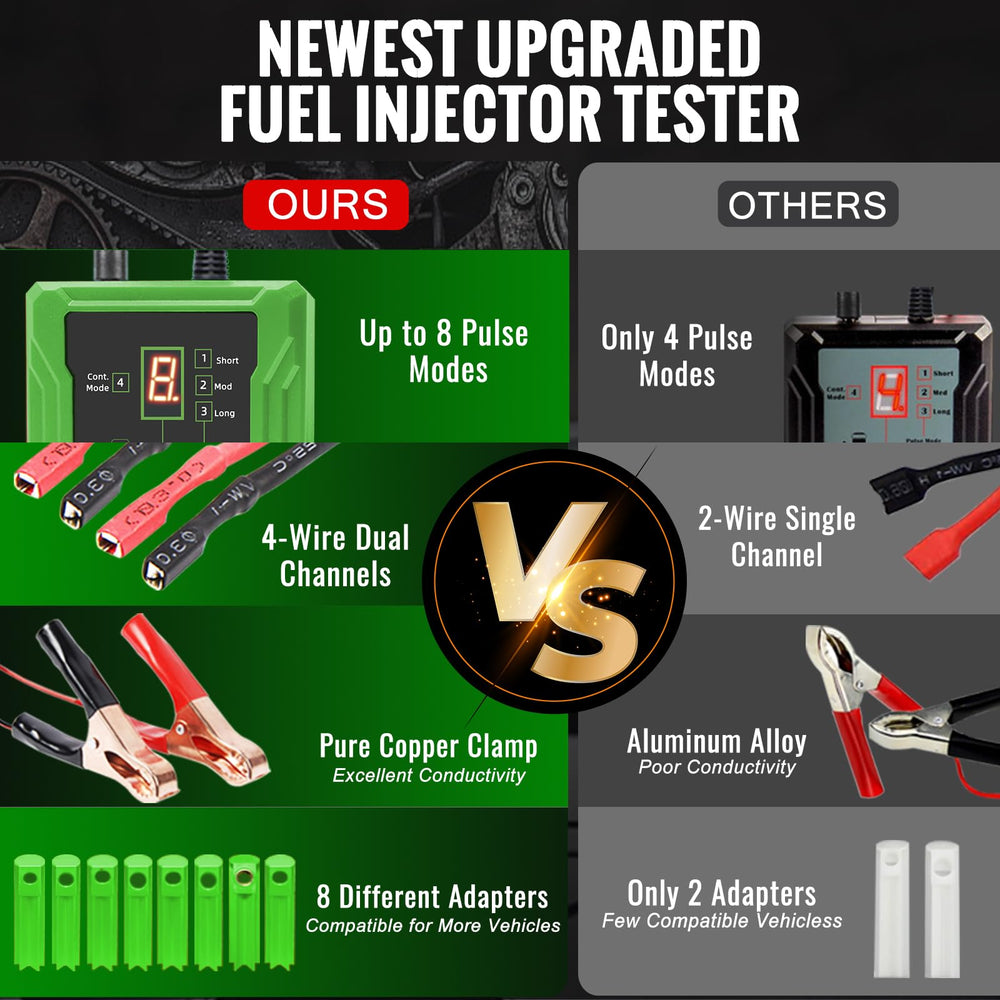

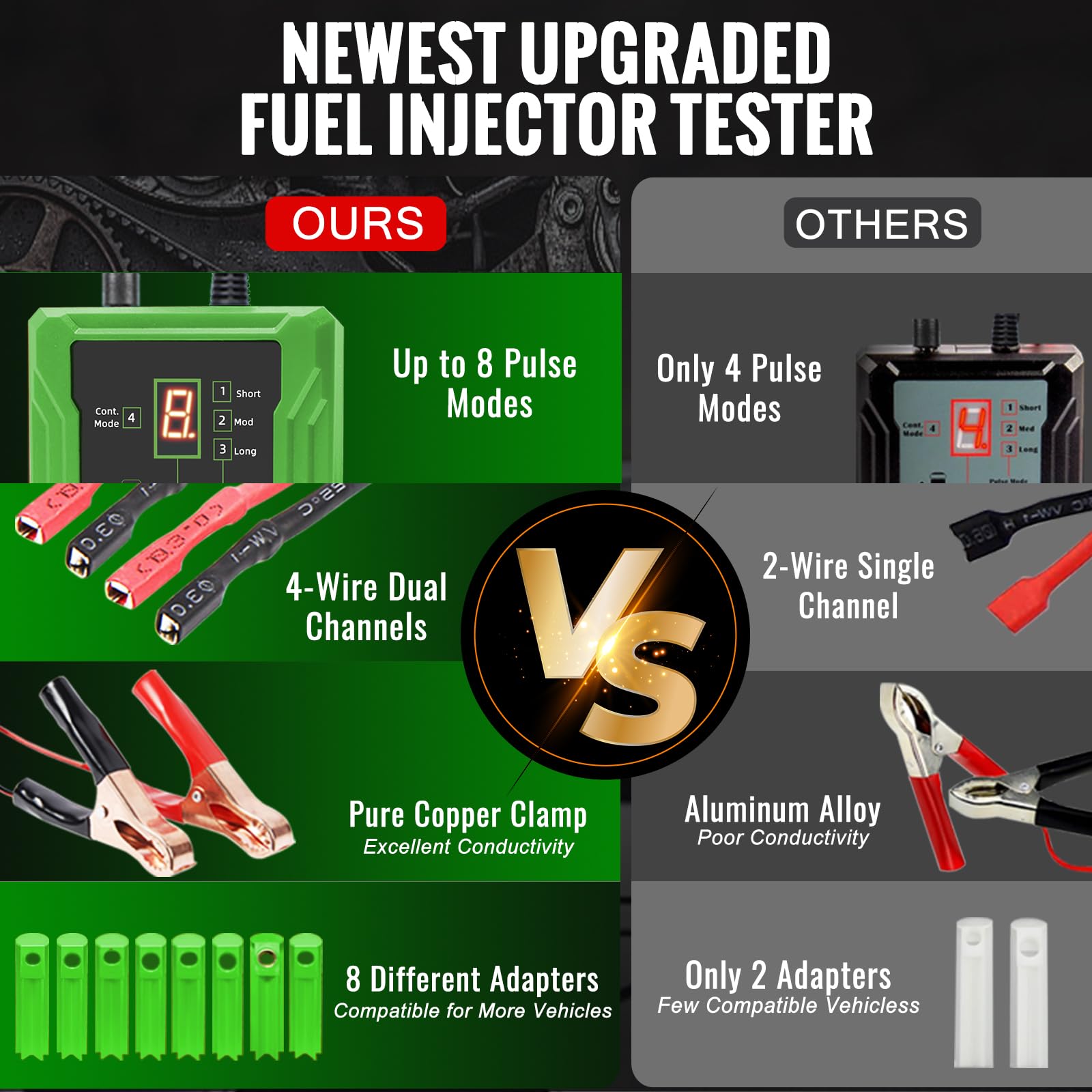

• Clear LCD and labeled controls make mode selection straightforward.
• Online technical support and a 3-year warranty provide backup for DIY users.

Who is this for: This THIKPO kit is aimed at DIY mechanics, small repair shops, and enthusiasts who service gasoline EFI or GDI engines and want an affordable, portable way to diagnose and clean injectors. It’s useful for troubleshooting poor idling, uneven fueling, or suspected injector deposits, provided users follow safety precautions and supply the required cleaning fluid and 12V power source.
