THUNDERMINGO Rochester Quadrajet‑style 4‑Barrel Carburetor for Chevy/GMC V8s — Divorced Choke, ~750 CFM

THUNDERMINGO's 4-barrel replacement carburetor is a direct-fit Rochester Quadrajet-style unit designed to restore reliable fuel delivery and improved throttle response for 1966–1979 small- and big-block Chevy and GMC V8 engines.

This rebuilt-style carburetor replicates the spread-bore Quadrajet geometry in a vacuum-secondary, divorced choke configuration that fits many Chevy 327–454 c.i. and GMC truck applications from the late 1960s through the 1970s. It ships pre-jetted (main 185, idle 120) and targets a performance range typically between 600–750 CFM, with most units set near 750 CFM. The unit is intended for automotive use only and may require tuning or small adjustments for optimal idling and drivability.

Will this carburetor physically fit my Chevy or GMC engine?

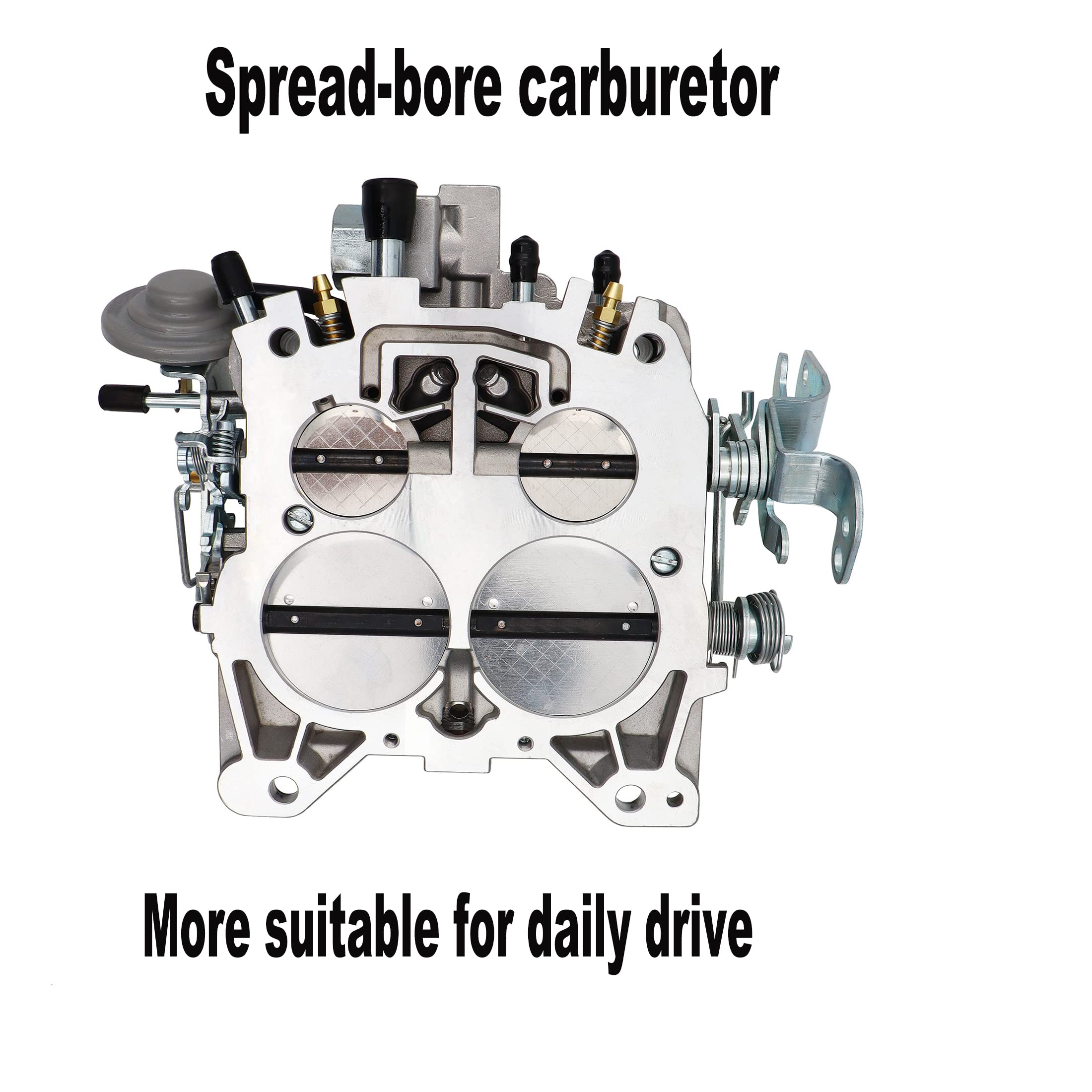

Compatibility centers on spread-bore intake flanges and the original Rochester Quadrajet 1901R footprint. This model is meant for vehicles using a vacuum-secondary, divorced choke Quadrajet from the 1966–1973 and some 1975–1979 Corvette applications.

• Designed to replace Rochester Quadrajet 1901R / 4MV pattern carburetors.
• Fits many 327, 350, 427, 454 small- and big-block Chevy V8s and 1968–1973 Chevy/GMC trucks.
• Check choke type (divorced/mechanical) and flange pattern before ordering.
• Not recommended for marine installations.

How does this carburetor affect performance and drivability?

This THUNDERMINGO unit is tuned to improve throttle response and broaden usable power across the RPM band compared with worn stock carbs. Because it’s built to a universal performance calibration, some fine tuning is often necessary to match a specific engine displacement and cam profile.

• Pre-installed main jet: 185; idle jet: 120; venturi: 28mm.
• Nominal CFM range 600–750, most set to ~750 CFM for stronger mid-range flow.
• Includes a small copper pin and tool to adjust idle air channels if needed.
• Expect improved throttle response but plan on tuning for best idle and cruise behavior.

What installation and tuning steps should I prepare for?

Installation requires matching the carburetor flange, linkage, and fuel connections to your intake and chassis. The carb arrives without detailed step-by-step instructions, so plan to follow installation videos or get professional help if you’re not experienced with carburetion.

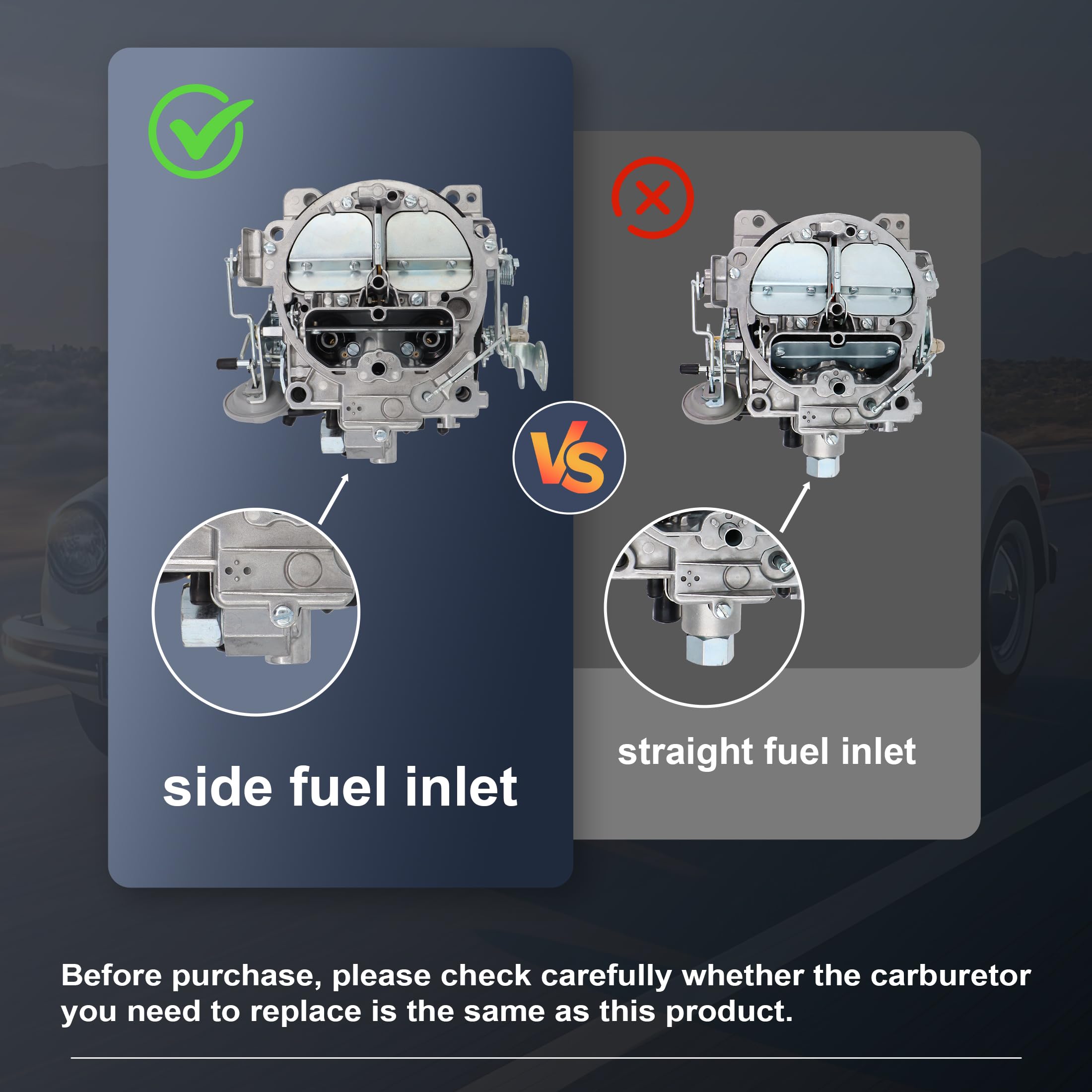

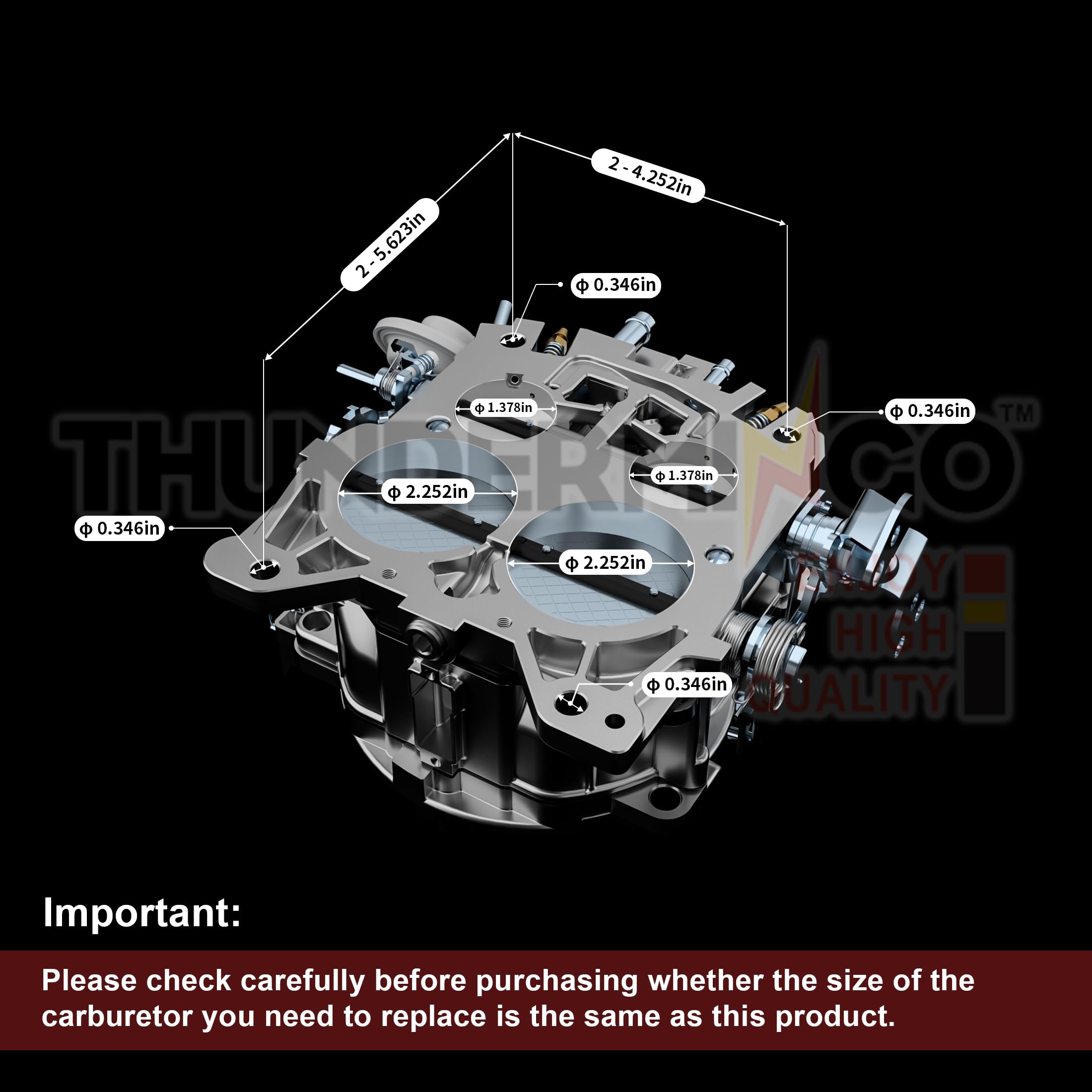

• Verify inlet, throttle linkage, and vacuum port locations align with your manifold.

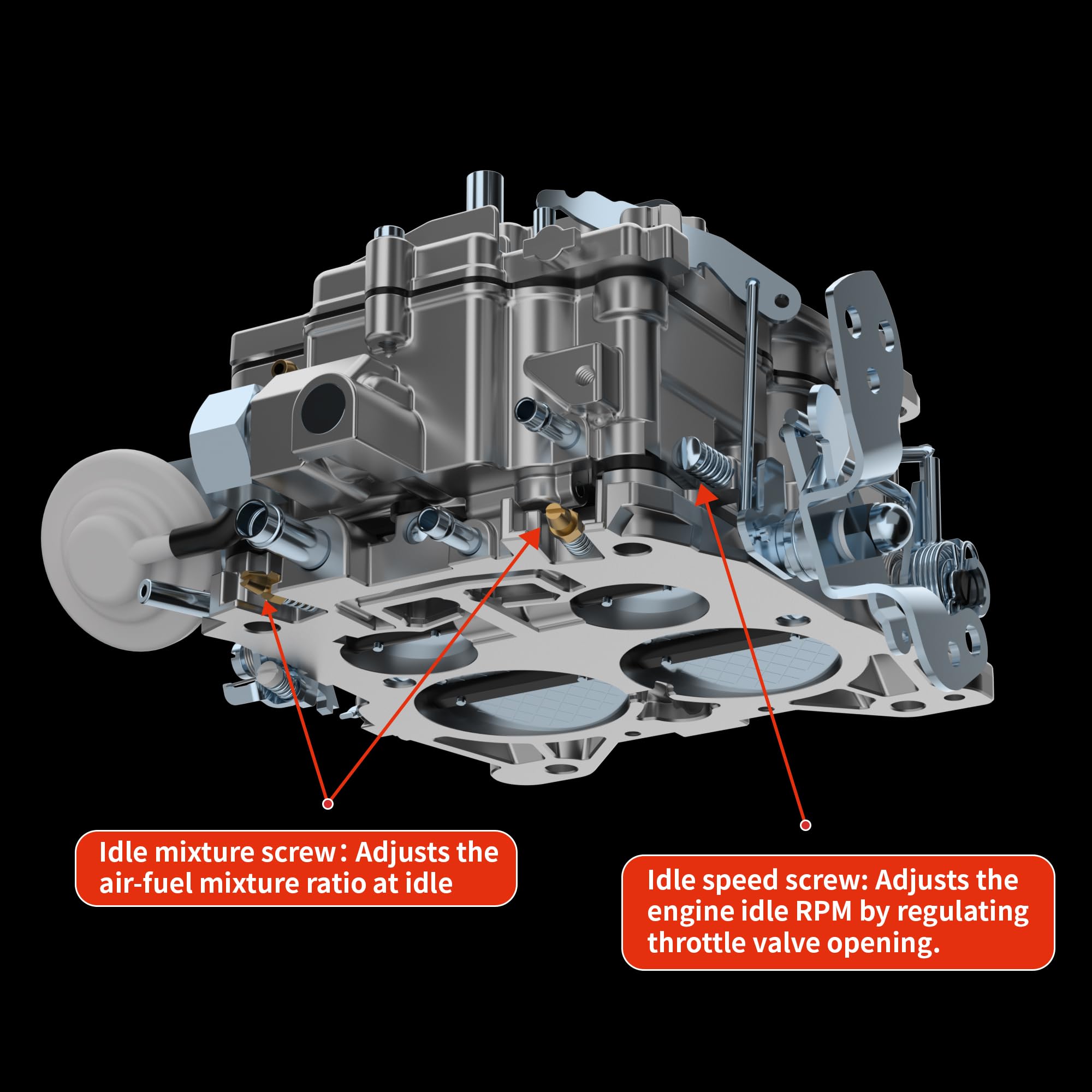

• Use the included tool and pin to block or adjust idle air passages if idle quality needs correction.
• Tune fuel mixture and float levels after initial installation for best drivability.
• If uncertain, have a qualified mechanic handle mounting and jetting adjustments.

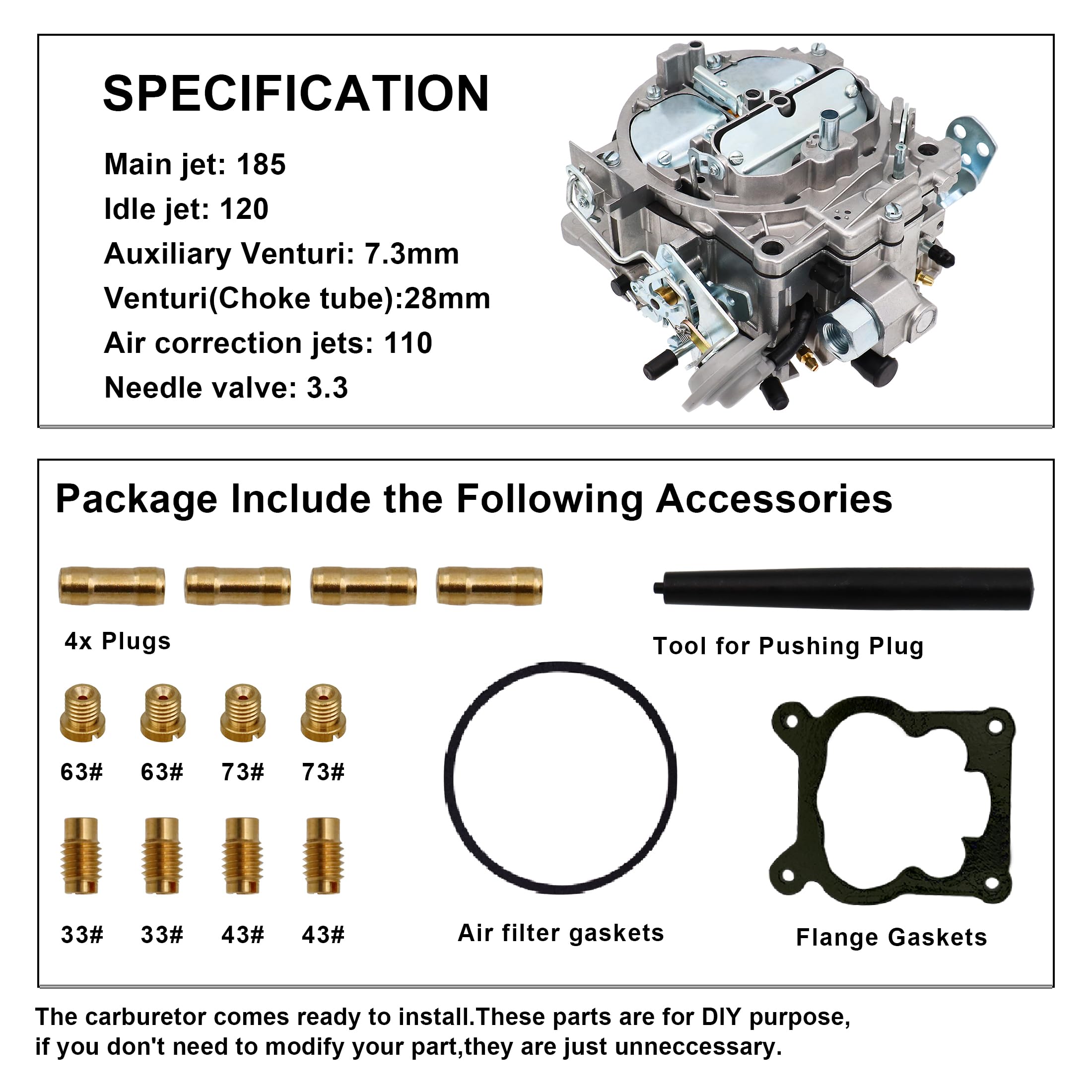

What are the key specifications I should know before buying?

The carburetor comes pre-jetted and assembled for typical performance applications but keep these numbers in mind when confirming fitment and expected fuel flow.

• Typical flow rating: 600–750 CFM (most units set to 750 CFM).
• Main jet: 185; idle jet: 120; air correction jets: 110.
• Auxiliary venturi: 7.3mm; choke tube/venturi diameter: 28mm; needle valve size: 3.3.
• Vacuum secondary, divorced choke (mechanical linkage version compatibility varies).

Who is this for? Enthusiasts restoring or upgrading late-1960s to late-1970s Chevy and GMC V8s who need a Rochester Quadrajet-style replacement with stronger mid-range flow and improved throttle response. It’s ideal for daily drivers and period-correct restomods where a Quadrajet footprint is required and the owner or mechanic can perform carburetor tuning. If you need a marine carburetor or a unit guaranteed to be plug-and-play without any adjustment, consider a specialist alternative or professional installation service.
