TONZACK Automotive Compression Tester Kit with Spark Plug Tester, M10–M18 Adapters & Dual-Scale Gauge

TONZACK Automotive Compression Tester Kit is a complete engine compression and ignition diagnostic set that measures cylinder pressure (0–20 bar / 0–300 psi) and checks spark presence using four spark plug thread adapters for M10, M12, M14 and M18.

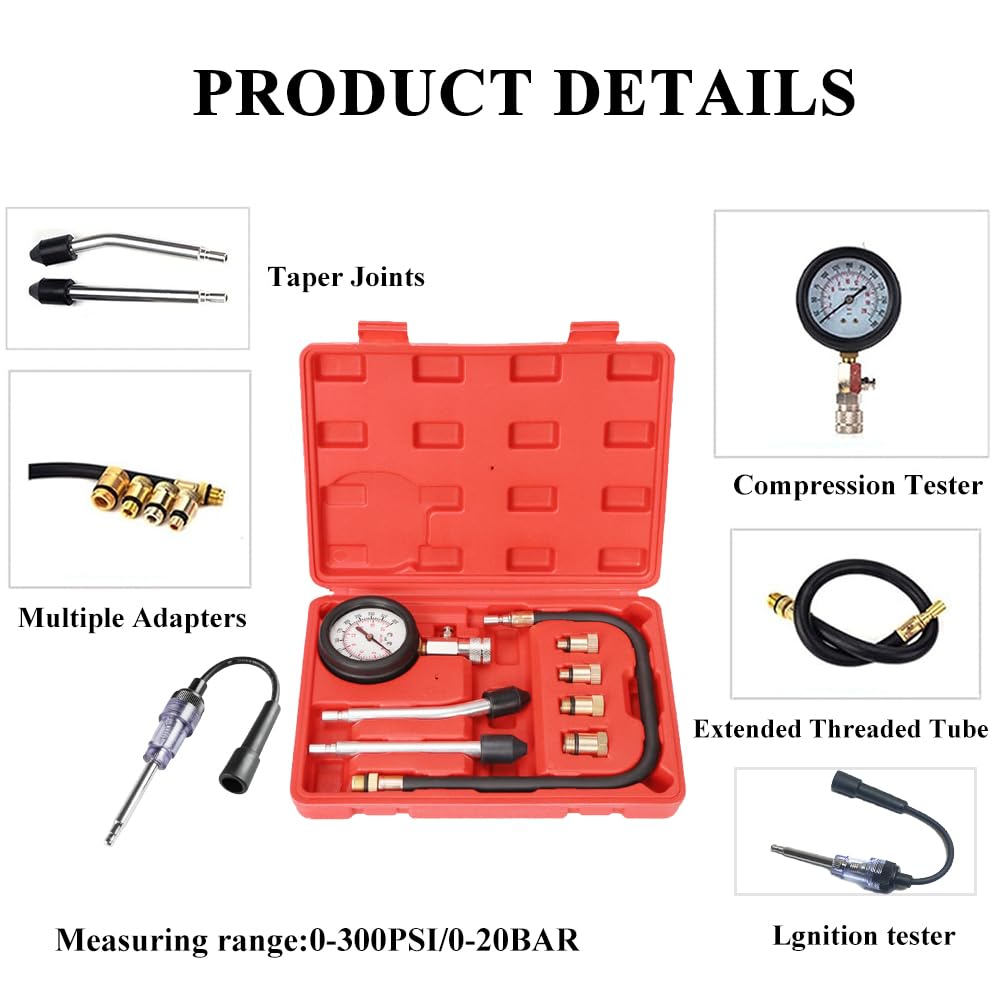

This kit combines a dual-scale pressure gauge, flexible hose, multiple threaded adapters and an inline spark tester to let you diagnose cylinder sealing, piston ring wear and ignition faults quickly. Built with electroplated forged adapters, a rubber protective sleeve and a sensitive outlet valve, the set is designed for regular garage work, DIY maintenance and professional inspections across a wide range of petrol engines.

How do I use the TONZACK kit to test cylinder compression?

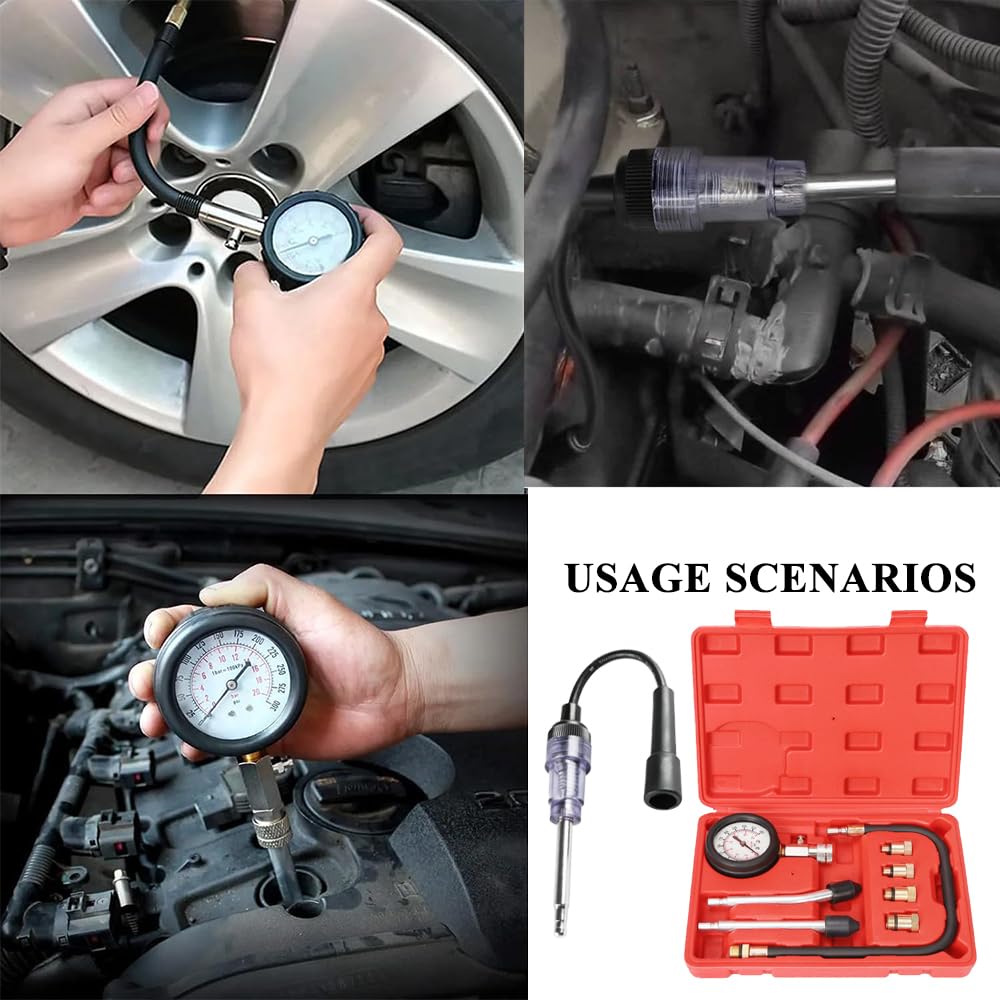

Testing cylinder compression is straightforward: remove the spark plug, attach the correct threaded adapter, screw it into the spark plug hole, connect the hose and crank the engine while watching the gauge. Readings show peak compression per cylinder so you can compare values and spot abnormal drops.

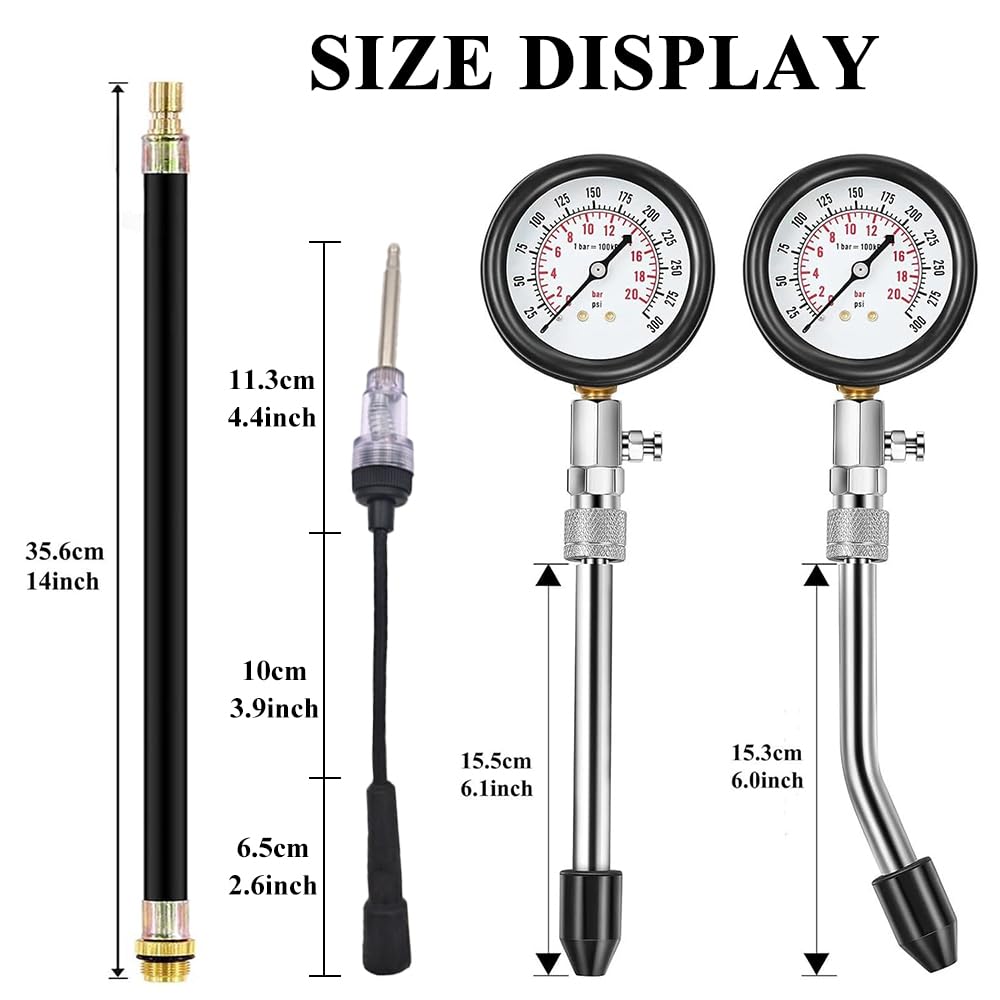

• Choose the matching M10, M12, M14 or M18 adapter for your spark plug thread.
• Screw adapter into cylinder, attach hose to gauge, ensure tight seal.
• Disable ignition and fuel per vehicle manual, then crank engine several revolutions.
• Record peak gauge value (0–20 bar / 0–300 psi) and compare between cylinders.

What does the inline spark plug tester check and when should I use it?

The included inline spark tester verifies whether ignition current reaches the spark plug under crank conditions, helping distinguish spark-related problems from compression or fuel issues. Use it when an engine misfires, won’t start, or when you suspect weak or intermittent spark.

• Insert the inline tester between ignition lead and spark plug to observe spark activity safely.
• Crank the engine while watching for consistent spark flashes in the tester.
• Helps pinpoint faulty leads, coils, poor connections or open circuits in the ignition path.
• Works on any petrol engine that uses conventional spark plugs.

What accuracy and build quality can I expect from this compression tester?

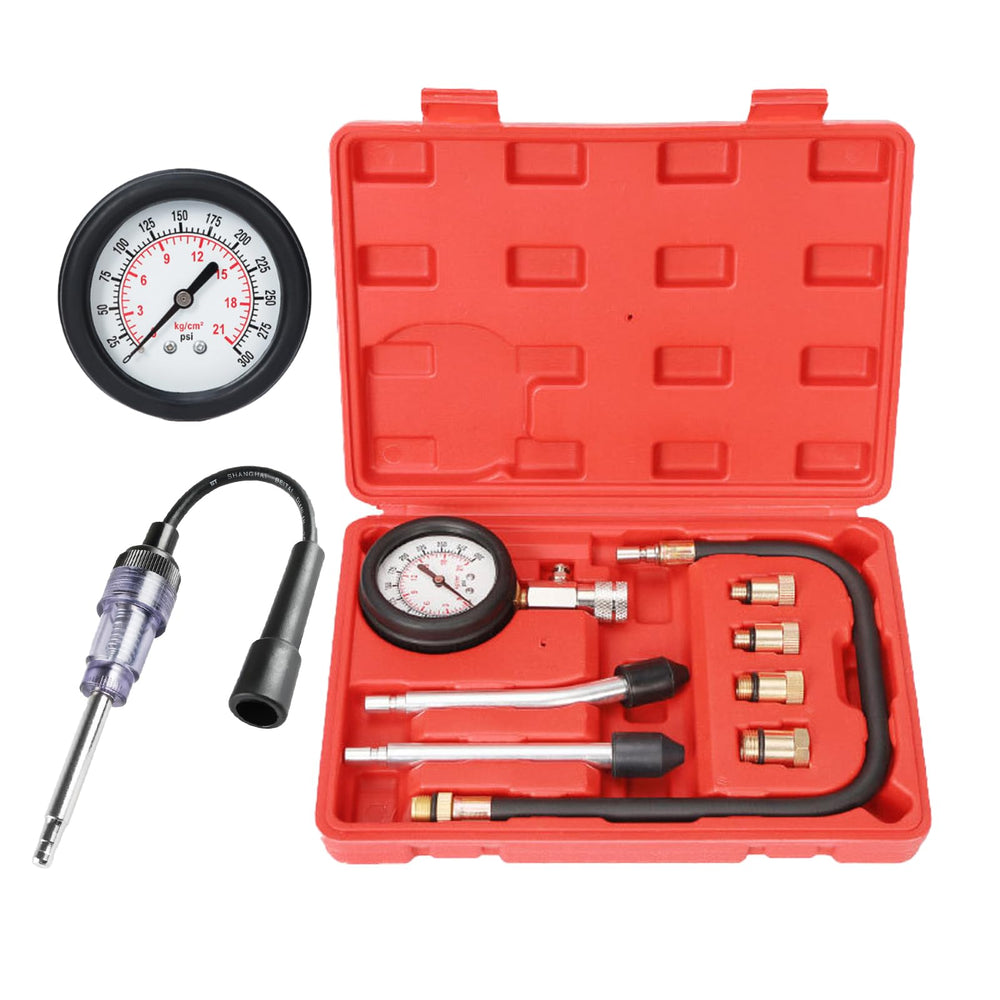

The TONZACK gauge features a double-scale dial with clear markings for bar and psi, a rubber protective sleeve to reduce wear, and a sensitive outlet valve for controlled bleeding of pressure. Adapters are electroplated and forged with heat treatment to resist deformation and corrosion during repeated use.

• Dual-scale gauge: 0–20 bar and 0–300 psi for flexible unit preference.
• Electroplated copper-forged adapters for durability and consistent threads.
• Rubber hose with tapered joints to ensure airtight connections.
• Protective sleeve and self-locking fittings to extend service life.

Which vehicles and situations is this kit compatible with?

The kit’s range of adapters and standard pressure range make it suitable for most petrol cars and light-duty engines, from European sedans to Japanese compacts. It’s intended for diagnosing piston ring wear, valve leaks, head gasket issues and ignition faults in engines that use removable spark plugs.

• Adapter sizes cover common spark plug threads used on BMW, Mercedes, Ford, VW, Toyota and many others.
• Useful for routine inspections, pre-purchase checks and troubleshooting no-start or misfire conditions.
• Not designed for compression testing diesel engines that require different adapters and higher pressures.
• Portable PE toolbox included for organized storage and workshop use.

Who is this for? The TONZACK Compression Tester Kit is aimed at vehicle owners who prefer hands-on diagnostics, DIY mechanics, and professional technicians who need a compact, durable toolset for petrol engine troubleshooting. If you routinely inspect cylinder health, diagnose misfires, perform pre-purchase engine checks or maintain a small workshop, this kit gives clear, repeatable compression readings plus a simple spark verification tool to help isolate ignition versus mechanical faults.
