Tool Aid In-Line Spark Checker Kit 23970 — Recessed Plug Tester, Safety Orange, Visual Spark Diagnostic

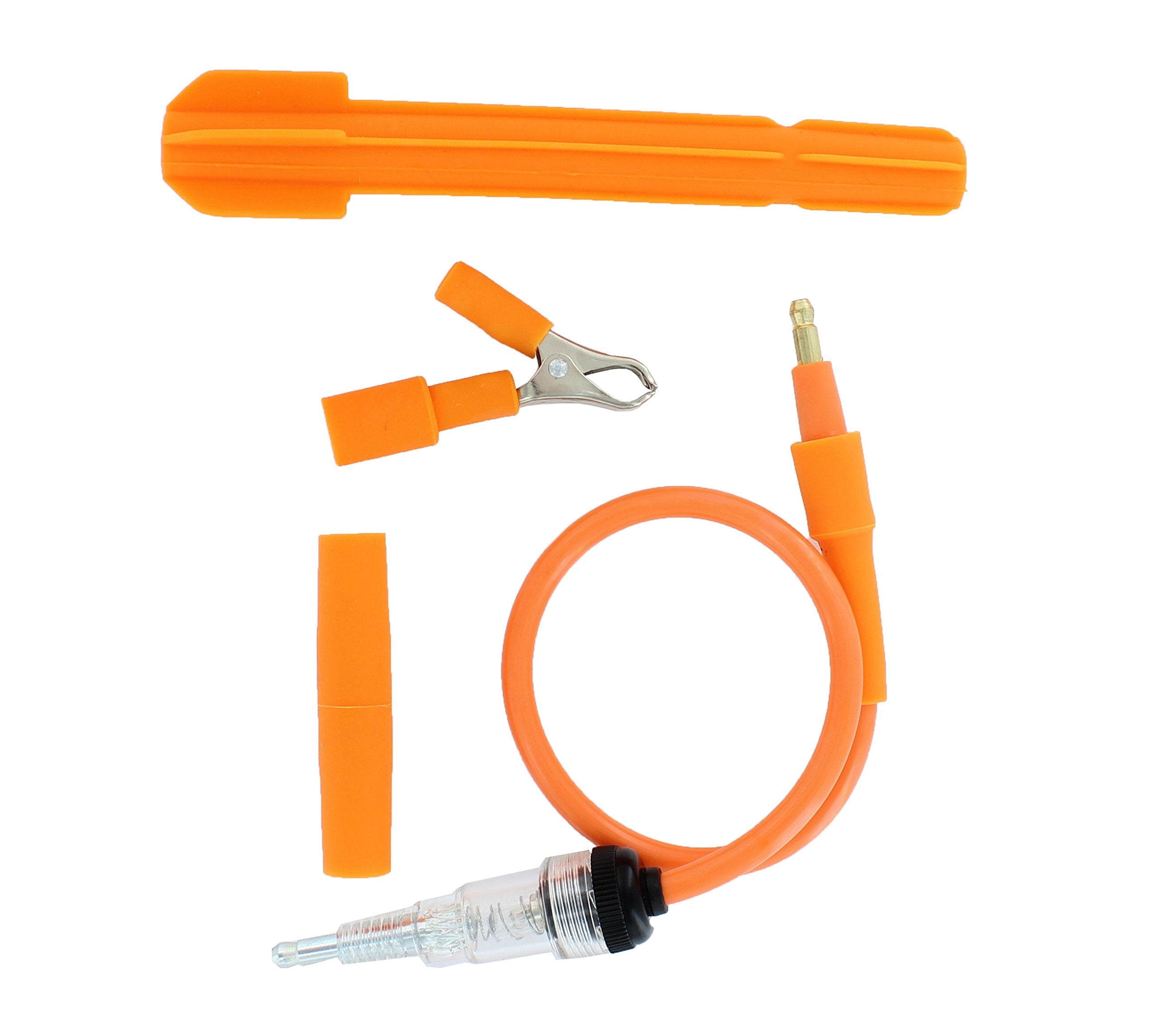

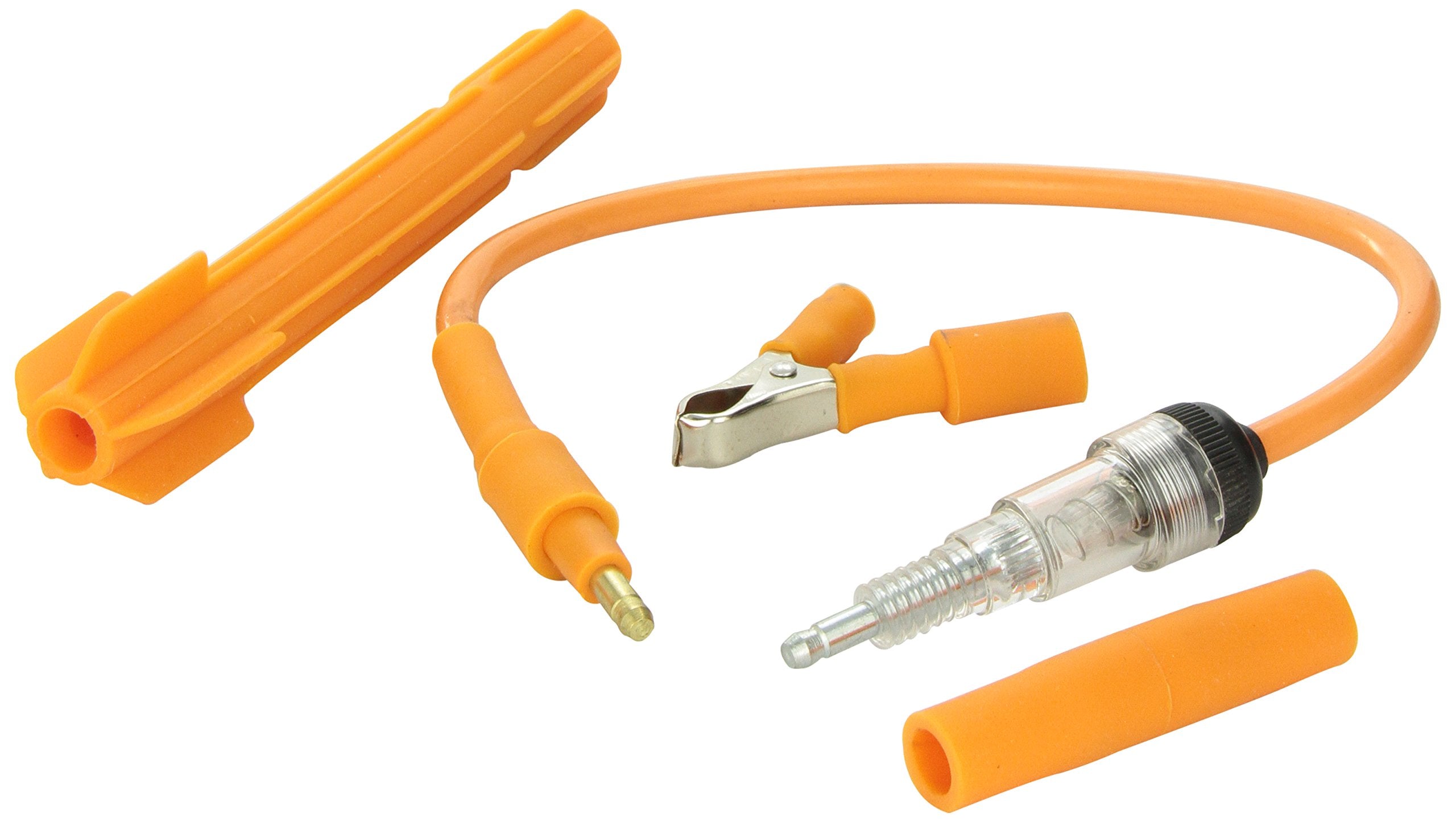

The Tool Aid 23970 in-line spark checker kit for recessed plugs is a handheld diagnostic tool that safely shows ignition spark behavior for modern recessed spark plugs and both conventional and coil-on-plug systems.

This compact kit gives technicians and DIYers a visual way to verify spark and spot ignition vs. fuel-delivery issues on cars, SUVs and trucks. Unlike a simple OBD-II code reader, the in-line spark checker creates a visible, duplicated spark signal that helps isolate problems at the plug, wire, coil or fuel system without disassembling the engine. The Tool Aid unit is color-coded in bright safety orange so it’s easy to find in a busy shop.

How will this tool help me pinpoint an ignition problem?

The Tool Aid 23970 converts the ignition output into a visible flash so you can compare cylinder performance and detect intermittent faults. By observing the frequency and brightness of the flash, you can tell if a cylinder is misfiring from an ignition fault or from fuel delivery issues.

• Visual spark duplication for each cylinder without removing spark plugs
• Flashing indicator reveals weak or absent spark events
• Frequency and intensity give clues between ignition vs. fuel faults
• Works with recessed spark plugs and modern coil-on-plug layouts

Can I use this on newer vehicles with recessed plugs and coil-on-plug systems?

Yes. The kit was designed specifically to work with recessed spark plug designs and both traditional wire-and-plug and coil-on-plug ignition systems, letting you troubleshoot a broad range of domestic and imported models.

• Compatible with recessed spark plugs commonly found on modern engines
• Safe for conventional ignition wires and coil-on-plug arrangements
• Helpful across many car, SUV and light-truck applications
• No ECU reprogramming or complex adapters required

What information will this show that my OBD-II reader doesn’t?

OBD-II tools report stored and pending fault codes, but they don’t show real-time spark behavior at the plug. The in-line spark checker provides a live, visual representation of ignition events, making it easier to differentiate electrical or mechanical misfires from fuel delivery problems.

• Displays live spark activity per cylinder for immediate insight
• Helps localize problems to plug, wire, coil, injector or elsewhere
• Reveals intermittent or weak sparks that may not trigger a fault code
• Complements code scanners for faster, more accurate troubleshooting

Is the Tool Aid kit safe and easy to use for a backyard mechanic?

The kit is built for straightforward, hands-on diagnosis while keeping visibility and safety in mind. Its bright orange housing improves visibility around the engine bay and the inline design lets you test without altering ignition components permanently.

• Simple inline connection — no permanent modifications required
• High-visibility color reduces risk of leaving tools in the engine bay
• Designed for rapid, repeatable checks during troubleshooting

Who is this for? The Tool Aid 23970 in-line spark checker is ideal for professional mechanics, independent service shops, and car-savvy DIYers who need a reliable, portable way to see ignition performance on modern recessed-plug engines. Use it when you want to confirm spark visually, differentiate ignition faults from fuel or mechanical problems, or speed up cylinder-by-cylinder diagnosis without expensive or invasive procedures.
