Torque R950068A Oil Coalescing Cartridge for WABCO SS1200/SSTWIN/HP — Spin‑On Replacement, Oil & Particulate Removal

The Torque R950068A oil coalescing cartridge is a direct-fit replacement for WABCO SS1200, SSTWIN and HP air dryer systems that captures oil, water and particulates to protect downstream brake components.

This spin-on cartridge from Torque is engineered to restore filtration and moisture control in commercial vehicle air systems. It is the coalescing version designed for System Saver 1200 and TWIN air dryers, compatible with a wide range of OEM part numbers (including Meritor Wabco, Volvo, Baldwin and Bendix equivalents). Lightweight and service-friendly, the cartridge helps maintain dryer efficiency and extends the life of valves and actuators by removing solid, liquid and vapor contaminants before they reach sensitive brake components.

How does the Torque R950068A fit my existing air dryer?

The cartridge is manufactured to match the dimensions and sealing characteristics of common WABCO SS1200, SSTWIN and HP replacement filters. It installs as a spin-on element with the same mounting and sealing pattern as the referenced OEM part numbers, so no modifications are required for standard setups. Always compare the part numbers and physical dimensions before installation.

• Direct replacement for Meritor Wabco R950068 and R950068A variants
• Cross-references: Volvo 8235R950068, 85110799, Baldwin BA5592, Bendix 5008414PG
• Designed for SS1200, SSTWIN and HP family spin-on dryers

What contaminants does this coalescing cartridge remove?

Torque’s coalescing media is built to capture oil aerosols, liquid droplets and solid particulates that pass through compressor and dryer systems. The element agglomerates fine oil particles into larger droplets so they can be drained or trapped, reducing contamination of downstream valves and brake components. It’s rated to remove a high percentage of oil and particulate matter to improve air quality in the system.

• Removes oil in aerosol and vapor form through coalescing media
• Traps particulates and solid contaminants before reaching the brake system
• Helps reduce maintenance needs for valves, actuators and fittings

How long does the Torque cartridge last and what warranty applies?

Service life depends on vehicle operating conditions, compressor wear and contamination levels; under normal conditions it will provide comparable life to the OEM coalescing element. Torque backs the cartridge with a 1-year unlimited mileage warranty to cover manufacturing defects and premature failure, offering replacement if issues arise within the warranty period. Follow recommended service intervals and inspect the dryer system for oil carryover to maximize lifespan.

• Typical lifetime aligned with OEM spin-on coalescing elements depending on usage
• 1-year unlimited mileage warranty for manufacturing-related failures
• Inspect compressor oil levels and change intervals to extend cartridge life

What’s included and how does installation work?

The package contains a single Torque oil coalescing air dryer cartridge ready for spin-on installation. Installation requires basic service tools and adherence to the dryer manufacturer’s service steps: depressurize the air system, unthread the old cartridge, lubricate the new gasket if recommended, and hand-tighten to specified torque. Dispose of drained contaminants responsibly.

• Includes: 1 x Torque oil coalescing air dryer cartridge

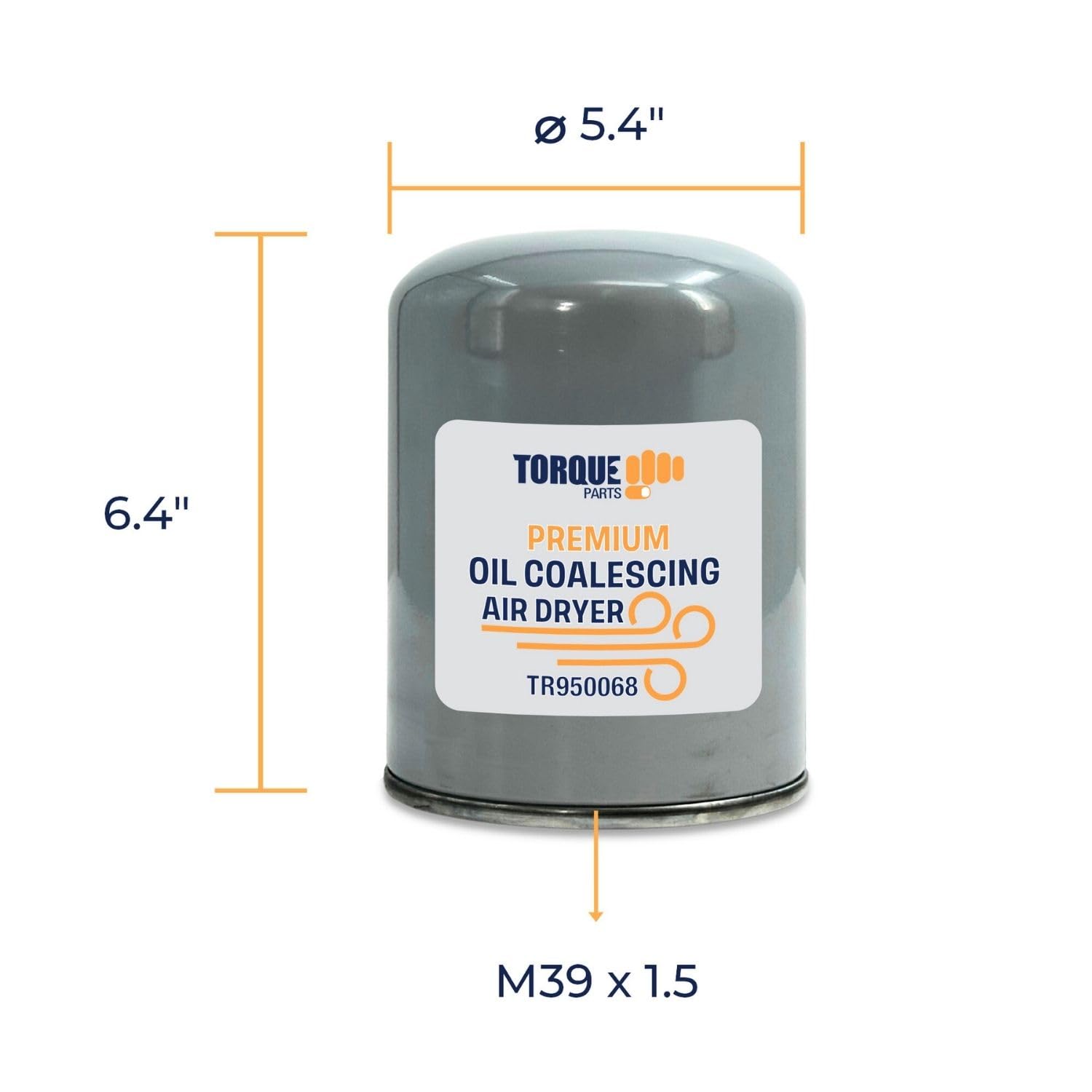

• Weight: approximately 5.75 lbs for handling and compatibility checks
• Simple spin-on replacement—match part numbers and follow OEM torque guidelines

Who is this for? Fleet managers, heavy-duty technicians and maintenance shops that service WABCO System Saver 1200, TWIN and HP dryers will find this Torque R950068A cartridge a cost-effective aftermarket option. It suits operations seeking reliable oil and particulate removal to protect brake-system components, reduce downtime from contaminant-related failures and maintain air system performance without altering existing dryer hardware.
