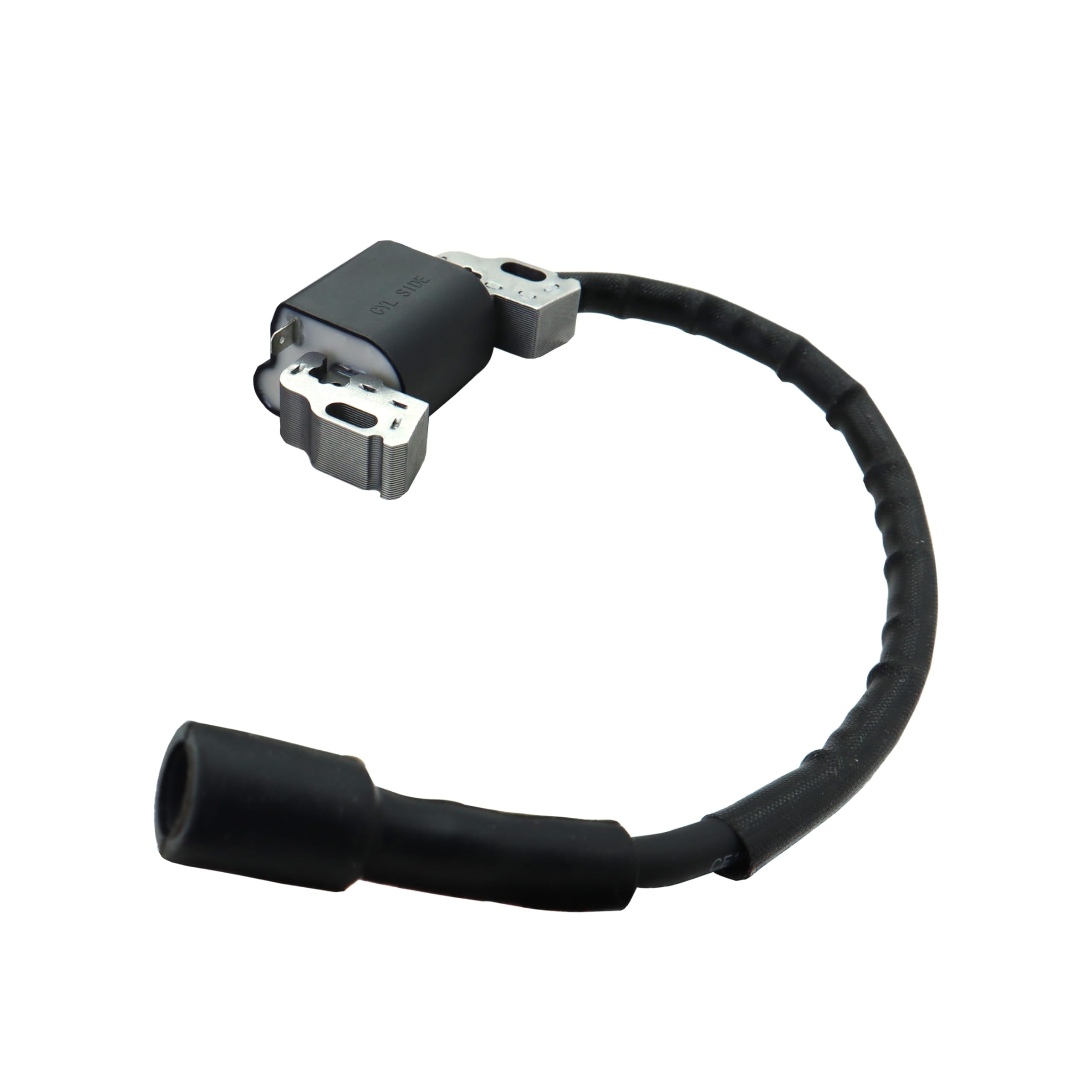

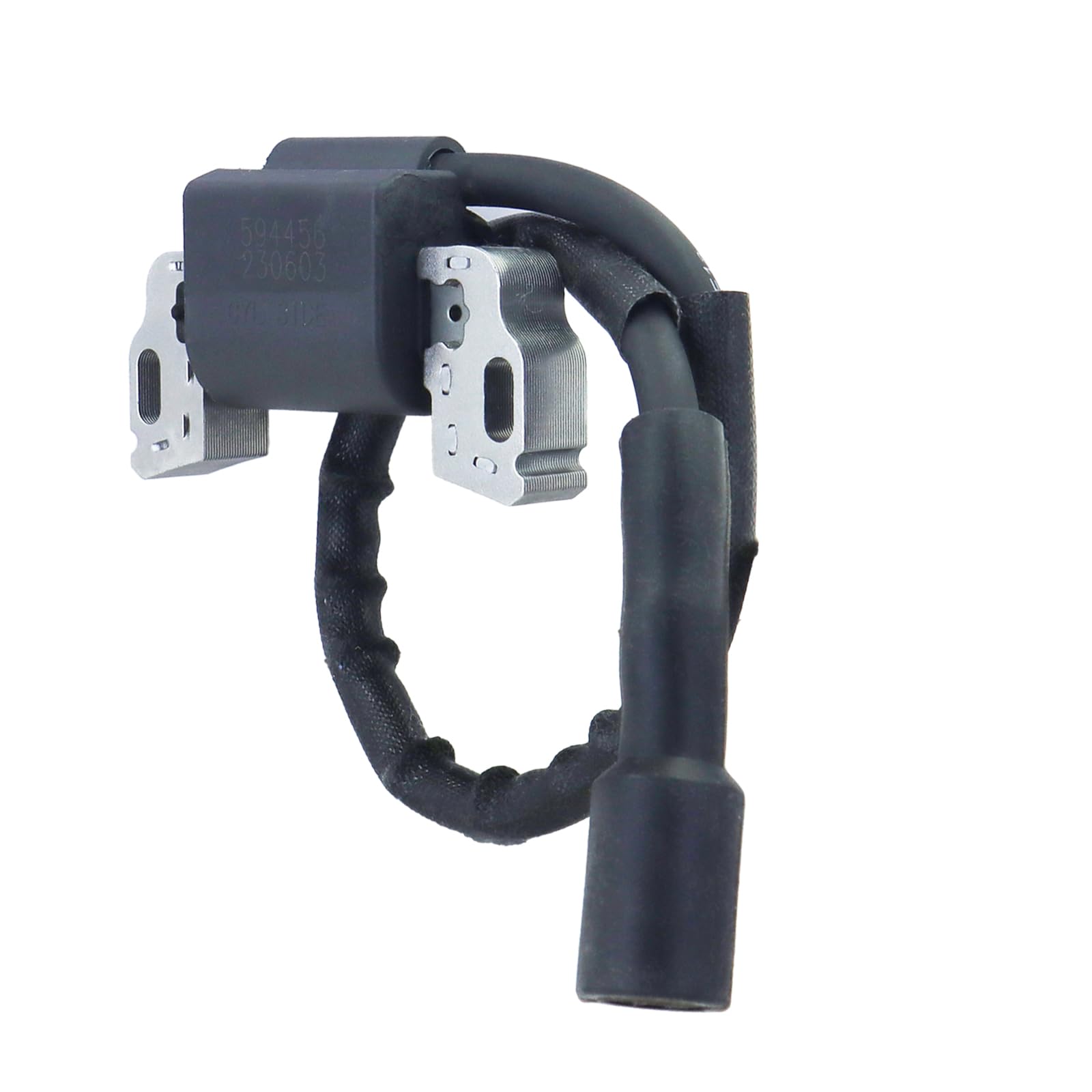

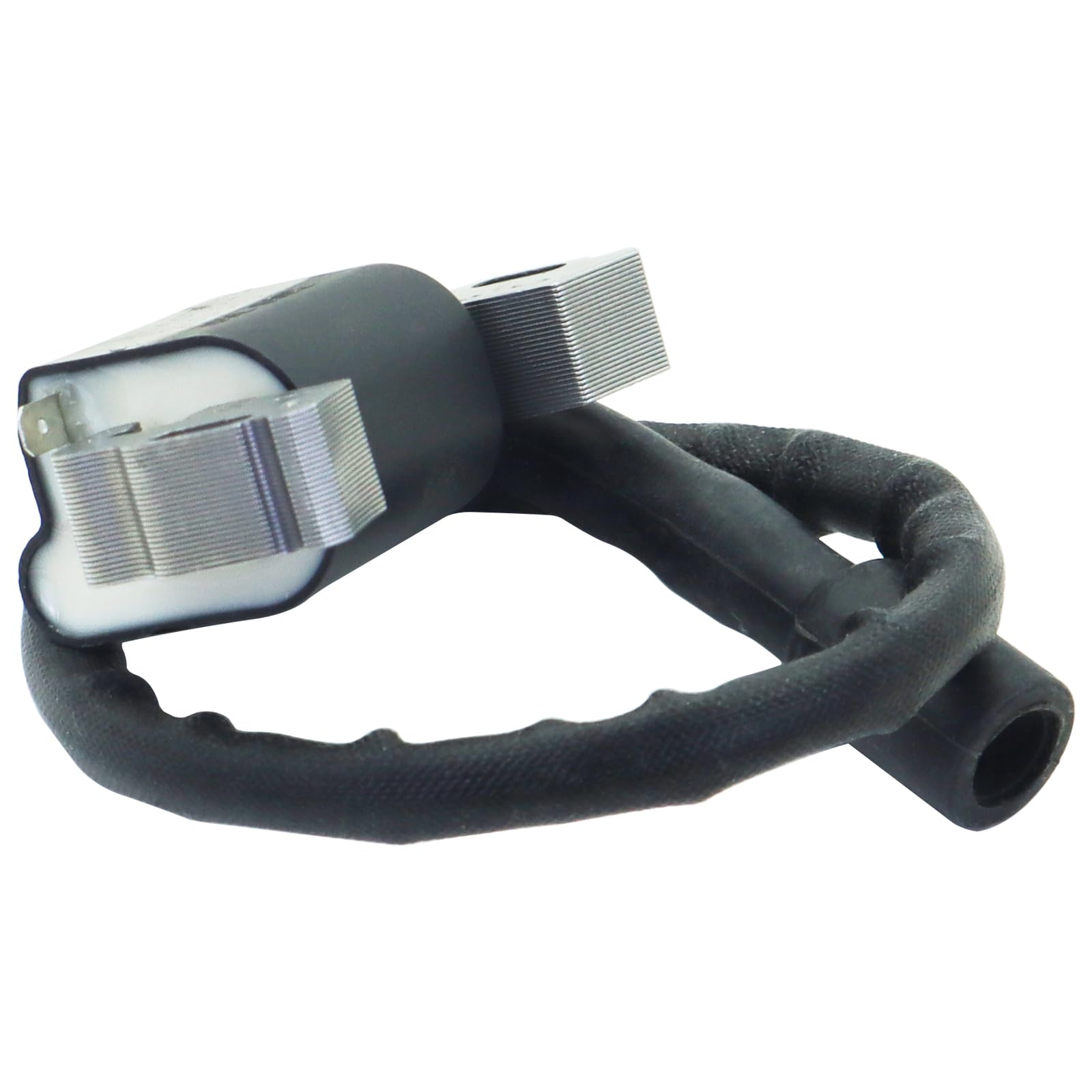

TOTEDELL ignition coil armature for Briggs & Stratton 595304 – Intek OHV 17–20HP fit, OEM match

TOTEDELL 595304 ignition coil armature is a direct-fit replacement for many Briggs & Stratton and select Vanguard lawn mower engines, delivering the magnetic pickup and spark timing components needed for reliable starting and operation.

This replacement armature is engineered to match the fit and function of OEM part number 595304 and several cross-reference numbers, making it a practical repair option for small-engine technicians and DIYers. It supports a wide range of model codes and horsepower ratings—from 10 HP L-head units up to 20 HP Intek OHV applications—so you can restore ignition performance without searching for obscure parts.

Which engines and part numbers does this armature work with?

The TOTEDELL 595304 armature is compatible with a long list of Briggs & Stratton model families and specific service codes, plus some Vanguard and MTD engines. Use your engine’s model and code stamps to confirm compatibility before ordering.

• Matches OEM 595304 and cross-references 799650, 795315, 592841.
• Fits Briggs & Stratton Intek OHV 17–20 HP and multiple 10–13 HP L-head engines.
• Compatible with many service codes such as 21A807, 21R602, 21R707, 21R702 and others.
• Also fits select Vanguard 9–14 HP and MTD walk-behind models like G1236 CC760ES.

How do I install this ignition coil armature?

Installation requires basic small-engine tools and attention to flywheel alignment and magneto gap. Remove the flywheel and old armature, clean the mounting surface, position the new armature on the crankcase, and set the air gap per your engine’s service spec before reassembly.

• Tools: socket set, flywheel puller, feeler gauge, torque wrench.
• Key steps: disconnect spark, remove flywheel, replace armature, set gap, re-torque fasteners.
• Tip: mark flywheel timing key or use service manual torque/gap values for accuracy.

What performance and fit should I expect after replacing the armature?

When correctly installed, this armature restores the magnetic field and pickup that trigger the ignition coil, helping consistent spark production and dependable starts. It is manufactured to match OEM mounting points and magnet placement so clearance and timing remain consistent.

• Expect consistent spark timing comparable to original OEM parts.

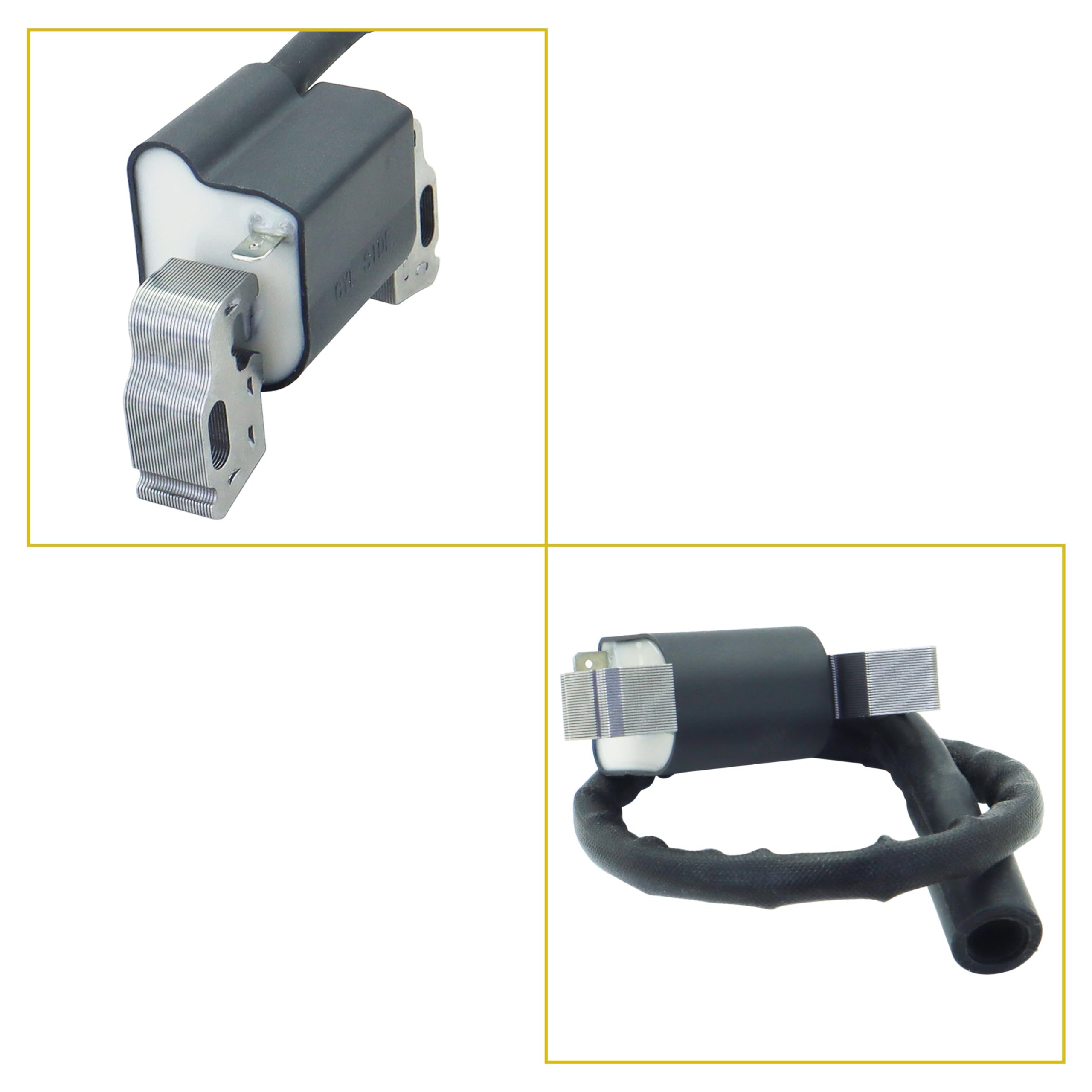

• Durable magnet and laminated armature construction for long life.

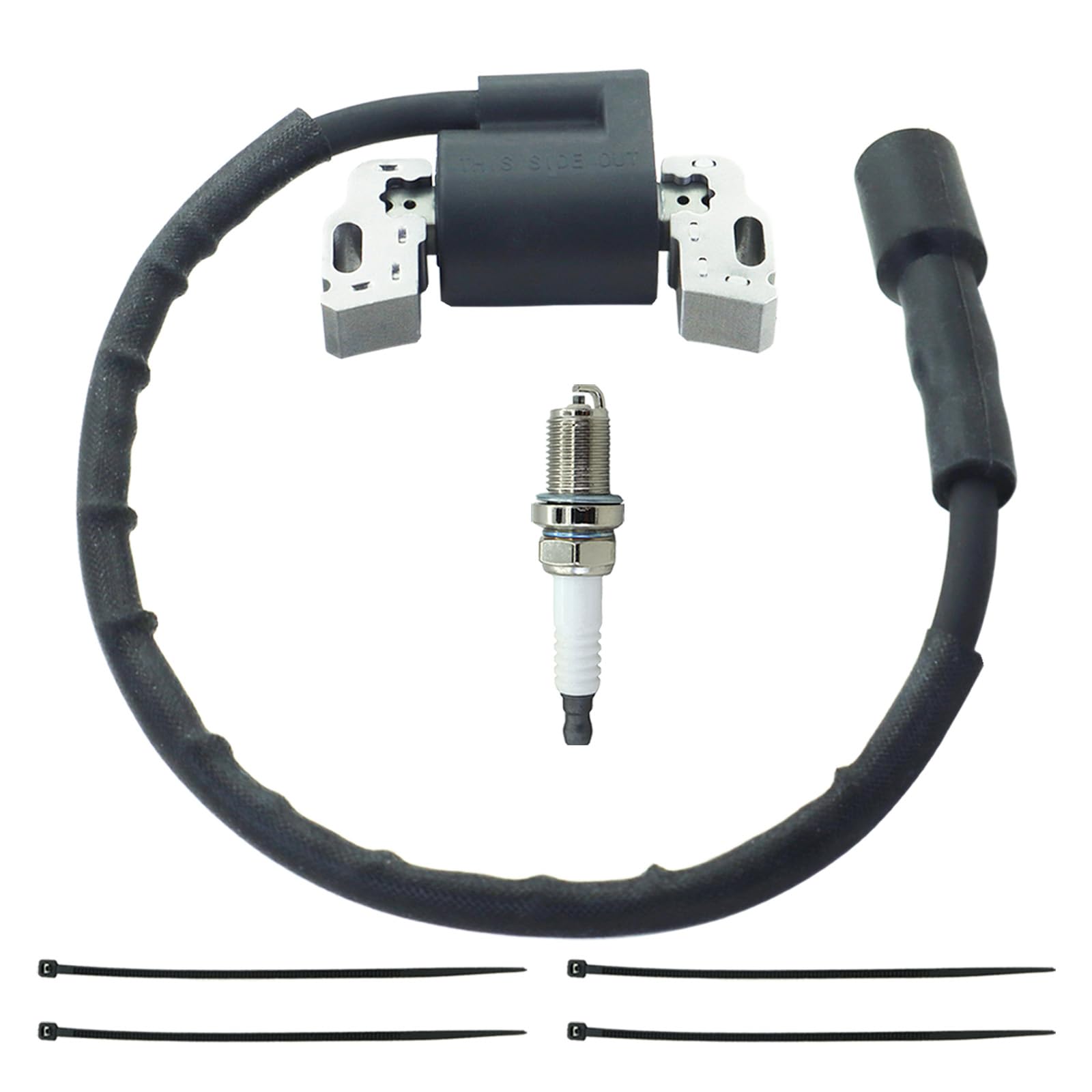

• Precision mounting holes to maintain flywheel clearance and gap settings.

Will this part come with a warranty or quality assurance?

TOTEDELL sources parts to meet common small-engine specifications; verify seller warranty details at checkout. Many replacement armatures are inspected for magnet strength and dimensional accuracy before shipping, but check return and warranty policies for peace of mind.

• Inspect part on arrival for damage and proper magnet strength.
• Keep order information and photos for warranty or returns.
• Contact the seller if fitment or performance deviates from expectations.

Who is this for: This armature is intended for maintenance technicians, lawn mower owners, and small-engine repair shops needing a cost-effective, direct-fit ignition component for Briggs & Stratton, Vanguard, and compatible MTD engines. If you have a model or service code listed above and are comfortable with routine engine repairs, this replacement helps get your mower back to reliable starting and running condition without buying a complete magneto assembly.
