TOWKING 5000 lbs Pipe-Mount Trailer Jack 10" Lift — Swivel, Powder-Coated Steel

The TOWKING 5000lbs pipe-mount trailer jack is a medium-duty, swivel-mounted jack that raises and supports trailers up to 5,000 pounds with a 10" travel range and corrosion-resistant finish.

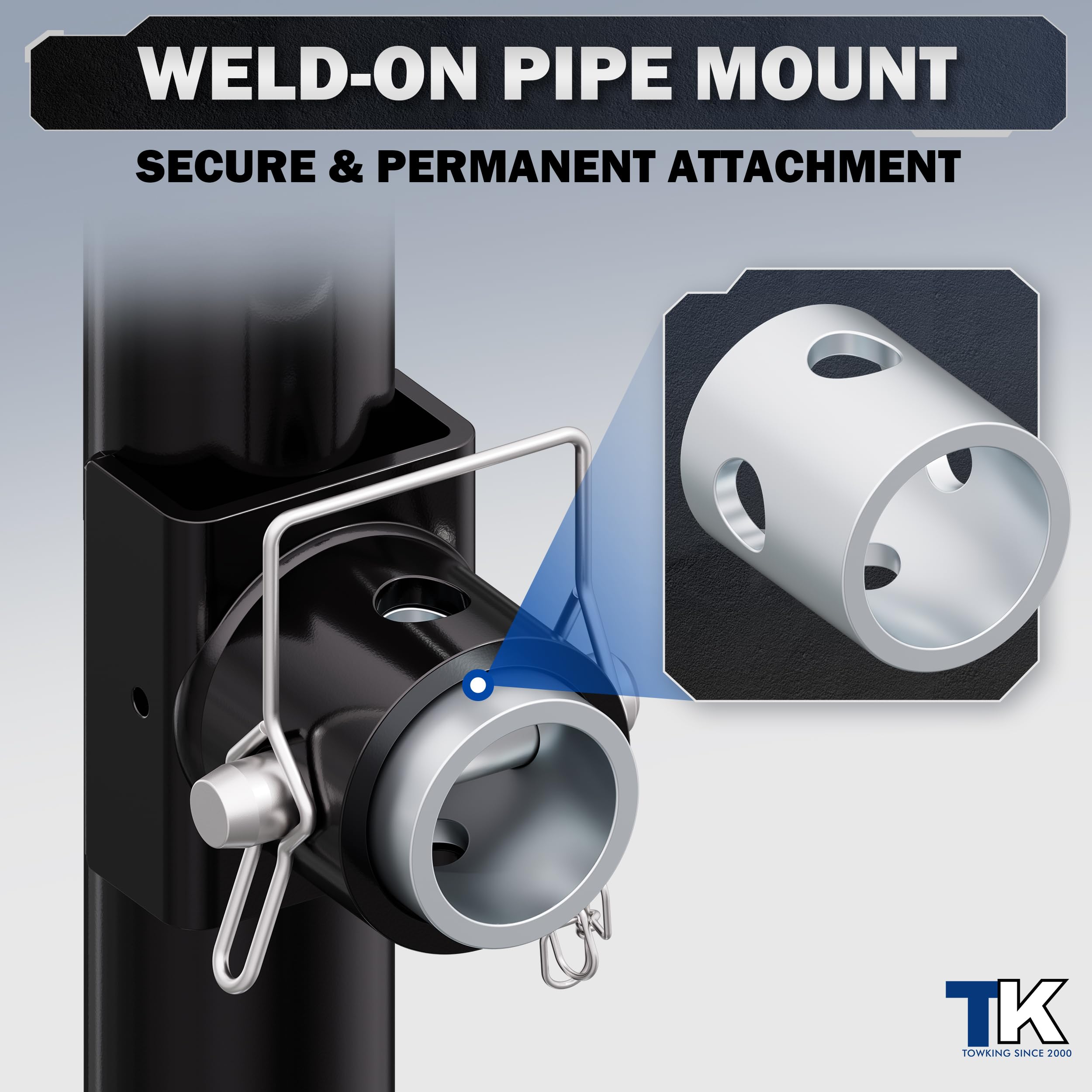

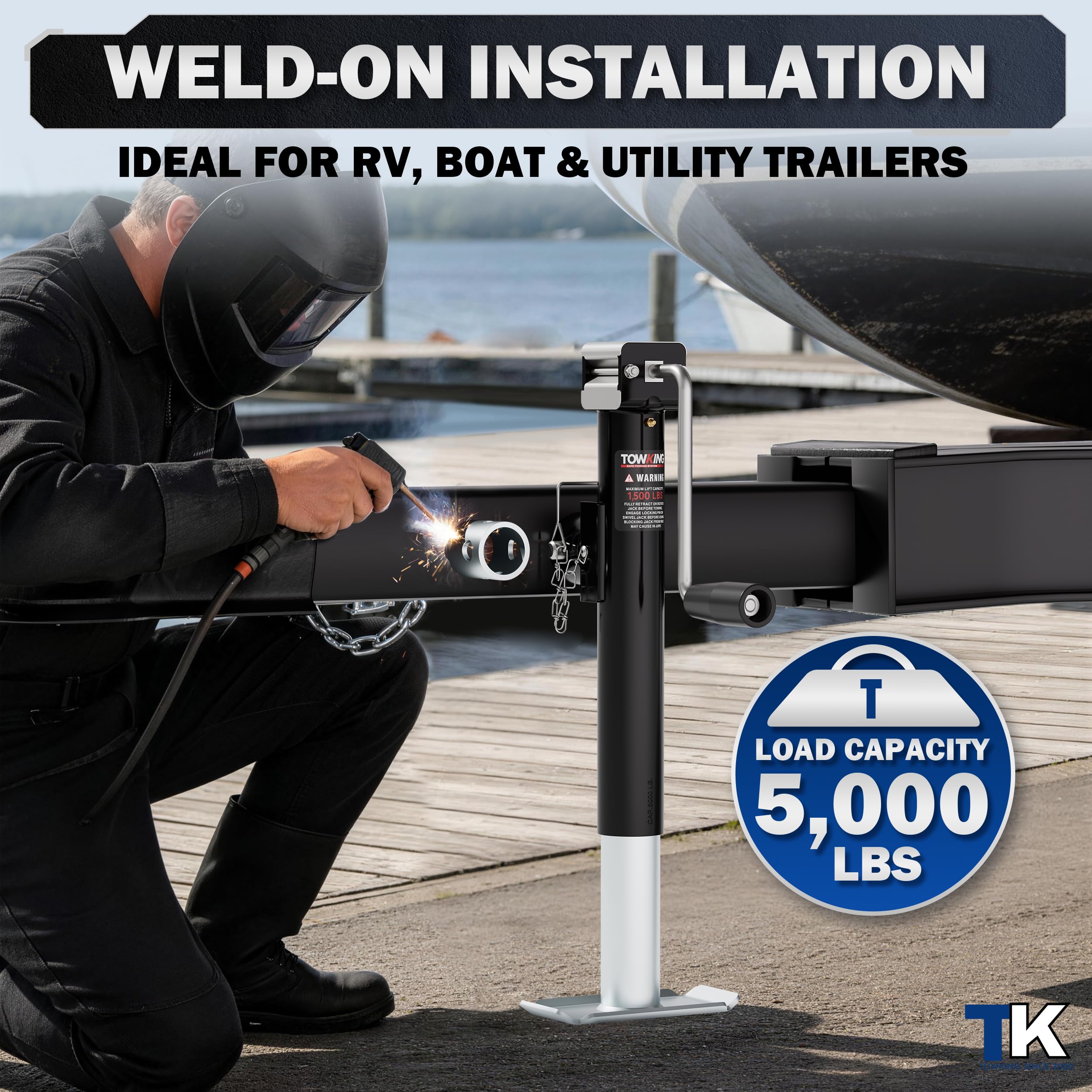

Designed for boat trailers, utility trailers, campers and other small-to-medium tow rigs, this pipe-mount jack combines a compact retracted profile with a long reach when extended. It installs on common round pipe mounts and swivels clear of the trailer tongue when not in use, while its powder-coated steel construction resists weather and road salt. Built to SAE standards, the jack provides predictable lifting performance and reliable holding power for routine hitching, storage and short-term stabilization tasks.

How much weight can this jack safely handle?

The TOWKING pipe-mount jack has a rated load capacity of 5,000 pounds, suitable for many single-axle and light tandem trailers. It is engineered to meet SAE design and testing requirements for this weight class.

• Rated capacity: 5,000 lbs (medium-duty trailers)
• Meets SAE standards for quality and safety
• Appropriate for boats, utility trailers, campers and similar loads

What are the height dimensions and travel range?

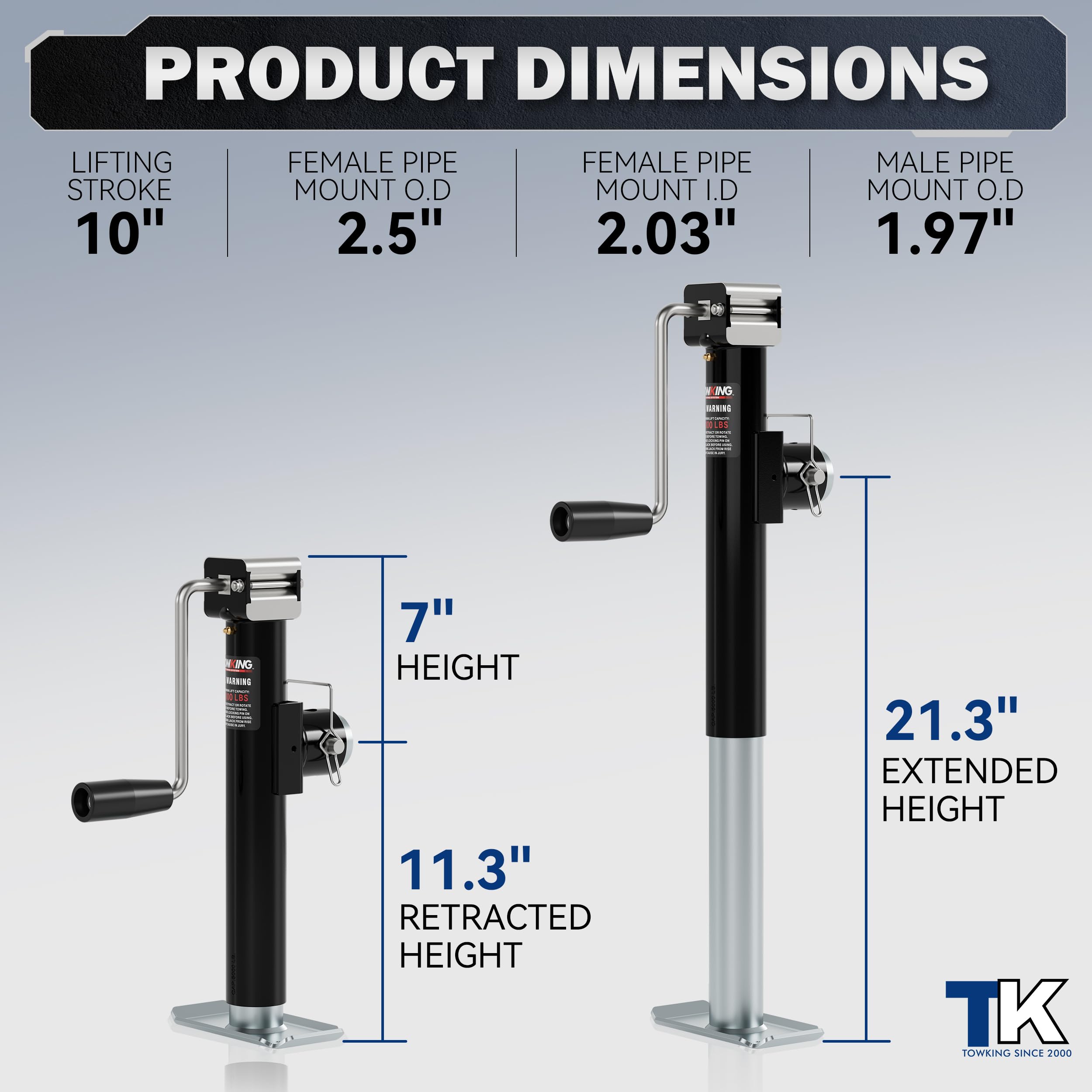

This jack provides a 10-inch movement range between its retracted and extended positions. The listed heights allow you to know fitment before purchase: about 11.3 inches when retracted and approximately 21.3 inches fully extended.

• Retracted height: ~11.3" for compact storage on the tongue
• Extended height: ~21.3" for hitching and storage adjustments
• 10" vertical travel to accommodate common trailer tongue heights

How does the swivel design improve towing and storage?

The swivel bracket lets you swing the jack up and out of the way for towing, reducing the risk of ground contact or damage while moving the trailer. A secure pull-pin locks the jack in the stowed position so it won’t flop during transport.

• Swivels up and locks with a pull pin for secure transport
• Clears the trailer tongue area to avoid dragging on roads
• Simple manual operation — no tools required to swing and lock

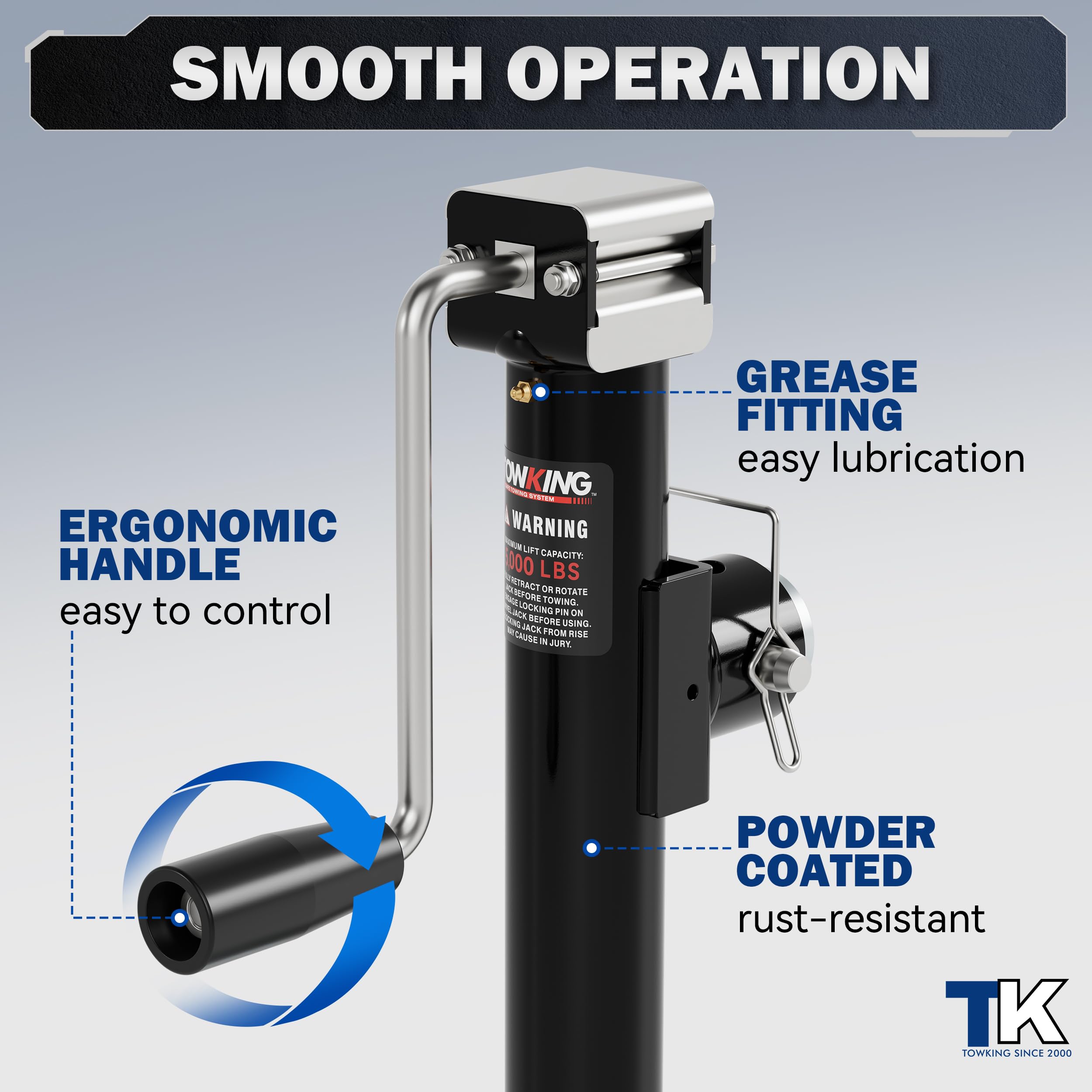

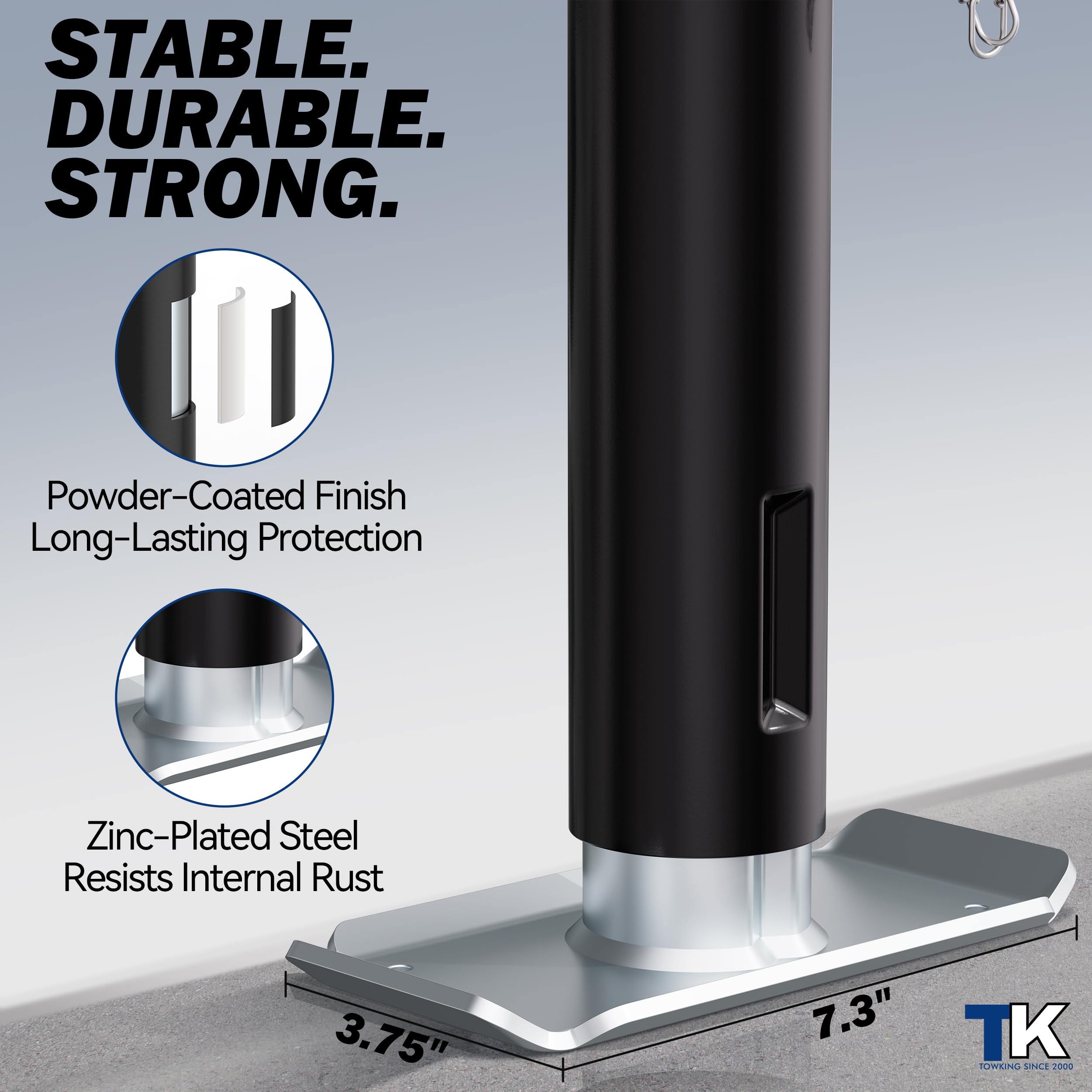

What materials and finishes protect the jack outdoors?

Constructed from high-strength steel with a durable powder-coated finish, the jack is built to resist rust and corrosion from exposure to rain, road grime and marine environments. The surface treatment extends service life and reduces maintenance needs.

• High-strength steel body for structural durability
• Powder-coat finish for weather and rust resistance
• Designed for use in wet or salty conditions when rinsed and maintained

Who is this for: The TOWKING 5000lbs pipe-mount trailer jack is aimed at trailer owners who need a dependable, medium-capacity lifting solution that tucks out of the way while towing. It suits recreational boat owners, landscapers, DIYers with utility trailers, and anyone replacing a worn tongue jack with a compact, swivel-mounted option that meets SAE standards. If you want straightforward installation, a compact stored profile, and corrosion-resistant construction for seasonal outdoor use, this jack is a practical choice.
