TOWKING A‑Frame Trailer Jack 2000 lb Tongue Jack — 15" Lift with 13" Drop Leg, Steel Powder Coat

The TOWKING A‑frame trailer jack is a heavy‑duty 2,000 lb capacity tongue jack with a 15" vertical lift and an integrated 13" drop leg for fast, stable hitching and storage.

Designed for small trailers, utility carts and campers, this A‑frame tongue jack combines a geared screw lift with a removable drop leg so you can raise, lower and stabilize your trailer quickly. Built from thick steel and finished with black powder and zinc plating, it resists road grime and moisture while offering two mounting options: bolt or weld. The compact retracted profile keeps the jack out of the way when towing, and the extended reach gives you ample height to attach couplers and swivel the trailer into place.

How much weight can this tongue jack safely support?

The TOWKING A‑frame jack is rated for 2,000 pounds of vertical load capacity. That rating covers typical tongue loads on small trailers and boats; it is not the trailer's gross vehicle weight rating (GVWR). Always match the jack rating to your trailer’s actual tongue weight and follow safe usage procedures.

• Capacity: 2,000 lbs vertical load
• Designed for small trailers, utility trailers and light campers
• Not a substitute for axle/load rating — verify trailer tongue weight

What are the lift range and drop leg dimensions?

This model offers a 15" vertical movement from the jack screw mechanism, moving between 8.5" retracted height and 23.5" fully extended. The included drop leg adds an adjustable support that measures 13" in travel with 2" hole spacing for pin placement and fits inside a 2" ID jack socket.

• Jack lift stroke: 15" (8.5" retracted → 23.5" extended)

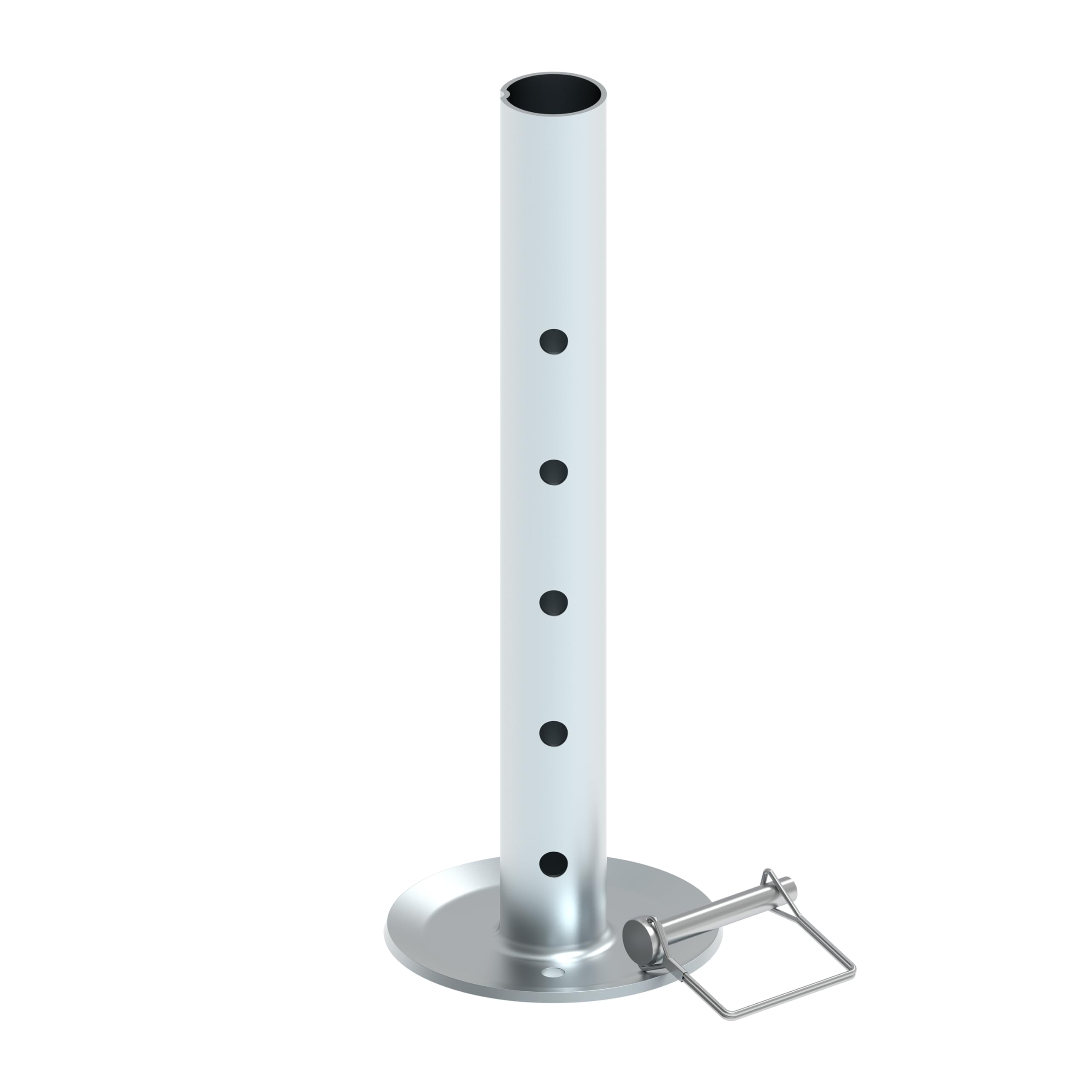

• Drop leg travel: 13" with 2" hole spacing between pins
• Drop leg outside tube diameter: 1.75"; accepts 2" ID sockets
• Total maximum combined extension: approximately 25"

What materials and finishes protect this jack from corrosion?

TOWKING builds this A‑frame jack from heavy gauge steel and applies a durable black powder coat plus additional zinc plating on key components. The dual finish helps shield the jack from water, salt and typical road contaminants so it stays functional season after season with basic maintenance.

• Construction: heavy duty steel tubing and plates
• Finish: black powder coat plus zinc-plated components
• Designed to resist water, dirt and road salt
• Periodic cleaning and lubrication recommended to extend life

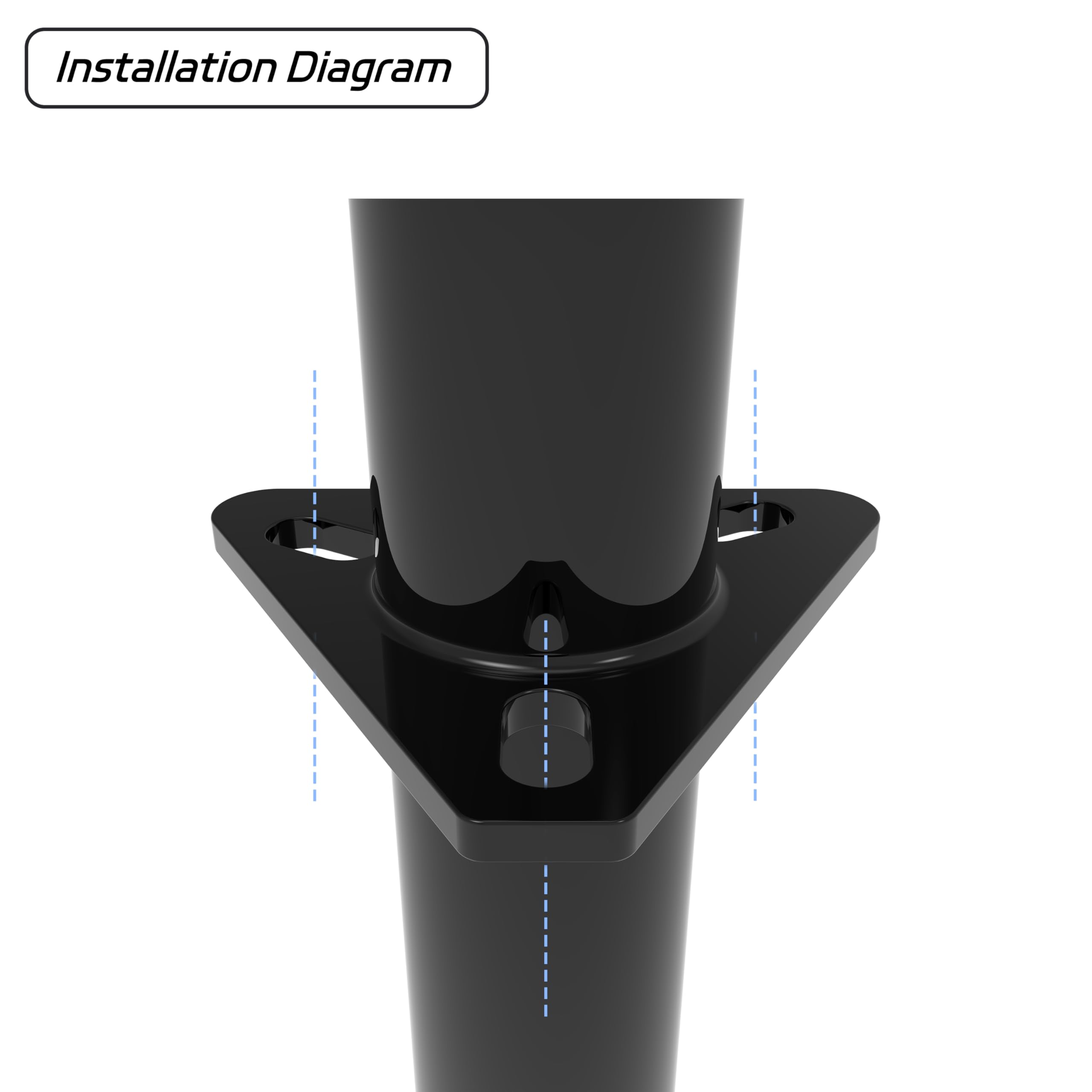

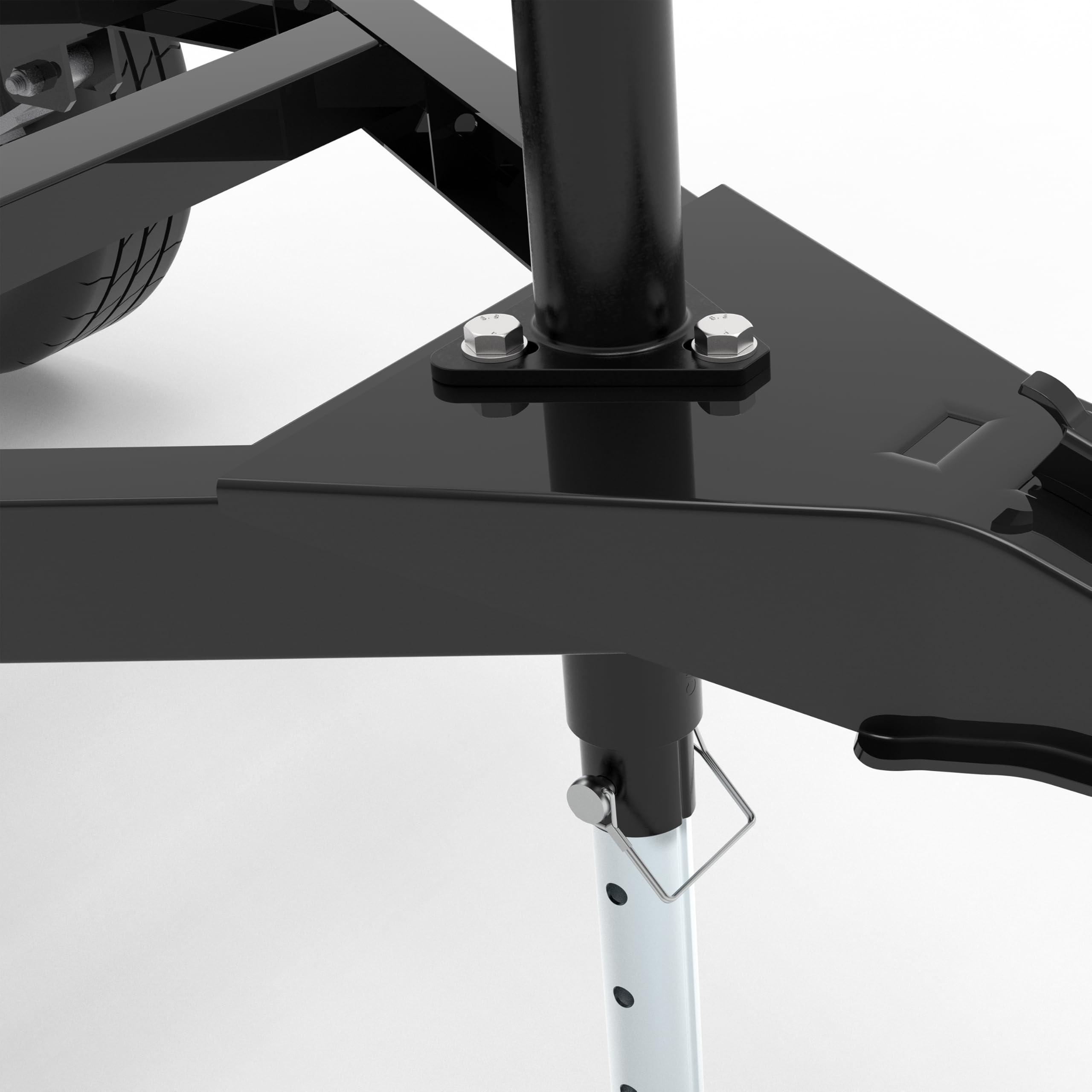

How is the jack mounted and what hardware is required?

The jack is designed to be either bolted into place or permanently welded onto an A‑frame trailer tongue. Mounting hardware is not included, so choose bolts, nuts and backing plates sized for your tongue thickness and towing application; professional welding is advisable if you prefer a welded installation.

• Mount options: bolt-on or weld-on installation
• Hardware: not included — select bolts rated for trailer use
• Check tongue thickness and pre-drill mounting holes for correct fit
• Consider professional welding for permanent attachment

Who is this for: This TOWKING 2000 lb A‑frame jack is aimed at owners of light trailers, small boat trailers and utility carts who need a compact, rugged tongue jack with extra reach and a removable support leg. It's a good choice if you want a corrosion‑resistant steel jack that can be bolted or welded in place, offers a 15" lift stroke and includes a 13" adjustable drop leg for level support during hookup and storage.
