TREXFLOW TF 170° Universal UTV Wiper Motor Kit B170 — 12V, Two-Speed, Washer Included

TREXFLOW TF B170 is a heavy-duty, universal 170-degree 12V wiper motor kit for UTVs and side-by-sides, supplied as a complete motor, wiring harness and washer assembly (wiper arm and blade NOT included).

This kit delivers a wide sweeping range and two-speed operation designed for recreational and utility vehicles where visibility matters. The B170 set includes the motor assembly, an 11.5-foot weatherproof power harness, and a full washer system with bottle, hoses, nozzles and mounting hardware. It’s engineered for broad compatibility with models such as Polaris RZR and Ranger, Honda Pioneer, Yamaha Viking, Can-Am Commander and many other UTVs—while still allowing installers to choose the correct arm and blade length for their windshield.

How wide is the sweep and will it fit my windshield?

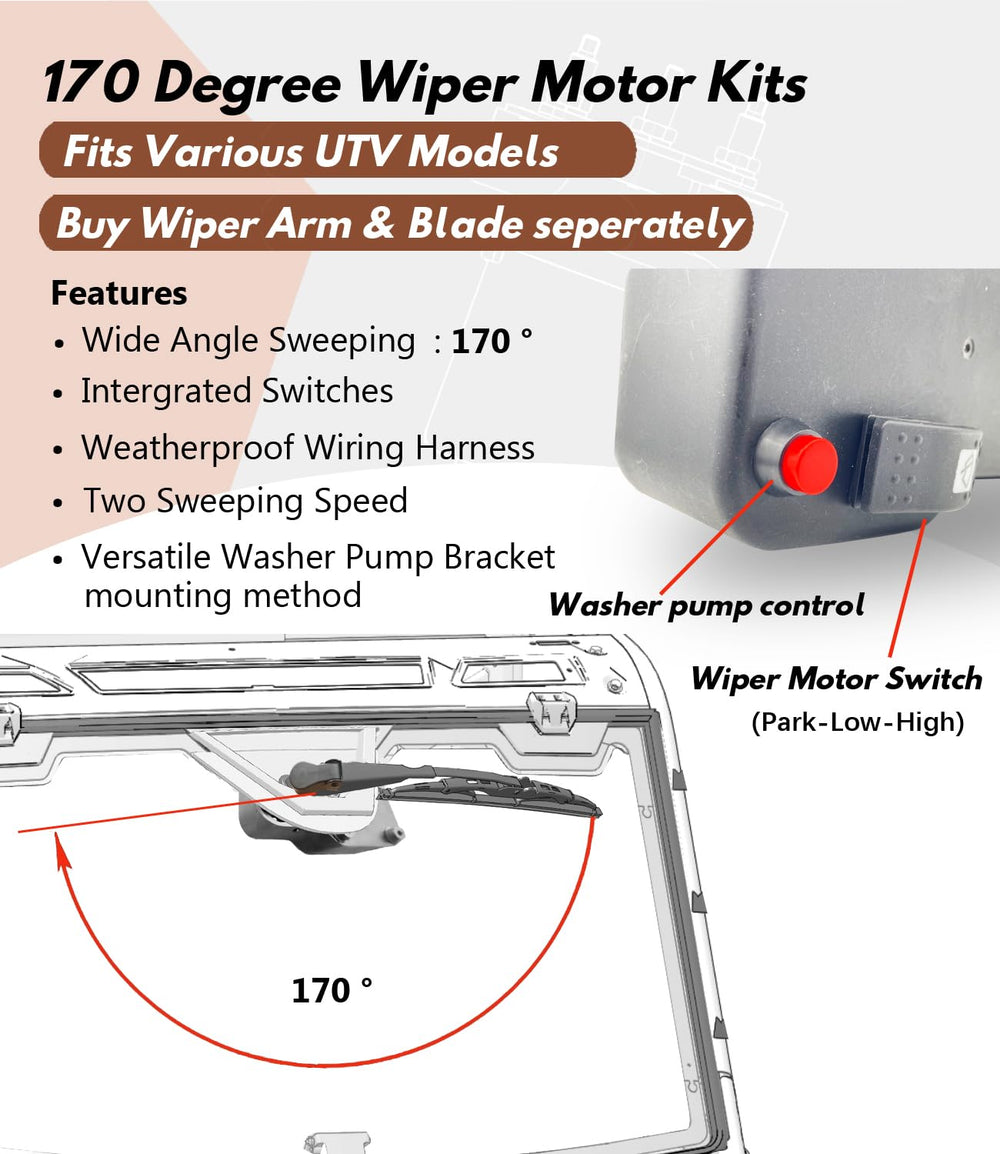

The motor provides a 170-degree sweep that reaches across most UTV windshields; comparable options cover up to 172–180 degrees for even broader coverage. Because windshields and arm lengths vary, you must measure your wiping radius and select a compatible arm and blade sold separately. The kit’s top-mount design and universal brackets make minor adjustments straightforward during installation.

• Nominal sweep angle: 170 degrees (comparable to 165–180° kits)
• Top-mount design for broad windshield coverage
• Requires separate purchase of wiper arm and blade sized to your windshield
• Adjustable mounting to accommodate different windshields

What electrical performance and control features does the kit offer?

The B170 operates on 12V DC and delivers two selectable speeds—low and high—plus a self-parking function located on the left. A built-in switch panel includes low, high, and a momentary washer spray button so you can activate the washer while keeping control of the sweep. The motor provides about 10 Nm of torque, giving reliable wiping force in most weather conditions common to UTV use.

• Voltage: 12V DC, suitable for most UTV electrical systems
• Speeds: 40±5 SPM (low) and 55±5 SPM (high)
• Torque: ~10 Nm for consistent blade pressure
• Self-parking on the left for neat resting position

What is included in the package and what else do I need?

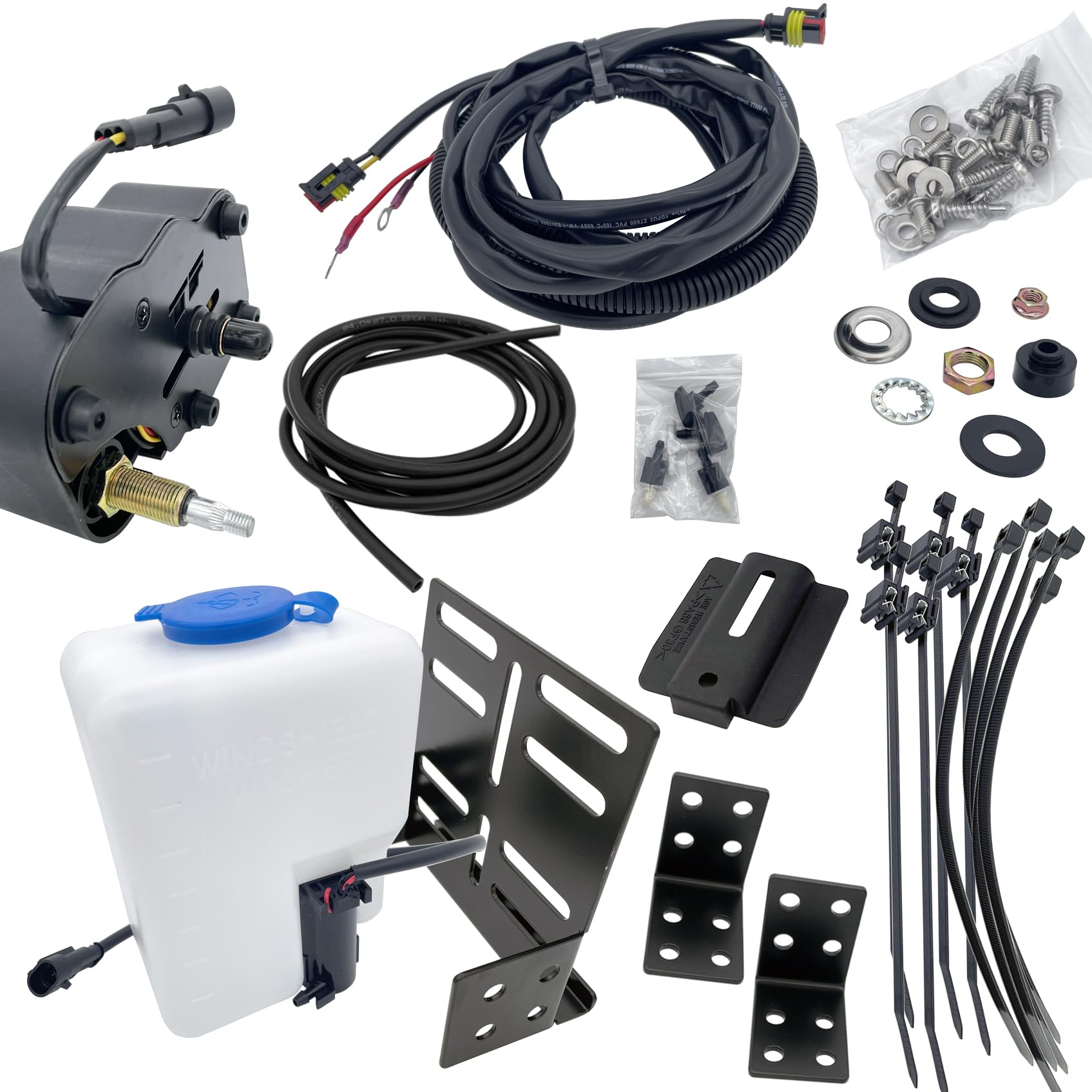

The kit ships with the wiper motor assembly, an 11.5-foot weatherproof power wiring harness, and a complete washer kit: bottle assembly, 10-foot EPDM hose, brackets, tee, nozzles, check valve and installation hardware. Important: the wiper arm and blade are NOT included and must be purchased separately. Selecting the correct arm/blade length for your windshield is essential to avoid binding or incomplete coverage.

• Included: motor, wiring harness, washer bottle, hose, nozzles, brackets and hardware
• Hose: 10-foot EPDM rubber for durability and weather resistance

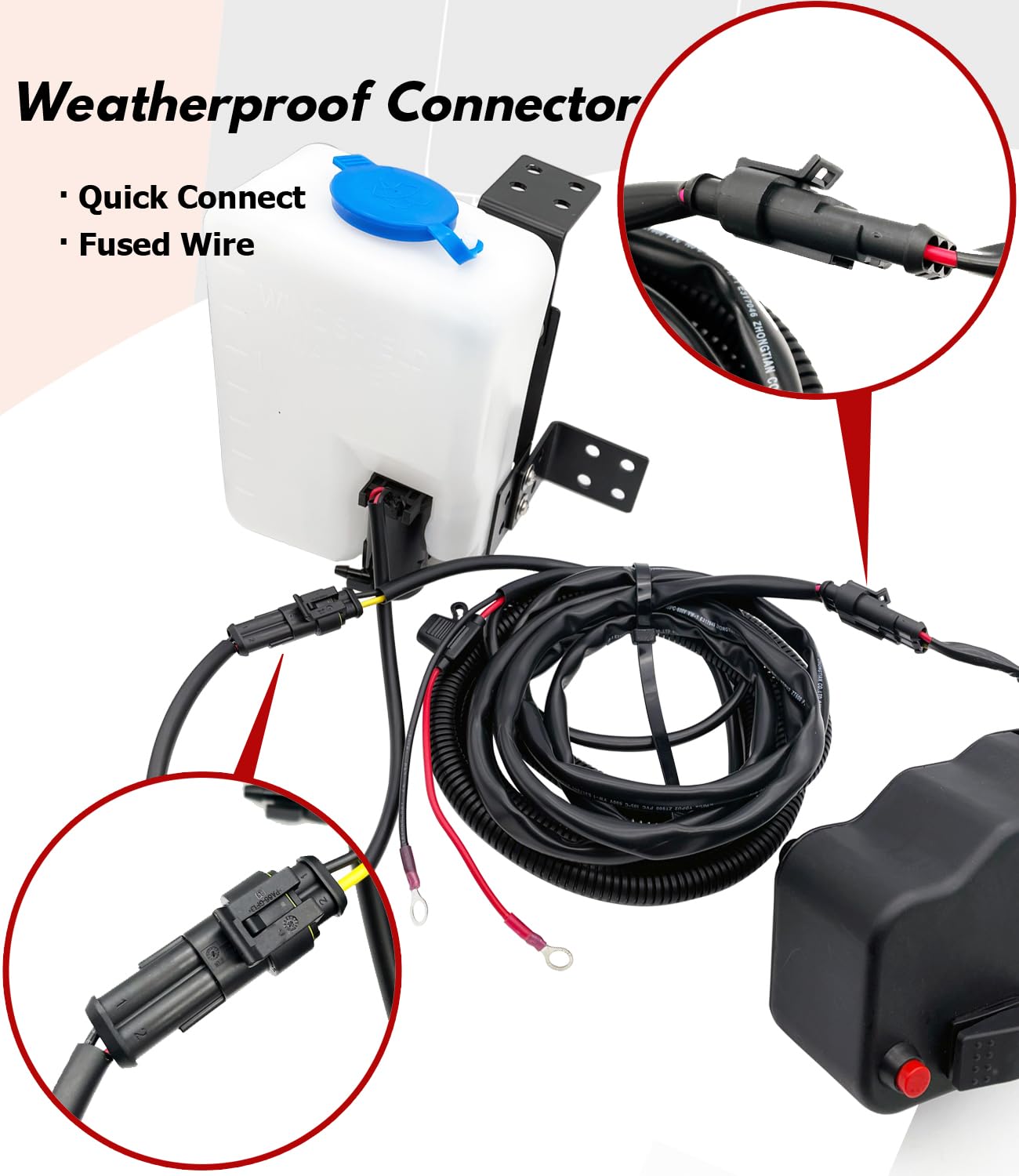

• Harness: 11.5-foot with weatherproof connectors for tidy routing
• NOT included: wiper arm and blade—measure before ordering

How difficult is installation and what tools or adjustments are typical?

Installation is designed for competent DIYers or professional installers and typically involves mounting the motor, routing and connecting the harness, and attaching the washer components. The universal fit may require trimming brackets or repositioning the motor for optimal sweep. Make sure to test the sweep with your chosen arm and blade before final tightening to confirm there’s no interference.

• Basic tools: drill/driver, wrenches, pliers, and wiring tools
• Test fit arm/blade before finalizing mount positions
• Weatherproof connectors reduce corrosion and simplify wiring
• Adjustable brackets accommodate different UTV models

Who this is for: The TREXFLOW TF B170 kit is ideal for UTV owners, mechanics and outfitters who need a robust, wide-angle wiper and washer package for off-road recreation, farming or work duty. It suits users who want a durable motor with two-speed control and a full washer system while retaining flexibility to select the correct wiper arm and blade for their specific windshield. If you require an OEM-style plug-and-play arm/blade match, verify arm lengths and fitment against your vehicle before purchase.
