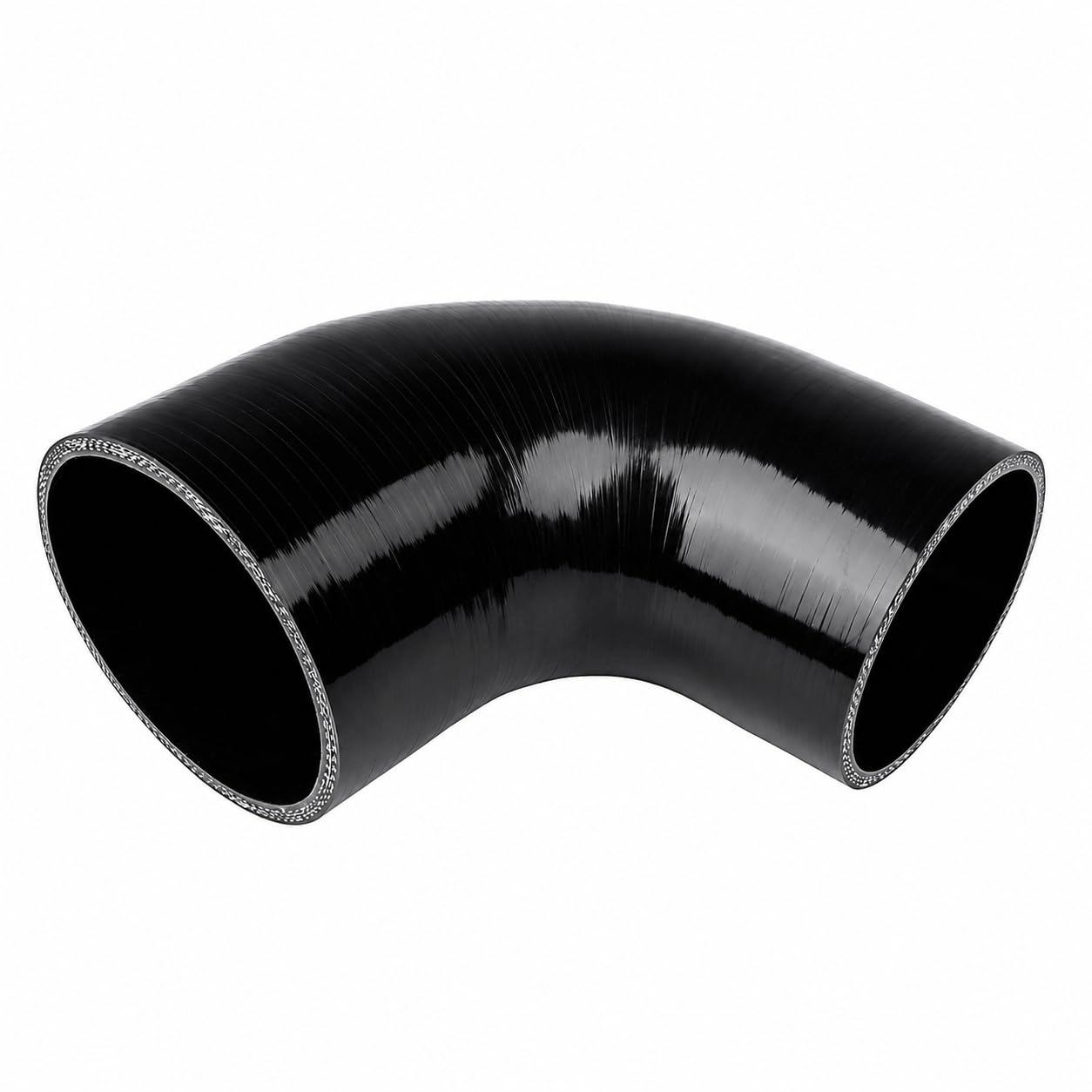

Ucreative 90° Silicone Elbow Hose 3.5"–4" ID, 5" Legs — 4‑ply, 5mm Wall, 2 MPa Boost Rated

The Ucreative 90 Degree Elbow 3.5" to 4" is a heavy-duty silicone coupler that creates a flexible, heat- and pressure-resistant 90° connection between turbo or intake pipes.

This silicone elbow is engineered to bridge pipes with inner diameters from 3.5 inches (88.9 mm) to 4.0 inches (101.6 mm), offering a compact 90° turn with a 5" (125 mm) leg length. Built as a 4-ply silicone assembly with a 5 mm wall thickness and a bursting pressure rated at 2 MPa, it handles wide temperature ranges while reducing stress on adjoining metal piping. It ships as a single replacement coupler, suited for custom plumbing work on forced-induction and intake systems where space and durability matter.

How does this elbow handle heat and pressure in engine bays?

The Ucreative elbow is formulated to tolerate extreme thermal swings and internal pressures typical of turbo and intake systems. It resists softening or cracking from repeated heating cycles and maintains shape under boost loads.

• Temperature range: -60°C (−140°F) to 230°C (428°F)
• Bursting pressure: rated to 2 MPa for reliable boost containment
• Robust 4-ply construction to resist expansion and fatigue
• 5 mm wall thickness for improved durability over single-layer hoses

Will this coupler fit my pipes and how flexible is the connection?

Designed as a universal transition, the coupler accommodates pipe inner diameters from 3.5" to 4.0" and provides a 90° routing solution for tight layouts. The silicone body offers enough compliance to absorb minor misalignments without leaking.

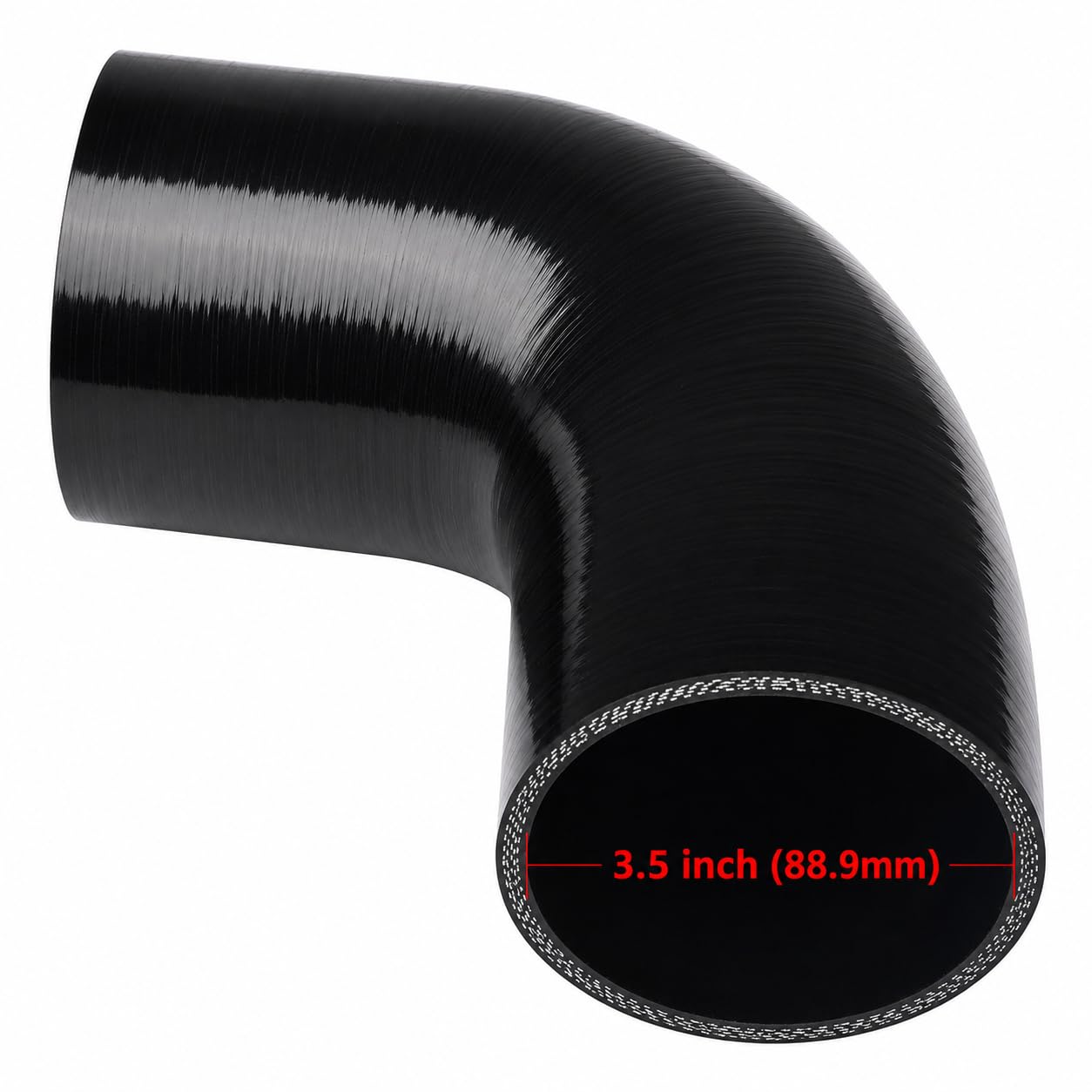

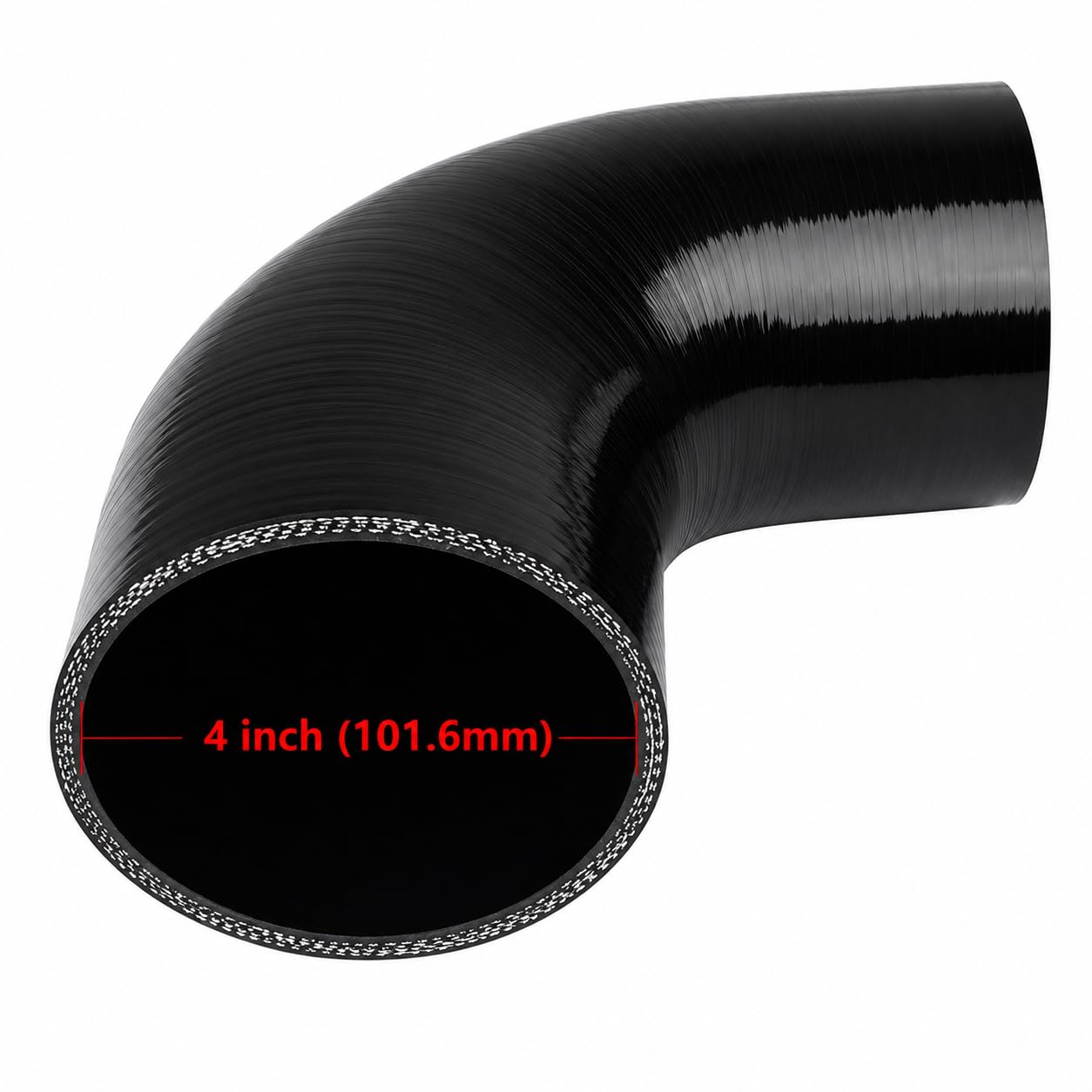

• Inner diameter range: 3.5" (88.9 mm) to 4.0" (101.6 mm)

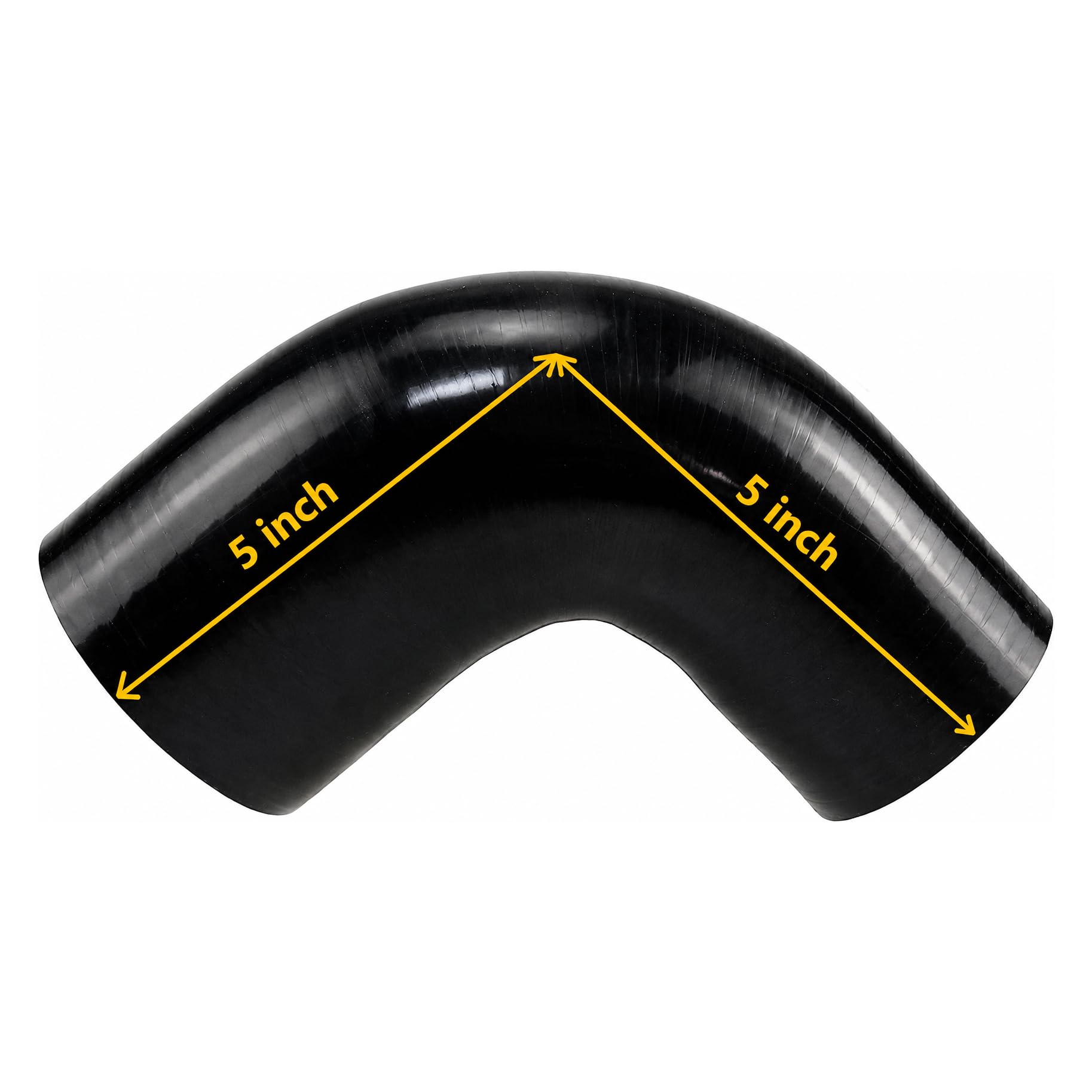

• Leg length: 5" (125 mm) per side for compact bends
• Flexible silicone permits slight angling and vibration dampening
• Use with proper clamps for secure, air-tight joins

What are the construction and material benefits compared to basic rubber hoses?

Silicone maintains mechanical integrity over broader temperatures and resists oil, ozone, and many automotive fluids better than typical rubber. The 4-ply layering and 5 mm thickness increase tear resistance and lifetime under cyclic loads.

• Silicone compound resists brittleness in cold and softening in heat
• Multi-layer build reduces risk of delamination or blowout
• Cleaner interior surface reduces deposits and helps airflow
• Longer service life in demanding engine-bay environments

How do I install and secure this elbow for reliable performance?

Installation is straightforward: slide the coupler over the prepared pipe ends and tighten clamps evenly. Make sure mating pipes are free of sharp edges and that the clamp band fully covers each hose end to avoid leaks.

• Use appropriately sized worm-drive or T-bolt clamps
• Trim pipe ends squarely and deburr before assembly
• Position clamps 3–5 mm behind the hose lip for best seal
• Re-check clamp torque after initial heat cycles

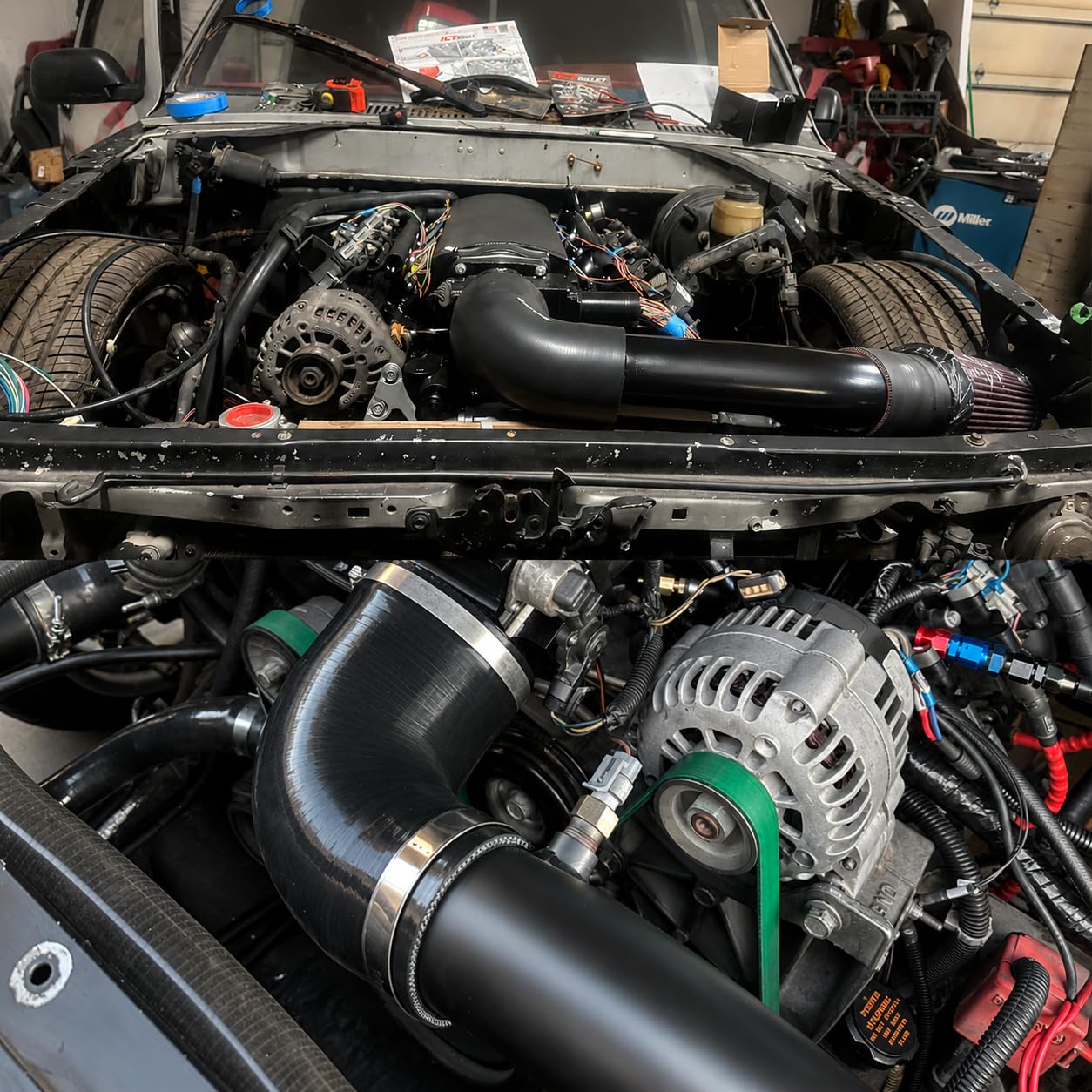

Who this product is for: The Ucreative 90 Degree Elbow is aimed at mechanics, tuners, and DIY enthusiasts who need a compact, reliable 90° silicone transition for turbocharger, intercooler, or intake plumbing. It suits projects where a robust thermal rating, pressure tolerance, and a neat routing solution are required — including custom fabrication, performance upgrades, and repair work on forced-induction systems.

• Package includes: 1x 90 Degree Silicone Hose
• Material: 4-ply silicone, 5 mm wall thickness
• Inner diameter: 3.5"–4.0" (88.9–101.6 mm)
• Leg length: 5" (125 mm)
• Operating temperature: -60°C to 230°C (-140°F to 428°F)
• Bursting pressure: 2 MPa
