US Cargo Control L-Track Double-Stud Fitting with Pear Link — 10-Pack Zinc-Coated, 5,000 lb Break Strength, Automatic Spring Lock

Durable L-track double-stud fittings with pear-shaped links that lock automatically and provide a 5,000-pound assembly break strength for secure tie-down points in truck beds and trailers.

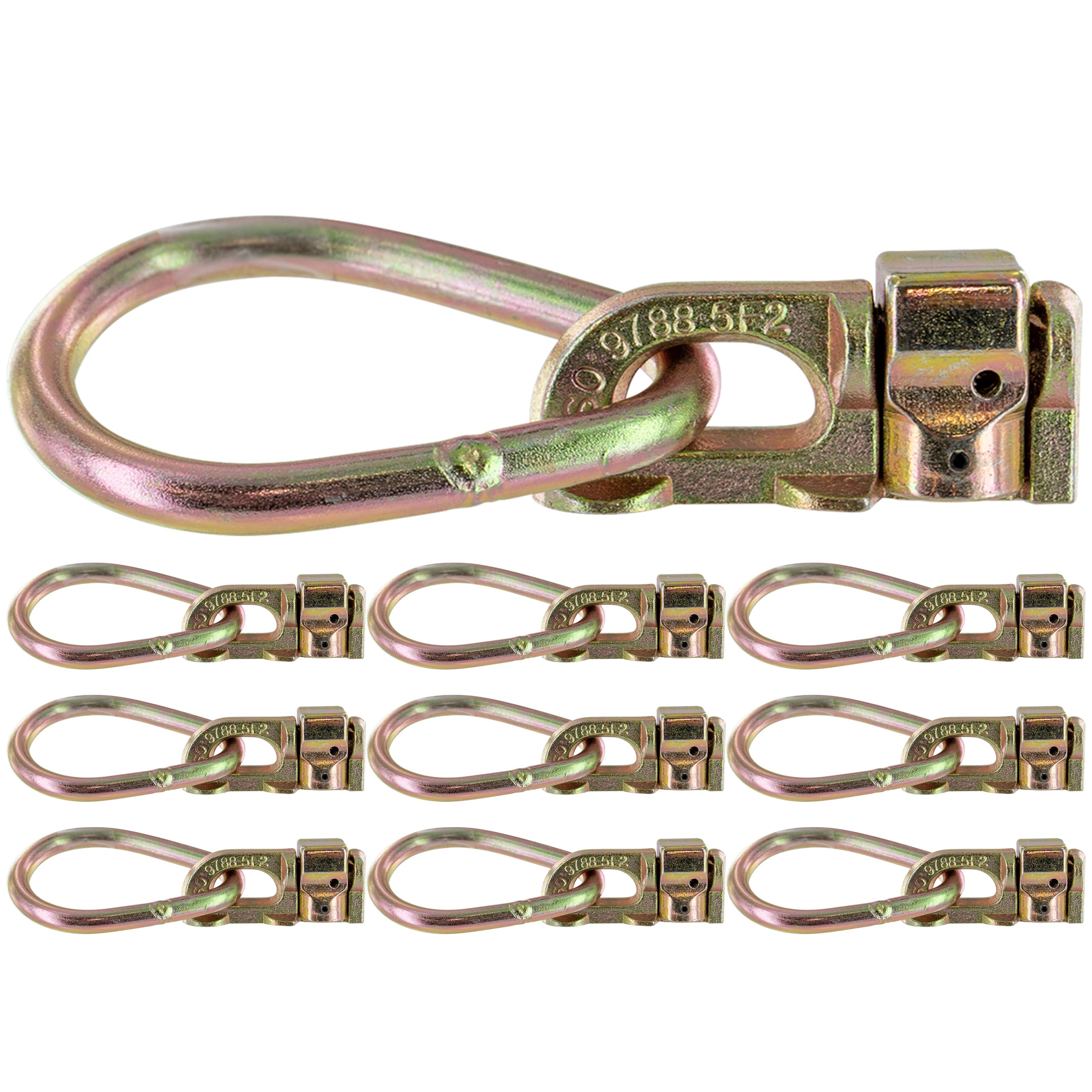

These US Cargo Control double stud L-track fittings are metal anchors designed to convert any compatible L-track rail into secure attachment points for straps, chains, and hooks. Sold as a 10-pack, each fitting features a pear-shaped link for versatile hookup and an automatic spring locking clip for fast, reliable engagement. Zinc coating protects the components from corrosion, and the double-stud design spreads load across two track slots for improved holding compared with single-stud anchors.

How do I install the double-stud L-track fittings quickly?

Installation is straightforward and tool-free once you have access to the L-track rail. Lift the spring clip, align the two lower discs with adjacent slots, slide until the clip seats between slots, then release to lock. The automatic spring action secures the fitting in place so you can attach webbing or hardware immediately.

• Lift the spring release and angle the discs into two adjacent slots.
• Slide the fitting until spring clip snaps into the gap between slots.
• Confirm engagement by pulling gently on the pear link before loading.
• No bolts or tools required for standard L-track installation.

What loads are these fittings rated for and how safe are they?

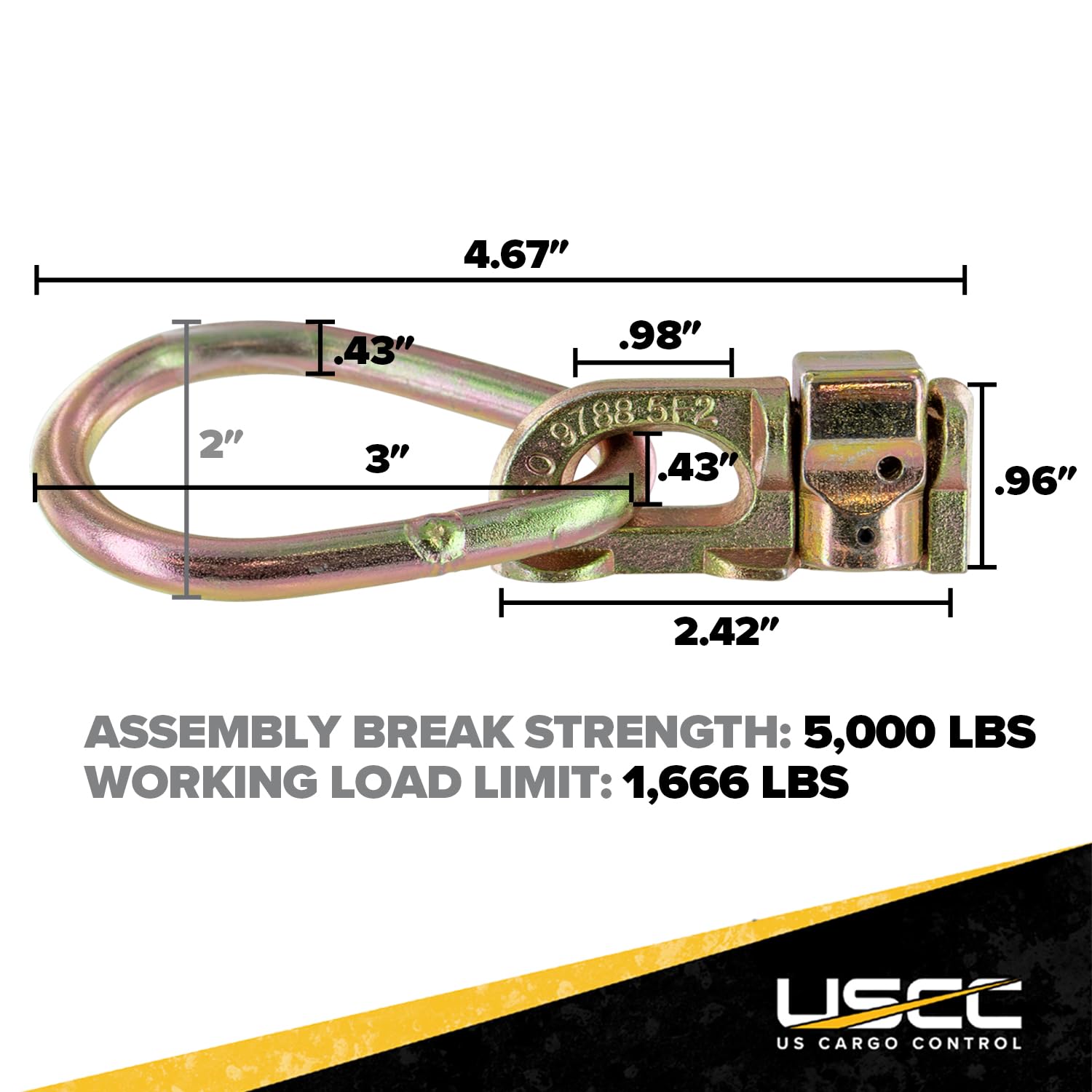

Each assembly has an industry-tested break strength of 5,000 pounds and a published working load limit of 1,666 pounds. The double-stud footprint gives greater resistance to pull-out compared with single-stud anchors, and the zinc coating offers corrosion resistance for long-term use in vehicle and trailer environments.

• Assembly break strength: 5,000 pounds per fitting.
• Working load limit (WLL): 1,666 pounds per fitting.

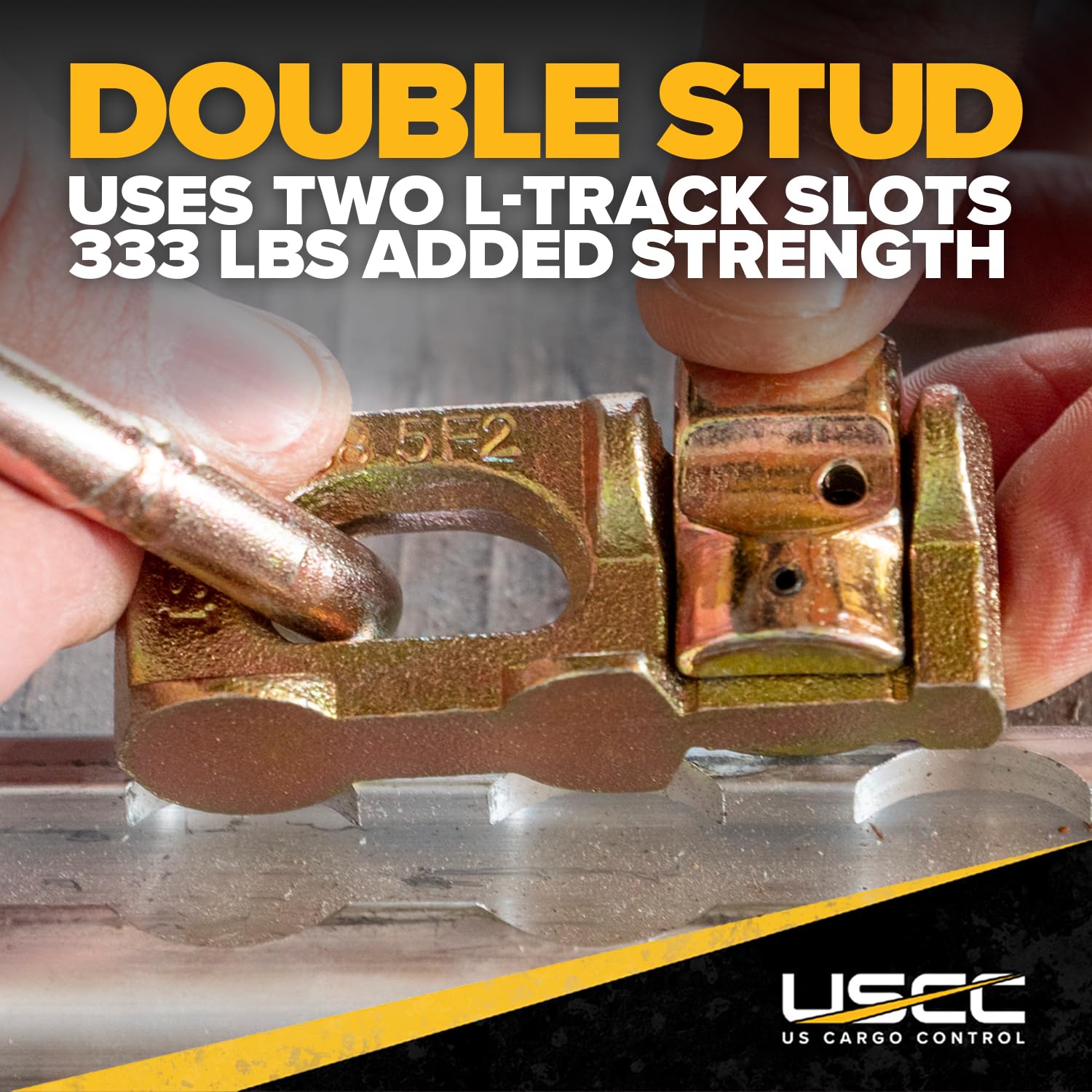

• Double-stud design distributes force across two track slots.

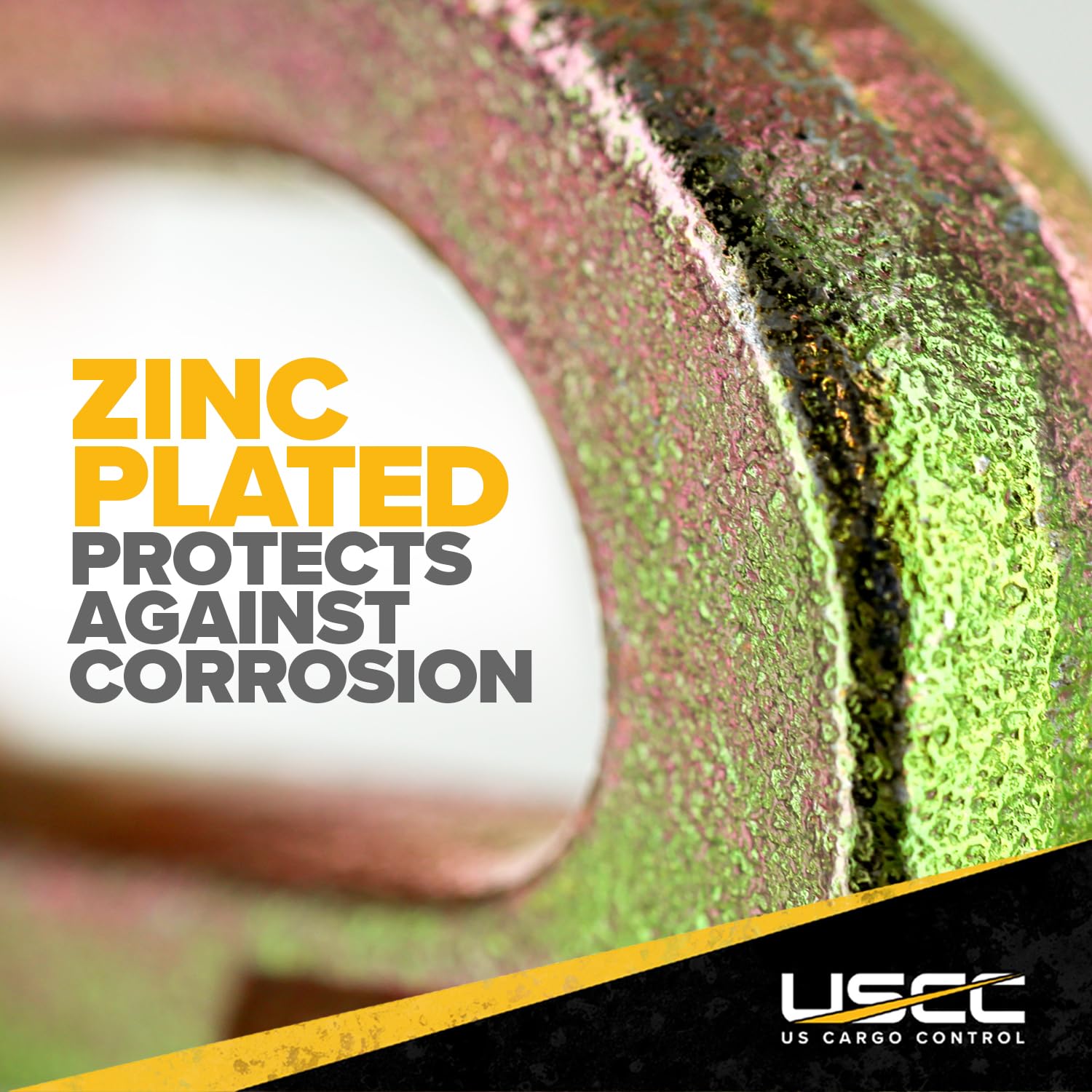

• Zinc-coated metal resists rust in wet or marine-adjacent conditions.

Which L-track types and applications are these fittings compatible with?

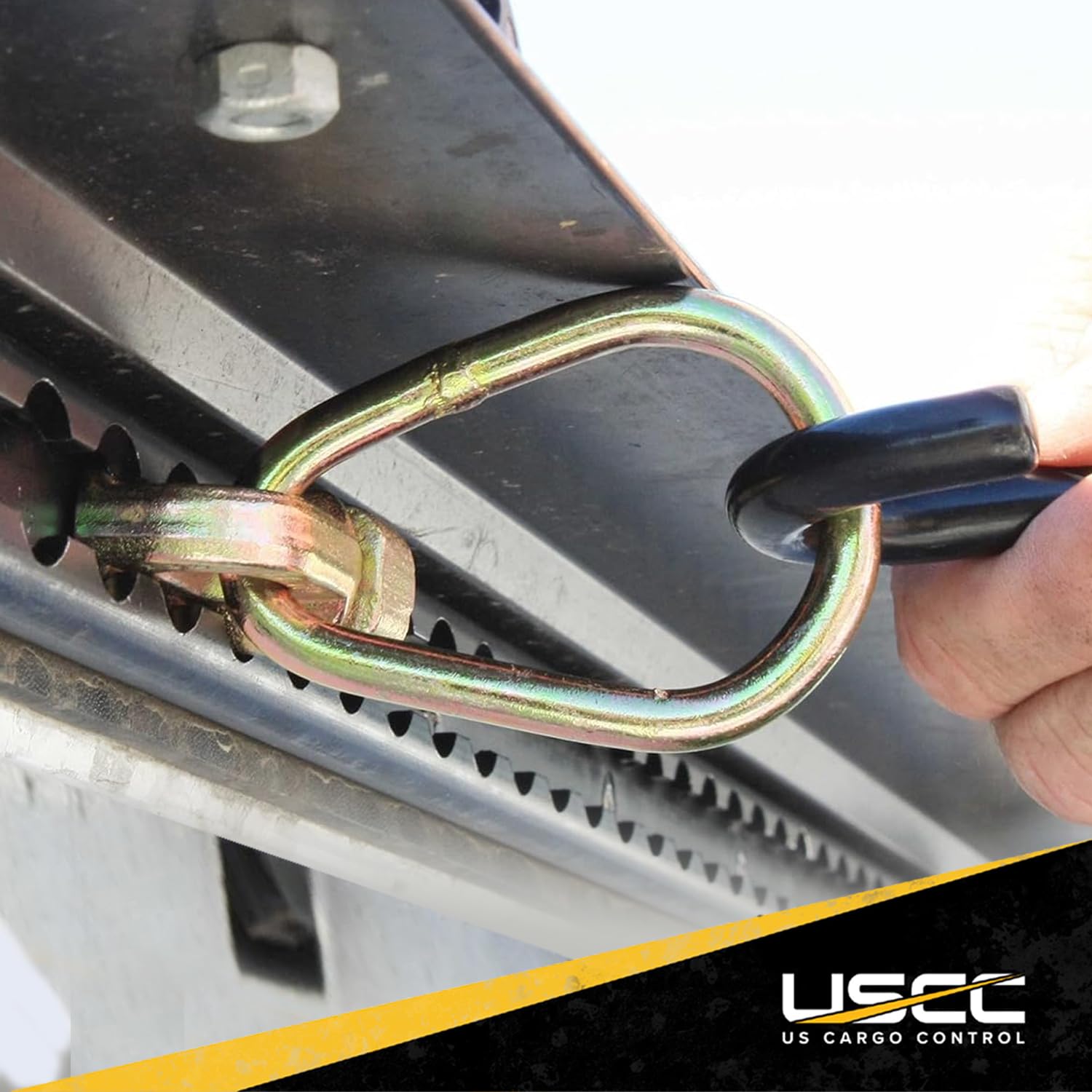

These fittings are engineered to work with a wide range of L-track profiles, letting you build flexible tie-down systems for motorcycles, ATVs, furniture, equipment, and general freight. Use them in pickup beds, enclosed trailers, cargo vans, or on retrofit rails in custom vehicles.

• Compatible with standard L-track and recessed L-track rails.
• Works with aircraft-style seat tracks and angled L-track installations.
• Good for securing motorcycles, UTVs, pallets, and heavy gear.

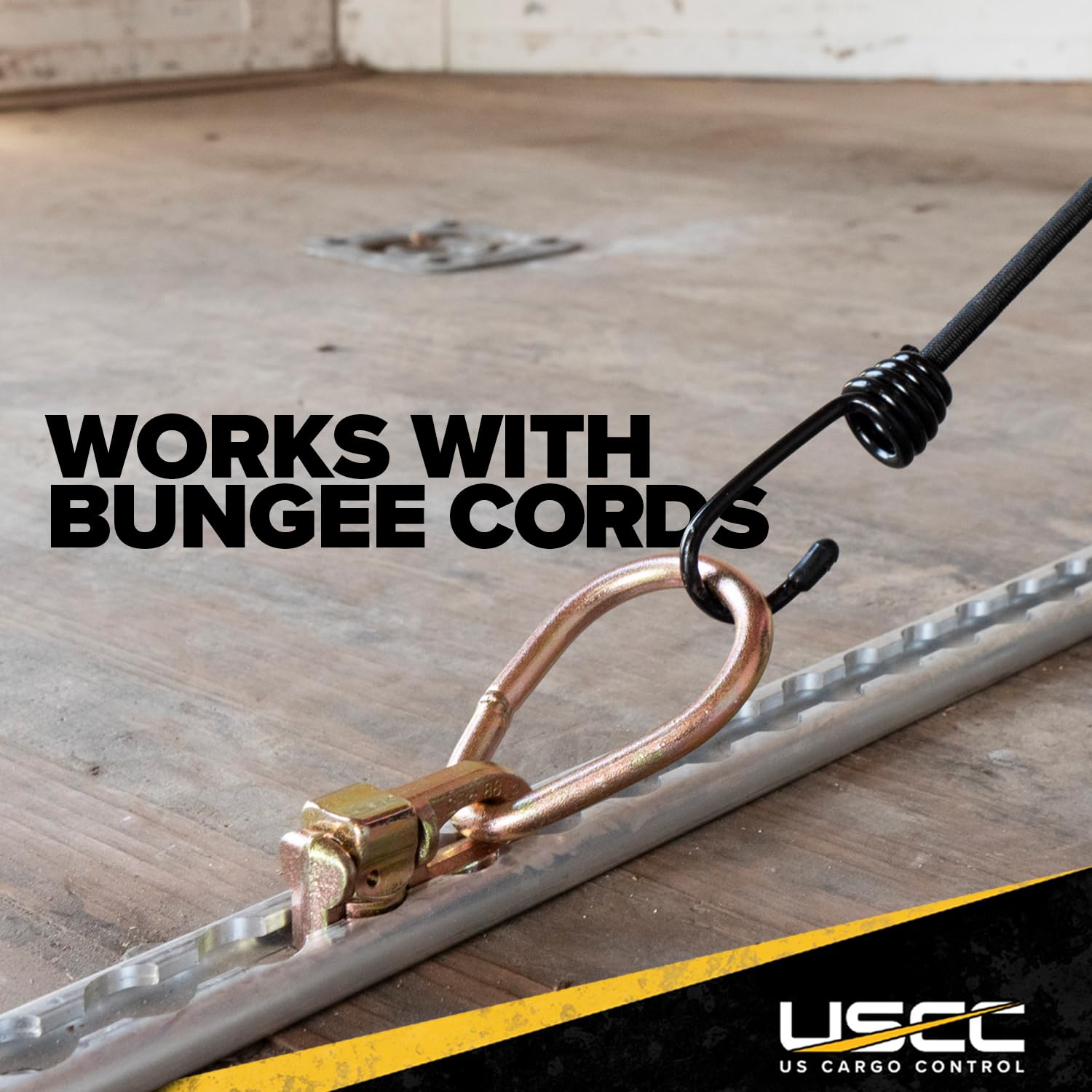

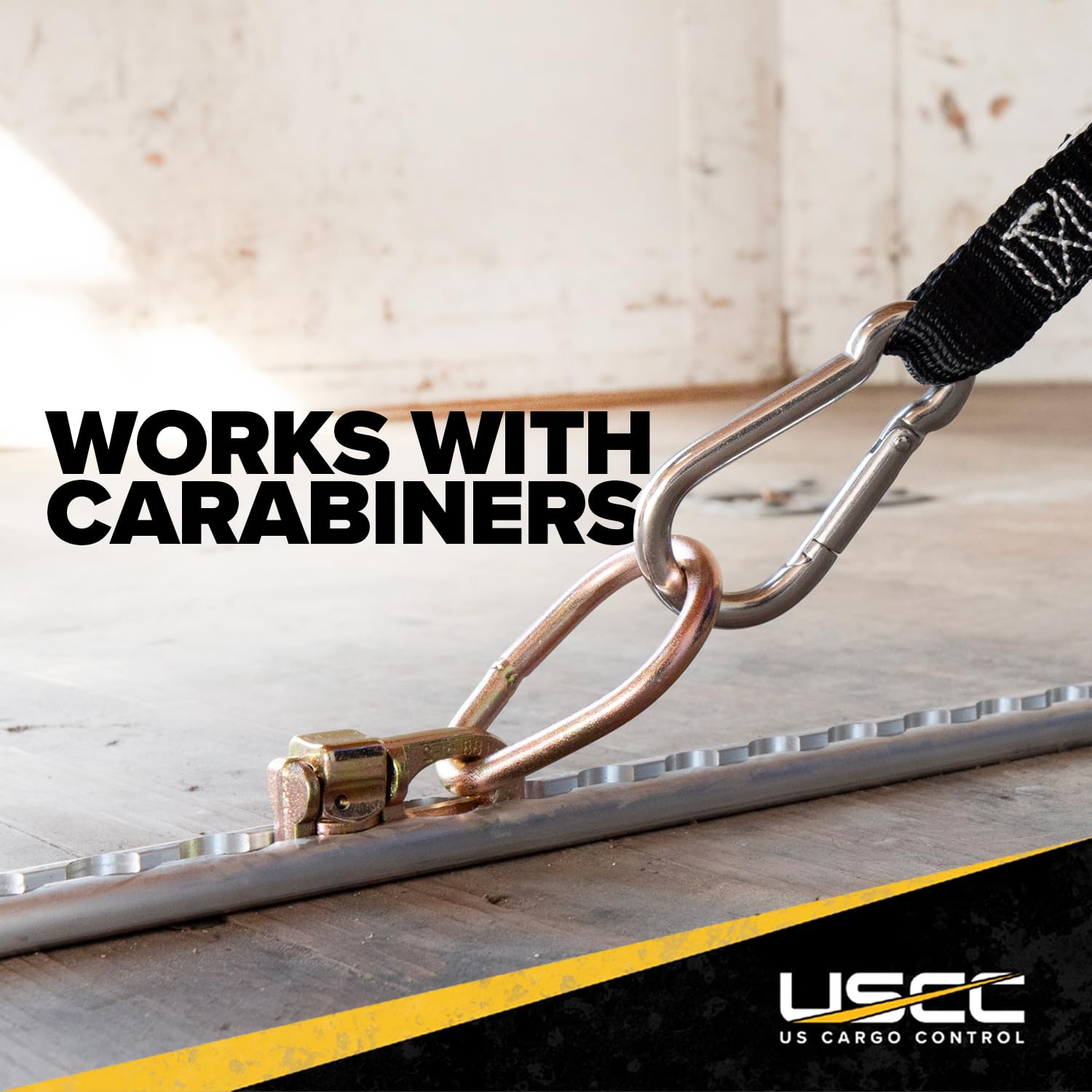

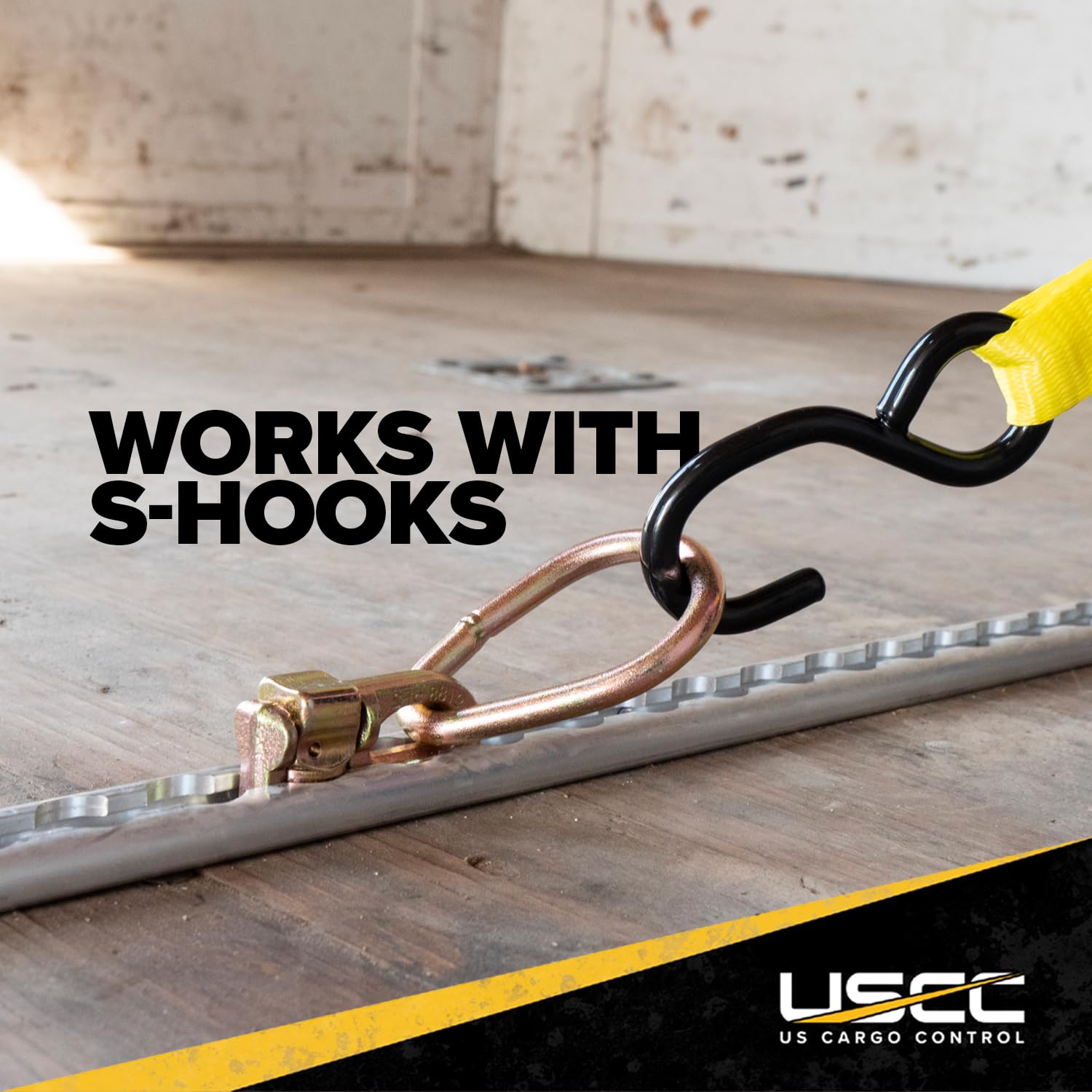

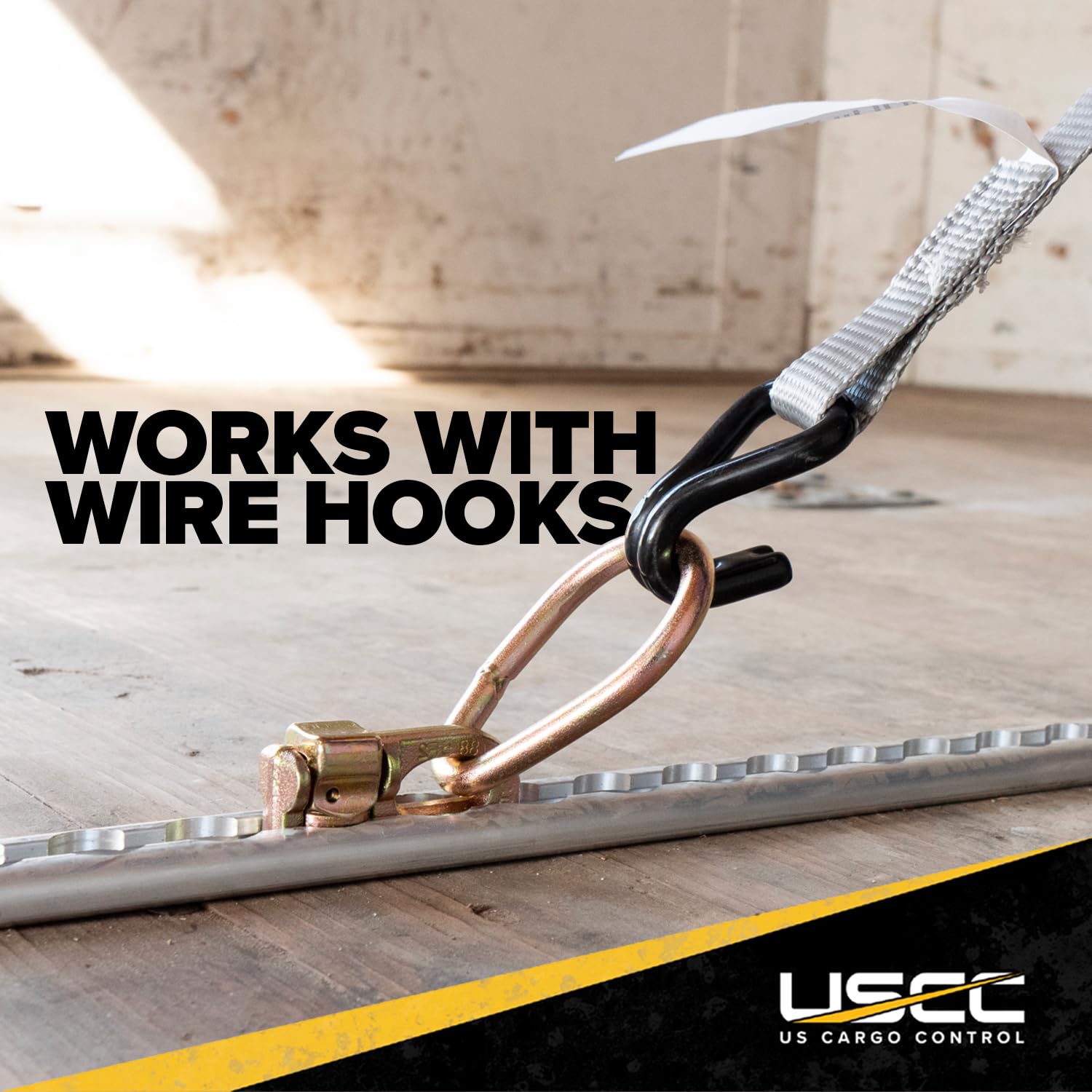

• Pear-shaped link accepts many hooks, straps, and swivel hardware.

How does the pear link and automatic lock improve usability?

The pear-shaped link provides a larger eye for easier connection of straps, hooks, or carabiners, reducing fiddly alignments during loading. The integrated spring locking clip engages automatically when positioned between slots, saving time and ensuring a consistent, repeatable lock every use.

• Pear link gives room for thicker straps and larger hooks.
• Spring lock snaps into place for fast, repeatable securement.
• Double-stud contact prevents rotation under side loads.
• Lightweight at roughly 0.38 lb each for minimal added weight.

Who is this product for? If you manage vehicle or trailer cargo—motorcycle transporters, contractors, movers, outdoor recreation enthusiasts, or fleet operators—this 10-pack gives multiple robust anchor points to build a reliable L-track tie-down system. Choose these fittings when you need quick-install anchors that balance strong load capacity, corrosion protection, and compatibility across common L-track styles.
