USSKYBOY Atlas Hydraulic Jack Plate Relay Harness for 2014+ Models — Direct-Fit Marine-Grade Replacement

USSKYBOY Replacement Relay Harness for ATLAS Hydraulic Jack Plates (Replace AHJRELAYKIT-2-DP) restores relay wiring and connections for 2014+ Atlas series and heavy-duty jack plates.

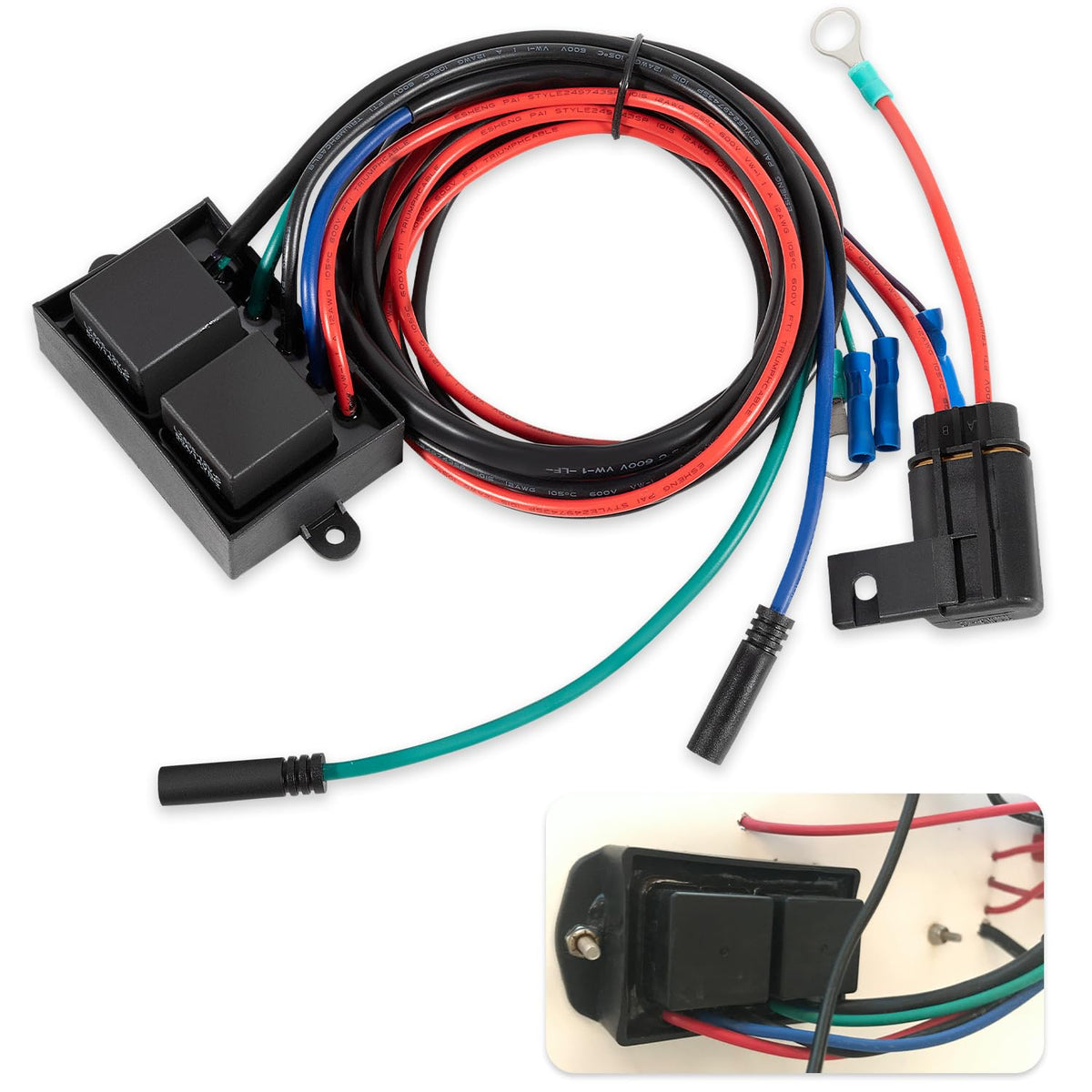

This replacement relay harness is built to match the wiring layout and connectors used on ATLAS hydraulic jack plates introduced in 2014 and later. It’s designed as a direct-fit substitute for worn, corroded, or damaged harnesses on a range of Atlas Series and Atlas Heavy Duty models, simplifying repairs and maintaining correct relay function without rewiring the entire system.

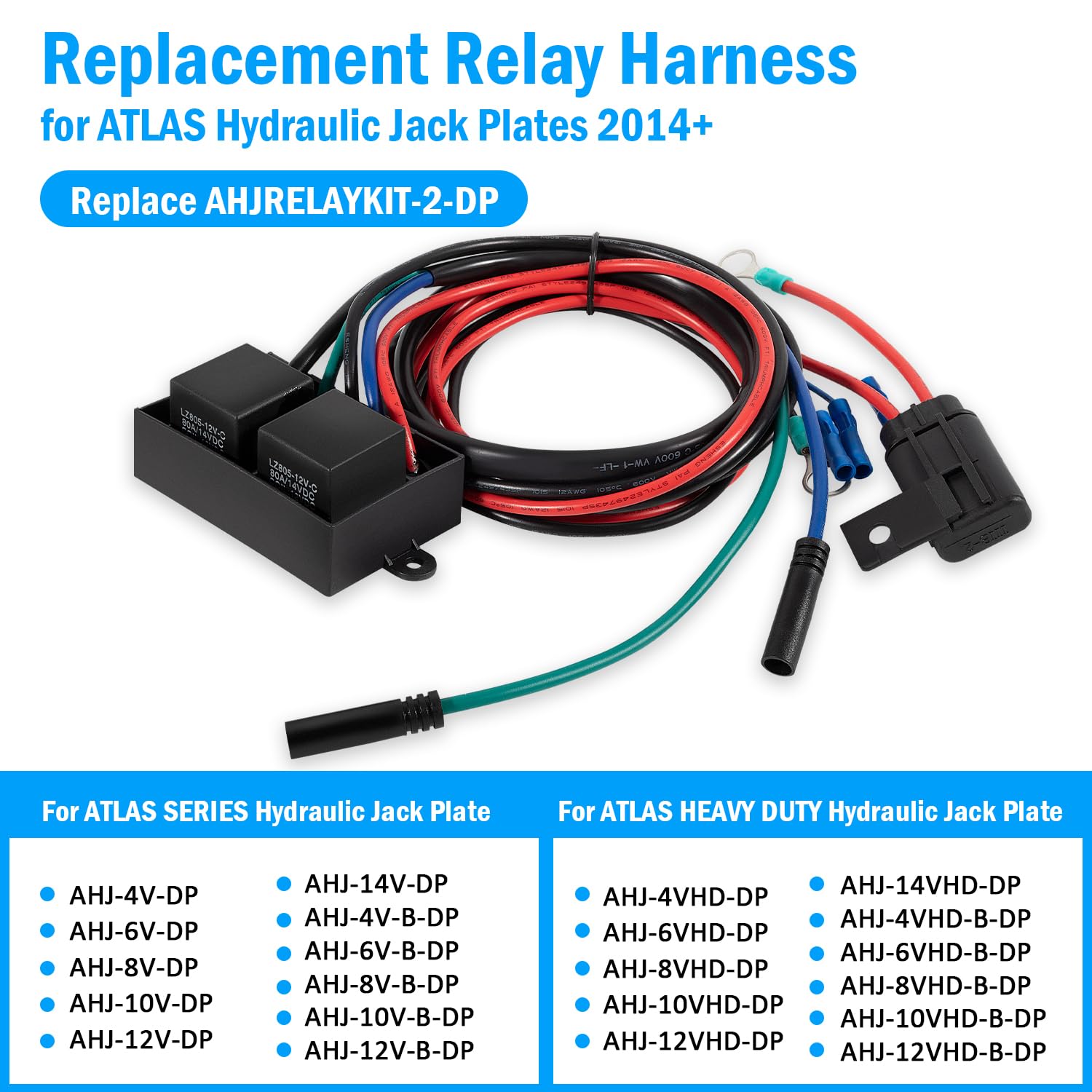

Which ATLAS jack plate models does this harness fit?

The harness is compatible with both the standard Atlas Series and the Atlas Heavy Duty line from 2014 onward. It covers a wide model range including four- through fourteen-inch designs and both base and B-series variants.

• Atlas Series: AHJ-4V-DP through AHJ-14V-DP and AHJ-4V-B-DP through AHJ-12V-B-DP
• Atlas Heavy Duty: AHJ-4VHD-DP through AHJ-14VHD-DP and HD B-series equivalents
• Designed to replace AHJRELAYKIT-2-DP wiring layout

How simple is installation for a boat owner or technician?

Installation is intended to be straightforward: the harness is pre-terminated to match factory relay locations and connectors so you can swap it in with minimal splicing. Basic hand tools and a knowledge of marine electrical safety are all that’s typically needed.

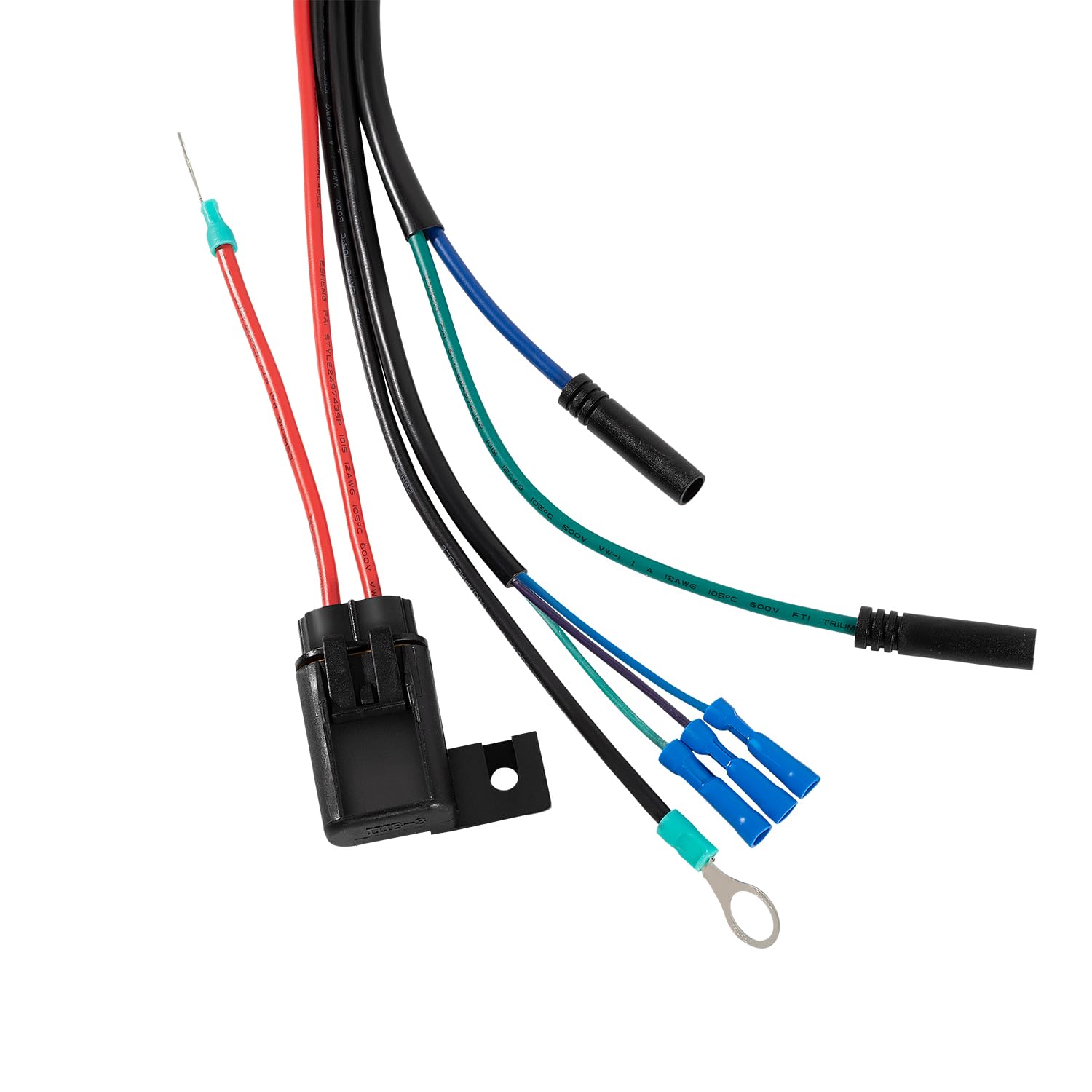

• Pre-terminated connectors match Atlas relay pins for quick swap-in
• Minimal electrical splicing required; follow vehicle/marine wiring best practices
• Works with existing relay mounting points and protective routing paths

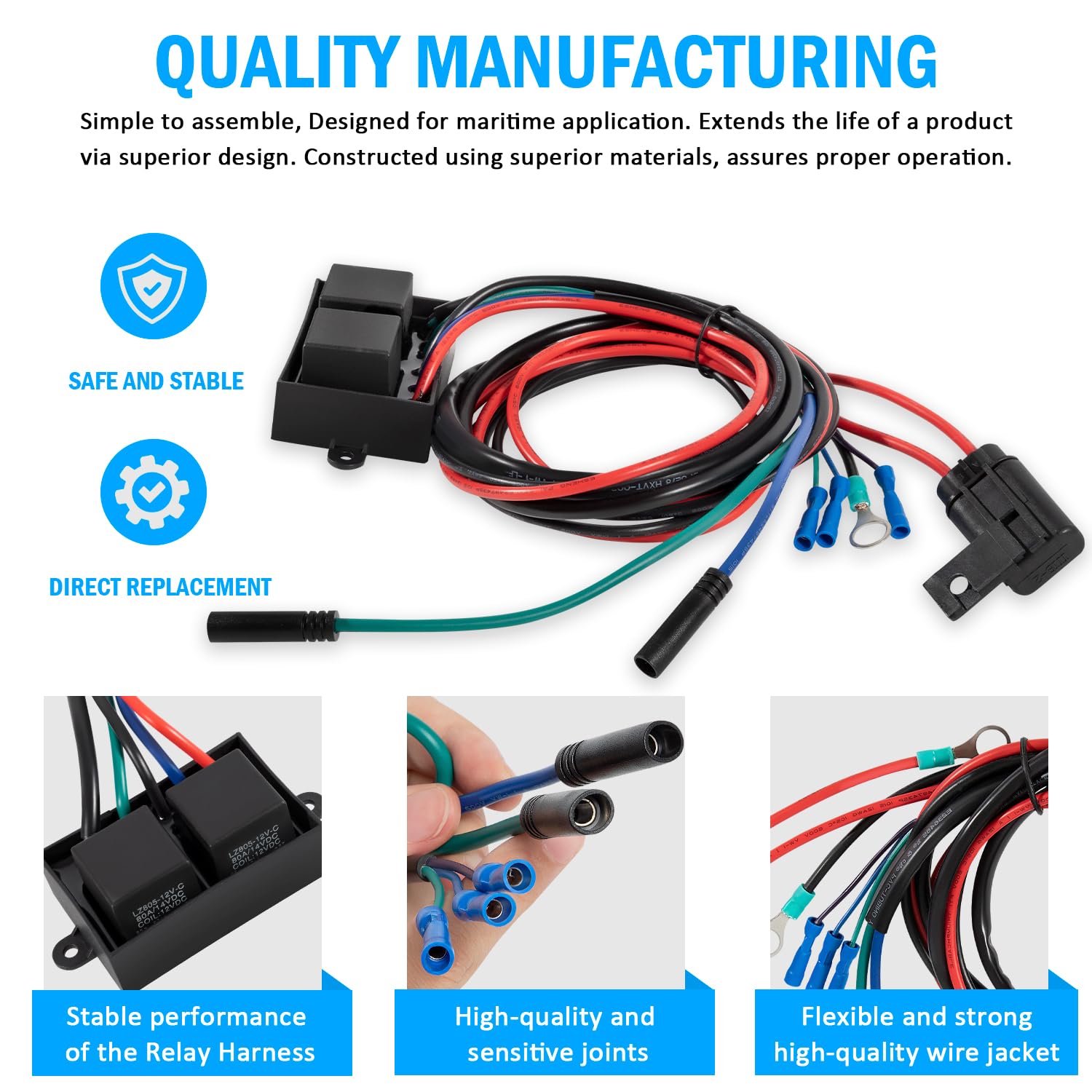

What materials and design details improve durability in marine conditions?

The harness uses marine-grade materials and attention to connector sealing to reduce corrosion and fatigue from vibration. While not a cure-all for all environmental damage, the construction emphasizes longevity and reliable contact under typical boating conditions.

• Durable wire insulation rated for marine exposure and flexing
• Robust terminals and connectors to resist corrosion and maintain contact
• Designed to follow original equipment routing and mounting for strain relief

Will this harness maintain original system performance?

This replacement harness is crafted to retain the original electrical layout and relay switching behavior when installed correctly. It’s intended as a like-for-like replacement to avoid changes in system timing or control logic.

• Matches factory wiring paths and relay pinouts to preserve original function
• Compatible with original relays and control modules used on supported models
• Helps restore reliable electrical connections without altering system design

Who is this for: boat owners, marine technicians, and service shops working on ATLAS hydraulic jack plates from 2014 onward who need a direct replacement relay harness. It’s suited for routine repair, restoration after corrosion or damage, or as a spare part stocked by professionals who service Atlas Series and Atlas Heavy Duty jack plates.
