Vanwoke Pneumatic Rivet Gun Air Riveter — 4 Nose Sizes (3/16",5/32",1/8",3/32") with High Pull Force and Quick‑Release

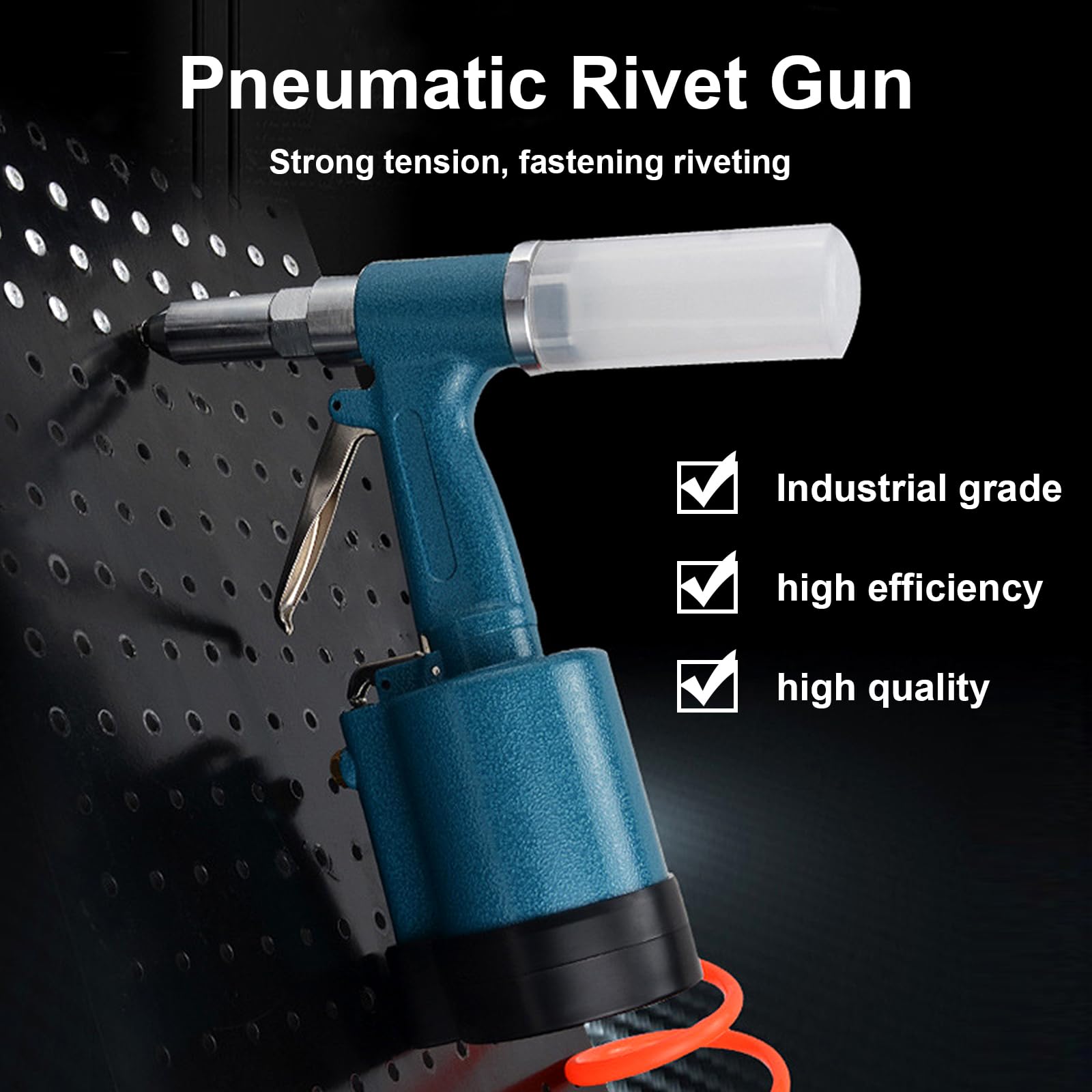

Vanwoke Pneumatic Rivet Gun is a high‑force air‑hydraulic riveter with four interchangeable nose sizes for fast, reliable pop rivet installation.

This air rivet gun pairs an air‑hydraulic drive with a compact, ergonomic body to deliver strong, repeatable pull force for aluminum and stainless pop rivets. It includes four nose cones (3/16" / 4.8 mm, 5/32" / 4 mm, 1/8" / 3.2 mm, 3/32" / 2.4 mm), several rivet mandrels, and preselected rivets so you can start light assembly work straight away. Designed to operate at 0.6–0.8 MPa (6–8 bar), it balances speed and longevity with a quick‑release valve that returns the pulling cylinder rapidly for continuous use.

How much pulling force and speed can I expect from this air riveter?

The Vanwoke tool uses air‑hydraulic amplification to generate substantial pulling power—about 1912.5 lbs (measured pull capacity)—suitable for standard pop rivets. A quick‑release air valve speeds the cylinder return, which keeps cycle time short during repetitive fastening tasks.

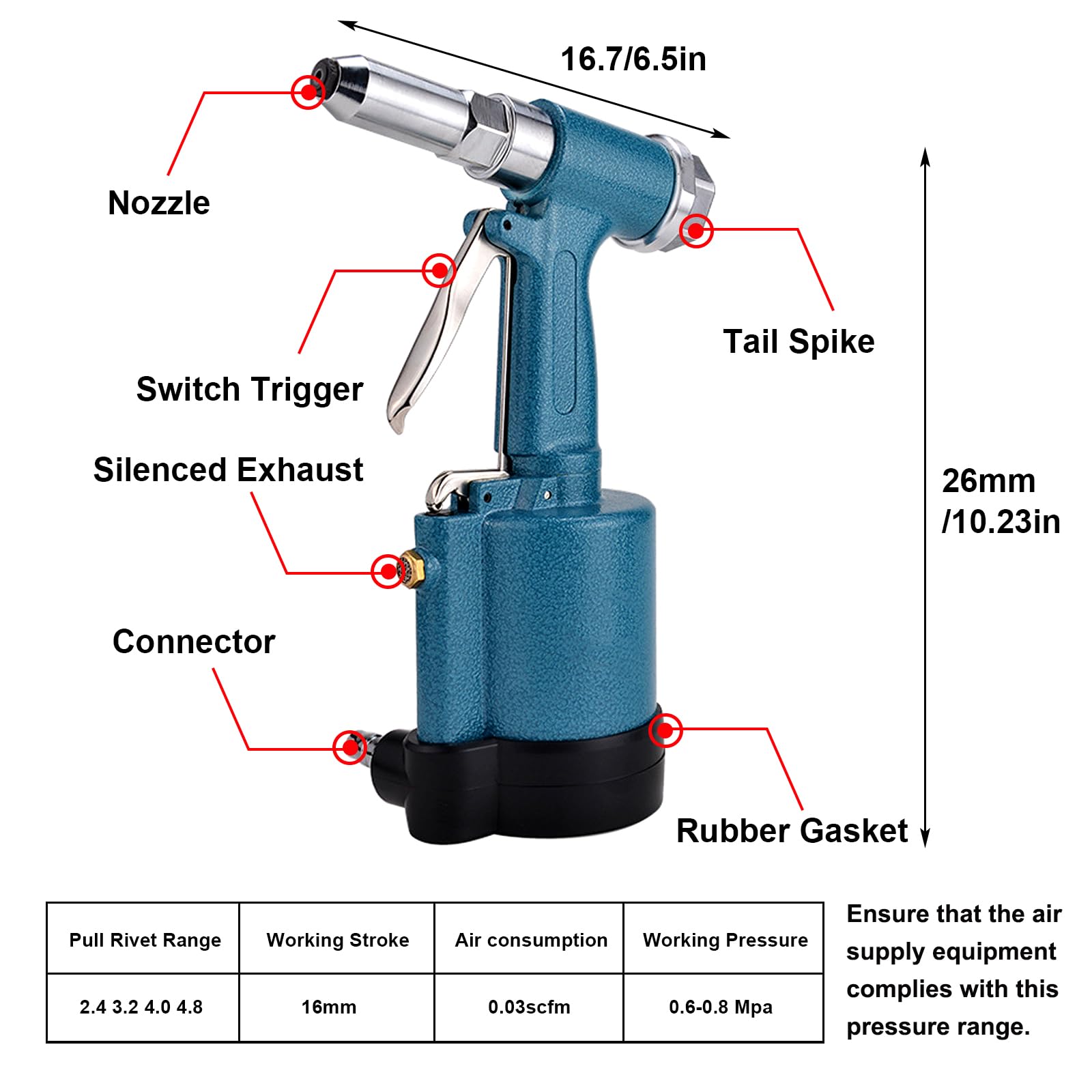

• Pulling force: ~1912.5 lbs (high‑force capability for most pop rivets)
• Operating pressure: 0.6–0.8 MPa (6–8 bar)
• Quick‑release valve for faster stroke return
• 16 mm working stroke to accommodate different rivet lengths

Which rivet sizes and consumables come with the kit?

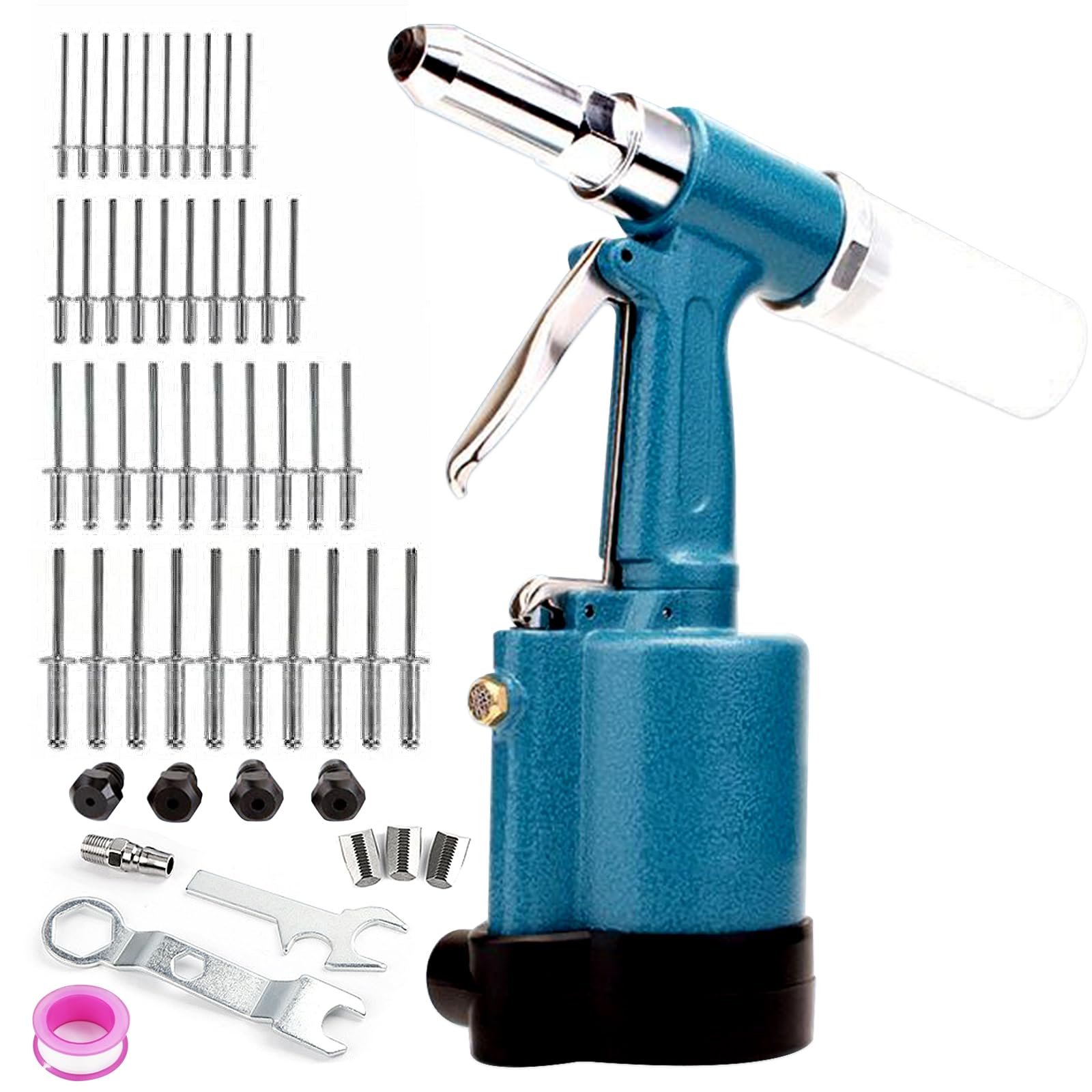

The kit ships with the four nose cones and a mixed set of aluminum pop rivets in common sizes, plus replacement rivet heads. Matching the rivet diameter to the nose is important to prevent jamming and ensure reliable feeding.

• Nose cones included: 3/16" (4.8 mm), 5/32" (4 mm), 1/8" (3.2 mm), 3/32" (2.4 mm)

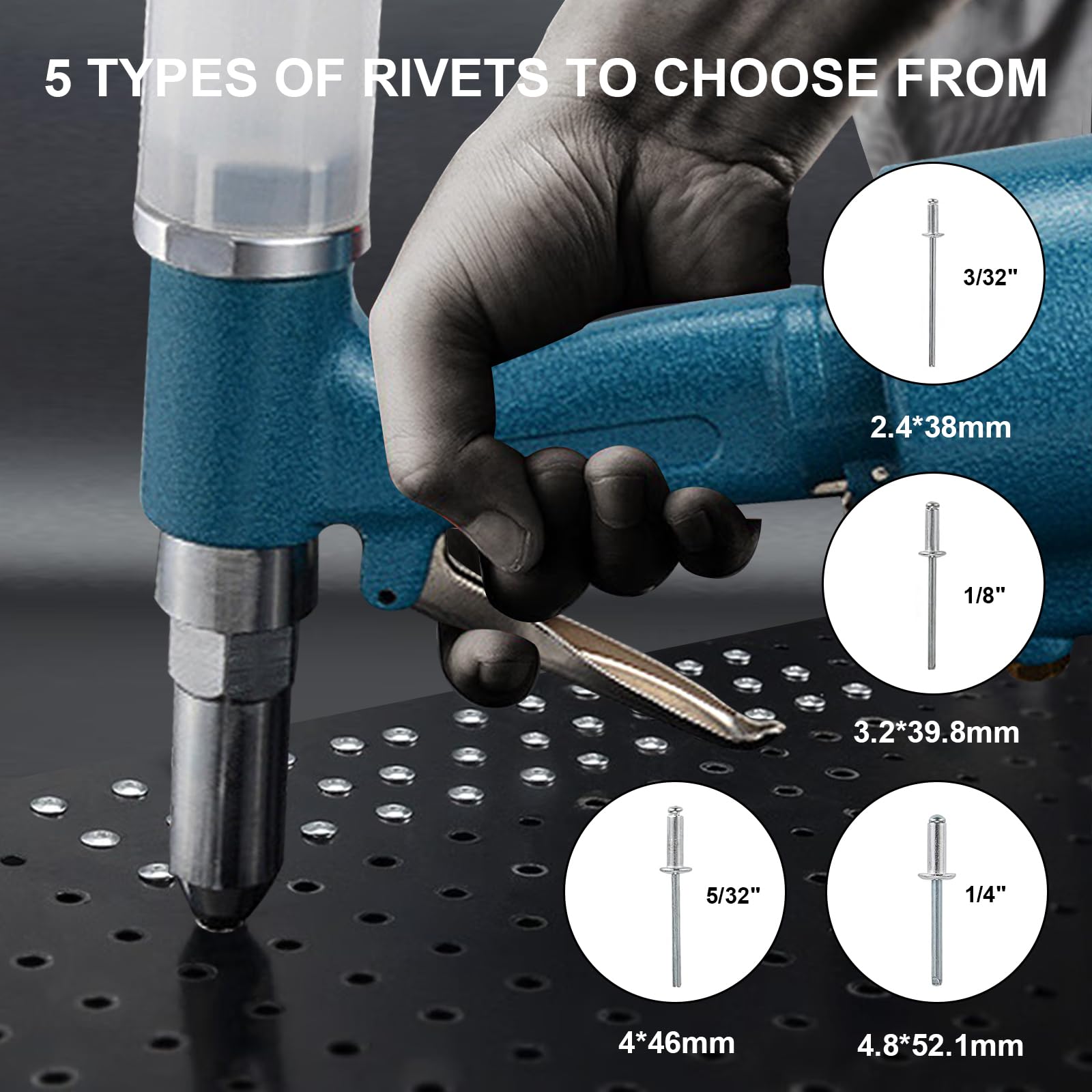

• Rivet assortment: 40 aluminum pop rivets (10 each of 3/32×1/4, 1/8×3/8, 5/32×2½, 3/16×3/4)
• Three rivet heads included for replacement
• Always match rivet mouth to rivet diameter to avoid jams

How durable and serviceable is the tool under workshop use?

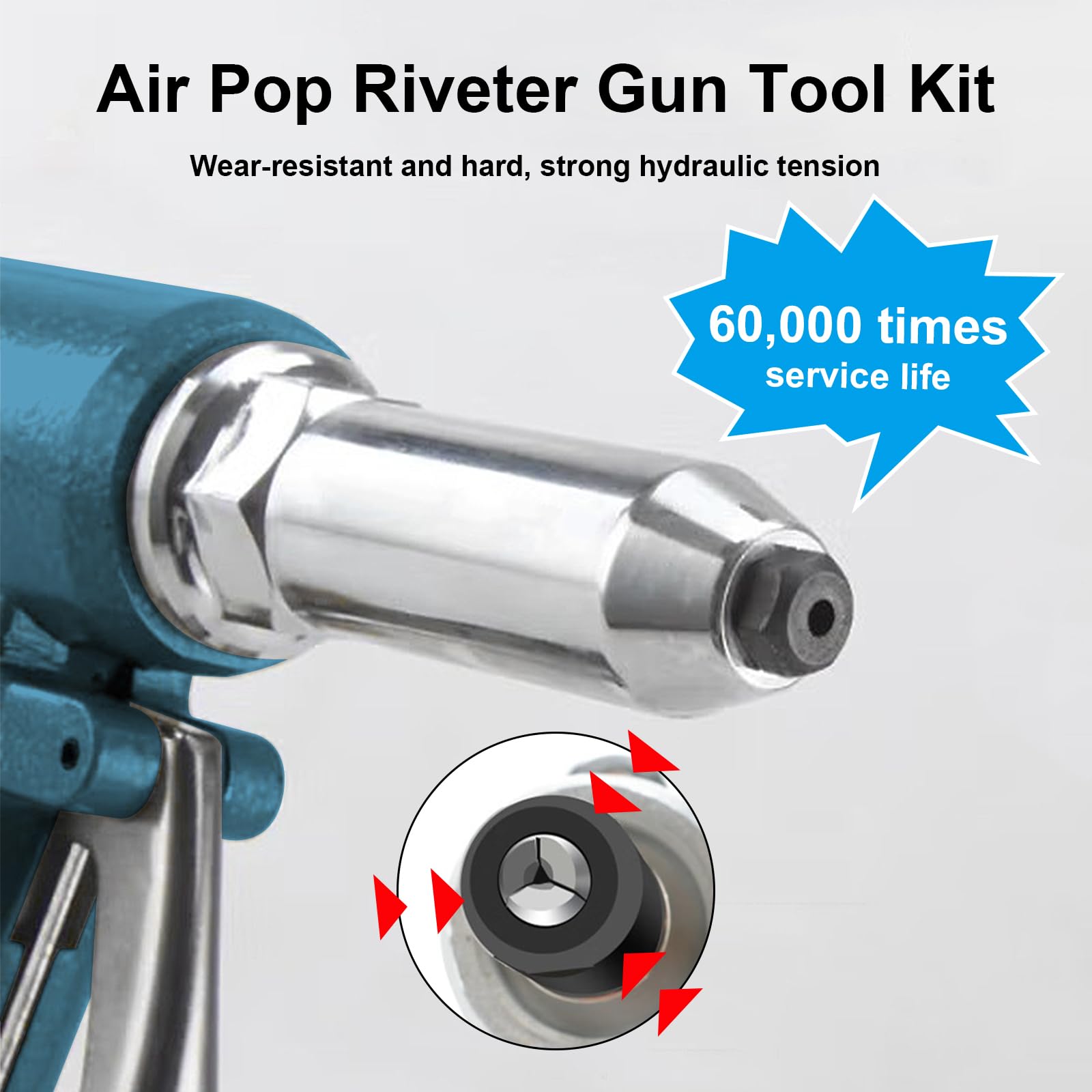

Key wear components use hardened steel: a three‑piece steel tooth assembly boosts durability and provides the grip needed for stainless rivets. The sealed air‑hydraulic mechanism reduces stress on components, and the ergonomic muffler design cuts noise while venting excess gas.

• Three‑piece steel teeth for hardness and wear resistance
• Air‑hydraulic drive minimizes direct wear on the trigger components
• Vibration‑reduction design improves comfort and reduces user error
• Compact form factor allows use in confined spaces

What should I do if a rivet doesn’t eject on the first pull?

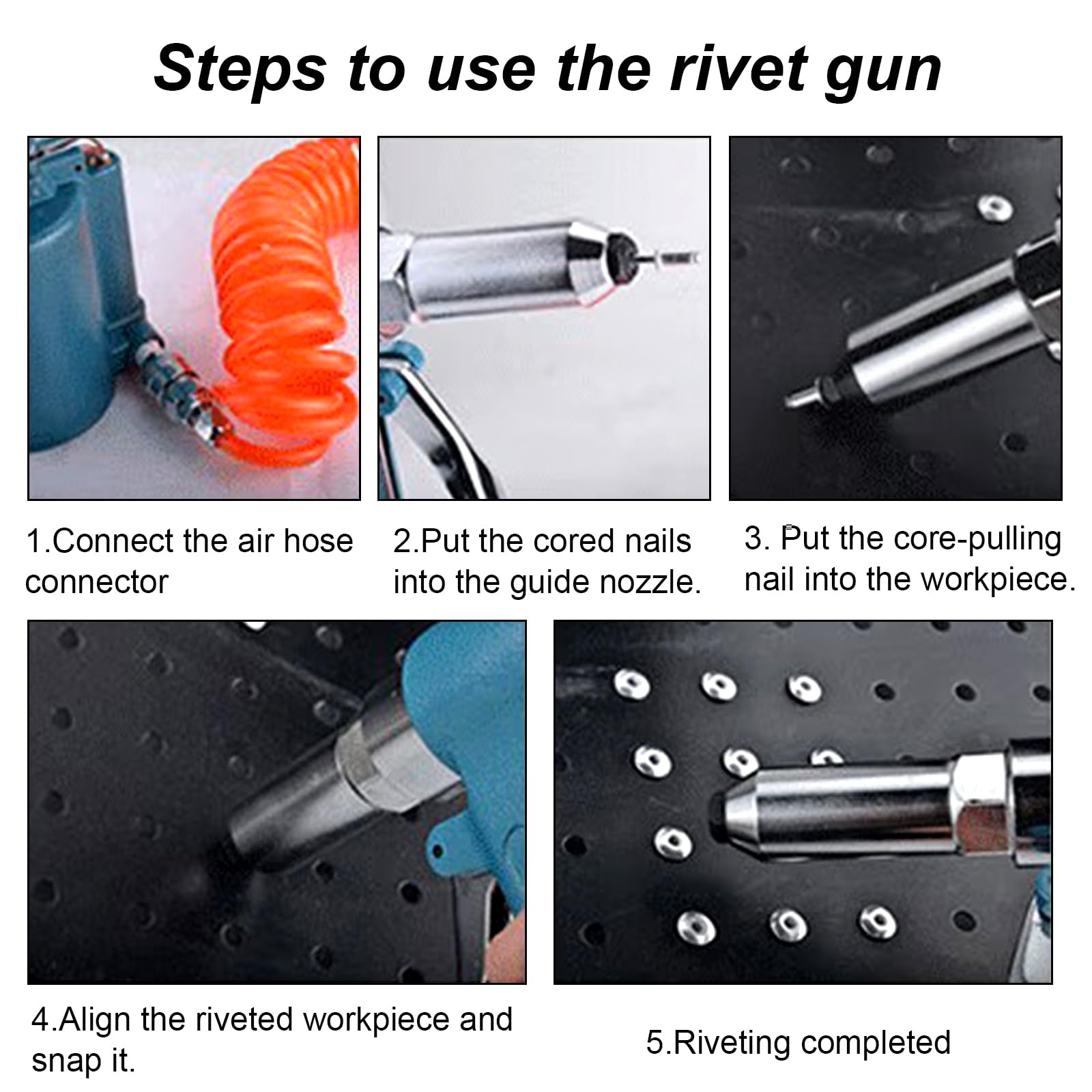

Longer rivets sometimes require additional trigger pulls to fully eject the mandrel. If a rivet remains in the holder after the first stroke, pull the trigger two or three more times rather than forcing the tool apart.

• Try 2–3 additional trigger pulls for longer rivets
• Check that the installed nose cone matches rivet diameter
• Inspect the three‑piece teeth for wear or foreign debris
• Maintain recommended air pressure (6–8 bar) for consistent cycles

Who is this for? The Vanwoke Pneumatic Rivet Gun is aimed at light industrial fabricators, auto‑body professionals, HVAC and sheet‑metal workers, and skilled DIYers who need a durable, fast‑cycling air‑driven pop riveter. It suits repetitive assembly and repair jobs where consistent pull strength, easy access to tight spaces, and quick changeover between rivet sizes are priorities.
