VEVOR Underhoist Support Stand 3/4 Ton Threaded Jack 52.8–76 in Height, Rubber-Padded U Tray

VEVOR's underhoist support stand is an adjustable 3/4-ton threaded jack designed to safely support and position vehicle components while you work beneath the car.

This heavy-duty underhoist support stand combines a robust tubular steel frame, a wide base, and a U-shaped, rubber-padded tray to hold parts like transmissions, radiators, and exhaust sections during removal or installation. Built for garages and home shops, the stand offers a tall adjustment range and a thrust-bearing spin handle so you can fine-tune height under load without excessive effort. Use at least two stands together to support small cars and similar vehicles safely.

How tall does this jack stand reach, and will it fit my vehicle?

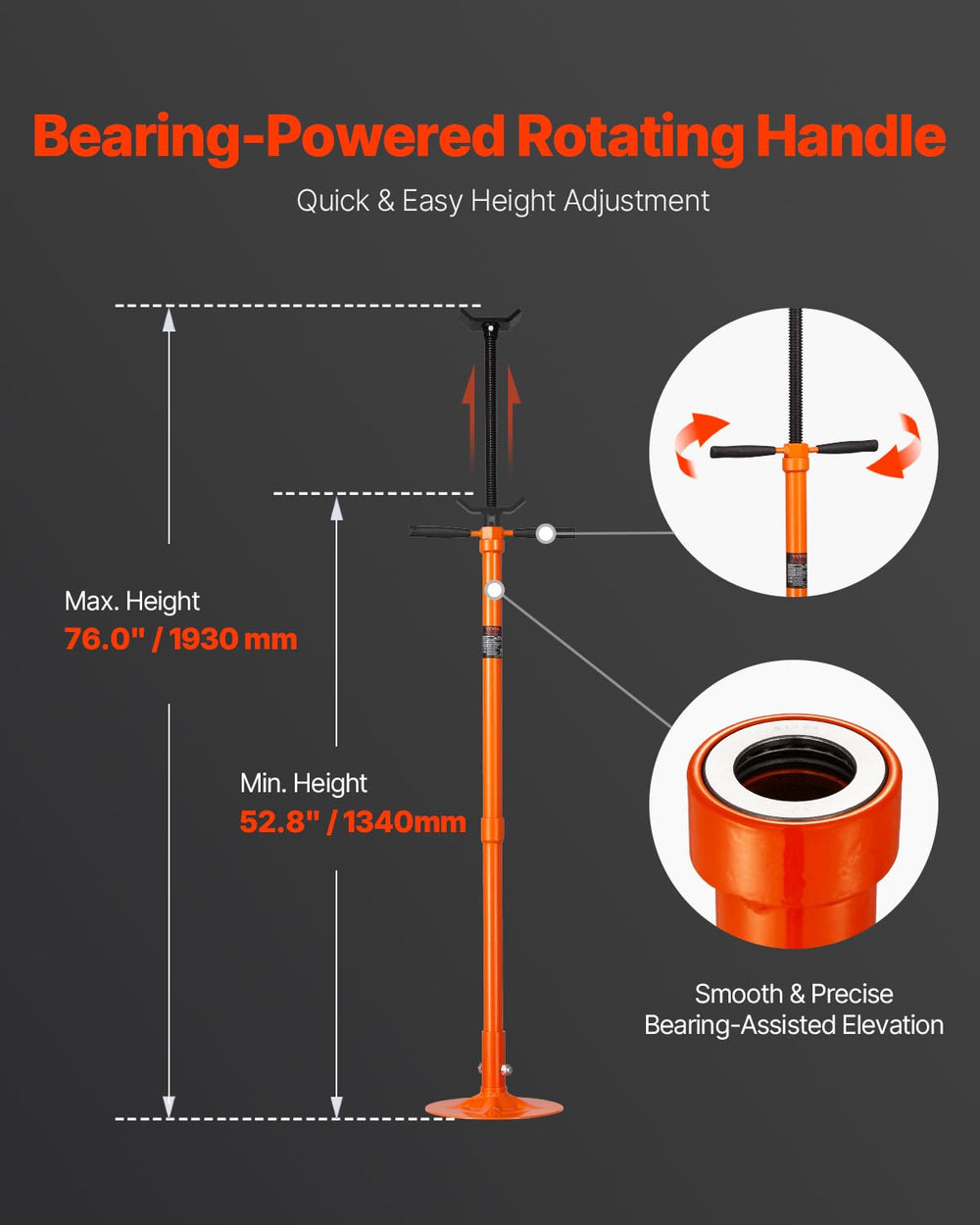

The stand adjusts from 52.8 inches to 76.0 inches (1340–1930 mm), covering most common under-vehicle clearances and component positions. The long travel lets you support assemblies at different stages of removal or lift to align parts for reinstallation.

• Height range: 52.8"–76.0" (1340–1930 mm)
• Fine adjustment via threaded rod and spin handle
• Useful for transmissions, drive shafts, exhausts, and radiators

Is it strong and stable enough for workshop use?

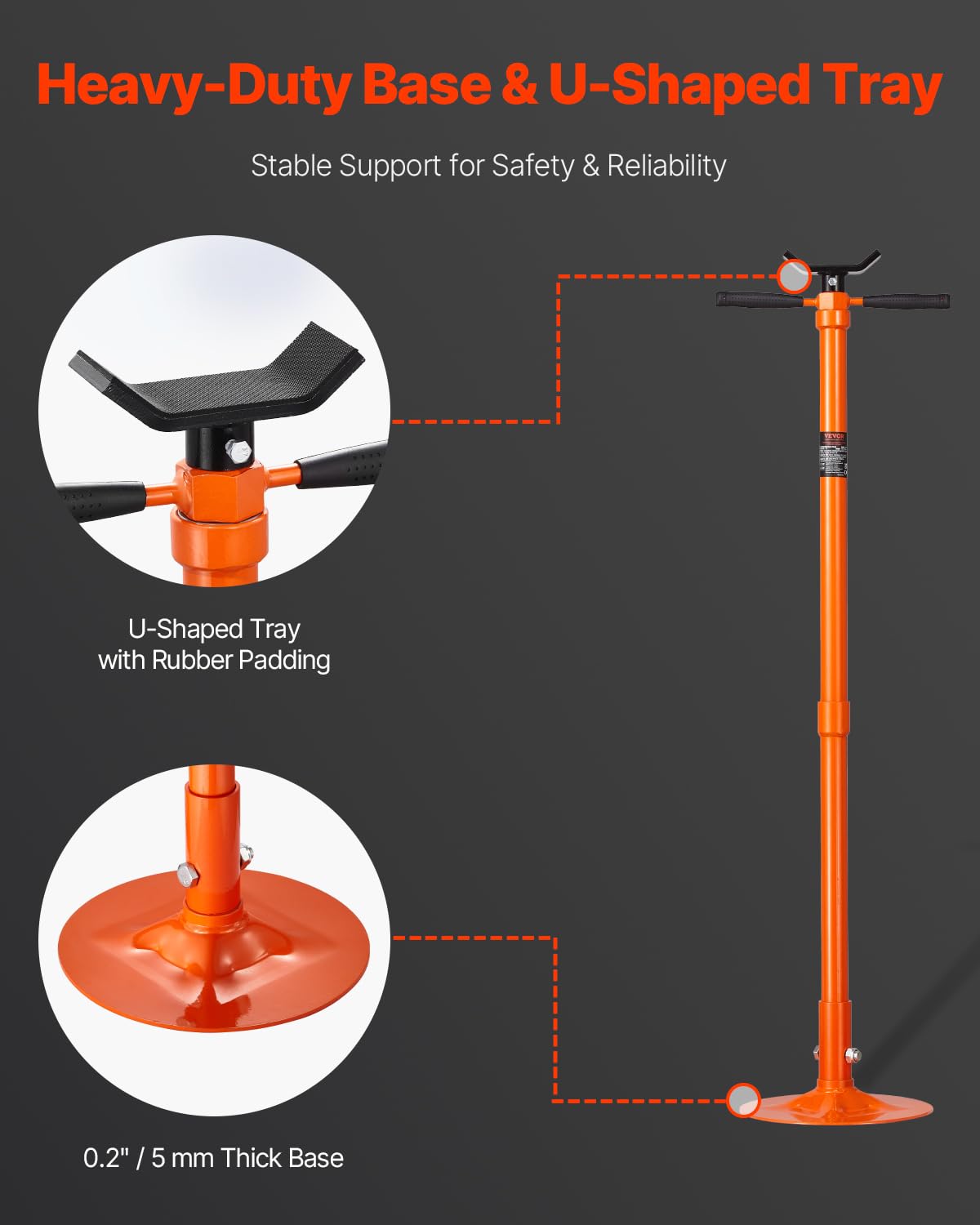

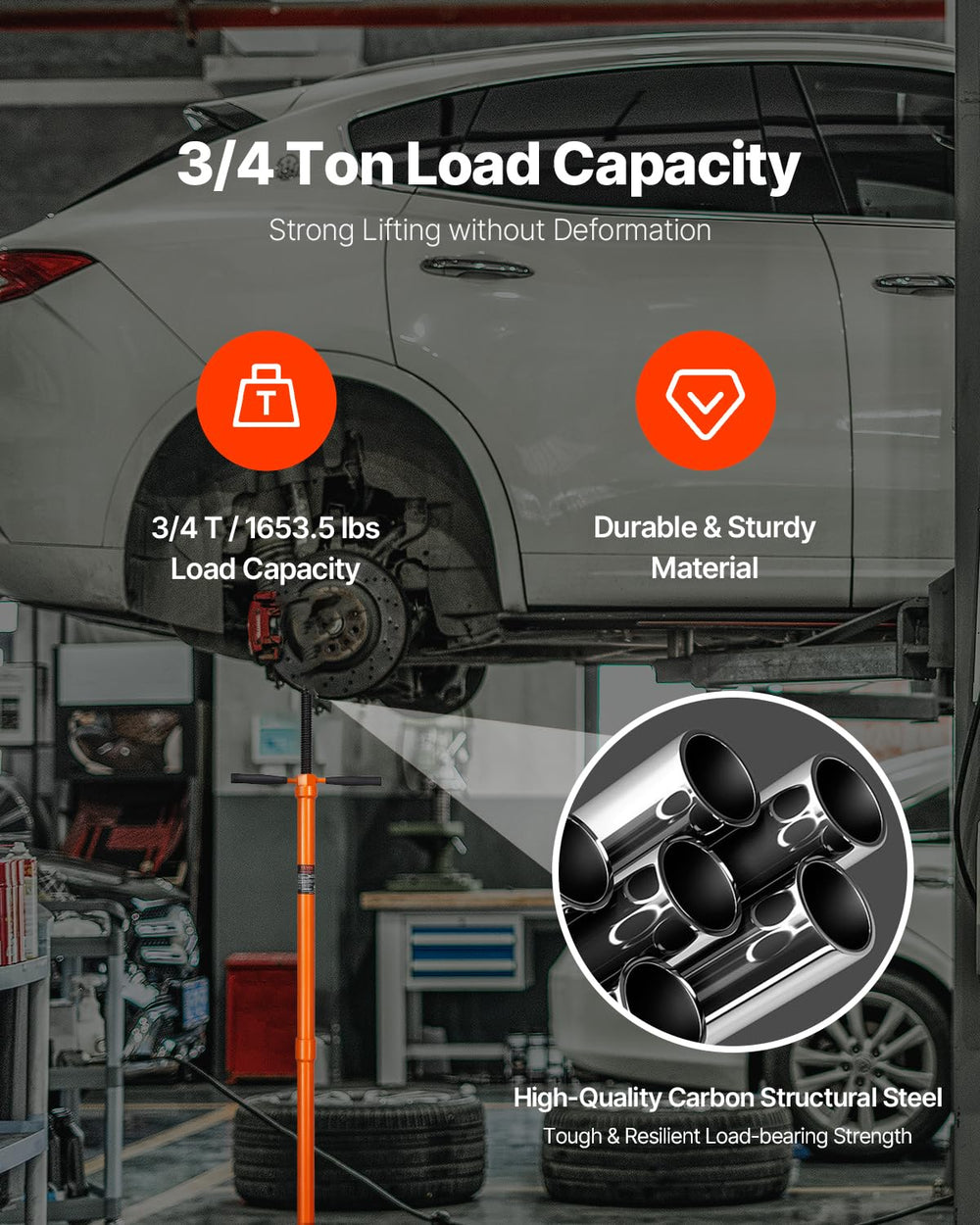

Yes—the stand is rated for a 1653.5 lb (0.75 ton) load and uses a tubular steel frame engineered to resist bending and twist. A 5 mm thick circular base distributes weight to reduce tipping, while the U-shaped tray with rubber padding holds parts securely without scratching.

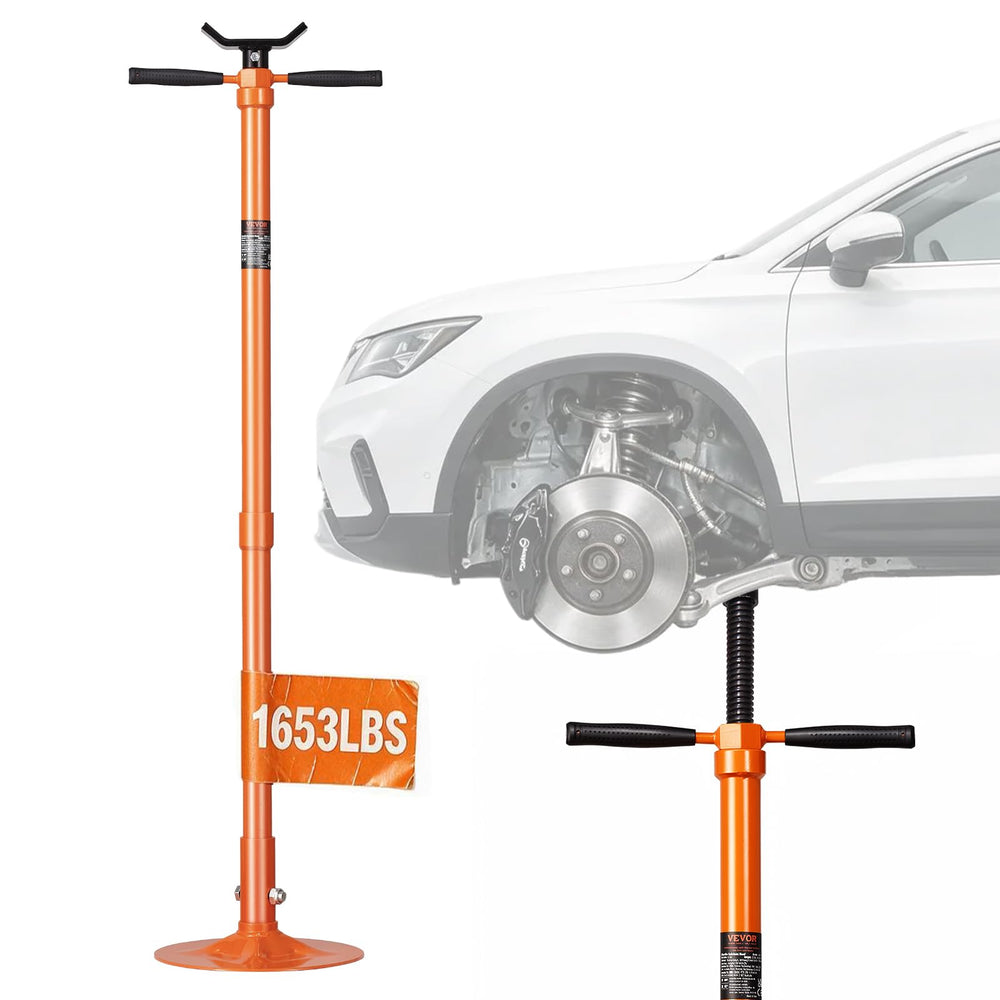

• Load capacity: 1653.5 lbs (0.75 ton)
• 0.2" (5 mm) thick wide base for stability
• U-shaped rubber-padded tray prevents slipping and damage

How do I adjust and lock the height safely under load?

The stand uses a threaded screw rod with a self-locking feature that prevents unintentional lowering. A bearing-mounted spin handle reduces friction so you can raise or lower the stand smoothly even when supporting heavy components; the rubber grip gives added comfort and control.

• Thrust-bearing spin handle for easier raising and lowering
• Self-locking threaded rod prevents accidental descent
• Rubber handle for secure, comfortable operation

What jobs is this underhoist support best suited for?

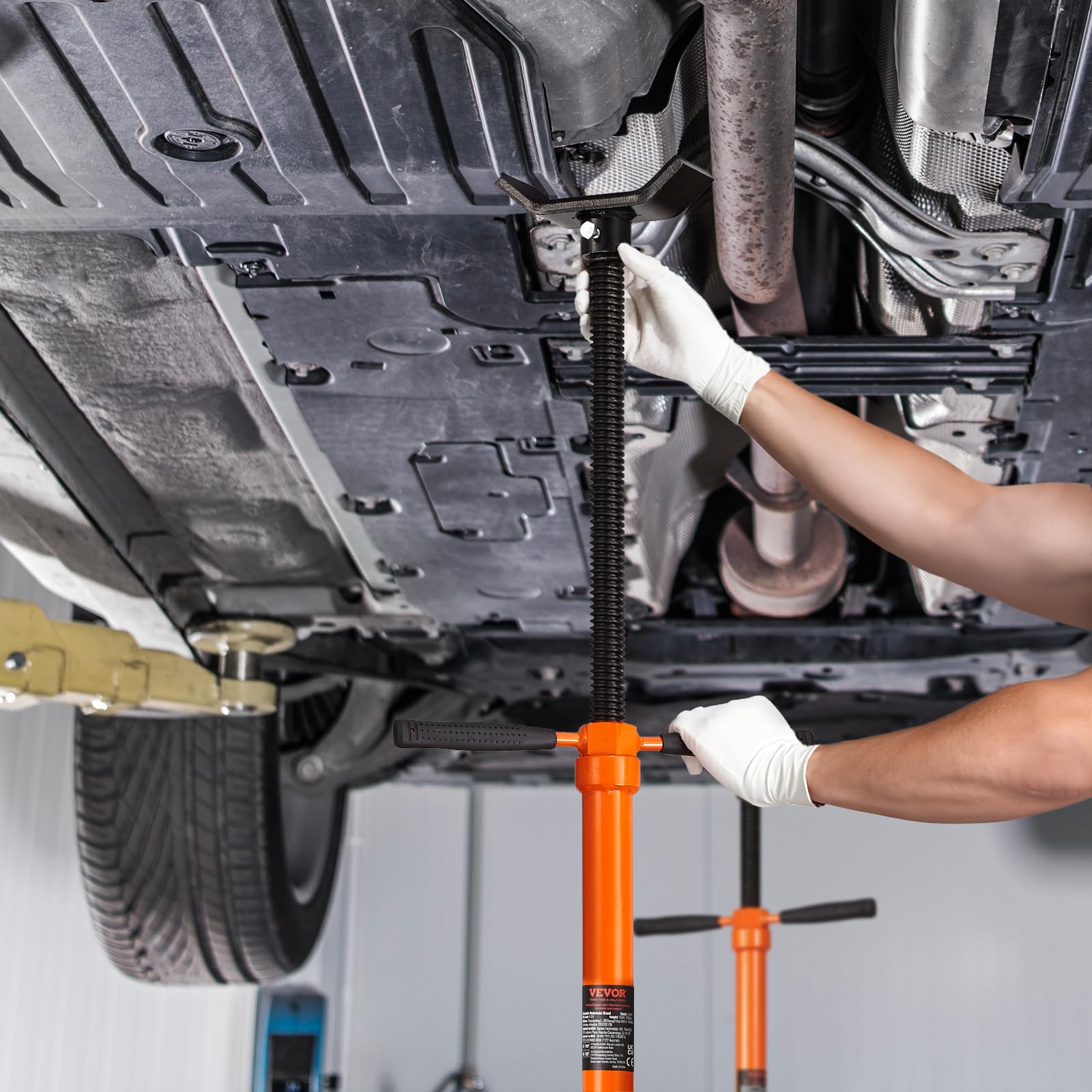

This screw jack is geared toward technicians and DIYers who need precise support when removing or positioning vehicle parts. It’s especially helpful when two stands are paired to cradle larger assemblies or when you need to hold a load at a fixed height for alignment tasks.

• Supports and positions transmissions, CV joints, and drive shafts
• Holds radiators, catalytic converters, and exhaust sections in place
• Helps during installation, removal, and alignment work

Who is this for: The VEVOR Underhoist Support Stand suits professional mechanics, small commercial shops, and knowledgeable home mechanics who already use jacks and lifts and need a reliable, height-adjustable support for component work. It’s not a substitute for full vehicle stands or hoists; use it as a dedicated aid for holding or positioning parts while you perform repairs or installations. Always pair stands as recommended and follow safe-lift practices.
