Vgate 20-Way Battery Post Distribution Block for Tapered Top Posts — 8 AWG–2/0 Input, 12 Studs, 6–48V

Vgate's 20-way lead-acid battery post distribution block organizes multiple power feeds on tapered top posts, accepting 8 AWG up to 2/0 input and offering 12 threaded studs for versatile connections.

This compact bus bar converts a single SAE/DIN/EN battery post into a neat, serviceable distribution point for up to 20 conductors. Built for lead-acid chemistries (AGM, GEL, WET, MF and CA/CA), it supports common voltages from 6 V to 48 V and accommodates a wide range of wire gauges, making it a practical upgrade for marine, RV, off-grid, and industrial battery installations. Lithium batteries can use this block when paired with a stud-to-post adapter or compatible terminal conversion.

How does the Vgate block simplify wiring on tapered top battery posts?

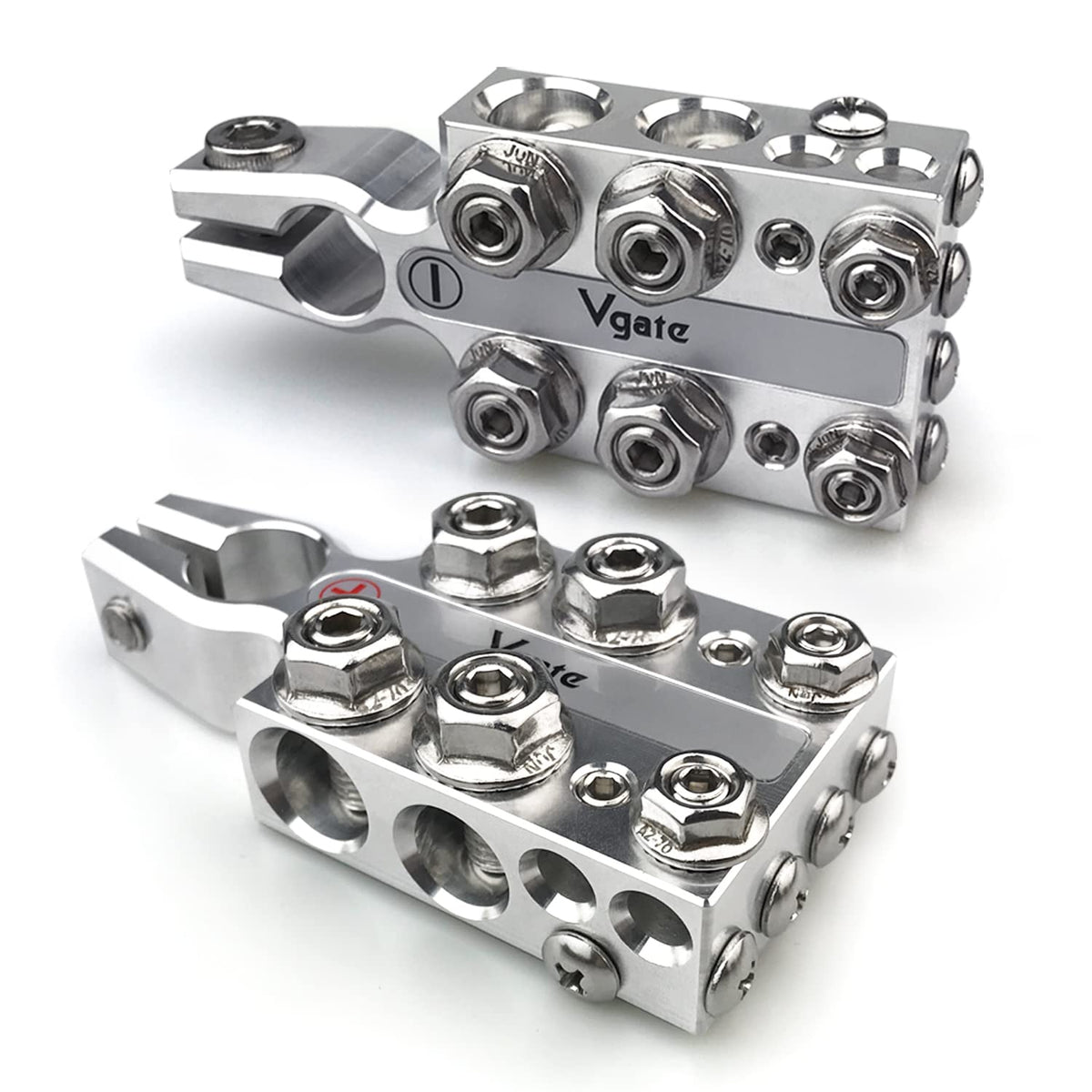

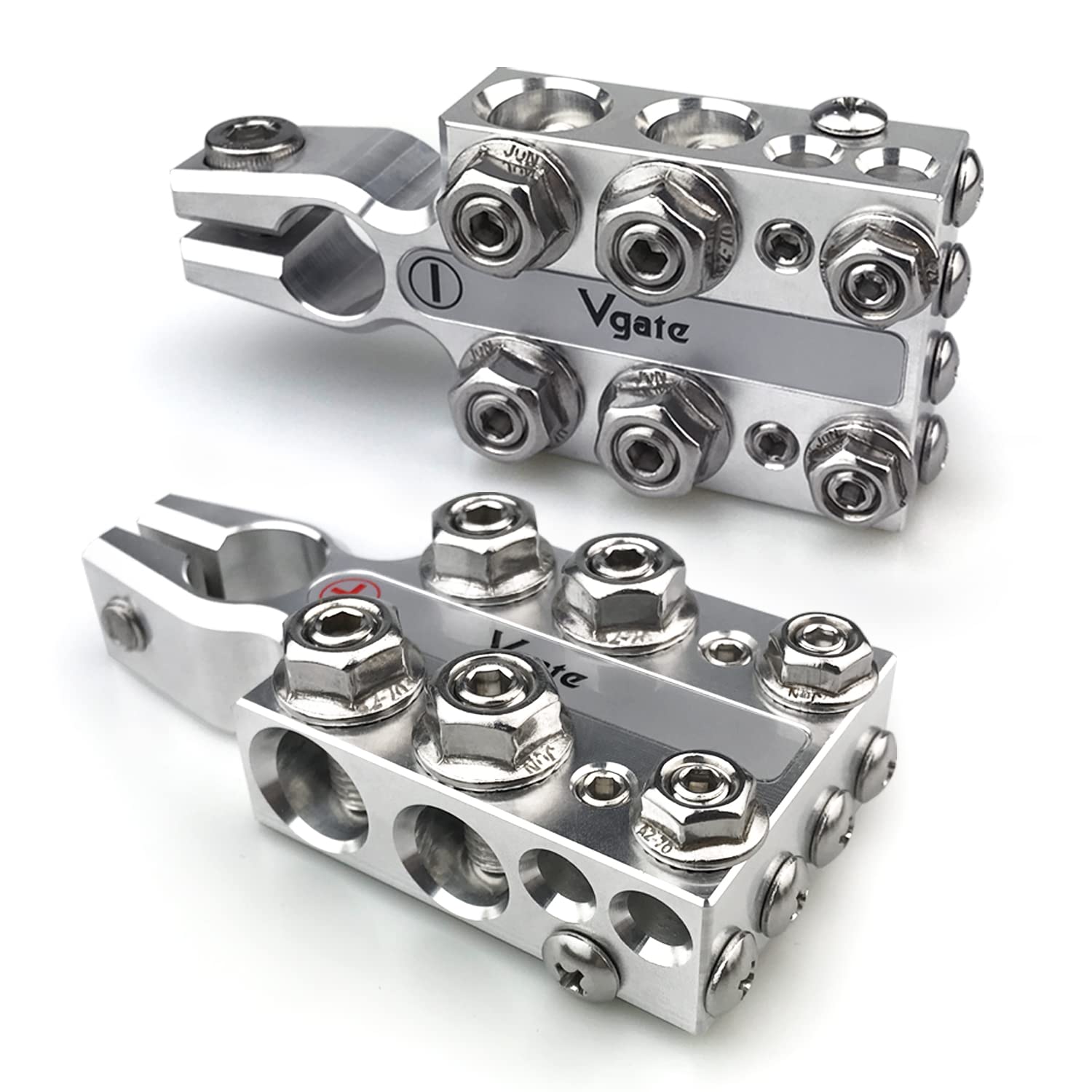

The distribution block centralizes multiple circuits onto one battery post so you avoid overcrowding clamps and messy pigtails. It provides 8 input holes sized for heavier wires and 12 threaded studs for ring terminals, so installers can separate loads cleanly and add or remove circuits without disturbing other connections.

• 8 input hole holders sized for 8 AWG up to 2/0 AWG inputs.

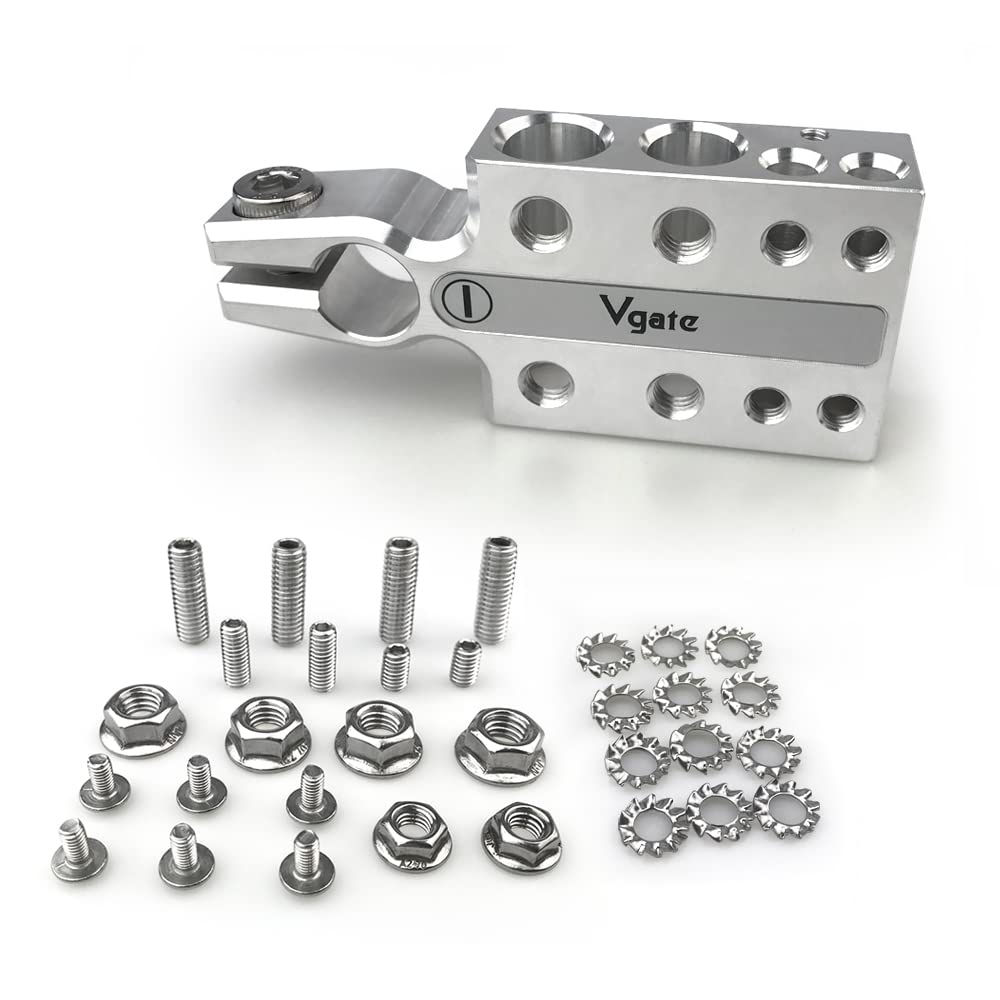

• 12 threaded studs for quick ring-terminal attachments.

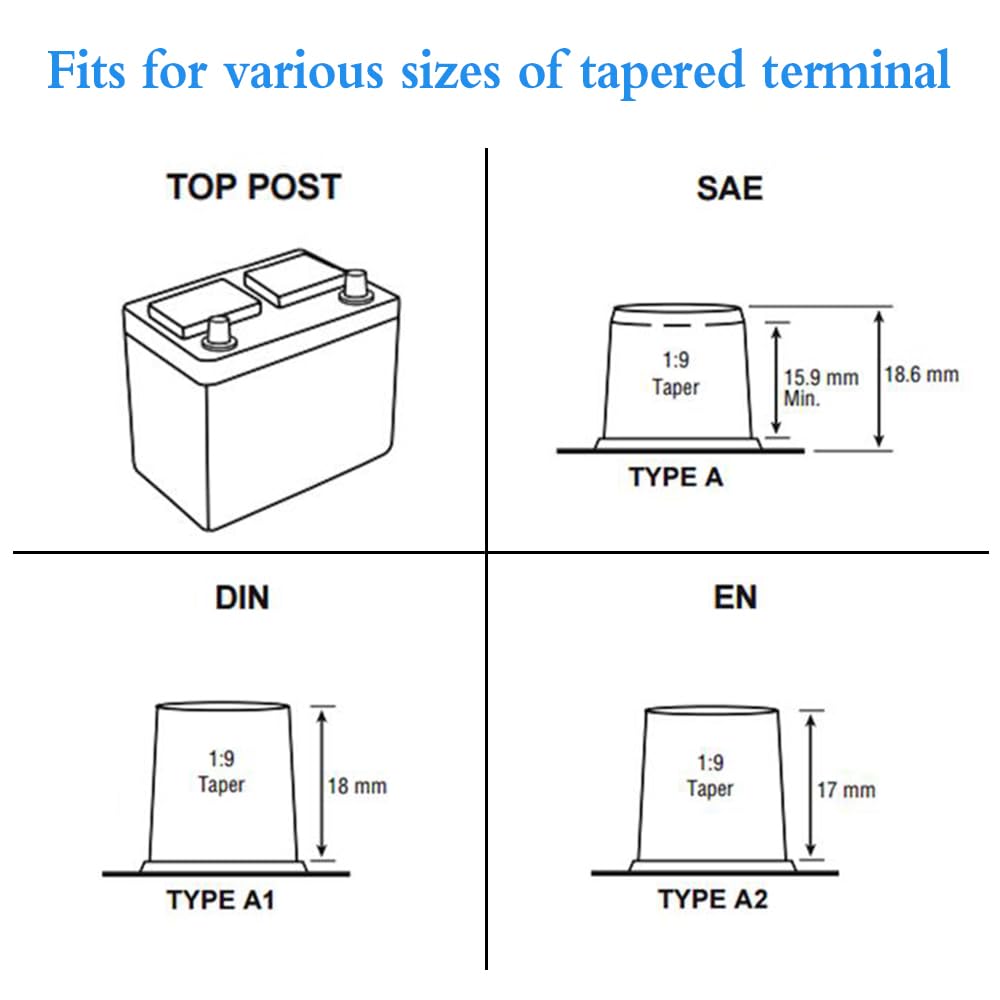

• Accepts SAE, DIN and EN tapered top posts (JIS pencil posts not included).
• Reduces terminal congestion and simplifies service access.

Which battery types and voltages are compatible with this bus bar?

This Vgate block is designed primarily for lead-acid battery chemistries — AGM, GEL, WET, MF and CA/CA — across typical system voltages. It works on 6 V, 12 V, 24 V, 36 V and 48 V systems; if you use lithium batteries, add the appropriate stud adapter or select Vgate's matching terminal models to ensure proper fit and safety.

• Supports lead-acid varieties: AGM, GEL, WET, MF, CA/CA.
• Operates on 6 V to 48 V battery systems.
• Lithium use requires an external stud-to-post adapter or specific terminals.
• Not compatible with JIS pencil post without adapter.

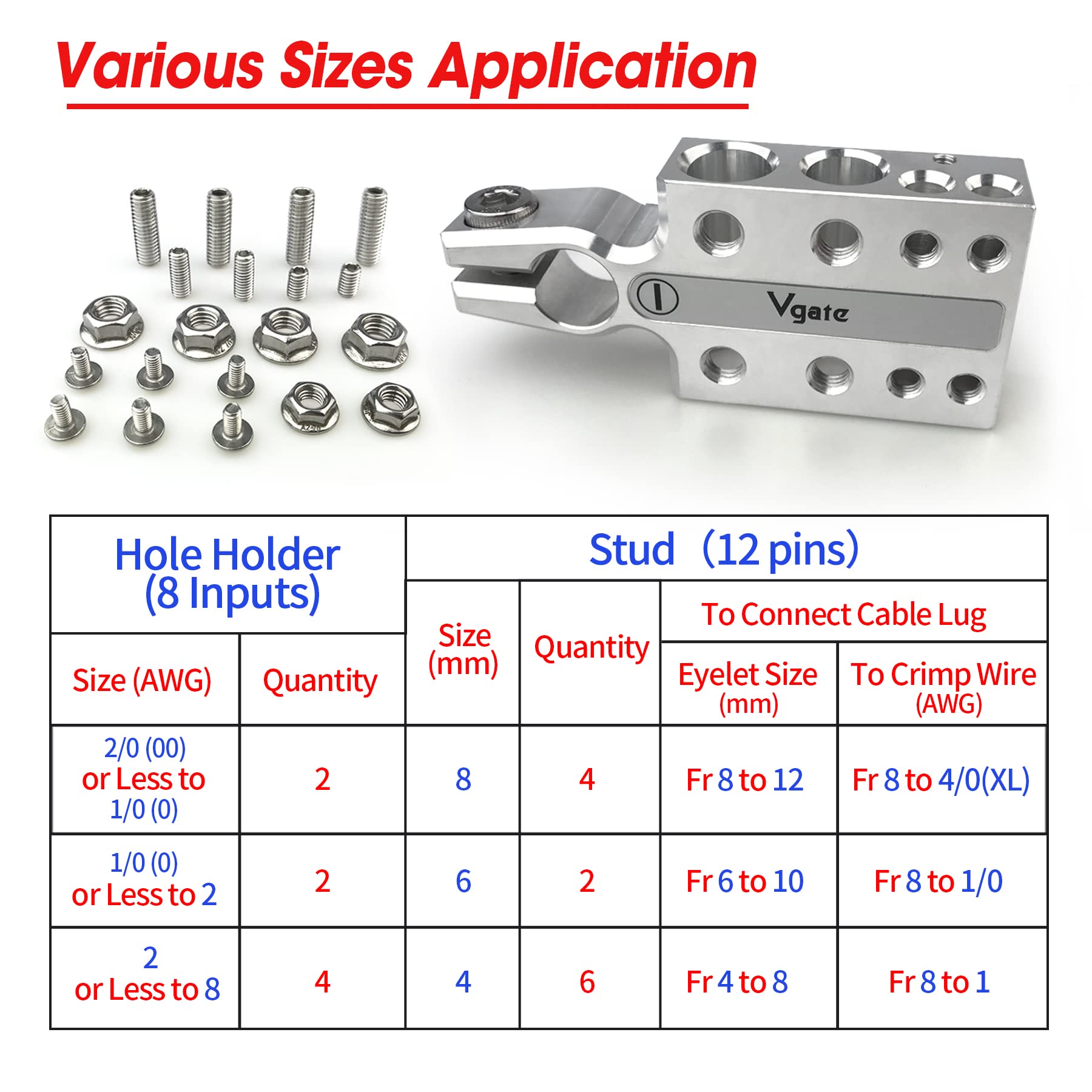

What wire sizes and connection types can I use with the bus bar?

The block accepts a broad span of conductor sizes so it fits both heavy feed lines and smaller accessory circuits. Input holes accommodate larger gauge wires up to 2/0, while the threaded studs are suitable for ring-terminals and smaller branch wires, giving you the flexibility to mix power and signal connections safely.

• Input holes rated for 8 AWG up to 2/0 AWG (XL capacity for heavy feeds).
• Threaded studs accept ring terminals and smaller gauge leads.
• Secure clamping design reduces voltage drop and movement under vibration.
• Clear separation between studs prevents accidental shorts.

Are there installation tips or restrictions I should know about?

During installation, avoid over-tightening the battery clamp — if the clamp feels too tight, fully loosen it before positioning the block; once seated, re-tighten to secure. Do not place a corrosion pad on the post near the groove at the base: the block’s design keeps acid away from the conductor area, but pads can interfere with proper sealing and fit.

• If clamp is hard to install, loosen completely then re-clamp once positioned.
• Avoid corrosion pads on the post; the groove on the block prevents acid contact.
• Use stud-to-post adapters for lithium battery compatibility.
• Confirm stud thread size matches your ring terminals or adapter choice.

Who is this for: Technicians, boat owners, RV enthusiasts, off-grid electricians and maintenance crews who need a tidy, reliable way to distribute power from a tapered top battery post. If you want to consolidate multiple circuits, protect the battery clamp area from overcrowding, and maintain easy access for service and upgrades, this Vgate distribution block is a durable, versatile solution. Choose compatible adapters for lithium installs and confirm stud/thread sizes when ordering terminals.
