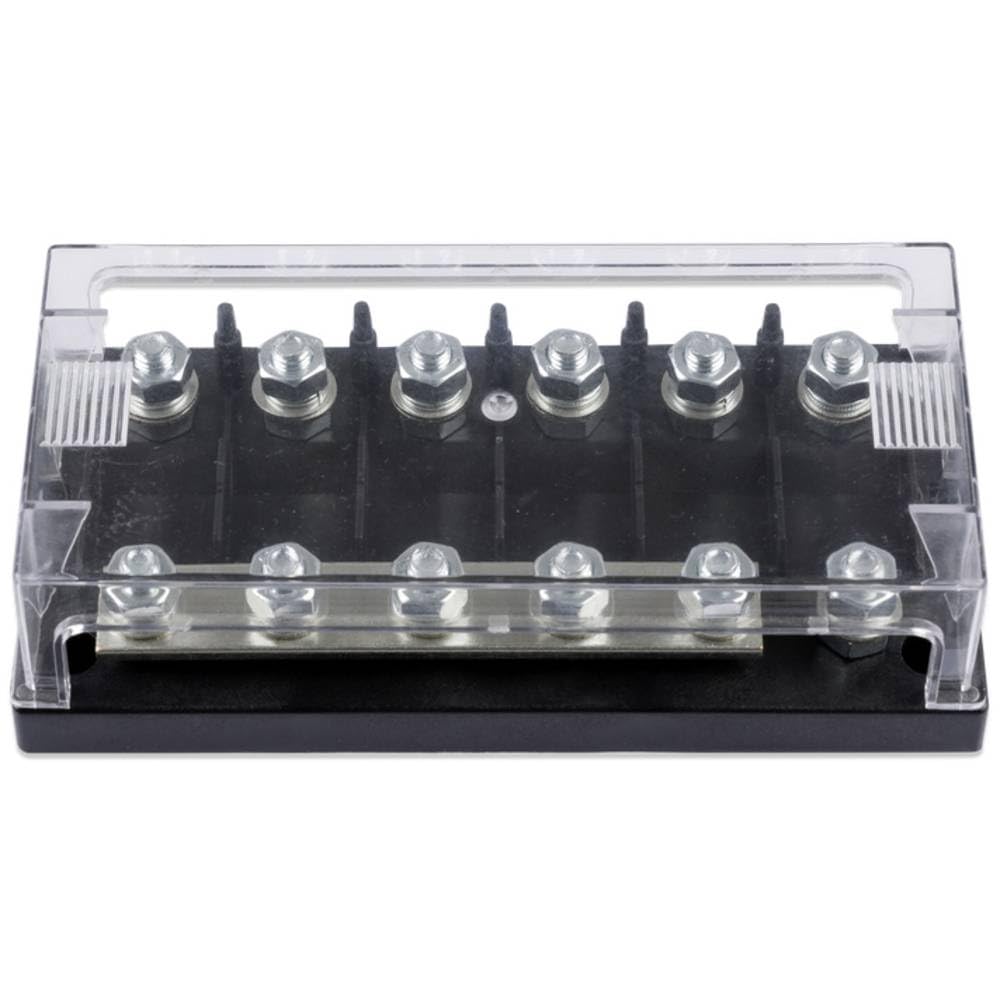

Victron Energy 6-Way MEGA Fuse Holder Busbar 500A — Modular, Serviceable High-Current Distribution

This modular busbar combines a row of individual MEGA-type fuse holders with a convenient common connection point so you can protect and organize high-current battery feeds, alternators, and inverter supplies. Built to fit marine, automotive, and off-grid electrical systems, the unit makes adding or replacing fuses straightforward while keeping heavy cabling neat and accessible.

How does this busbar simplify fuse management?

The integrated six single-fuse layout lets you centralize protection for several high-current branches without splicing big cables together. Each fuse slot is independent, enabling quick replacements and clear circuit separation during troubleshooting.

• Six individual MEGA fuse cavities for separate circuits
• Modular construction for straightforward service and expansion
• Single-point bus connection reduces clutter and wiring complexity
• Visible fuse positions make fault isolation faster

What electrical capacity and fuse types does it support?

The assembly is designed specifically for MEGA fuses and handles a combined feed rating up to 500 amps when configured with appropriate wiring and a main incoming connection. It does not accept blade or bolt-down cartridge types—use MEGA-format fuses exclusively for proper fit and performance.

• Accepts MEGA-style high-current fuses only
• Rated to distribute up to 500 A with correct installation
• Best paired with heavy-gauge battery and alternator cabling
• Requires compatible MEGA fuse amperage per circuit application

How do I install and service the 6-way MEGA fuse holder?

Installation mounts the module to a flat, ventilated surface close to the source battery or distribution point and connects the incoming feed to the busbar. Individual fuse holders allow removal and replacement without disturbing neighboring circuits, simplifying maintenance and upgrades.

• Mount on a stable, non-conductive surface with clearance for cabling
• Connect main feed to the busbar common terminal using proper lug size
• Fit MEGA fuses into each holder per circuit current requirements
• Inspect connections periodically for torque and corrosion

What safety and organizational benefits does this bring to my system?

Using a single multi-way MEGA fuse holder improves both safety and system cleanliness by keeping large conductors bundled at one protected point. It reduces the chance of loose individual connections and makes overload protection uniform and easier to audit.

• Centralized protection point reduces wiring congestion
• Clear fuse layout speeds inspection and fault finding
• Cleaner installations lower risk of accidental shorts or abrasion
• Simplifies future circuit additions or changes

Who is this for: The Victron Energy 6-way MEGA fuse holder busbar is ideal for professionals and experienced DIYers wiring higher-current systems—marine boats, RVs, off-grid solar installations, and commercial vehicles—who need a durable, serviceable way to distribute and protect multiple heavy-current circuits. Choose this unit when you need MEGA-type fuse compatibility, a tidy centralized distribution point, and straightforward servicing of up to six protected branches.
