Victron Energy Battery Balancer for 24V/12V Systems — Automatic 1A Equalizer, Modular for 48V Banks

The Victron Energy Battery Balancer is a compact inline device that synchronizes the state-of-charge between series-connected batteries, reducing imbalance and prolonging battery bank life.

Designed for use in multi-battery 12V, 24V and higher systems, this balancer automatically equalizes voltage differences that arise when batteries age or are loaded unevenly. It activates whenever the system voltage exceeds a threshold and draws a controlled balancing current from higher-voltage batteries until voltages match, helping prevent chronic under- or over-charging of individual batteries.

How does the balancer protect a 24V battery bank?

When a 24V system’s charge voltage rises above about 27V, the balancer compares the voltages of the two 12V batteries in series. If one battery reads higher, the unit diverts up to 1 A from the higher-voltage battery until both reach the same state-of-charge. This reduces stress on weaker cells and encourages uniform charging across the bank.

• Activates automatically above ~27V in 24V systems
• Draws up to 1 amp from the higher-voltage battery
• Continues balancing until cells converge in voltage
• Reduces uneven charge-related wear on batteries

Can I use multiple balancers for larger battery banks?

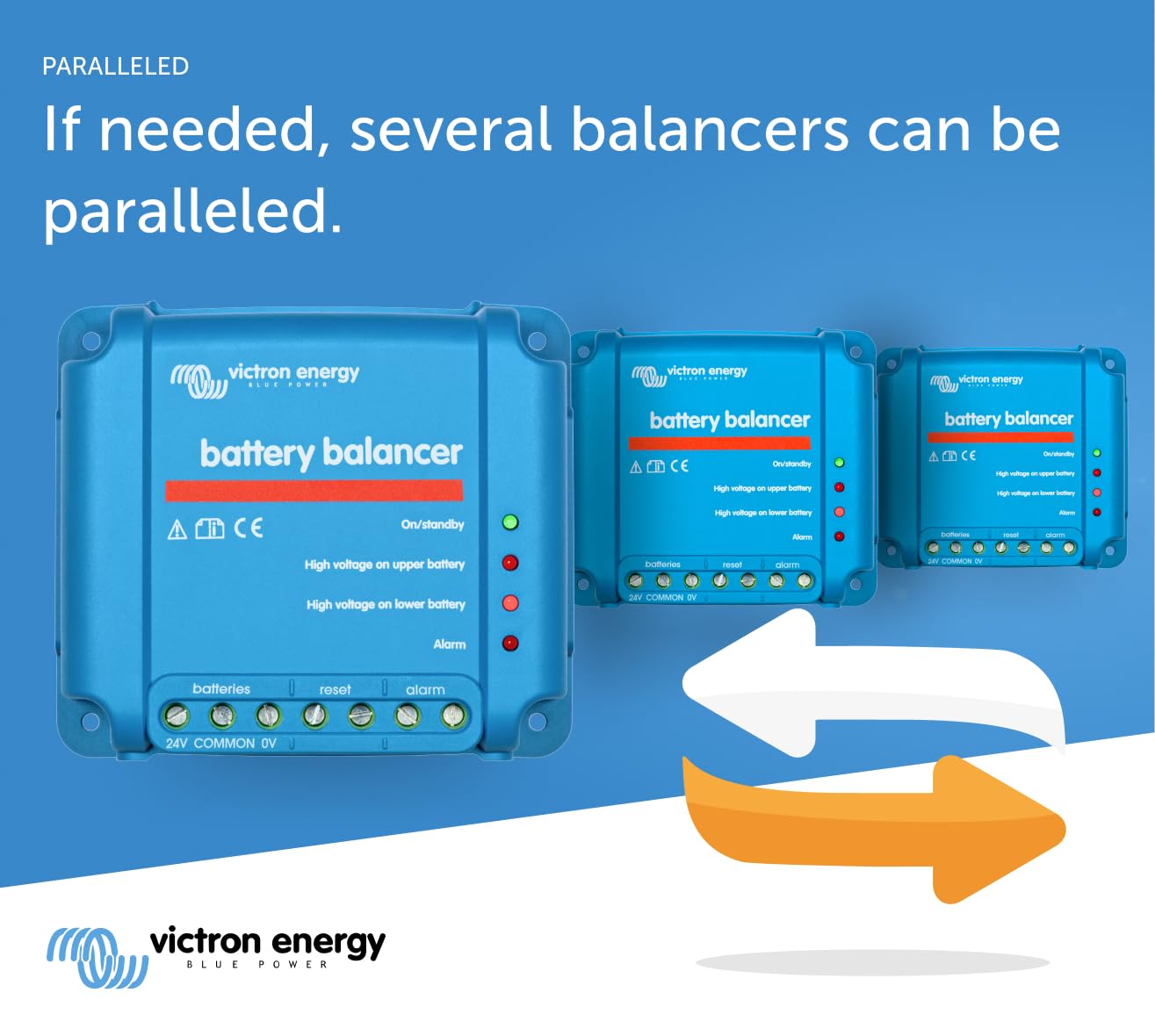

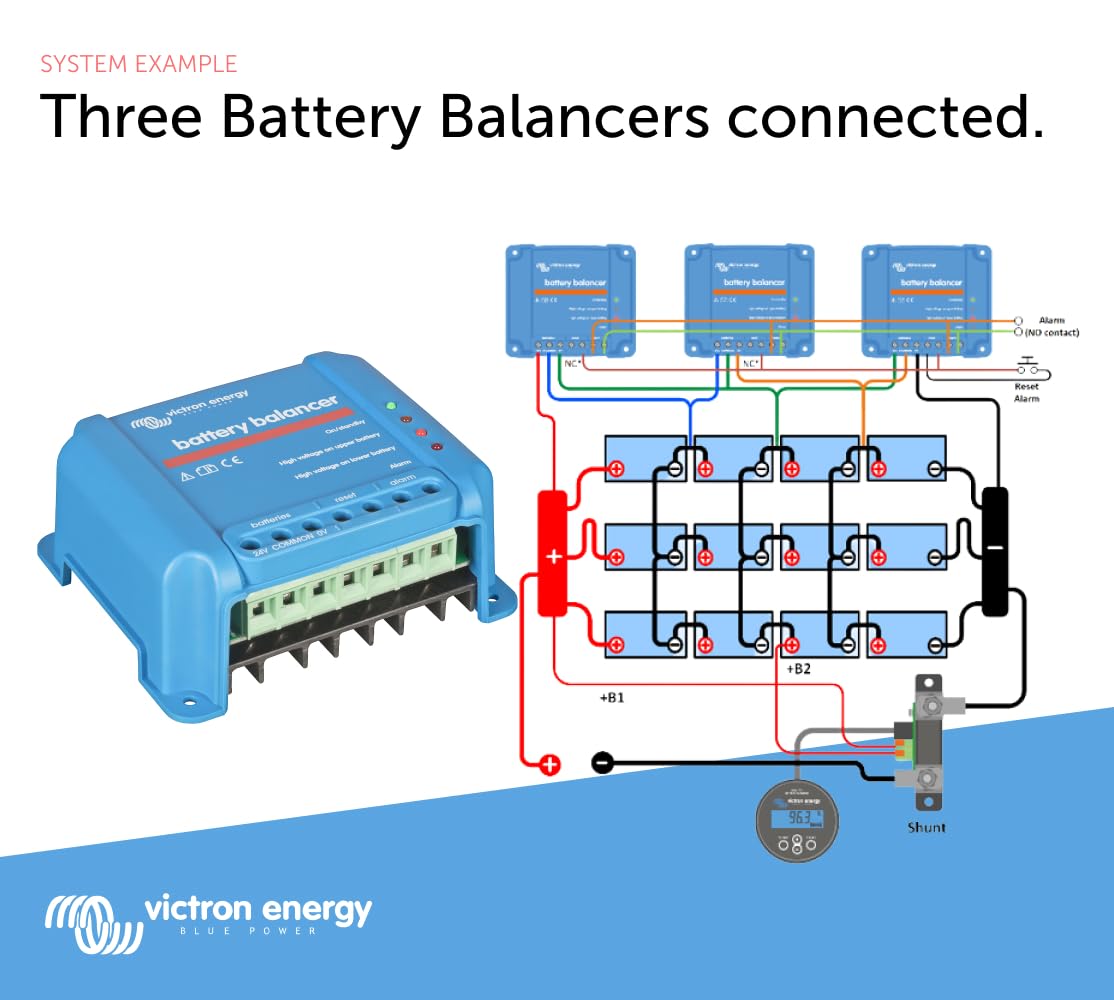

Yes—balancers can be paralleled to cover more series sections or higher-voltage banks. For example, a 48V bank (four 12V batteries in series) can be balanced by installing three balancers across adjacent battery pairs. Parallel installation lets you scale balancing to match the series configuration of your system.

• Paralleling supported for larger banks
• Three units recommended for a 48V, four-battery series
• Install across adjacent battery pairs for even coverage
• Simple modular expansion as battery banks grow

What are the practical installation and operating details?

The balancer is wired across the two series-connected batteries you want to equalize; wiring is straightforward and requires no active monitoring to function. It only draws a small balancing current when voltage conditions trigger it, so it operates silently and with low parasitic drain when not needed. Multiple units can coexist without interfering with normal charging sources like chargers or alternators.

• Wire across the two batteries you want to balance
• Works with chargers, alternators and solar charging systems
• Low standby draw; activates only above the voltage threshold
• No active monitoring or configuration required after install

How will this improve overall battery performance and maintenance?

By minimizing persistent voltage differences between series batteries, the balancer helps all batteries reach the same state-of-charge more consistently. That reduces repetitive overcharging of stronger batteries and undercharging of weaker ones, which in turn helps slow capacity loss and uneven aging. While it doesn’t change battery chemistry, it reduces the imbalance-related stress that shortens bank lifespan.

• Encourages uniform charging across batteries
• Helps slow unequal aging and capacity loss
• Reduces need for early battery replacements caused by imbalance
• Complements good charging and battery maintenance practices

Who is this for? The Victron Energy Battery Balancer is suited to boaters, RV owners, off-grid solar setups, and any installer or homeowner using series-connected 12V batteries in 24V or higher systems who wants a simple, passive solution to reduce voltage imbalance. It’s especially useful when batteries are from different ages or when parallel strings and series configurations introduce unequal states-of-charge. Installers who want a low-maintenance add-on to improve battery-bank reliability and even out charging will find this product practical and cost-effective.
