Victron Energy Lynx Class-T Power In (M10) battery input module — dual-string Class-T fuseholders, modular M10 integration

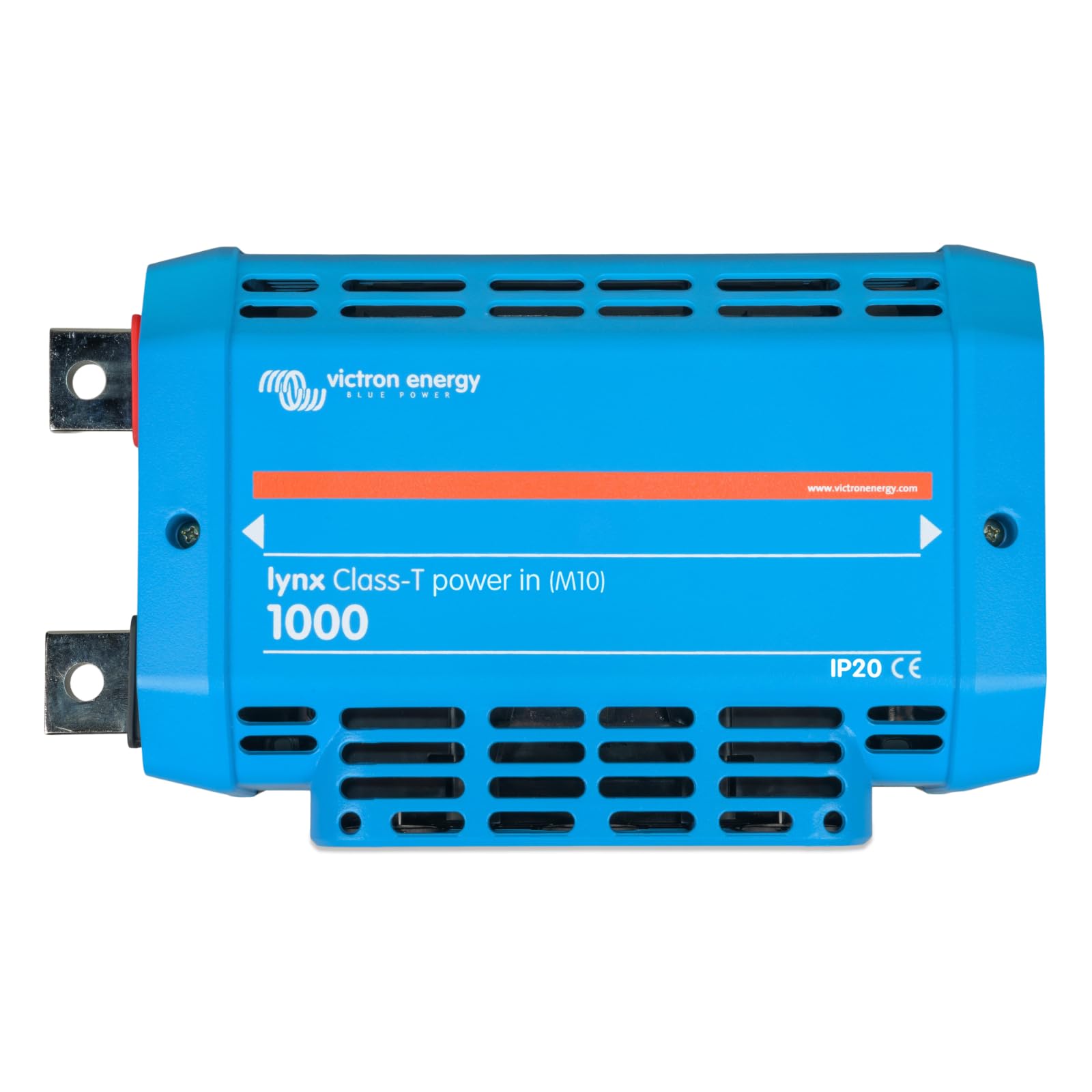

The Victron Energy Lynx Class-T Power In (M10) is a compact, modular battery input and Class-T fuse module designed to safely connect and fuse up to two lithium battery strings in a Lynx Distribution system.

The Lynx Class-T Power In (M10) is a purpose-built component for the Victron Lynx Distribution family, engineered to simplify battery-input wiring and to provide high-current Class-T fuse protection in smaller multi-string battery installations. It integrates mechanically and electrically with the M10 Lynx ecosystem, letting installers build tidy, serviceable DC distribution panels while keeping high-current connections centralized and protected. Class-T fuses are sold separately, giving flexibility in selecting the exact fuse rating for your system’s needs.

How does the Lynx Class-T Power In (M10) simplify battery connections?

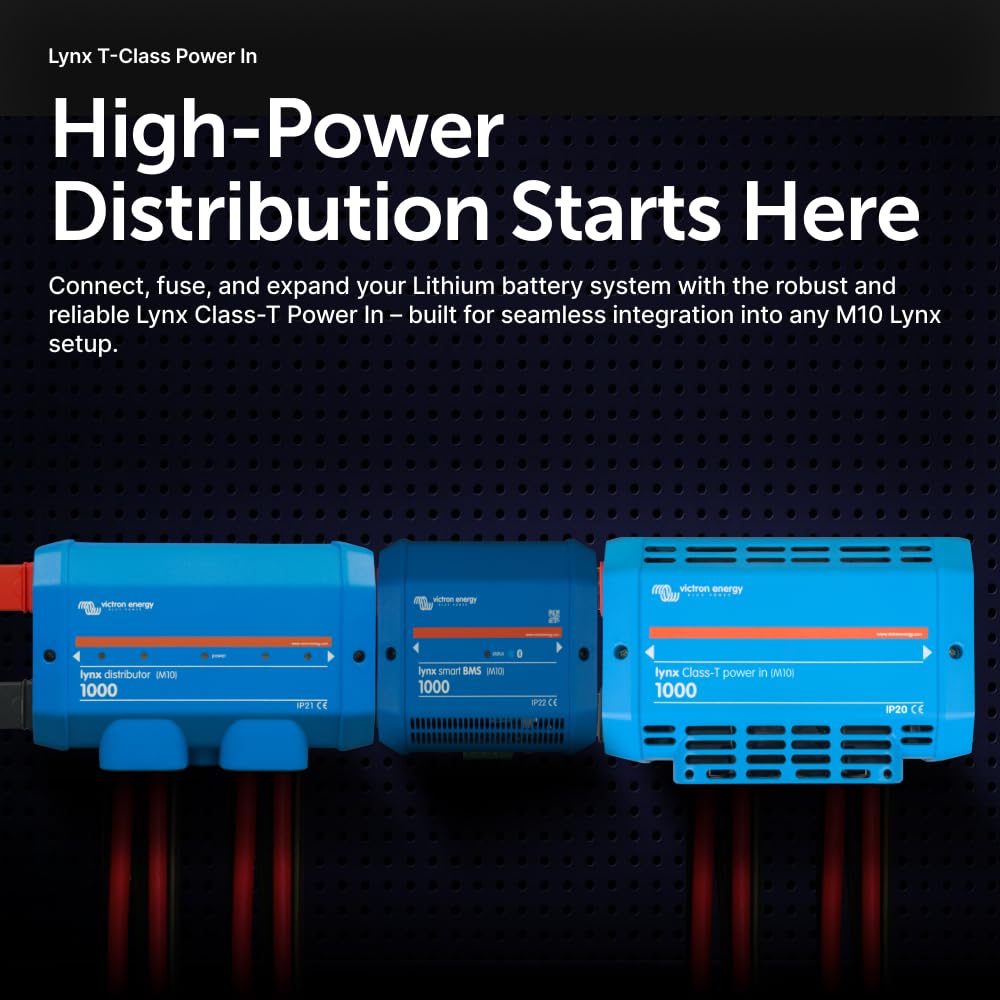

The unit centralizes incoming battery leads and fuseholders into the Lynx busbar layout, reducing clutter and the number of individual cable terminations. Because it is designed to snap into the Lynx M10 architecture, installers can assemble neat, modular DC assemblies with consistent spacing and secure mechanical support.

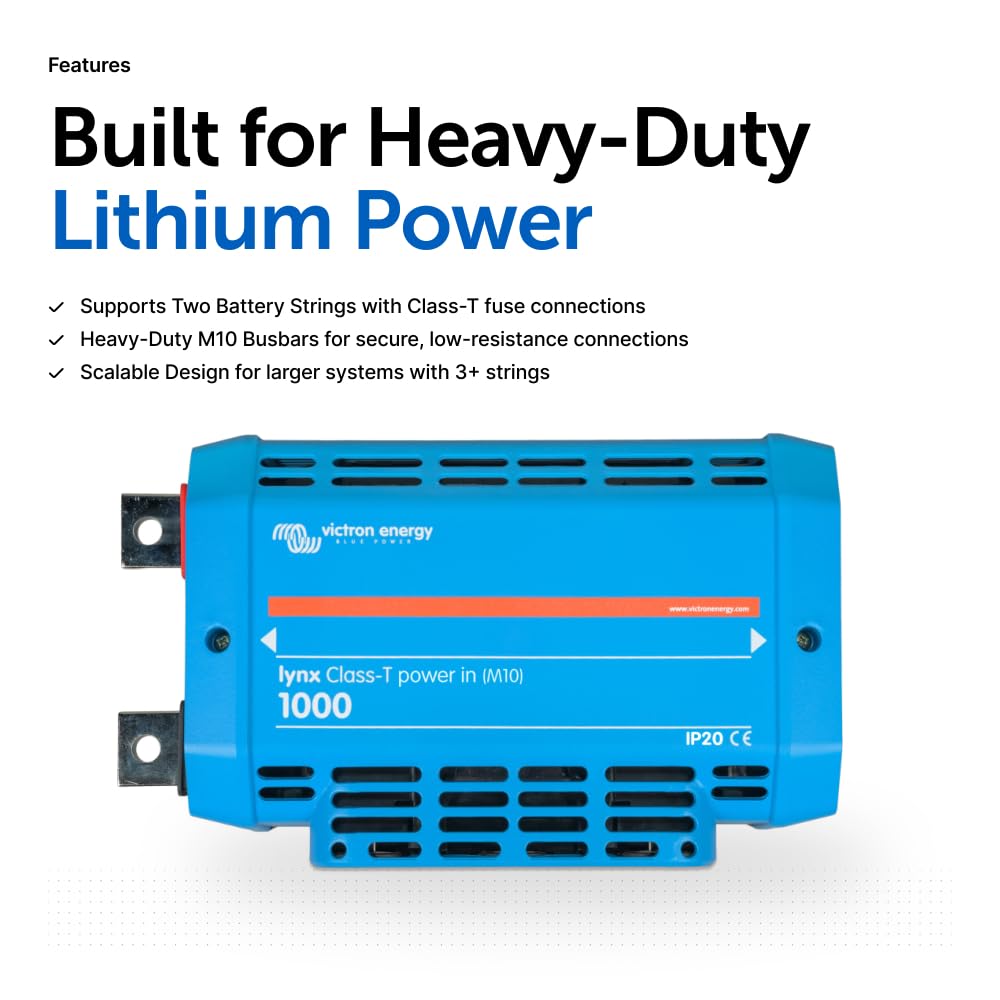

• Accepts up to two lithium battery strings on a single module for compact systems
• Integrates directly with Lynx M10 components for streamlined panel builds

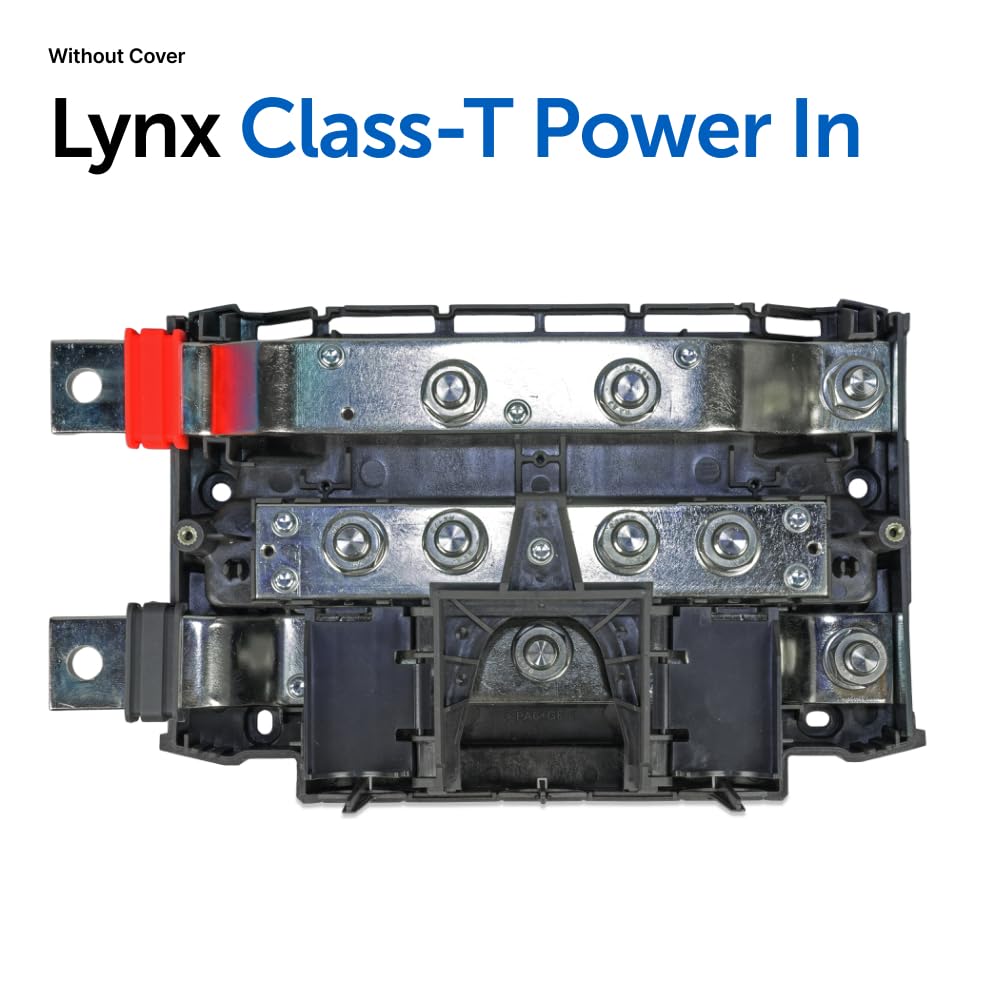

• Class-T fuseholders allow quick fuse replacement without rewiring

Which fuse sizes and battery configurations are supported?

The module is compatible with Victron Class-T fuses in multiple ampere ratings to match different system capacities. Standard Class-T fuse ratings available include 225A, 250A, 350A, and 400A; select the fuse ampacity to match your battery and conductor sizing. For systems with more than two battery strings, multiple Class-T Power In modules can be combined to increase input capacity and manage additional strings predictably.

• Class-T fuse options: 225A, 250A, 350A, 400A (sold separately)
• Supports up to two battery strings per module for smaller installations
• Multiple modules can be paralleled or combined for larger arrays

What installation and compatibility considerations should I know?

The Lynx Class-T Power In (M10) is specifically made to pair with the other M10 Lynx components; it requires compatible busbars and mechanical mounting within the Lynx distribution assembly. Proper fuse sizing, correct cable gauge, and battery-management coordination are essential—always follow Victron installation guidelines and local electrical codes. The module is a hardware-only element; fuses and battery monitoring devices are separate items in the system bill of materials.

• Designed to integrate with M10 Lynx busbars and distribution modules
• Requires selection and purchase of Class-T fuses separately
• Follow Victron installation instructions and local wiring standards

How does this module affect serviceability and future expansion?

By consolidating battery inputs and using replaceable Class-T fuses, the module makes maintenance and troubleshooting faster and safer. Installers can swap fuses or add additional Lynx Class-T modules without dismantling the whole DC distribution panel. This modular approach simplifies upgrades when additional battery strings or higher capacity are required later.

• Replaceable fuseholders provide quick field serviceability
• Modular design supports incremental expansion of battery inputs
• Maintains organized wiring for easier diagnostics and upgrades

Who is this for: The Lynx Class-T Power In (M10) is aimed at installers, electricians, and system integrators building Victron Lynx M10 DC distribution systems for small-to-medium lithium battery banks. It suits residential off-grid arrays, marine battery rooms, and mobile power systems where tidy, protected high-current inputs and modular expandability are priorities. It is not a stand-alone fuse—Class-T fuses must be acquired and sized to the installation.
