Victron Energy Lynx Distributor M10-1000A DC busbar — 4‑group fuse block, 1000A terminals

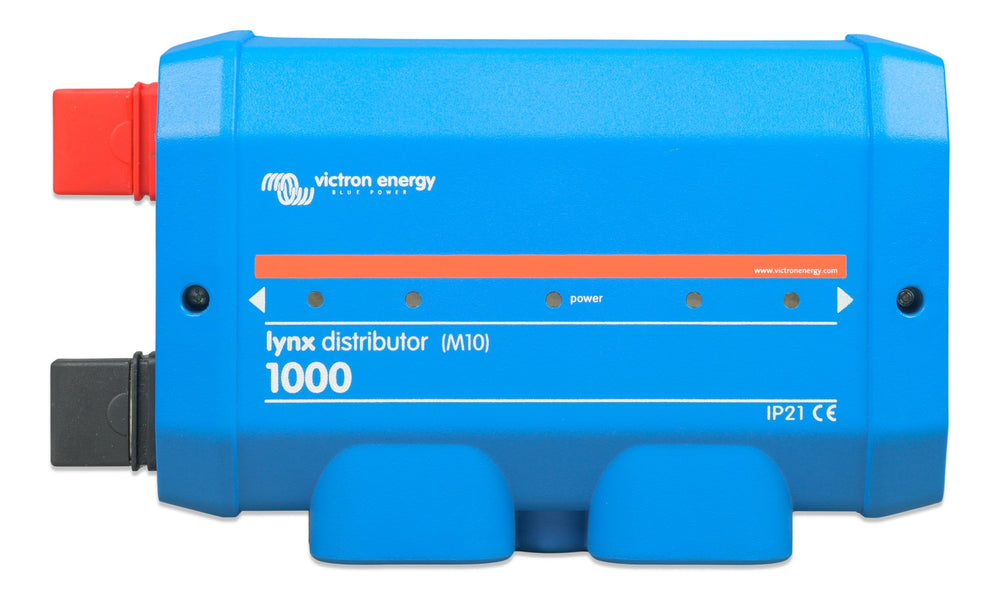

The Victron Energy Lynx Distributor M10-1000A is a heavy-duty DC busbar and modular fuse distribution block designed to organize, protect, and monitor multiple DC circuits in marine, mobile, and off-grid power systems.

Compact yet rugged, this Lynx Distributor provides positive and negative bus bars for connecting up to four separate DC equipment groups. It accepts individual fuses for each circuit and can display fuse status via optional LEDs when paired with a Victron Lynx Shunt. Built from high-conductivity materials and finished for demanding environments, the unit simplifies wiring runs and helps centralize DC protection inside battery systems, inverter banks, or control enclosures.

How does the Lynx Distributor simplify DC wiring for multi-load systems?

The Lynx Distributor centralizes positive and negative connections so you can route multiple loads and subsystems to a single, serviceable point. Instead of multiple point-to-point runs, each DC group attaches to dedicated bus sections, reducing cable clutter and improving serviceability.

• Positive and negative bus bars for up to four DC groups
• Space for individual fuses per group to isolate faults
• Neat central location for easier inspection and maintenance
• Robust terminals rated for high current loads up to 1000 A

What monitoring and indication features are available?

The unit supports optional LED indicators to show when a specific fuse has blown, helping you quickly identify problem circuits. Fuse indication requires a connection to a Victron Lynx Shunt, which provides the necessary sensing and reporting for the LEDs.

• LED fuse indicators on each fuse position (requires Lynx Shunt)
• Continuous monitoring of fuse condition for fast troubleshooting
• Clear front-panel indication simplifies diagnostics under load
• Compatible with Victron monitoring components for integrated status

What are the key installation and safety considerations?

Installation must follow local electrical codes and is recommended to be performed by a licensed professional. Correctly sized fuses and properly torqued connections are essential to maintain safe operation and prevent overheating or arcing at high currents.

• Requires correct fuse selection and proper torque on terminals
• Maintains separation between positive and negative bus bars to prevent short circuits
• LED indication option needs Lynx Shunt wiring and attention to polarity
• Consult applicable electrical codes and professional installers

How does the Lynx Distributor fit into larger Victron systems?

Designed to integrate seamlessly with other Victron Lynx components, the Distributor is ideal for creating a tidy distribution node inside battery compartments or control enclosures. When combined with Lynx Shunt, batteries, inverters, and monitoring devices, it forms part of a coordinated, modular DC power architecture.

• Works with Lynx Shunt for fuse LED functionality and monitoring
• Pairs with Victron batteries and inverters for structured layouts
• Mounts within enclosures to centralize power distribution
• Supports scalable system expansion with clear group separation

Who is this for: The Victron Energy Lynx Distributor M10-1000A is aimed at installers, electricians, marine technicians, RV builders, and off-grid system designers who need a durable, high-current DC distribution solution that reduces wiring complexity and offers optional fuse status indication. If you plan to manage multiple DC loads, require clear fuse isolation, and want a component that integrates with Victron monitoring hardware, this unit offers a professional, serviceable option.
