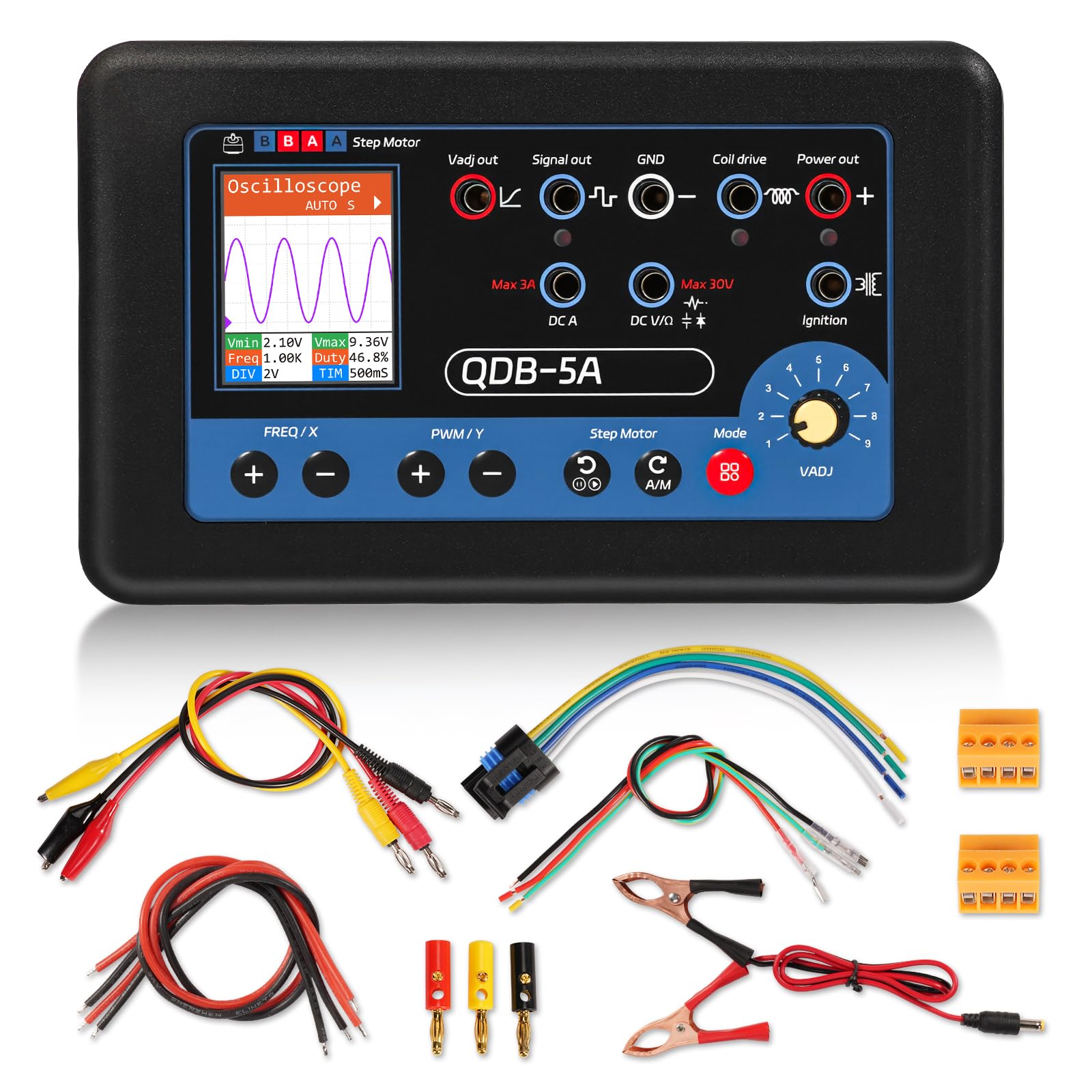

VORGENS QDB-5A Multi‑Function Ignition Coil & Injector Tester, Upgraded — Oscilloscope‑Style Diagnostics

The VORGENS QDB-5A is an upgraded, all-in-one automotive diagnostic tester that evaluates ignition coils, fuel injectors, PWM solenoids, stepper idle motors and provides oscilloscope-style signal checks.

Designed for technicians, mechanics and advanced DIYers, the QDB-5A packs multiple test modes into a single handheld unit so you can simulate, measure and drive common automotive components. It combines adjustable current and frequency drive, signal simulation, basic oscilloscope readout and protective circuitry to make fault-finding faster and safer across gasoline and diesel systems.

How does the QDB-5A help find ignition coil or injector problems?

The tester can both measure and actively drive ignition coils and injectors to reveal open circuits, shorted windings, weak sparking or stuck nozzles. By offering adjustable current, frequency and duty cycle, the device recreates realistic operating conditions so intermittent faults show up under test.

• Adjustable coil current from 0 to 3.5 A for realistic load testing
• Frequency range 1 Hz–100 kHz to replicate real engine signals
• Duty cycle control 1%–100% to stress-test injectors and solenoids
• Active drive output to observe actual component response

Can it measure signals and simulate sensors like an oscilloscope?

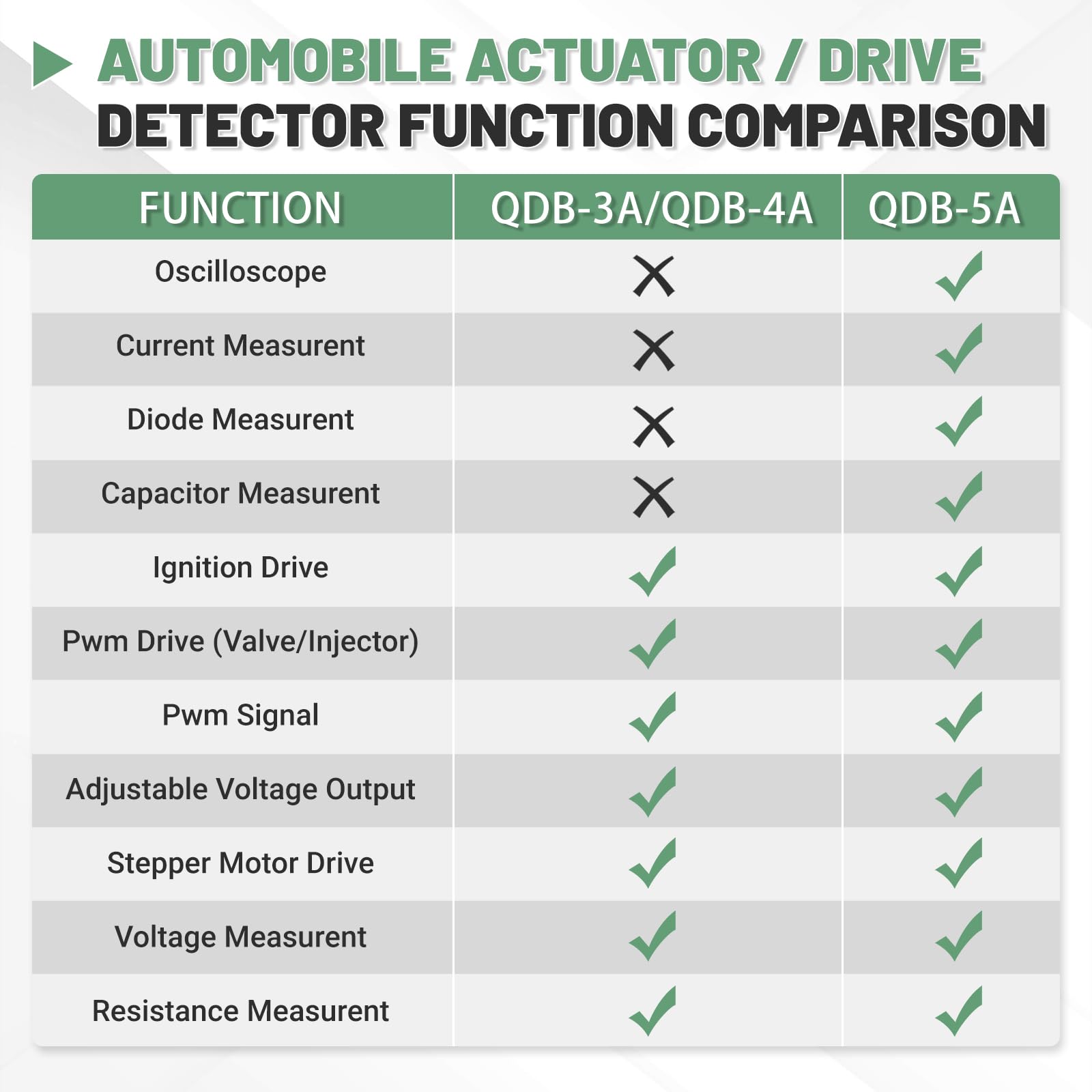

Yes — the QDB-5A includes a basic oscilloscope function and signal measurement modes to read voltage, current and resistance values. It also allows you to simulate sensor outputs or PWM signals so you can verify ECU behavior without removing the control unit.

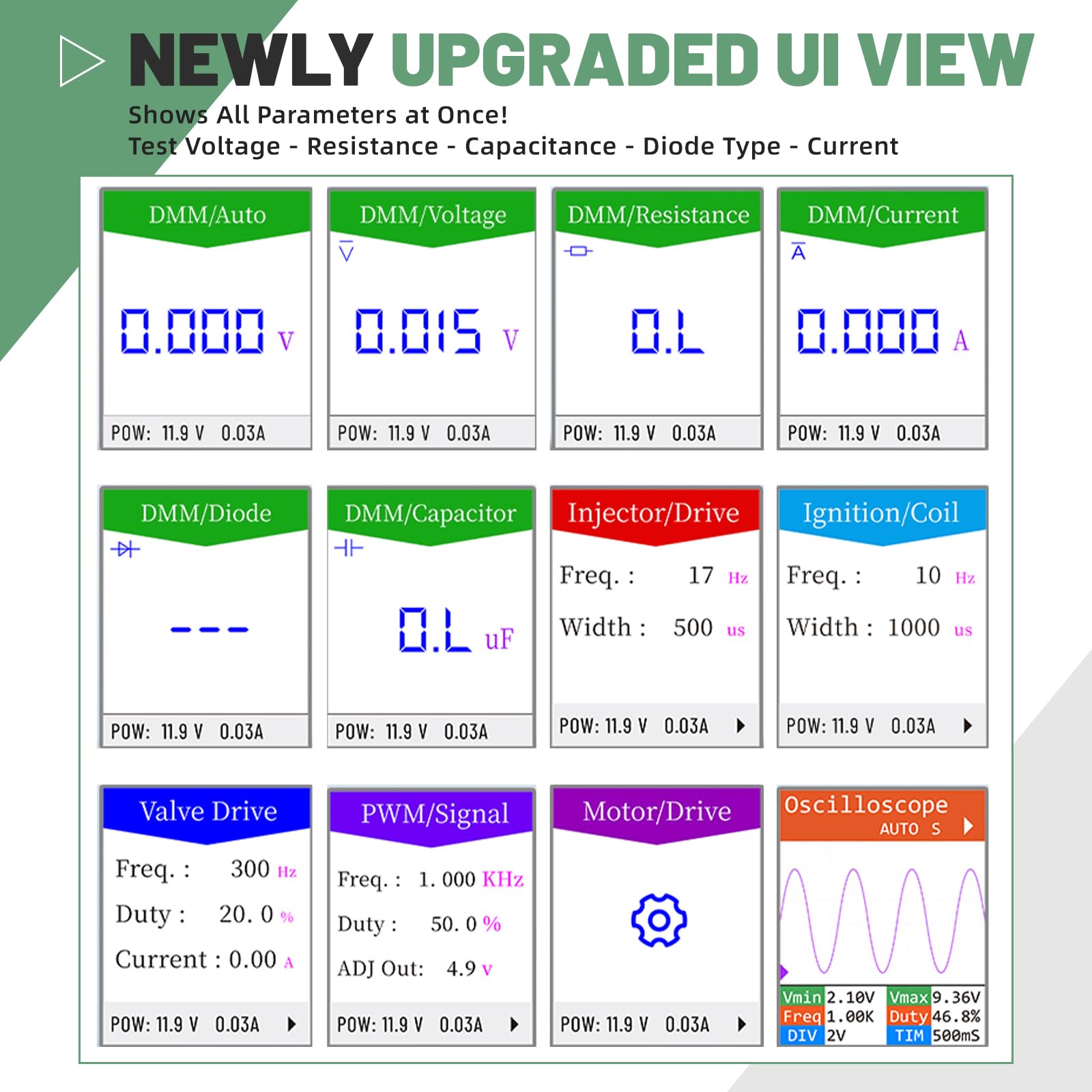

• Voltage, resistance and current readouts for quick diagnostics
• Oscilloscope-style waveform display for rapid visual analysis
• PWM signal generation and drive for testing solenoids and injectors
• Signal simulation for sensors to test ECU responses

What safety and compatibility features does this tester offer?

The QDB-5A includes built-in protections against reverse polarity and over-current, lowering the risk of damage to the unit or vehicle electronics during testing. Its broad parameter ranges make it suitable for small cars, commercial vehicles and many common automotive electrical components.

• Reverse polarity protection to prevent accidental wiring damage
• Over-current protection for safe component driving

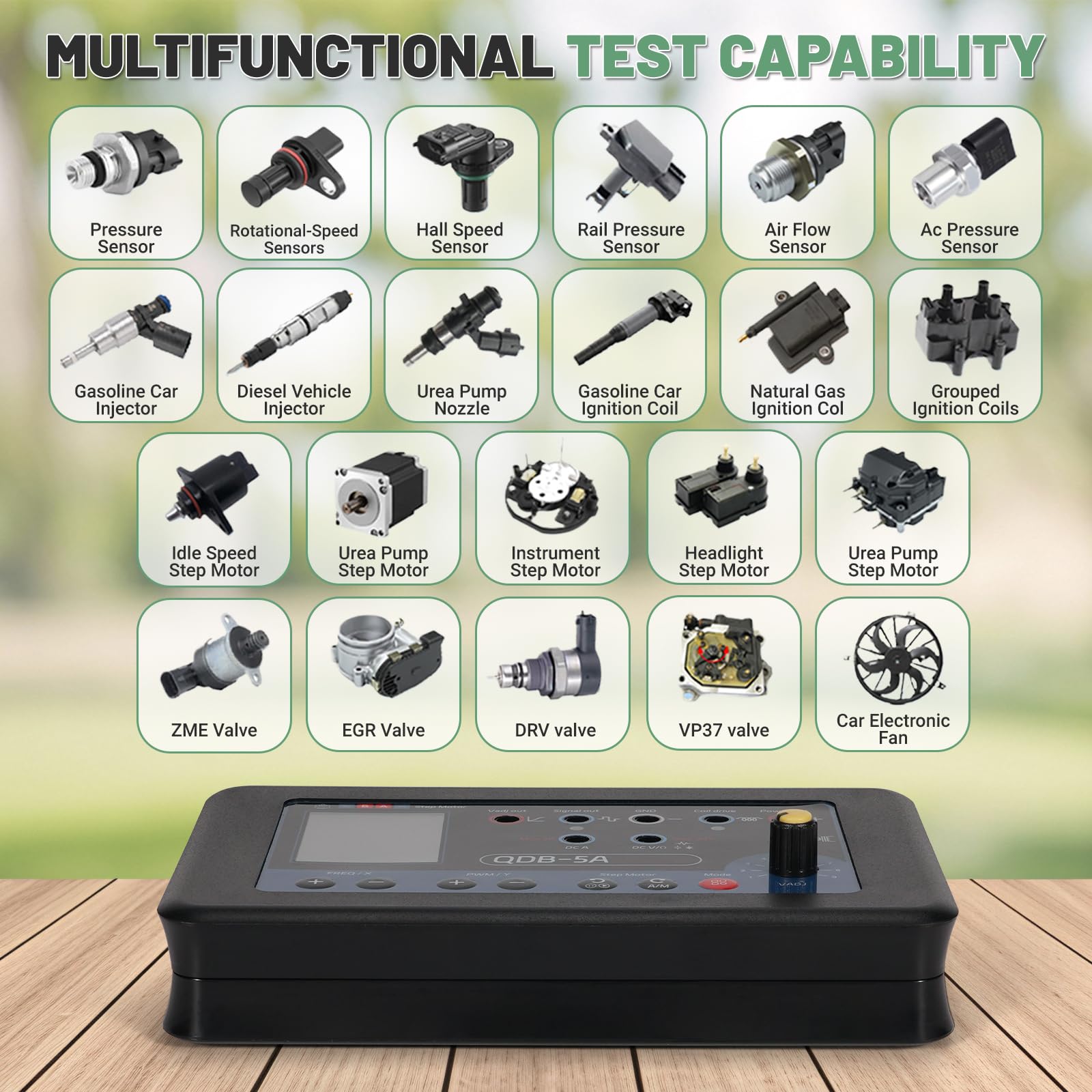

• Wide component support: coils, injectors, stepper motors, PWM solenoids and sensor signals
• Compact kit with dedicated plugs and stepper motor cable for quick setup

How do I set it up and what comes in the box?

Setup is straightforward: connect the included power cable, choose the appropriate single plug or stepper motor wiring, then select the test mode on the device. The package includes useful adapters and a manual so you can begin diagnostics right away.

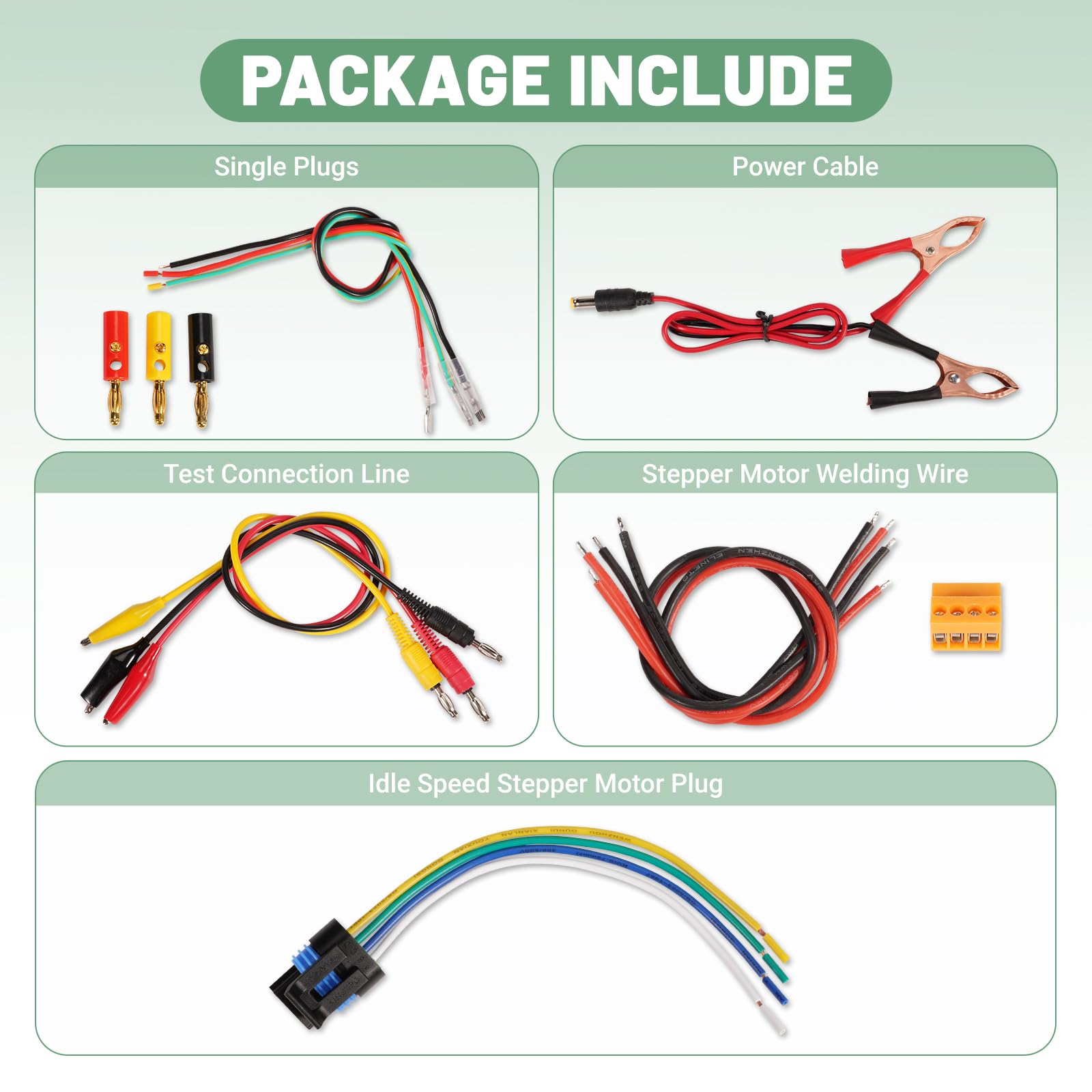

• Included: QDB-5A main unit, power cable, three single plugs, idle stepper motor plug
• Stepper motor welding cable for durable connections during tests
• Instruction book with mode descriptions and basic troubleshooting steps
• No extra tools needed for most coil, injector and stepper checks

Who is this for: The VORGENS QDB-5A suits professional technicians, independent repair shops and knowledgeable car owners who need a single, versatile instrument to diagnose ignition coils, fuel injectors, PWM-controlled valves and stepper motors. If you require variable drive parameters, signal simulation and a compact oscilloscope-style check in one unit, this tester streamlines bench and workshop diagnostics while offering protective features for everyday use.
