VSTM Top-Post Battery Disconnect Switch with Voltmeter — Fits 16–17mm Posts, 250A Rated

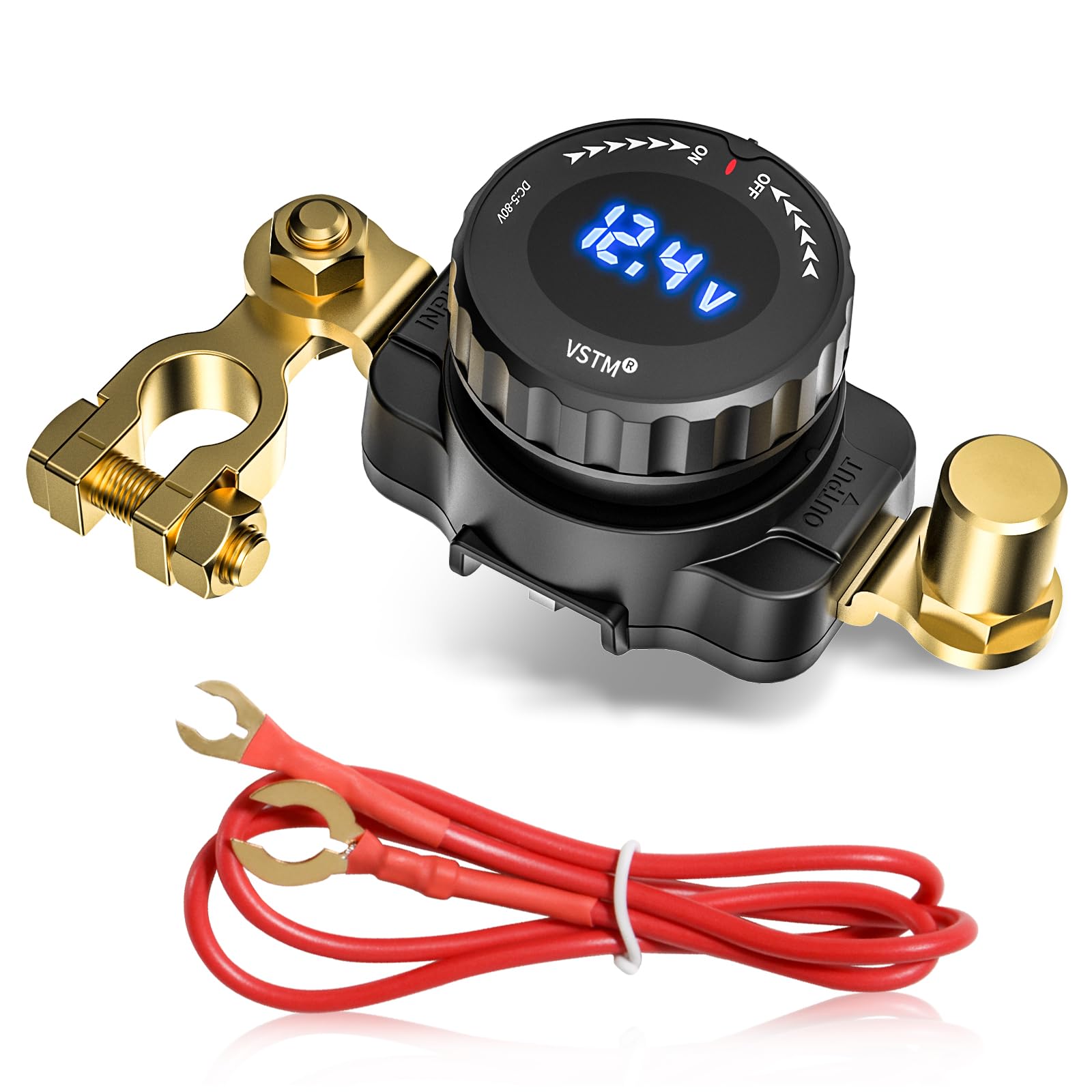

VSTM Top Post Battery Disconnect Switch with Voltmeter is a top-post isolator that gives you a simple on/off master cut-off plus a built-in LED voltmeter to monitor battery voltage in real time.

This compact, heavy-duty top-post switch is designed to fit 16–17mm negative battery posts and works across DC 5–80V systems. It combines a two-position mechanical disconnect with a large-screen LED voltage display and corrosion-resistant internals, making it suitable for cars, trucks, boats, RVs, ATVs and battery banks. The display stays dark when the switch is off and lights up when connected, while the adjustable mounting angle and durable materials help with tight installations and long service life.

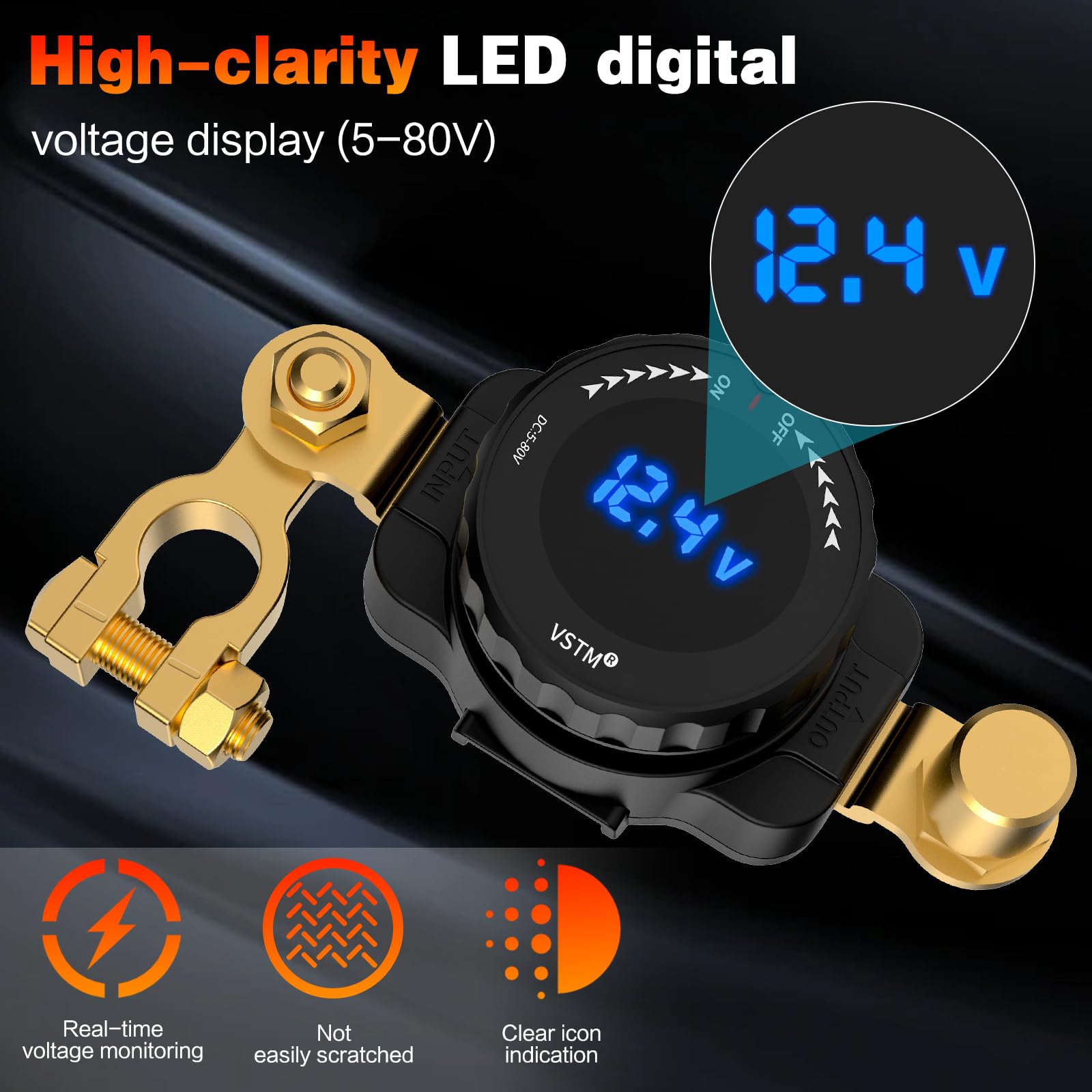

How does the built-in voltmeter help me manage battery health?

The integrated LED panel shows the battery voltage whenever the switch is turned on, letting you check state-of-charge at a glance before starting or after charging. Readings are clearer due to a matte-screen finish that reduces glare and resists scratches.

• Real-time DC voltage readout when switch is on
• Matte display reduces reflection and increases legibility
• Screen stays off while isolator is disengaged to avoid drain

Will this top-post isolator fit my vehicle and how easy is installation?

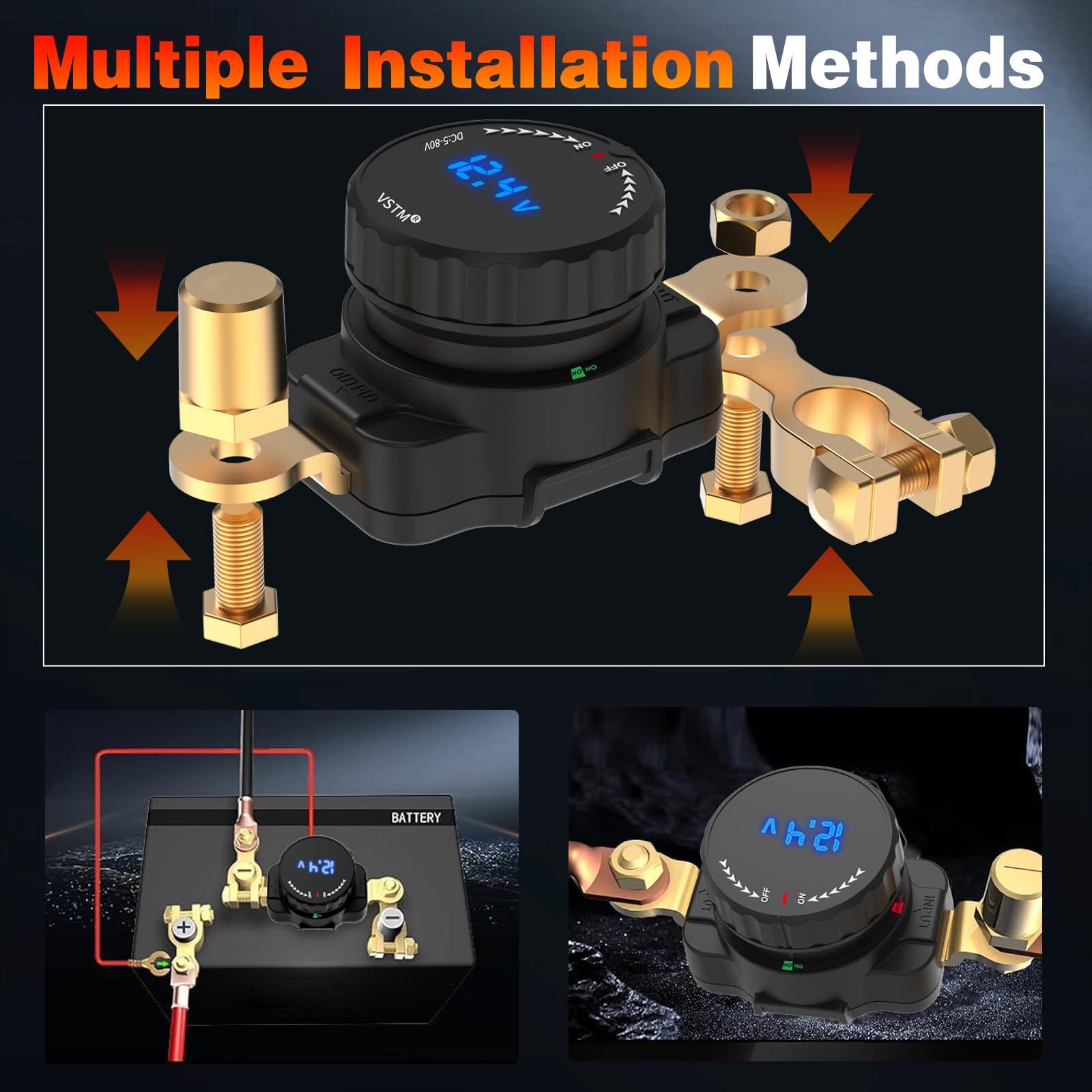

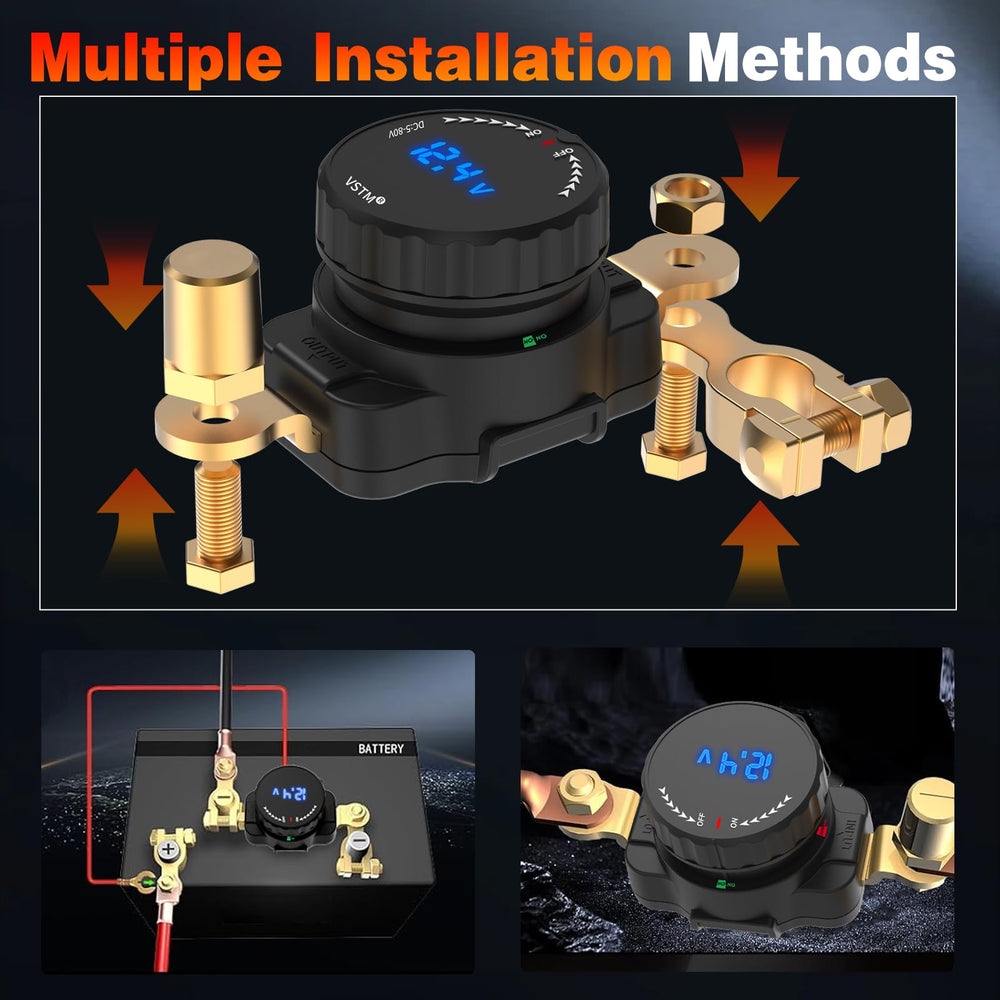

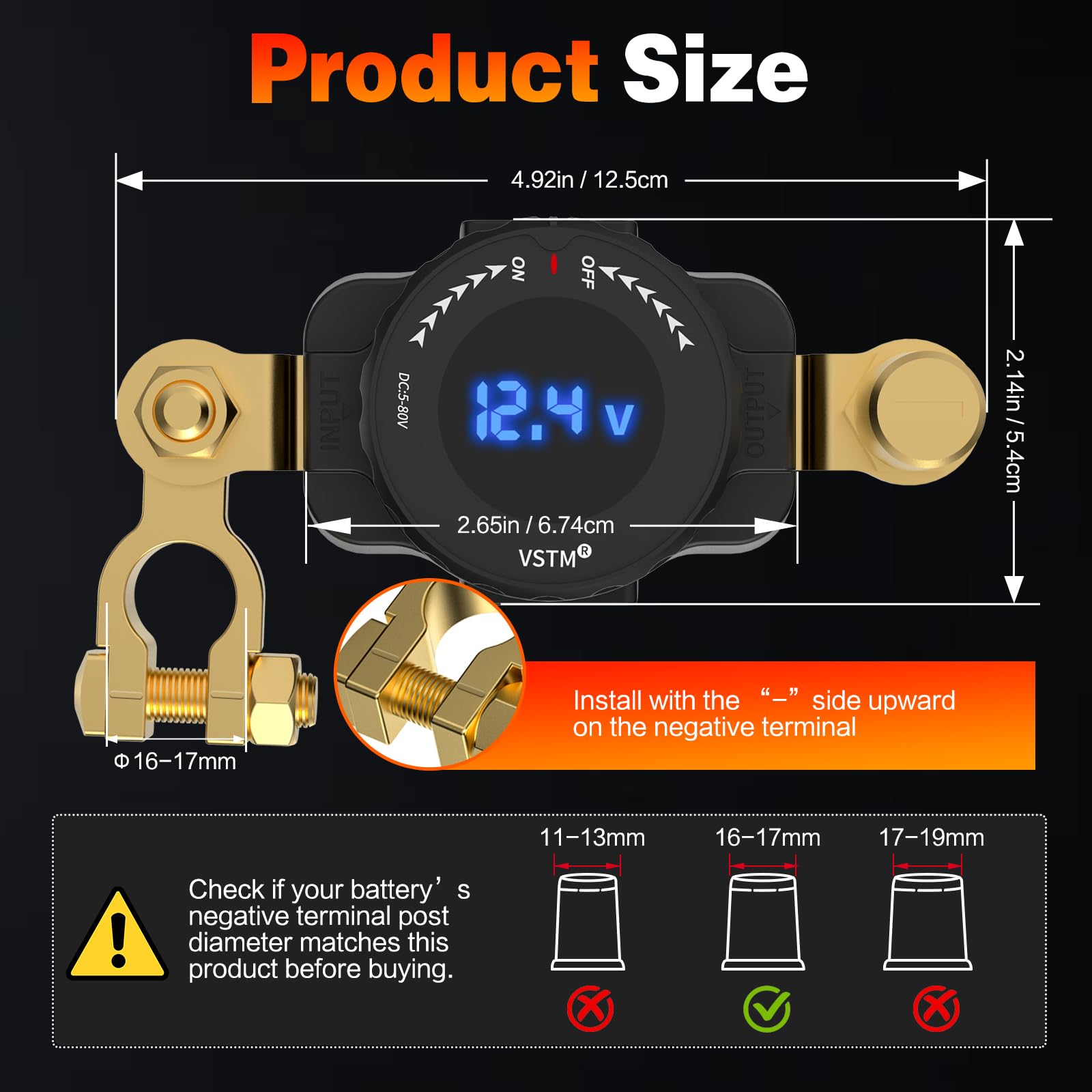

The VSTM switch fits standard top-post negative terminals measuring 16–17mm (0.63–0.67 in). Its adjustable mounting angle solves alignment problems in cramped engine bays so you can position the knob for easy access.

• Fits 16–17mm top-post negative battery posts—measure before buying
• Adjustable mounting angle for tight compartments
• Simple hardware and no specialized tools required for most installs

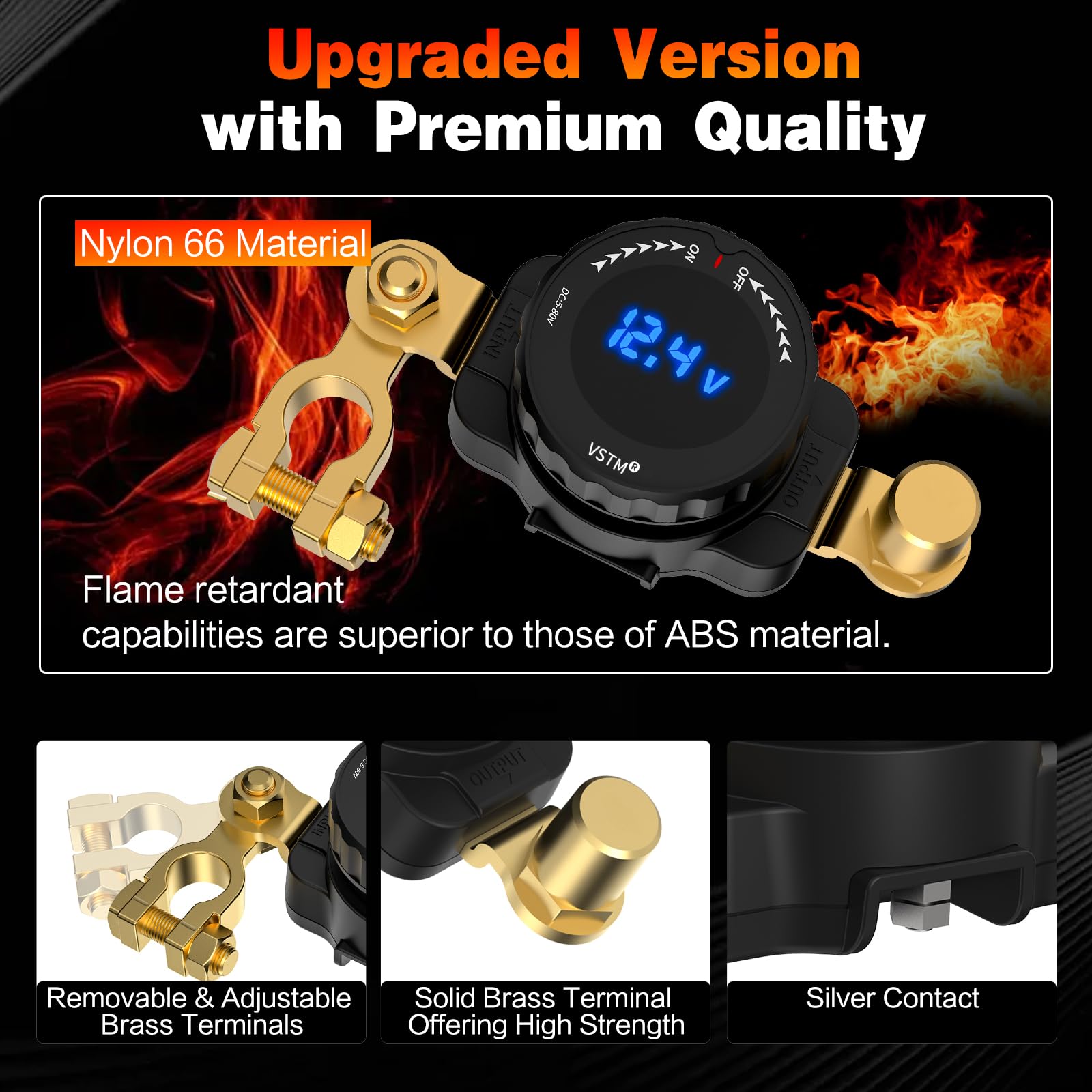

What are the electrical ratings and internal materials?

This isolator supports DC systems from 5V to 80V and is rated for 250A continuous at 12V with 300A intermittent capacity. Internal contacts use silver-plated copper to improve conductivity and resist oxidation, while the nylon 66 housing enhances heat and flame resistance compared with common plastics.

• DC 5–80V compatible for vehicles and battery banks
• 250A continuous (12V) and 300A intermittent current handling
• Copper plated with silver contacts and nylon 66 shell for durability

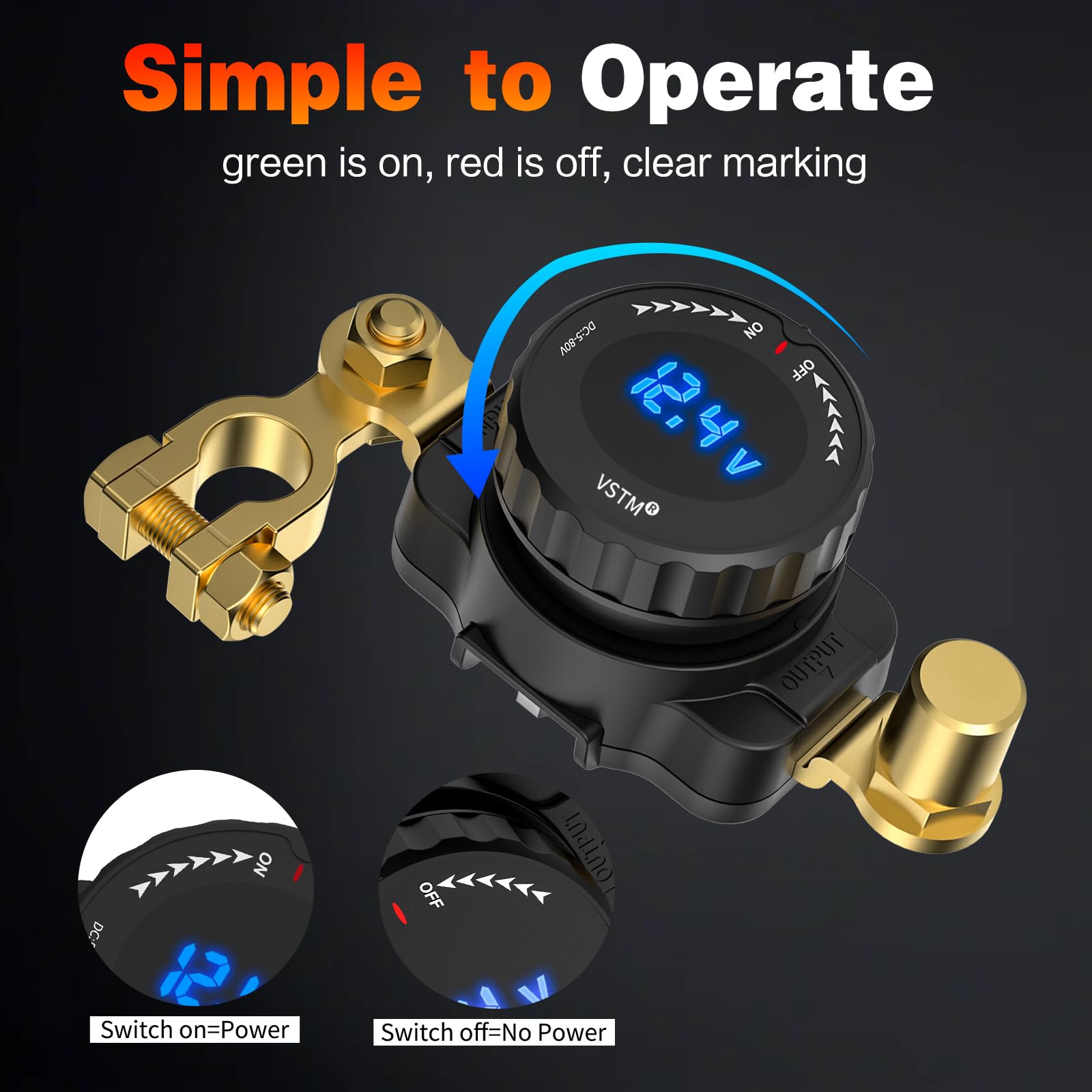

How do I operate the switch and what safety features does it offer?

The control is a simple two-position knob: turn clockwise to connect power, counterclockwise to isolate the battery. When off, the voltmeter is off too, which prevents the display from drawing current and provides a clear physical disconnect for safety or storage.

• Two-position On/Off operation for straightforward use
• Voltmeter only active when in the On position to prevent drain
• Can be used standalone or linked with other switches for multi-battery setups

Who is this for: The VSTM Top Post Battery Disconnect Switch with Voltmeter is targeted at vehicle owners, marine operators, RV enthusiasts, off-road riders and anyone who wants an accessible, heavy-duty battery isolator with voltage feedback. It’s a practical addition for people who store vehicles seasonally, manage auxiliary battery banks, or need a reliable master cut-off for maintenance and safety. If you require a top-post solution that blends readable diagnostics, rugged construction and straightforward installation, this switch fits that role—and it’s backed by a one-year guarantee for added peace of mind.
