Wadoy Single-Engine Key Switch Panel Compatible with Yamaha 12V — 10‑Pin Harness, On‑Off‑Start Restore

Wadoy’s single-engine key switch panel is a 12V replacement compatible with Yamaha 704 control boxes to restore On-Off-Start ignition operation on many outboard motors.

If your boat’s ignition panel is cracked, intermittent, or no longer responding, this Wadoy key switch panel provides a straightforward swap using a 10-pin connection. Built as a compatible replacement for part numbers 704-82570-08-00, 704-82570-11-00, and 704-82570-12-00, the unit supports both two-stroke and four-stroke mechanical-shift outboards and arrives with the harness and fasteners needed for a quick install.

Will this key switch fit my Yamaha outboard?

This Wadoy panel is built to mate with Yamaha 704 control boxes that use a 10-pin wiring plug. It’s important to verify your existing plug and part number before ordering to ensure compatibility; similar-looking panels can have different pinouts or mounting patterns.

• Compatible with Yamaha 704 control box systems using a 10-pin harness.

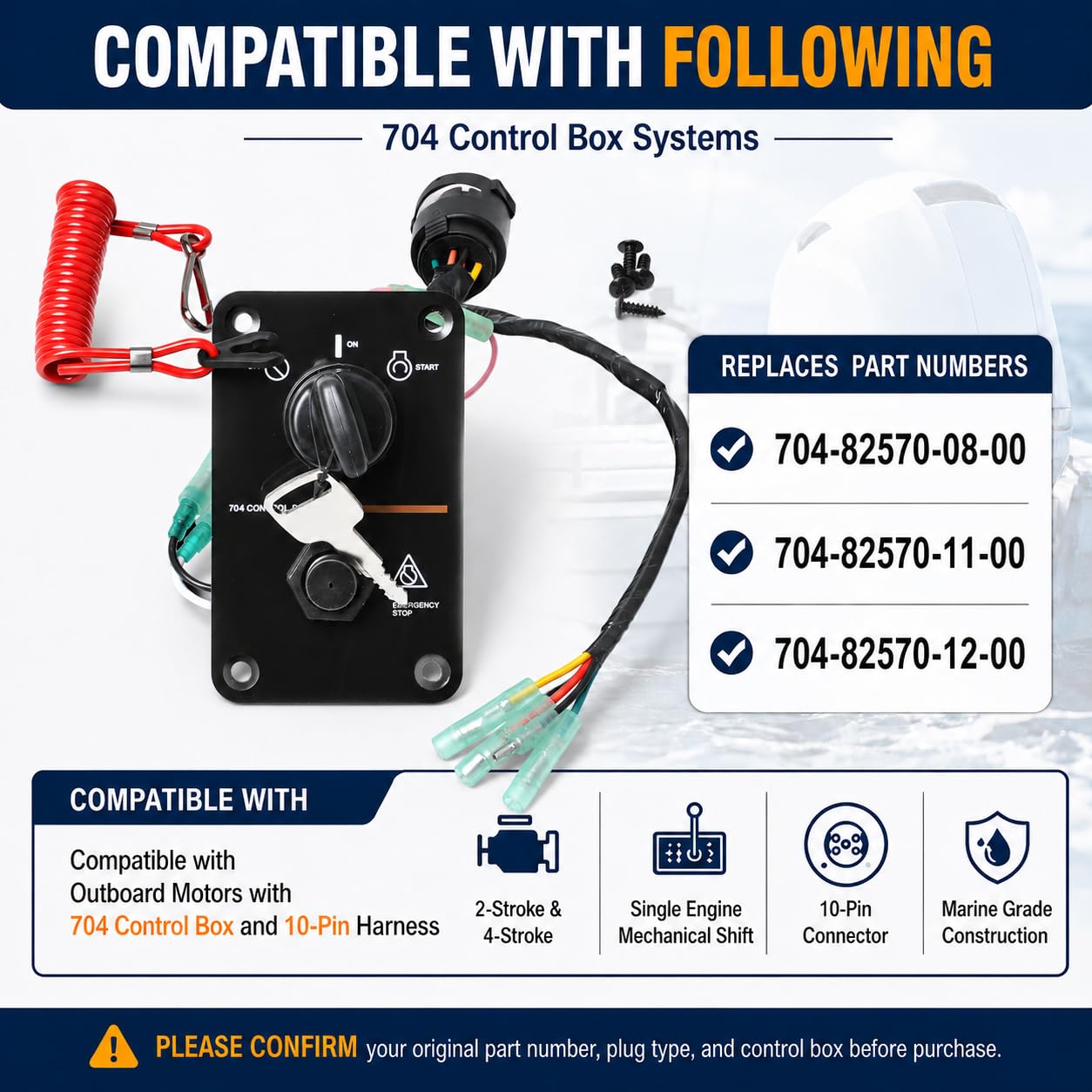

• Replaces part numbers 704-82570-08-00, 704-82570-11-00, 704-82570-12-00.

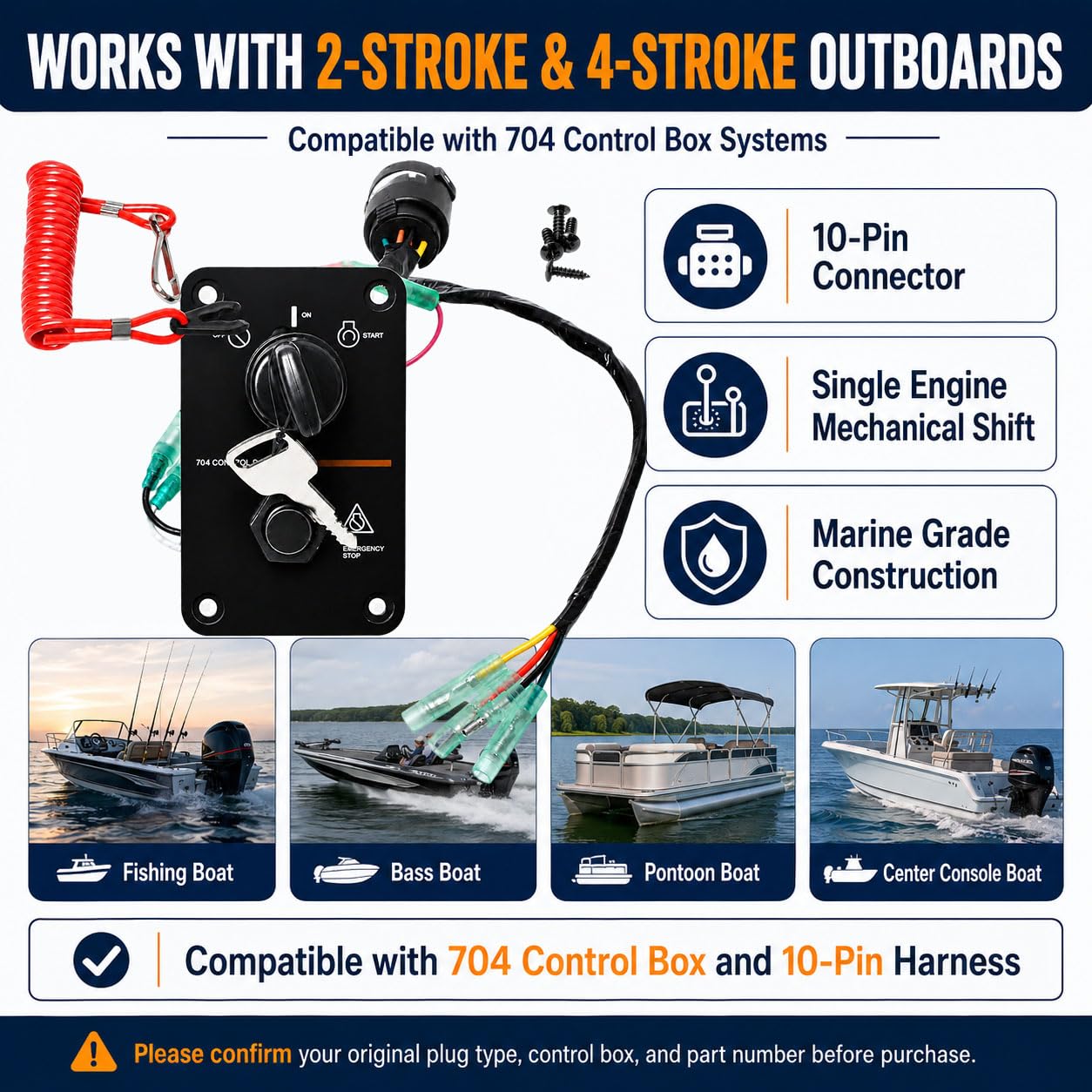

• Works with many 2-stroke and 4-stroke mechanical-shift outboards.
• Confirm your original plug shape and part number before purchase.

How hard is installation and what’s included?

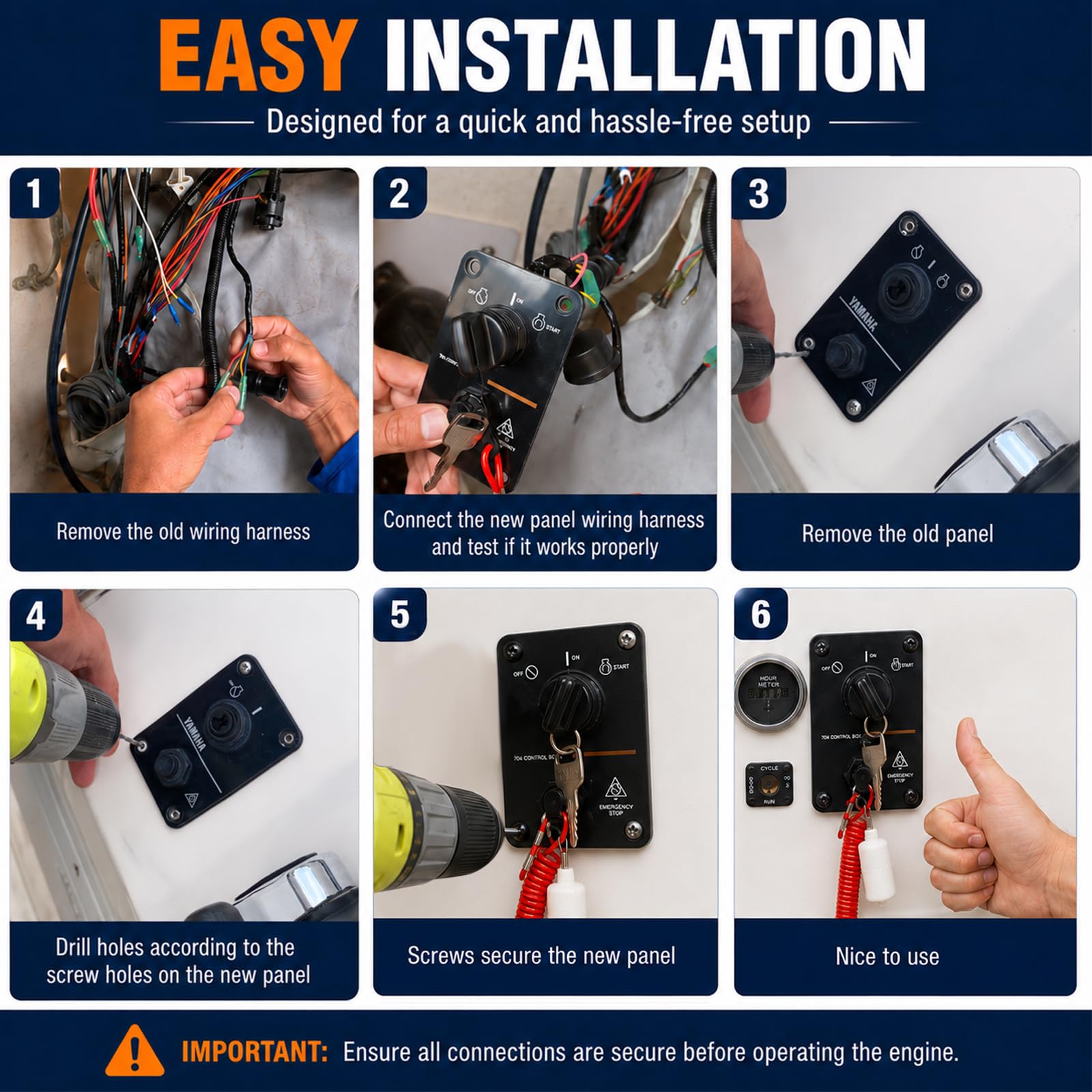

Installation is designed to be direct and user-friendly: the panel comes with pre-drilled mounting holes, screws, and a 10-pin wire harness to match the original connector. For most owners, swapping the old panel for the Wadoy unit requires only basic tools and about 15–30 minutes, avoiding any complex rewiring.

• Included: 1 key switch panel, 1 key, 1 wire harness, 4 mounting screws.
• Pre-drilled holes align with standard mounting layouts to simplify fitment.

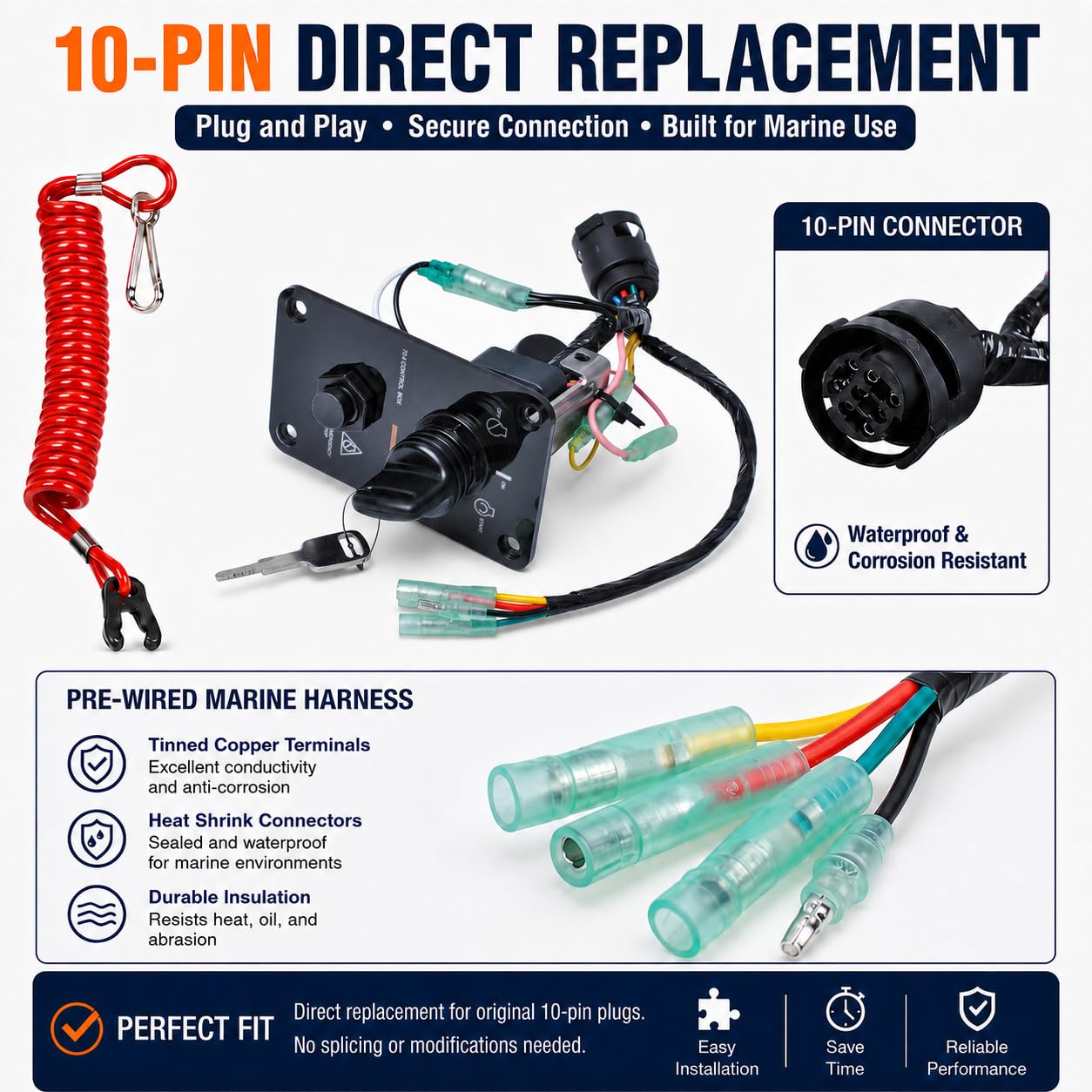

• 10-pin plug lets you reconnect without cutting or splicing wires.
• Basic hand tools are usually sufficient; professional help optional if unsure.

Does this panel restore full On-Off-Start functionality?

Yes — the Wadoy key switch supports standard On-Off-Start operation for single-engine setups and is intended to bring back reliable starting and shut-off control. While it restores the mechanical/electrical switching, it’s not an OEM Yamaha part; compatibility is based on wiring and connector match rather than brand origin.

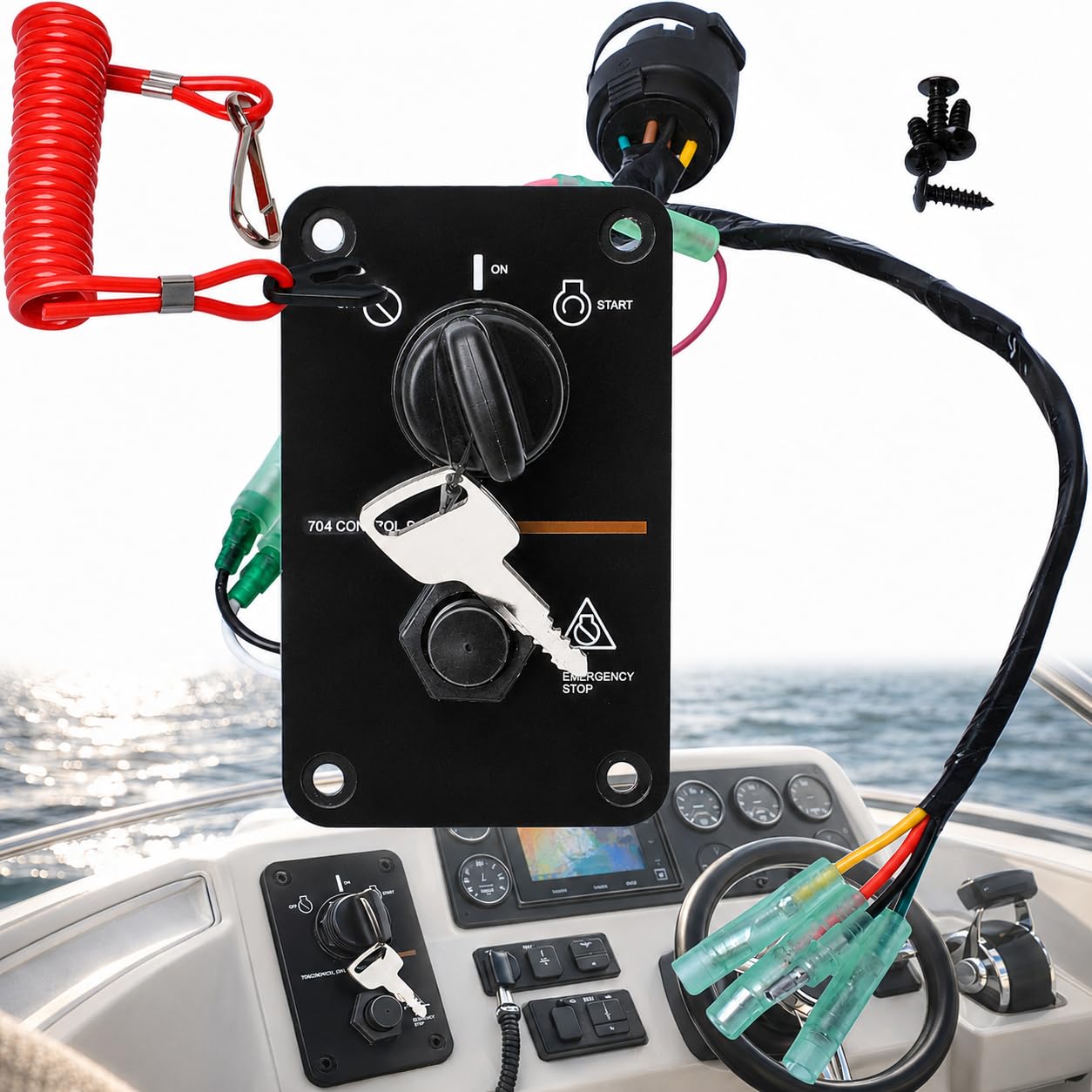

• Standard keyed positions: On, Off, Start for single-engine use.
• Includes a matching key for secure ignition control.
• Designed to replace worn, cracked, or non-responsive panels.
• Not manufactured by Yamaha — brand names used only for compatibility reference.

What should I check before buying this replacement panel?

Before purchasing, compare your existing panel’s part number and verify the 10-pin connector and mounting pattern match the Wadoy assembly. Also confirm your outboard is a mechanical-shift model that uses the Yamaha 704 control box configuration; electrical differences exist across models and years.

• Match original plug type and confirm 10-pin connector compatibility.
• Verify original Yamaha part number against the listed replacements.
• Check that your outboard uses a mechanical shift compatible with the 704 control box.
• Inspect dash cutout and mounting hole alignment before drilling or modification.

Who this is for: boat owners and technicians who need a cost-effective, ready-to-install replacement ignition panel for a single-engine Yamaha-compatible 12V setup. It’s aimed at those replacing a damaged or failing key switch assembly and who prefer a direct-fit solution with the harness and hardware included. If your connector, part number, and mounting layout match the Yamaha 704 control box specifications, this Wadoy panel offers a practical way to restore ignition control without complex rewiring.
