WATERWICH 52mm Blue LED Voltmeter - DC12V Gauge with Fast Digital Readout & Low-Voltage Warning

WATERWICH DC12V Voltmeter is a 52mm (2-inch) blue LED digital gauge that continuously displays vehicle battery voltage and warns when voltage falls below safe levels. This compact, panel-mounted voltmeter provides fast, at-a-glance readings of your vehicle's electrical system using a bright blue LED display that stays easy to read day or night. The kit ships with the instrument, wiring harness, and installation hardware so you can replace or add a volt gauge without extra sensors. It measures from 8 to 18 volts and triggers a red warning lamp when the voltage drops beneath 11.5 volts, helping you notice battery or charging issues early.

How does the WATERWICH voltmeter make monitoring easier?

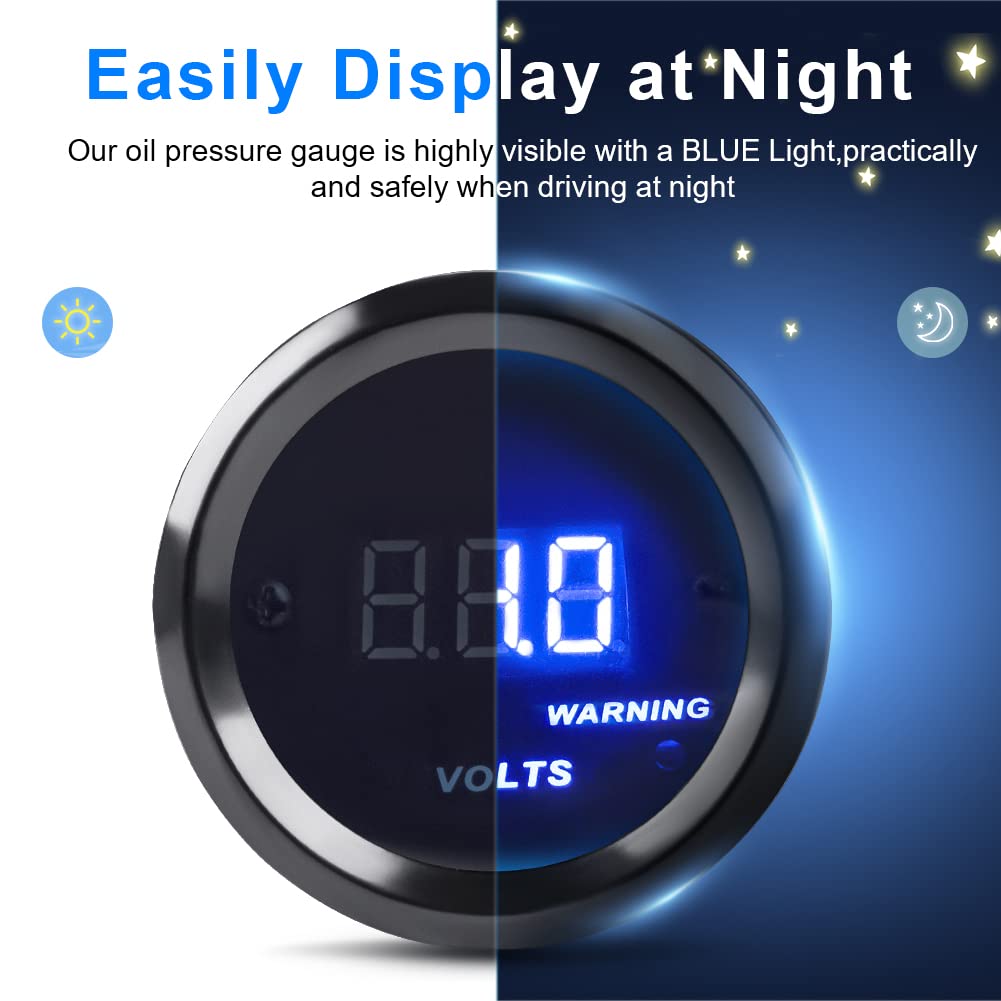

The vivid blue LED and simple digital readout let you check voltage instantly while driving, reducing guesswork about battery state. The voltmeter’s response is immediate, so transient changes and charging behavior are shown in real time.

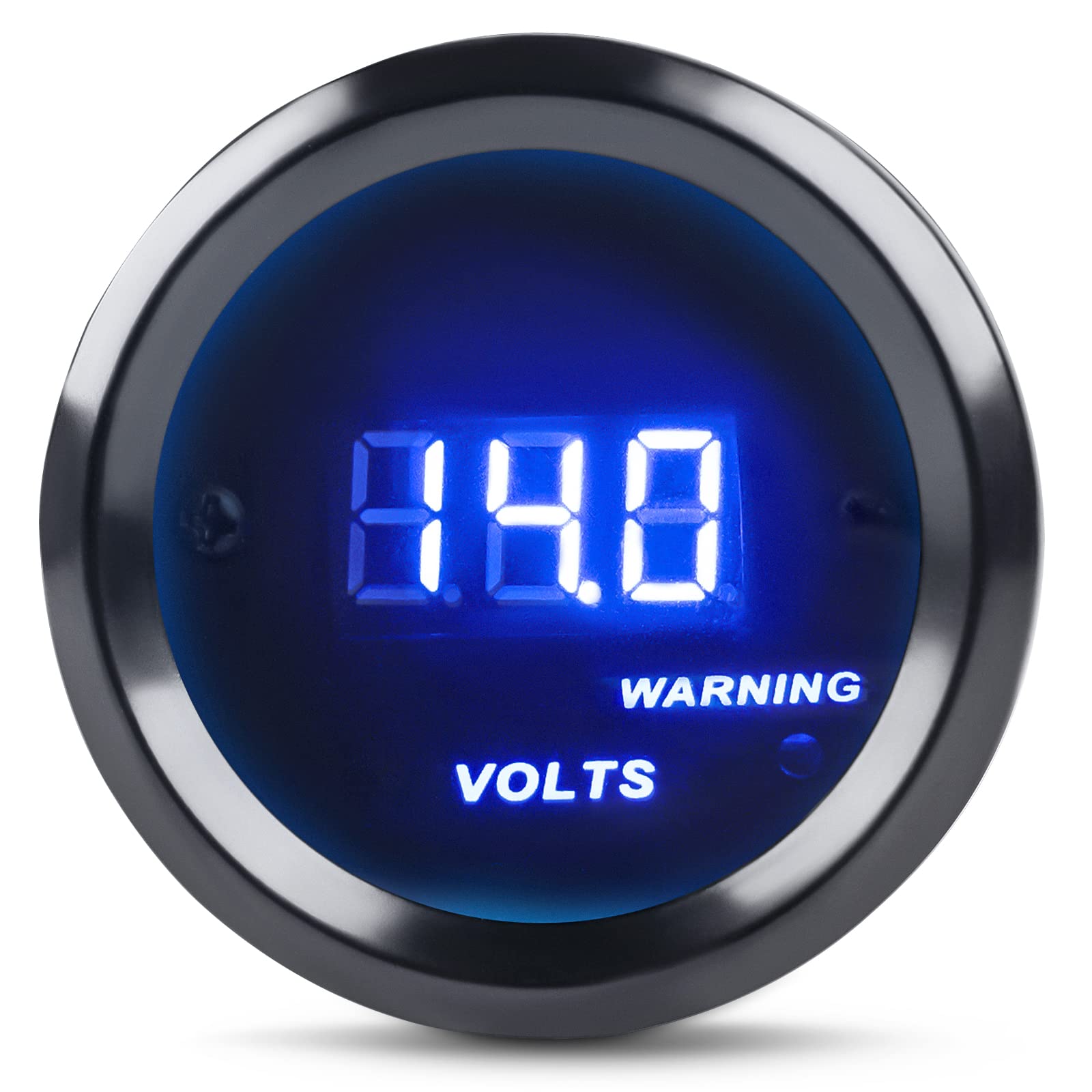

• Bright blue LED display for clear visibility in all lighting conditions
• Fast-response digital readout for instant voltage feedback

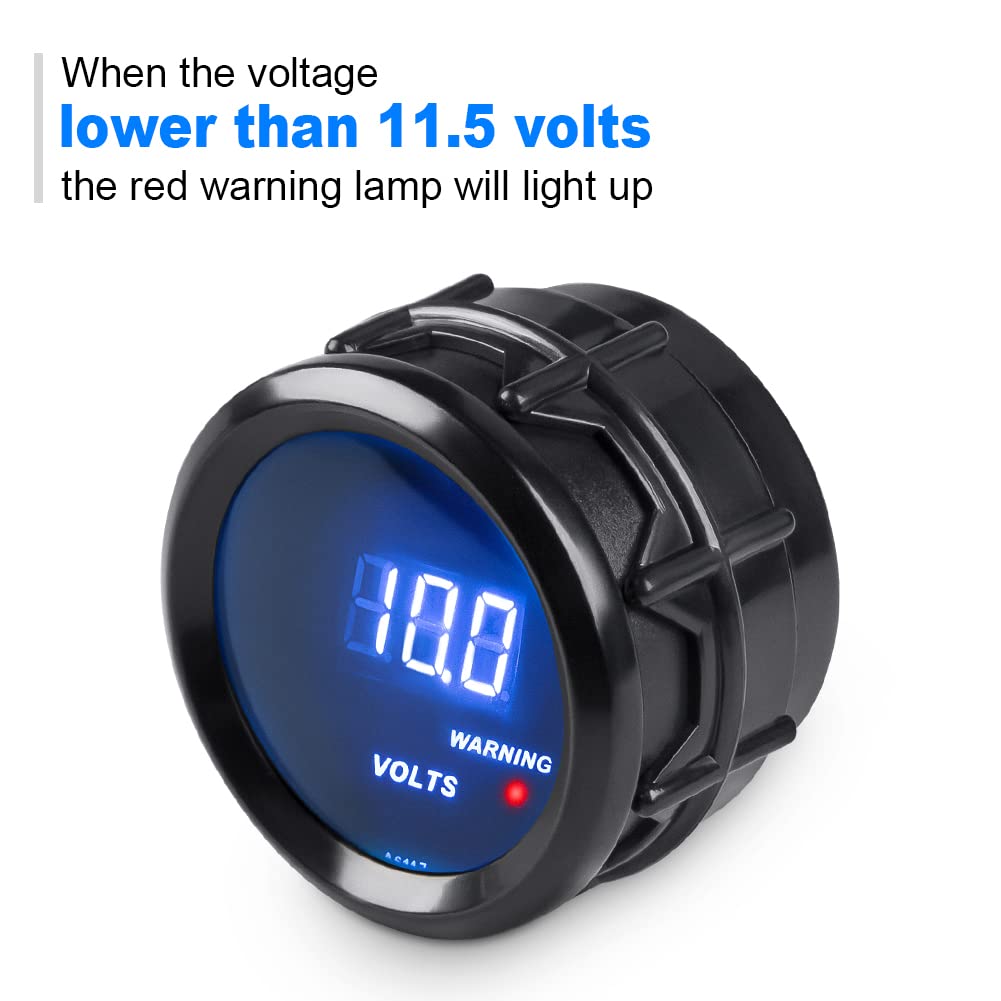

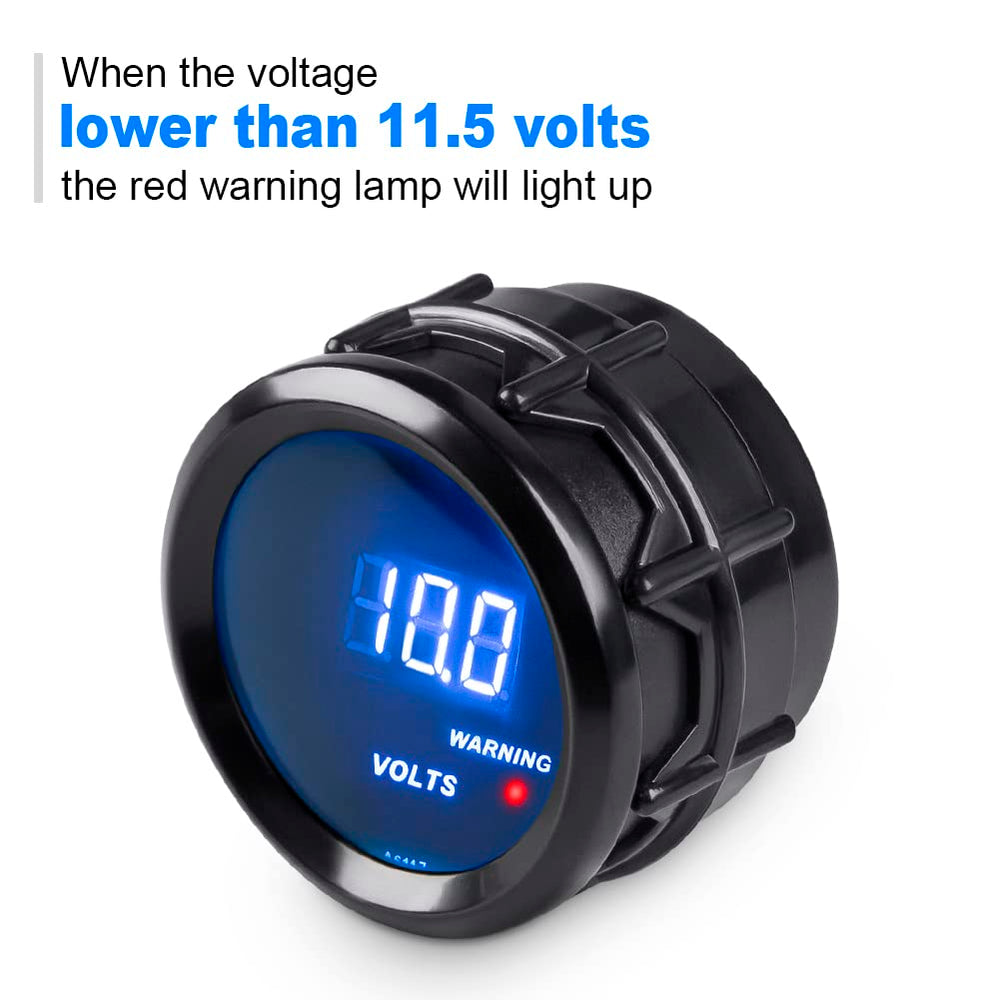

• Red warning lamp activates under 11.5 volts to indicate low voltage
• 52mm (2") standard bezel fits common dash openings

What electrical range and accuracy can I expect?

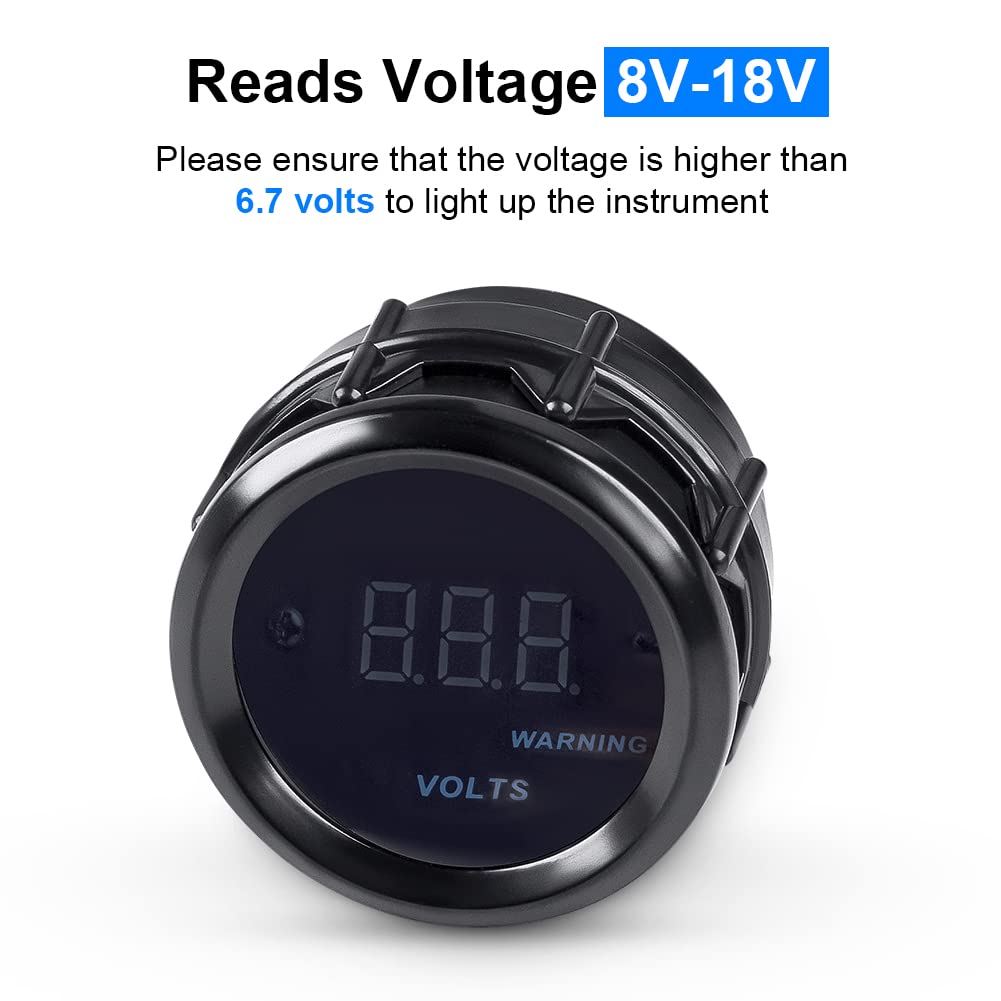

This gauge is designed for 12V vehicle electrical systems and shows voltages between 8 and 18 volts, covering typical automotive battery and charging ranges. It requires at least 6.7 volts to power the display but will reliably indicate normal and low states within the specified range.

• Measurement range: 8–18V for practical vehicle monitoring
• Minimum operating voltage to light display: >6.7V
• Alarm threshold: red lamp when voltage drops below 11.5V
• Power draw: DC12V, up to 0.3A maximum

How difficult is installation and what’s included?

The voltmeter kit is built for straightforward installation and replaces a standard 52mm gauge opening. No external sensor is required; the kit includes the instrument, mounting hardware, harness, and instructions to simplify fitting into dashboards, consoles, or custom panels.

• Complete kit: instrument, wiring harness, mounting hardware, instructions
• No separate sensor required—wire directly to the vehicle electrical system
• Direct replacement for 2" (52mm) gauge holes in cars, trucks, and SUVs
• High-sensitivity electronics for accurate readings without calibration

Will this work with my vehicle and what applications suit it best?

The WATERWICH voltmeter is compatible with most 12V automotive systems including cars, SUVs, trucks, RVs, and marine vehicles operating on 12V supplies. It’s suitable wherever you want a compact, continuous voltage readout to watch battery charge, charging system performance, or accessory power loads.

• Works with 12V vehicle systems—cars, SUVs, trucks, vans, RVs
• Useful for monitoring starting batteries, auxiliary battery banks, and charging systems
• Compact 52mm size fits aftermarket or replacement gauge positions
• Helps detect draining, weak charging, or electrical faults early

This voltmeter is ideal for DIY installers, mechanics, fleet operators, and vehicle owners who want clear, continuous voltage information without bulky equipment. If you need a small, plug-and-play gauge that gives immediate visual feedback and a low-voltage warning, the WATERWICH DC12V 52mm blue LED voltmeter is a practical, easy-to-install choice for maintaining electrical awareness on the road.

FAQ

Q: What voltage range does the WATERWICH voltmeter measure?

A: It measures between 8 and 18 volts and triggers a red warning lamp below 11.5 volts.

Q: Do I need an external sensor to install this voltmeter?

A: No external sensor is required; the kit includes the gauge, harness, and mounting hardware.
