Wryxia Manual Air Valve BAV010 — 4-Way 2-Position Push-Pull Tailgate Control, Aluminium, OD6mm

The Wryxia BAV010 is a push-pull, 4-way 2-position manual air valve designed to reliably control dump truck tailgate and hydraulic air-actuated systems.

This compact valve assembly combines aluminum-alloy construction, a sliding-column core and simple manual operation to give workshop technicians and fleet operators an easy-to-install solution for tailgate control. Built for repeated cycles and everyday field use, the BAV010 is supplied with a face plate and fittings so you can fit it to standard OD6mm air lines and common dump-truck layouts.

How does this valve fit into a dump truck air system?

The BAV010 acts as a directional control element that routes compressed air to cylinder or actuator ports, enabling the tailgate to open and close from a single manual control. Because it is a 4-way, 2-position valve, it switches between two flow paths to change actuator direction and exhaust lines.

• Connects to OD6mm air tubing for common pneumatic setups
• Operates within 50–145 PSI working pressure range
• Dedicated inlet, outlet and exhaust ports for tailgate actuation

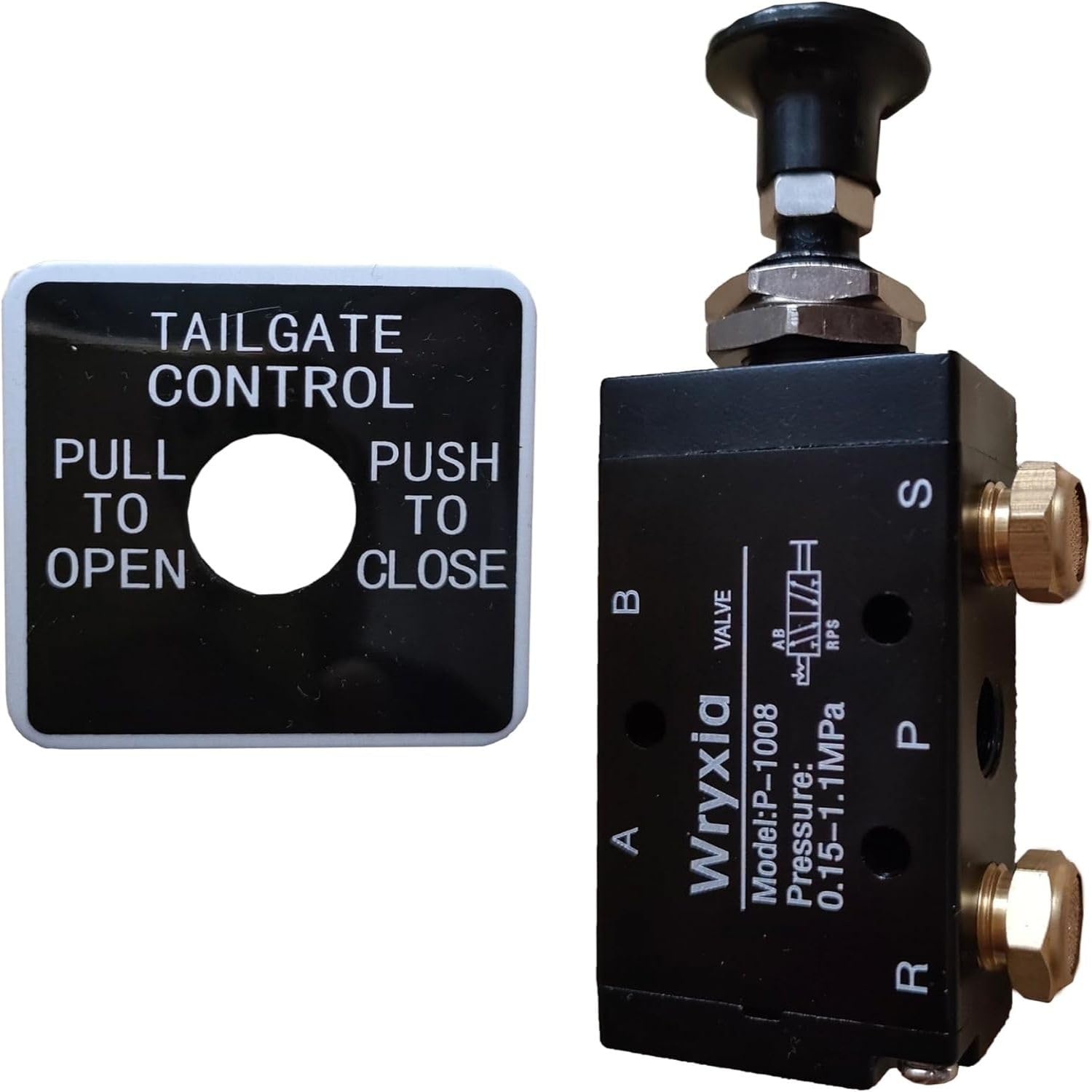

• Supplied with face plate and five fittings for direct installation

What makes its construction durable and serviceable?

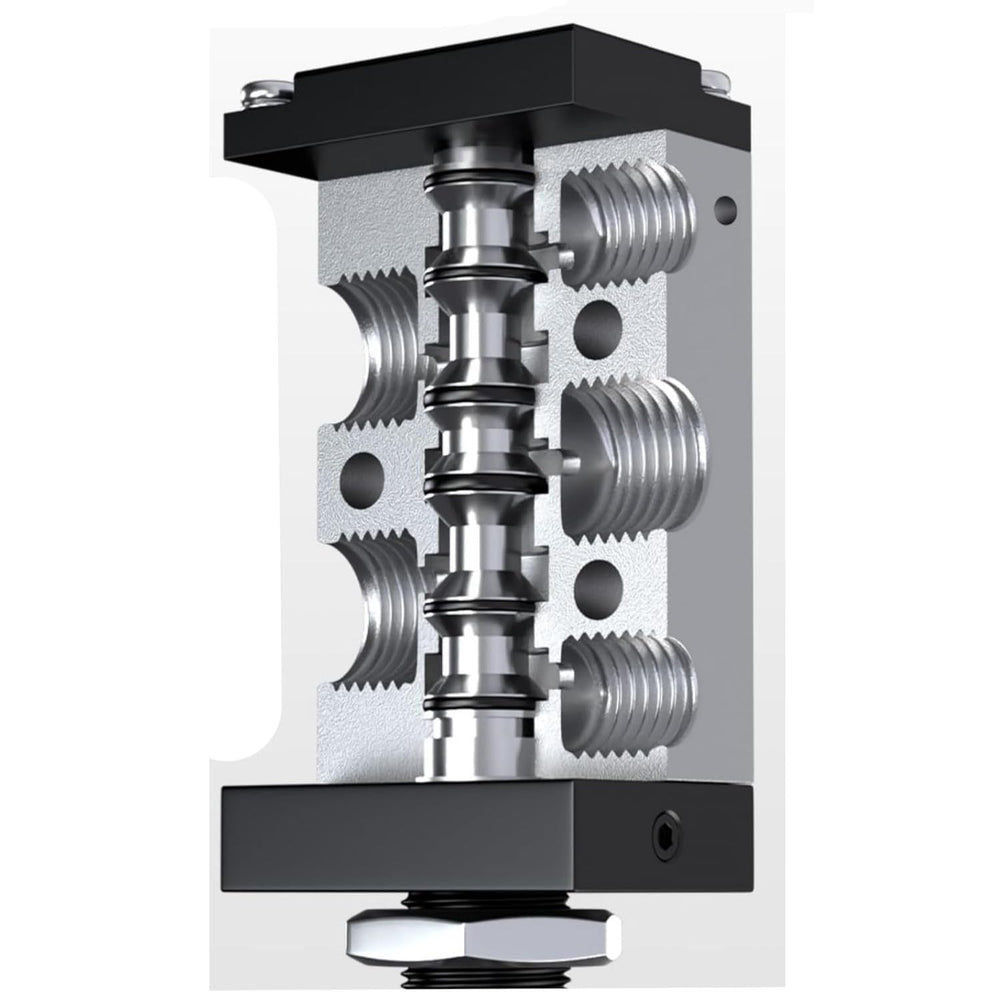

The valve body is machined from aluminum alloy to balance strength and corrosion resistance while keeping weight low. The internal sliding-column valve core is engineered for tight sealing and responsive shifts, reducing air loss and improving control feel under load.

• Aluminum-alloy body resists wear and common environmental corrosion
• Sliding-column core provides improved sealing and sensitivity
• Designed for repeated cycles to extend maintenance intervals
• Simple external layout eases inspection and routine service

How easy is installation and what comes in the package?

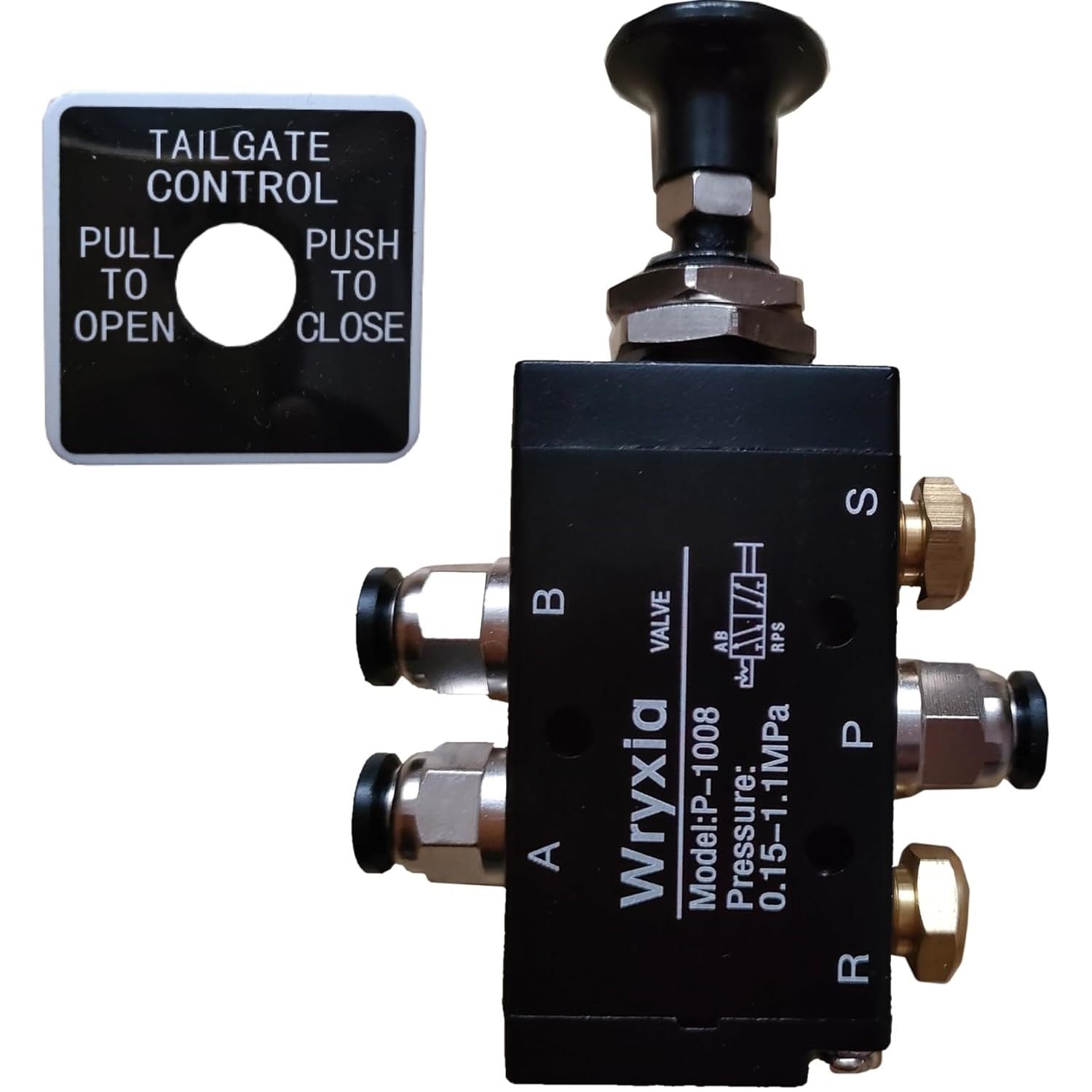

Wryxia supplies this valve as a ready-to-fit kit so technicians can minimize bench time: the package includes the valve, a tailgate control face plate and five fittings sized for common air hoses. Mounting and plumbing use standard hardware and OD6mm tubing connections to match many OEM and aftermarket installations.

• Complete kit: Wryxia valve, face plate, five fittings included
• Plumbs to 6mm outer-diameter air pipe without adapters in most cases
• Manual push-pull operation requires no electrical interface
• Typical workshop installation time is short with basic tools

What operating conditions and limits should I expect?

The BAV010 is designed for typical heavy-vehicle pneumatic environments and covers a broad working temperature and pressure window. It performs reliably across seasonal temperature ranges encountered in most climates, provided normal diesel-truck maintenance practices are followed.

• Working pressure range: 50–145 PSI (suitable for common vehicle air systems)
• Temperature rating: -25°C to 80°C for field use
• Intended for air-only pneumatic actuation, not hydraulic fluids
• Manufacturer production ensures consistent quality and interchangeability

Who is this for? The Wryxia BAV010 is aimed at fleet maintenance shops, body builders, and service technicians who need a dependable, easy-to-install manual tailgate control valve. It suits operators who prefer a mechanical, non-electrical control method and want a rugged component with reliable sealing and consistent manufacture for replacement or retrofits.
