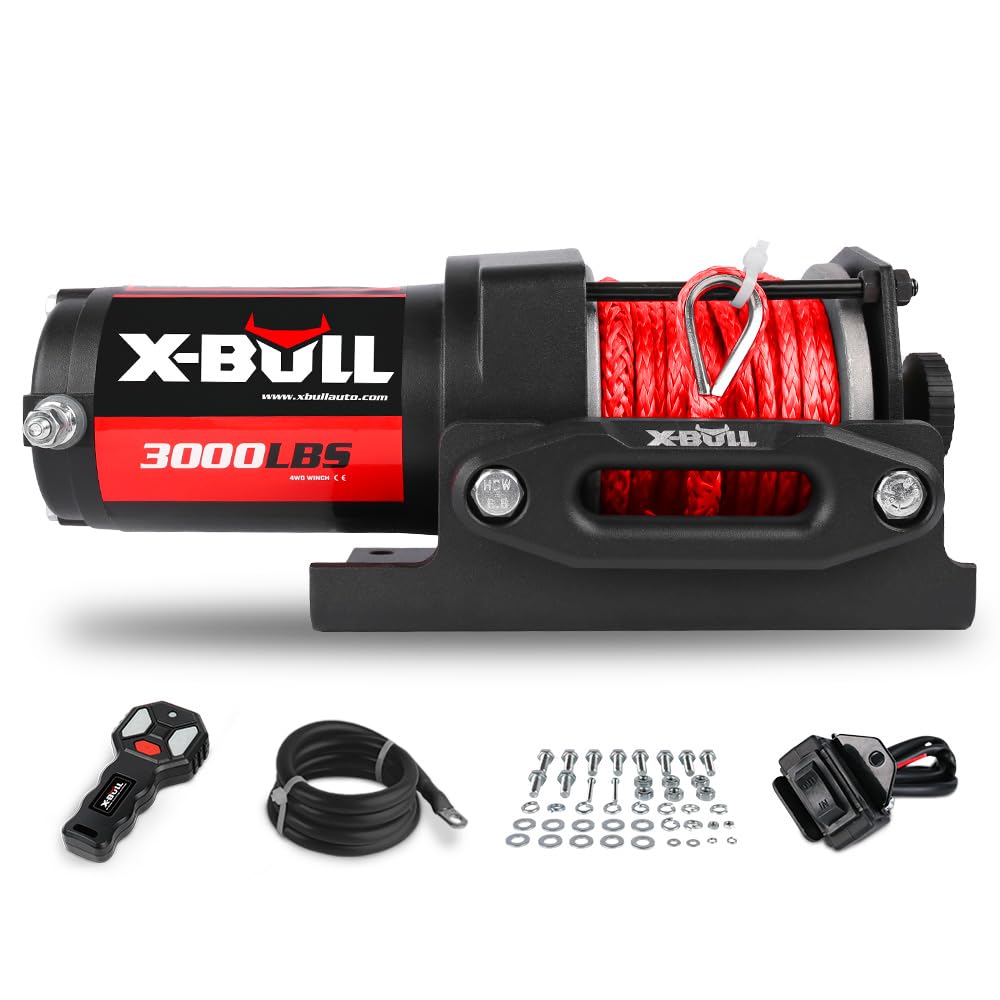

X-BULL 12V 3000lb Electric Winch for ATV/UTV — Synthetic Rope, Wireless Remote

The X-BULL 12V 3000LBS electric winch is a compact, waterproof off-road pulling system with synthetic rope, wireless control and a universal mounting plate for ATVs, UTVs and light towing tasks.

This winch combines a high-torque permanent-magnet motor and a planetary geartrain to deliver dependable pulling power in wet, dirty and off-road environments. Built with corrosion-resistant coating and a lightweight synthetic line, the unit is intended for recovery and utility tasks where space and mounting options are limited. Included accessories—wireless remote, mounting plate, handlebar switch and hardware—help you install and operate the winch on a variety of small vehicles and rigs.

How much pulling power and speed can I expect from this winch?

The X-BULL winch is rated for roughly 3,000 pounds of static pull using its 1.0 kW (about 1.3 HP) 12V permanent-magnet motor and a 153:1 planetary gearbox. Line speeds vary with load: faster when unloaded and slower under full rated tension, prioritizing torque and safe braking.

• Rated pull: approximately 3,000 lbs (single-line)
• Motor: 12V DC permanent-magnet, ~210 A peak draw
• Gear ratio: 153:1 planetary for strong mechanical advantage
• Line speed: higher when unloaded, reduced under load for control

What materials and weather protection does the winch use?

The housing is treated with a waterproof powder coat to resist rust and abrasion during outdoor use. The supplied rope is high-tensile synthetic fiber, lighter and safer than steel cable, and the electrical connections use clearly labeled heavy-gauge leads to simplify hookup and reduce corrosion points.

• Finish: corrosion-resistant powder coating
• Rope: 3/16" diameter, 32' synthetic line with high tensile strength
• Wiring: heavy No. 6 leads with color-coded lengths for motor and battery hookup
• Seals and fasteners designed for outdoor exposure

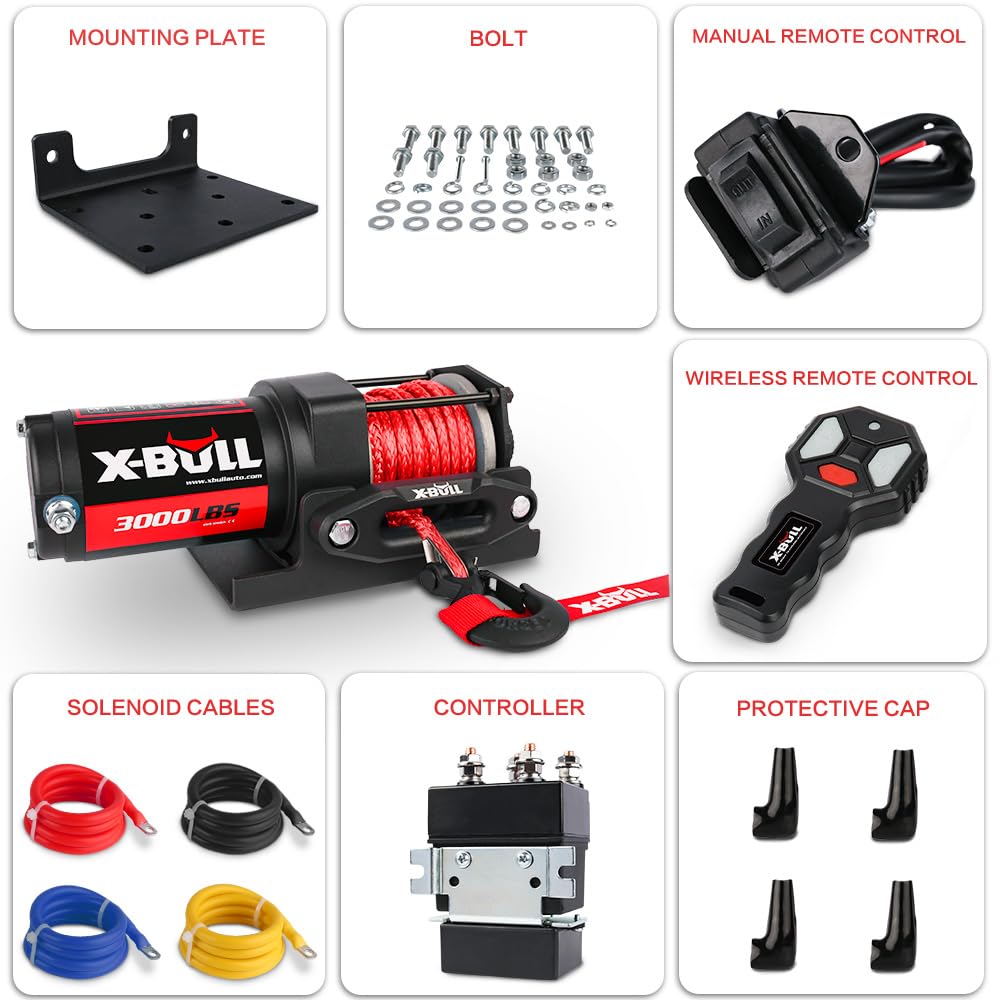

What accessories are included and how does installation work?

The winch ships with a universal mounting plate, wireless remote, handlebar rocker switch and hardware to adapt to many ATVs and UTVs. The mounting plate is a common pattern that may require trimming or drilling to match a specific vehicle’s frame; electrical leads are long enough to reach typical battery and motor positions.

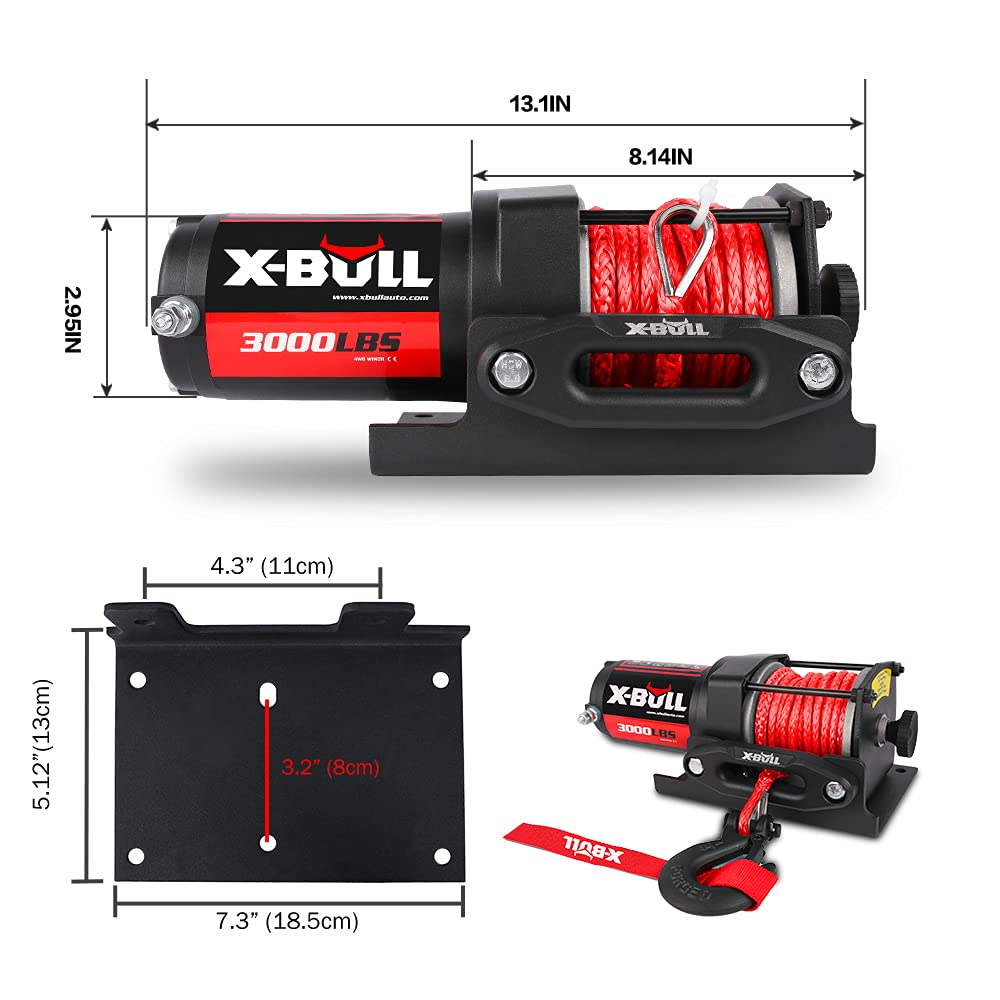

• Universal mounting plate: 18.5 x 13 cm, may need modification for exact fit

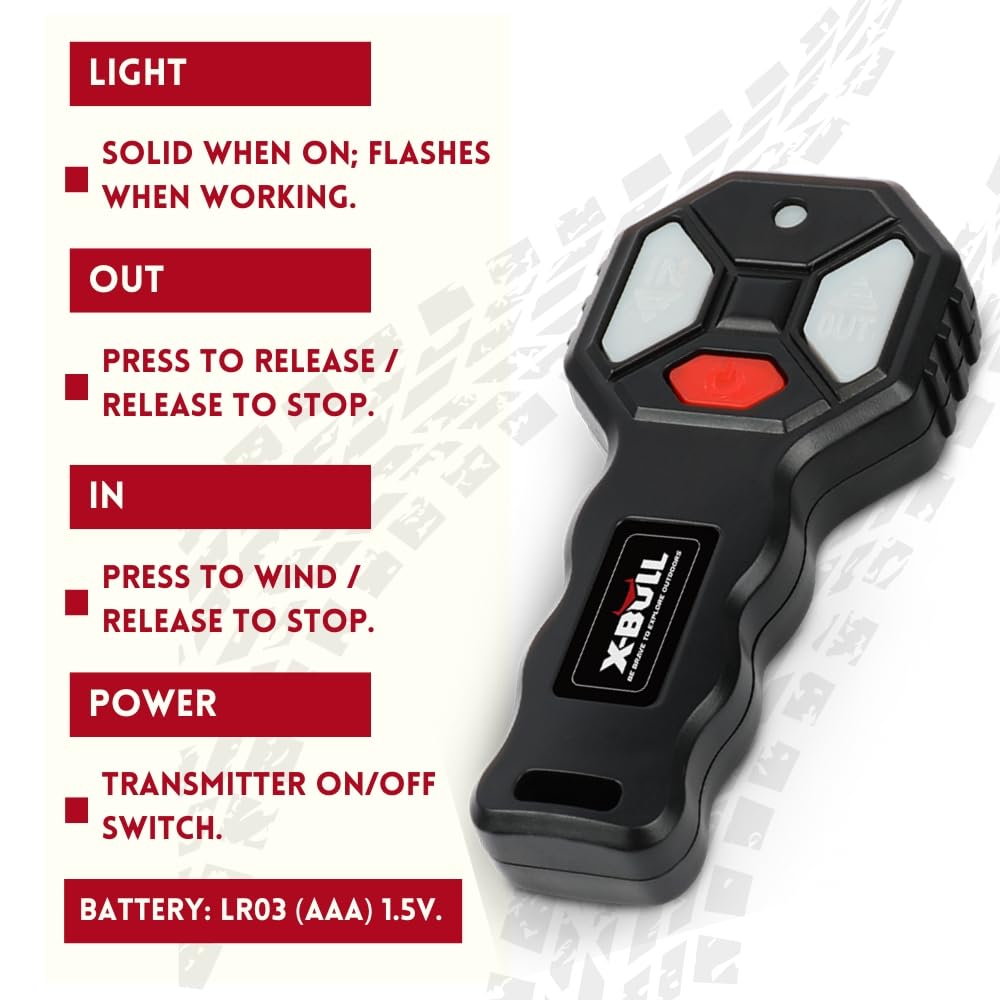

• Wireless remote: long-range control (about 9.8–11.6 m) for safe operation

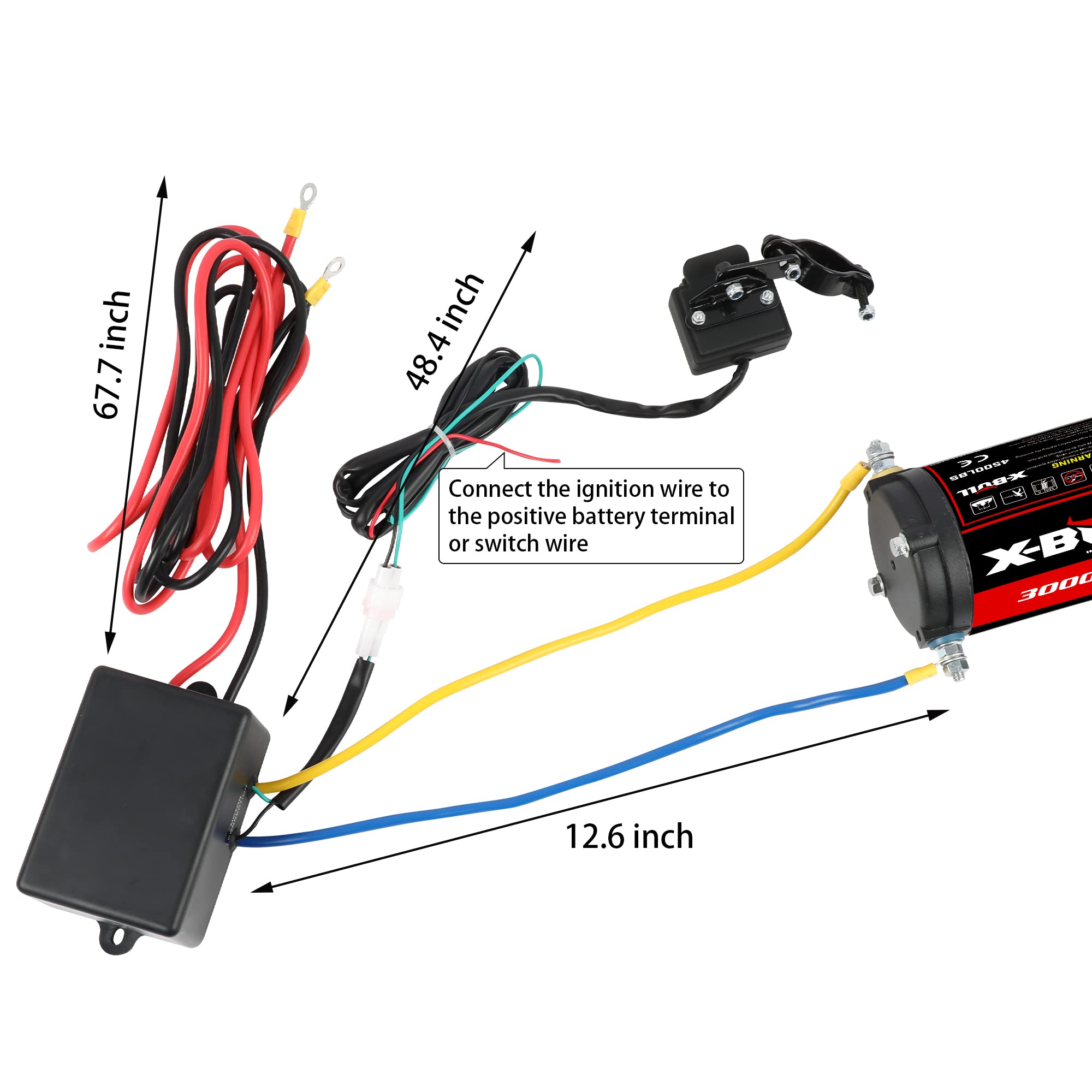

• Wiring lengths: motor leads ~32 cm, battery leads ~173 cm for flexible routing
• Included hardware: U-hook, chain fairlead-style bar and mounting bolts

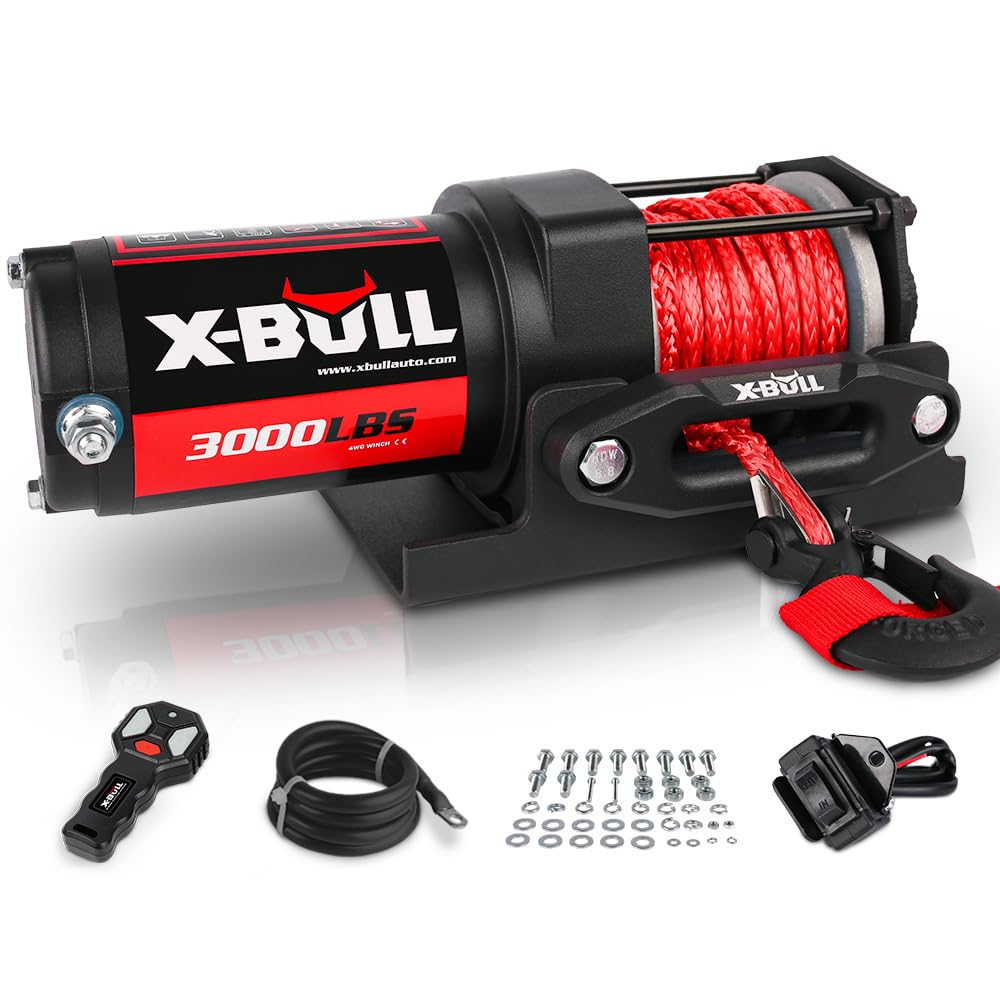

How does the winch stay safe and controlled during use?

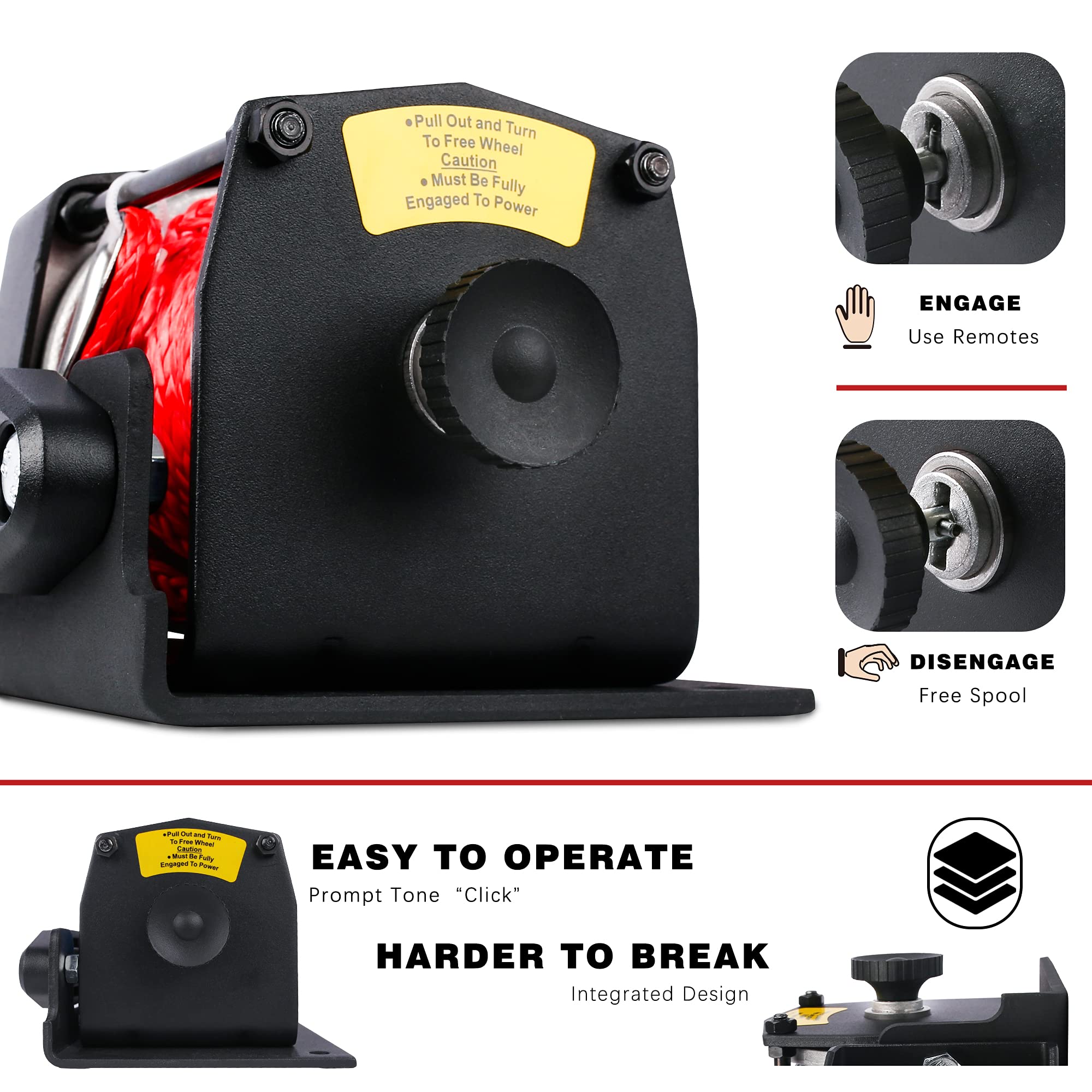

The planetary gearbox design provides strong mechanical braking when not under power, helping hold a load in place without continuous motor effort. Combined with controlled line speeds and the remote/handlebar controls, the system lets operators manage pulls without exposing themselves to the load line.

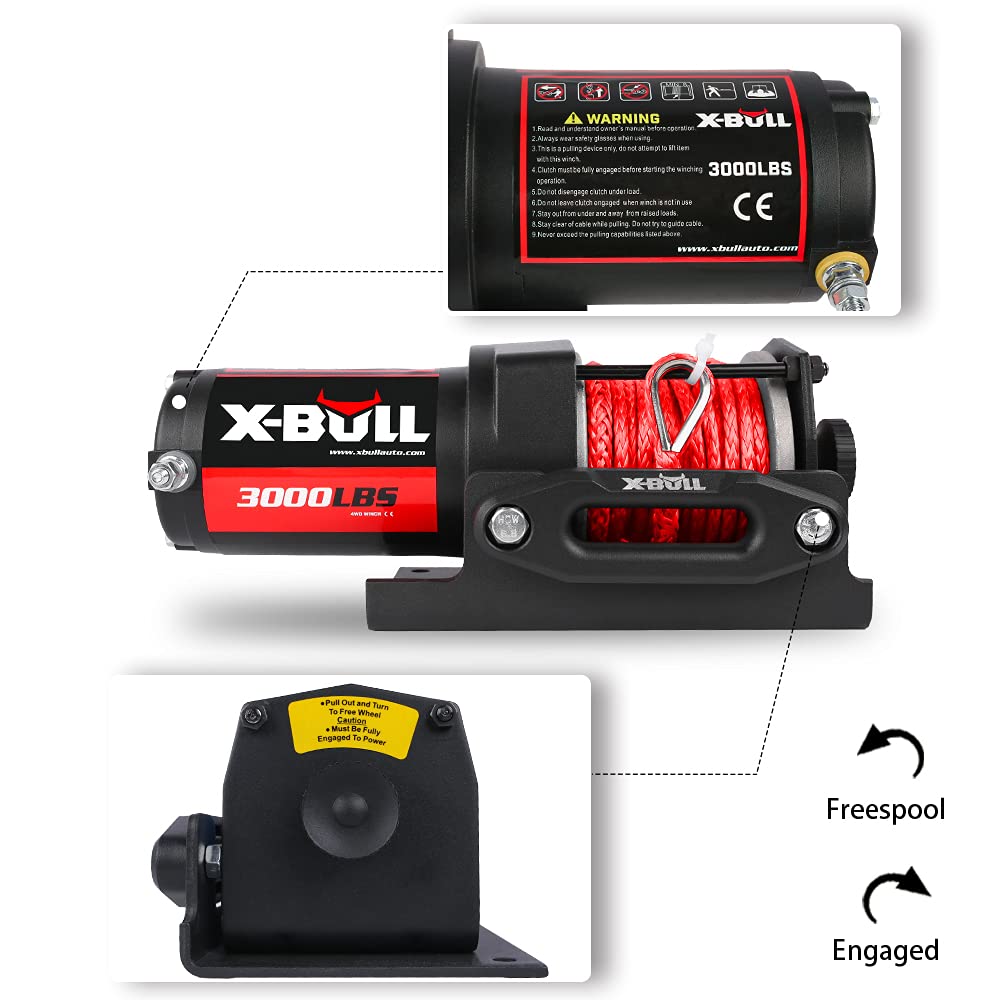

• Automatic mechanical braking through planetary gears
• Remote and wired control options for distance operation
• Lightweight synthetic rope reduces recoil risk compared with steel cable
• Durable finish and sealed components help prevent failures in the field

Who is this for: The X-BULL 12V 3000LBS electric winch is targeted to outdoor enthusiasts, ATV/UTV owners, small farm operators and DIYers who need a compact, dependable pulling solution. It suits recovery tasks, light towing and utility pulls where a lightweight synthetic rope, remote control and a modest mounting footprint are important. If you need heavier industrial recovery gear or certified commercial lifting gear, consult a higher-capacity or specialized unit instead.
