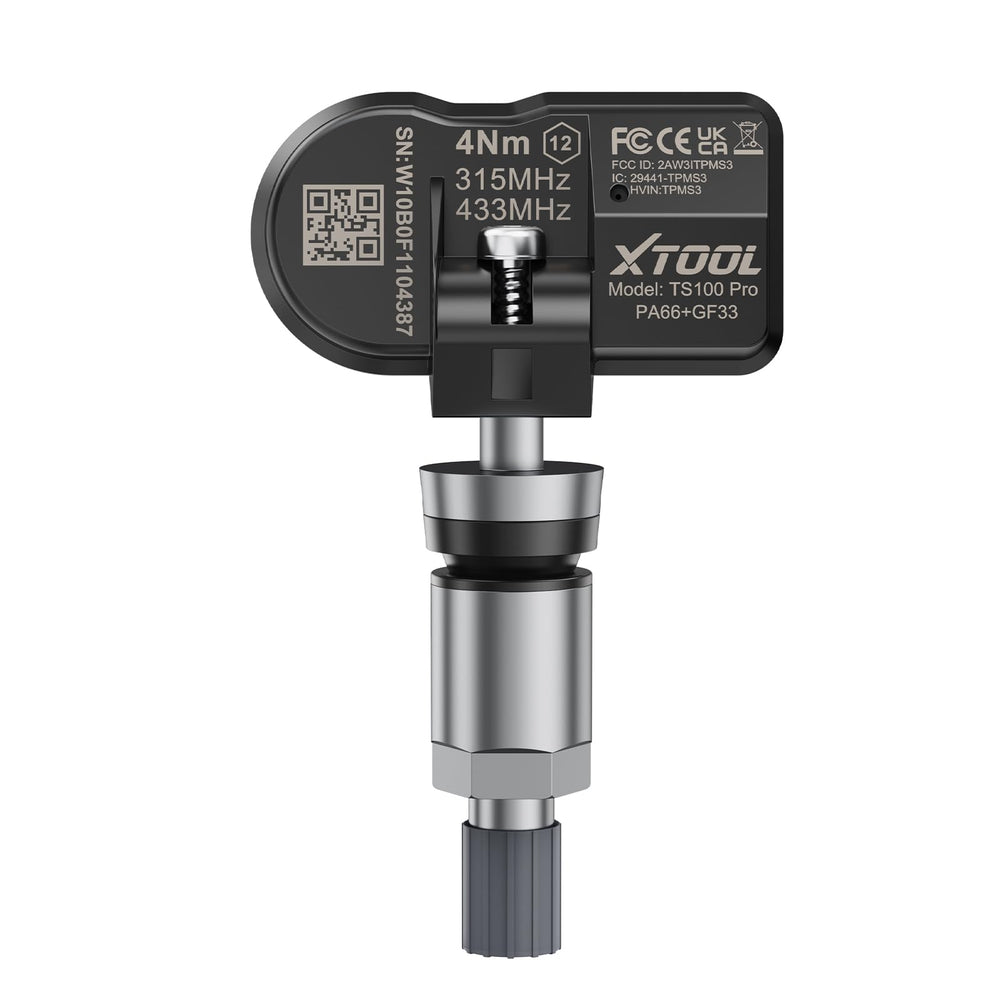

XTOOL TS100 PRO TPMS Sensor 315/433MHz — Dual-Frequency Tyre Pressure & Temperature Sensor, Metal Valve, Long-Life Battery

The XTOOL TS100 PRO TPMS Sensor is a dual-frequency tire pressure and temperature sensor (315/433MHz) designed as a direct, economical OEM-style replacement that programs only with XTOOL TPMS tools.

Built for broad vehicle compatibility and workshop efficiency, the TS100 PRO delivers a lightweight, weather-resistant sensor with a long-life battery and metal valve stem. Its dual-frequency design covers 98% of vehicle models, while integration with XTOOL programming devices (such as the TP150 and IP819TP) streamlines activation, relearning, and diagnostics during sensor replacement.

How does the TS100 PRO work with existing vehicle TPMS systems?

The TS100 PRO transmits tire pressure and temperature over either 315MHz or 433MHz, matching the vehicle receiver frequency for reliable communication. It replaces factory sensors in most cases, then must be programmed and relearned into the vehicle using compatible XTOOL tools.

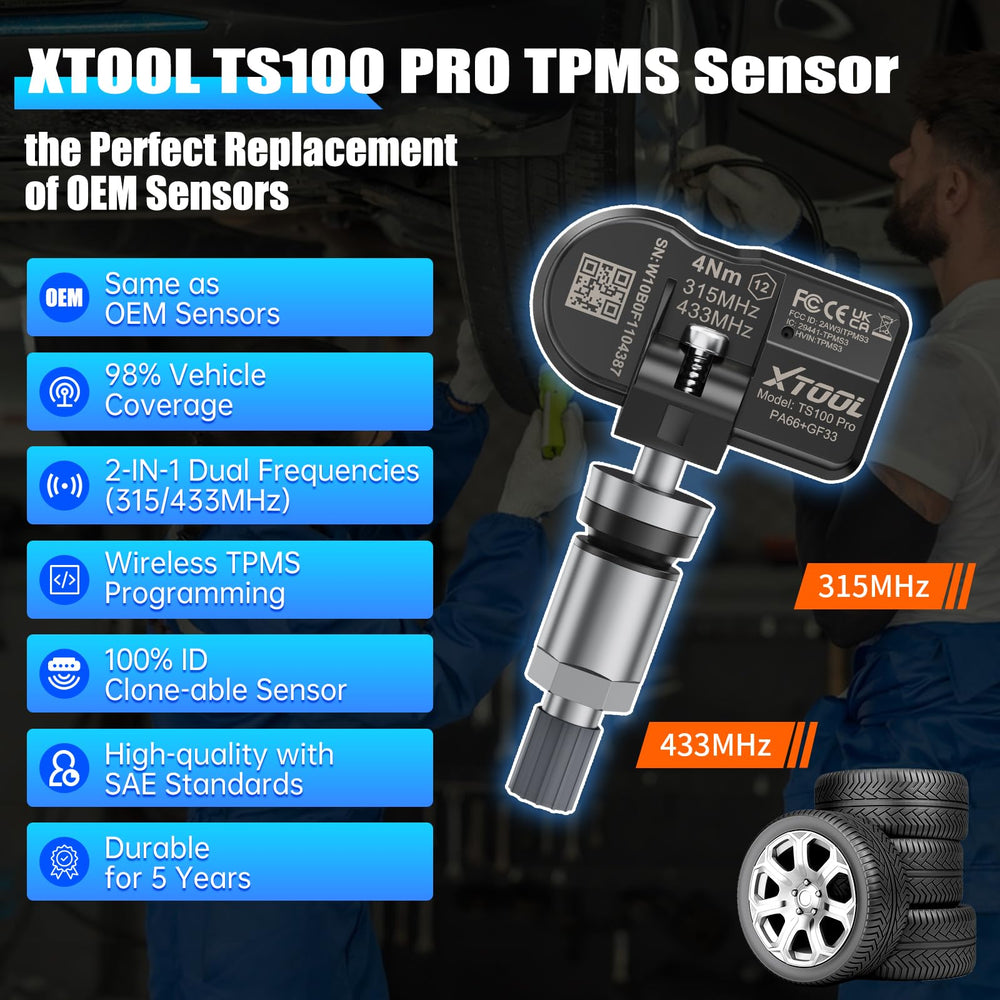

• Dual-frequency 315/433MHz to match OE receivers
• Programs and activates only via XTOOL TPMS tools (TP150, IP819TP)
• Supports relearn and on-vehicle diagnostics through XTOOL devices

What durability and battery life can I expect from the sensor?

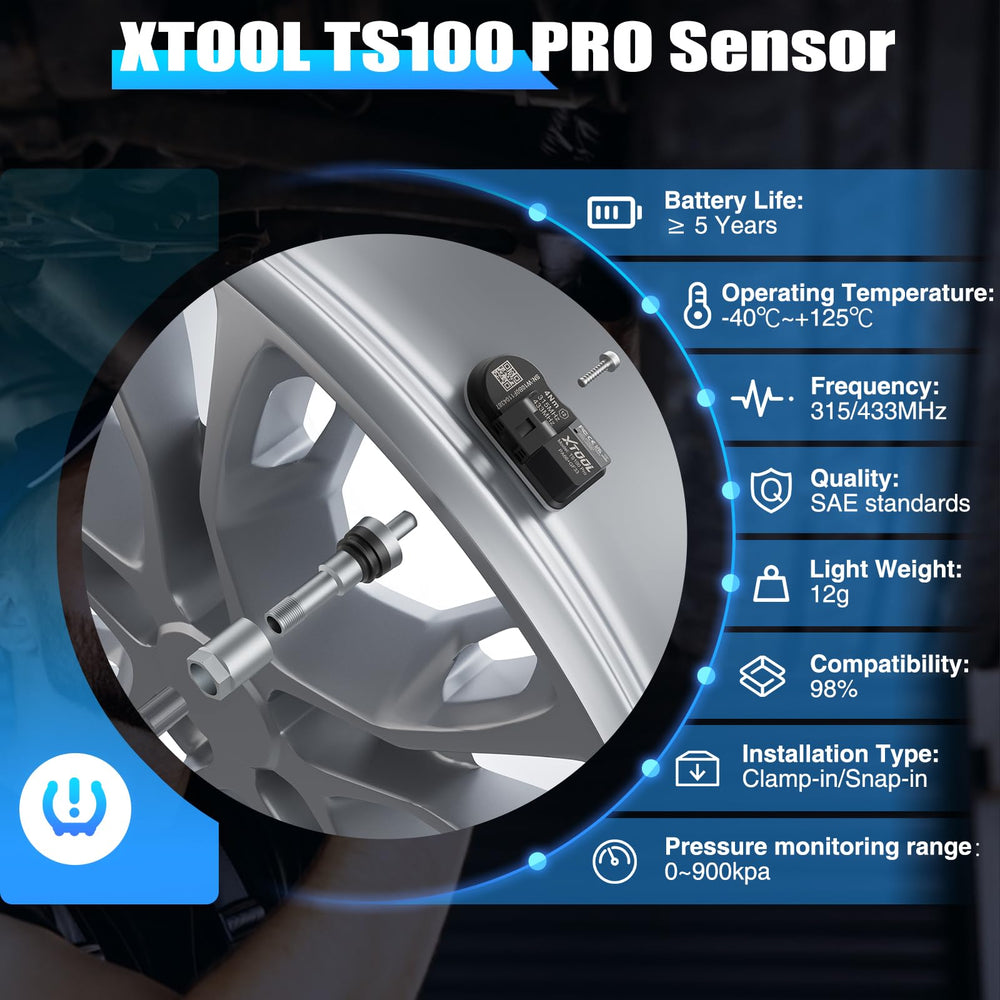

The TS100 PRO is engineered for harsh road conditions: it operates across a wide temperature range and uses a high-performance battery rated up to five years under normal use. The sensor is lightweight and undergoes multiple quality tests for mechanical strength and temperature resilience to ensure reliable field performance.

• Operating temperature: -40 °C to 125 °C
• Tire pressure range: 0 to 900 kPa
• Battery life up to 5 years depending on usage
• Sensor weight: approximately 12 g for minimal hub impact

Is installation and programming difficult for a technician?

Installation is straightforward: the TS100 PRO follows a five-step fit-and-program routine and is designed for fast replacement in shop environments. Technicians will use an XTOOL TPMS tool to program each sensor, perform activation, and execute the relearn process to sync the sensor to the vehicle’s system.

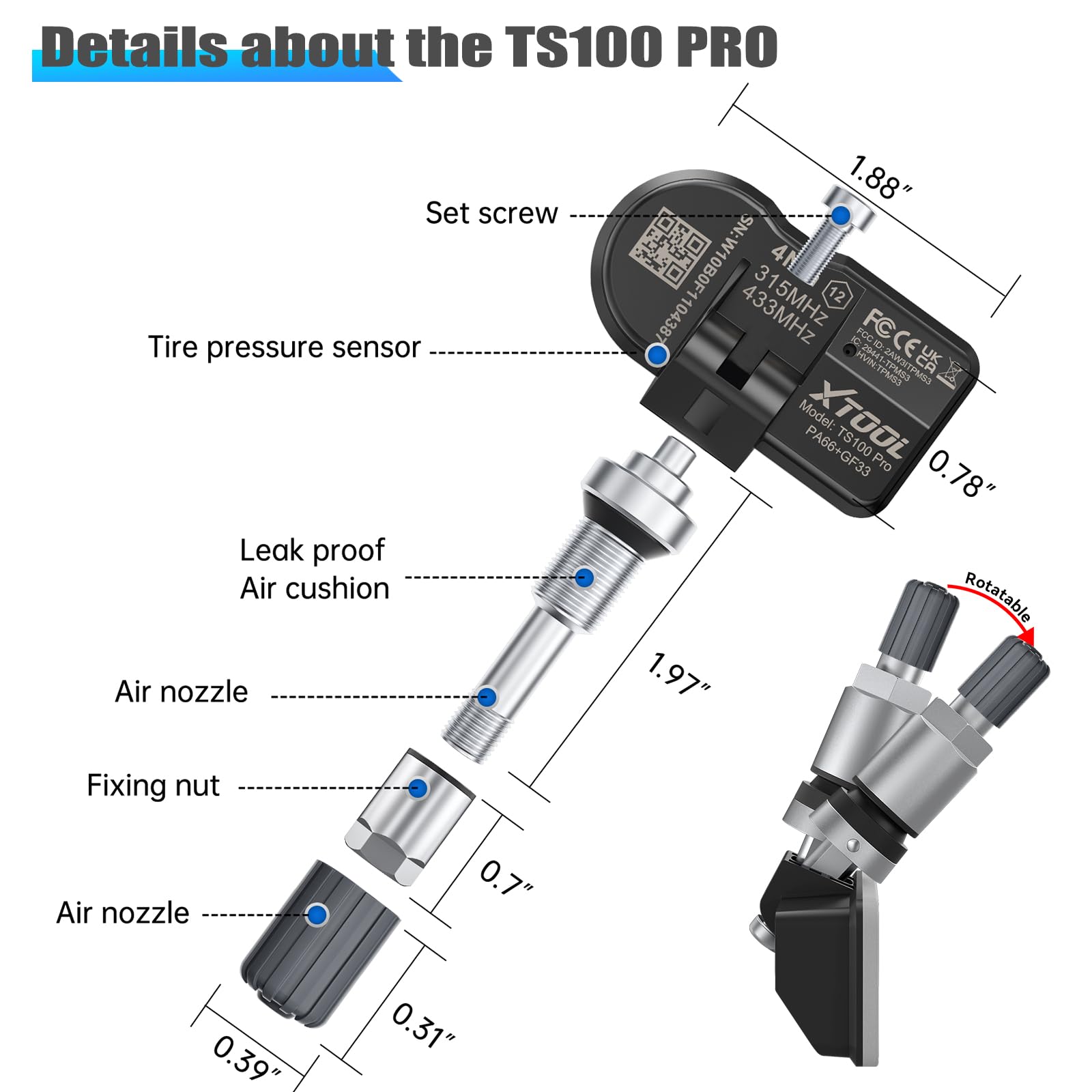

• Simple 5-step installation process for quick mounting
• Each unit passes verification tests for durability and performance
• Program, activate, and relearn using XTOOL TP150 or IP819TP

Which vehicles and scenarios is the TS100 PRO best suited for?

The sensor’s dual-frequency capability and wide model compatibility make it a cost-effective replacement for many cars, light trucks, and SUVs. It’s particularly useful for repair shops and fleet managers who need a single sensor solution that covers most OE frequencies while relying on XTOOL tools for reliable programming.

• Fits approximately 98% of vehicle models with 315/433MHz TPMS
• Ideal for repair shops, tire shops, and fleet maintenance
• Provides a budget-friendly OEM-style replacement option

Who is this for: The XTOOL TS100 PRO TPMS Sensor is aimed at professional technicians, independent garages, and fleet maintenance teams that require a versatile, durable TPMS replacement compatible with most vehicles. If you already use XTOOL TPMS tools like the TP150 or IP819TP, the TS100 PRO is optimized to save programming time and reduce inventory complexity while delivering dependable pressure and temperature data.
