Yinlowa CVT Stepper Motor for Nissan JF009E/JF010E — 3.5L Fit, 6‑Pin 2‑Bolt Direct Replacement

The Yinlowa 3.5L CVT stepper motor is a direct-replacement ratio-control motor made to fit select Jatco JF009E and JF010E valve bodies used in many Nissan CVT applications.

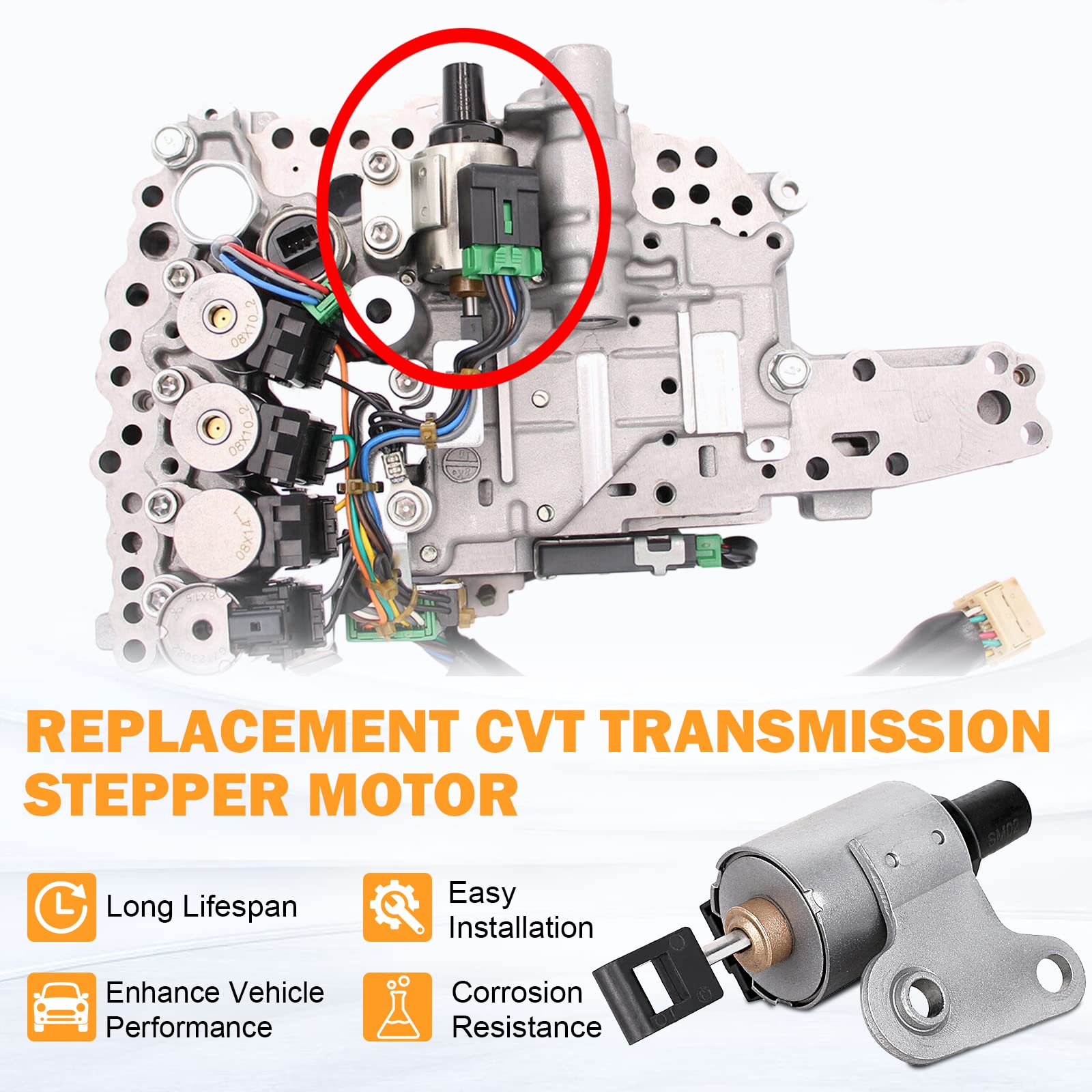

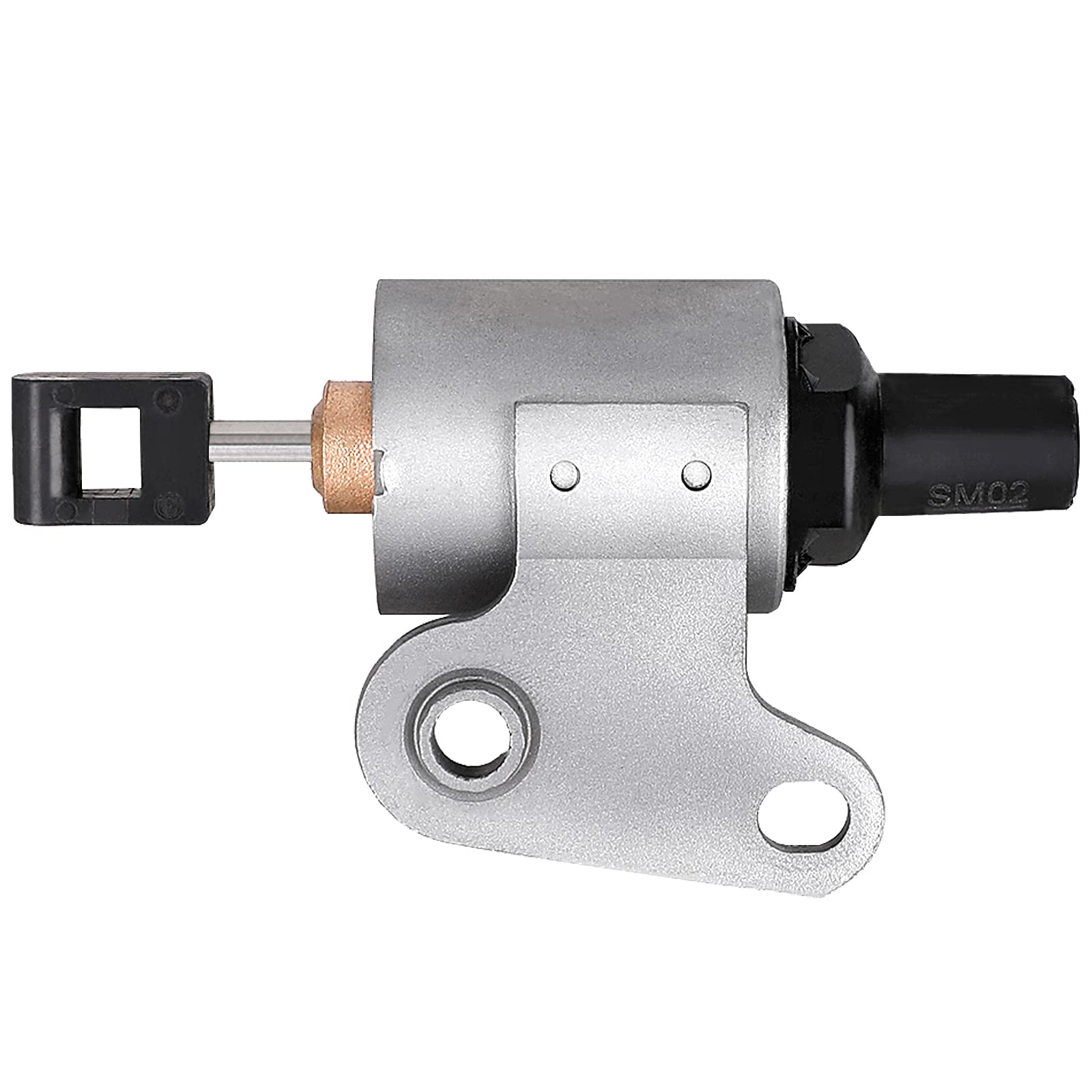

This replacement stepper motor controls pulley ratio changes in compatible continuously variable transmissions (CVTs). It is manufactured to match the 6-pin connector, 2-bolt mounting bracket and the external motor shape found on the specified Jatco JF009E and JF010E valve bodies. Before ordering, verify the transmission code stamped on the transmission and compare the connector and bracket on the removed part to ensure correct fitment.

How do I know this motor fits my Nissan?

Fitment depends on the transmission code and the physical connector and bracket, not just vehicle year or engine size. Confirm the valve body code and compare the 6-pin connector and 2-bolt bracket to your original unit.

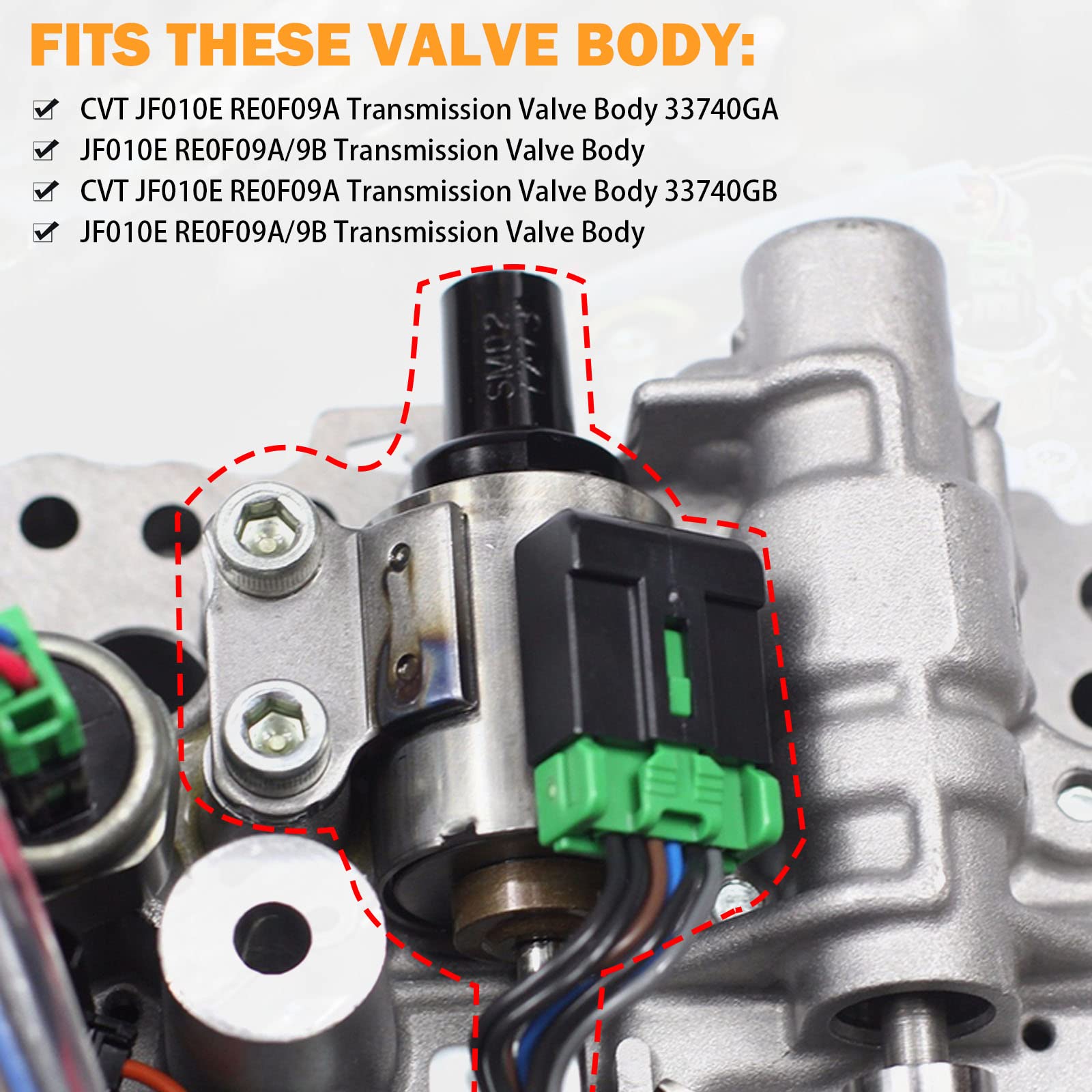

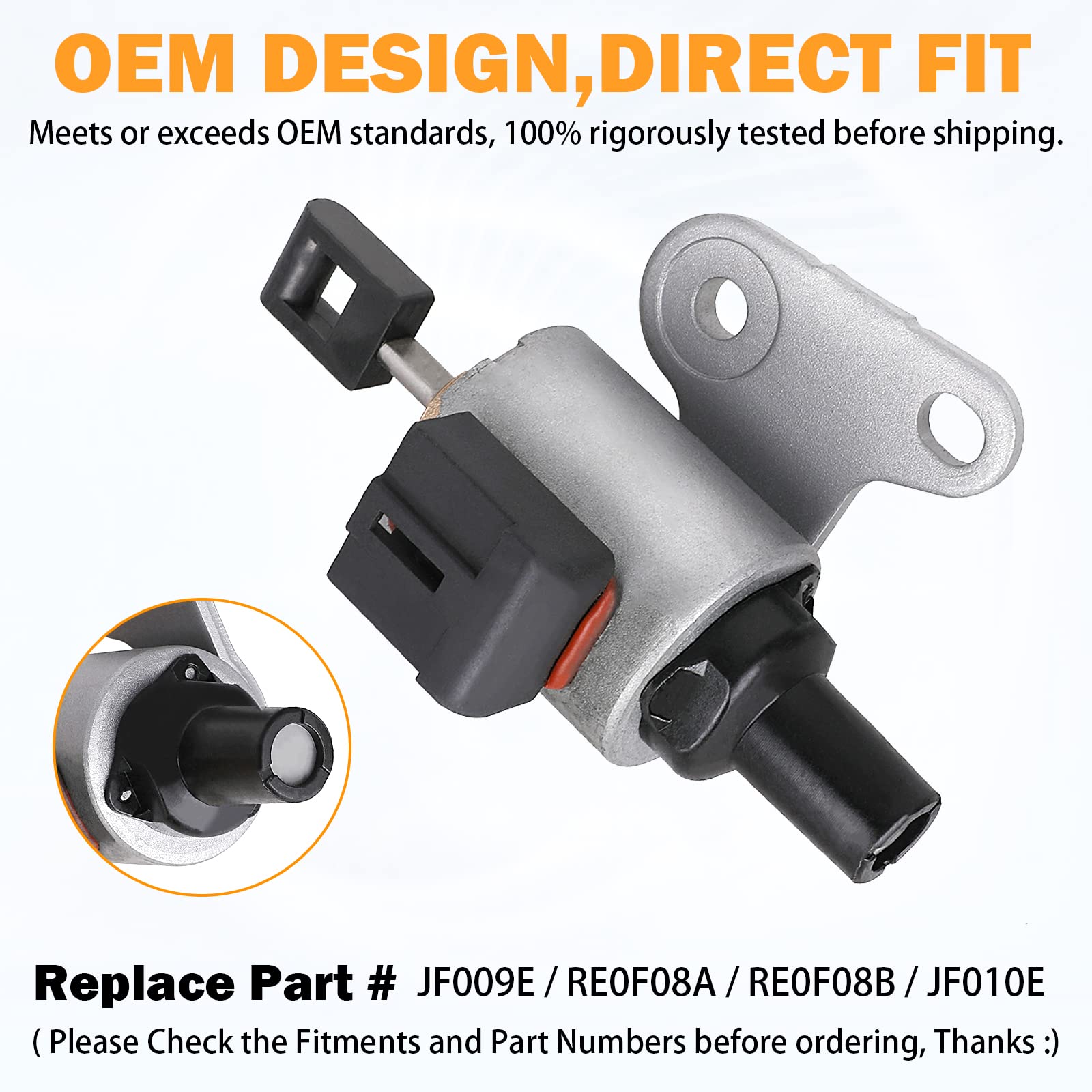

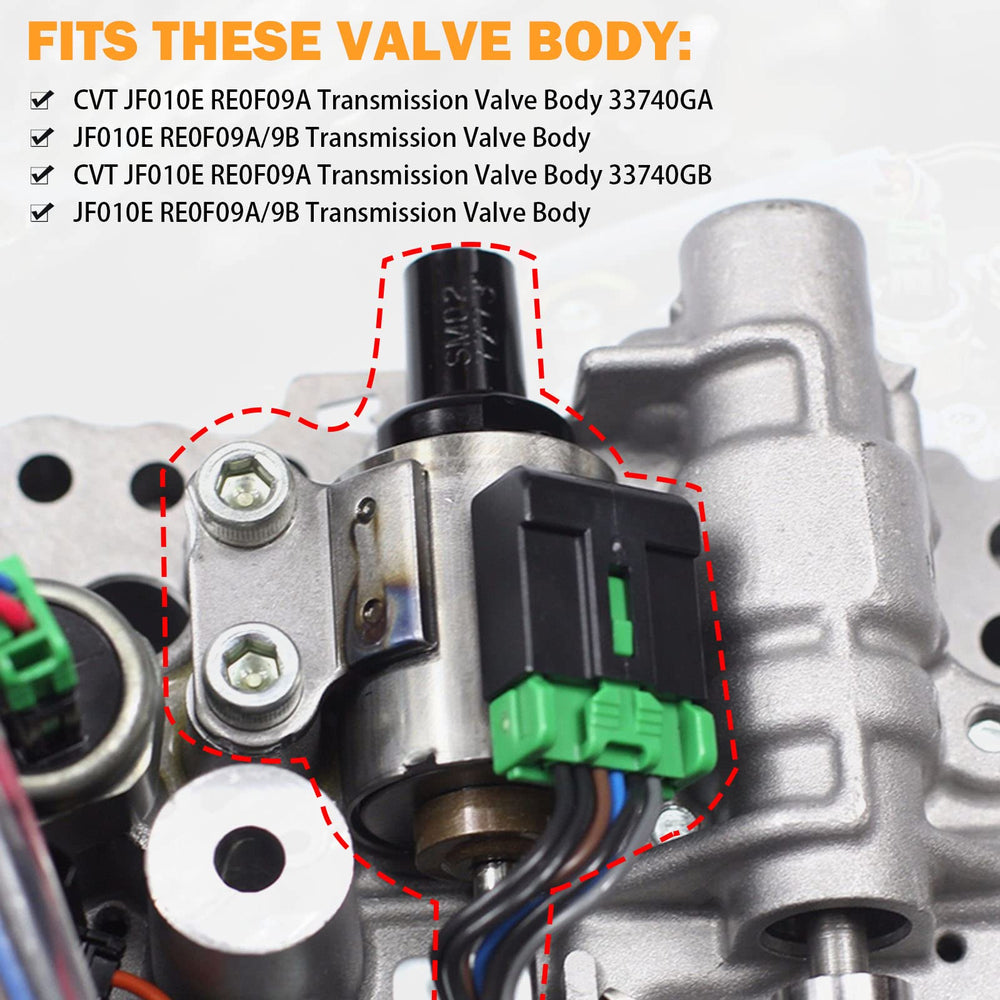

• Fits Jatco JF009E and JF010E valve bodies (replacement refs RE0F08A/RE0F08B/RE0F09A/RE0F09B).
• Not compatible with JF011E/RE0F10A or JF015E/RE0F11A transmissions.
• Compare the motor body shape, mounting bolt locations, and connector pin count before purchase.

Which Nissan models commonly use this stepper motor?

Several Nissan models with CVT transmissions use the listed Jatco valve bodies; however, model and engine alone do not guarantee fit. Use the transmission code and visual checks for confirmation.

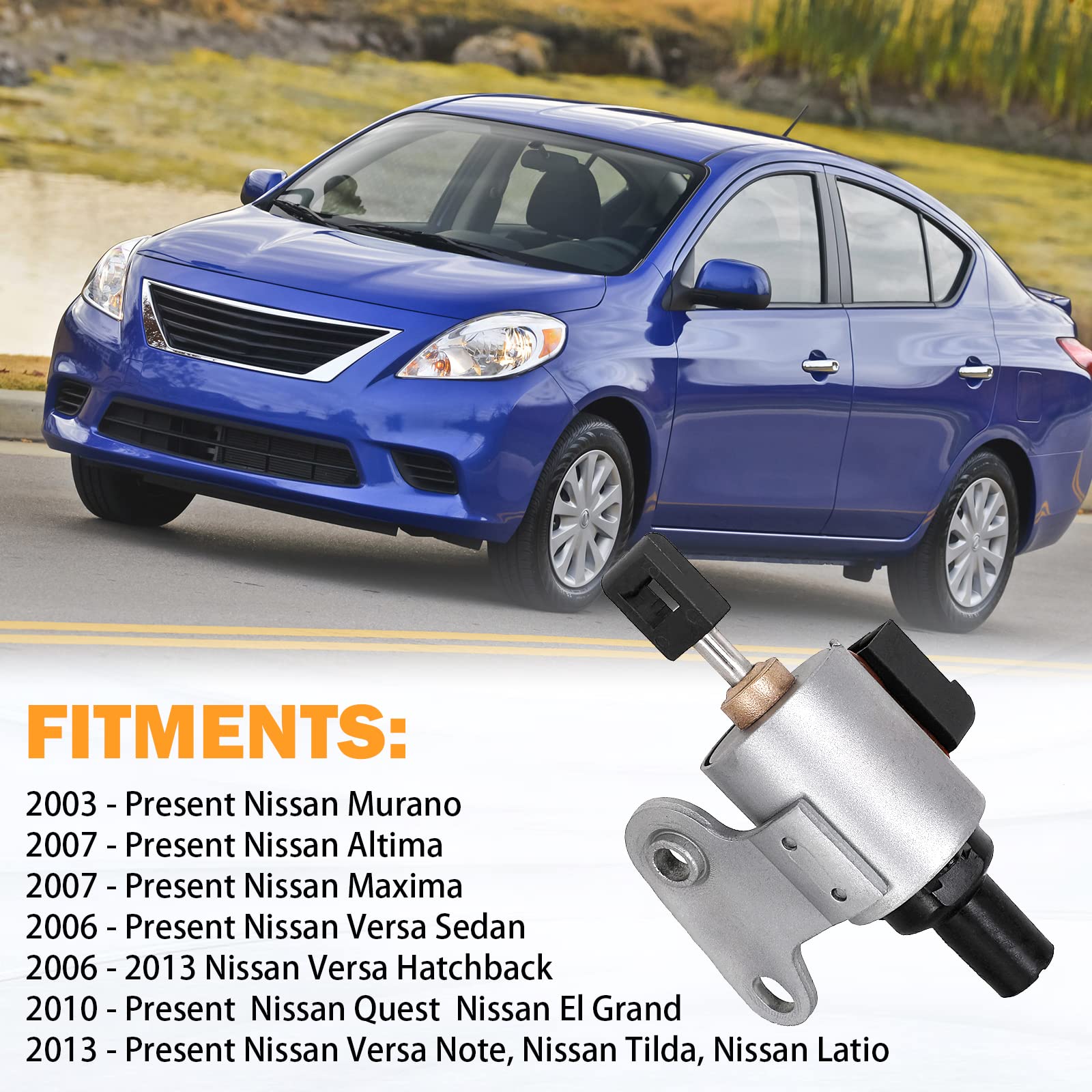

• Common U.S. applications include Murano (2003–2007, 2009–2014) 3.5L and Maxima (2007–2014) 3.5L.
• Also used in Altima (2007–2012) 3.5L, Quest (2011–2014) 3.5L, Versa (2007–2012) 1.8L, and Cube (2009–2014) 1.8L when equipped with the listed CVT.
• Always verify the vehicle’s transmission code and the removed part’s connector and bracket for exact match.

What symptoms might indicate the stepper motor needs replacement?

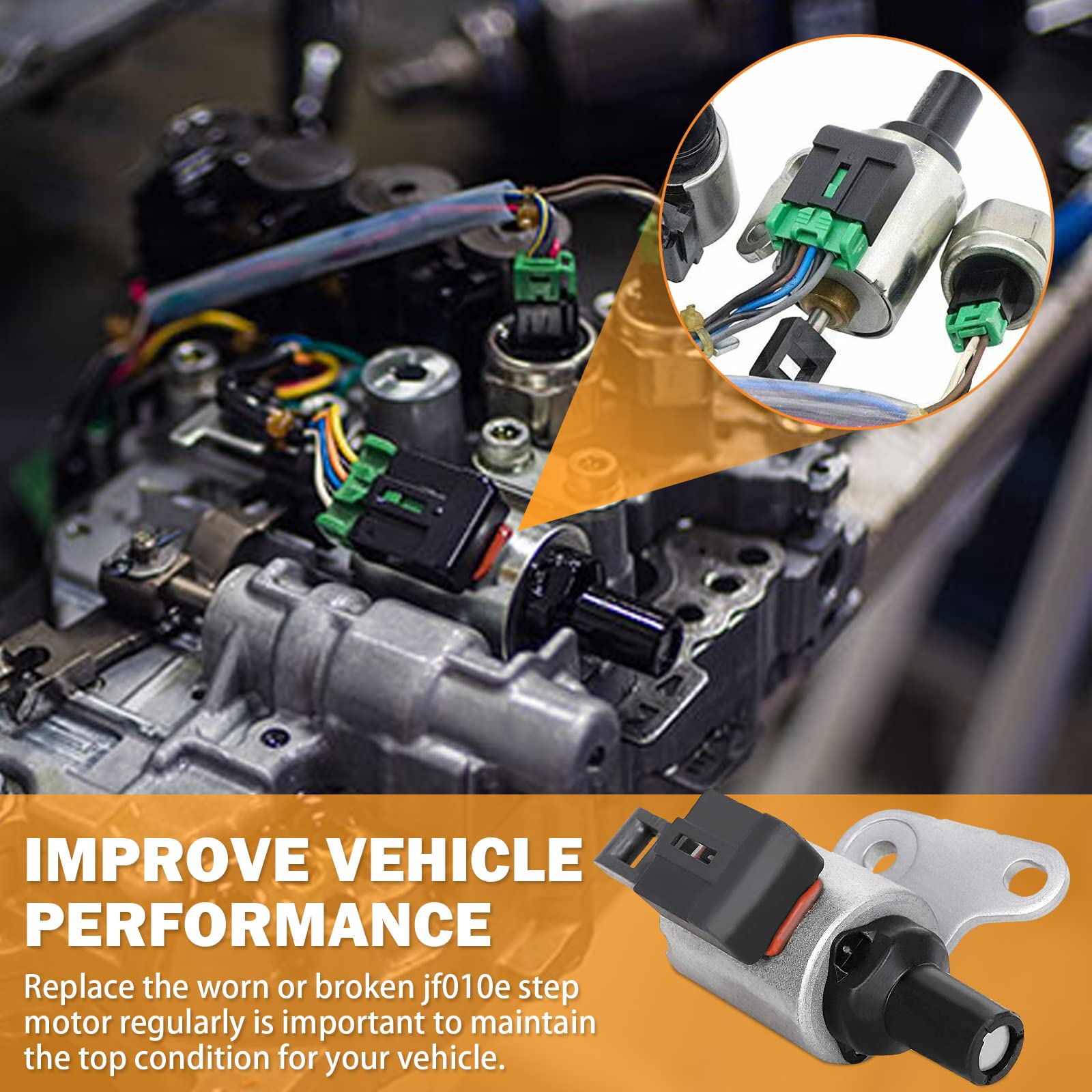

The stepper motor adjusts pulley ratio in the CVT; failure can cause drivability faults and diagnostic trouble codes. Similar symptoms can originate from wiring, pressure loss, valve body wear or internal CVT damage, so inspect the system before swapping parts.

• Possible signs include hesitation, irregular ratio changes, limp mode or codes like P1777/P1778.
• Check wiring harnesses, connectors and fluid pressure before condemning the motor.
• Use diagnostic data and visual inspection to isolate the root cause accurately.

How should the stepper motor be installed and serviced?

This motor ships in an installation-ready configuration matching the specified valve bodies' mounting and connector layout. Professional installation, correct CVT fluid, and following the manufacturer’s service procedure are recommended to prevent damage and ensure reliable operation.

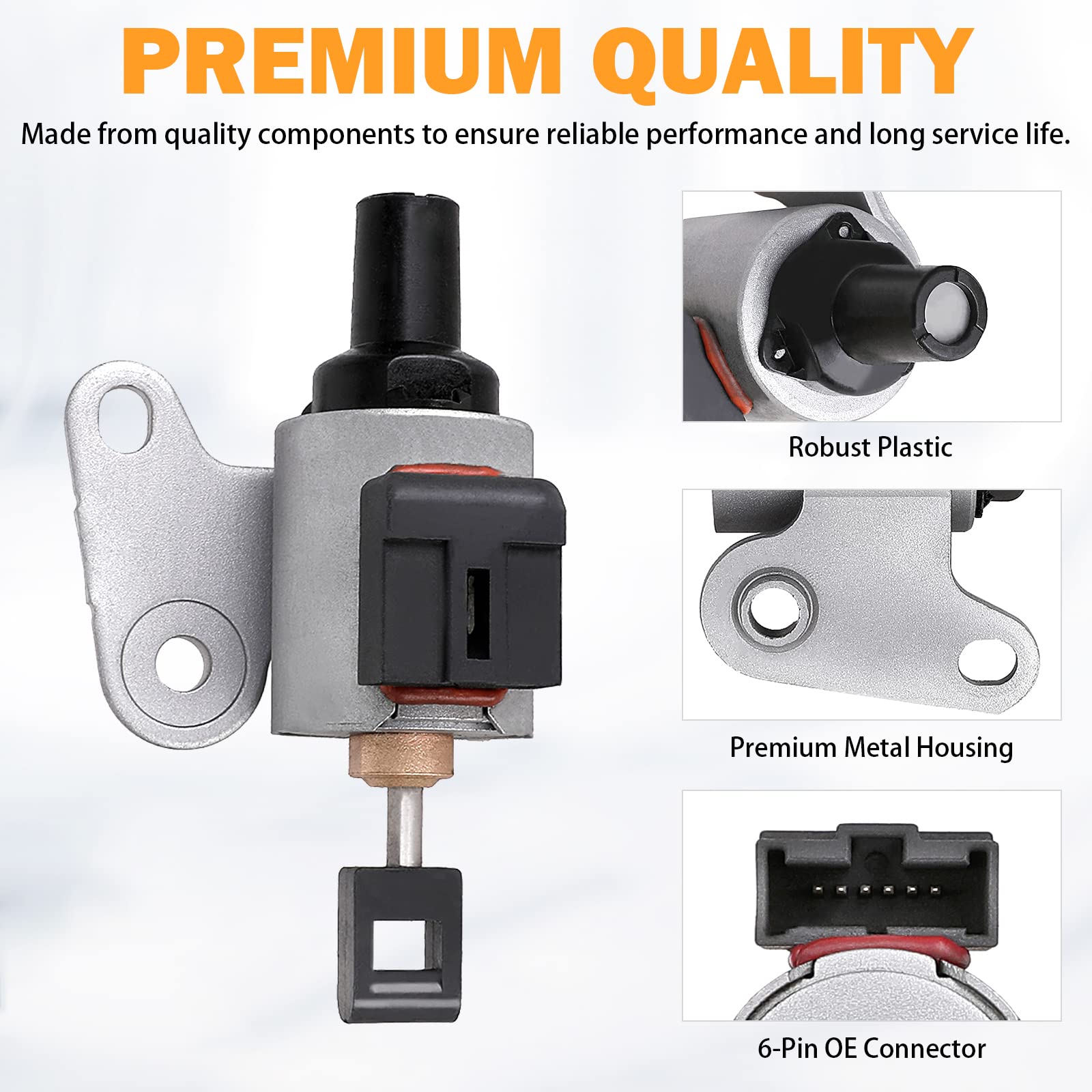

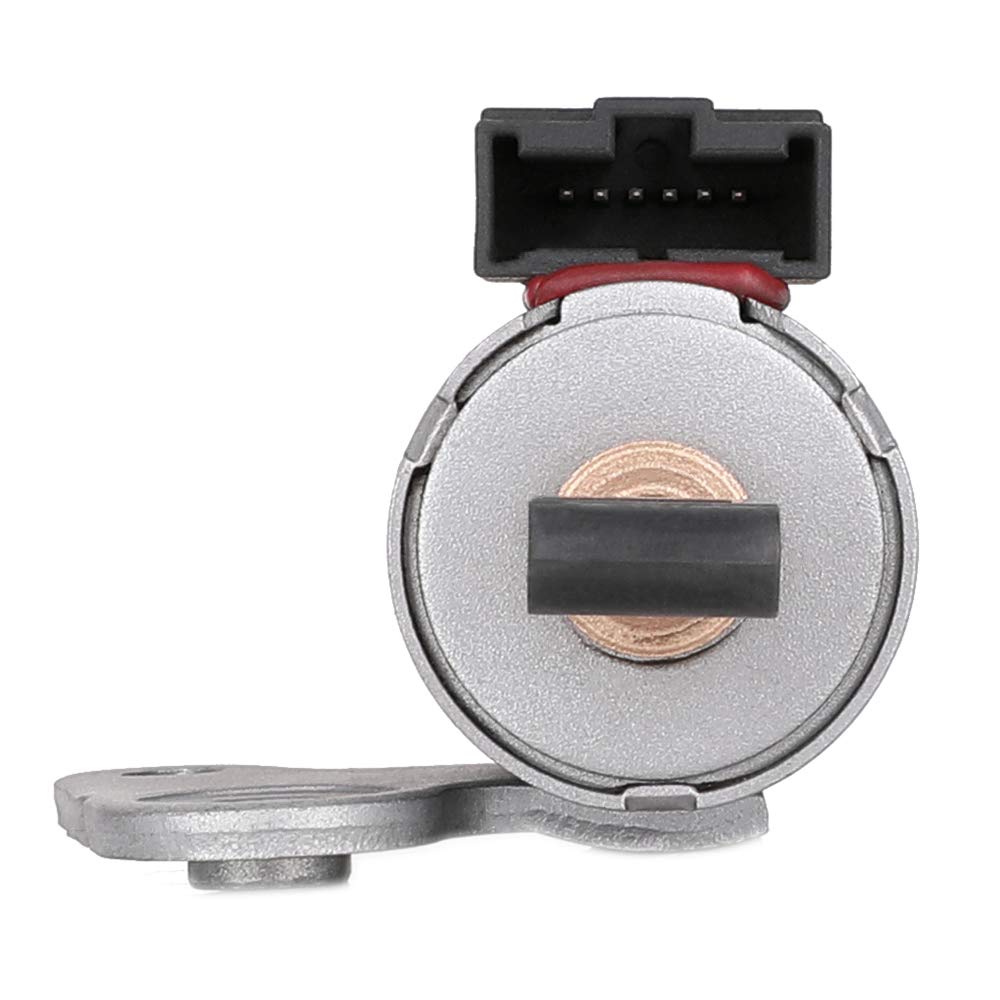

• Uses a 6-pin connector and 2-bolt mounting bracket—confirm these on your removed unit.
• Compare connector orientation and motor body before tightening bolts.
• Follow vehicle manufacturer torque specs and fluid-filling procedures after replacement.

Who is this for: The Yinlowa 3.5L CVT stepper motor is intended for technicians, independent repair shops and knowledgeable DIYers who need a replacement ratio-control motor for Jatco JF009E/JF010E valve bodies in select Nissan CVT-equipped vehicles. It is appropriate when diagnostics indicate the stepper motor or when the unit’s connector and bracket match the replacement. If the root cause might be wiring, valve body wear or internal transmission faults, perform a full diagnosis before installing this part. Yinlowa includes one motor per package and offers a one-year limited warranty; provide vehicle year, model, engine, transmission code and an original-part photo when requesting fitment help.
