YYDZSMDM TPMS Tyre Pressure Sensors 4-Pack 315MHz Preprogrammed for Ford/Lincoln — IP67, OE-Style Fit

YYDZSMDM 315MHz TPMS 4-pack replacement sensors provide direct-fit tire pressure monitoring for select Ford and Lincoln models, arriving factory-preprogrammed for faster installation and reliable OE-style performance.

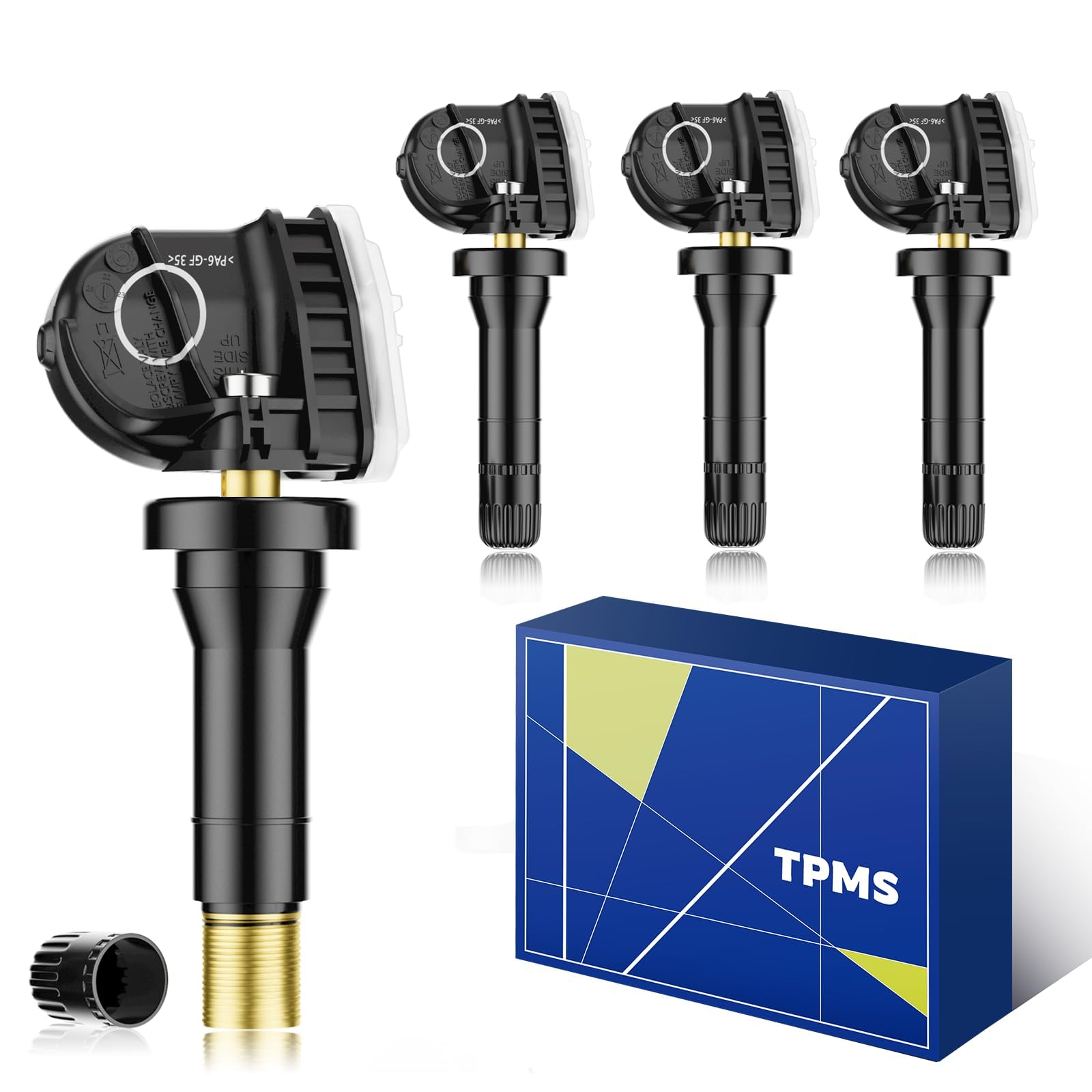

These four Tire Pressure Monitoring Sensors are designed to replace worn or damaged OE units on many Ford and Lincoln vehicles. Each sensor operates at 315MHz, is built to IP67 waterproof and dustproof standards, and arrives fully tested at the factory to meet OE specifications. They suit a wide range of model years and trims, and include a one-year warranty plus technical support if you need help during installation or relearn procedures.

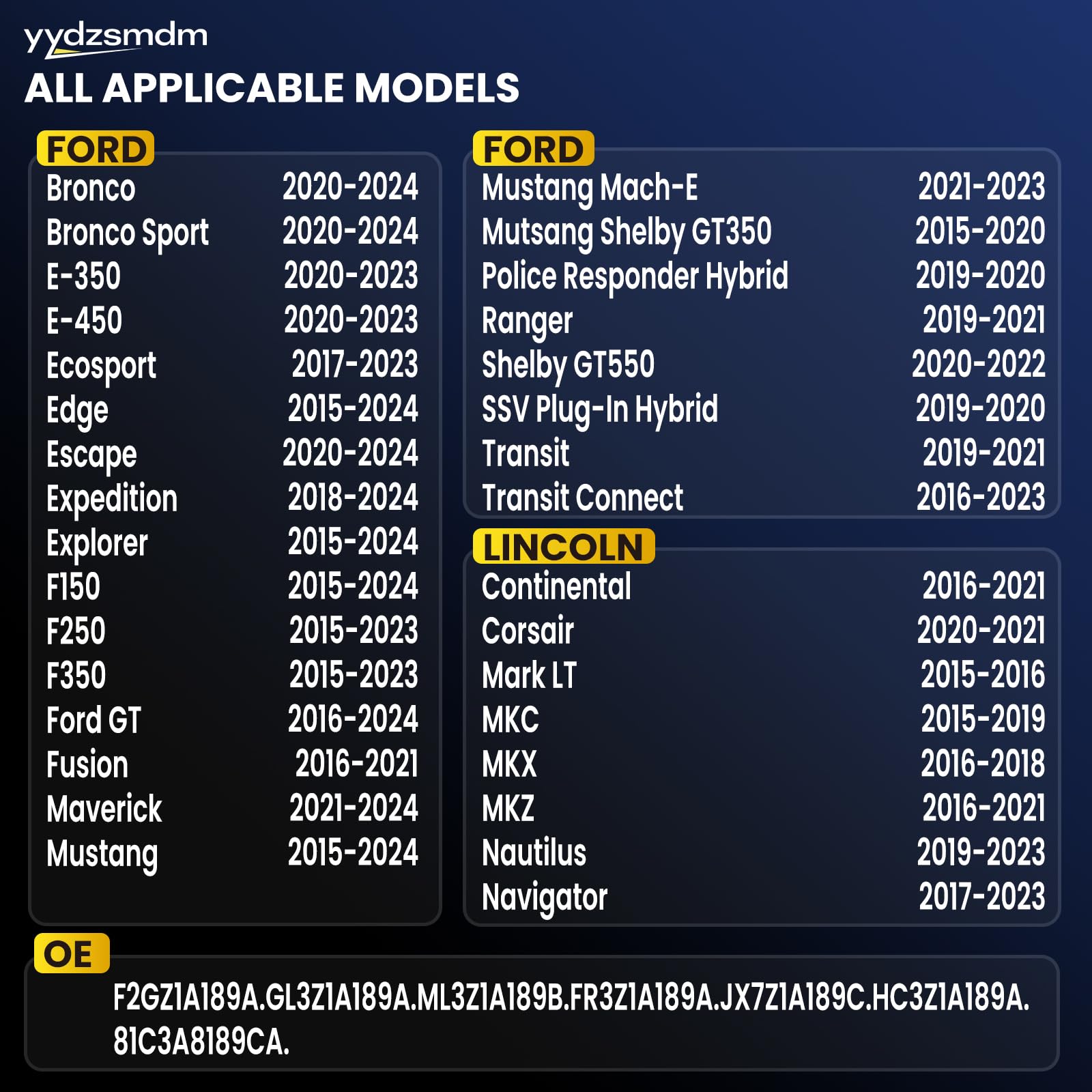

Which vehicles are compatible with these TPMS sensors?

These YYDZSMDM sensors cover a broad selection of Ford and Lincoln models across several model years. They match common OE part numbers used by Ford and Lincoln, making them a practical replacement option for many vehicles that require 315MHz sensors.

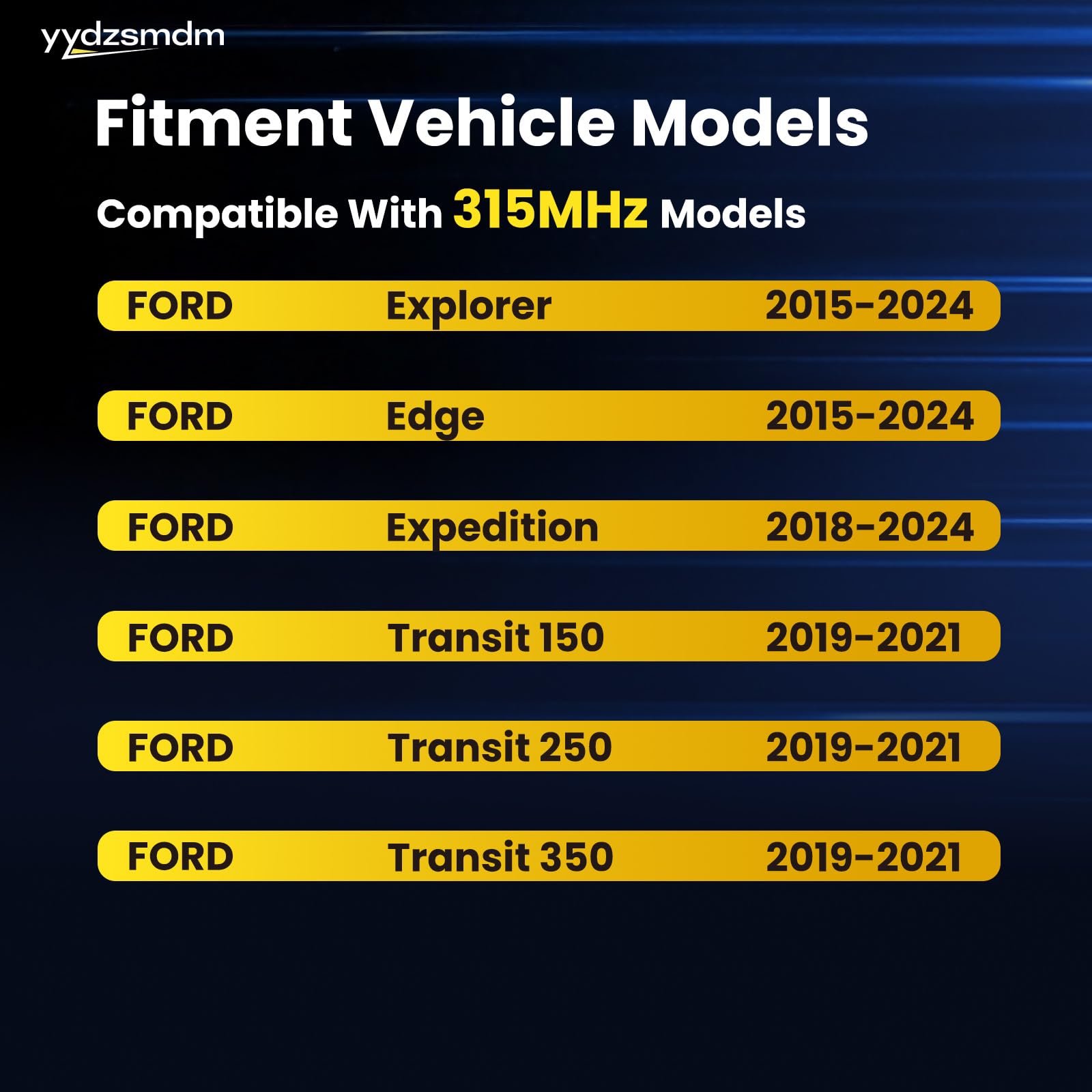

• Ford Explorer, Edge (2015–2024); Expedition (2018–2024)
• Transit 150/250/350 (2019–2021) and many F-Series trucks (F-150, F-250, F-350: 2015–2024/2023)
• Ranger, Escape, Bronco, Fusion, Maverick, Mustang, EcoSport, E-Series, Bronco Sport (various years listed)
• Lincoln Navigator, MKZ, Nautilus, MKC, MKX, Corsair, Continental across compatible years

How are these sensors set up and installed?

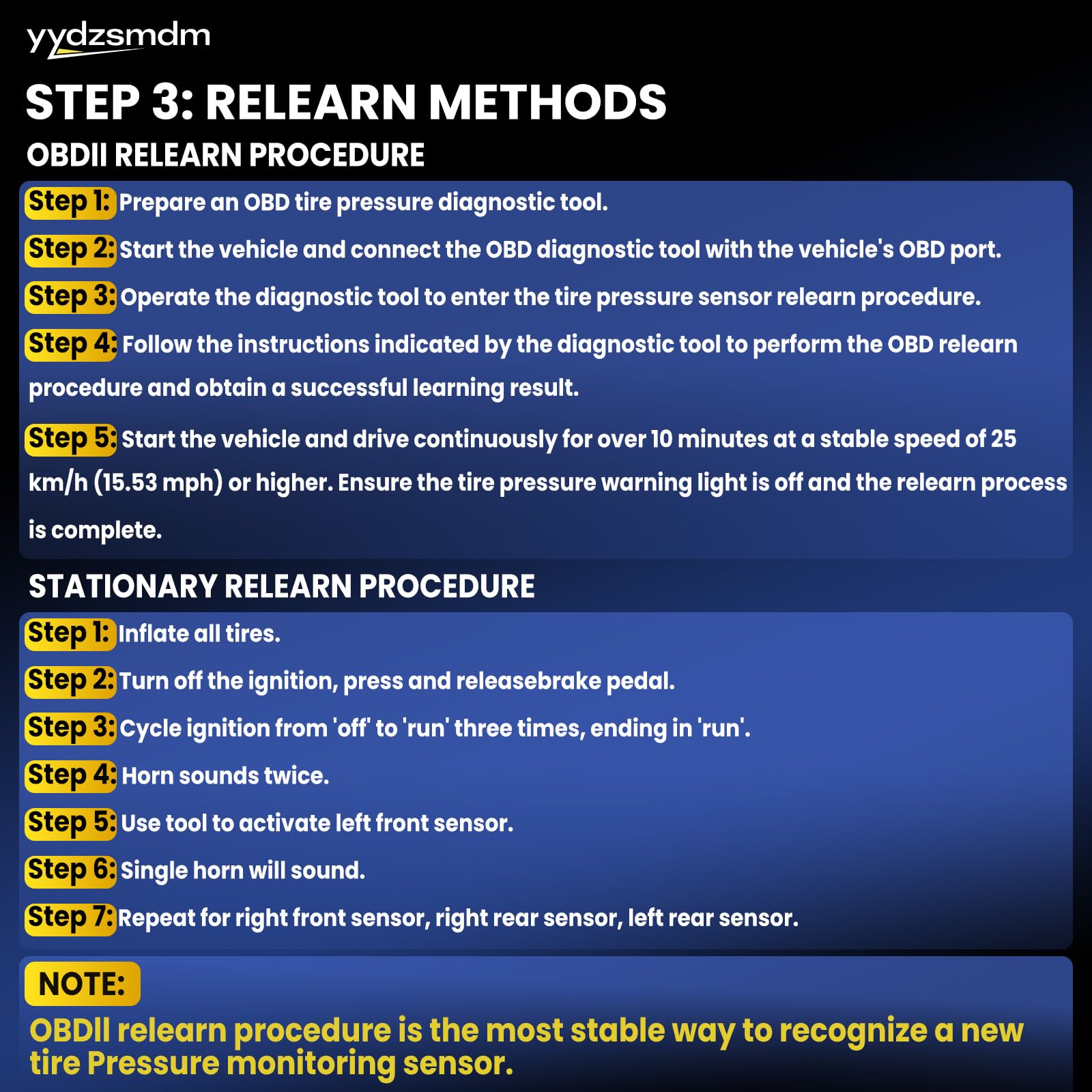

Each unit comes preprogrammed at the factory to the sensor’s internal ID, but some vehicles will still require a relearn procedure to register the sensors with the vehicle ECU. Relearn can be done using a TPMS scan tool, OBDII relearn device, or the stationary relearn method depending on the vehicle.

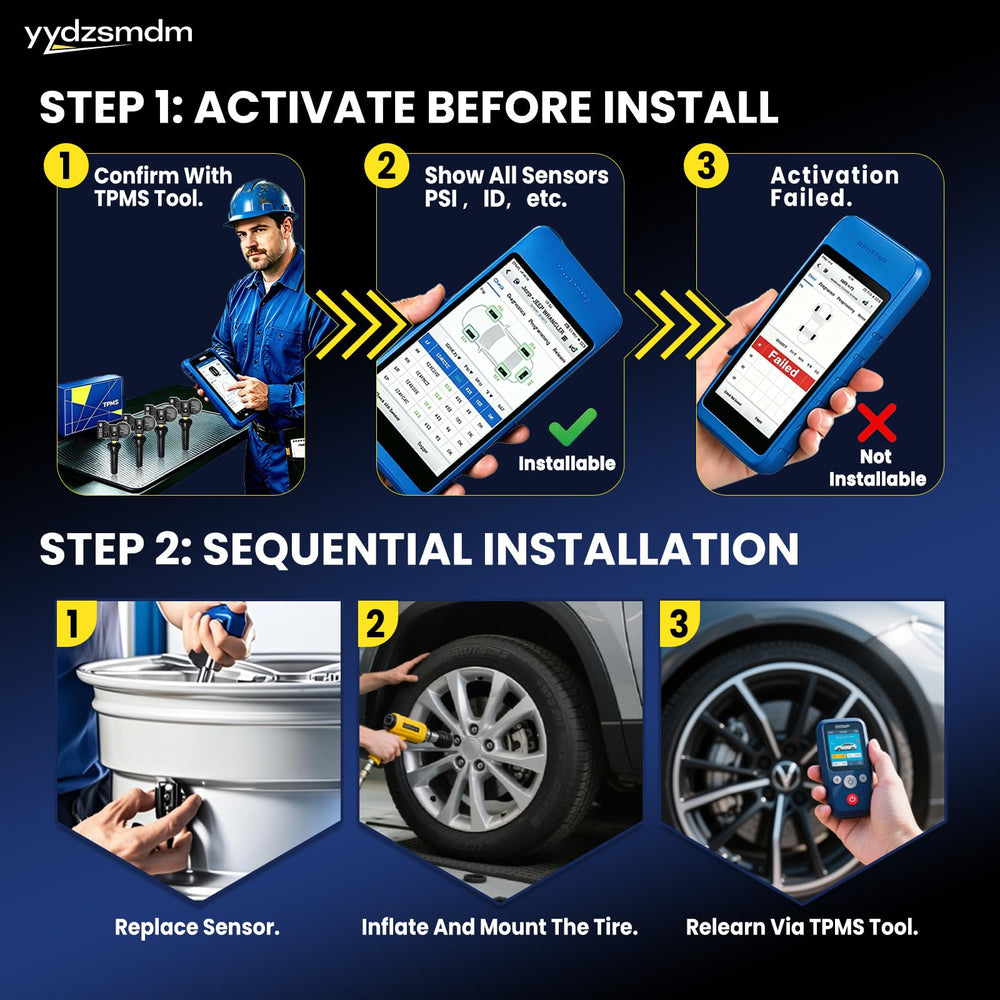

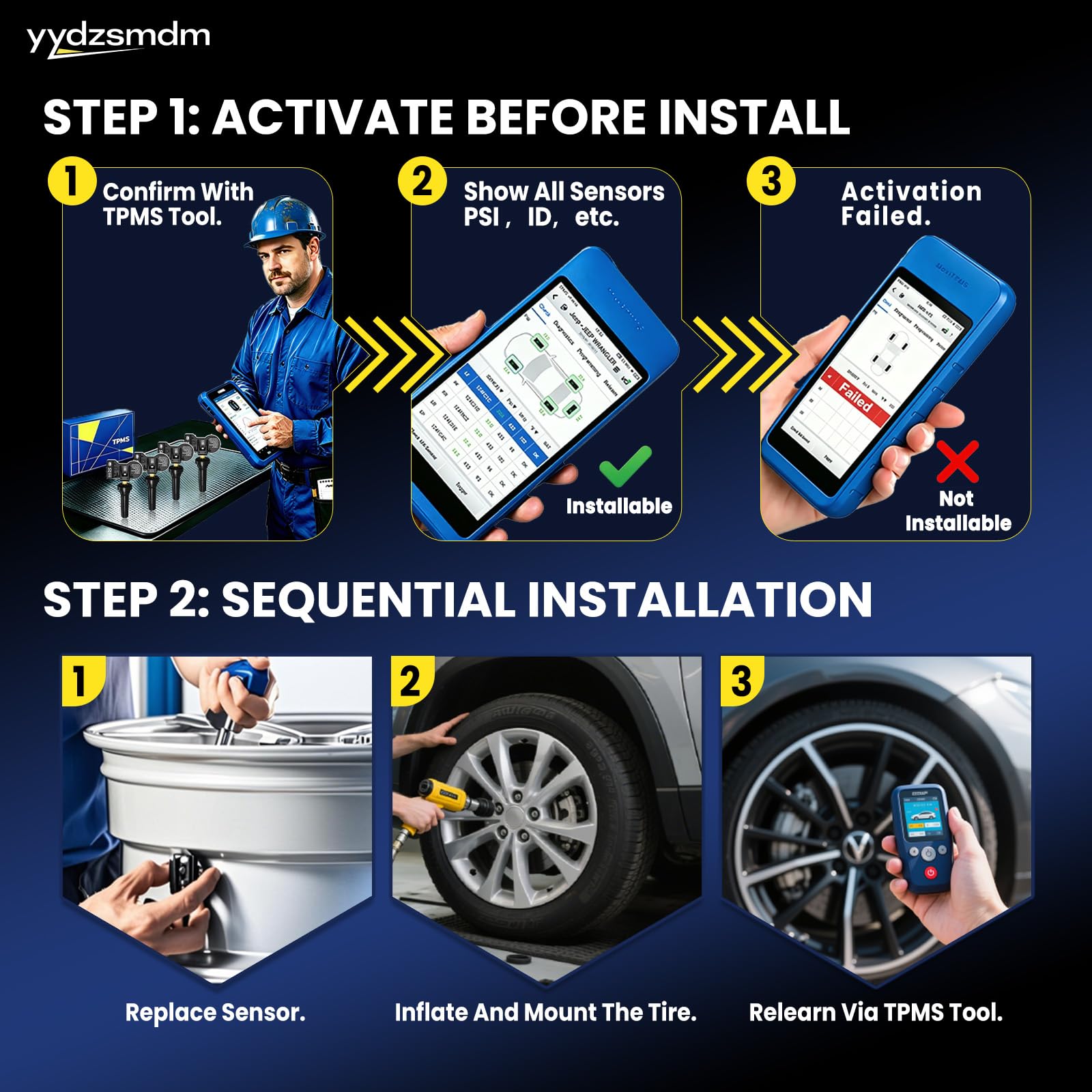

• Confirm sensor activation and read ID with a TPMS tool before installing.
• Install one sensor at a time, mount tire, inflate to spec, then perform relearn.
• OBDII relearn is the most stable and recommended method for many Ford models.

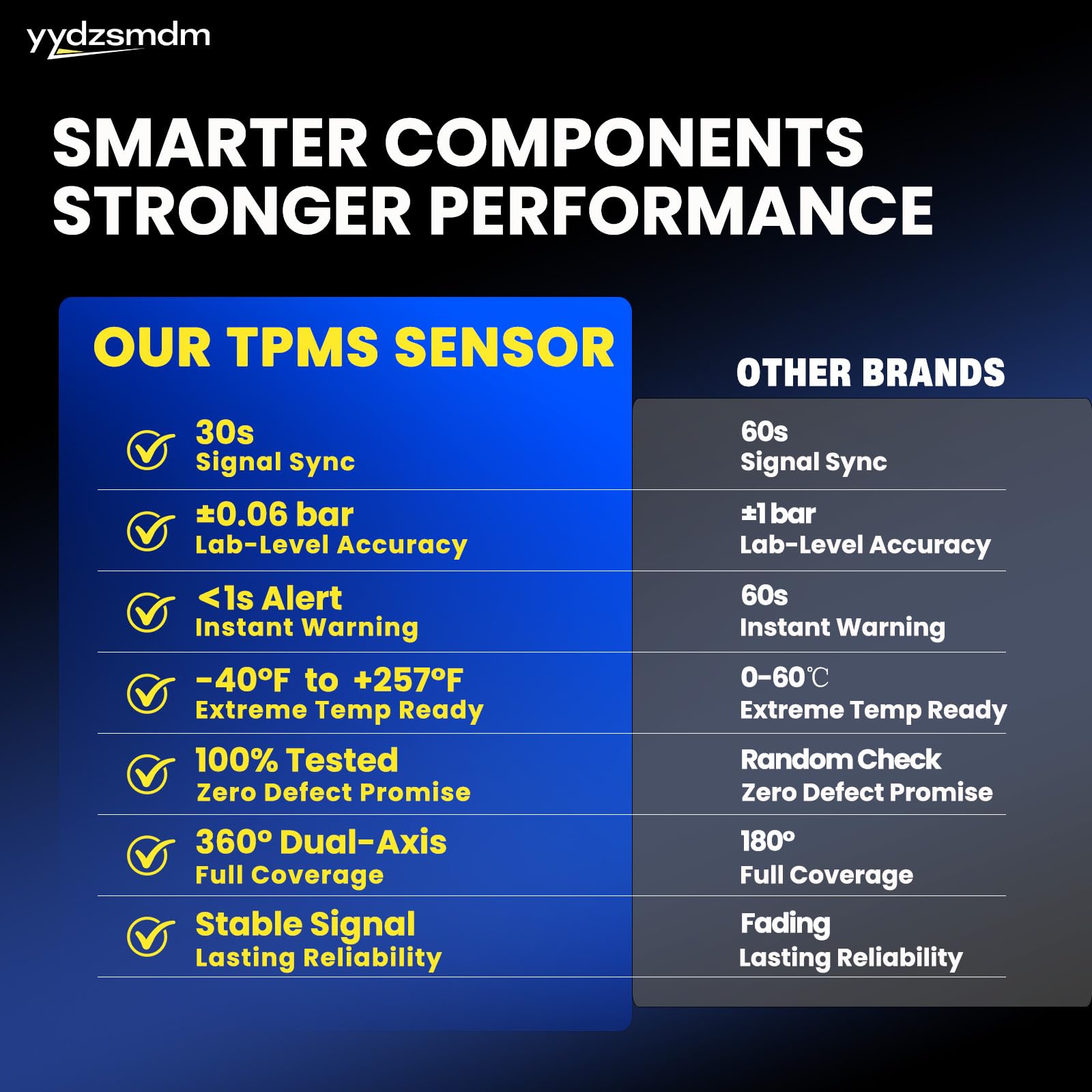

What technical specs and durability features do these sensors offer?

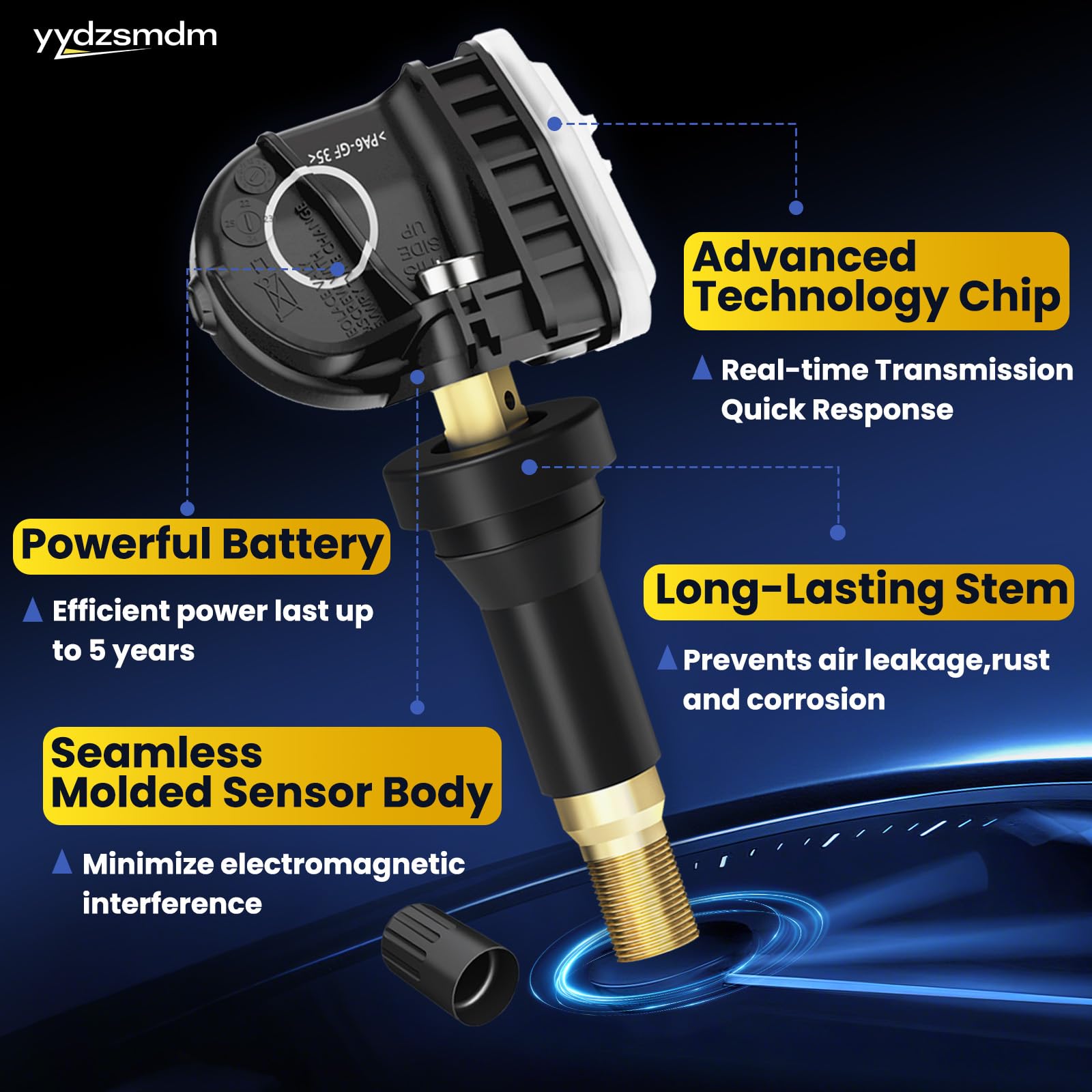

Built to withstand road conditions and temperature extremes, the YYDZSMDM sensors use durable materials and an OE-quality battery system. They’re rated for wide temperature ranges, offer multi-year battery life, and are sealed to protect against water and dust.

• 315MHz operating frequency and OE-compatible hardware design.
• Temperature tolerance from -40°F to 257°F and IP67 waterproof/dustproof rating.
• Battery lifespan typically 5–8 years; 100% functional testing at the factory.

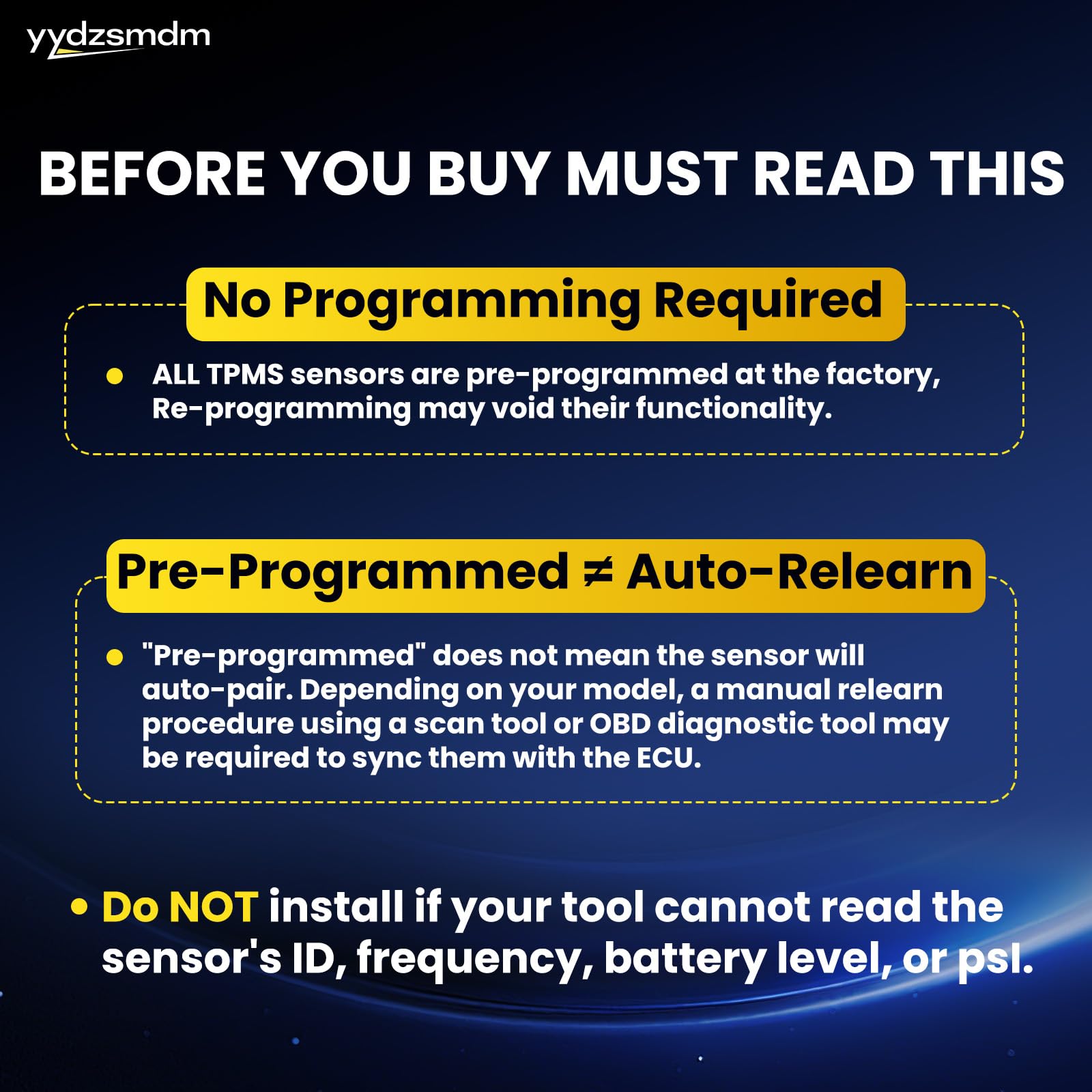

What should I know before purchasing a preprogrammed TPMS sensor?

Factory preprogramming assures each sensor’s internal ID is set, but it does not always guarantee automatic pairing with the vehicle. Make sure you have an appropriate diagnostic or TPMS tool available to verify IDs and perform any required relearn or programming steps; installing without the ability to read the sensor ID can cause recognition failures.

• Preprogrammed ≠ auto-relearn; some vehicles need manual sync via tool or OBD.
• Do not install if your diagnostic tool cannot read sensor ID, frequency, or battery status.
• Factory testing and ISO/IATF-certified manufacturing back product quality.

Who is this for? These YYDZSMDM 315MHz TPMS sensors are intended for DIYers, independent shops, and fleet technicians replacing failed TPMS units on compatible Ford and Lincoln vehicles. They’re ideal when you need an OE-style replacement with robust environmental protection, factory preprogramming, and clear instructions for relearn procedures. If you lack a TPMS or OBDII relearn tool, plan to obtain one or choose professional installation.
