ZEAJSRU Compression Tester Kit - 300 PSI Engine Gauge with Spark Plug Tester & Adapters for Cars & Motorcycles

ZEAJSRU's Compression Tester Kit is a complete engine diagnostic tool combining a 300 PSI pressure gauge with spark plug testing and multiple adapters to check cylinder compression on cars and motorcycles.

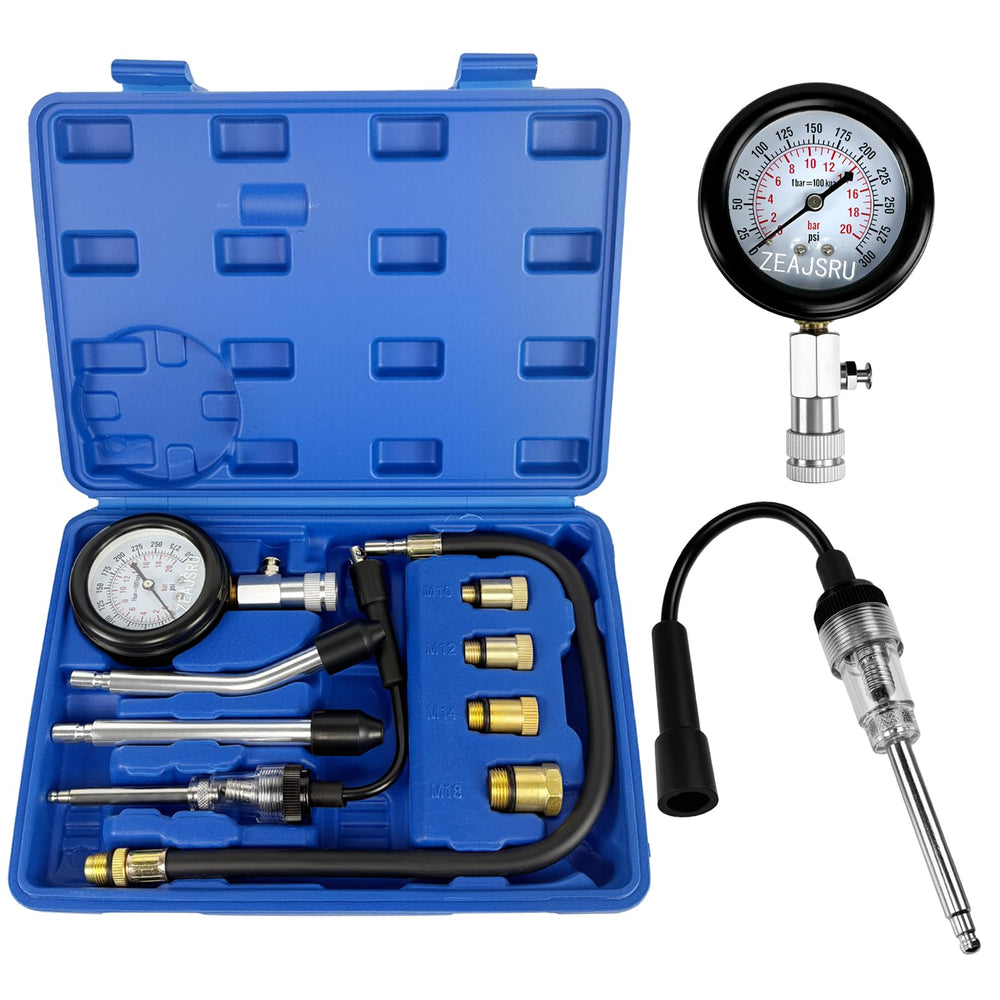

When an engine runs rough, stalls, or loses power, measuring cylinder compression and checking ignition are two of the fastest ways to isolate the issue. This ZEAJSRU kit bundles a clear dual-scale 300 PSI gauge, a flexible hose, a spark plug tester, and a set of brass and rubber adapters so you can perform reliable compression checks across most gasoline engines. The kit is designed to reach recessed spark plug holes, adapt to common thread sizes, and give repeatable readings so you can compare cylinders and spot leaks, worn rings, or valve problems.

How do I use the ZEAJSRU compression tester to diagnose engine problems?

Using the kit is straightforward for anyone comfortable removing spark plugs and cranking the engine. Fit the correct adapter for the spark plug thread, screw it into the plug hole, attach the flexible hose to the gauge, disable ignition, and crank the engine to capture peak compression. Compare readings across cylinders to identify low-pressure cylinders that point to mechanical wear or sealing issues.

• Choose the matching brass adapter (M10, M12, M14, M18) or a rubber cone for irregular seats.
• Use the spark plug tester to safely confirm ignition is disabled before testing.
• Crank engine 4–6 revolutions at wide-open throttle for consistent readings.
• Use the pressure release valve to reset the gauge between cylinders.

What does the 300 PSI gauge reveal and how accurate are readings?

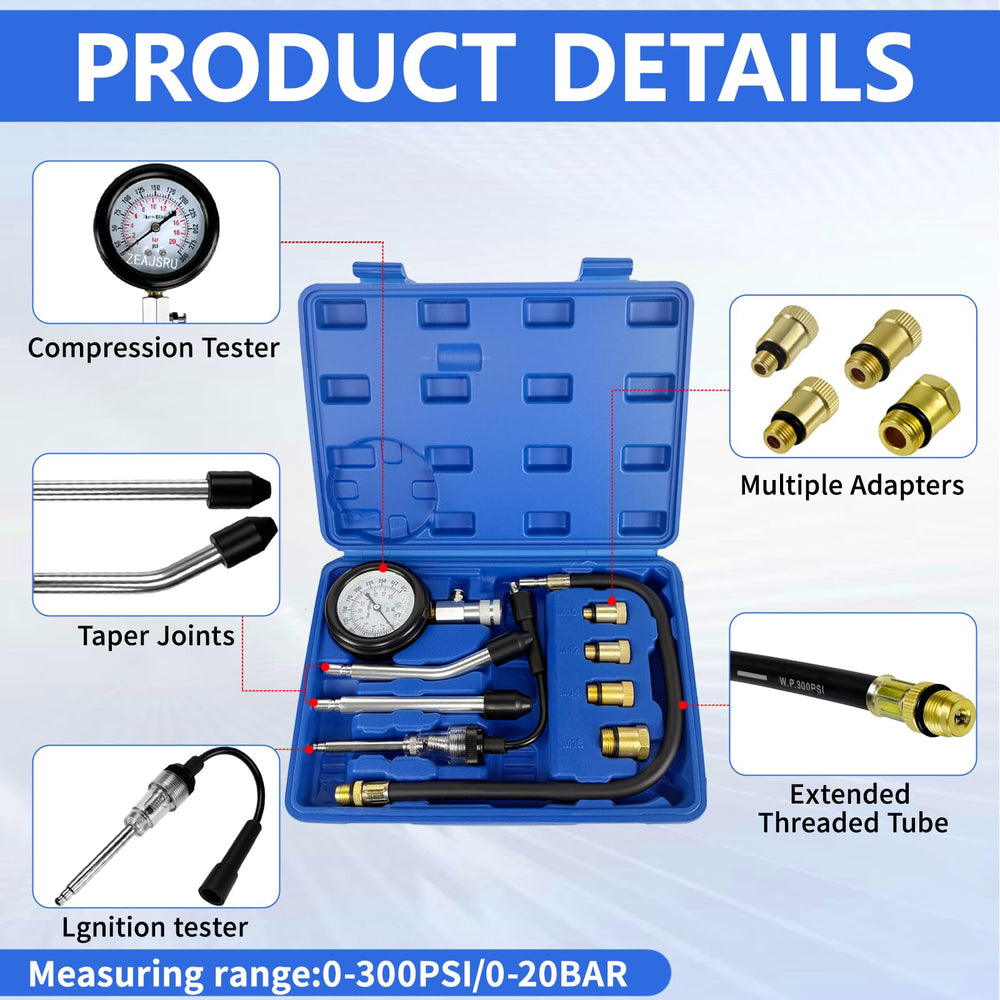

The 300 PSI dual-scale gauge gives a clear numeric readout for comparing cylinder pressures. Stable needle movement and a robust dial make it easy to read under the hood, while the pressure release valve ensures the gauge resets fully after each test. Readings are suitable for identifying relative differences between cylinders and common failure patterns, though for absolute laboratory precision a dedicated calibration service would be required.

• Dual-scale dial for PSI and kPa visibility.
• Robust construction reduces needle bounce during cranking.

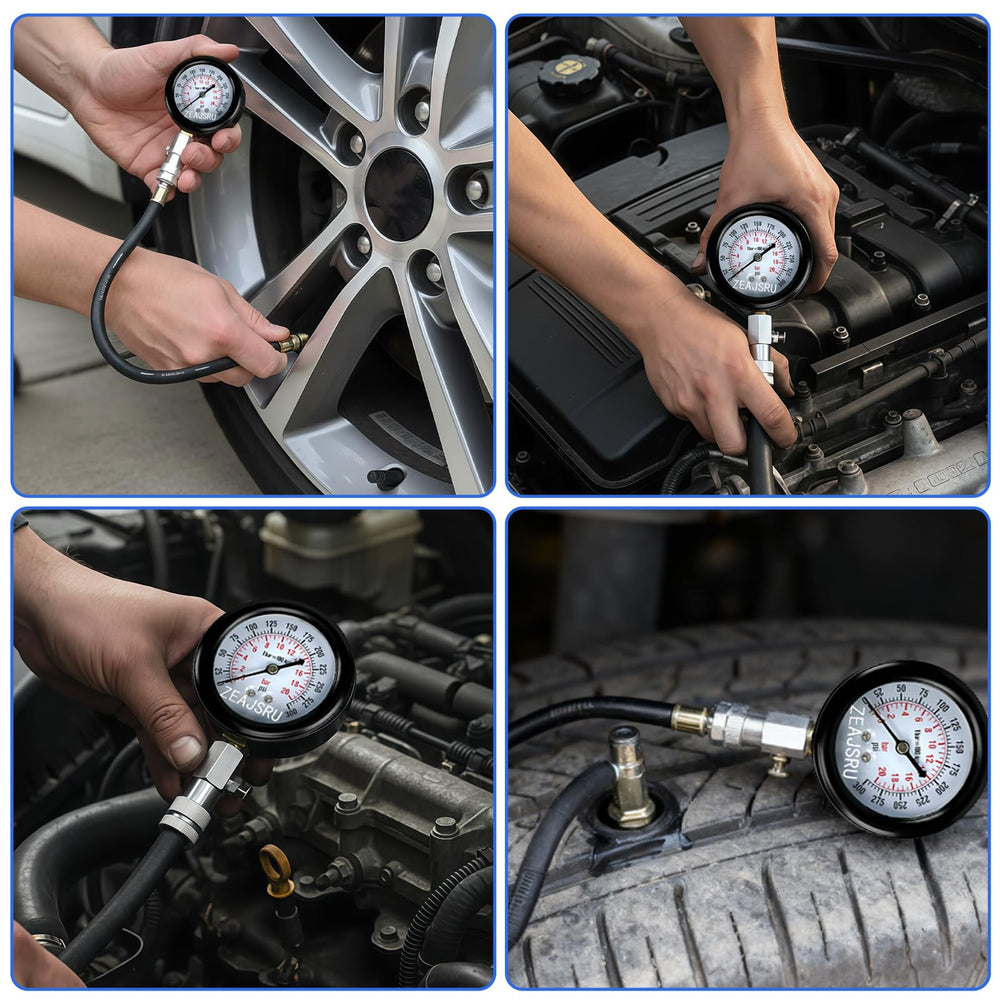

• Pressure release valve for quick, safe reset of the gauge.
• Designed for repeatable field diagnostics, not laboratory-grade calibration.

Can this kit test both cars and motorcycles, and which adapters are included?

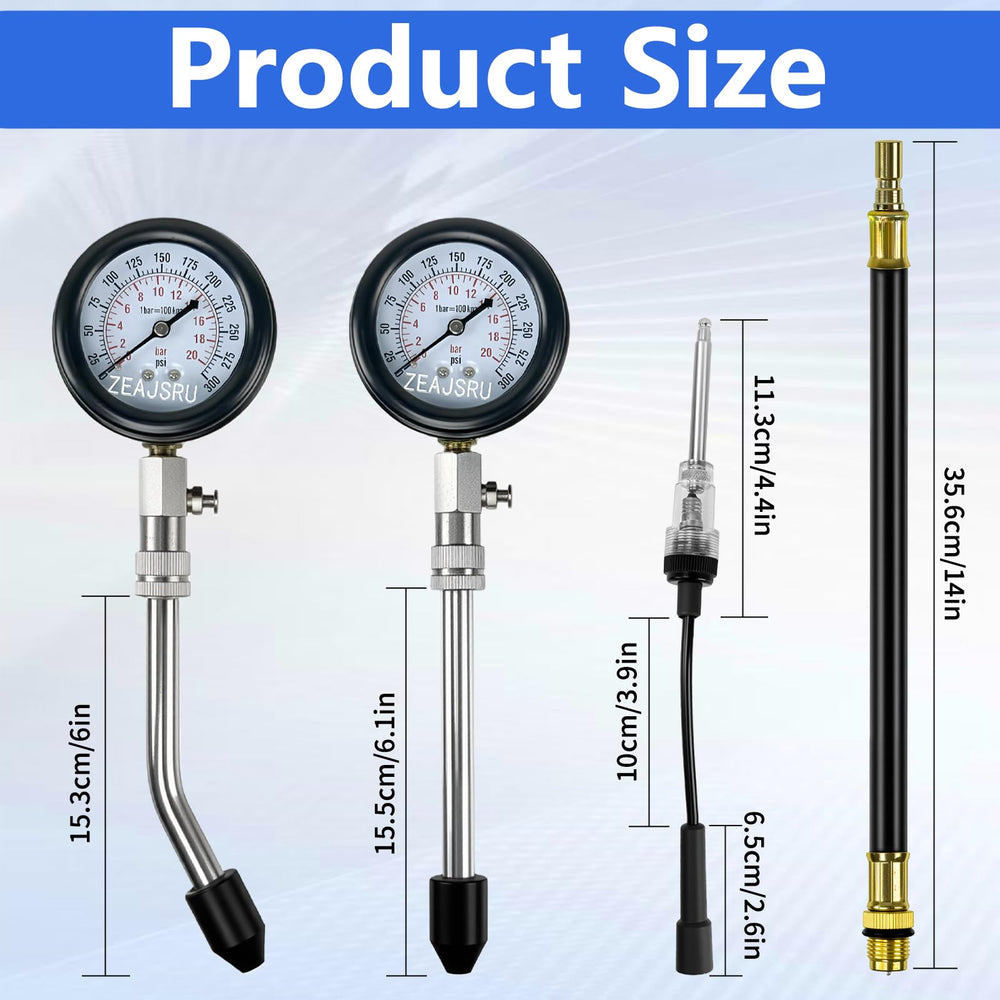

Yes — the kit is compatible with most small gasoline engines found in cars and motorcycles thanks to its range of adapters and flexible hose. It includes brass thread adapters sized M10, M12, M14, and M18, plus straight and curved rubber cone adapters that seal irregular ports. The flexible hose helps reach deep or awkward spark plug locations found in many motorcycles and compact engine bays.

• Brass adapters: M10, M12, M14, M18 to fit common spark plug threads.
• Rubber cone adapters in straight and curved shapes for non-standard seats.
• Flexible hose for tight or recessed spark plug wells.
• Spark plug tester to confirm ignition circuit status during testing.

How safe and convenient is the spark plug tester included in the kit?

The integrated spark plug tester is a quick visual tool to confirm whether coils or ignition circuits are firing. It helps you disable ignition safely before compression testing and provides a visible spark check without removing the plug entirely. Use it to separate ignition faults from mechanical compression issues before spending time on more invasive repairs.

• Visual spark check to verify coil output and ignition timing signals.
• Allows safe confirmation that spark is disabled before compression tests.
• Small, portable tester that stores in the kit alongside adapters and hose.
• Reduces diagnostic time by helping narrow ignition vs. mechanical problems.

Who is this for? The ZEAJSRU Compression Tester Kit is aimed at mechanics, DIY enthusiasts, and roadside technicians who need a portable, versatile diagnostic set for gasoline engines. It's well suited for home garages, motorcycle shops, fleet maintenance, and anyone who wants to pinpoint compression-related engine faults without specialist equipment. If you work on a range of spark plug thread sizes and need a dependable, field-ready gauge and spark tester, this kit covers the essentials for practical engine diagnostics.
