ZJTBLL ATV Speedometer Gauge Cluster Replacement for Polaris Sportsman/ATP 2004–2012 — Direct-Fit, Adjustable Backlight

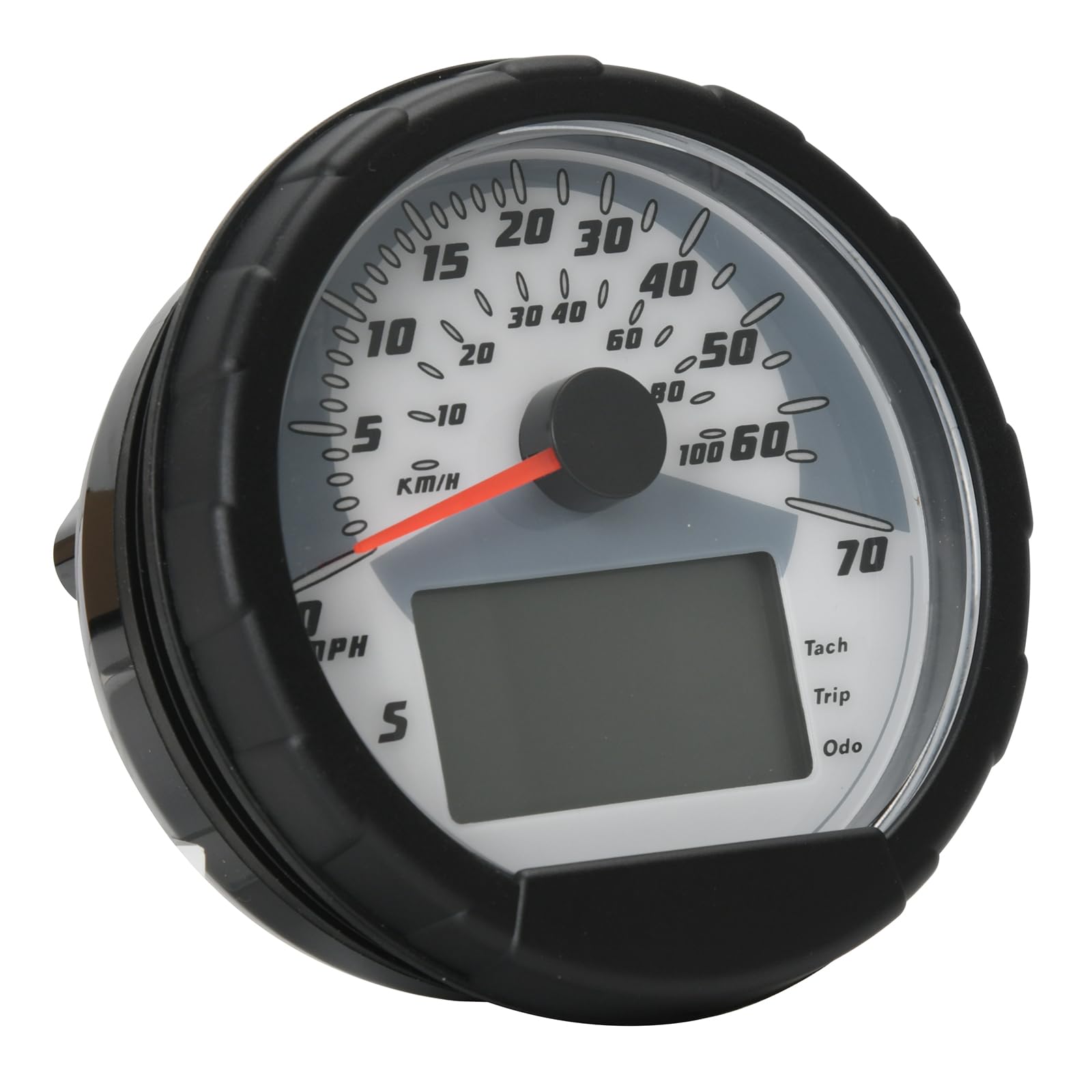

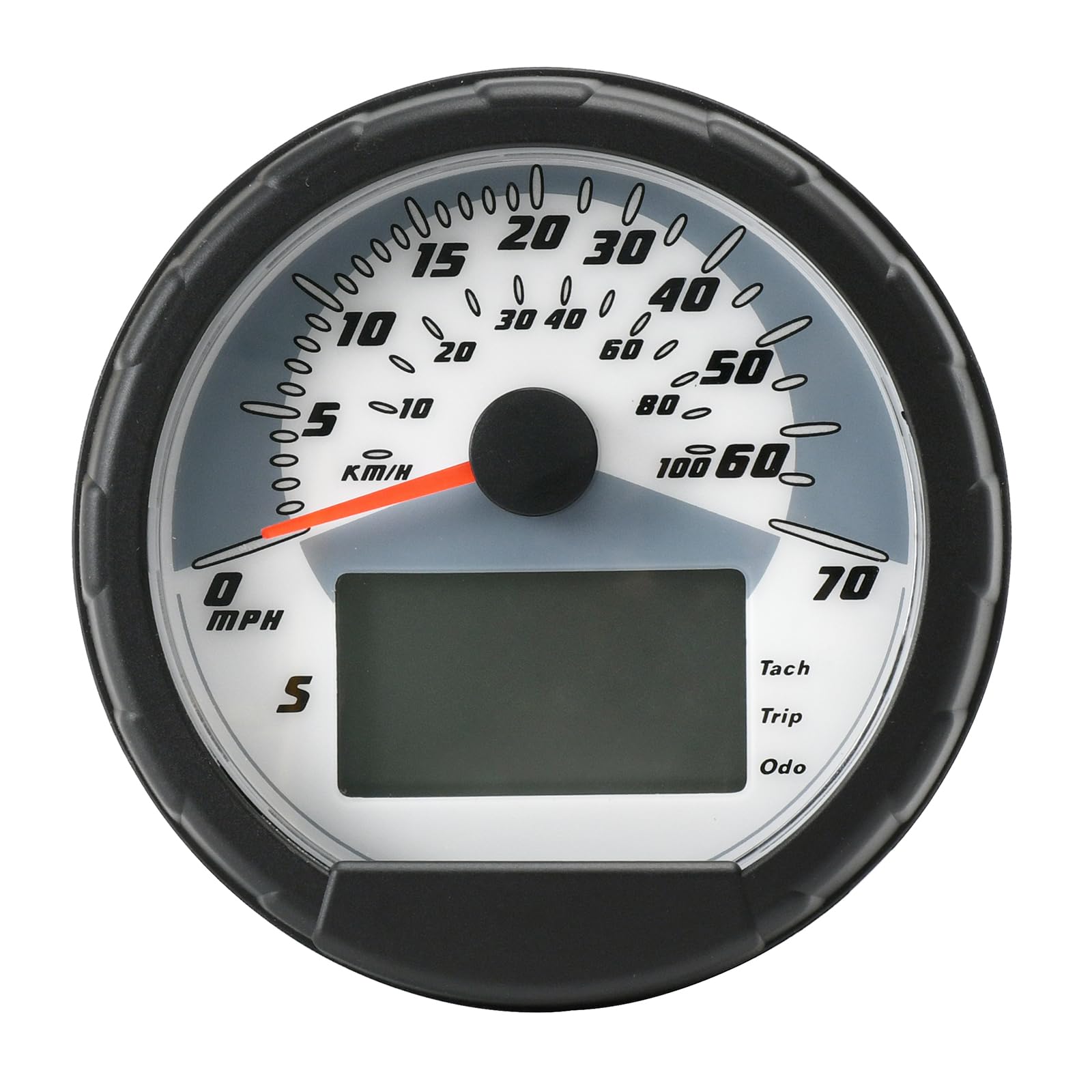

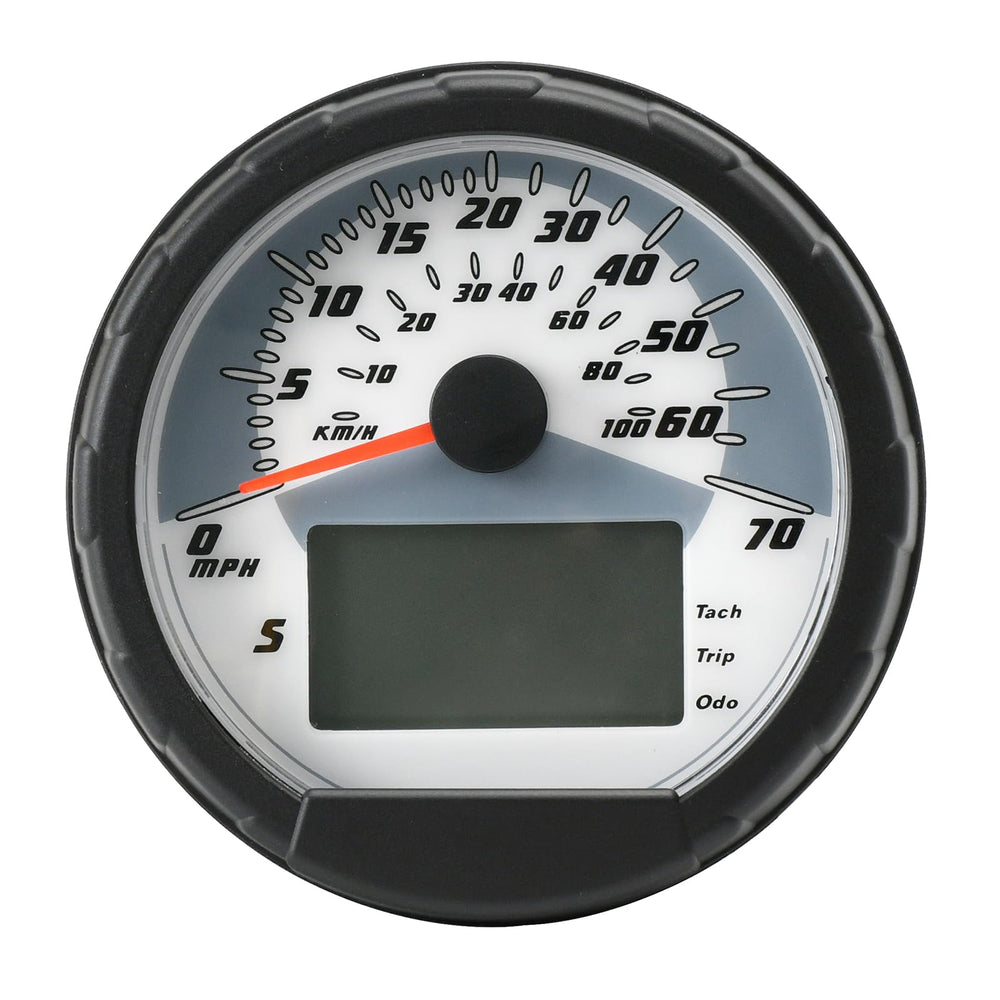

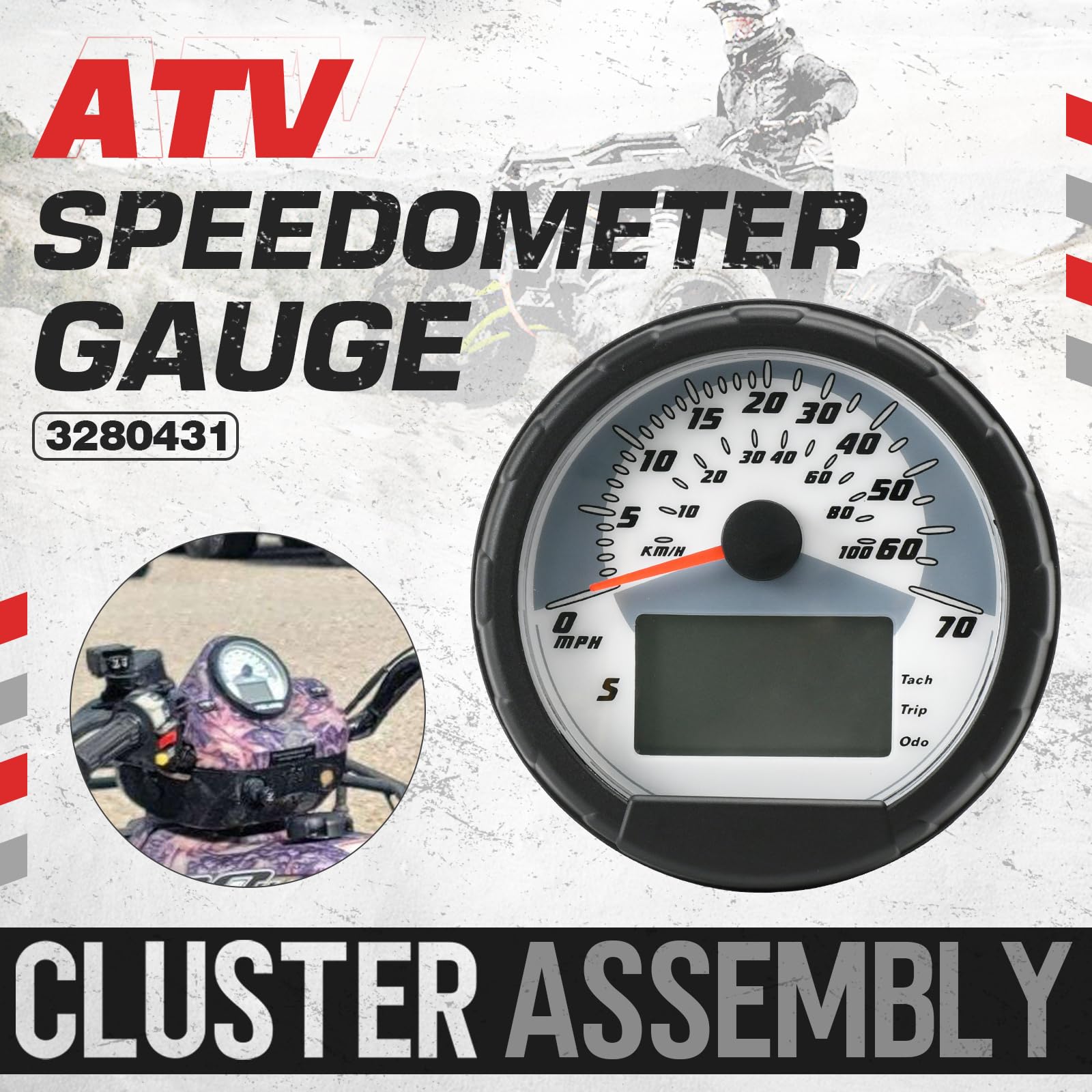

ZJTBLL 3280431 is a direct-replacement multifunction ATV speedometer gauge cluster engineered to restore full instrument readouts on compatible Polaris Sportsman and ATP 500 models from 2004–2012.

When an original instrument cluster fails, ride safety and convenience drop quickly—this aftermarket assembly provides the same core displays and warning indicators as the OEM cluster so you can get back on the trails with accurate speed, RPM, fuel, temperature and service information. Built from ABS and metal, the unit resists wear and corrosion while offering adjustable backlight brightness and a shock-resistant design suitable for off-road conditions.

How does this gauge cluster match my Polaris original?

The ZJTBLL cluster is designed to replace several factory part numbers and aligns with OEM mounting, connectors and gauge layouts for straightforward swap-in installation. It reproduces the key readouts and indicator lights so your ATV behaves the same as with the original cluster.

• Replaces OEM numbers: 3280431, 3280482, 3280528.
• OE-style housing and connector pin-out for direct fit.

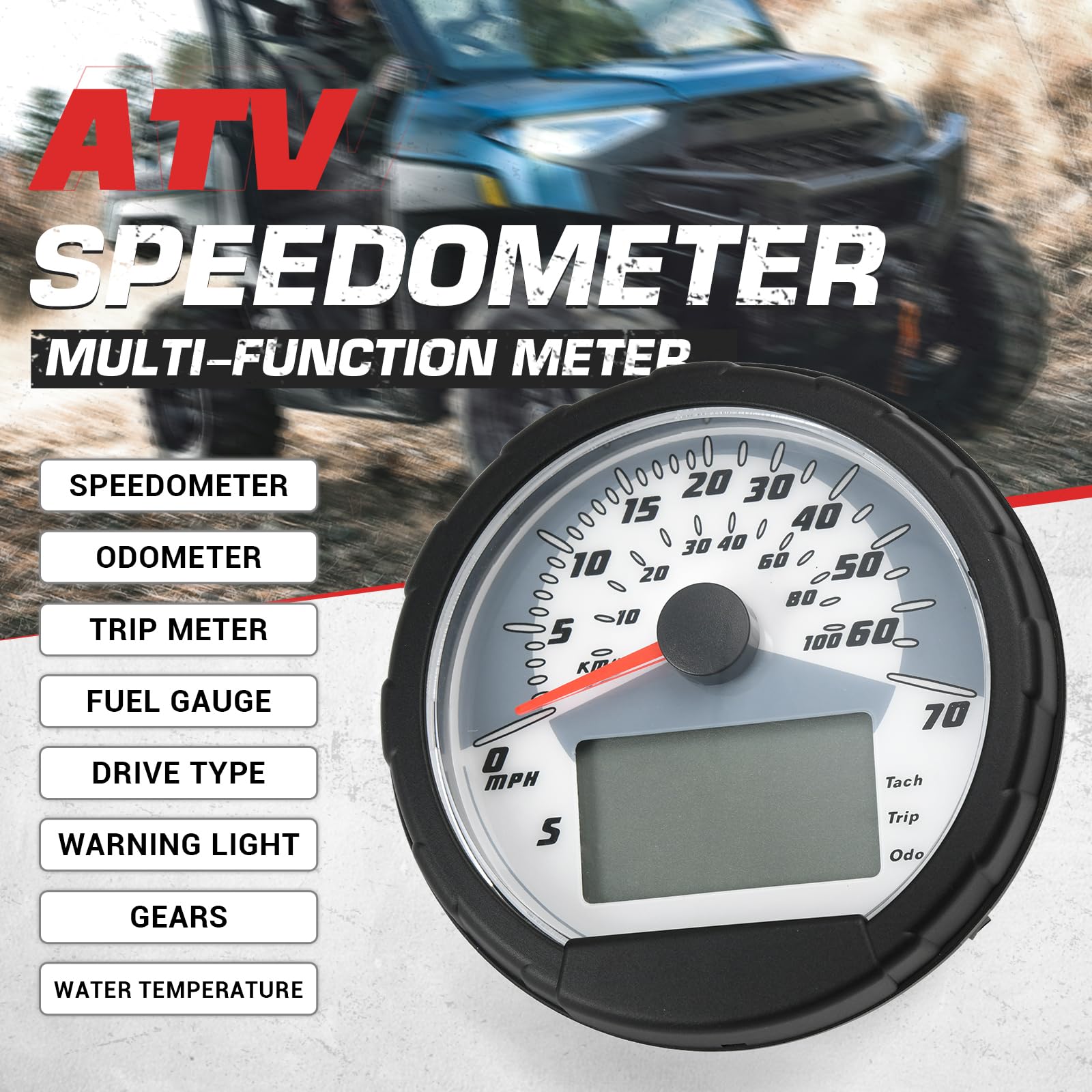

• Displays: speed, RPM, fuel, water temperature, odometer, trip, hour meter.
• Built-in warning lights and engine diagnostic indicators.

Which Polaris models and years are compatible?

This assembly fits a wide range of Sportsman and ATP model years commonly affected by cluster failures. Confirm fit by comparing OEM part numbers or by matching dash connector and mounting points before purchasing.

• Polaris Sportsman 400 (2004–2005, incl. LE versions).
• Polaris Sportsman 450 (2006).
• Polaris Sportsman 500/500 EFI/500 HO (2004–2006, select years).
• ATP 500 4x4 (2004–2005) and Sportsman 600, 700, 800 series (2004–2012 variants).

What features and durability can I expect on the trail?

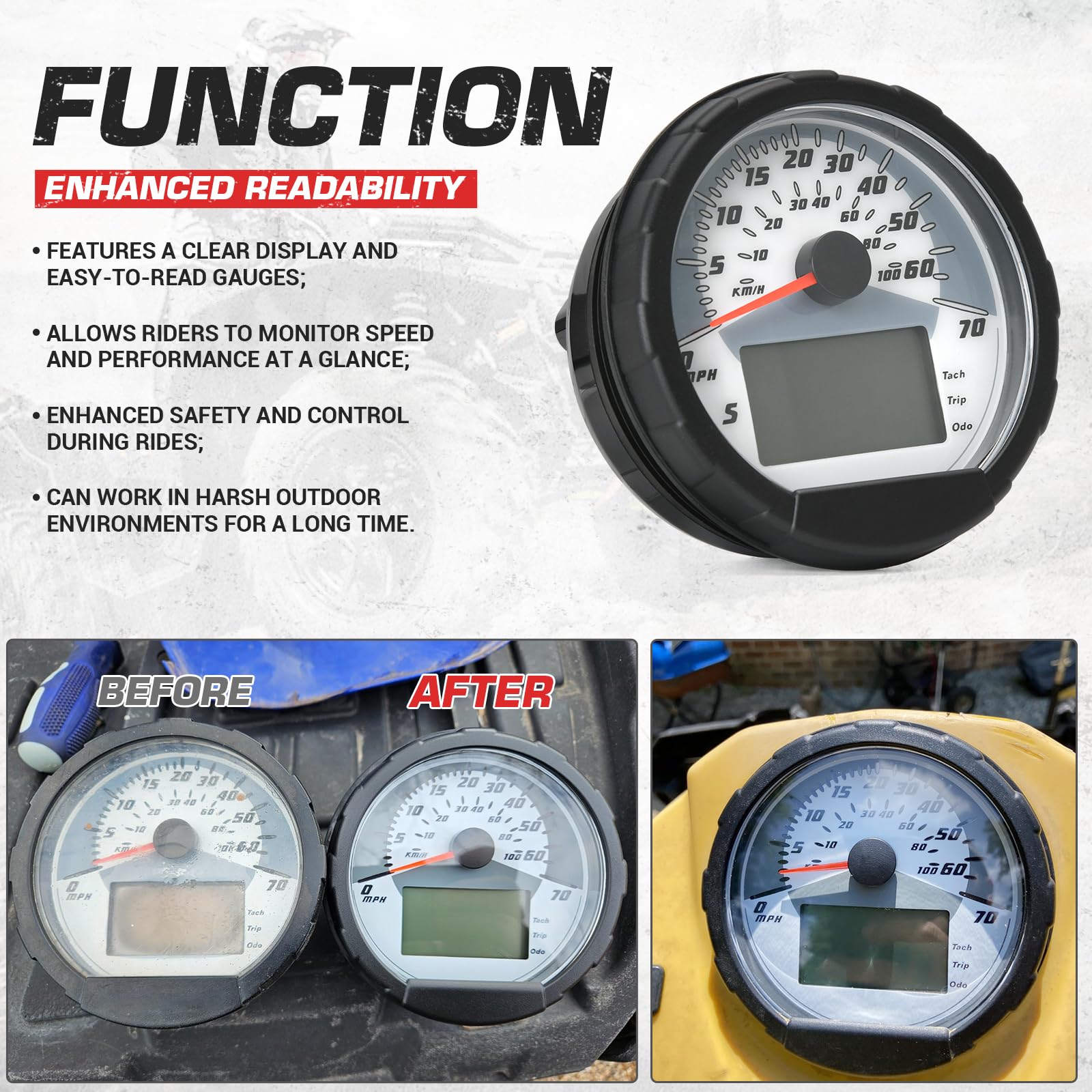

You get a multifunction readout engineered for outdoor riding: clear visibility in daylight, anti-scratch materials and a rugged build that tolerates vibration and moisture. The backlighting is adjustable so the display remains readable at dawn, dusk or under instrument lighting.

• Adjustable backlight for visibility in varied light conditions.
• Shock-resistant internals for off-road vibration durability.

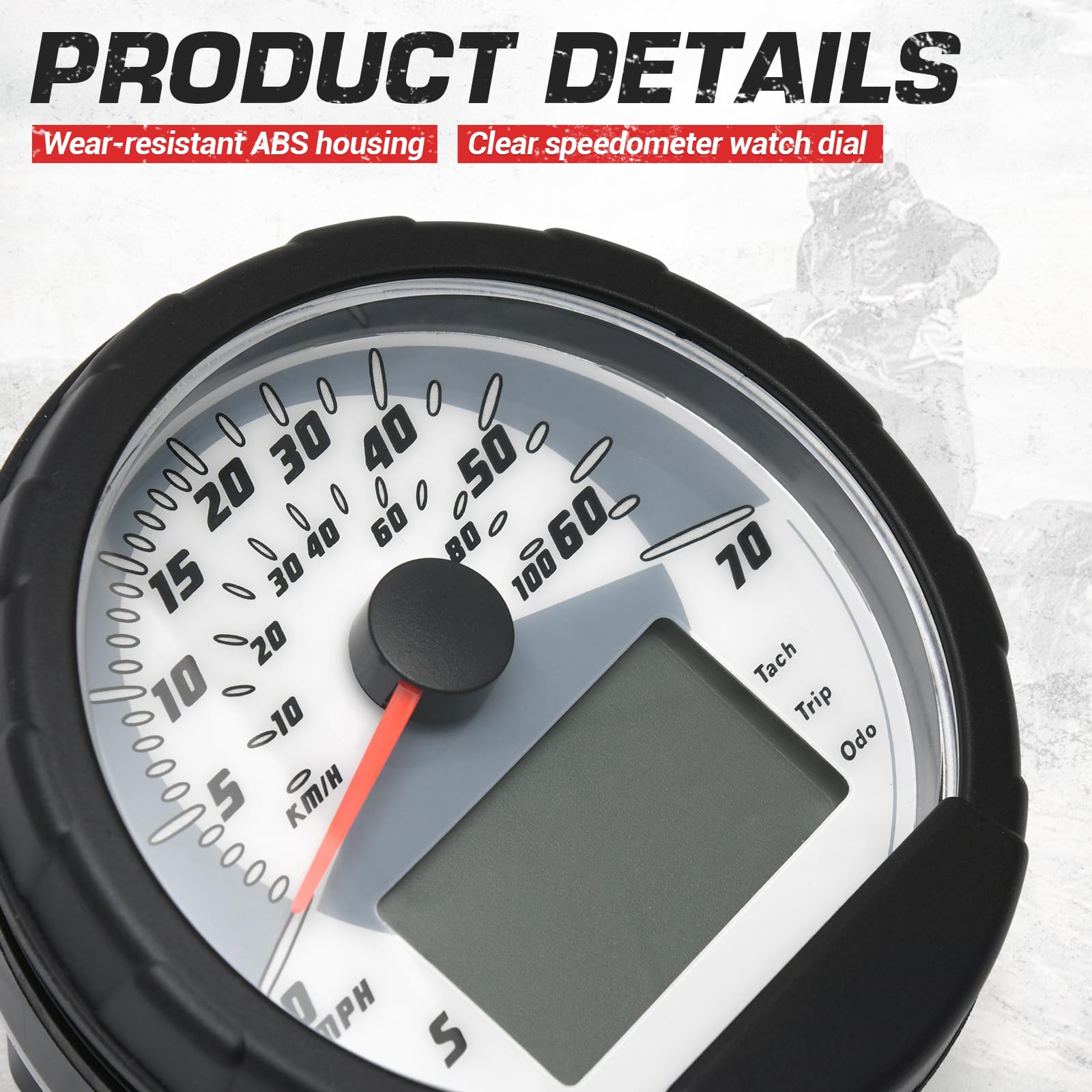

• ABS and metal construction resists rust, impacts and scratches.
• Includes hour meter and trip/odometer for maintenance tracking.

How simple is the installation and will it affect ATV operation?

Designed as a plug-and-play replacement, the cluster supports direct installation without modifications to routing or primary vehicle systems. Properly matched to the OEM connector and bracket, it should not interfere with existing electronics and preserves standard warning/diagnostic functions.

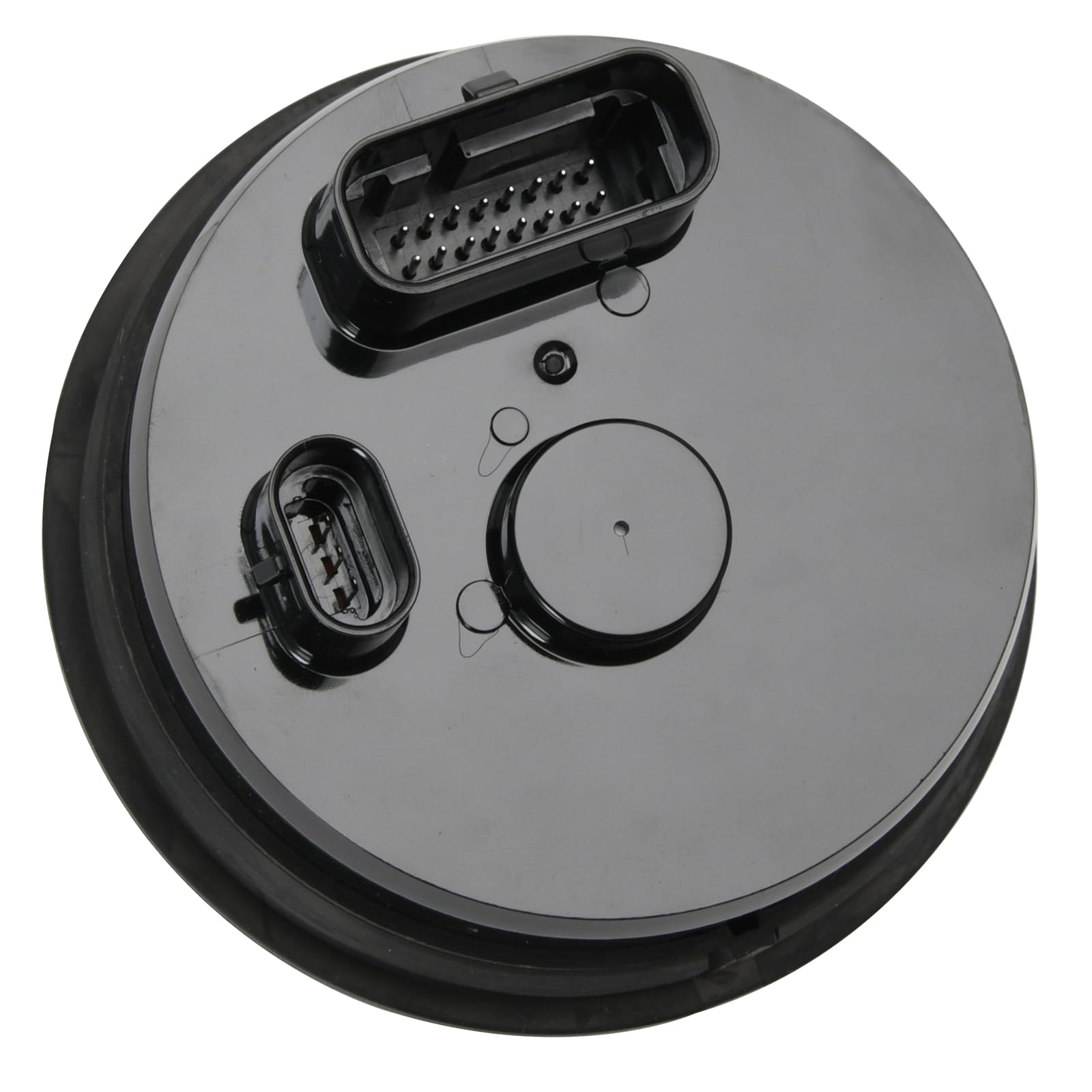

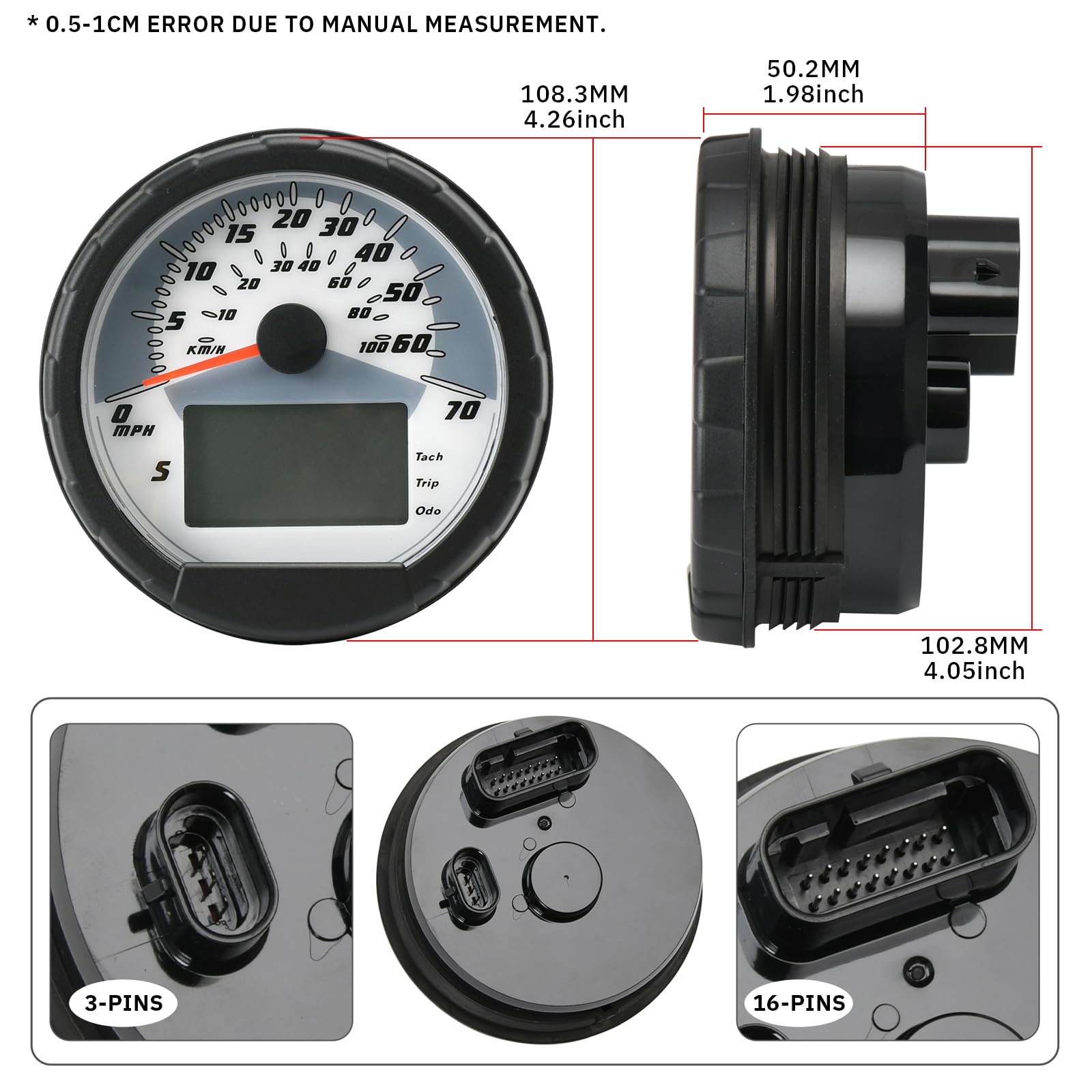

• OE-style connectors and mounting points for fast replacement.
• No wire splicing required if part numbers and connectors match.
• Retains engine diagnostics and factory indicator lights.
• Test before final reassembly to confirm full functionality.

Who is this for: Riders or mechanics who need a reliable replacement cluster for Polaris Sportsman and ATP 500 ATVs between 2004–2012, including owners dealing with dim or dead displays, intermittent gauges, or failed warning indicators. This assembly suits DIY installers, repair shops, and anyone looking for an OEM-compatible gauge cluster that restores full instrument functionality without complicated wiring or modifications.
