ZMCYNG Timing Tool Kit for Ford & Mazda 1.5/1.6 Engines — Cam, Crank & VTC Locking Set

The ZMCYNG 1.5/1.6 Timing Tool Kit is a complete camshaft, crankshaft and VTC locking set designed to correctly align and hold Ford and Mazda 1.4–2.0 engines during timing, belt and chain service.

This professional-style kit gathers the fixtures technicians need to lock the camshafts, crankshaft and timing belt tensioner and to set VTC devices for a range of Duratec, Duratorq, EcoBoost and selected Mazda engines. All pieces are machined to sit in factory timing positions so you can perform timing belt or chain replacement, tensioner adjustment and related service with repeatable positioning and reduced risk of misalignment.

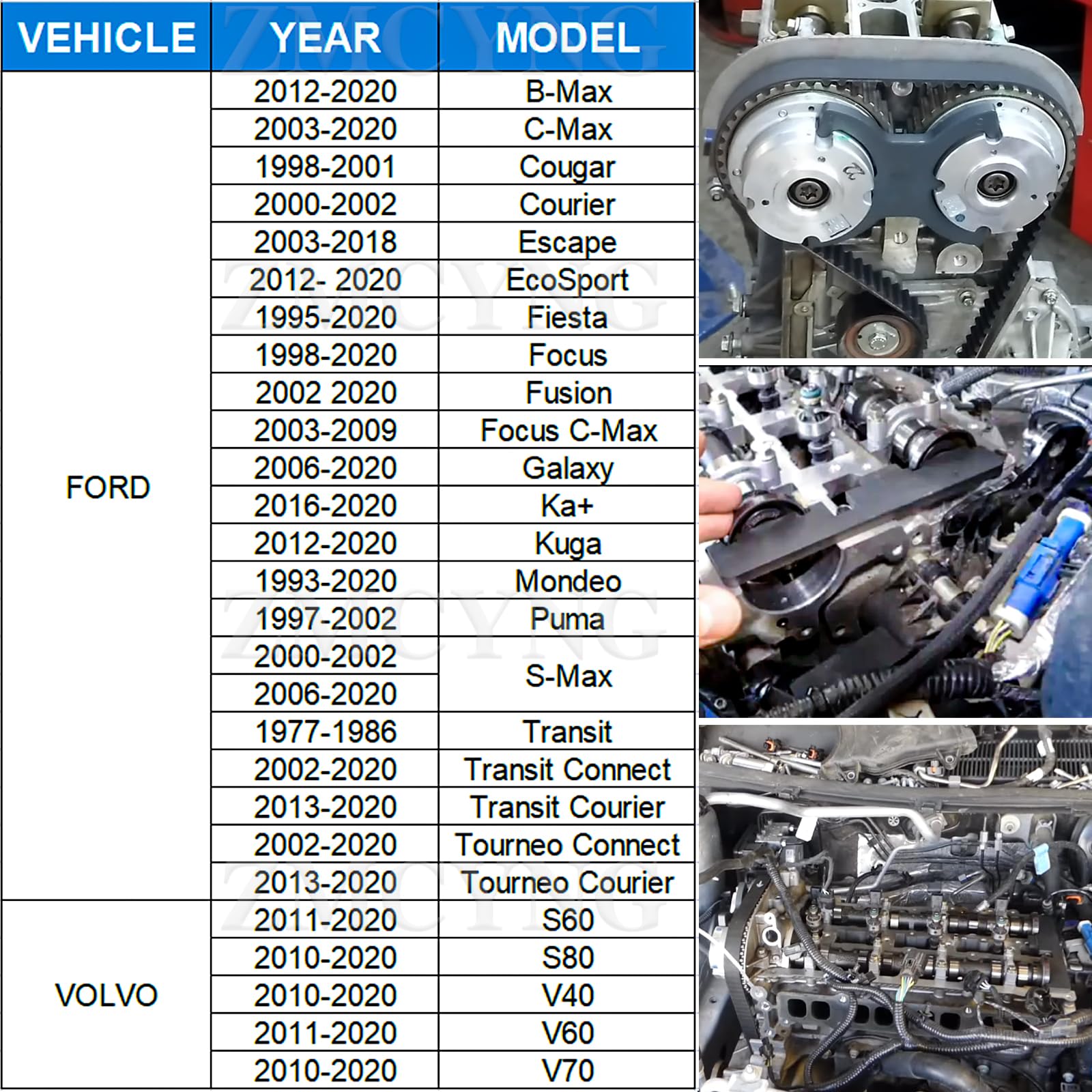

Which engines and models does this set fit?

The kit supports many Ford petrol and diesel twin-cam engines and several Mazda/PSA powerplants across 1.25–2.5L ranges. Fitment covers 1.4 and 1.6 VVT/VTC variants and includes common Duratec and Duratorq codes as well as Ecoboost units used in C-Max, Fusion, Transit and multiple Mazda models.

• Compatible engines: 1.25, 1.4, 1.6, 1.7, 1.8, 2.0 petrol (twin-cam 16V) and 1.4–2.0 TDCi diesel.
• Specific application examples: 2011 Ford C-Max 1.6 EcoBoost, 2013–2018 Ford Fusion 1.5/1.6 EcoBoost, selected Mazda 2/3/Tribute models.
• Includes support for numerous engine codes (FYJ, L1, EDB series and others) for accurate identification.

How does the kit help me perform timing jobs safely?

By locking the camshafts, crank and tensioner in the exact service positions, the kit prevents rotation during belt or chain removal and installation. That lowers the chance of valve-to-piston contact and simplifies reassembly because timing marks remain aligned while you work.

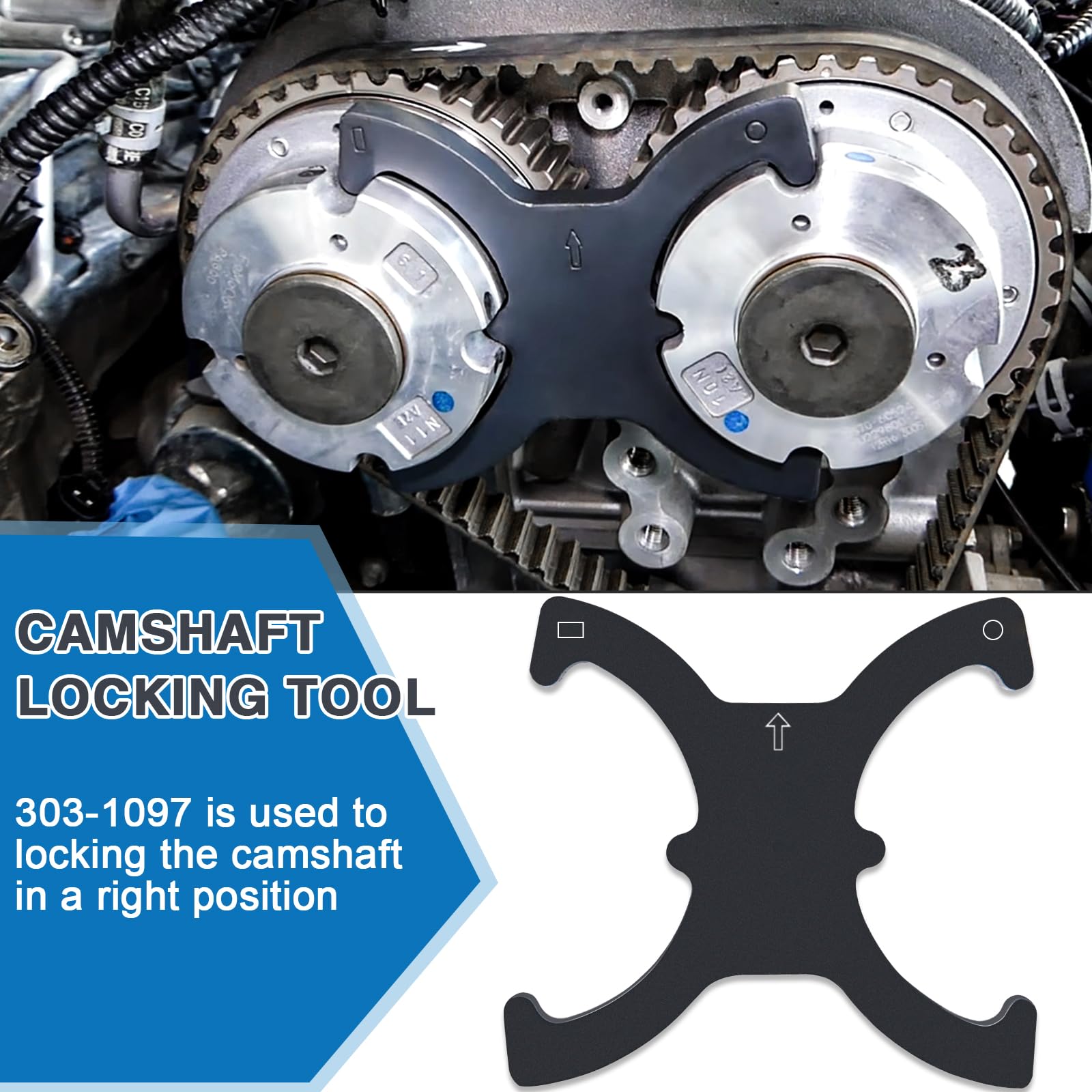

• Camshaft and crank locks maintain factory alignment during disassembly and reassembly.
• Tensioner pin secures correct belt/chain preload for reliable tensioning.
• VTC adjustment tool allows controlled phasing of variable timing components.

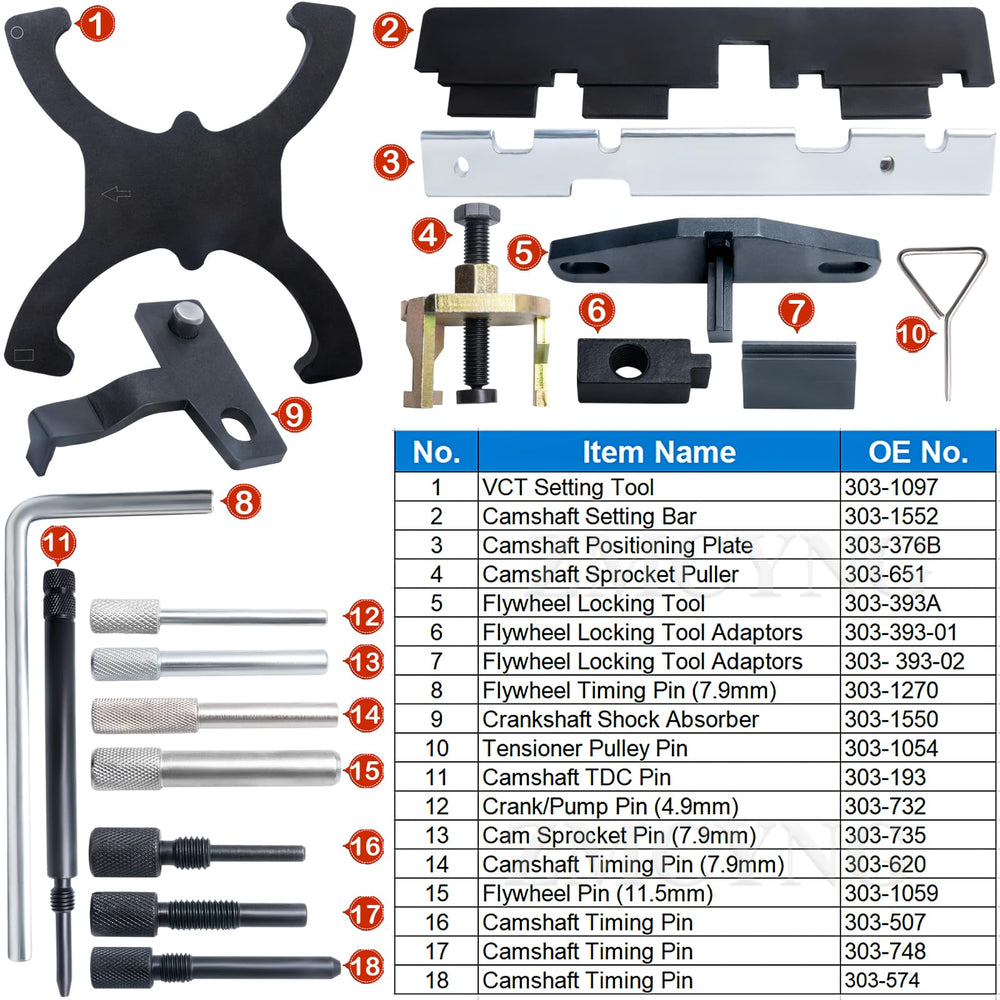

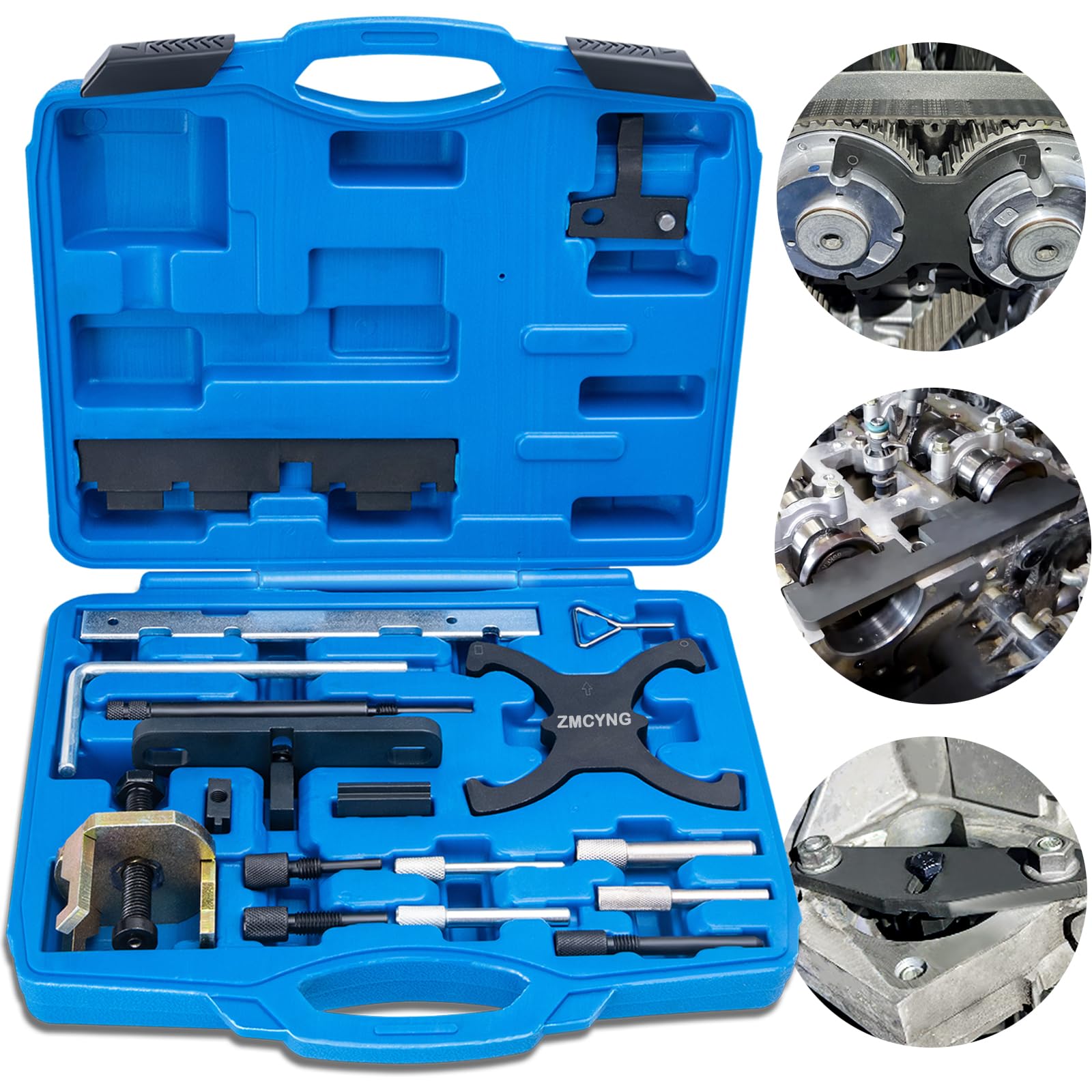

What’s included and how does it match OE references?

The kit bundles multiple specialty pins, alignment plates and tensioner locks designed as replacements for common OEM tool numbers, giving technicians an economical alternative to single-use dealer tools. Parts are sized to fit the same locating holes and surfaces used by factory tools for direct interchangeability.

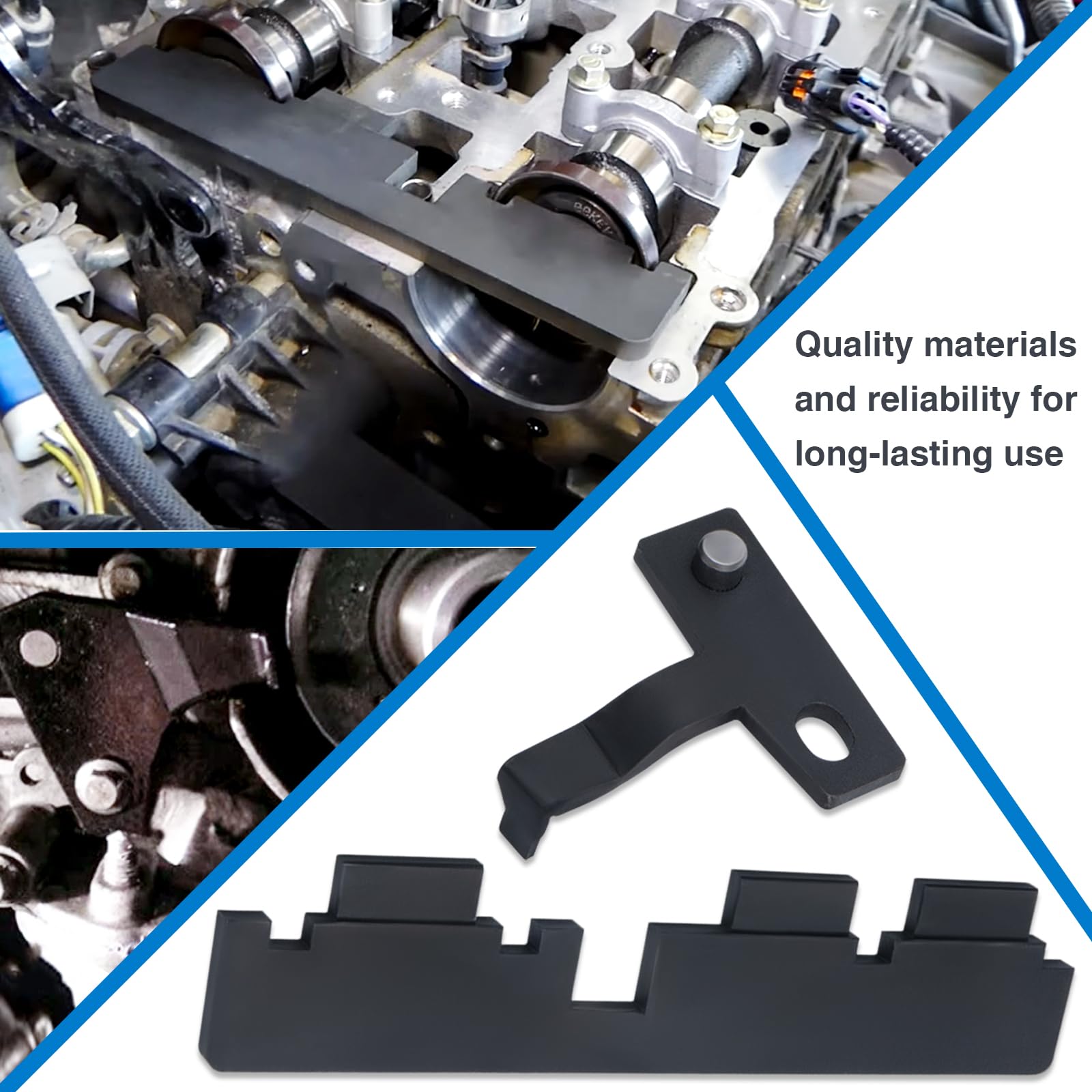

• Multiple locking pins and plates to engage cam and crank timing positions.
• VTC phasing adapter and tensioner holding pin for correct setup.
• Serves as an aftermarket equivalent to several OE tool numbers (e.g., 303-1097, 303-1552 and more).

Can this kit handle both belt and chain timing systems?

Yes — the set is made to accommodate engines with timing belts and those with control chains within the supported code range. It gives the holding points needed whether you’re replacing a belt, adjusting a chain tensioner, or re-phasing a variable timing device.

• Applicable to twin-cam belt systems and control-chain engines listed in fitment details.
• Tools position tensioners and locking tabs for accurate tension and alignment.
• Useful for full timing service, partial repairs, and VTC tuning checks.

Who this is for: the ZMCYNG 1.5/1.6 Timing Tool Kit is aimed at independent mechanics, garage owners and experienced DIYers who work on Ford and Mazda 1.25–2.0L engines and need a dependable, multi-application alignment kit. If you routinely replace timing belts or chains, adjust tensioners, or service variable timing systems on the listed models, this kit consolidates the essential fixtures into one workshop-ready set and reduces the chance of engine timing errors during maintenance.
