DAYUAN Suspension Coil Spring Compressor Set — Telescopic 120–325mm, 1250kg Capacity, 2 Pressure Plates

DAYUAN Suspension Coil Spring Compressor Repair Tools Set is a heavy-duty telescopic kit that safely compresses coil springs up to 1250 kg for wishbone and multi-link suspension work.

This professional-grade spring compressor set is designed to let you remove and install coil springs without dismantling the axle, saving time in workshop and DIY repairs. The kit includes two sizes of pressure plates and non-slip three-pronged clamp arms for a secure grip on a wide range of modern vehicles, including many Mercedes-Benz models and numerous makes from Europe and Asia. Built to a high quality standard, it suits both home mechanics and professional garages.

How does this kit secure coil springs during removal and installation?

The compressor uses robust three-pronged clamp jaws and a telescopic main shaft to hold springs firmly while you work. A 19 mm hex drive lets you tighten or loosen the unit with common hand tools for controlled compression.

• Non-slip three-pronged clamp arms for maximum grip
• Telescopic range 120 mm–325 mm for varied spring lengths
• 19 mm hex drive for precise, tool-driven operation
• Max. spring load capacity 1250 kg for heavy-duty use

Will this set fit the suspension components on my vehicle?

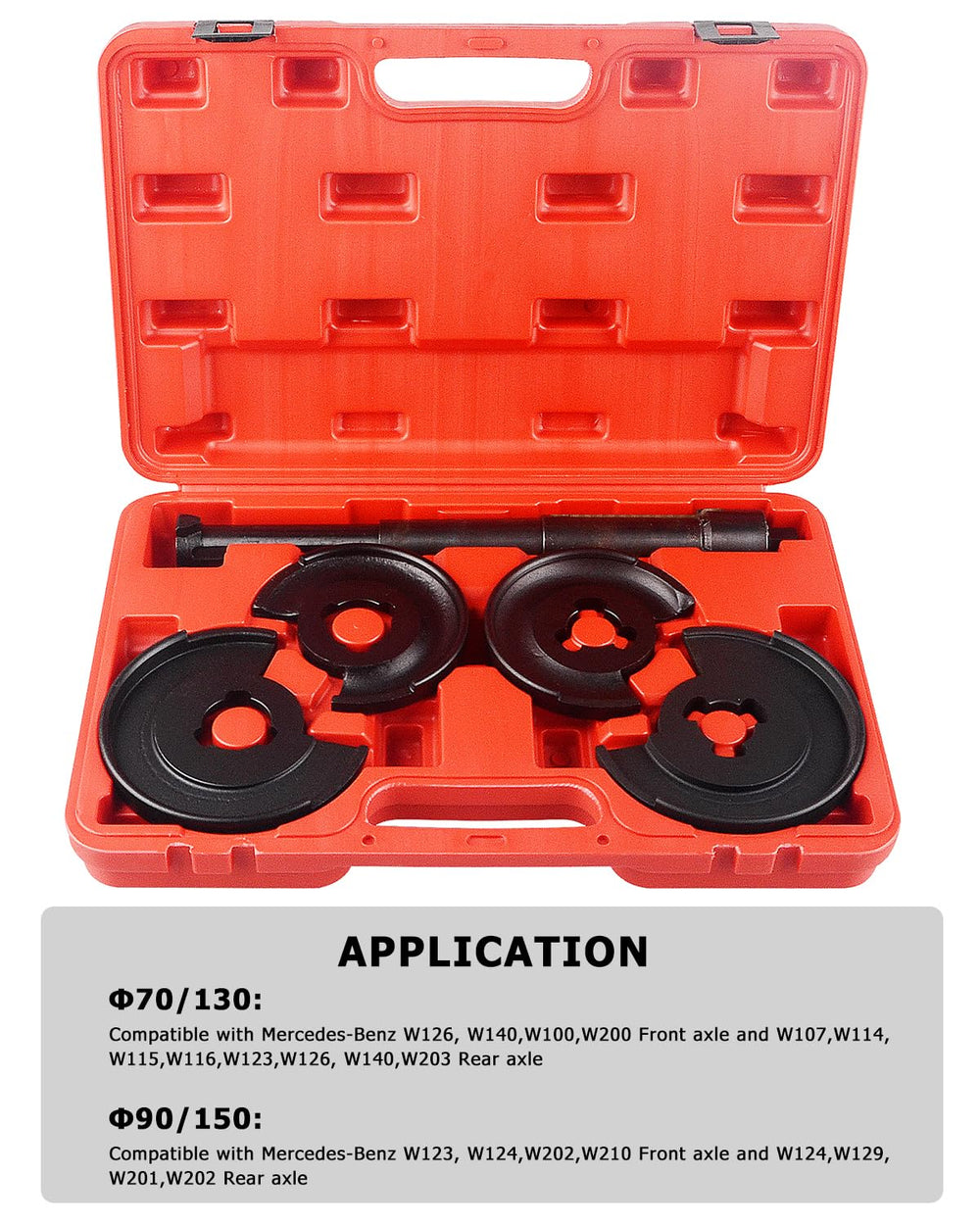

The set covers a broad diameter range and includes two pressure plate sizes to match many factory spring seats. It's compatible with a long list of Mercedes-Benz models and is also suitable for numerous makes such as Volkswagen, Volvo, Toyota, Ford, Saab, Peugeot and others.

• Suitability diameter: 80 mm–135 mm
• Jaw opening: 115 mm–300 mm to accommodate different spring widths
• Large plate fits many Mercedes front and rear axles; small plate fits additional Mercedes and many other brands
• Useful on multi-link independent suspensions as well as wishbone configurations

What items and specifications are included in the set?

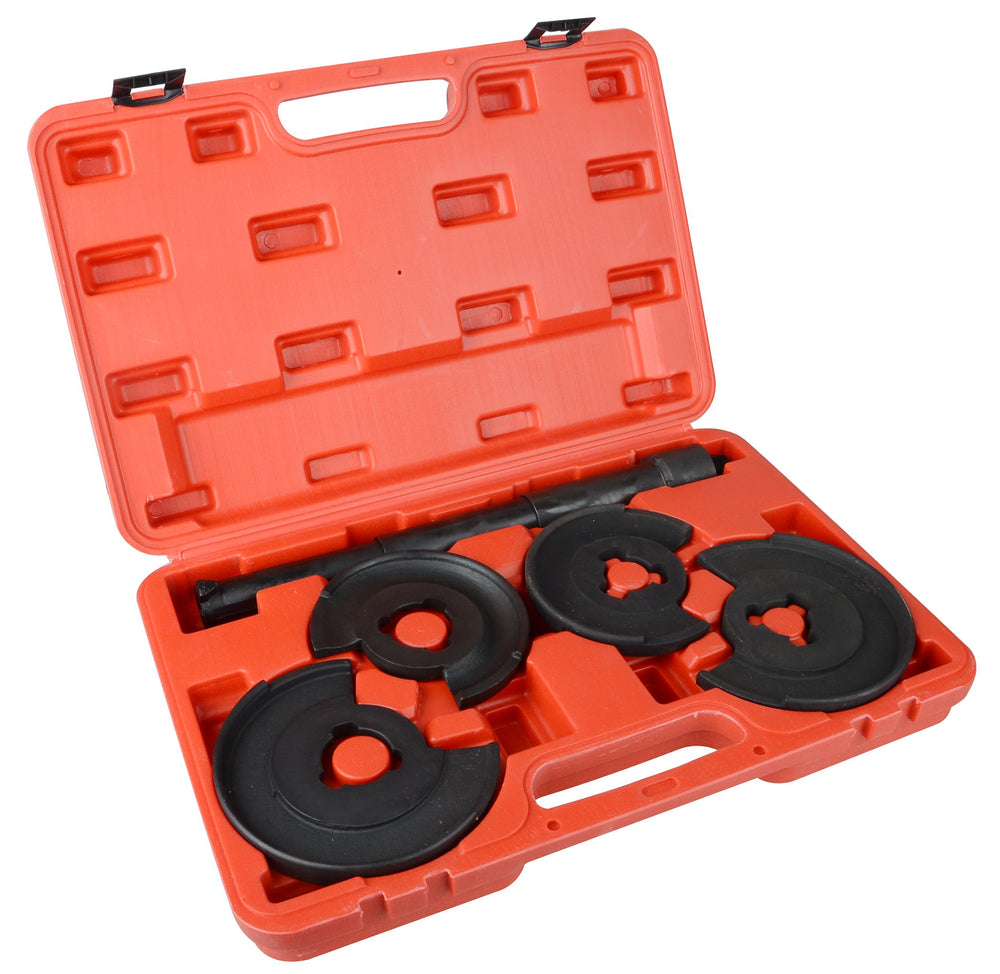

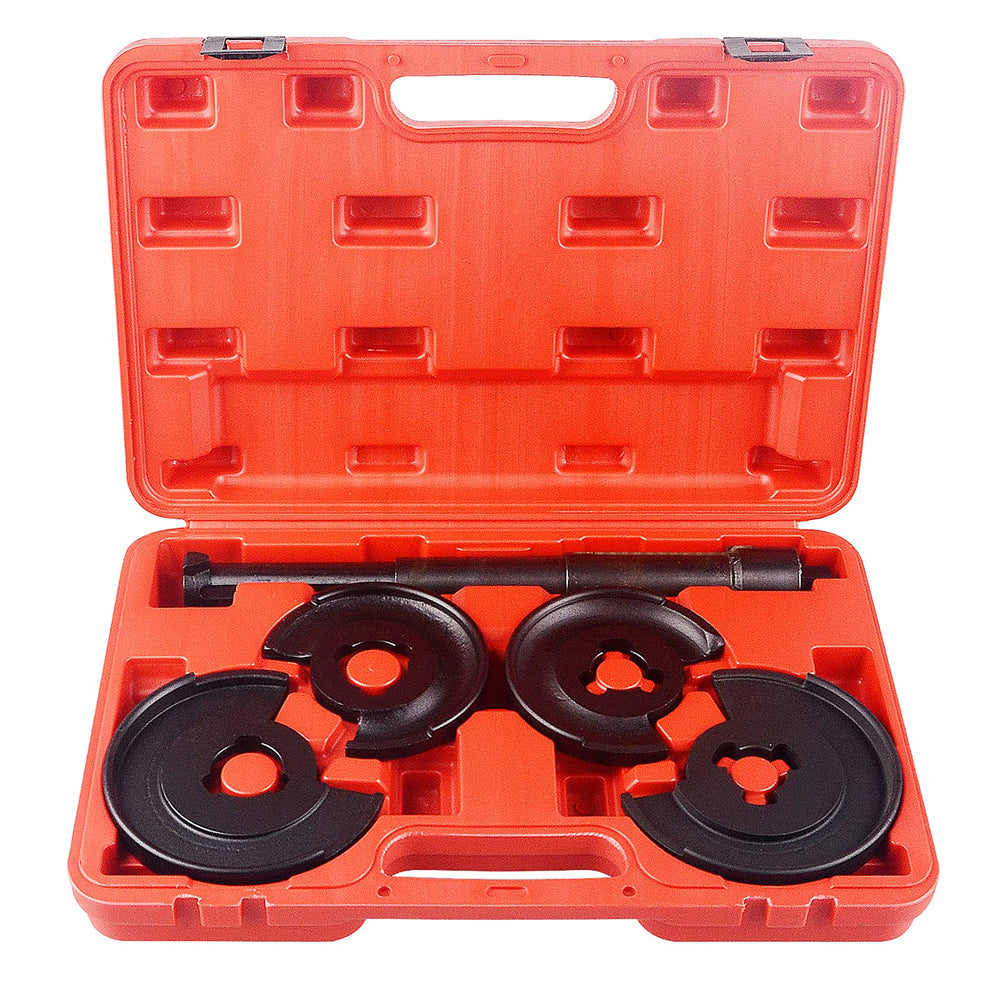

The kit is supplied in a compact storage box and contains clamp sets, a telescopic compressor and two pressure plate sizes so you can tackle a variety of jobs without buying extras. Specifications are clear for workshop planning and safe operation.

• Contents: 2 sets of spring clamps, 1 telescopic compressor, 2 pressure plate sizes

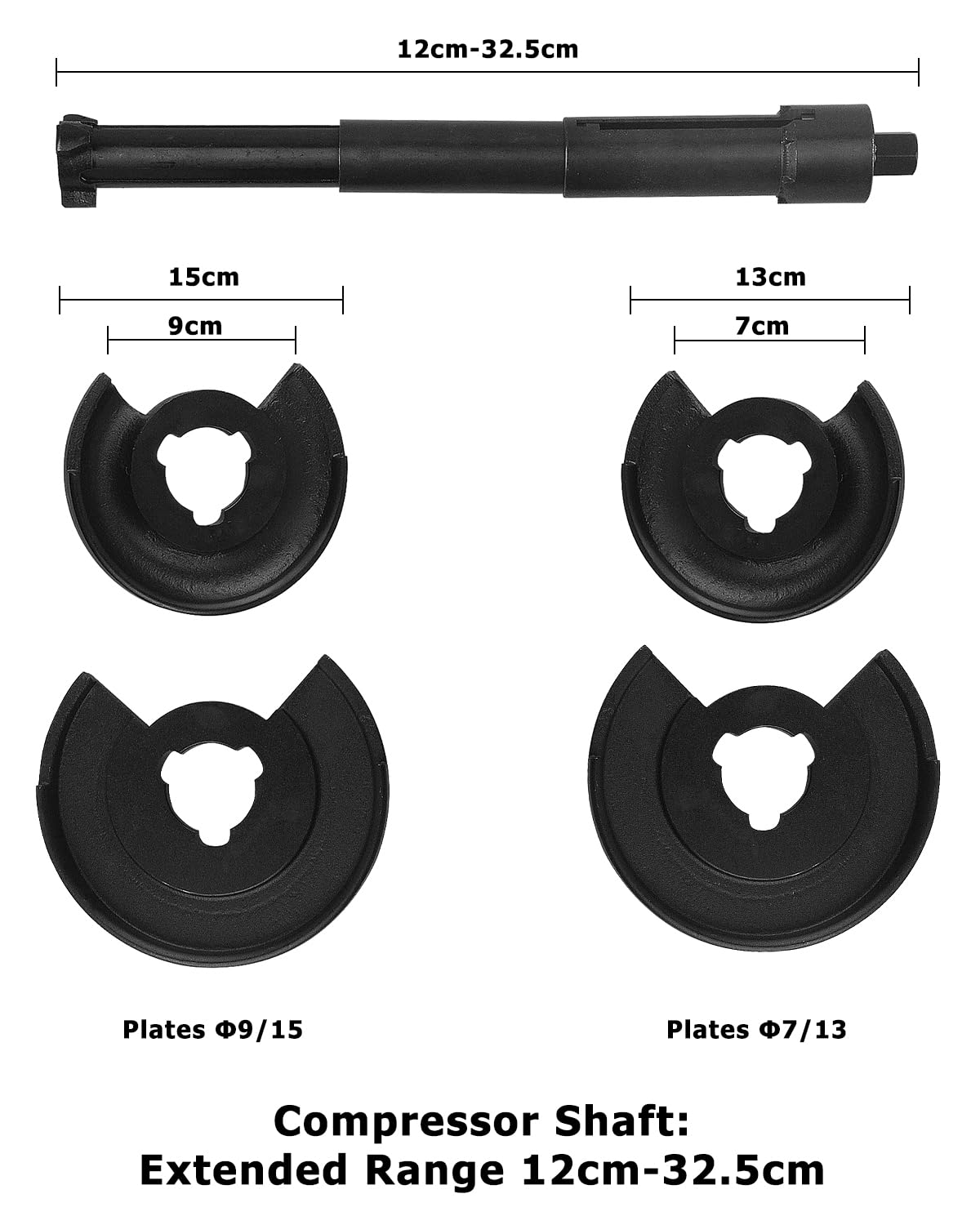

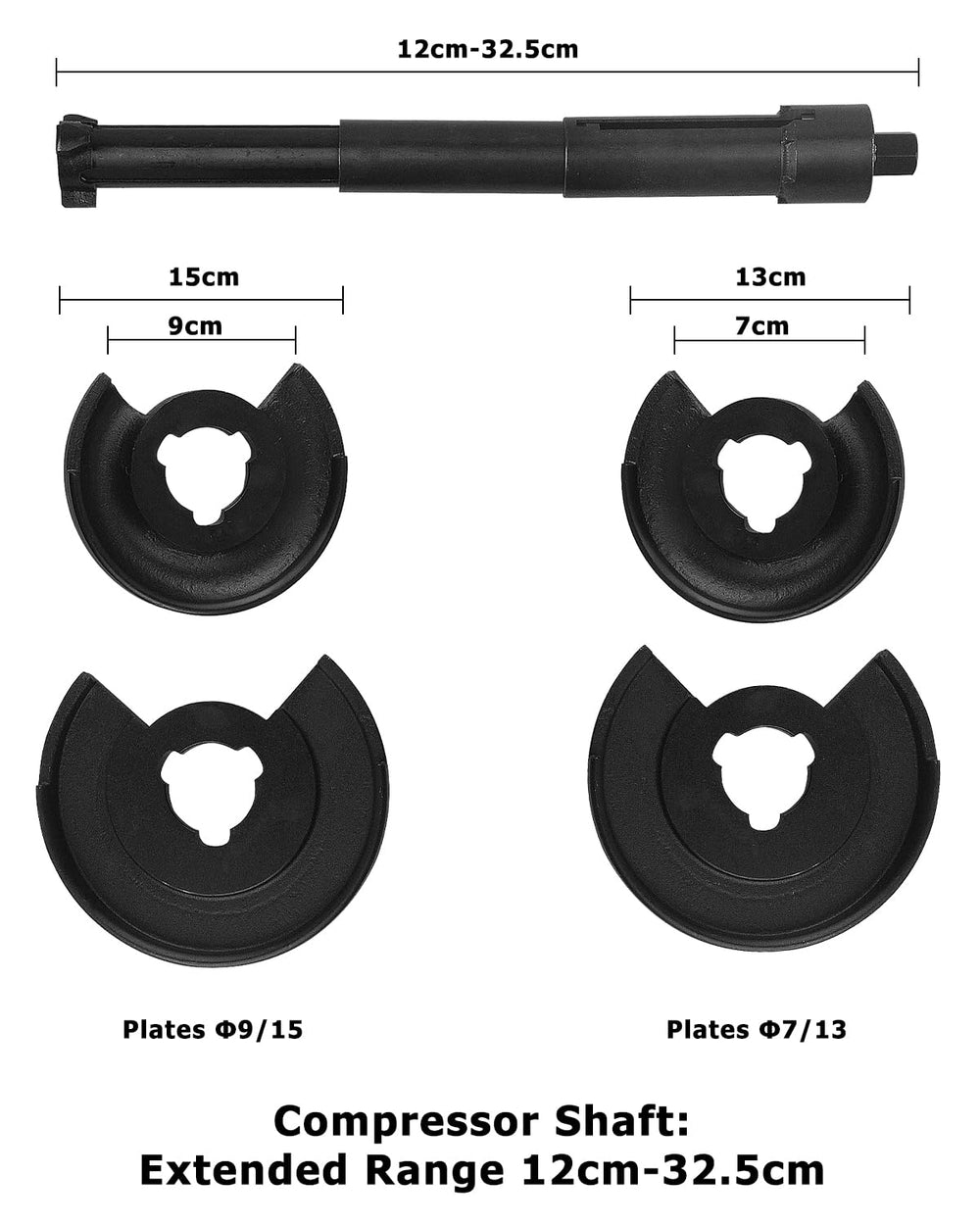

• Pressure plate sizes: 90/150 mm and 70/130 mm
• Maximum load: 1250 kg; telescopic length: 120 mm–325 mm
• Drive: 19 mm hex; box dimensions: 45 × 31 × 9.5 cm (L × W × H)

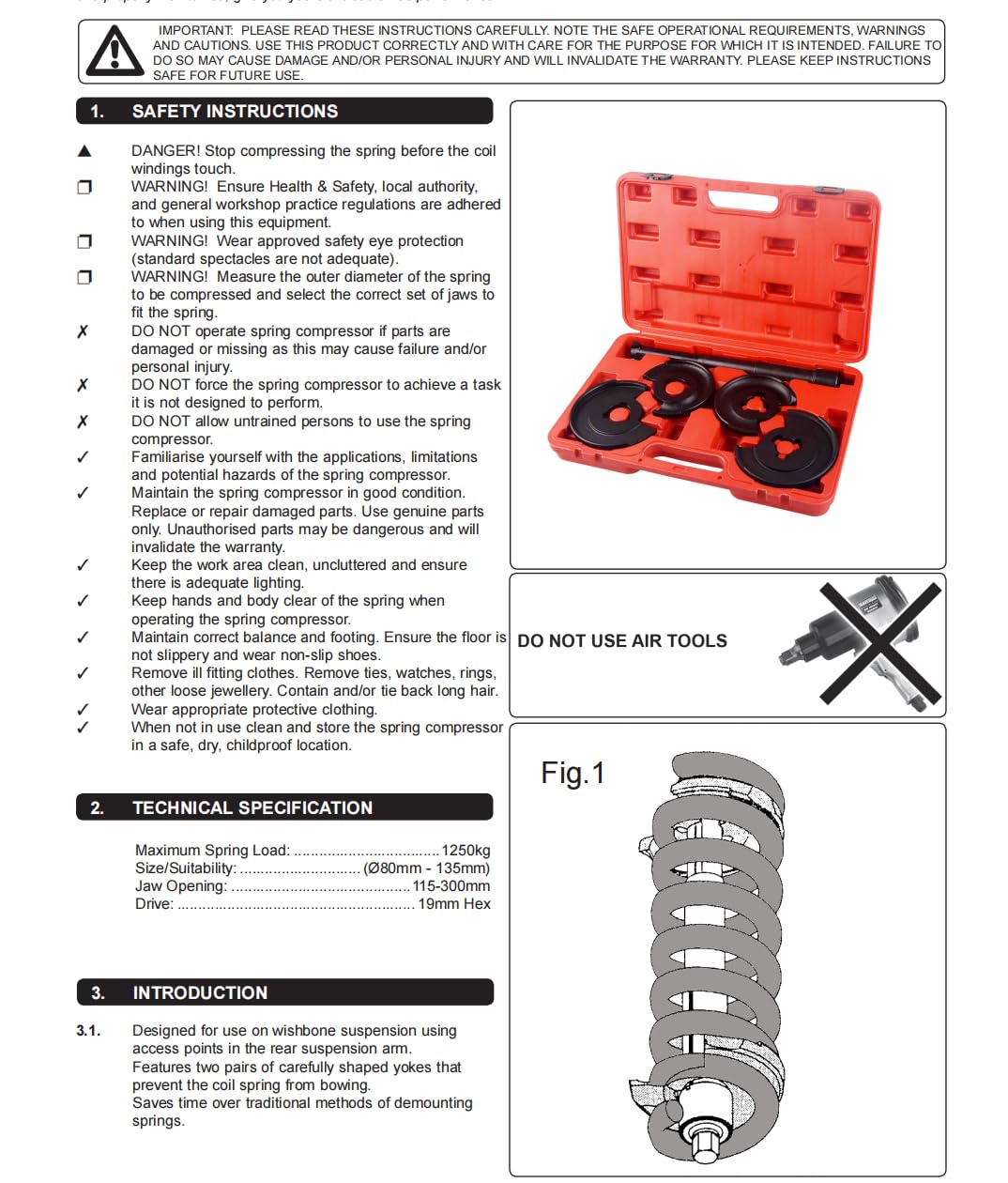

What safety and usage guidance should I follow?

Use only hand tools with the compressor—do not operate with an impact driver. Always use approved eye protection, gloves, and other appropriate PPE when compressing springs because stored energy is significant.

• Do not use an impact driver; use controlled hand tools only
• Wear safety goggles, gloves and face protection as recommended
• Check clamps and plates for secure seating before compressing
• Store the kit in its toolbox when not in use to protect components

Who is this for? The DAYUAN spring compressor set is intended for experienced home mechanics, mobile technicians and professional garage teams who need a reliable, broadly compatible tool for removing and fitting coil springs across many vehicle platforms. Its heavy-duty load rating and interchangeable plate sizes make it practical for workshops handling Mercedes-Benz models and a wide selection of other cars, while the compact storage case keeps the components organized between jobs.
