JDMSPEED 12" Universal Slim Electric Radiator Fan - 12V Push/Pull, 2.5" Thin, 800+ CFM

JDMSPEED's 12" Universal Slim Fan is a reversible 12V electric radiator fan designed for push or pull installation to boost cooling across radiators, intercoolers, A/C condensers and engine bays.

This slim, high-flow fan kit delivers a compact, high-performance cooling option for many vehicles. Built with a 10-blade plastic impeller and a slim 2.5" profile, the fan produces over 800 CFM while drawing under 7.5 amps at 12 volts. It ships with mounting hardware and a universal fit approach so you can install it on sedans, trucks, RVs, trailers and more.

How does this 12" fan improve cooling under a tight hood?

The slim 2.5" thickness is made to fit in cramped engine bays where larger fans won't. Despite the slim profile, the 10-blade design and 80W motor maintain high airflow to help lower radiator and condenser temperatures.

• 12-inch diameter with 10 blades for concentrated airflow

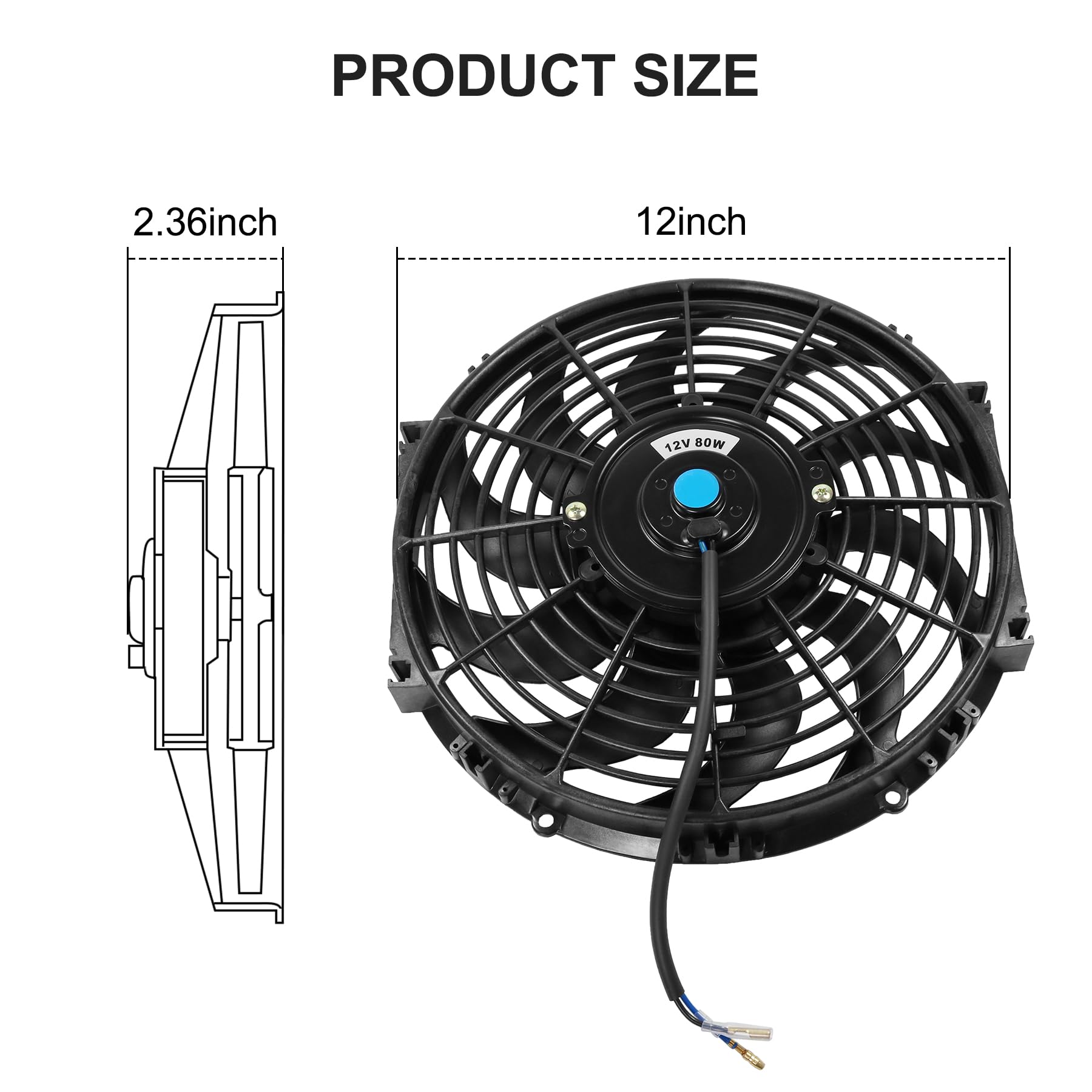

• Slim 2.5" depth fits tight clearance spots
• Produces ≥800 CFM for effective heat transfer
• Low amp draw (≤7.5 A) protects electrical systems

Can I use this fan as a pusher and a puller?

Yes — the fan is reversible by flipping the blade and reversing the wiring, allowing installation as either a pusher (mounted in front of the radiator) or a puller (mounted behind the radiator). This flexibility helps tailor airflow to your vehicle’s setup.

• Reversible blade orientation for push or pull setups
• Simple wire reversal changes motor direction

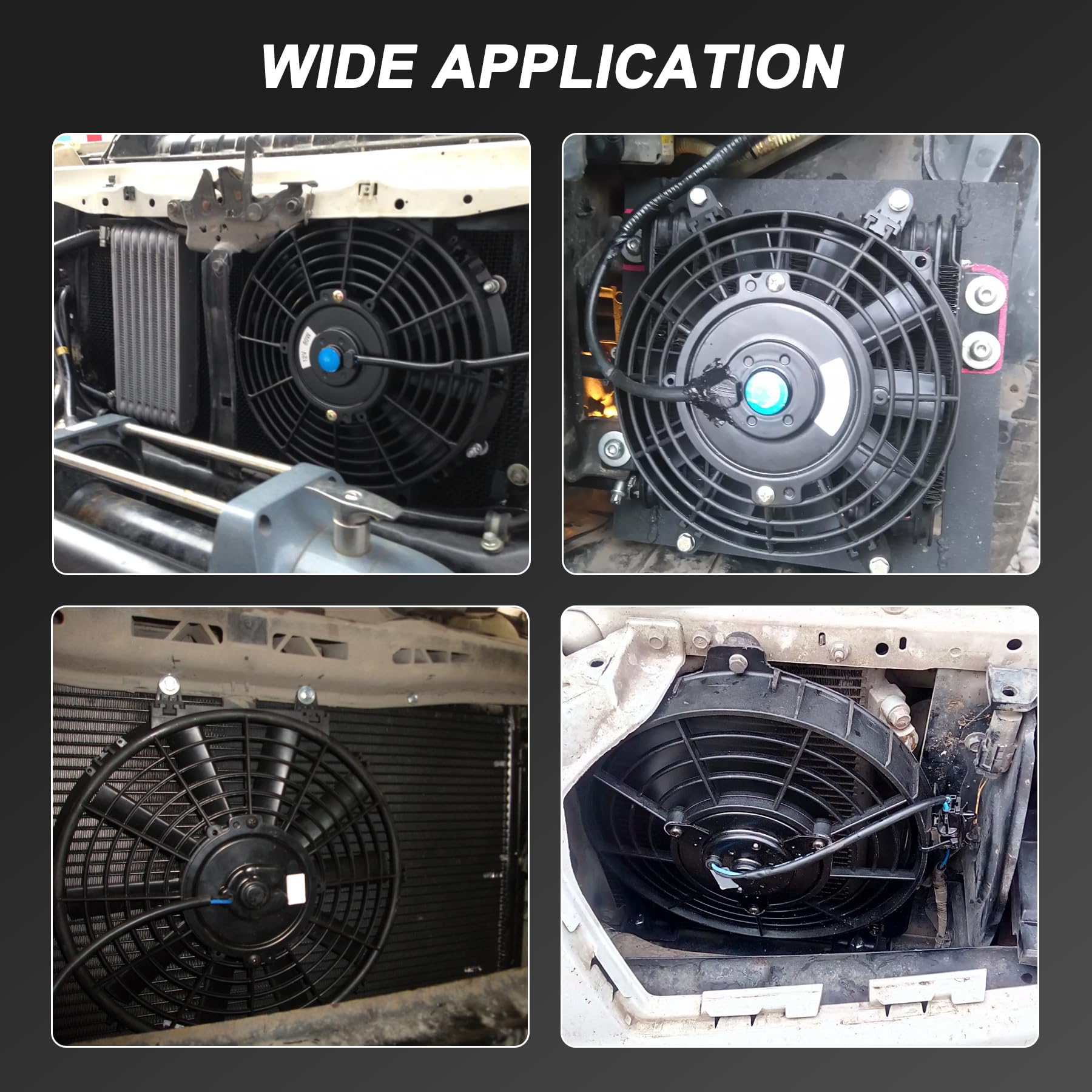

• Works for front-mounted radiators and rear-mounted coolers
• Includes mounting hardware to secure either position

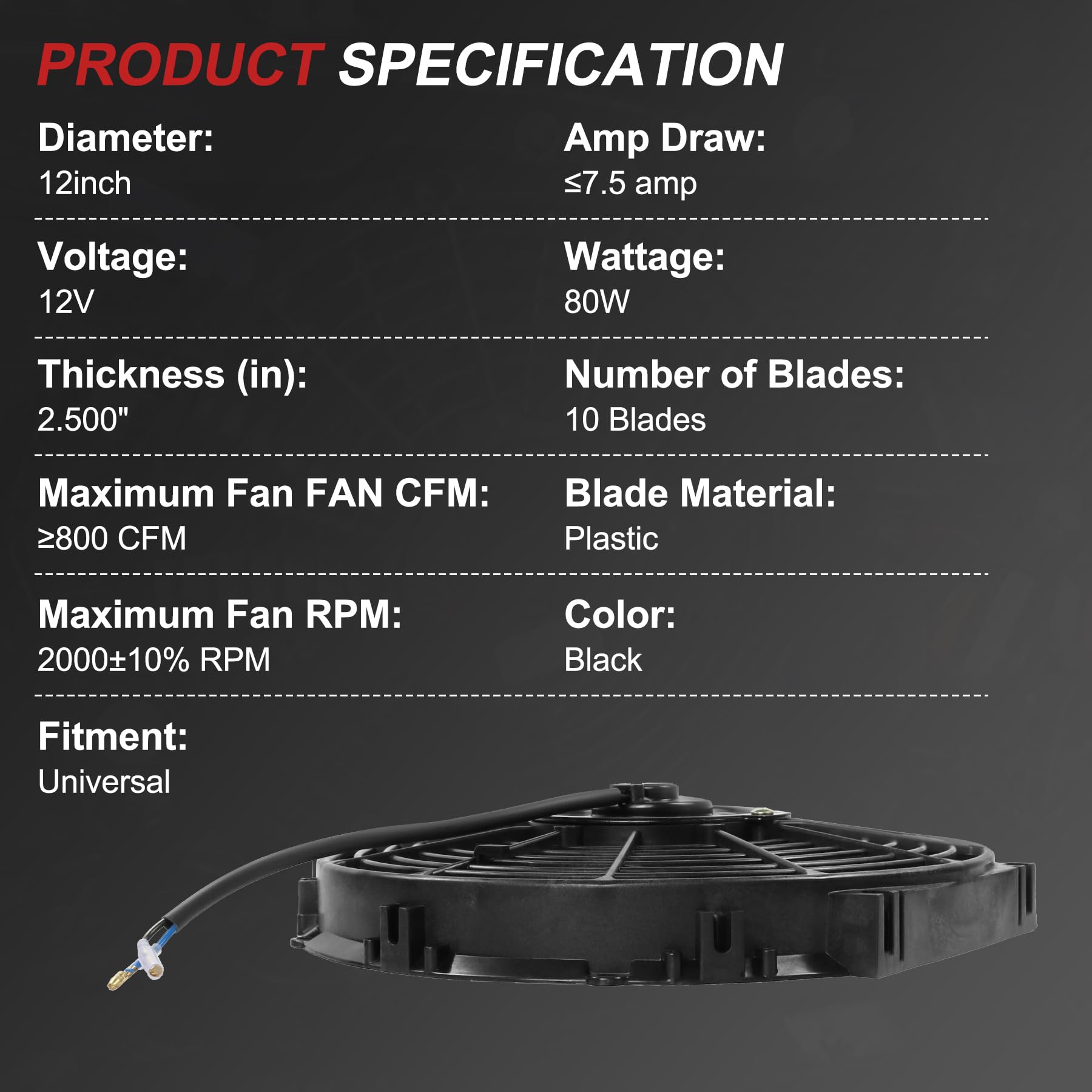

What are the electrical and performance specs I should know?

The fan operates on a standard 12V system with an 80W motor that spins up to approximately 2000 RPM (±10%). It is engineered for economical current draw while producing high air movement suitable for cooling multiple systems.

• Voltage: 12V — compatible with most vehicle electrical systems
• Amp draw: ≤7.5 A — efficient for continuous use
• Wattage: 80W with max RPM ~2000±10%
• Airflow: ≥800 CFM to improve radiator and A/C performance

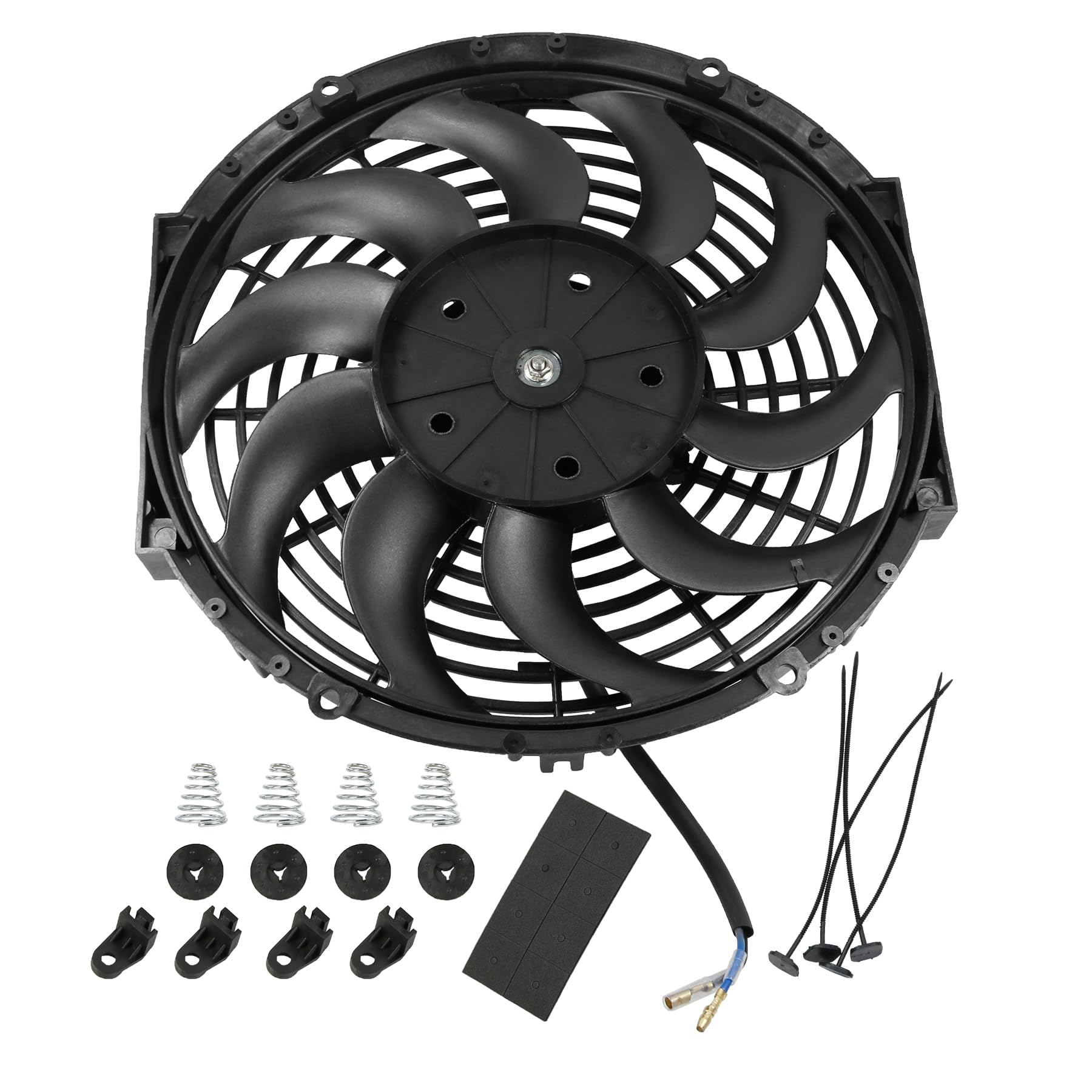

What comes in the box and what materials were used?

The kit includes one 12" cooling fan blade plus mounting hardware and brackets for universal installation. The impeller is molded plastic for corrosion resistance and lightweight durability, while the motor and housing are designed for long service life in engine environments.

• Package includes fan and universal mounting kit
• Plastic blades resist heat and corrosion
• Durable motor housing for engine-bay conditions
• Designed as an aftermarket replacement or upgrade

Who is this for? If you need a compact, high-flow cooling solution that fits limited spaces — whether upgrading a factory fan, replacing a failed unit, or adding auxiliary cooling for towing, performance, or hot-climate use — this JDMSPEED 12" reversible fan kit is built to be an adaptable, straightforward option. It’s suited to DIY installers and professional shops installing on sedans, pickups, RVs, trucks, trailers and many universal applications.
