JDMSPEED Water Temperature Gauge 2" (52mm) — 12V Coolant Temp 40–130°C with Yellow LED, 1/2" NPT Sensor

The JDMSPEED 2" (52mm) Water Temperature Gauge is a universal 12V automotive instrument that accurately displays coolant temperature from 40–130℃ (110–265℉) with a threaded 1/2" NPT sensor and yellow LED dial illumination.

This compact 52mm gauge provides a clear, vintage-style readout for cars, trucks, and custom builds that use a 12V electrical system. It combines a sensitive internal movement with selectable Celsius or Fahrenheit display, 1.8m of cable for flexible routing, and a threaded brass sensor to fit engines accepting a 1/2" NPT probe. The yellow LED backlight improves visibility at night without overwhelming the dash.

How accurate and responsive is this JDMSPEED water temperature gauge?

The gauge is designed for practical daily monitoring rather than laboratory precision; it reacts quickly to changes in coolant temperature so you can spot abnormal rises or drops while driving. The internal sensing mechanism is optimized for automotive use and built to give repeatable results under normal operating conditions.

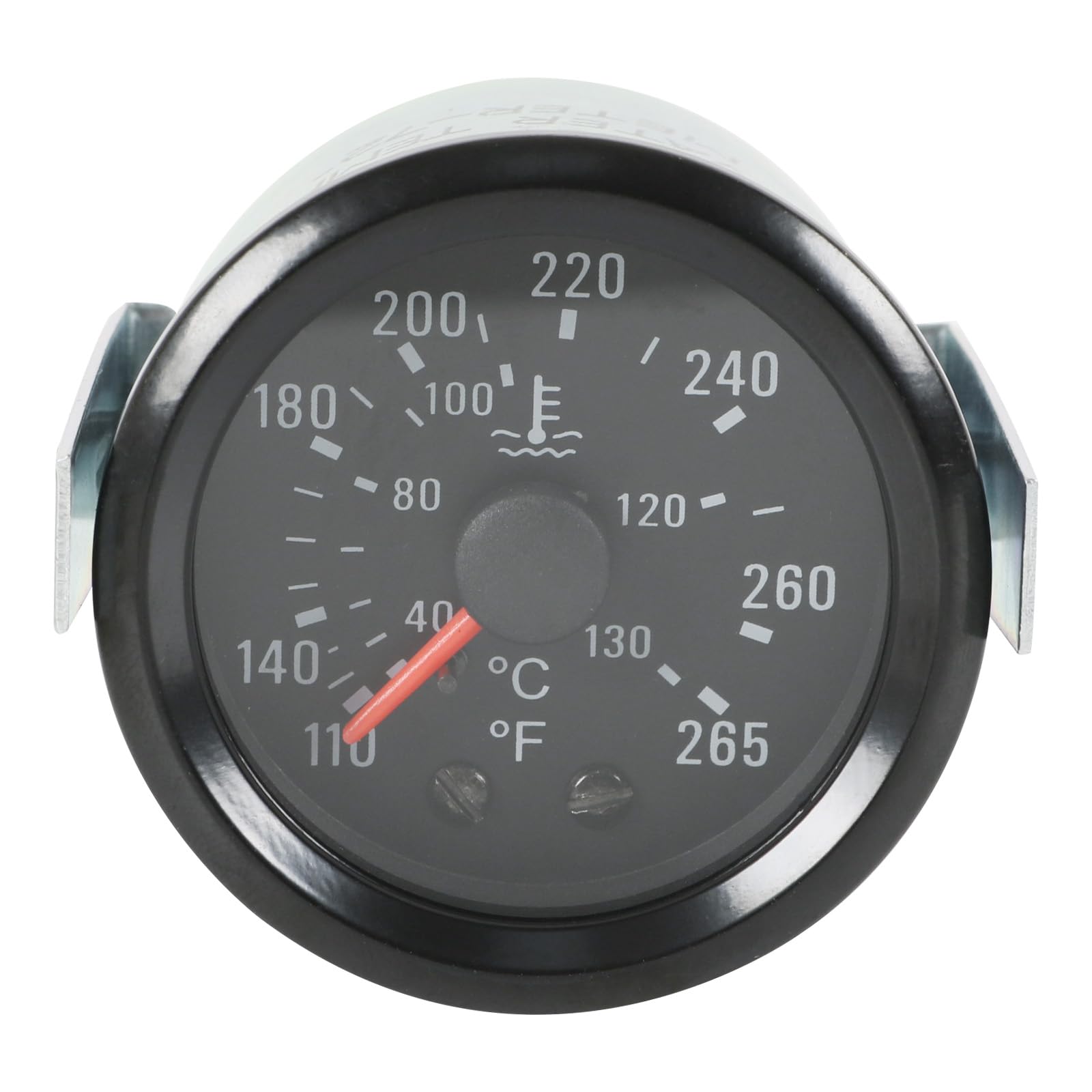

• Measurement range: 40–130℃ (110–265℉)
• High-sensitivity internal movement for fast response
• Selectable display units: ℃ and ℉
• Consistent readings suitable for routine engine monitoring

Will this gauge fit my vehicle and how is it installed?

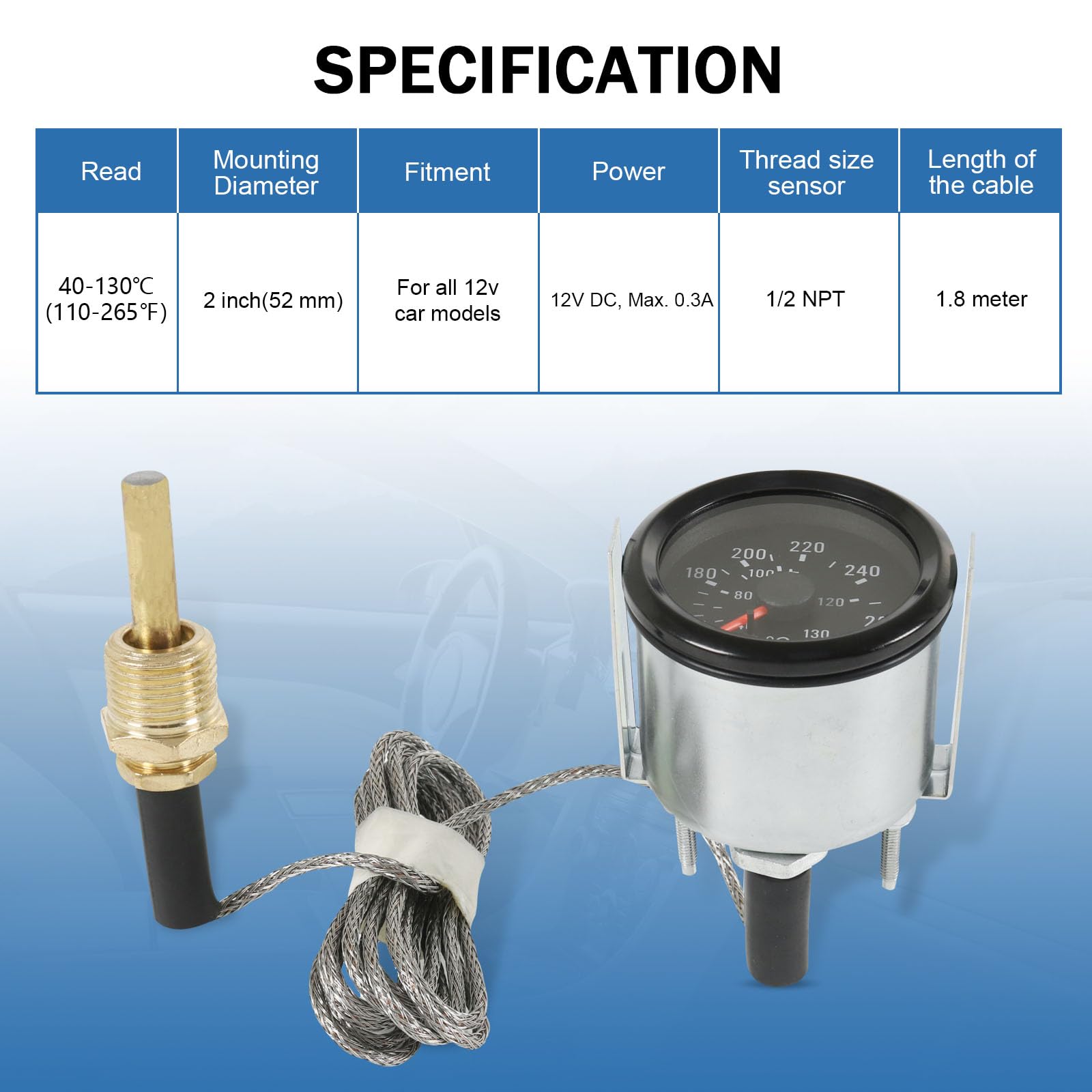

This JDMSPEED gauge is intended for all 12V vehicles that accept a 1/2" NPT temperature sensor. The 52mm (2") face fits standard gauge pods and dashboard cutouts; the included sensor uses 1/2" NPT threading, so confirm your engine or adapter accepts that thread size before ordering.

• Gauge diameter: 52mm / 2" — fits common gauge holes
• Sensor thread: 1/2" NPT — standard automotive fitting
• Power requirements: 12V DC, max 0.3A — typical vehicle electrical draw
• Cable length: 1.8 meters for flexible routing to the sensor

How does the gauge perform at night and in tight dash locations?

The face uses a yellow LED backlight that keeps numbers legible without creating glare, making it practical for nighttime driving and low-light conditions. The slim body and long wiring let you mount the instrument in cramped dash spaces or aftermarket pods with minimal alteration.

• Yellow LED dial illumination for clear night reading
• Slim gauge body suitable for shallow mounting wells
• 1.8m cable to reach sensors in tight engine bays
• Lightweight construction reduces stress on mounting brackets

What should I check before purchasing this JDMSPEED temperature gauge?

Verify that your vehicle runs on 12V, that the installation hole is compatible with a 52mm gauge, and that the engine accepts a 1/2" NPT sensor or you have an appropriate adapter. If you plan to integrate it with other instruments or a custom cluster, allow for the wiring route and LED orientation.

• Confirm vehicle electrical system is 12V
• Measure dashboard or pod cutout — 52mm required
• Ensure engine thread compatibility or source adapter for 1/2" NPT
• Plan wiring path for the 1.8m cable to the sensor location

Who is this for: The JDMSPEED 2" Water Temperature Gauge is suited to car owners, mechanics, and custom-build enthusiasts who want a compact, retro-styled coolant thermometer with easy-to-read lighting and broad compatibility. It works well for daily drivers, project cars, race-support vehicles, and restorations where a reliable, visually distinct temperature readout is desired. If you need factory-level precision for critical testing, consider a calibrated lab instrument; for in-vehicle monitoring and improved dash visibility, this gauge is a practical, cost-effective choice.
