ReluxGo Inner CV Axle Puller Kit — 5/8"-18 Slide Hammer, 63mm & 48mm Forks, Steel Cable Adapter

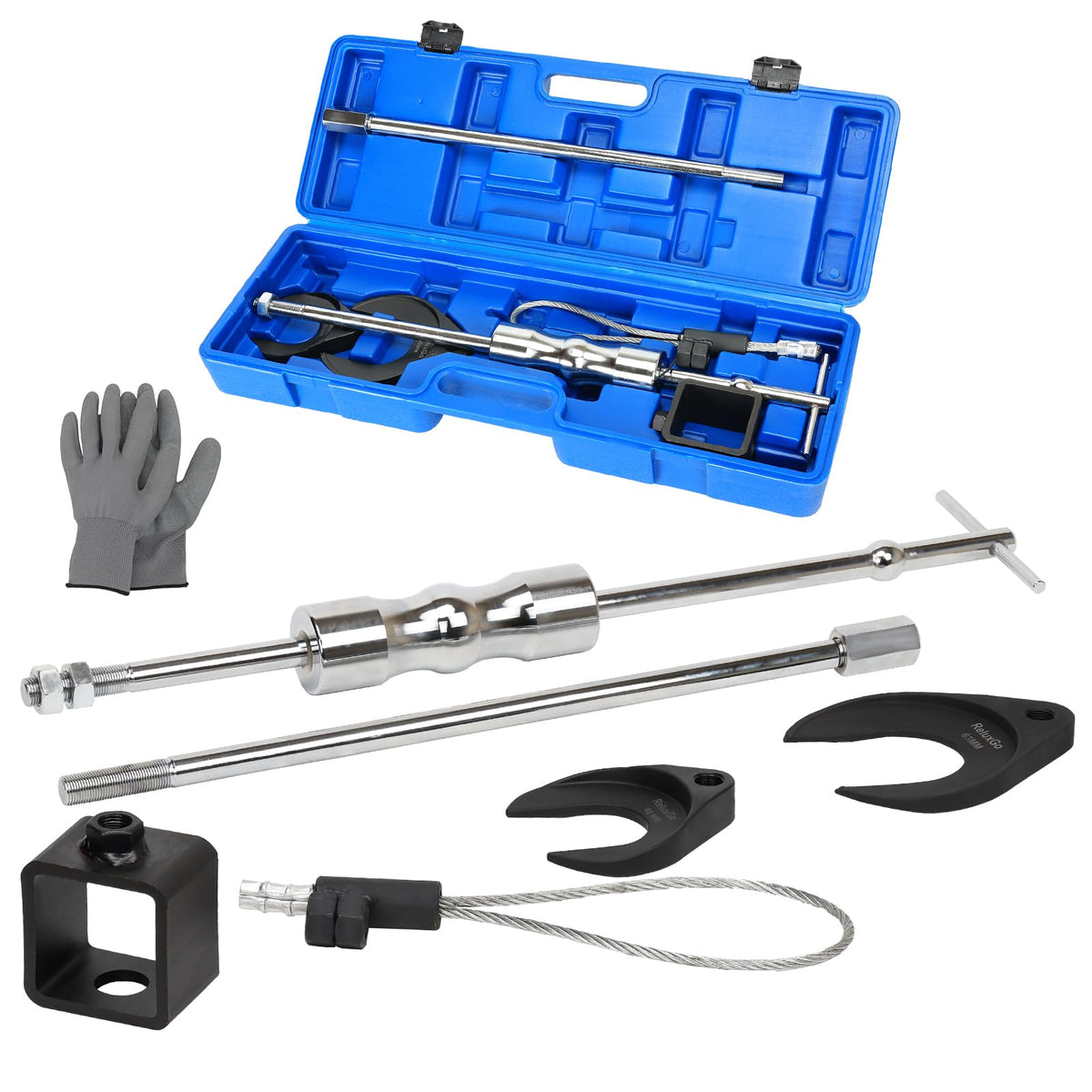

The ReluxGo Inner CV Axle Puller is a complete slide-hammer removal kit designed to extract inner and outer CV shafts quickly using a 5/8"-18 slide hammer, interchangeable 63mm and 48mm forks, and a heavy-duty steel cable adapter.

When you need to remove stubborn CV axles without cutting or damaging surrounding components, this ReluxGo kit provides the specialized adapters and a reinforced extension pole to attach to a slide hammer and create controlled pulling force. Built from heat-treated AISI 1045 medium carbon steel, the components resist wear and corrosion so they stay accurate and dependable in the garage or on the job site.

How does the kit attach to my slide hammer and create pulling force?

The kit uses a standard 5/8"-18 threaded connection to mate directly with most slide hammers. Once threaded, you position the selected CV fork or adapter behind the inner shoe or around the outer joint, then use the slide hammer to deliver axial impact forces that free the shaft.

• 5/8"-18 threaded interface for common slide hammers

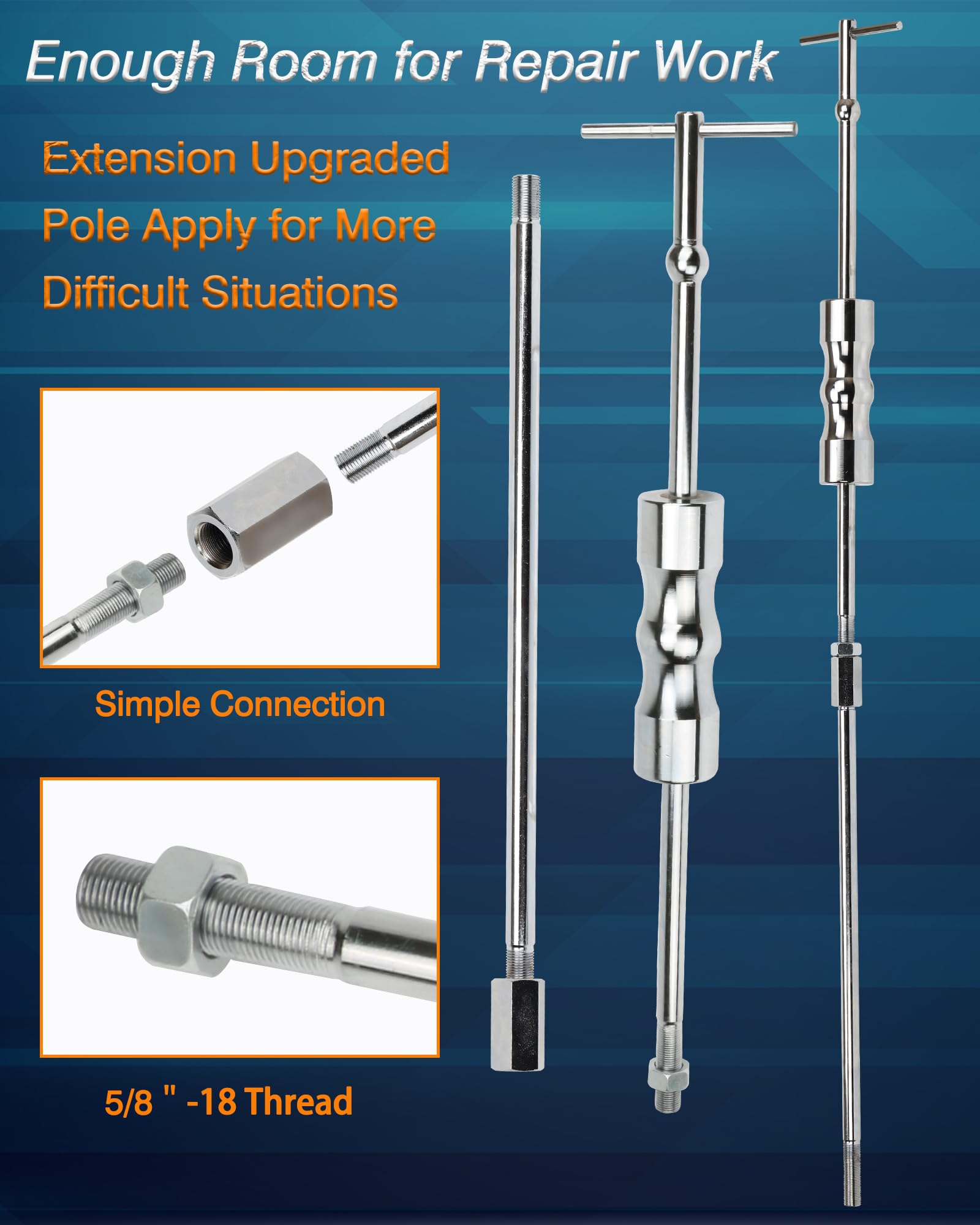

• Upgraded extension pole provides reach into tight assemblies

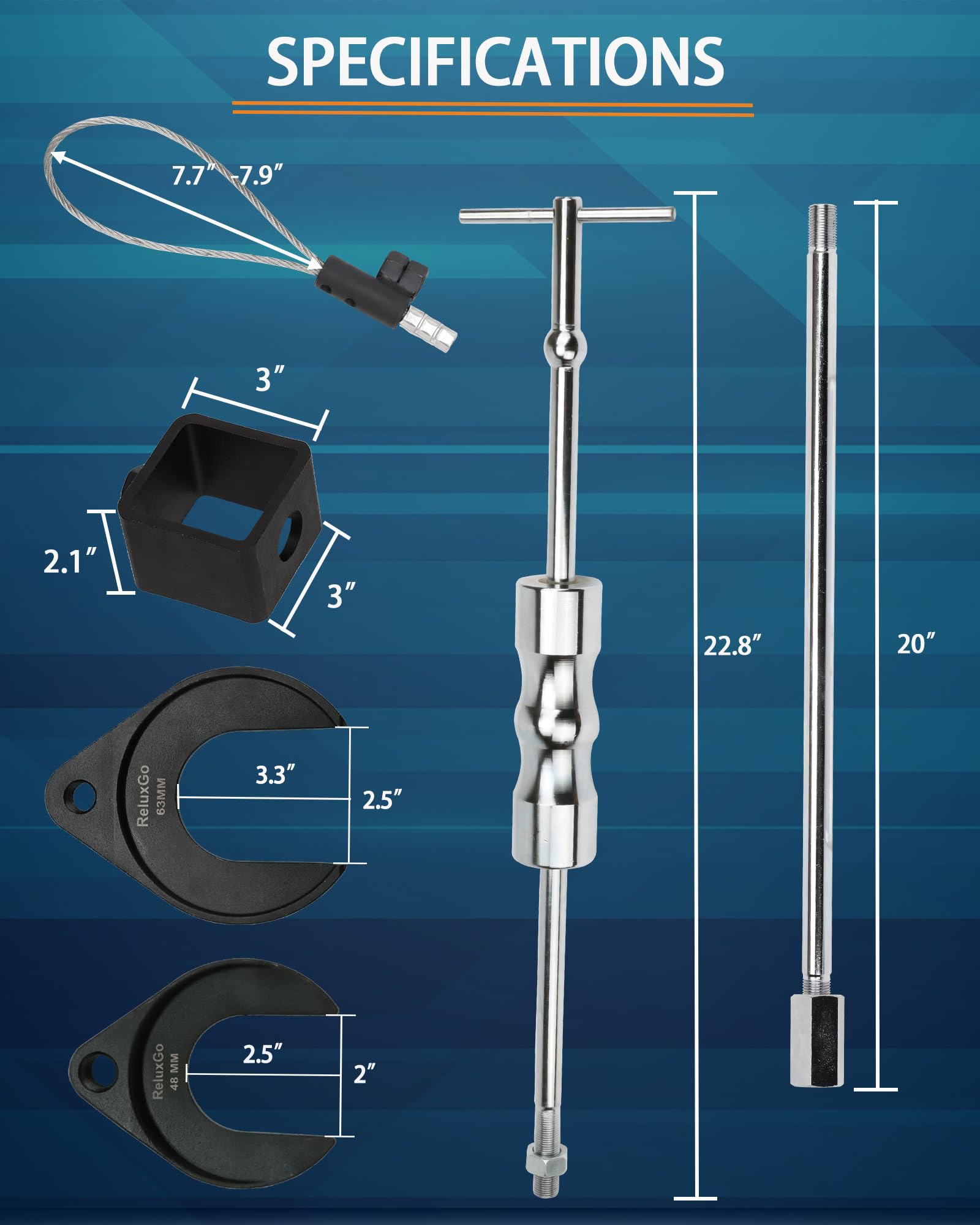

• Steel cable adapter option for non-fork extraction situations

Which CV joint sizes and configurations does this tool fit?

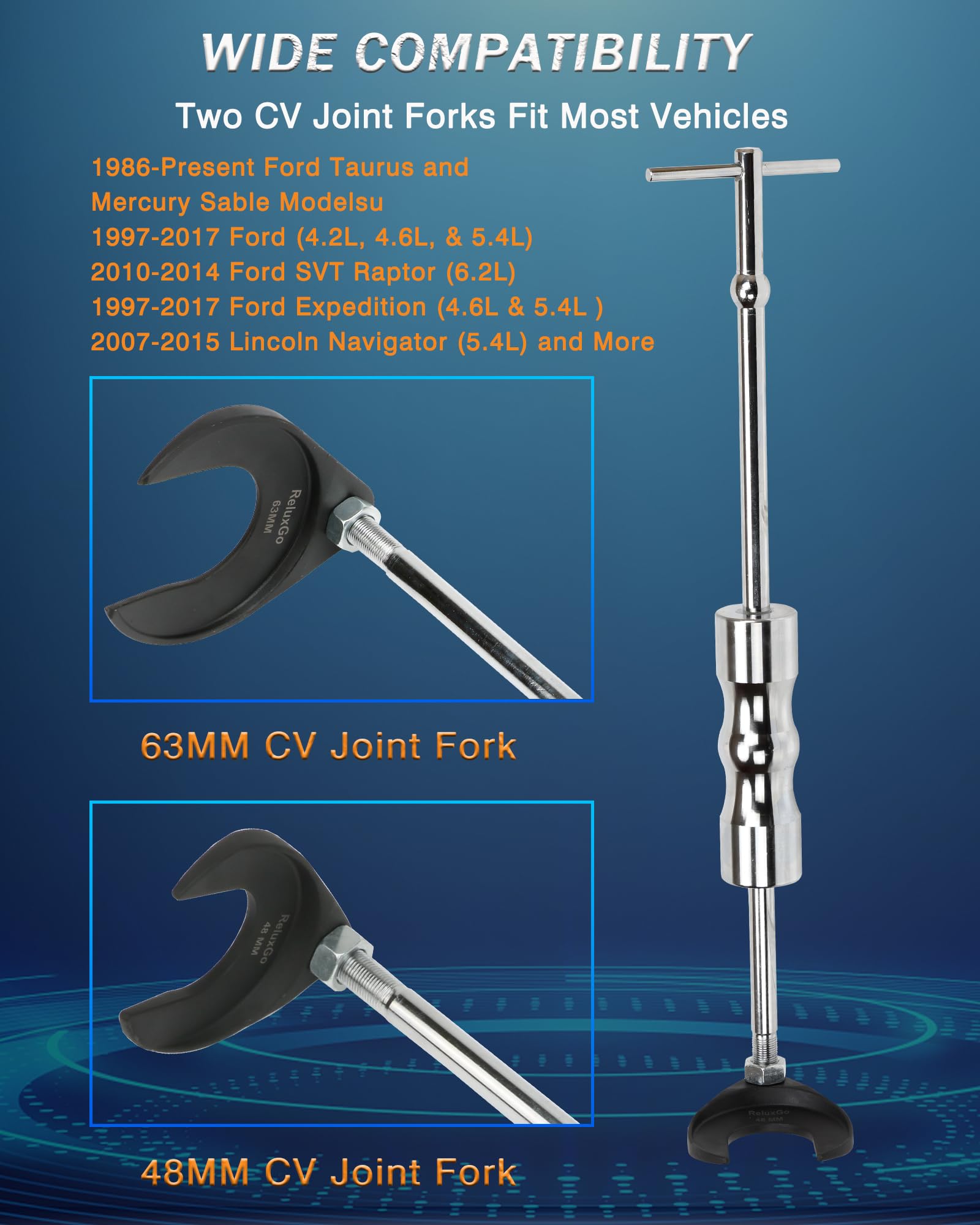

ReluxGo supplies two fork sizes—63mm and 48mm—to match a wide range of inner CV shoes and joint geometries, plus an outer CV joint adapter for external pulls. These interchangeable heads let you work on different vehicles without improvising or risking damage to the axle or hub.

• 63mm fork for larger inner shoes and heavy-duty joints
• 48mm fork for compact or smaller-diameter CV assemblies

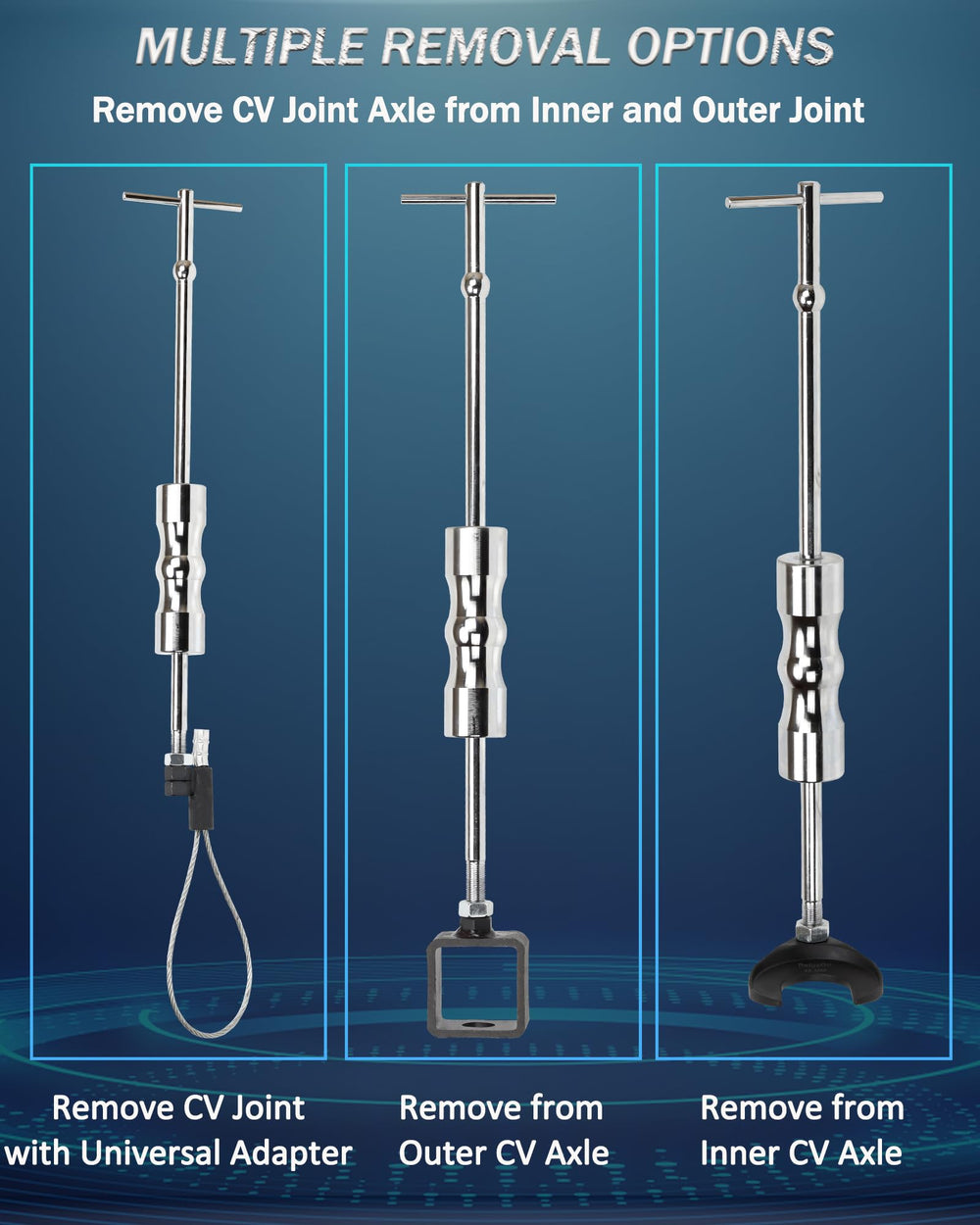

• Outer CV adapter and cable option for flange or snapped-shaft extractions

What materials and construction ensure durability and safety?

All load-bearing parts are forged from AISI 1045 medium carbon steel and heat-treated to increase hardness and fatigue resistance. That combination yields a balance of toughness and wear resistance so threads and engagement surfaces hold up to repeated slide-hammer impacts.

• Heat-treated AISI 1045 steel for strength and longevity
• Corrosion-resistant finish to reduce surface wear
• Precision-threaded connections to minimize slippage during impact

How do I use the different adapters for a safe removal?

Select the fork or adapter that sits flush behind the inner shoe or around the outer joint, secure it to the slide hammer via the upgraded pole, and apply controlled strikes until the axle releases. Work methodically and protect surrounding components with prying blocks or soft jaws to avoid accidental damage.

• Choose the correctly sized fork before threading to the hammer
• Use steady, measured slide-hammer blows rather than extreme force
• Support hub and suspension parts to prevent bending or scoring

Who this is for: The ReluxGo Inner CV Axle Puller kit is aimed at professional mechanics, mobile technicians, and experienced DIYers who encounter seized or tightly seated CV shafts. If you frequently service front-wheel-drive or all-wheel-drive drivetrains and need a non-destructive extraction method, this set supplies the reach, adapters, and hardened components required for repeatable, safe removals.
