SEHNSUCHT 12" x 2" Trailer Brake Drum Kit 8-Lug 8 on 6.5" for 7000 lb Axles — Forged Iron, Electroplated Finish

SEHNSUCHT’s 12" x 2" trailer brake drum kit is a complete 8-lug replacement assembly engineered to restore braking performance on 7000 lb axles with an 8 on 6.5" bolt pattern.

This kit bundles a forged iron brake drum with corrosion-resistant electroplating plus the bearings, grease seal, dust cap and hub nuts needed to get an axle back on the road. It’s built to mate with a #42 spindle and standard lube axle configurations, making it a straightforward swap for many RVs, trailers and light-duty semi applications. The design focuses on reliable mechanical fit, rust protection and straightforward installation when replacing a worn or damaged hub drum assembly.

What components are included and why does that matter?

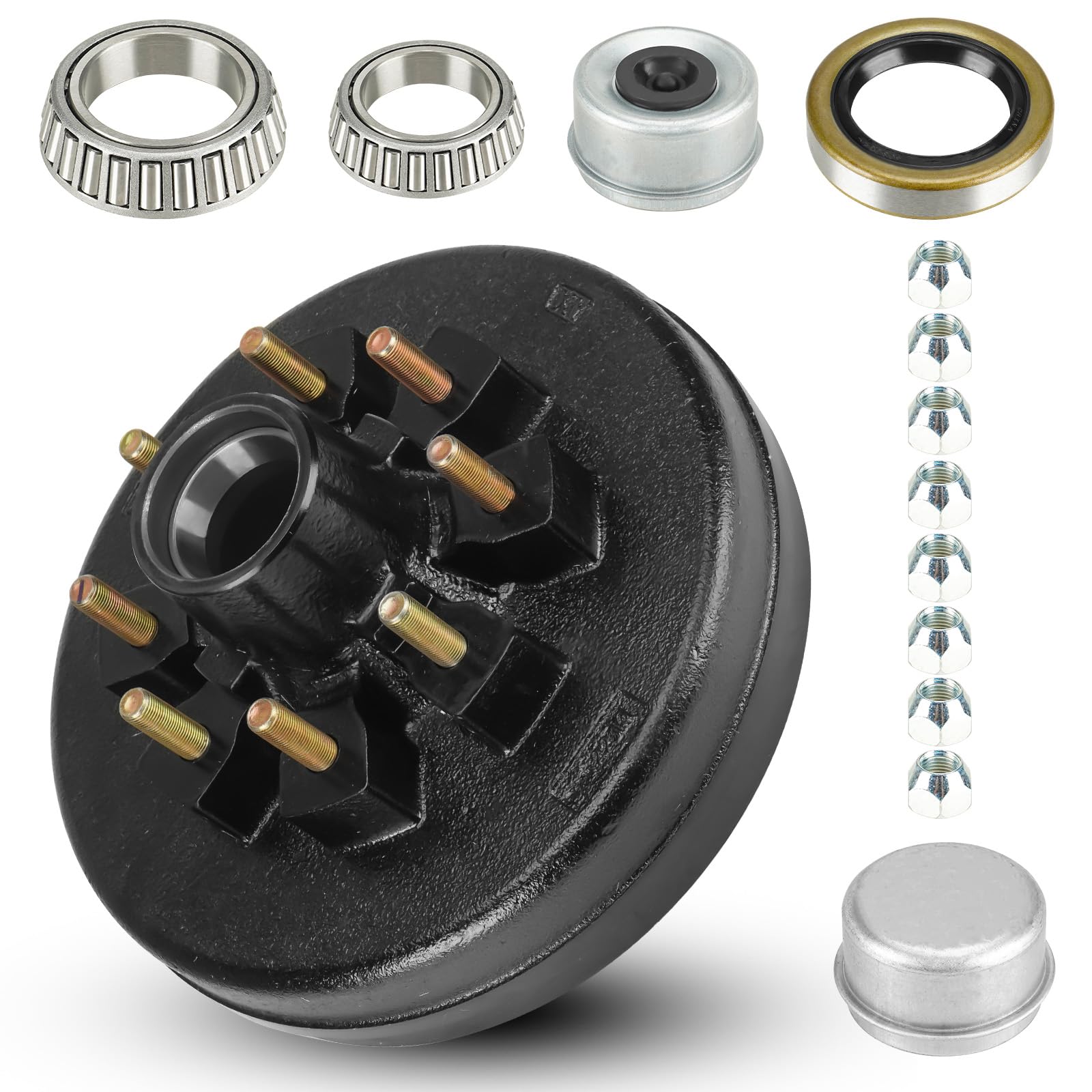

The kit arrives ready to install with the drum and all common hub components so you won’t need to source additional parts. Having matched bearings and seals in the box reduces downtime and ensures the lubrication interfaces and dust protection are correct for the drum.

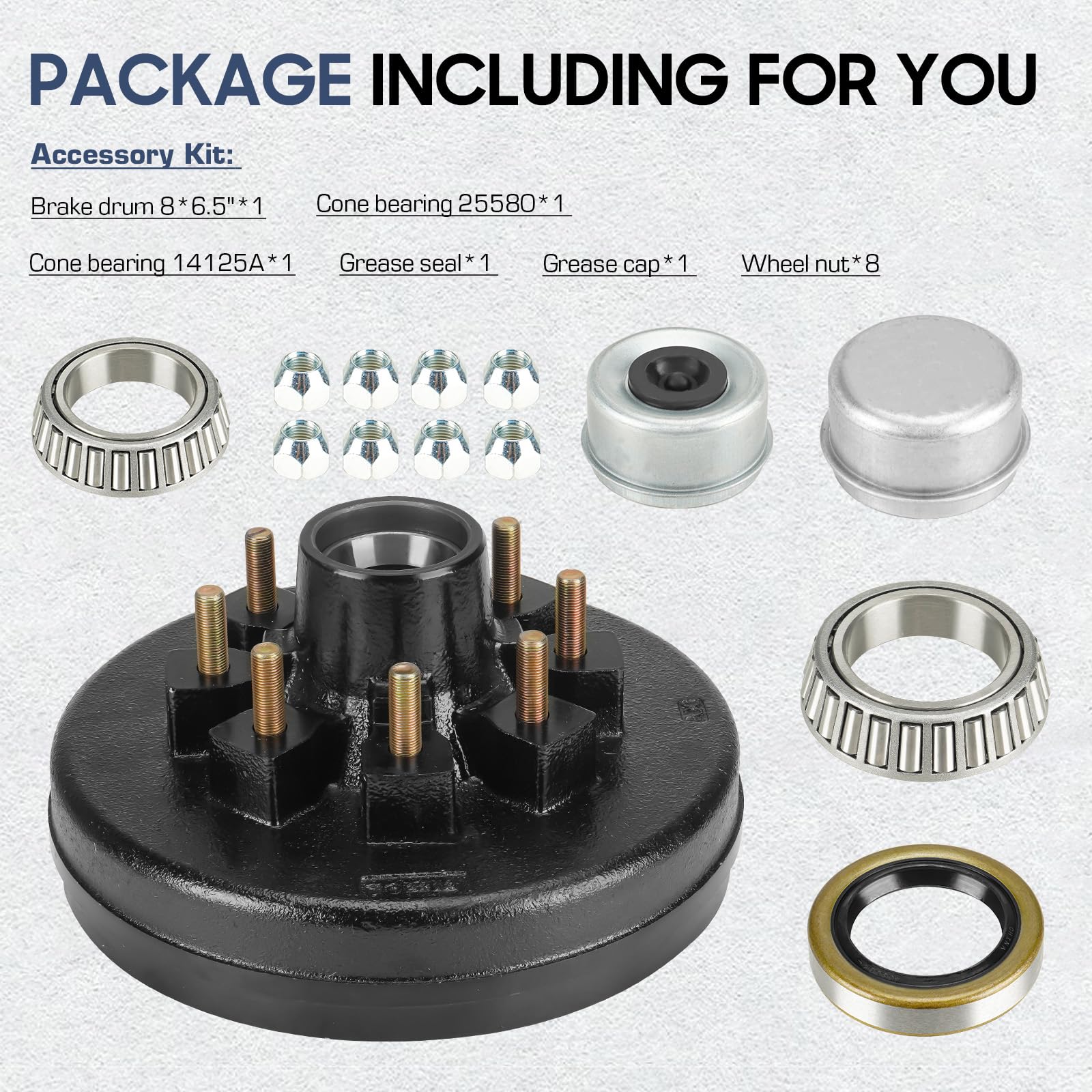

• One 12" x 2" brake drum pre-fitted for 8 on 6.5" bolt circle applications

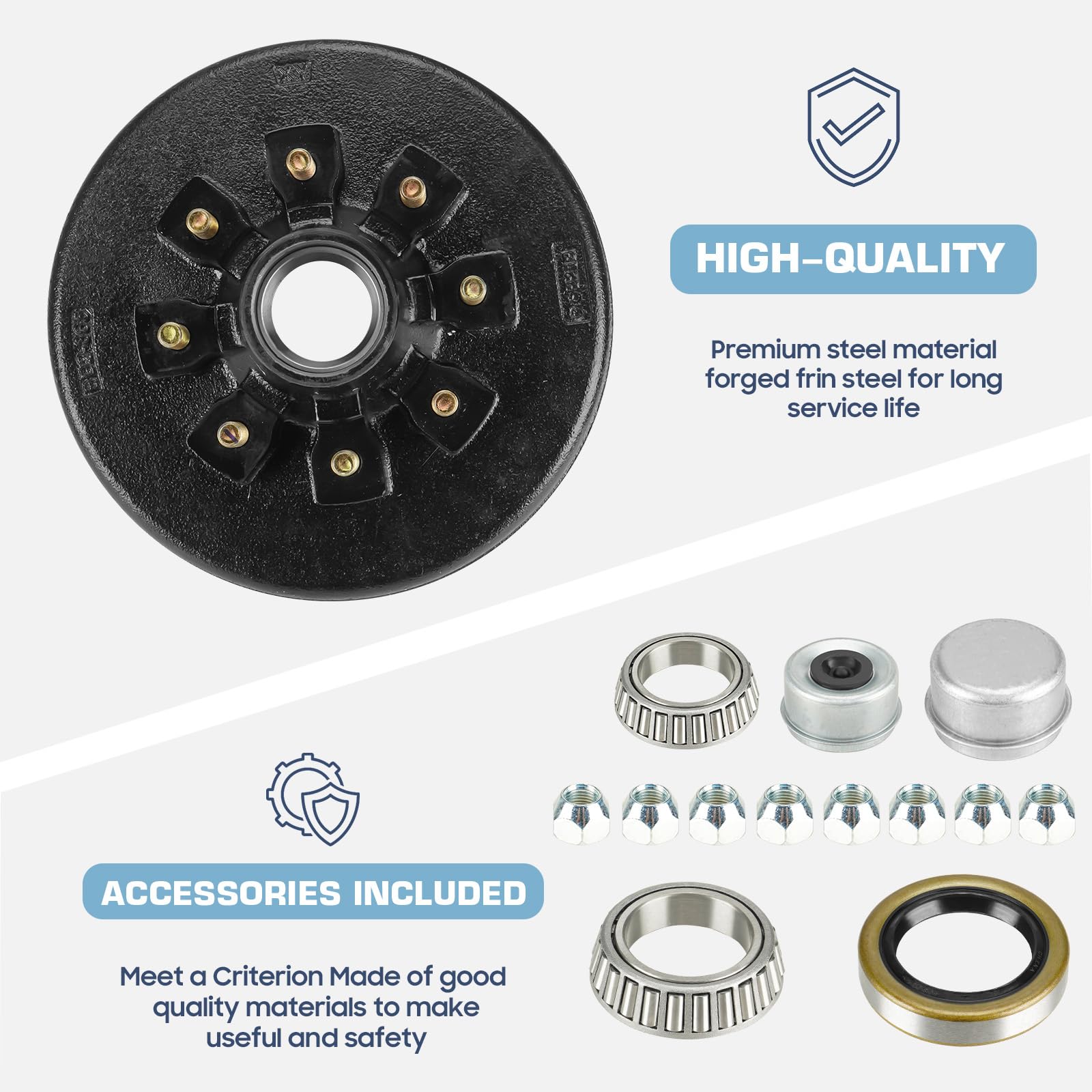

• Two inner bearing races (for 25580 and 14125A replacements) to match spindle fit
• One grease seal and one metal dust cap plus a rubber dust plug for environmental protection
• Eight hub nuts (9/16-18 UNF) ready for standard wheel installation

How does the material and finish affect longevity?

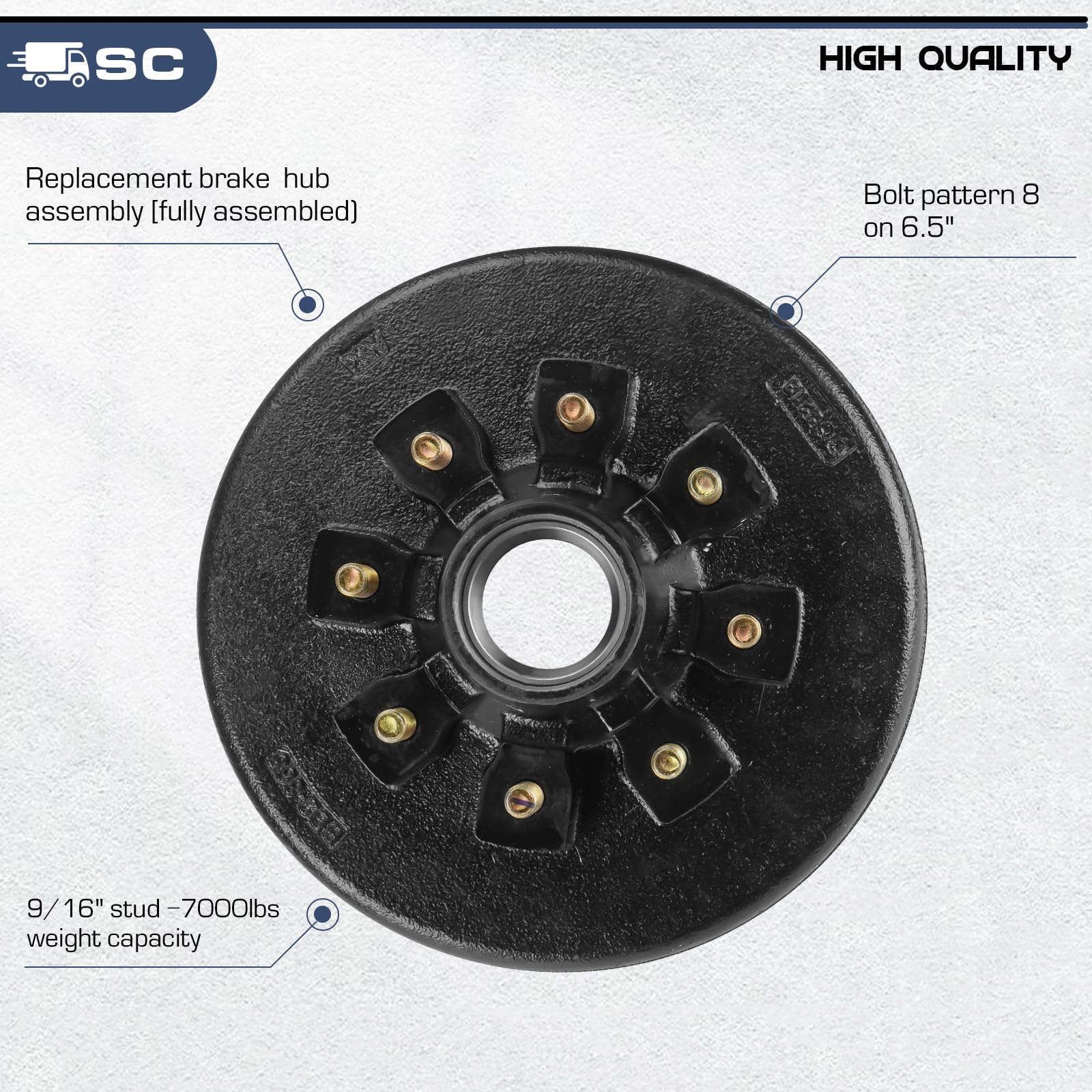

The drum is cast from high-quality iron and receives an electroplated finish that helps resist surface corrosion. That combination preserves the drum body and running surfaces so the assembly maintains fit and braking response through exposure to road salt, moisture and debris.

• Durable iron core for consistent heat dissipation under load
• Electroplating reduces rusting of the drum exterior and hub mounting surfaces
• Longer service life compared with untreated cast drums in harsh conditions

Will this fit my trailer or RV axle and spindle?

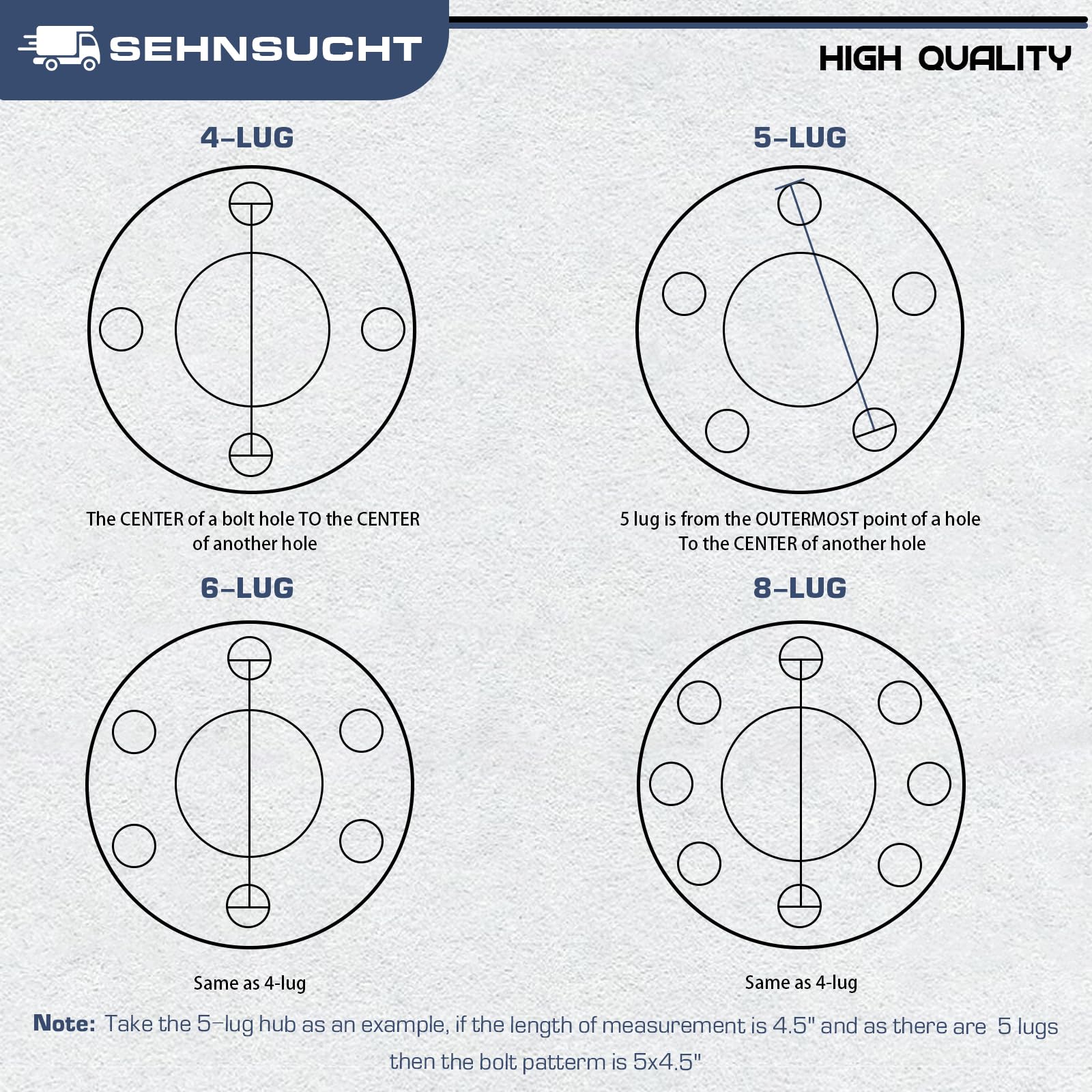

This drum is designed for 7000 lb axles using a #42 spindle and an 8 on 6.5" bolt circle wheel hub pattern. It is intended for standard lube axles; specific axle types with internal lubrication systems or certain manufacturer variants are excluded.

• Compatible with #42 spindle and standard lube axle setups
• Not compatible with Nev-R-Lube axles or Airstream Classic trailers built after July 2005
• Dust cap requires hammer seating during installation—plan accordingly

How straightforward is installation for a DIY mechanic?

Installation is typical for trailer hub drum swaps: remove the wheel and existing hub, press or set the provided races, fit the grease seal, slide the drum on the spindle, and secure with the supplied hub nuts and dust cap. If you’re comfortable with bearing adjustments and torque specs, this kit is suitable for a weekend repair.

• Includes matched bearings and seals to simplify rebuilds
• Requires basic tools: spanners, bearing packer/grease, hammer for dust cap, torque wrench
• Follow axle manufacturer torque and bearing preload specifications for safe operation

Who is this for: This SEHNSUCHT drum kit is intended for trailer owners, RV owners and fleet maintenance technicians who need a full hub drum replacement for 7000 lb axles with an 8 on 6.5" bolt pattern. It’s best for users working on standard-lube #42 spindle setups who want a corrosion-resistant drum plus the matching bearings, seal and hardware to complete the job in one purchase. If your trailer uses a Nev-R-Lube axle or a late-model Airstream Classic, verify compatibility before ordering.
